Study on Thermal Decomposition Kinetics of Calixarene

doi:10.19491/j.issn.1001-9278.2021.09.005

Abstract

Abstract:

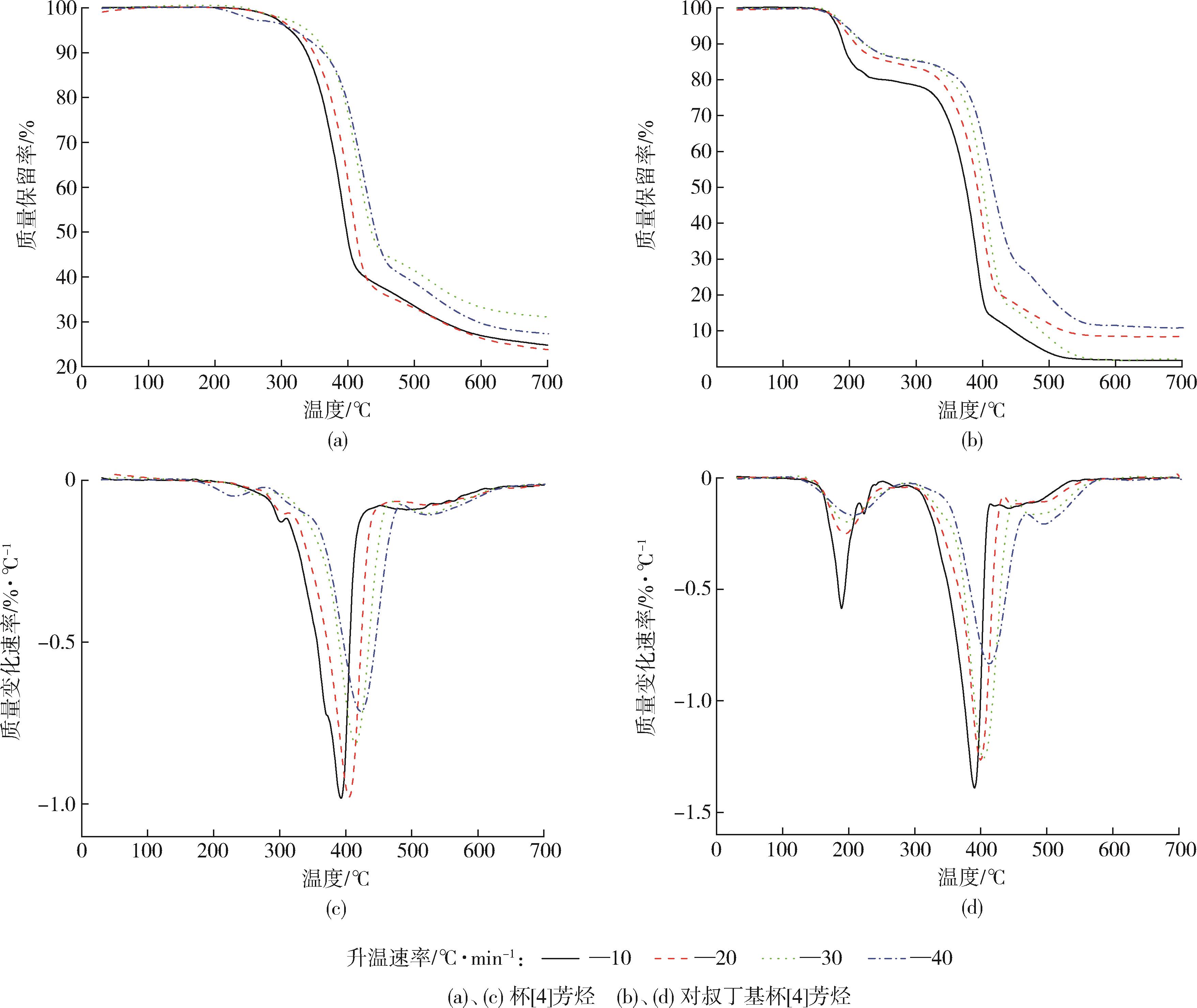

The thermal stability of calixarene and p?tert?butylcalixarene was studied by thermogravimetric analysis （TG） under a nitrogen atmosphere， and their apparent activation energy were calculated using the Kissinger’s and Flynn?wall?Ozawa’s methods. The thermal decomposition kinetic mechanisms and models were determined from the Coats?Redfern method. The apparent activation energy of calixarene was determined to be 166.64 kJ/mol and 175.79 kJ/mol through the Kissinger’s and Flynn?wall?Ozawa’s methods， respectively. The apparent activation energy of 4?tert?butylcalixarene were calculated to be 153.97 kJ/mol and 166.81 kJ/mol through the Kissinger’s and Flynn?wall?Ozawa’s methods， respectively. The results indicated that the thermal properties of two compounds were relatively stable in nitrogen， and their decomposition temperatures had a strong adaptability to polymer materials. The thermal decomposition mechanism function and reaction order of calixarene were determined to be g（α）=［-ln（1-α）］^3/2 and n =3/2， respectively. Its non?isothermal thermal decomposition mechanism belongs to the random nucleation and subsequent growth reaction. The thermal decomposition mechanism function and reaction order of 4?tert?butylcalixarene were determined to be g（α）=［-ln（1-α）］^2/3 and n=2/3， respectively. Its non?isothermal thermal decomposition mechanism belongs to the random nucleation and subsequent growth reaction. The thermal decomposition mechanism function and reaction order of 4?tert?butylcalixarene for the thermal decomposition process of benzene ring were determined to be g（α）=α² and n=2， respectively. Its non?isothermal thermal decomposition mechanism belongs to the one?dimensional diffusion reaction.

Key words: calixarene, 4?tert?Butylcalixarene, thermogravimetry, thermal decomposition, kinetics

CLC Number:

TQ314.2

ZHANG Dingran, LU Lingang. Study on Thermal Decomposition Kinetics of Calixarene[J]. China Plastics, 2021, 35(9): 27-33.

Figures/Tables 10

References 15

1	张开拓，左旻瓒，王开亚，等. 杯芳烃和柱芳烃桥梁部位的衍生及其功能化［J］. 中国科学：化学， 2021，51（1）：1⁃12.
	ZHANG K T， ZUO M Z， WANG K Y， et al. Meso Position Functionalized Calix［n］arenes and Pillar［n］arenes and Their Applications［J］. Scientia Sinica Chimica， 2021，51（1）：1⁃12.
2	YONGKAWA M， KIMURA H， OHTSUKA K. Mechanical Thermal and Dielectric Characterization of p⁃tert⁃Butylcalix［8］arene Glycidyl Ether/Benzoxazine Copolymer［J］. Chemistry Letters， 2020， 49（6）：601⁃604.
	ELCIN S， DELIGOZ H. Di⁃substituted Azocalix［4］Arenes Containing Chromogenic Groups：Synthesis， Characterization， Extraction， and Thermal Behavior［J］. Tetrahedron， 2013， 69（33）：6 832⁃6 838.
4	ZHU L H， ZHU Q D， ZHAO J， et al. Investigation of Thermal Properties and Growth Mechanisms of Nano⁃Porous Calix［4］arenes ［J］. Nanoscience and Nanotechnology Letters， 2015， 7（11）：939⁃944.
5	LAZZAROTTO M， NACHTIGALL F F ， SCHNITZLER E ， et al. Thermo Gravimetric Analysis of Supramolecular Complexes of P⁃tert⁃butylcalix［6］arene and Ammonium Cations： Crystal Structure of Diethylammonium Complex［J］. Thermochimica Acta， 2005， 429（1）：111⁃117.
6	GALINDO⁃GARCIA U ， TORRES L A. Crystal Structure at the Origin of the Thermal Stability and Large Enthalpy of Fusion and Sublimation Values of Calixarenes［J］. Crystal Growth & Design， 2020， 20（2）：1 302⁃1 310.
7	NING Y， CHEN Y C， WANG M C， et al. Calixarene⁃based Cyanate Ester Resin for High⁃temperature Material［J］. High Performance Polymers， 2019， 31（3）： 359⁃366.
8	MIRMOEINI M S， NIKJE M M A， RASOULI‐SANIABADI M， et al. Synthesis and Characterization of Functionalized Calix ［4］ arene Derivatives and Preparation of Rigid Polyurethane Foams by the Incorporation of Calixarene［C］//Macromolecular Symposia， 2017， 373（1）： 1600101.
9	MOHAMMADI A， BARIKANI M， DOCTORSAFAEI A H， et al. Aqueous Dispersion of Polyurethane Nanocomposites Based on Calix［4］arenes Modified Graphene Oxide Nanosheets： Preparation， Characterization， and Anti⁃corrosion Properties［J］. Chemical Engineering Journal， 2018， 349： 466⁃480.
10	QIAN X D， ZHENG K S， LU L G， et al.A Novel Flame Retardant Containing Calixarene and DOPO Structures： Preparation and Its Application on the Fire Safety of Polystyrene［J］. Polymers For Advanced Technologies， 2018 （29）：2 715⁃2 723
11	胡荣祖，高胜利，赵凤起，等.热分析动力学［M］.北京：科学出版社， 2001：99⁃101
12	胡小安，陈栋华，沈玉芳，等.对⁃叔丁基杯［4］的热力学和热分析动力学［J］.中南民族大学学报（自然科学版），2002（2）：12⁃15.
	HU X A， CHEN D H， SHEN Y F， et al. Thermal Analysis Kinetics and Thermodynamics of Calix ［4］Arene［J］. Journal Of Central South University For Nationalities （Natural Science Edition）， 2002（2）：12⁃15.
13	KISSINGER H E. Reaction Kinetics in Differential Thermal Analysis［J］. Analytical Chemistry， 1957， 29（11）：1 702⁃1 706.
14	OZAWA T. A New Method of Analyzing Thermogravimetric Data［J］. Bulletin of the Chemical Society of Japan， 1965， 38（11）：1 881⁃1 886.
15	COATS A W， REDFERN J P. Kinetic Parameters from Thermogravimetric Data［J］. Nature， 1964， 201：68⁃ 69.

β/℃·min^-1	材料	T_{5 %}/ ℃	T_max/℃	R_max/%·℃^-¹
10	杯［4］芳烃	313.4	383.5	-0.9813
10	对叔丁基杯［4］芳烃	180.8	188.9、390.9	-0.586 2、-1.390 9
20	杯［4］芳烃	321.2	405.7	-0.9776
20	对叔丁基杯［4］芳烃	188.2	194.0、399.5	-0.249 7、-1.265 5
30	杯［4］芳烃	339.0	415.2	-0.812 8
30	对叔丁基杯［4］芳烃	192.3	197.7、404.1	-0.196 6、-1.260 1
40	杯［4］芳烃	317.5	422.9	-0.715 2
40	对叔丁基杯［4］芳烃	197.4	204.6、411.5	-0.166 4、-0.833 6

β/℃·min^-1	材料	T_{5 %}/ ℃	T_max/℃	R_max/%·℃^-¹
10	杯［4］芳烃	313.4	383.5	-0.9813
10	对叔丁基杯［4］芳烃	180.8	188.9、390.9	-0.586 2、-1.390 9
20	杯［4］芳烃	321.2	405.7	-0.9776
20	对叔丁基杯［4］芳烃	188.2	194.0、399.5	-0.249 7、-1.265 5
30	杯［4］芳烃	339.0	415.2	-0.812 8
30	对叔丁基杯［4］芳烃	192.3	197.7、404.1	-0.196 6、-1.260 1
40	杯［4］芳烃	317.5	422.9	-0.715 2
40	对叔丁基杯［4］芳烃	197.4	204.6、411.5	-0.166 4、-0.833 6

β/ ℃·min^-1	T_p/K	（1/T_p）/ 1×10^-3 K^-1	ln（β/T_p²）/ k^-1·min^-1	E_K/kJ·mol^-1
10	665.49	1.502	-10.698	166.64
20	678.70	1.473	-10.044
30	688.21	1.453	-9.666
40	695.86	1.437	-9.401

β/ ℃·min^-1	T_p/K	（1/T_p）/ 1×10^-3 K^-1	ln（β/T_p²）/ k^-1·min^-1	E_K/kJ·mol^-1
10	665.49	1.502	-10.698	166.64
20	678.70	1.473	-10.044
30	688.21	1.453	-9.666
40	695.86	1.437	-9.401

β/℃·min^-1	T_p/K	（1/T_p） /1×10^-3 K^-1	ln（β/T_p²） /k^?1·min^-1	E_K/kJ·mol^-1
10	461.91	2.165	-9.968	153.97
20	466.97	2.141	-9.297
30	470.73	2.124	-8.907
40	477.61	2.094	-8.649
