Curing reaction kinetics of epoxy/glass fiber prepregs for compression molding

doi:10.19491/j.issn.1001-9278.2021.12.014

Abstract

Abstract:

The curing reaction process of epoxy/glass fiber prepregs for compression molding was studied using a dynamic DSC method. The curing kinetic parameters of the prepregs were obtained using the Kissinger′s and Crane′s methods， and the phenomenological curing kinetic model was established. The gelation time of the prepregs were obtained using a free rotor vulcanizer at different temperatures. The functional relationship between the curing temperature and gelation time was calculated through a linear fitting method， and the curing process of the prepregs was optimized. The results indicated that the apparent activation energy， pre?exponential factor， and the reaction order of the prepregs were calculated to be 89.9 kJ/mol， 1.17×10¹¹ and 0.93， respectively， through the Kissinger and Crane methods. The epoxy resin exhibited a certain mobility when the molding temperature and preheating time were set as 150 ℃ and 40 s， respective. The composites presented optimal comprehensive properties after holding 300 s at a molding pressure of 2 MPa.

Key words: epoxy, glass fiber, prepreg, curing kinetics, compression molding process, composite

CLC Number:

TQ323.5

PENG Xinlong, ZENG Yuqing, LIANG Zhuoen, XIE Yi. Curing reaction kinetics of epoxy/glass fiber prepregs for compression molding[J]. China Plastics, 2021, 35(12): 81-87.

Figures/Tables 15

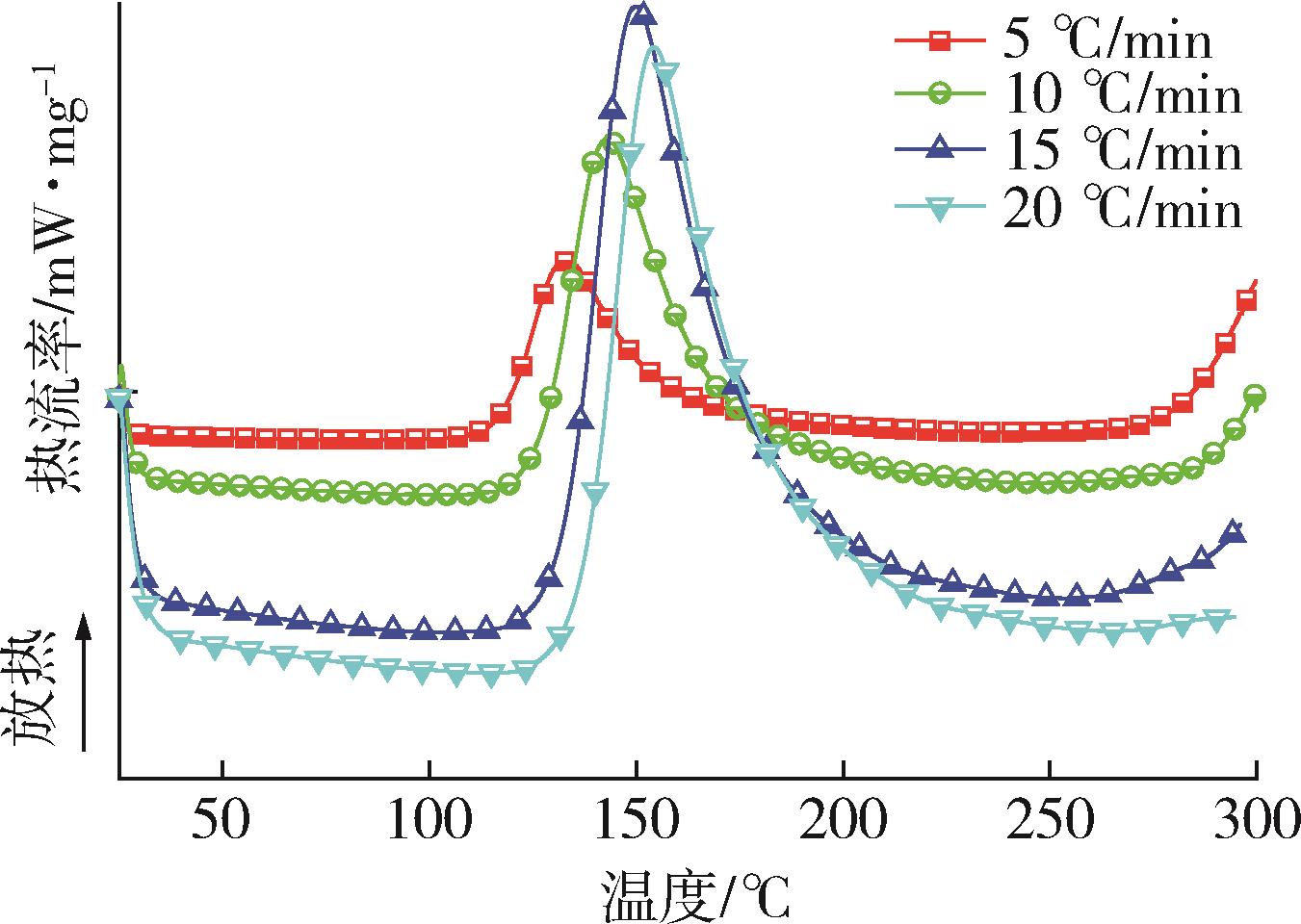

Fig.1. DSC curves of the PCM prepregs at different heating rates

β/℃·min^-1	T_i/℃	T_p/℃	T_f/℃	$?$ H/J·g^-1
5	117.7	133.6	175.6	89.2
10	125.2	143.5	183.5	99.2
15	132.2	150.1	191.5	97.7
20	136.7	154.1	199.7	94.9

β/℃·min^-1	T_i/℃	T_p/℃	T_f/℃	$?$ H/J·g^-1
5	117.7	133.6	175.6	89.2
10	125.2	143.5	183.5	99.2
15	132.2	150.1	191.5	97.7
20	136.7	154.1	199.7	94.9

Tab.1. Dynamic DSC parameters of the PCM prepregs

Fig.2. Curves of the curing degree?temperature

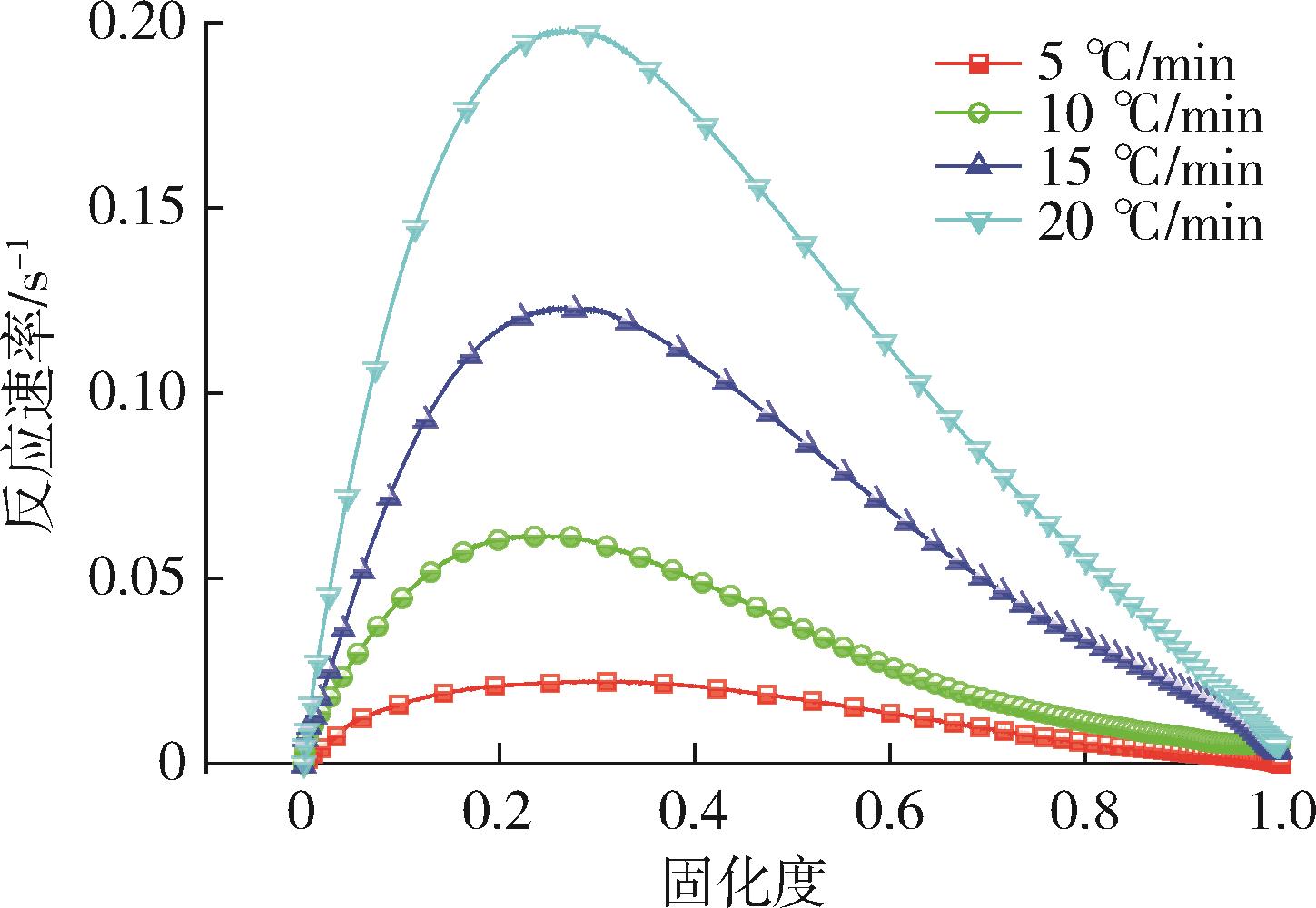

Fig.3. Relationship between reaction rates and curing degree under non?isothermal conditions

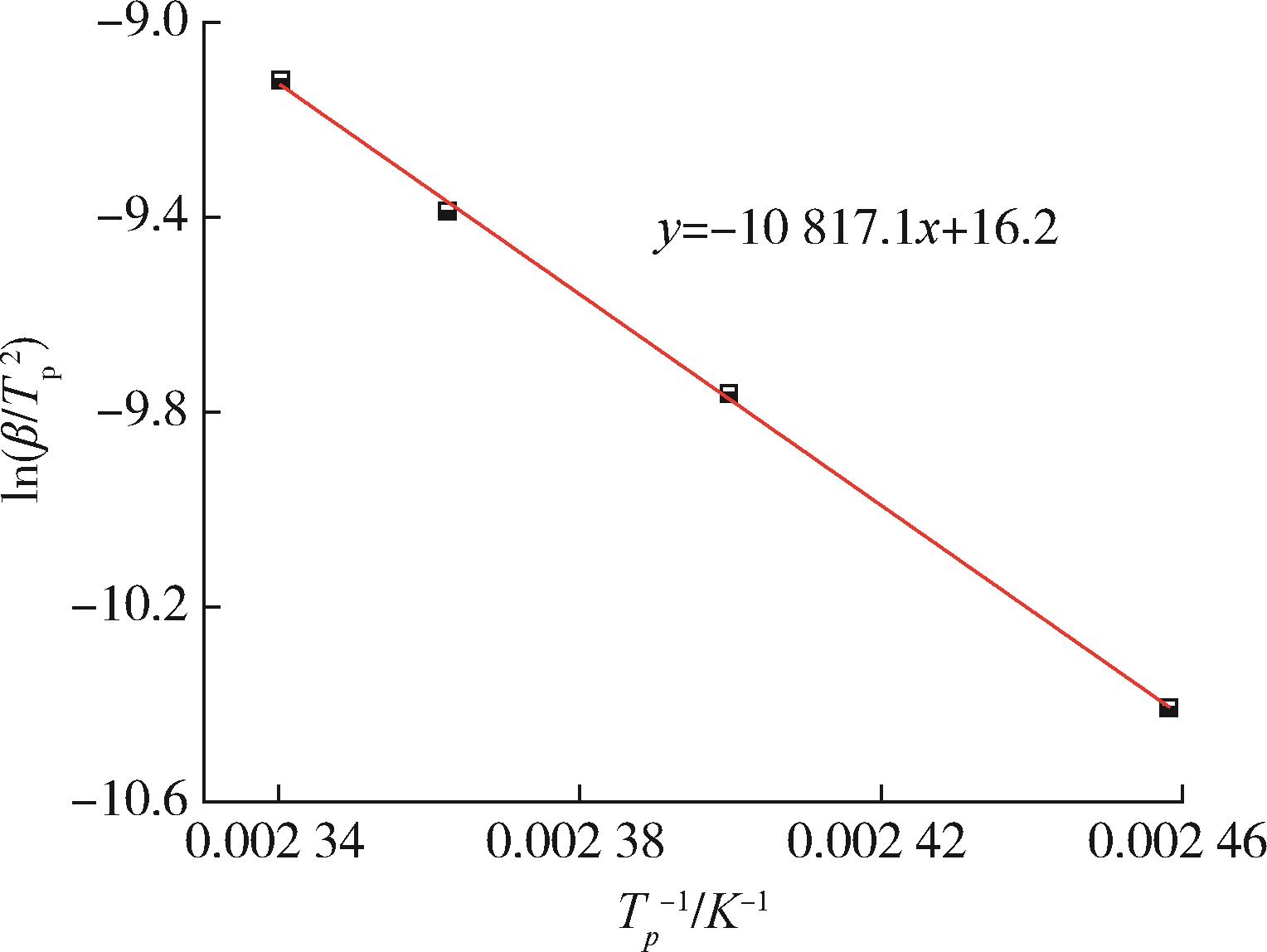

Fig.4. Linear fit curve from Kissinger method

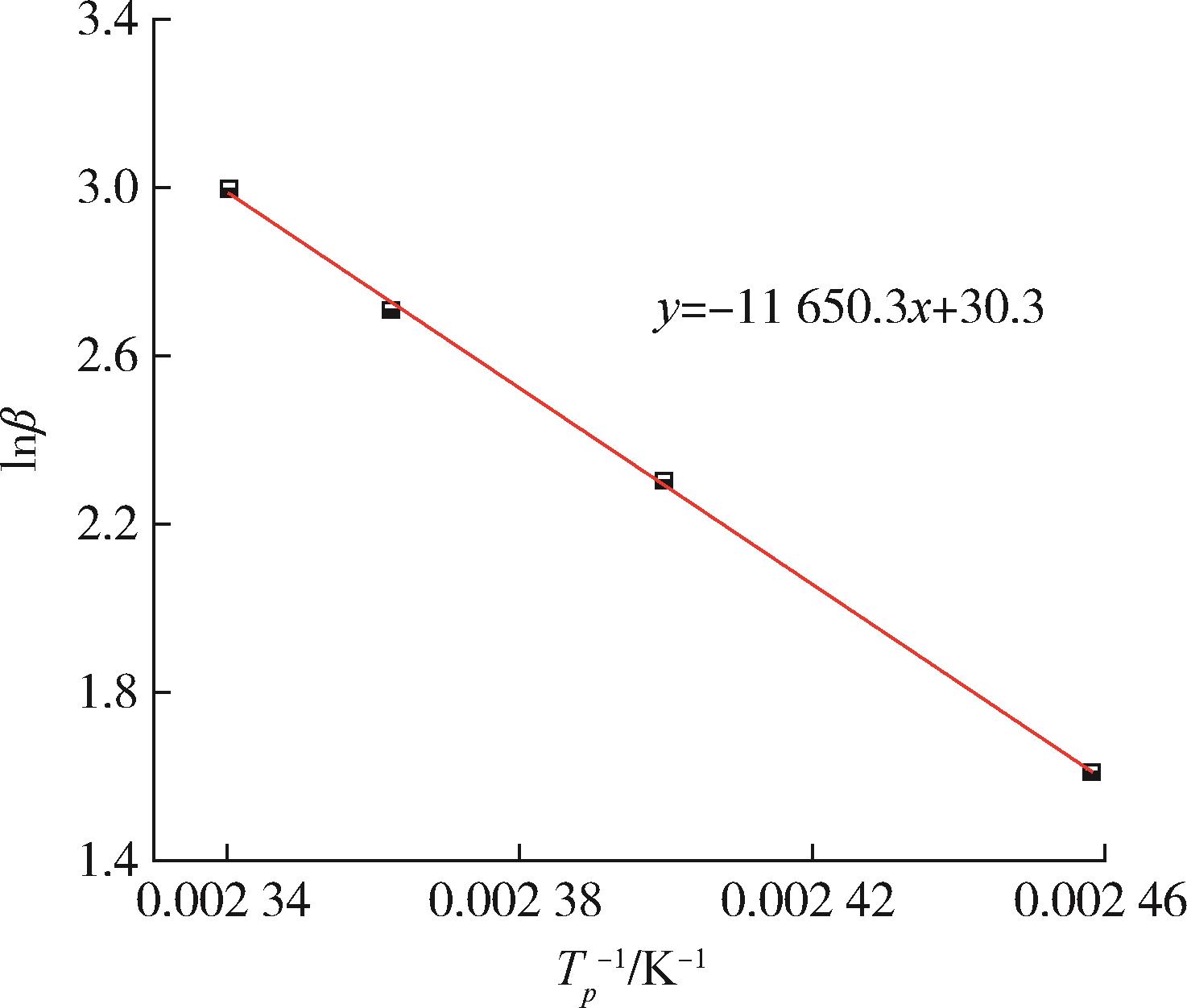

Fig.5. Linear fit curve from Crane method

Fig.6. Relationship between curing degree and time at different curing temperatures

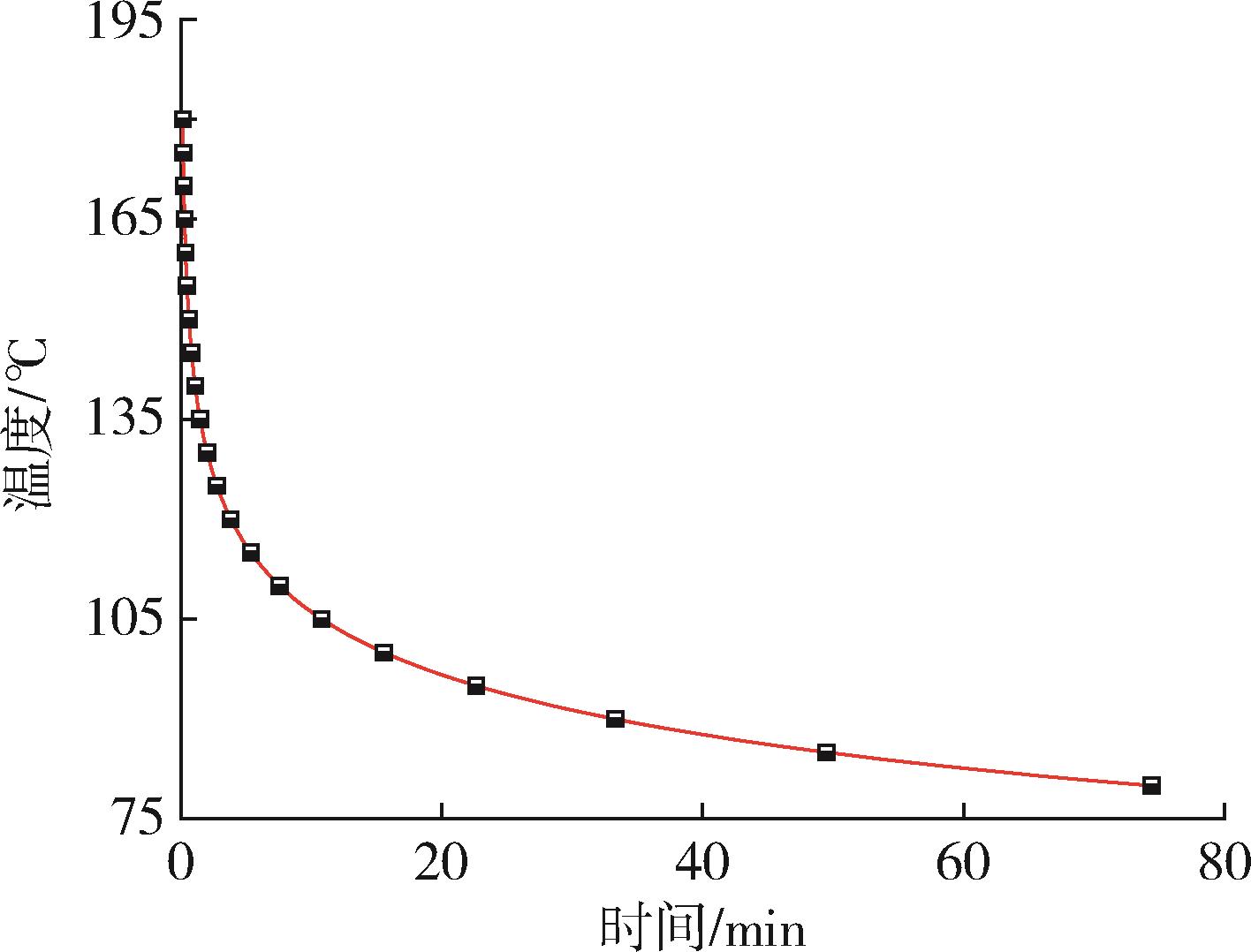

Fig.7. Relationship between curing temperature and curing time at different curing degree

固化温度/℃	时间/min
固化温度/℃	α=0.9	α=0.95	α=0.99
110	36.3	46.3	62.2
120	17.2	215.0	32.1
130	9.0	11.4	16.4
140	4.5	6.1	8.5
150	2.6	3.3	5.0

Tab.2. Time required to reach a specific curing degree of the prepreg at different temperatures

固化温度/℃	凝胶时间/min
110	7.8
120	3.6
130	2.1
140	1.0
150	0.6

Tab.3. Gelation time of the prepreg at different curing temperature

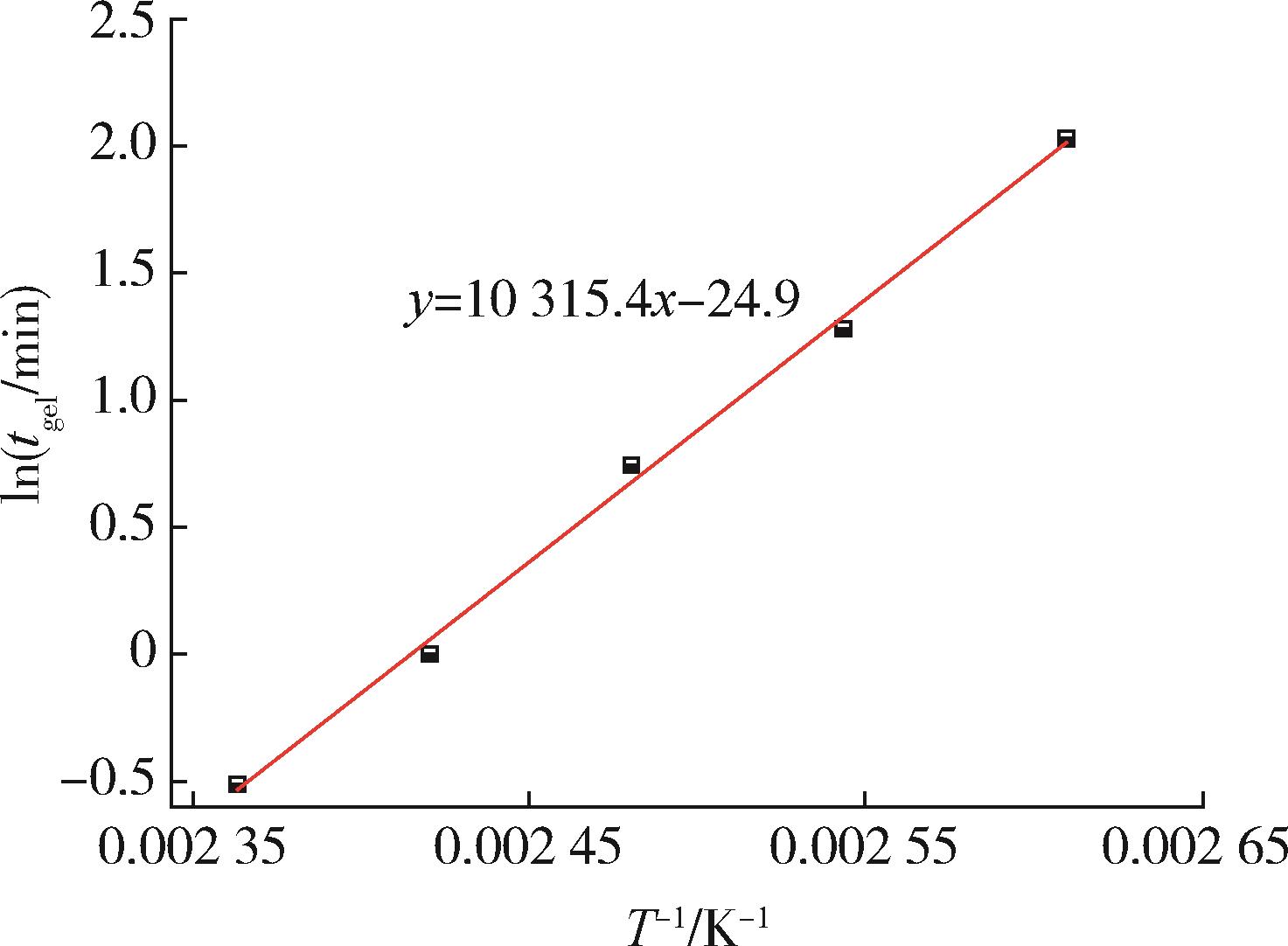

Fig.8. Fitting curve of gelation time and temperature of the PCM prepreg

Fig.9. Gelation curve of the PCM prepreg

水平	预热时间（A）/s	固化时间（B）/s	固化压力（C）/MPa
1	20	180	2
2	30	300	3
3	40	420	4

Tab.4. Orthogonal experiment for the PCM prepreg

试验号	溢胶量/%	拉伸强度/MPa	拉伸模量/GPa	弯曲强度/MPa	弯曲模量/MPa	T_g/℃
A₁B₁C₁	14.0	414.2	20.0	493.5	25.7	115.4
A₁B₂C₂	15.7	490.6	22.7	564.2	32.7	124.6
A₁B₃C₃	18.1	538.6	28.6	768.7	35.9	130.8
A₂B₁C₂	11.2	501.8	26.8	698.3	32.8	111.5
A₂B₂C₃	9.3	455.0	22.8	618.9	29.4	108.4
A₂B₃C₁	10.6	504.5	25.6	479.4	30.4	113.7
A₃B₁C₃	8.5	528.7	28.9	725.5	29.4	113.7
A₃B₂C₁	4.5	541.9	28.4	772.6	30.3	125.6
A₃B₃C₂	6.2	498.6	27.7	738.9	32.6	138.6

Tab.5. The test data of the composite?laminates

Fig.10. Pressure and curing degree curves of the prepreg under given compression molding progress

References 17

1	王汝敏，郑水蓉，郑亚萍.聚合物基复合材料［M］.北京：科学出版社2011：3⁃7.
2	阮班超，史同亚，王永刚.E玻璃纤维增强环氧树脂基复合材料轴向拉伸力学性能的应变率效应［J］.复合材料学报，2018，35（10）：2 715⁃2 722.
	RUAN B C，SHI T Y，WANG Y G.Influence of strain rate on tensile mechanical behavior of E glass fiber reinforced epoxy resin composites［J］.Acta Materiae Compositae Sinica， 2018，35（10）：2 715⁃2 722.
3	乌云其其格.一种自粘性预浸料用高温固化环氧树脂研究［J］.高科技纤维与应用，2017，42（1）：37⁃40，57.
	WUYUN Q Q G.Performance study on the self⁃adhesive prepreg with high temperature curing epoxy resin［J］.Hi⁃Tech Fiber&Application， 2017，42（1）：37⁃40，57.
4	陶雷，闵伟，戚亮亮，等.增韧改性环氧树脂固化动力学研究及TTT图绘制［J］.复合材料科学与工程，2020（10）：21⁃29.
	TAO L，MIN W，QI L L，et al.Study on curing kinetics of toughened modified epoxy resin and drawing of TTT diagram［J］.Composites Science and Engineering，2020（10）：21⁃29.
5	吴凤楠，刘阔，贾志欣，等.SMC与PCM复合材料模压件力学性能［J］.工程塑料应用，2020，48（12）：118⁃122.
	WU F N，LIU K，JIA Z X，et al，The mechanical properites of SMC and PCM compression molding parts［J］.Enginee⁃ring Plastics Application， 2020，48（12）：118⁃122.
6	张成林，董抒华，李丽君，等.E⁃玻纤/环氧树脂预浸料固化动力学及其动态热力学性能［J］.材料工程，2020，48（9）：152⁃157.
	ZHANG C L，DONG S H，LI L J，et al.Curing kinetic and dynamic thermodynamic properties of E⁃glass/epoxy resin prepreg［J］.Journal of Materials Engineering， 2020，48（9）：152⁃157.
7	李恒，王德海，钱夏庆.环氧树脂固化动力学的研究及应用［J］.玻璃钢/复合材料，2013（4）：44⁃51.
	LI H，WANG D H，QIAN X Q.Resarch of epoxy resin cu⁃ring kinetics and its application［J］.Fiber Reinforced Plastics/Composites，2013（4）：44⁃51.
8	李伟东，张金栋，刘刚，等.高韧性双马来酰亚胺树脂的固化反应动力学和TTT图［J］.复合材料学报，2016，33（7）：1 475⁃1 483.
	LI W D，ZHANG J D，LIU G，et al.Curing reaction and TTT diagram of high toughness bismaleimide resin［J］.Acta Materiae Compositae Sinica， 2016，33（7）：1 475⁃1 483.
9	张旭锋，余金光，乌云其其格，等.基于松香酸酐的环氧树脂体系固化动力学及TTT图绘制［J］.高分子学报，2017（3）：542⁃549.
	ZHANG X F，YU J G，WUYUN Q Q G，et al.Curing kinetics and isothermal transformation（TTT） diagram of epoxy resin using rosin⁃based acid anhydride as curing agent［J］.Acta Polymerica Sinica， 2017（3）：542⁃549.
10	曹伟伟，朱波，朱文滔，等.基于非等温法的耐高温环氧树脂体系固化反应动力学研究［J］.材料工程，2014（8）：67⁃71.
	CAO W W，ZHU B，ZHU W T，et al.Curing reaction kinetics of heat⁃resistant epoxy resin system by non⁃isothermal method［J］.Journal of Materials Engineering，2014（8）：67⁃71.
11	田鑫. 硼酚醛树脂对环氧树脂的改性及其复合材料研究［D］.太原：中北大学，2016.
12	方双全，秦云晴，俞亮，等.环氧树脂/594体系固化反应动力学研究［J］.合成材料老化与应用，2020，49（5）：33⁃35，156.
	FANG S Q，QIN Y Q，YU L，et al.Study on curing reaction kinetics of epoxy resin/549 system［J］.Synthetic Materials Aging and Application， 2020，49（05）：33⁃35，156.
13	YANG L F，YAO K D，KOH W.Kinetics analysis of the curing reaction of fast cure epoxy prepregs［J］.Journal of Applied Polymer Science，1999，73（8）：1 501⁃1 508.
14	KISSINGER H E.Reaction kinetics in differential thermal analysis［J］.Analytical Chemistry，1957，29（11）：1 702⁃1 707.
15	CRANE L W，DYNES P J，KAELBLE D H.Analysis of curing kinetics in polymer composites［J］.Journal of Polymer Science，1973，11（8）：533⁃540.
16	朱楠，彭德功，李军，等.复合材料模压成型工艺研究［J］.纤维复合材料，2020，37（2）：33⁃35.
	ZHU N，PENG D G，LI J，et al.Study on molding techno⁃logy of composite materials［J］.Fiber Composites， 2020，37（2）：33⁃35.
17	李伟东，张金栋，李韶亮，等.耐高温双马来酰亚胺树脂的固化反应动力学和TTT图［J］.材料工程，2016，44（9）：44⁃51.
	LI W D，ZHANG J D，LI S L，et al.Curing kinetics and TTT diagram of high temperature resistance bismaleimide resin［J］.Journal of Materials Engineering， 2016，44（9）：44⁃51.
