Effect of Pyrolysis Atmosphere on Co⁃pyrolysis Characteristics of Paint Thinners and Plastics

doi:10.19491/j.issn.1001-9278.2021.11.005

Abstract

Abstract:

To explore the change of co?pyrolysis characteristics of paint thinner and plastics under different pyrolysis atmosphere. According to the pre?experiment results， the variations of mass loss in TG and enthalpy in DSC during the co?pyrolysis of paint thinner and plastics were measured under different pyrolysis atmosphere （air and nitrogen） at a heating rate of 10 ℃/min using a synchronous thermal analyzer. The thermal dynamics of the samples were analyzed using a Coats?Redfern method. The results indicated that the pyrolysis process of the sample in nitrogen atmosphere showed an obvious lag phenomenon， and its mass loss rate was as low as 82.2 wt %. The air atmosphere was more advantageous to the detection of paint thinner and PET plastic co?pyrolysis reaction intermediate products. The average activation energy of PET plastic and its combustion residues in the air was lower than that in nitrogen. However， the activation energy of the mixture in the air was lower at 400~475 ℃. The mixture reached a secondary combustion condition at 500 ℃.

Key words: pyrolysis atmosphere, paint thinner, plastics, co?pyrolysis, thermal dynamic

CLC Number:

TQ 323.4⁺1

HE Fenfen, LIN Qingwen, LIU Ling, YUE Hailing. Effect of Pyrolysis Atmosphere on Co⁃pyrolysis Characteristics of Paint Thinners and Plastics[J]. China Plastics, 2021, 35(11): 32-37.

Figures/Tables 8

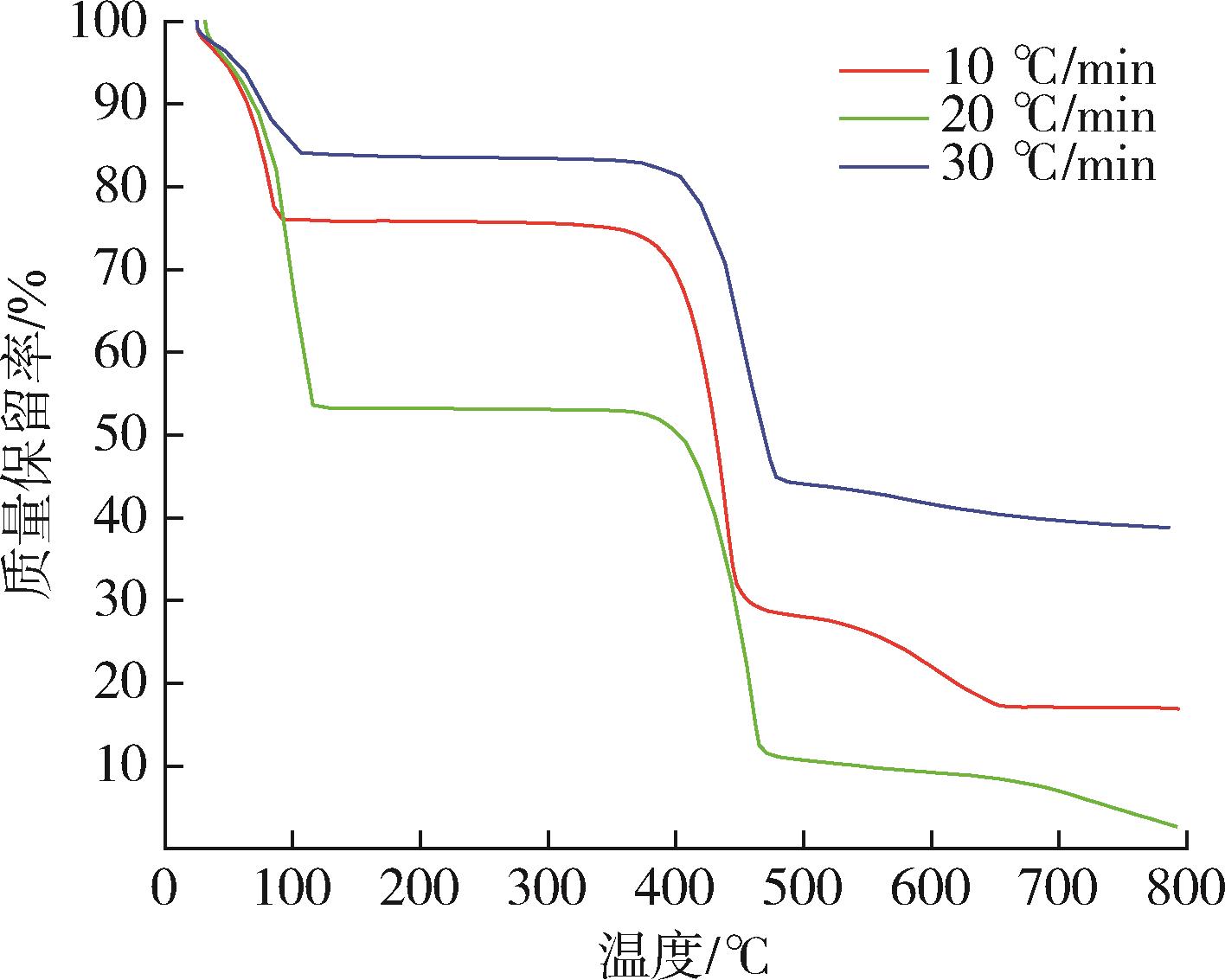

Fig.1. TG curves of mixed samples at different heating rates in air atmosphere

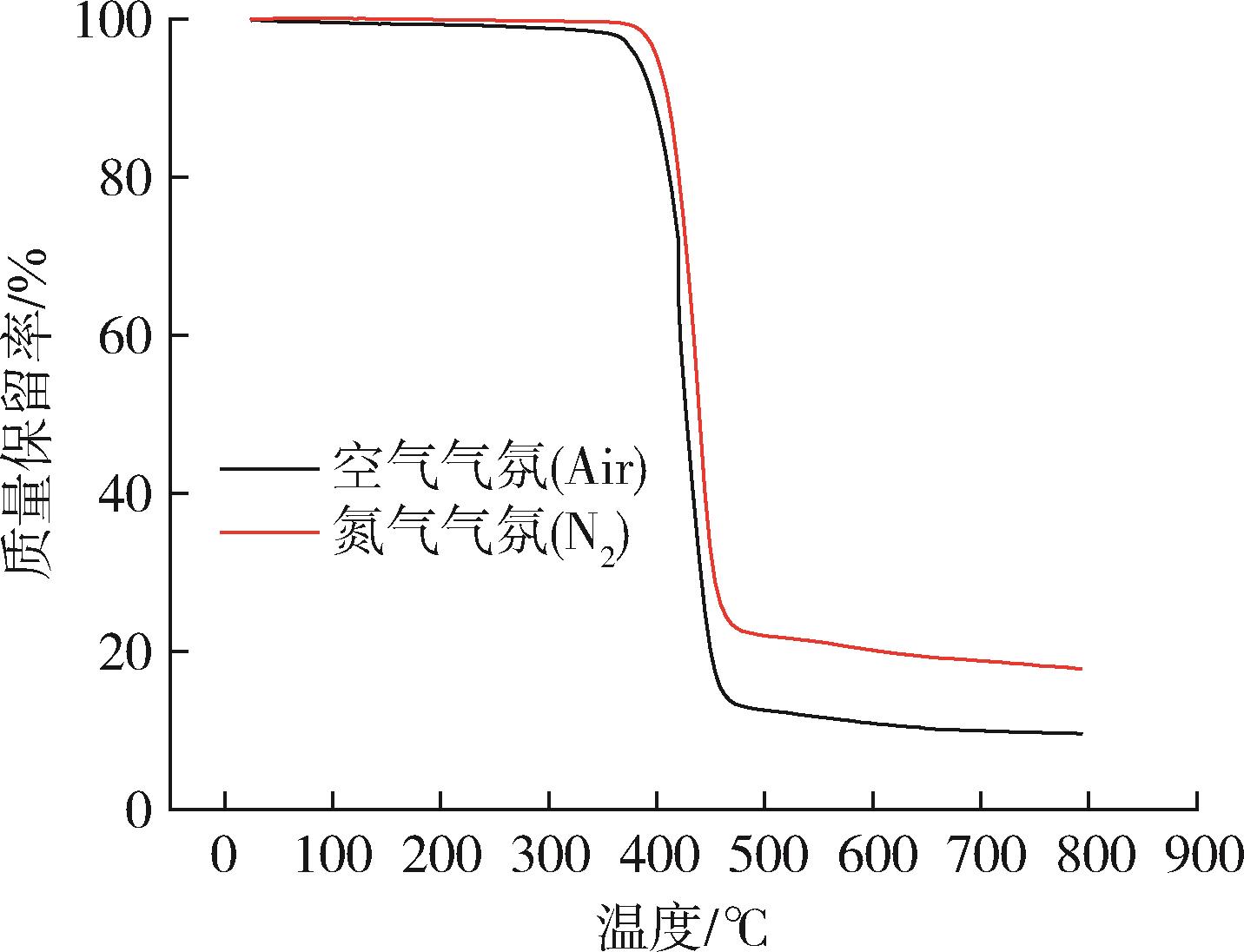

Fig.2. TG curves of PET powder in different atmospheres at a heating rate of 10 ℃/min

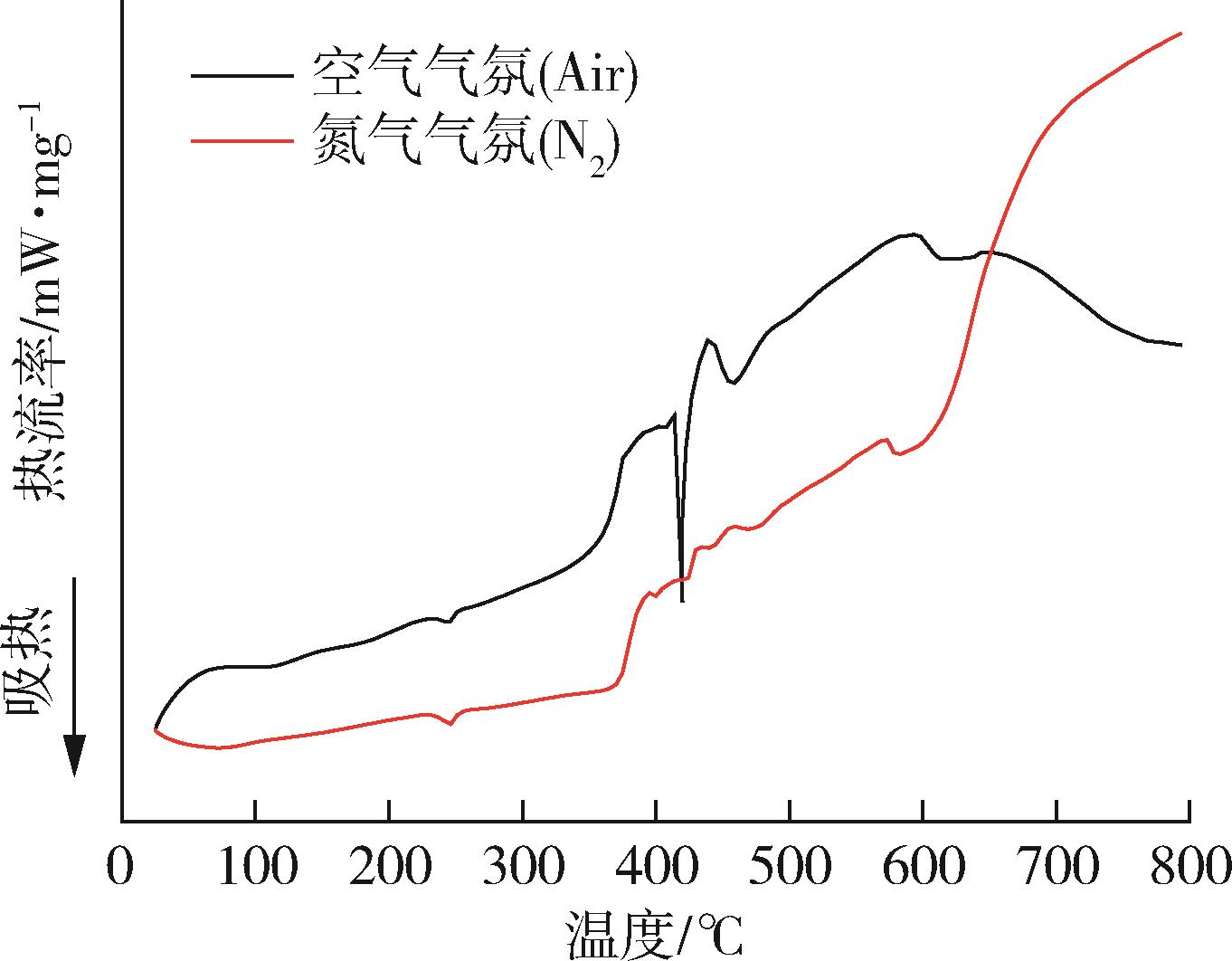

Fig.3. DSC curves of PET powder in different atmospheres at a heating rate of 10 ℃/min

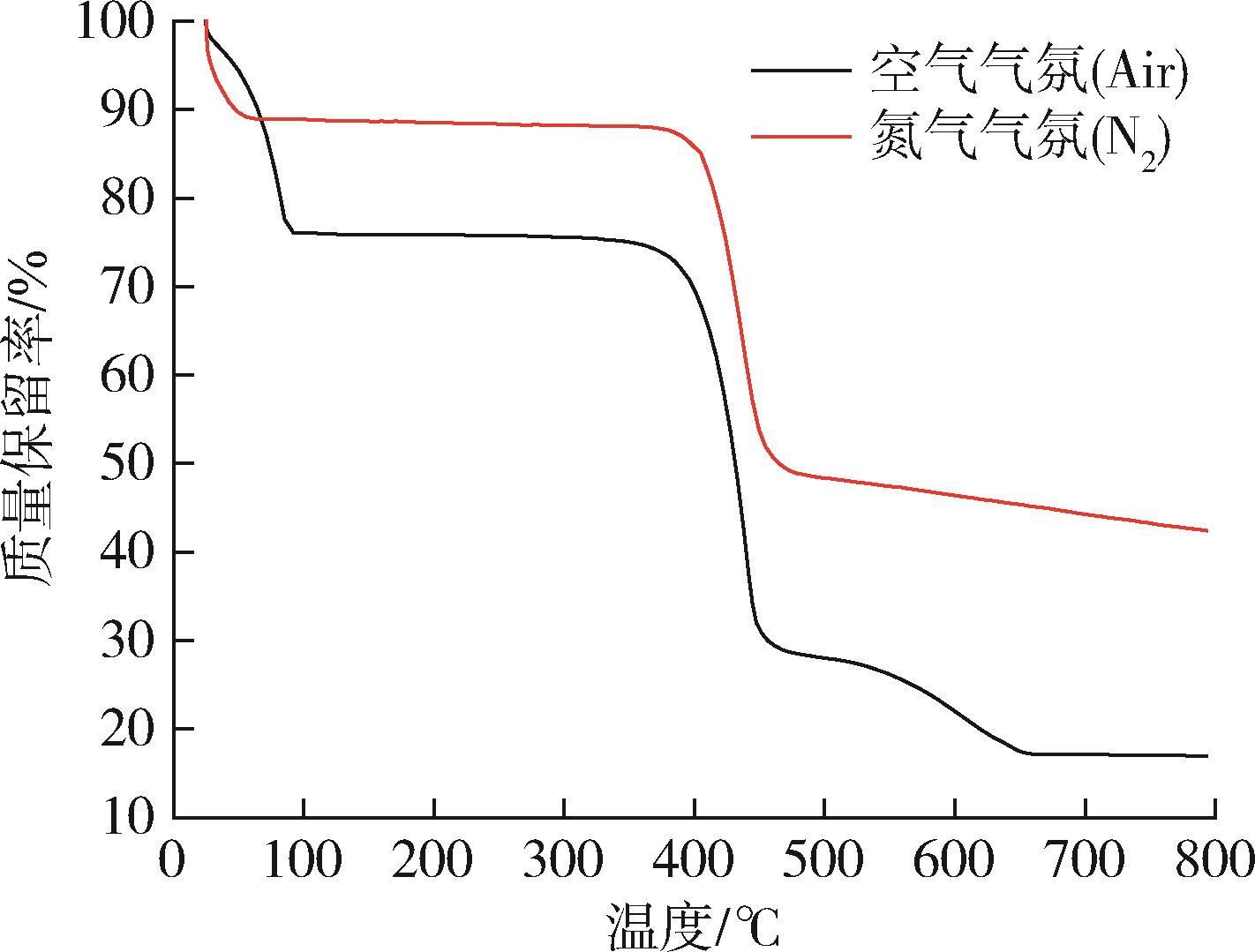

Fig.4. TG curves of the mixture in different atmospheres at a heating rate of 10 ℃/min

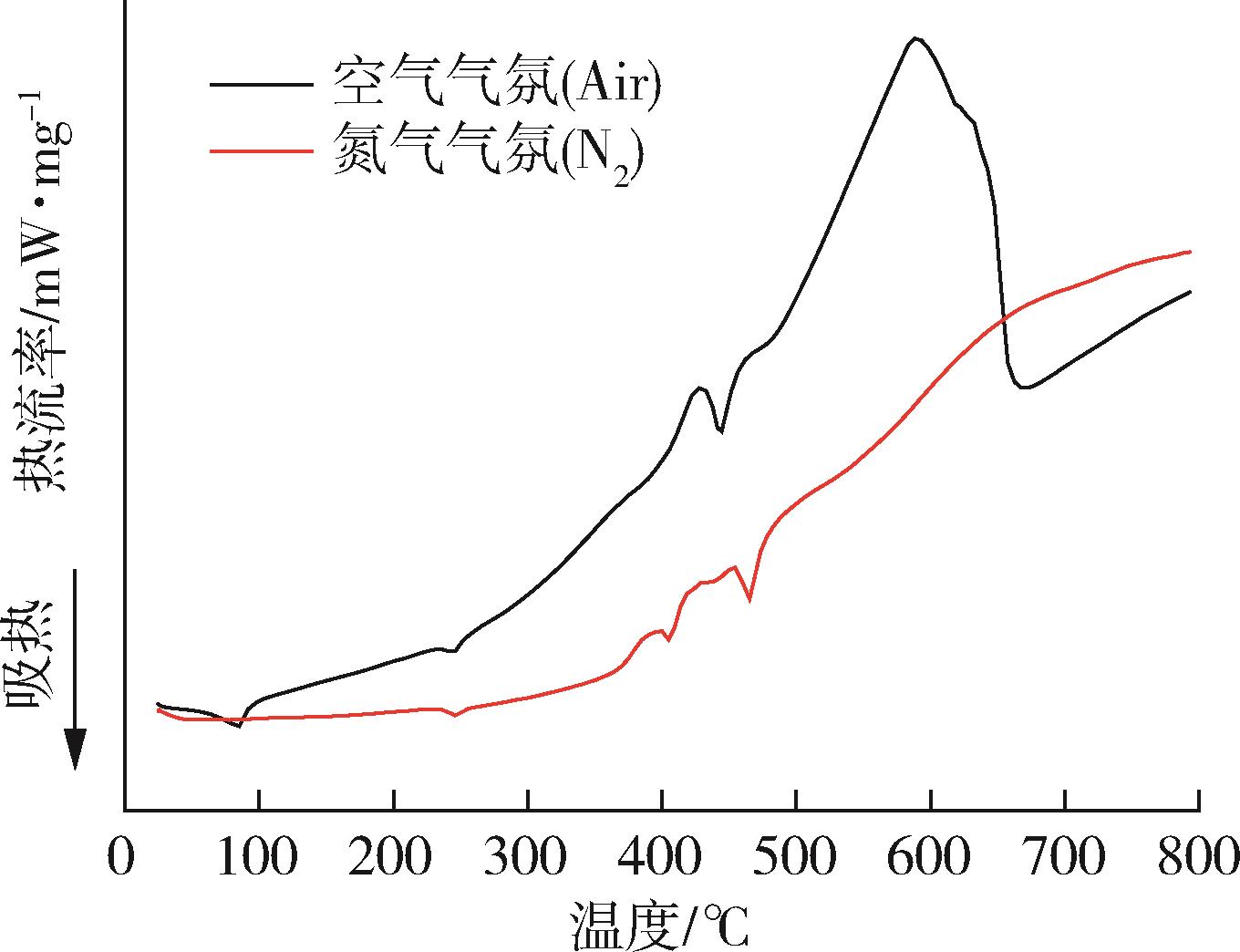

Fig.5. DSC curves of the mixture in different atmospheres at a heating rate of 10 ℃/min

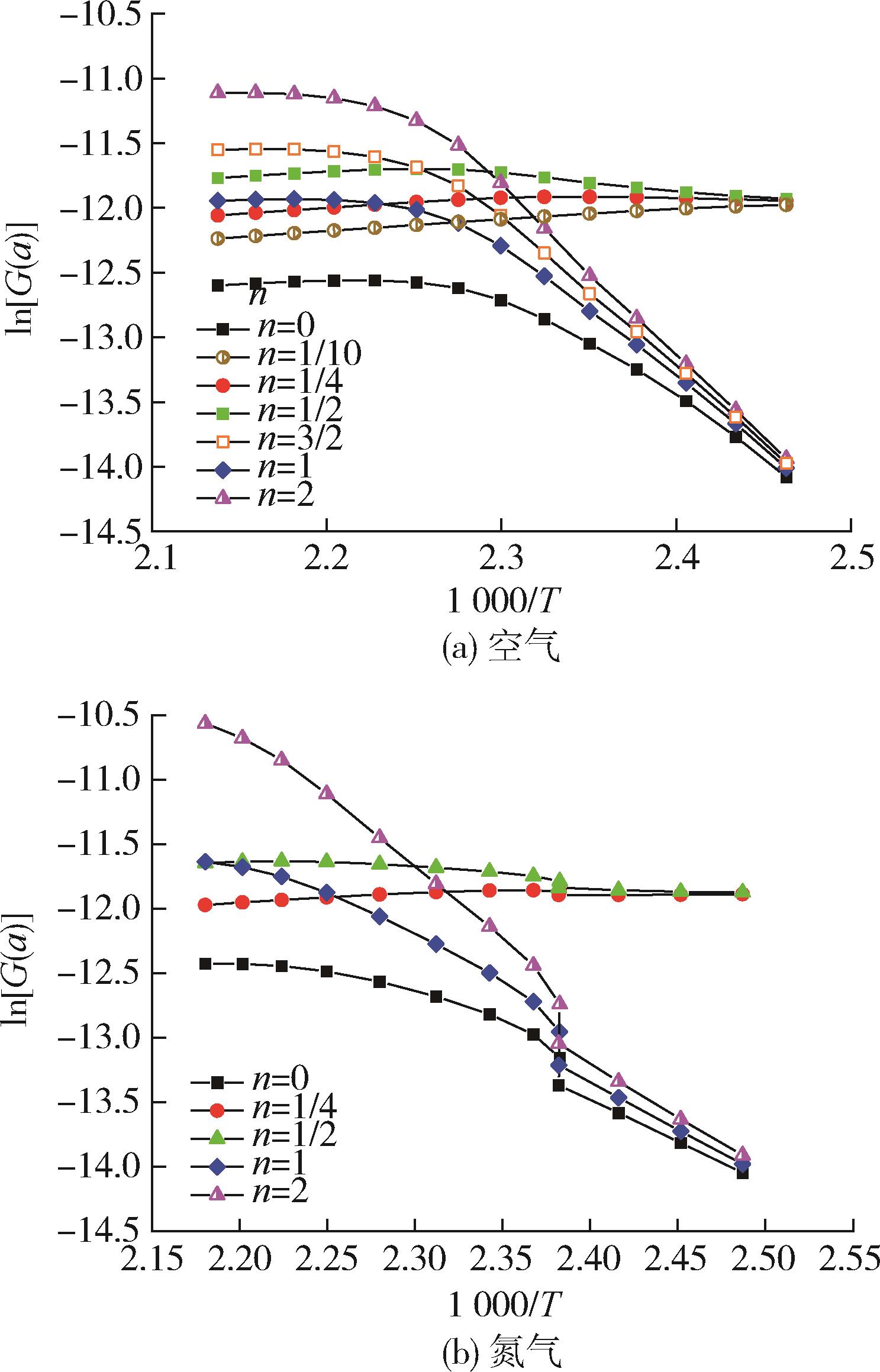

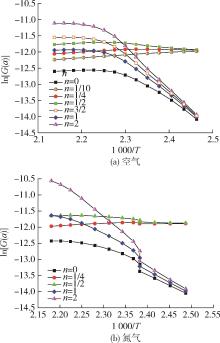

Fig.6. Comparison curves of different reaction series of PET powder in different atmosphere at a heating rate of 10 ℃/min

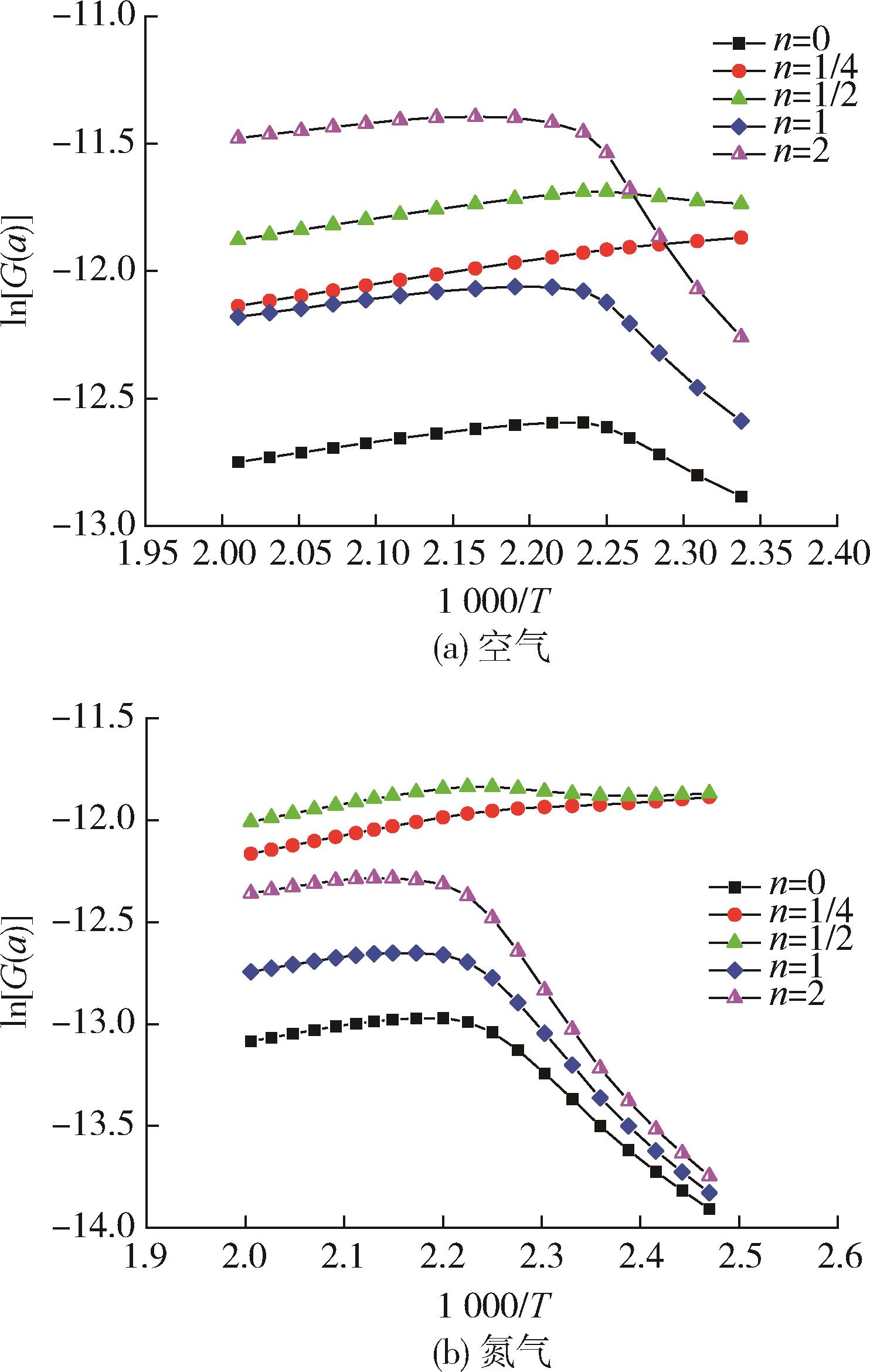

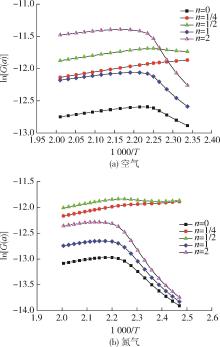

Fig.7. Contrast curves of different reaction series of mixtures in different atmospheres at a heating rate of 10 ℃/min

样品	气氛环境	n	T_A?B/℃	拟合直线	R2	E/kJ?mol^?1
PET粉末	Air	1	400~500	y=0.835x?13.972	0.996 44	7.276
PET粉末	N₂	2	400~500	y=?10.100x+10.548	0.992 43	88.011
混合物	Air	0.25	25~100	y=0.151x?10.576	0.991 05	1.316
		0.25	400~475	y=0.854x?13.846	0.995 8	7.442
		0.25	500~675	y=0.773x?13.662	0.992 36	6.732
	N₂	0.1	25~100	y=0.092x?9.669	0.993 93	7.468
	N₂	0.1	400~475	y=0.857x?14.026	0.998 15	0.797

Tab.1. Pyrolysis kinetic parameters of samples in different atmospheres at a heating rate of 10 ℃/min

References 19

1	GUO J ， LUA A C. Kinetic Study on Pyrolytic Process of Oil⁃palm Solid Waste Using Two⁃step Consecutive Reaction Model［J］. Biomass and Bioenergy， 2001， 20（3）：223⁃233.
2	KANDOLA B K ， HORROCKS S ， HORROCKS A R. Evidence of Interaction in Flame⁃retardant Fibre⁃intumescent Combinations by Thermal Analytical Techniques⁃Science Direct［J］. Thermochimica Acta， 1997， 294（1）：113⁃125.
3	廖艳芬. 纤维素热裂解机理试验研究［D］.杭州：浙江大学，2003.
4	高佳鑫. 火灾残留物中助燃剂鉴定的影响因素分析［D］.合肥：中国科学技术大学，2014.
5	邓震宇，张得胜，吴宪，等. 塑料制品燃烧物对易燃液体放火剂鉴定干扰的研究［J］. 消防科学与技术， 2017， 36（4）：569⁃571.
	DENG Z Y， ZHANG D S， WU X， et al. The Research on Interferences of Plastics Combustion Products for the Identification of Flammable Liquid Accelerant［J］. Fire Science and Technology， 2017， 36（004）：569⁃571.
6	STAUFFERE. Identification and Characterization of Interfering Products in Fire Debris Analysis［D］. Miami： Florida International University， 2001.
7	罗希韬，王志奇，武景丽，等.基于热重红外联用分析的PE、PS、PVC热解机理研究［J］.燃料化学学报，2012，40（9）：1 147⁃1 152.
	LUO X T， WANG Z Q， WU J L， et al. Study on the Pyrolysis Mechanism of Polyethylene，Polystyrene， and Polyvinyl Chloride by TGA⁃FTIR［J］. Journal of Fuel Chemistry and Technology， 2012，40（09）：1 147⁃1 152.
8	SAHA B， MAITI K A， GHOSHAL K A. Model⁃free Method for Isothermal and Non⁃isothermal Decomposition Kinetics Analysis of PET Sample［J］. Thermochimica Acta，2006，444（1）.
9	周利民，王一平，黄群武，等.生物质/塑料共热解热重分析及动力学研究［J］.太阳能学报，2007，28（9）：979⁃983．
	ZHOU L M， WANG Y P， HUANG Q W， et al. TG Analysis and Kinetics of Biomass/Plastic Co⁃pyrolysis［J］. Acta Energiae Solaris Sinica， 2007， 28（9）：979⁃983.
10	胡荣祖，史启祯. 热分析动力学［M］. 北京：科学出版社， 2008：54⁃57.
11	温俊明. 城市生活垃圾热解特性试验研究及预测模型［D］.杭州：浙江大学，2006.
12	施海云. 火灾可燃物热解动力学研究［D］.杭州：浙江大学，2004.
13	PRATHER K R ， MCGUFFIN V L ， SMITH R W. Effect of Evaporation and Matrix Interferences on the Association of Simulated Ignitable Liquid Residues to the Corresponding Liquid Standard［J］. Forensic Ence International， 2012， 222（1⁃3）：242⁃251.
14	CONTRERAS P A ， HOUCK S S ， DAVIS W M ， et al. Pyrolysis Products of Linear Alkylbenzenes⁃implications in Fire Debris Analysis［J］. Journal of Forensic Ences， 2013， 58（1）.
15	CHO Y S ， SHIM M J ， KIM S W. Thermal Degradation Kinetics of PE by the Kissinger Equation［J］. Materials Chemistry & Physics， 1998， 52（1）：94⁃97.
16	陈曦，于钦学，任文娥，等.聚酯的热分析与热分解动力学的研究［J］.绝缘材料，2009，42（3）：52⁃55，63.
	CHEN X， YU Q X， REN W E， et al. Thermal Analysis and Thermal Decomposition Kinetics of Polyester［J］， Insulating Materials， 2009，42（3）：52⁃55，63.
17	张雪芹，王超先，郝伟萍. 差示扫描量热法对PET热性能的研究［J］. 塑料工业，2001（05）：41⁃42，48.
	ZHANG X Q， WANG C X， HAO W P. Studies of Heat Characteristics of PET by DSC［J］. China Plastics Industry， 2001（05）：41⁃42，48.
18	焦玲玲. 典型建筑有机保温材料热解特性及机理研究［D］.合肥：中国科学技术大学，2014.
19	ZHAO S， SUN Y， LYU X， et al. Energy Consumption and Product Release Characteristics Evaluation of Oil Shale Non⁃isothermal Pyrolysis Based on TG⁃DSC［J］.Journal of Petroleum Science and Engineering （2020）， doi： https：//doi.org/10.1016/j.petrol.2019.106812.
