Identification of PA56， PA66 and PA6 Through Pyrolysis Gas Chromatography⁃mass Spectrometry

doi:10.19491/j.issn.1001-9278.2021.11.018

Abstract

Abstract:

Pyrolysis gas chromatography-mass spectrometry （Py-GC/MS） was conducted to identify polyamide 56， polyamide 66， polyamide 6 and their blends. The 100 % relative abundances of polyamide 56 and polyamide 66 were cyclopentanone at a pyrolysis temperature of 550 ℃， which were differentiated with the characteristic pyrolytic products of 1，8?diazabicyclotridecane-2，7-dione and 1，8?diazabicyclotetradecane-2， 7-dione. Meanwhile， polyamide 6 obtained 100 % relative strength of caprolactam. This made it possible to quickly identify industrial primary products of polyamide 56， polyamide 66 and polyamide 6. With this method， polyamide 6/56 blends， modified polyamide 6/66 blends and modified polyamide 66 can be detected successfully.

Key words: pyrolysis?gas chromatograph?mass spectrometry, polyamide 56, polyamide 66, polyamide 6, identification

CLC Number:

TQ 323.6

HU Huilian, SHI Jialiang, LANG Lei, SHI Chaoou, YAO Jianlei. Identification of PA56， PA66 and PA6 Through Pyrolysis Gas Chromatography⁃mass Spectrometry[J]. China Plastics, 2021, 35(11): 120-124.

Figures/Tables 9

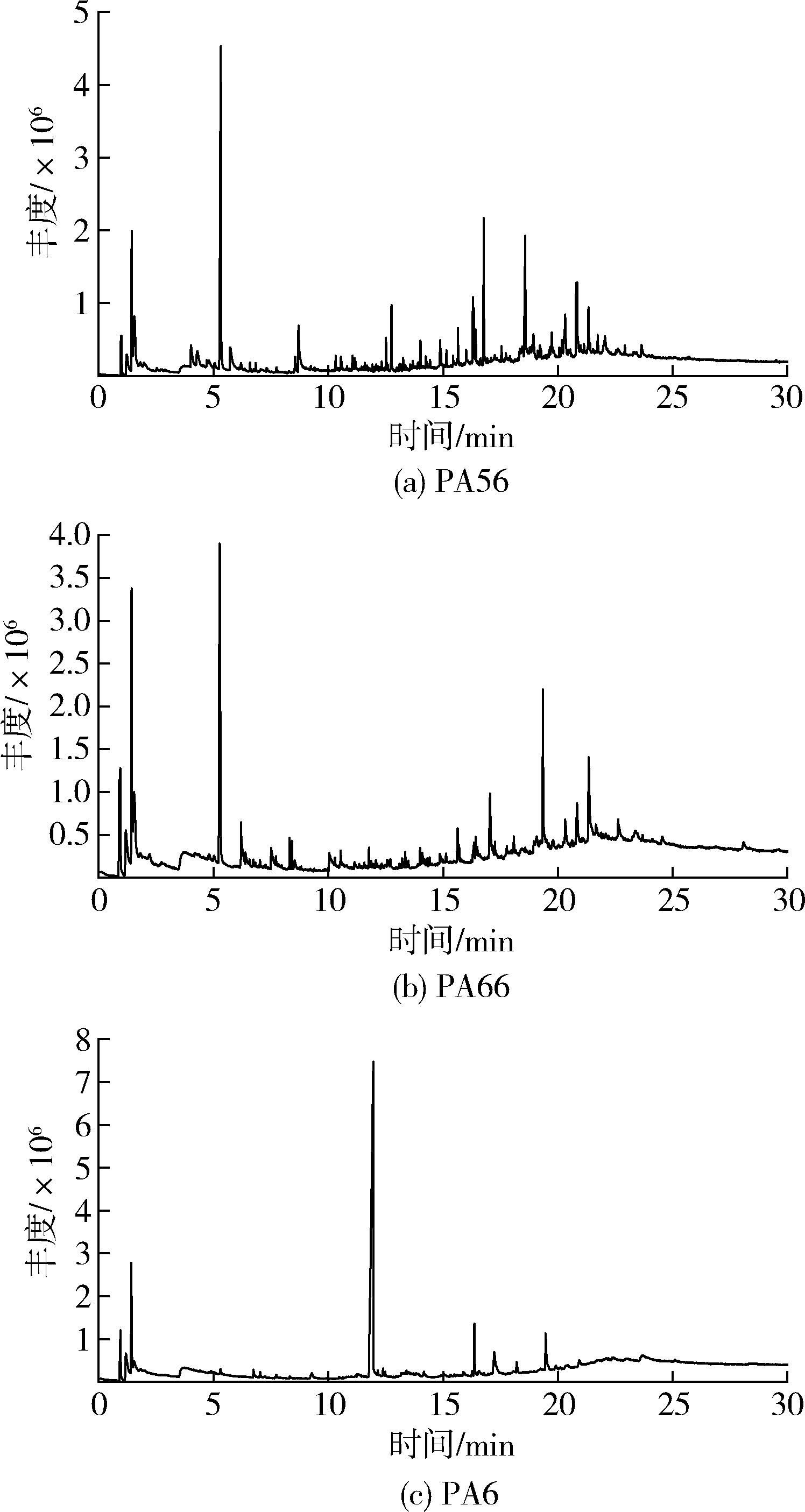

Fig.1. Total ion current diagram of PA56/PA66/PA6 at 550 ℃

序号	保留时间/min	名称	标记	相对丰度
序号	保留时间/min	名称	标记	PA56	PA66	PA6
1	4.34	吡啶	PY	7	-	-
2	5.29	环戊酮	CP	100	100	-
3	6.20	5?己烯?1?胺	AC6	-	17	-
4	8.70	戊二胺	AA5	15	-	-
5	11.77	己内酰胺	M1	-	9	100
6	18.56	1，8?二氮杂环十三烷?2，7?二酮	M3	44	-	-
7	19.35	1，8?二氮杂环十四烷?2，7?二酮	M4	-	56	-
8	19.46	1，8?二氮杂环十四烷?2，9?二酮	M5	-	-	15

Tab.1. Pyrolytic products of PA56/PA66/PA6

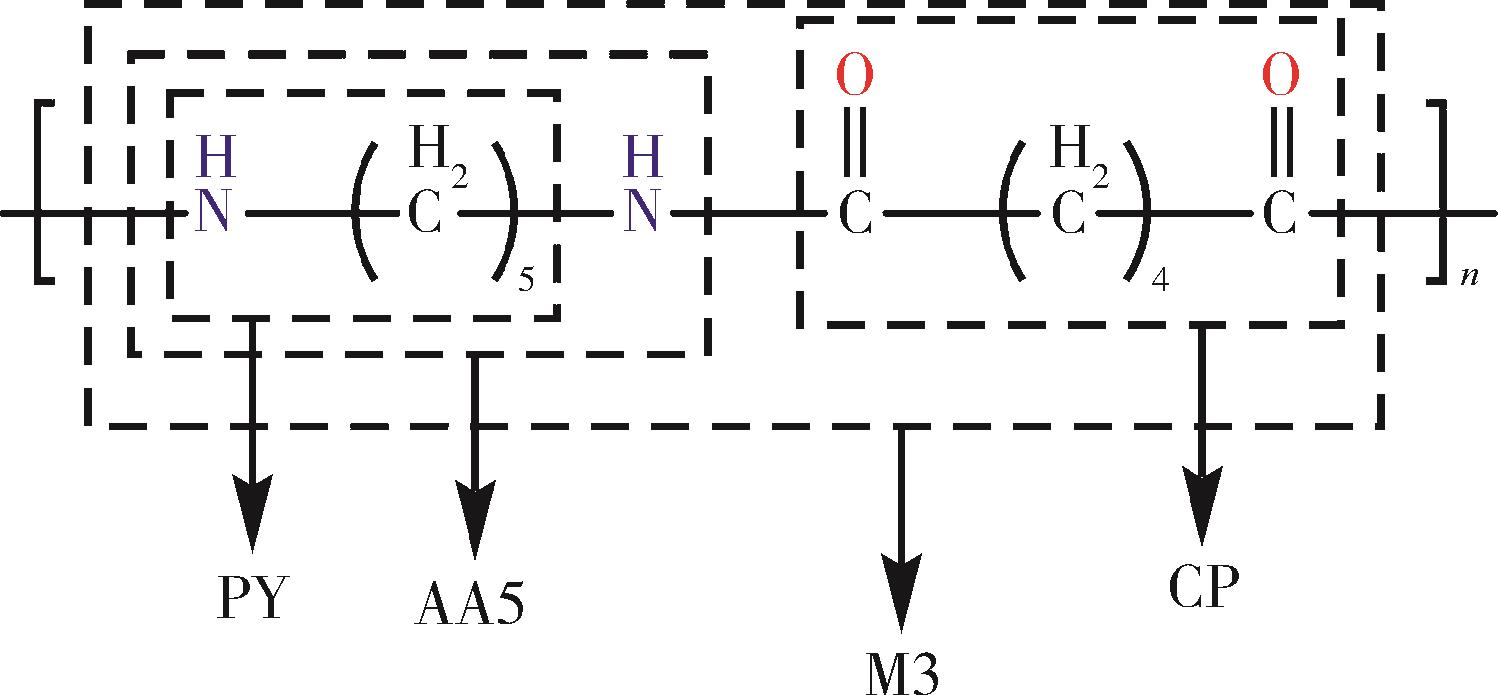

Fig.2. Relationship between the main pyrolyzates of PA56 and breakage position

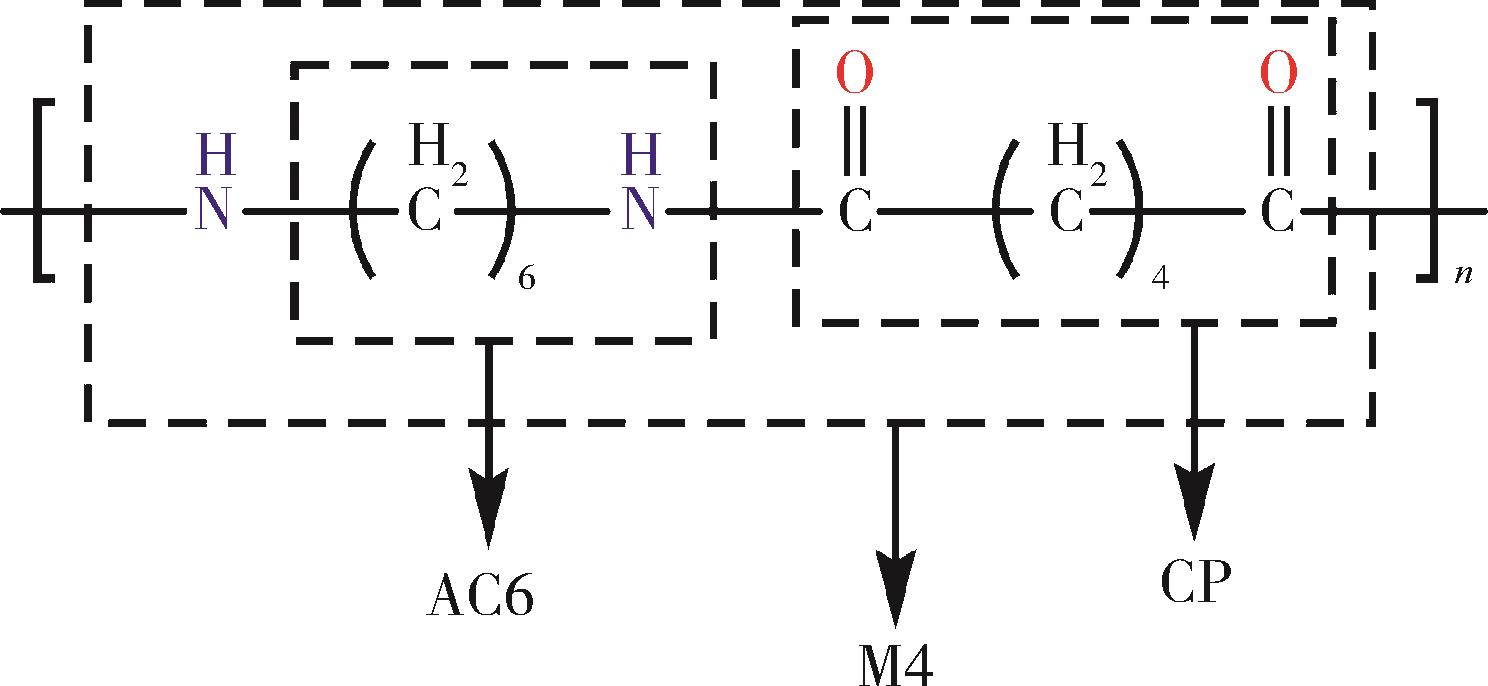

Fig.3. Relationship between the main pyrolyzates of PA66 and breakage position

Fig.4. Relationship between the main pyrolyzates of PA6 and breakage position

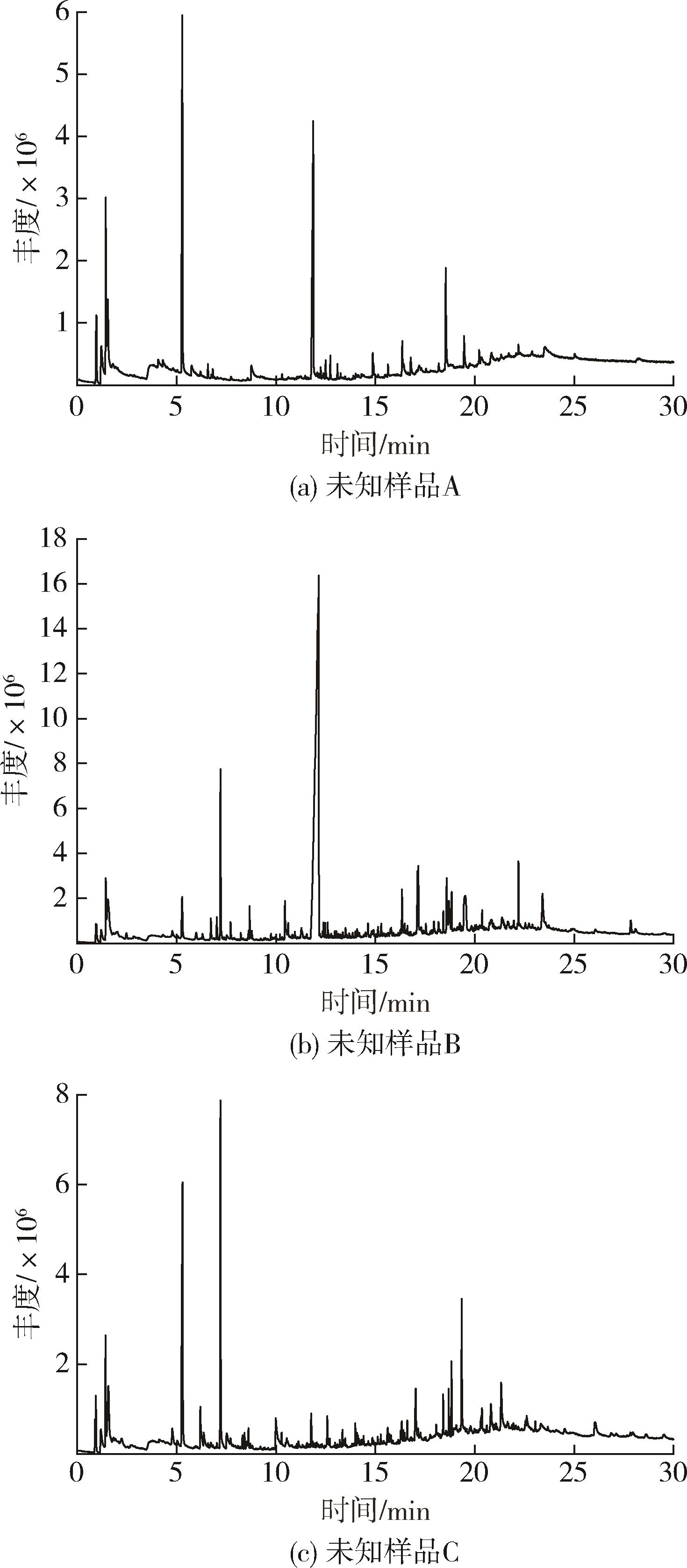

Fig.5. Total ion current diagram of unknown sample A/B/C at 550 ℃

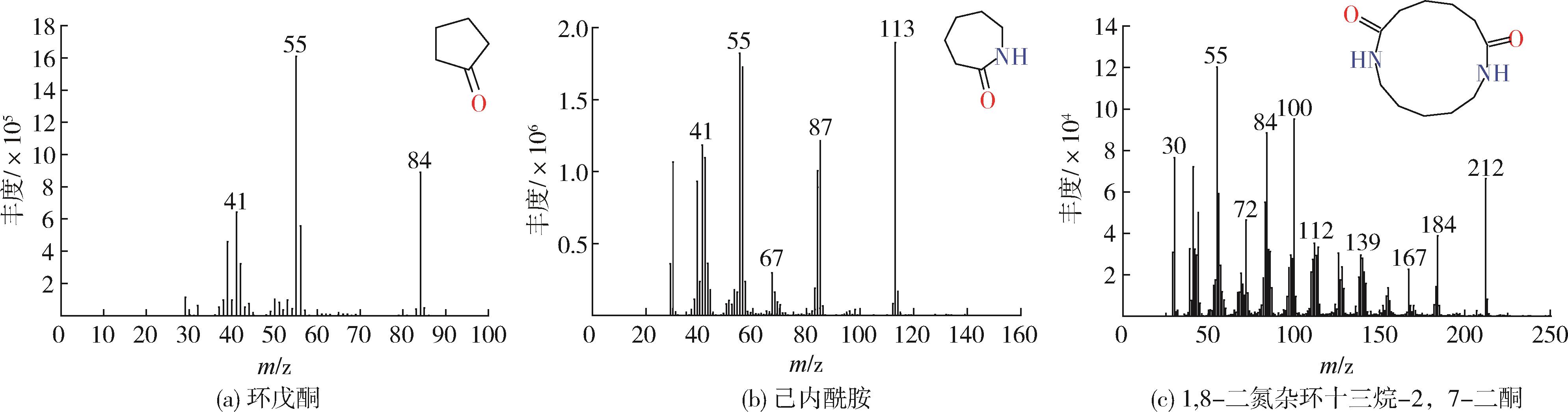

Fig.6. Mass spectrum of cyclopentanone， caprolactam and 1，8?diazabicyclotridecane?2，7?dione

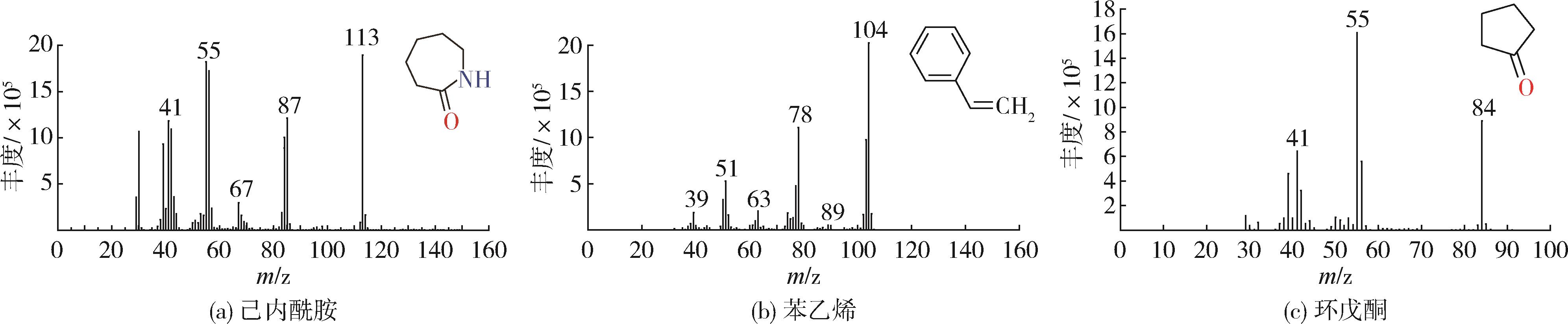

Fig.7. Mass spectrum of caprolactam， styrene and cyclopentanone

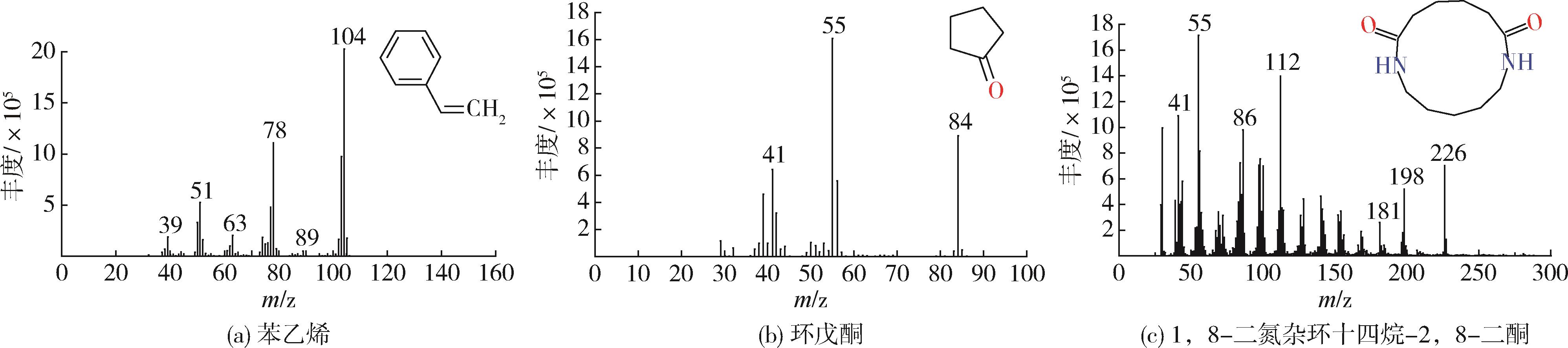

Fig.8. Mass spectra of styrene， cyclopentanone and 1，8?diazabicyclotetradecane?2，7?dione

References 8

1	杨朔，薛超，杨超，等.我国聚酰胺标准体系发展现况及研究［J］.中国标准化，2019（S1）：137⁃143.
	TANG S， XUE C， YANG C， et al. Development Status and Research on Standards System of Polyamides in China［J］.China Standardization，2019（S1）：137⁃143.
2	白颐.国内外聚酰胺系列产品发展分析［J］.化学工业，2008，26（10）：3⁃8.
	BAI Y. Analysis on the Development of Polyamide Pro⁃ducts at Home and Abroad［J］. Chemical Industry， 2008，26（10）：3⁃8.
3	周淑华，周志诚，刘懿莉，等.热分析法与红外光谱法相结合鉴别PA材料种类［C］//中国化学会第十三届全国化学热力学和热分析学术会议论文摘要集.2006：119.
4	王文志. 高分子量PA12T、PA13T的合成与表征［D］.郑州：郑州大学， 2006.
5	WU T ， HU H ， JIANG D ， et al. Identification of Two Polyamides （PA11 and PA1012） Using Pyrolysis⁃GC/MS and MALDI⁃TOF MS［J］. Polymer Testing， 2013， 32（2）：426⁃431.
6	WU T ， HU H L ， DU Y P ， et al. Discrimination of Thermoplastic Polyesters by MALDI⁃TOF MS and Py⁃GC/MS［J］. International Journal of Polymer Analysis and Characterization， 2014， 19（5）：441⁃452.
7	谢甲增.裂解气质联用法测定混纺纤维中聚氨酯弹性纤维的研究［D］.杭州：浙江理工大学，2018.
8	黄发荣，朱红光.聚苯乙烯的热裂解研究［J］.中国塑料，1998，12（1）：95⁃101.
	HUANG F R， ZHU H G. Study on the Pyrolysis of Polystyrene［J］.China Plastics， 1998，12（1）：95⁃101.
