Determination of nucleating agents in polypropylene through ultra high performance liquid chromatography

doi:10.19491/j.issn.1001-9278.2023.08.013

Abstract

Abstract:

In this study， five nucleating agents with different properties in polypropylene （PP） were analyzed by using ultra high performance liquid chromatography （UPLC）. The factors affecting the extraction efficiency of sample pretreatment were studied， and the effects of heating extraction， ultrasonic extraction， and microwave⁃assisted extraction （MAE） were investigated. The results indicated that MAE generated a good extraction effect on PP with different properties. In this extraction method， the ACQUITY BEH C18 （50 mm×2.1 mm，1.7 μm） column was used for separation， acetonitrile and water were used as mobile phases， and the UV detection wavelength was set to be 213 nm. The correlation coefficient of external standard curve was >0.995， indicating a good linear relationship between 5 and 300 mg/L. This method presented a recovery ranging from 83.4 % to 113.1 % along with a relative standard deviation （n=9） varying from 0.9 % to 7.9 %. The method developed in this study is suitable for the reliable detection of nucleating agents in PP.

Key words: polypropylene, nucleating agent, pretreatment, liquid chromatography, microwave?assisted extraction

CLC Number:

TQ317.2

ZHANG Panpan, LIU Jing, JIANG Jianzhun, CAO Xuejun. Determination of nucleating agents in polypropylene through ultra high performance liquid chromatography[J]. China Plastics, 2023, 37(8): 93-100.

Figures/Tables 12

References 15

1	Hahladakis J N， Velis C A， Weber R，et al. An overview of chemical additives present in plastics： Migration， release， fate and environmental impact during their use， disposal and recycling［J］. Journal of Hazardous Materials， 2018， 344：179⁃199.
2	Almeida S， Ozkan S， Goncalves D，et al. A brief evaluation of antioxidants， antistatics， and plasticizers additives from natural sources for polymers formulation［J］. Polymers， 2023， 15（1）：15010006.
3	张攀攀，刘静，姜健准. 聚烯烃中添加剂试样前处理与检测技术研究进展［J］. 石油化工， 2023， 52 （2）：269⁃278.
	ZHANG P P， LIU J， JIANG J Z. Research progress on sample pretreatment and detection of additives in polyolefin［J］. Petrochemical Technology， 2023， 52（2）：269⁃278.
4	于昌永，辛忠. 基于六氢邻苯二甲酸盐的α/β复合成核剂对聚丙烯性能的影响［J］. 中国塑料， 2022， 36（7）： 121⁃128.
	YU C Y， XIN Z. Effect of α/β complex nucleating agent based on hexahydrophthalate on properties of polypropylene［J］. China Plastics， 2022， 36（7）： 121⁃128.
5	蔺海川，张奇，路晶，等. PP/PE⁃LD/NX8000K高韧高透明材料的制备及性能研究［J］. 中国塑料， 2021， 35（12）： 21⁃26.
	LIN H C， ZHANG Q， LU J，et al. Preparation and properties of PP/PE⁃LD/NX8000K blends with high toughness and great transparency［J］. China Plastics， 2021， 35（12）： 21⁃26.
6	Sternbauer L， Dieplinger J， Buchberger W，et al. Determination of nucleating agents in plastic materials by GC/MS after microwave⁃assisted extraction with in situ microwave⁃assisted derivatization［J］. Talanta， 2014， 128： 63⁃68.
7	Li B， Wang Z W， Lin Q B，et al. Simultaneous determination of antioxidants and ultraviolet stabilizers in polypropylene food packaging and food simulants by high⁃performance liquid chromatography［J］. Acta Chromatographica， 2017， 29（2）： 173⁃192.
8	Dorival⁃García N， Galbiati F， Kruell R，et al. Identification of additives in polymers from single⁃use bioprocessing bags by accelerated solvent extraction and ultra⁃high performance liquid chromatography coupled with high⁃resolution mass spectrometry［J］. Talanta， 2020， 219： 121198.
9	Thilen M， Shishoo R. Optimization of experimental parameters for the quantification of polymer additives using SFE/HPLC［J］. Journal of Applied Polymer Science， 2000， 76（6）： 938⁃946.
10	Dopico⁃García M， Noguerol⁃Cal R， Castro⁃López M，et al. Determination of polyolefin additives by reversed⁃phase liquid chromatography［J］. Open Chemistry， 2012， 10 （3）： 585⁃610.
11	Akoueson F， Chbib C， Monchy S，et al. Identification and quantification of plastic additives using pyrolysis⁃GC/MS： A review［J］. Science of the Total Environment， 2021， 773（15）：145073.
12	刘义，王叶，孙伟，等. 红外光谱法测定聚丙烯中透明成核剂含量研究［J］. 中国塑料， 2022， 36（8）： 115⁃118.
	LIU Y， WANG Y， SUN W，et al. Determination of content of transparent nucleating agent in polypropylene using infrared spectroscopy［J］. China Plastics， 2022， 36（8）： 115⁃118.
13	张鑫，王小群，赵臻璐，等. 聚丙烯中抗氧剂和成核剂同时定性定量分析及实际工艺添加量的确定［J］. 化学学报， 2010， 68 （04）： 358⁃362.
	ZHANG X， WANG X Q， ZHAO Z L，et al. Simultaneous qualitative and quantitative analysis of antioxidant and nucleating agent in polypropylene and determination of additive amount in actual process［J］. Acta Chimica Sinica， 2010， 68（4）： 358⁃362.
14	谢晓娟，李碧芳，杨俊，等. 食品接触材料中山梨醇类成核剂迁移量的测定［J］. 食品工业， 2019， 40（9）： 291⁃295.
	XIE X J， LI B F， YANG J，et al. Determination of migration amount of sorbitol nucleating agents in food contact materials［J］. Food Industry， 2019， 40（9）： 291⁃295.
15	Tsochatzis E D， Theodoridis G， Gika H G. Development and validation of a UHPLC⁃qTOF MS method for the determination of sorbitol⁃based nuclear clarifying agents in food simulants after migration from food contact materials［J］. Applied Sciences⁃Basel， 2021， 11（9）：3789

成核剂	IUPAC 名称	CAS 号	分子式	相对分子质量
M3905	1，3：2，4⁃二苄叉山梨醇	32647⁃67⁃9	C₂₀H₂₂O₆	358.4
HX⁃3	双（3，4⁃二甲基苯亚甲基）山梨醇	135861⁃56⁃2	C₂₂H₃₀O₆	414.5
NX8000	1，2，3⁃三脱氧⁃4，6：5，7⁃双⁃O⁃［（4⁃丙苯基）亚甲基］⁃壬醇	882073⁃43⁃0	C₂₉H₄₀O₆	484.6
SOD BENZOATE	苯甲酸钠	532⁃32⁃1	C₇H₅NaO₂	144.1
NA21	2，2’⁃亚甲基⁃双（4，6⁃二叔丁基苯基磷酸）碱式铝	151841⁃65⁃5	C₅₈H₈₅AlO₉P₂	1 015.2

成核剂	IUPAC 名称	CAS 号	分子式	相对分子质量
M3905	1，3：2，4⁃二苄叉山梨醇	32647⁃67⁃9	C₂₀H₂₂O₆	358.4
HX⁃3	双（3，4⁃二甲基苯亚甲基）山梨醇	135861⁃56⁃2	C₂₂H₃₀O₆	414.5
NX8000	1，2，3⁃三脱氧⁃4，6：5，7⁃双⁃O⁃［（4⁃丙苯基）亚甲基］⁃壬醇	882073⁃43⁃0	C₂₉H₄₀O₆	484.6
SOD BENZOATE	苯甲酸钠	532⁃32⁃1	C₇H₅NaO₂	144.1
NA21	2，2’⁃亚甲基⁃双（4，6⁃二叔丁基苯基磷酸）碱式铝	151841⁃65⁃5	C₅₈H₈₅AlO₉P₂	1 015.2

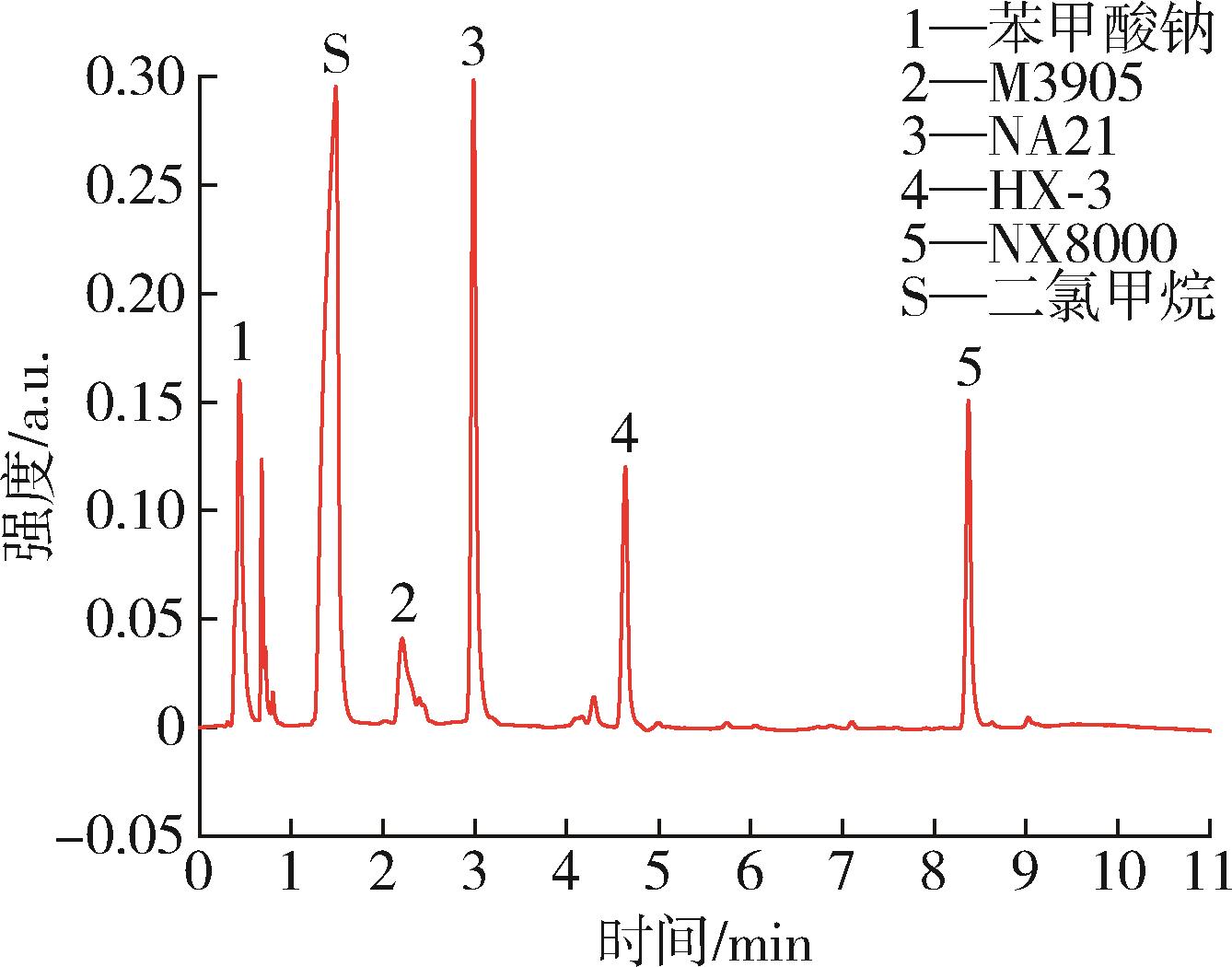

样品编号	成核剂	标准曲线方程	R²	保留时间/min	LOD/mg·L^-1	LOQ/mg·L^-1
1	SOD BENZOATE	A=5 449.3C-3 617.2	0.995 6	0.49	0.2	0.5
2	M3905	A=4 536.3C-4 088.7	0.999 1	2.56	0.5	1.0
3	NA21	A=7 113.2C-6 306.5	0.999 5	4.31	0.1	0.5
4	HX⁃3	A=6 660.5C-3 015.7	0.998 0	4.84	0.2	0.5
5	NX8000	A=6 867.9C-2 951.6	0.998 8	8.64	0.2	0.5

样品编号	成核剂	标准曲线方程	R²	保留时间/min	LOD/mg·L^-1	LOQ/mg·L^-1
1	SOD BENZOATE	A=5 449.3C-3 617.2	0.995 6	0.49	0.2	0.5
2	M3905	A=4 536.3C-4 088.7	0.999 1	2.56	0.5	1.0
3	NA21	A=7 113.2C-6 306.5	0.999 5	4.31	0.1	0.5
4	HX⁃3	A=6 660.5C-3 015.7	0.998 0	4.84	0.2	0.5
5	NX8000	A=6 867.9C-2 951.6	0.998 8	8.64	0.2	0.5

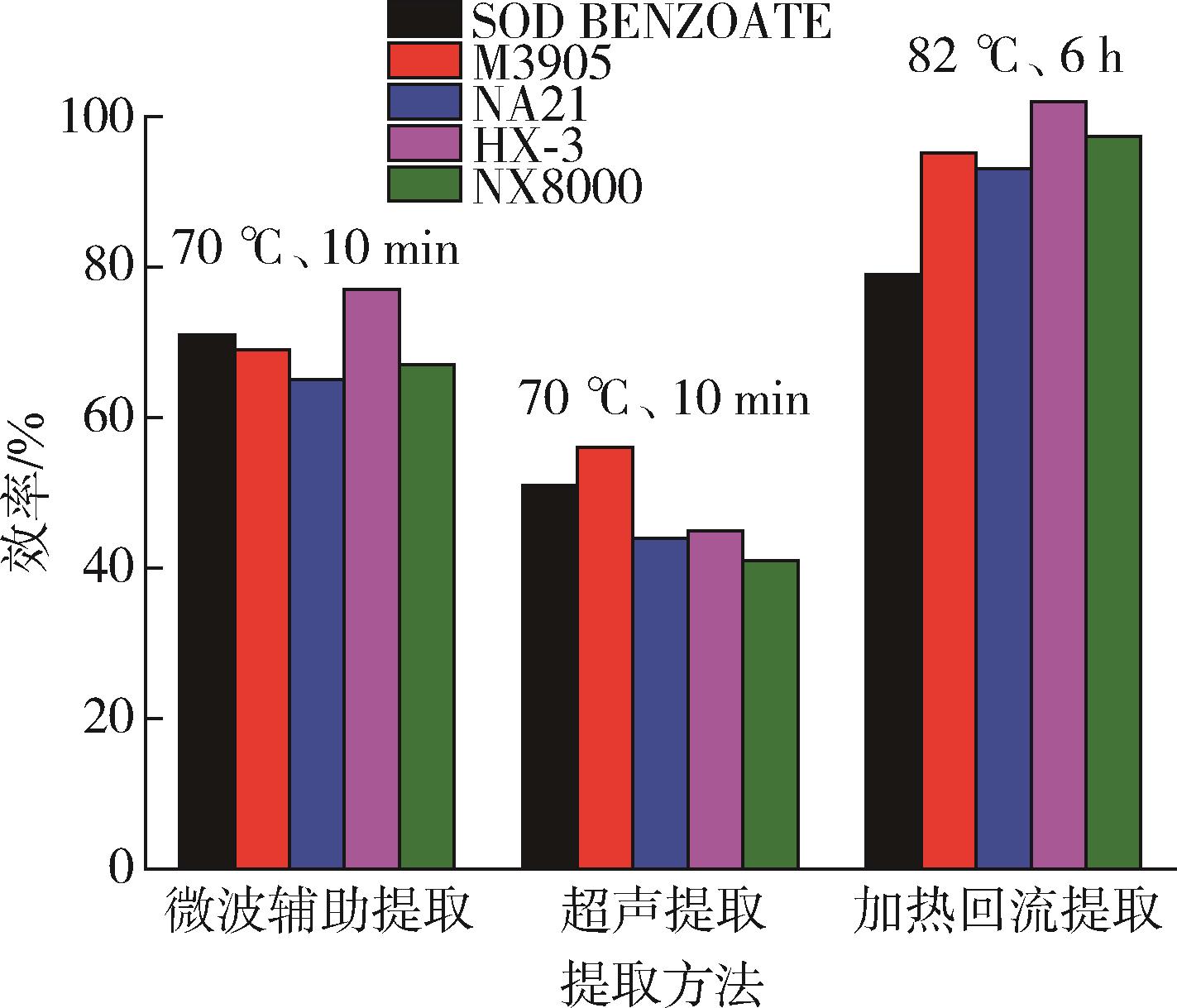

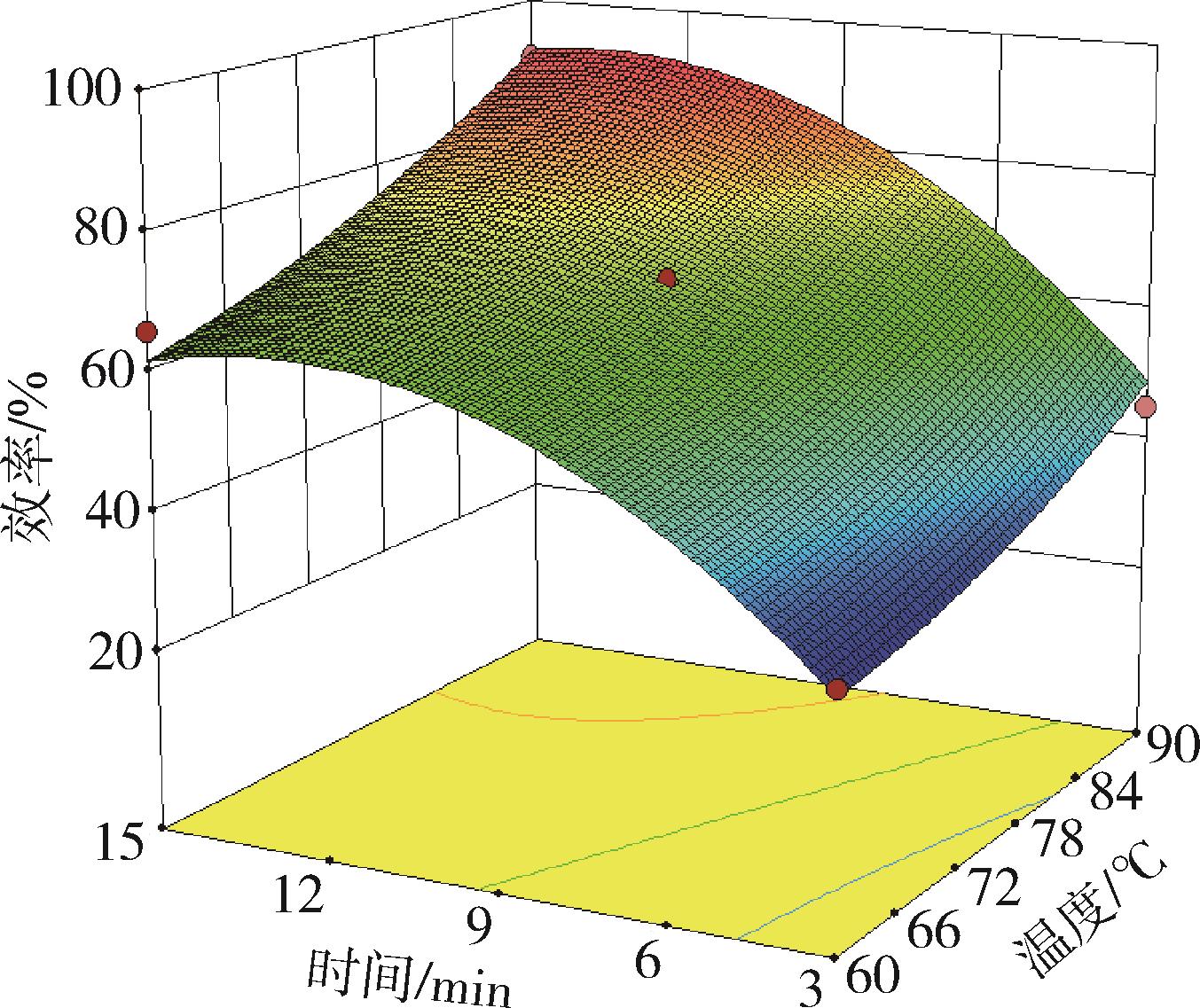

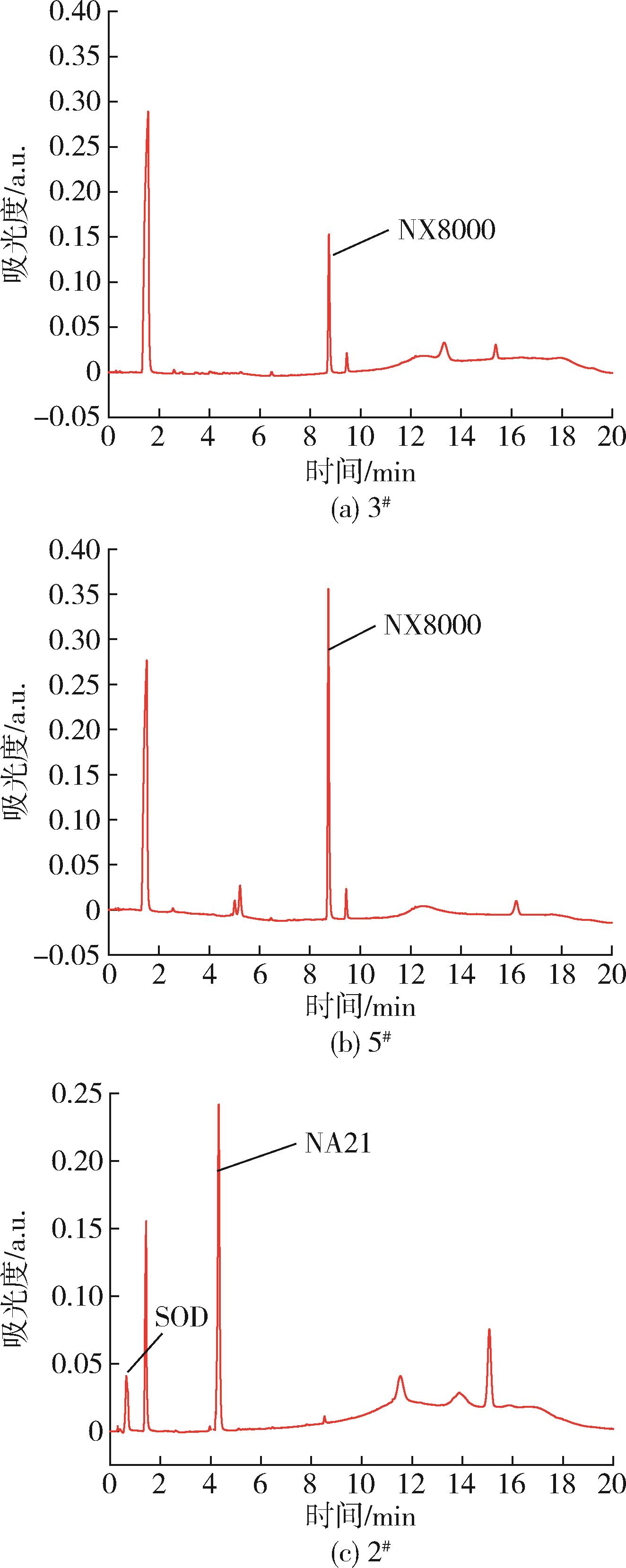

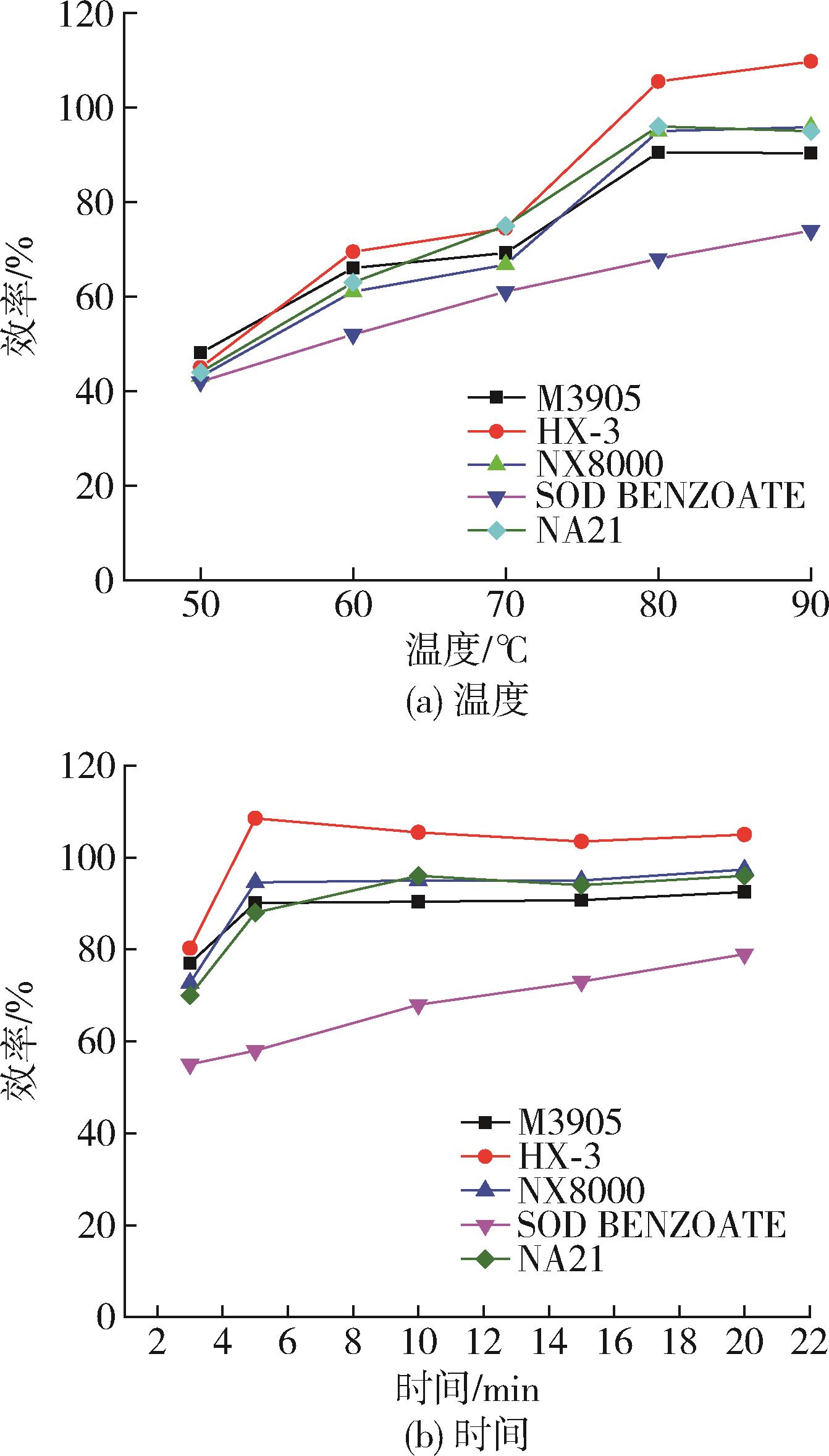

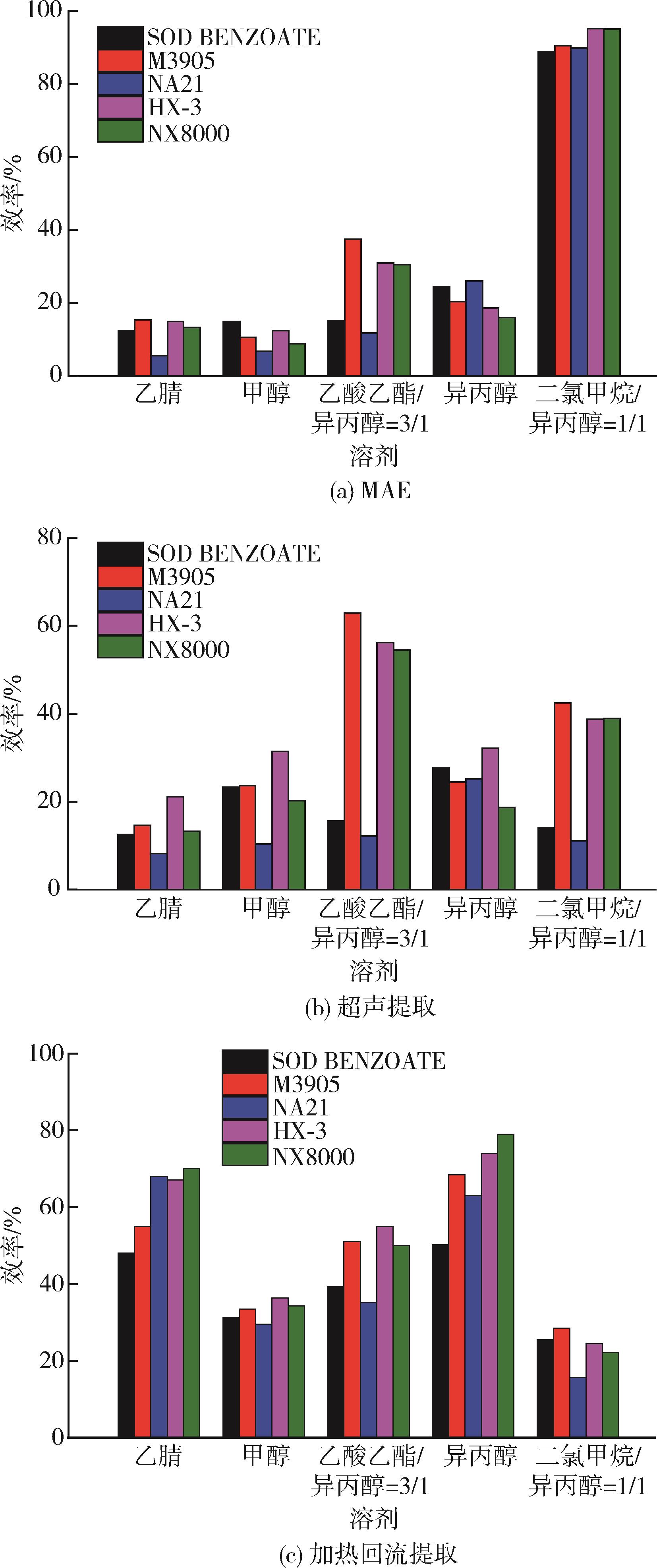

成核剂	MAE			超声提取			加热回流提取
成核剂	平均质量/mg•g^-1	Range/mg•g^-1	RSD/%	平均质量/mg•g^-1	Range/mg•g^-1	RSD/%	平均质量/mg•g^-1	Range/mg•g^-1	RSD/%
SOD BENZOATE	1.42	0.14	3.5	1.02	0.10	3.2	1.58	0.15	2.4
M3905	1.38	0.25	6.7	1.12	0.12	2.1	1.90	0.07	0.5
NA21	1.30	0.11	2.1	0.88	0.09	1.5	1.86	0.10	1.3
HX⁃3	1.54	0.19	5.6	0.90	0.09	1.6	2.04	0.16	2.5
NX8000	1.34	0.22	4.9	0.82	0.16	2.8	1.94	0.12	1.7
