Study on properties of PES/CF/CB composites through selective laser sintering

doi:10.19491/j.issn.1001-9278.2023.09.003

Abstract

Abstract:

Polyethersulfone （PES） resin/carbon fiber （CF）/carbon black （CB） composite powder⁃sintered parts were prepared through selective laser sintering （SLS）， and their microstructure， mechanical properties， electrical properties， and surface quality were investigated by using the sintered parts with a CB mass fraction of 2 wt% and a CF mass fraction varying from 0 to 3 wt%. The results indicated that the mechanical properties of the sintered parts were enhanced at a CF mass fraction of 1.5 wt%. The addition of CF enhanced the conductivity of the sintered parts， and their conductivity was increased from 5×10^-3 to 15×10^-3S/m. In addition， the surface quality of the sintered parts exhibited a trend of deterioration with an increase in the CF mass fraction.

Key words: selective laser sintering, carbon fiber, mechanical property, electrical conductivity, surface quality

CLC Number:

TQ326.55

CHEN Hui, SUN Lingsheng, QIAN Weidong, TAN Bo. Study on properties of PES/CF/CB composites through selective laser sintering[J]. China Plastics, 2023, 37(9): 14-18.

Figures/Tables 6

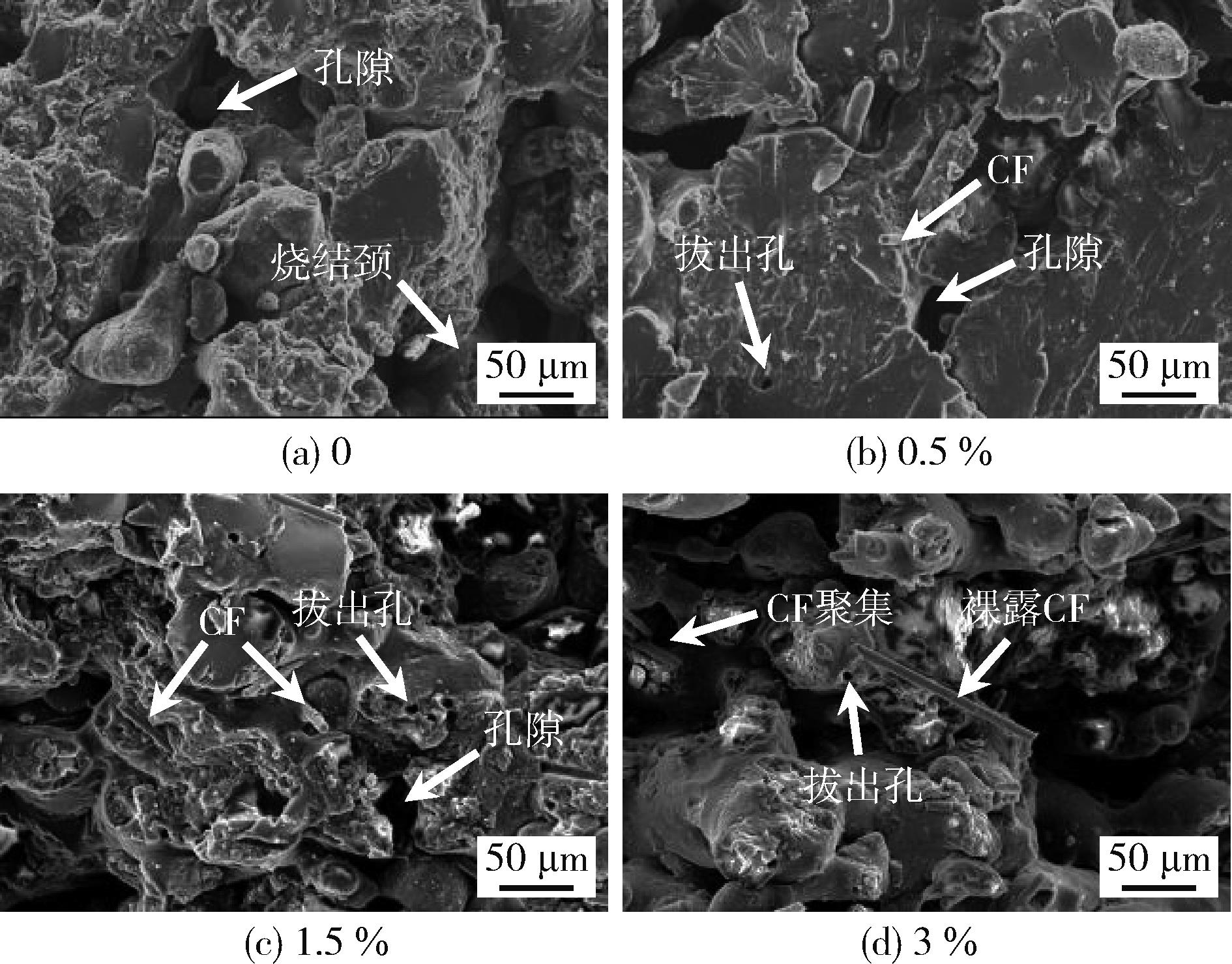

Fig.1. SEM of tensile fracture of sintered parts with different CF mass fractions

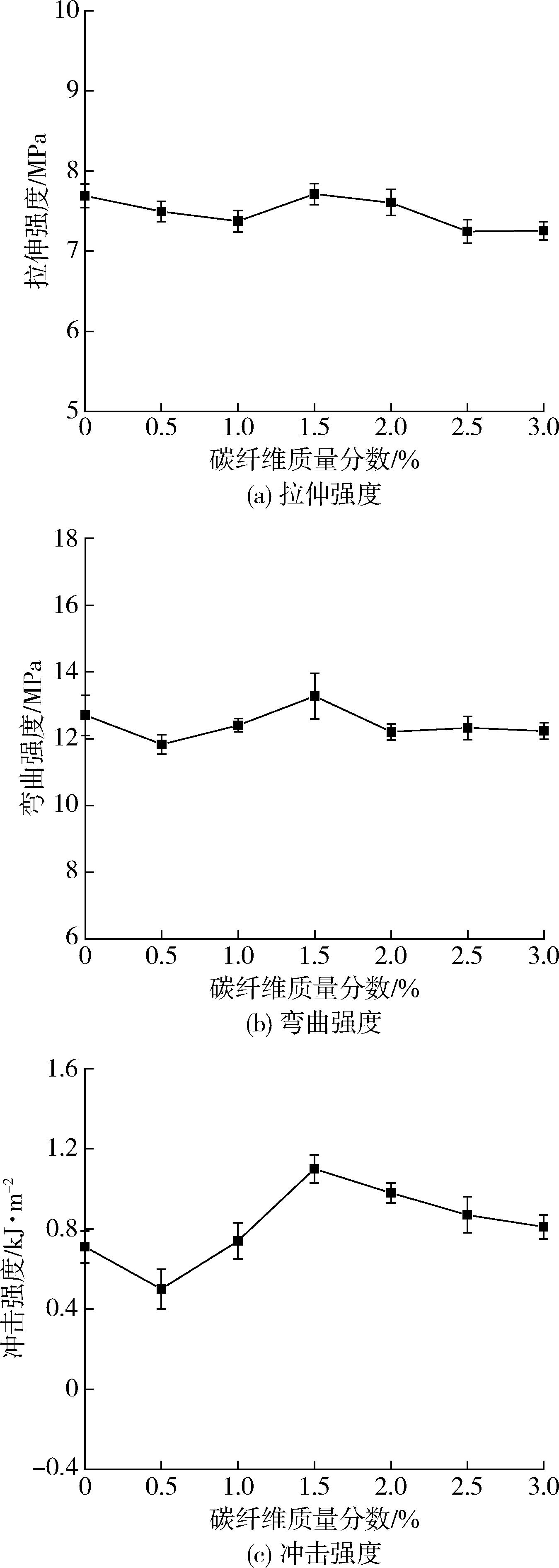

Fig.2. Mechanical property change curves of sintered parts with different CF mass fractions

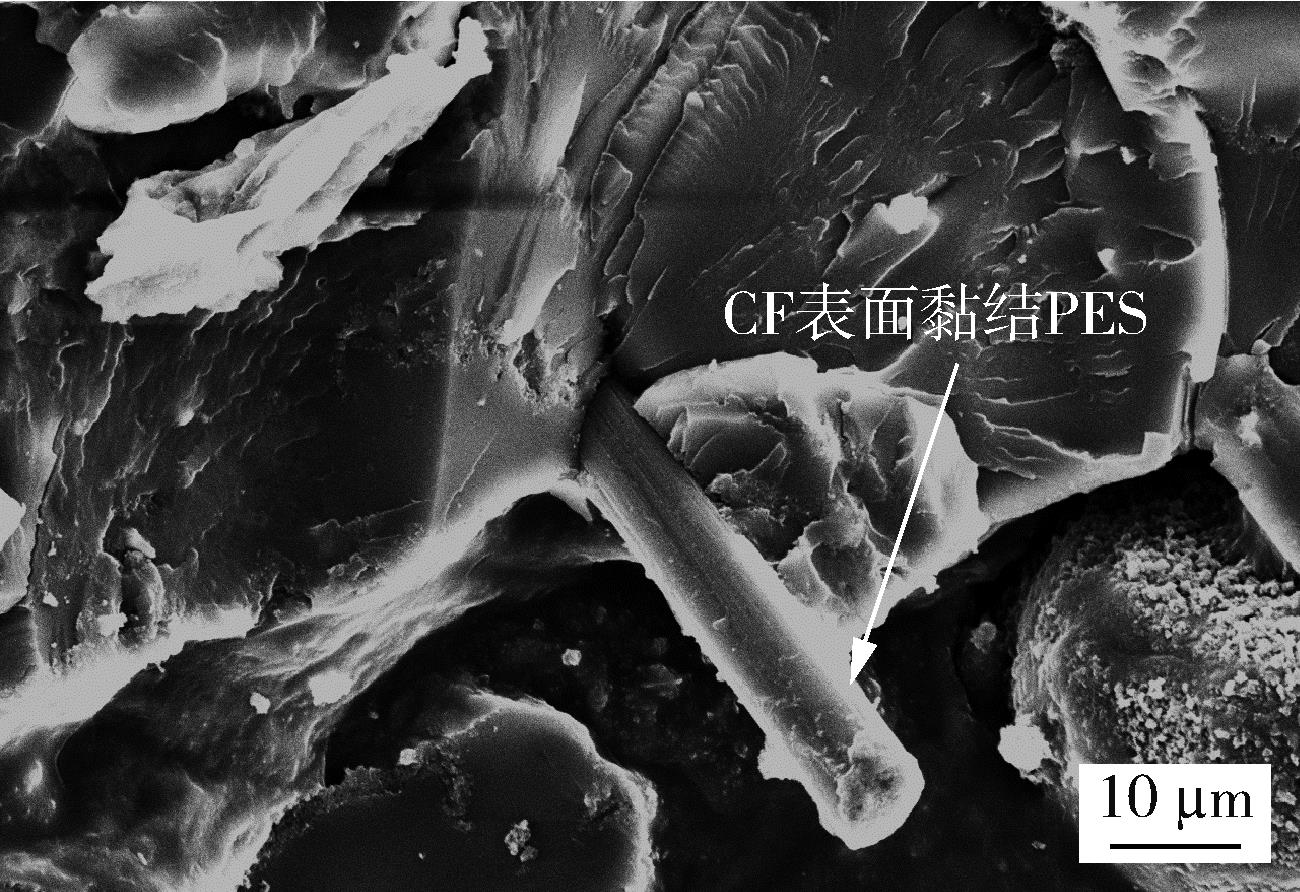

Fig.3. The surface morphology of pulled⁃out CF

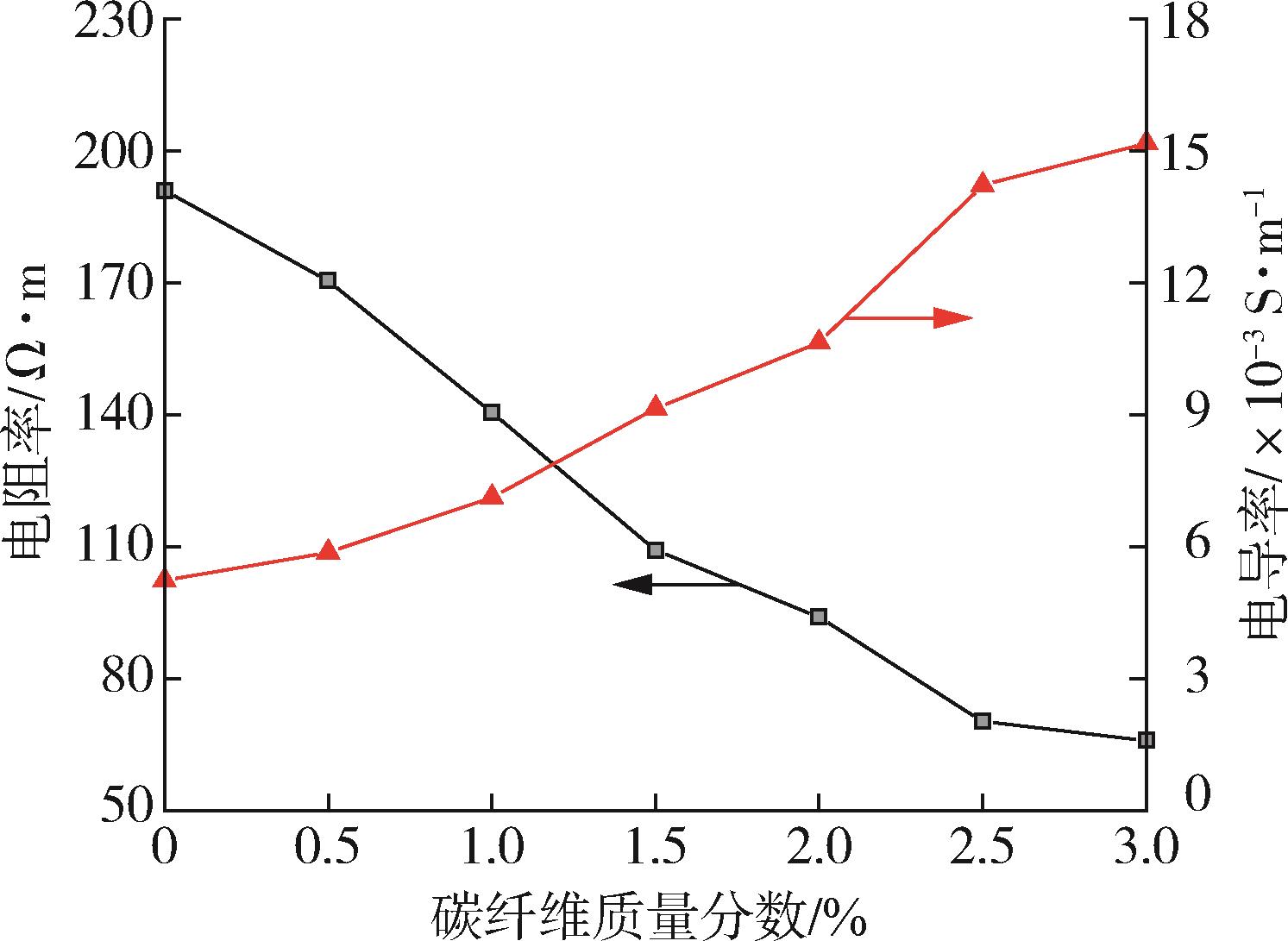

Fig.4. Conductivity change curves of sintered parts with different CF mass fractions

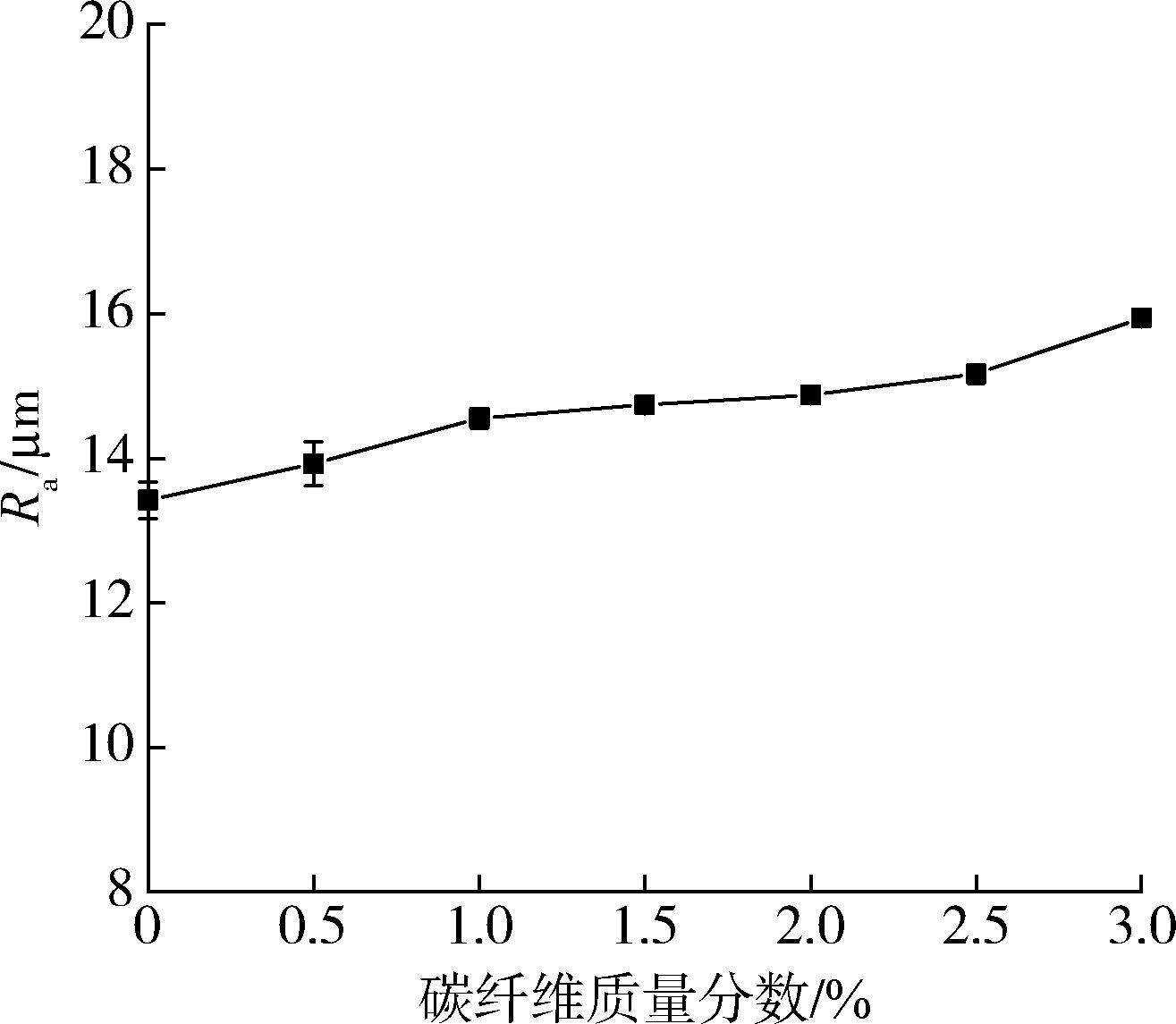

Fig.5. Surface quality variation curves of sintered parts with different CF mass fractions

Fig.6. Surface morphology of sintered parts with different CF mass fractions

References 15

1	Kafle A， Luis E， Silwal R， et al. 3D/4D printing of polymers： fused deposition modelling （FDM）， selective laser sintering （SLS）， and stereolithography （SLA）［J］. Polymers， 2021， 13（18）： 3 101.
2	Yang L， Tang S， Fan Z， et al. Rapid casting technology based on selective laser sintering［J］. China Foundry， 2021， 18（4）： 296⁃306.
3	陈晖，王磊，郭振.碳系/高分子导电复合材料研究现状［J］.塑料工业，2020，48（06）：1⁃5.
	CHEN H， WANG L， GUO Z. Research status of carbon/polymer conductive composites ［J］. China Plastics Industry， 2020， 48（06）：1⁃5.
4	Caradonna A， Badini C， Padovano E， et al. Electrical andhermal conductivity of epoxy⁃carbon filler composites processed by calendaring［J］. Materials， 2019， 12（9）： 1 522.
5	王磊．PES/CF复合粉末激光烧结的数值模拟与实验研究［D］．哈尔滨：东北林业大学，2021．
6	赵佳琳. 基于SLS的PES/CB抗静电头盔内衬工艺研究及拓扑优化设计［D］.哈尔滨：东北林业大学，2022.
7	夏炎. 炭黑/碳纤维/聚合物复合导电PTC材料的研究［D］.长春理工大学，2016.
8	Liao G， Li Z， Cheng Y， et al. Properties of oriented carbon fiber/polyamide 12 composite parts fabricated by fused deposition modeling ［J］. Materials & Design， 2018， 139： 283⁃292.
9	田银彩，胡凌宵.聚酰胺6/短切碳纤维复合材料制备及力学性能［J］.工程塑料应用，2022，50（10）：30⁃35.
	TIAN Y C， HU L X. Preparation and mechanical properties of polyamide 6/short carbon fiber composites ［J］. Engineering Plastics Application，2022，50（10）：30-35.
10	张颖，刘晓峰，阎述韬，等. 碳纤维粉改性环氧树脂基玻纤复合材料力学性能研究［J］. 功能材料， 2020， 51（11）： 11 103⁃11 109.
	ZHANG Y， LIU X F， YAN S T， et al. Study on mechanical properties of glass fiber composites based on carbon fiber powder modified epoxy resin ［J］. Journal of Functional Materials， 2020， 51（11）： 11 103⁃11 109.
11	杨来侠，王勃，徐超，等.PS对PS/CF复合材料SLS烧结件力学性能及成型精度的影响［J］.中国塑料，2018，32（08）：52⁃57.
	YANG L X， WANG B， XU C， et al. Effect of PS on mechanical properties and precision of SLS sintered parts PS/CF composite［J］. China Plastics， 2018，32（08）：52⁃57.
12	张保卫. 碳纤维/炭黑/丁腈橡胶复合材料的物理性能和导电性能研究［J］. 橡胶工业， 2017， 64（12）： 709⁃713.
	ZHANG B W. Physical properties and electrical conductivity of carbon fiber/carbon black/nitrile butadiene rubber composite ［J］. China Rubber Industry， 2017， 64（12）： 709⁃713.
13	Yang H， Gong J， Wen X， et al. Effect of carbon black on improving thermal stability， flame retardancy and electrical conductivity of polypropylene/carbon fiber composites ［J］.Composites Science and Technology， 2015， 113： 31⁃37.
14	徐林. 碳纤维/尼龙12复合粉末的制备与选择性激光烧结成形［D］.华中科技大学，2009.
15	马江可. 基于SLS的GF/PES复合材料工艺研究及制件性能预测［D］.哈尔滨：东北林业大学，2022.
