Effect of TEOS modification and long straw fiber orientation on properties of PP/SF composites

doi:10.19491/j.issn.1001-9278.2024.02.003

Abstract

Abstract:

In this paper， tetraethyl orthosilicate （TEOS） and ammonia were used to prepare a solution gel to modify the surface of straw fibers （SF）. The changes in chemical composition， surface morphology and hydrophobicity of SF before and after the modification were investigated. Long⁃SF⁃reinforced polypropylene （PP） composites were prepared through hot pressing， and the mechanical strength of PP/SF composites before and after the solution gel modification of long SF were compared. The PP/SF composites were designed and prepared with five different straw orientations of 0 °， 15 °， 30 °， 45 ° and 90 °， and the effects of orientation angle on the mechanical strength of the composites were investigated. The experimental results indicated that the SiO₂ particles deposited on the surface of the TEOS⁃treated SF could help to improve the hydrophobicity and roughness of the fiber surface， thus enhancing the infiltration and compatibility between SF and PP. Compared to PP composite with untreated SF， the tensile， flexural， and impact strengths of the composites with TEOS⁃treated SF were improved by 20.3 %， 11 %， and 35.7 %， respectively. The orientation angle of the fibers has a great influence on the mechanical strength of PP/SF composites. The smaller the angle between the orientation direction of SF and the direction of the applied stress， the more can the SF exert their reinforcing effect， and the higher are the tensile， flexural and impact strengths.

Key words: wheat straw, polypropylene, solution gel modification, orientation angle, mechanical strength

CLC Number:

TQ325.1⁺4

RUAN Fangtao, WU Hao, ZHU Jinwei, SU Yongsheng, CHEN Zhuolin, WANG Guofeng, WANG Hongjie. Effect of TEOS modification and long straw fiber orientation on properties of PP/SF composites[J]. China Plastics, 2024, 38(2): 14-19.

Figures/Tables 10

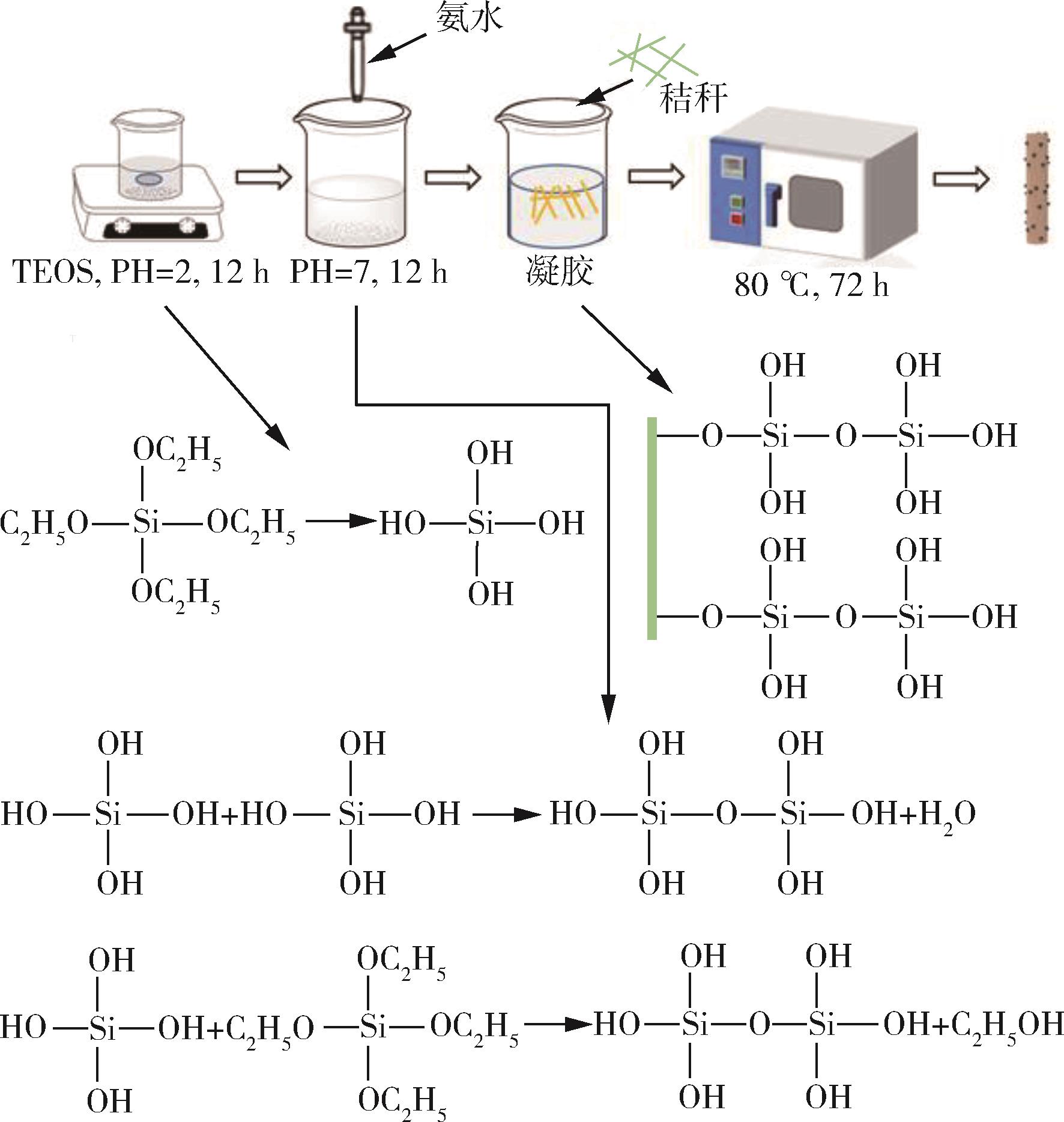

Fig.1. Schematic diagram of TEOS approach to the treatment of straw fibers

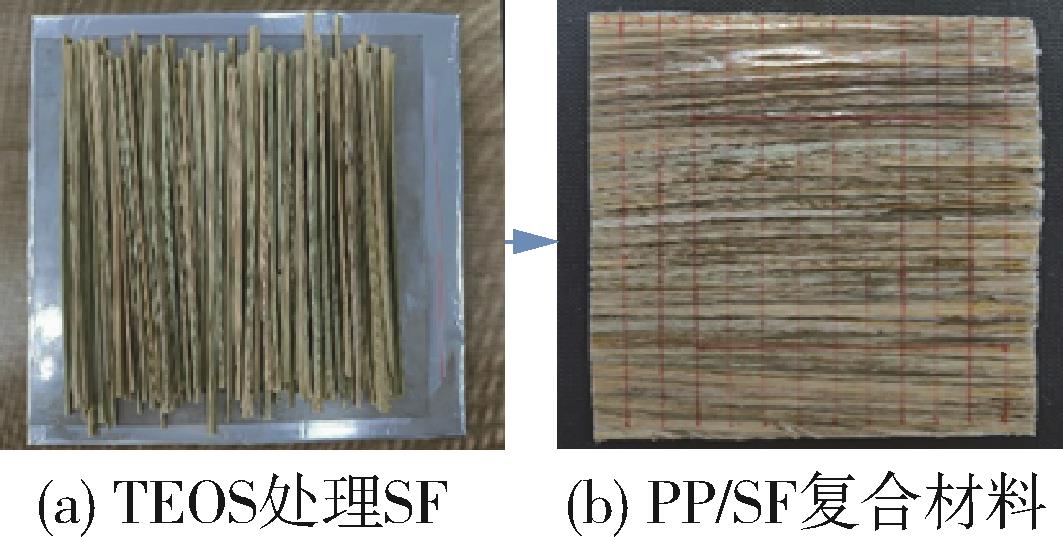

Fig.2. Photo of the samples

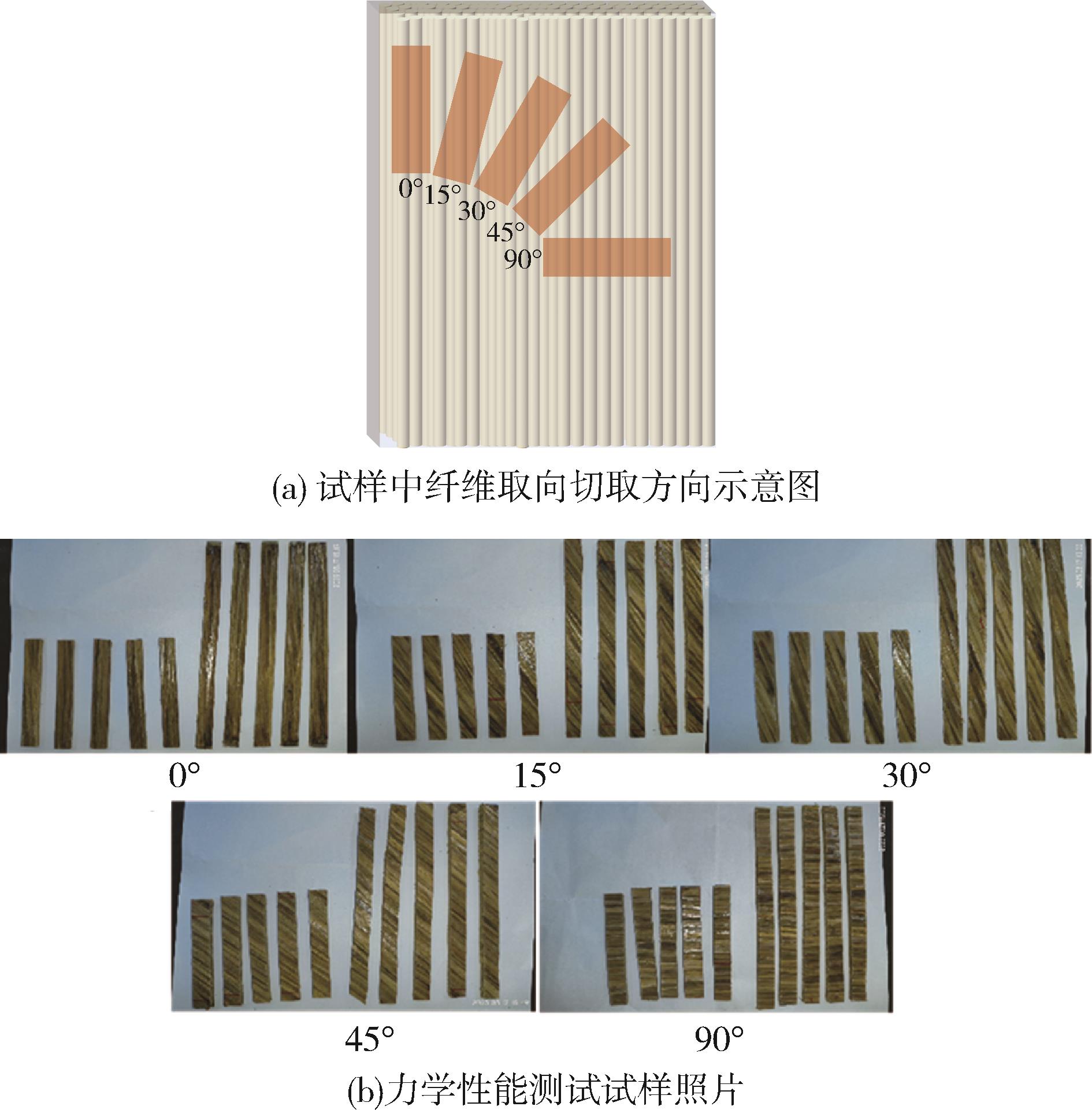

Fig.3. PP/SF composites

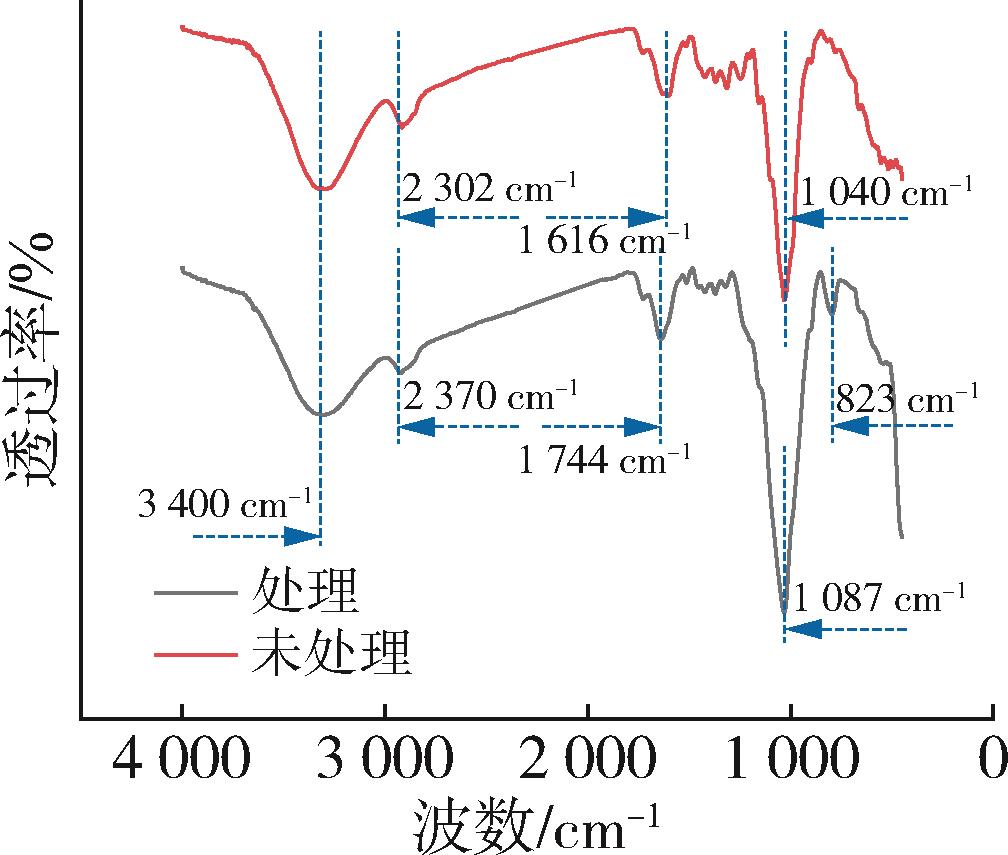

Fig.4. FTIR spectra of the samples

Fig.5. Contact angles of SF surfaces

Fig.6. SEM images of the SF

Fig.7. Impact fractional morphology of the PP/SF composites

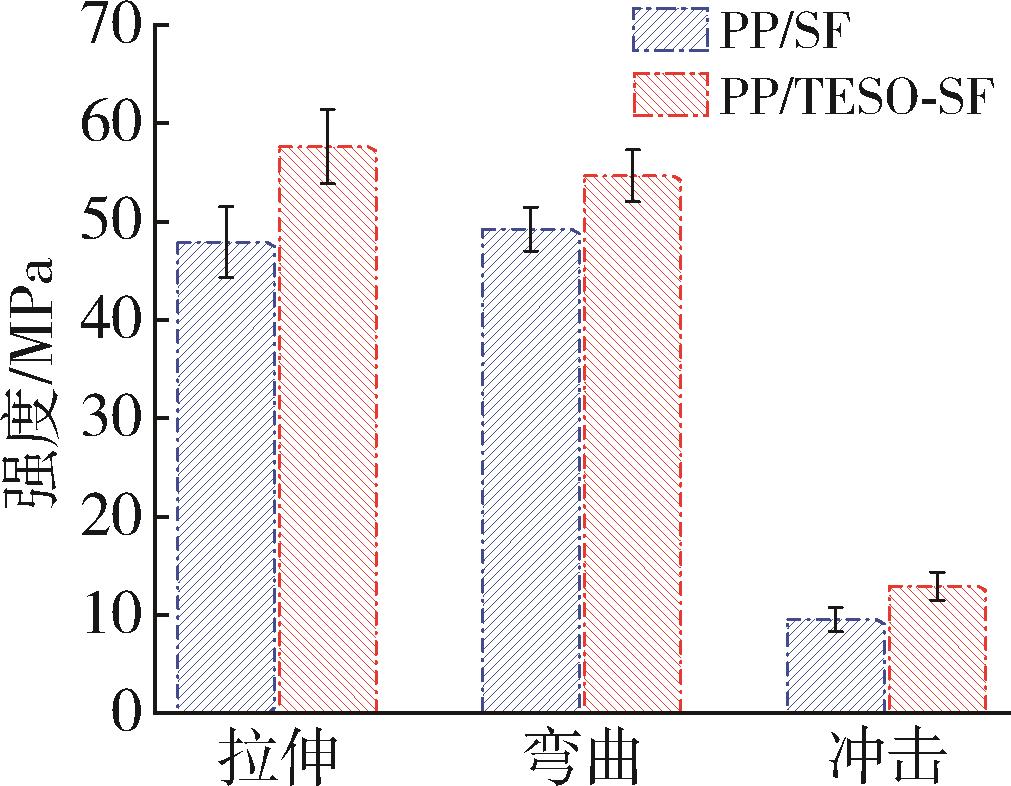

Fig.8. Effect of TEOS treatment on mechanical properties of the PP/SF composites

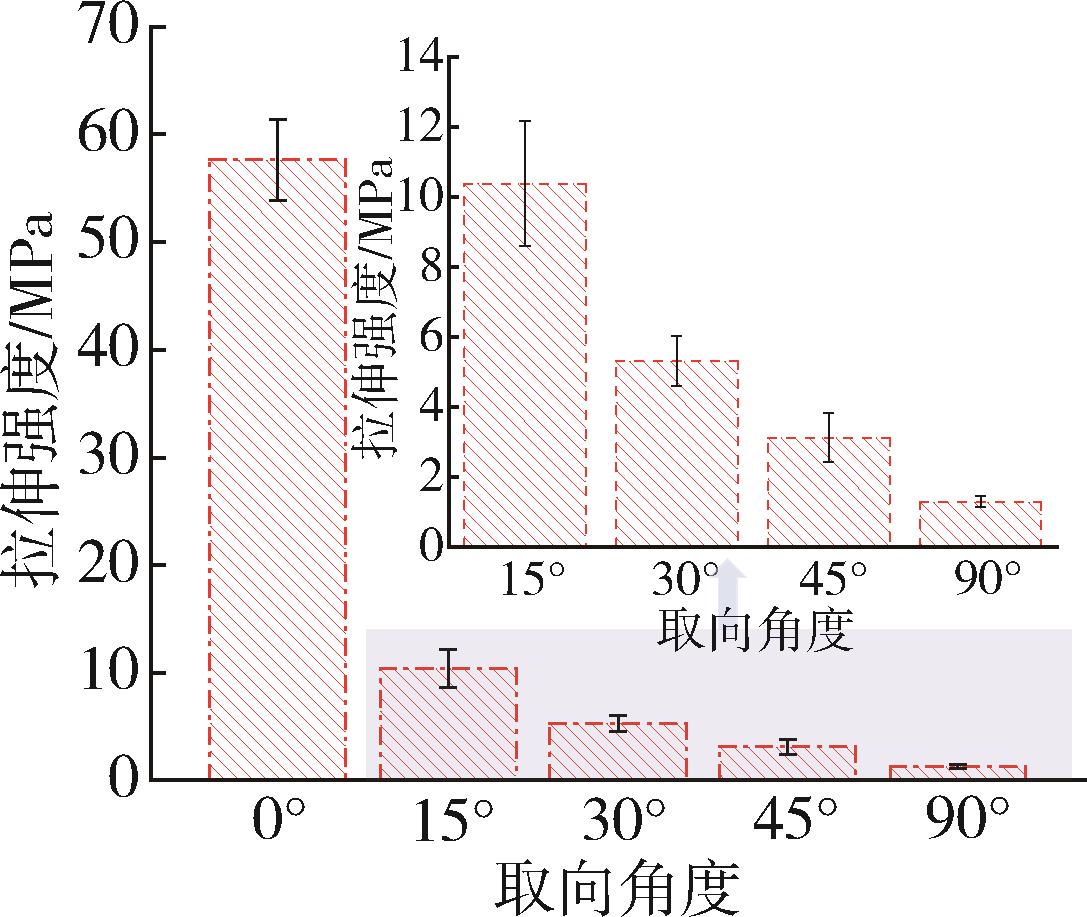

Fig.9. Effect of orientation angle on tensile strength of the PP/SF composites

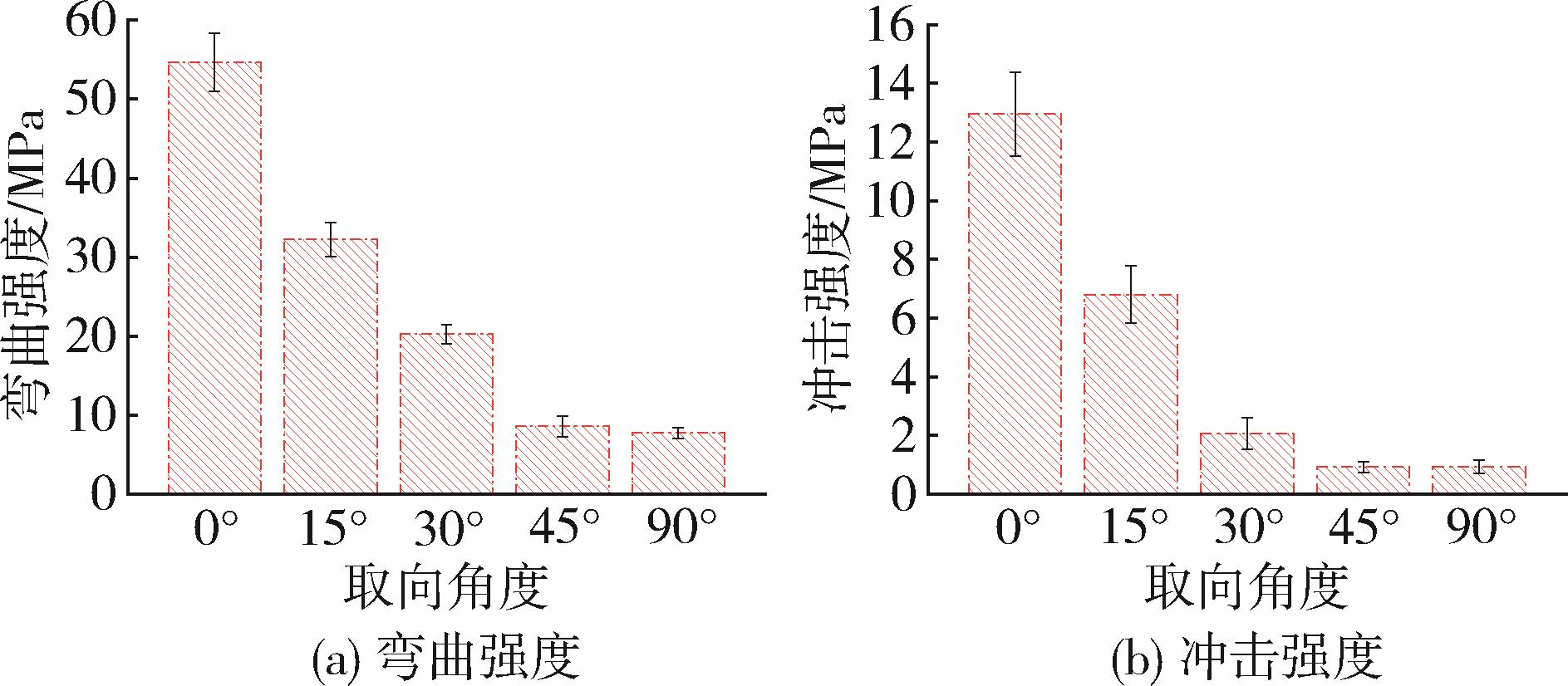

Fig.10. Effect of orientation angle on the bending strength and impact strength of PP/SF composites

References 24

1	Singh P K， Pandey P. Fiber reinforced biopolymer composites： a review［J］. Macromolecular Symposia， 2023，407（1）：2011501
2	Prakash S O， Sahu P， Madhan M，et al. A review on natural fibre⁃reinforced biopolymer composites： properties and applications［J］. International Journal of Polymer Science，2022：7820731.
3	Jagadeesh P， Puttegowda M， Mavinkere Rangappa S， et al. A review on extraction， chemical treatment， characterization of natural fibers and its composites for potential applications［J］. Polym Composite， 2021，42（12）：6 239⁃6 264.
4	Zhang J， Zhang H， Wang X， et al. An environment friendly hemp fiber modified with phytic acid for enhancing fire safety of automobile parts［J］. Journal of Polymer Engineering，2022，42（6）：535⁃543.
5	石祖梁，王飞，王久臣，等.我国农作物秸秆资源利用特征、技术模式及发展建议［J］.中国农业科技导报，2019， 21（05）： 8⁃16.
	SHI Z L， WANG F， WANG J C，et al. Utilization characteristics，technical model and development suggestion on crop straw in China［J］. Journal of Agricultural Science and Technology，2019， 21（05）： 8⁃16.
6	Rohatgi V， Challagulla N V， Kumar R. Sustainable conversion of agricultural waste to energy and high⁃value chemicals［J］. Bio⁃Based Materials and Waste for Energy Generation and Resource Management， 2023：103⁃42.
7	徐会成.稻秸/线性低密度聚乙烯膜复合材料的成型工艺及性能研究［D］.东北林业大学，2022.
8	赵梅杰. 生物质秸秆填充废旧聚丙烯制备复合材料的性能研究［D］.青岛科技大学，2018.
9	Verma D， Goh K L， Vimal V. Interfacial studies of natural fiber⁃reinforced particulate thermoplastic composites and their mechanical properties［J］. Journal of Natural Fibers， 2022；19（6）：2 299⁃2 326.
10	Ramachandran A， Mavinkere Rangappa S， Kushvaha V， et al. Modification of fibers and matrices in natural fiber reinforced polymer composites： a comprehensive review［J］. Macromolecular Rapid Communications，2022，43（17）：2100862.
11	Liu L， Yuan Z， Fan X， et al. A review of interfacial bonding mechanism of bamboo fiber reinforced polymer composites［J］. Cellulose， 2022，29（1）：83⁃100.
12	王忠元. 秸秆/PP复合材料的制备与注塑成型研究［D］.浙江工业大学，2020.
13	Chen K， Li P， Li X，et al. Effect of silane coupling agent on compatibility interface and properties of wheat straw/polylactic acid composites［J］. International Journal of Biological Macromolecules，2021，182：2 108⁃2 116.
14	王利剑. 汉麻秆粉/聚乳酸木塑复合材料阻燃及力学性能研究［D］.天津工业大学，2020.
15	杜韫哲，崔超，孔宪志，等. ZnO 纳米棒提高碳纤维增强树脂基复合材料界面性能［J］. 化学与粘合， 2019， 41（5）： 323⁃327.
	DU Y Z， CUI C， KONG X Z，et al. Improvement of interface properties of carbon fiber reinforced resin matrix composites by ZnO nanorods［J］. Chemistry and Adhesion， 2019， 41（5）： 323⁃327.
16	马源彬. 基于无机纳米填料的聚丙烯基木塑复合材料改性研究［D］.华南理工大学，2020.
17	张邈. 黄麻纤维表面纳米 SiO₂的聚电解质法制备及其增强聚丙烯复合材料机理研究［D］.南京航空航天大学，2020.
18	马君志，葛红，王冬，等. 溶胶⁃凝胶法改性阻燃粘胶纤维的制备及其性能［J］.纺织学报，2021，42（1）： 10⁃15.
	MA J Z， GE H， WANG D，et al. Preparation and properties of sol⁃gel modified flame retardant viscose fiber［J］. Journal of Textile Research， 2021， 42（1）：10⁃15.
19	Zulkifli M， Hossain M， Sohrab K， et al. Preparation and characterization of sol⁃gel silica⁃modified kenaf bast microfiber/polypropylene composites［J］. BioResources， 2018， 13（1）：18⁃27.
20	Yang Q， Ruan F， Wu H， et al. Effect of chemical treatment on rice straw fiber surface and properties of straw/polylactic acid composites［J］. Journal of Natural Fibers， 2023，20（2）：2228486.
21	Mahmud S， Long Y， Wang J， et al. Waste cellulose fibers reinforced polylactide toughened by direct blending of epoxidized soybean oil［J］. Fiber Polym，2020，21（12）：2 949⁃2 961.
22	Song X， Fang C， Li Y， et al. Characterization of mechanical properties of jute/PLA composites containing nano SiO₂ modified by coupling agents［J］. Cellulose，2022，29（2）：835⁃848.
23	杨庆永，徐成功，杨莉，等.偶联剂对小麦秸秆/PP复合材料力学性能的影响［J］.武汉纺织大学学报，2021，34（6）：24⁃29.
	YANG Q Y， XU C G， YANG L，et al. Effect of coupling agent on mechanical properties of wheat straw/PP composite［J］. Journal of Wuhan Textile University， 2021，34（6）：24⁃29.
24	Tharazi I， Azam F A A， Muhamad N，et al. Effect of fiber orientation and elevated temperature on the mechanical properties of unidirectional continuous kenaf reinforced PLA composites［J］. Reviews on Advanced Materials Science，2023， 62（1）：12⁃24.
