Research progress in flame⁃retardant poly（butanediol succinate）

doi:10.19491/j.issn.1001-9278.2024.02.016

Abstract

Abstract:

This article reviewed the research progress in flame⁃retardant polybutylene succinate （PBS） and its flame⁃retardant mechanism in recent years. The commonly used flame retardants for PBS resin include phosphorus⁃nitrogen based flame retardants， nano flame retardants， biobased flame retardants， and their compound systems. Among them， phosphorus⁃nitrogen⁃based flame retardants have the most development and modification schemes. Especially， the flame⁃retardant system based on ammonium polyphosphate （APP） currently is the most studied and effective system， including the composite system of APP and nano flame retardants and the composite system of APP and bio⁃based flame retardants. Meanwhile， the article summarized the flame⁃retardant performance and typical flame⁃retardant mechanisms of various flame⁃retardant systems.

Key words: poly（butylene succinate）, flame?retardant modification, research progress

CLC Number:

TQ323.4

KONG Zimeng, ZHANG Jian, DENG Yaxin, XU Xueling, CHEN Yajun. Research progress in flame⁃retardant poly（butanediol succinate）[J]. China Plastics, 2024, 38(2): 105-117.

Figures/Tables 23

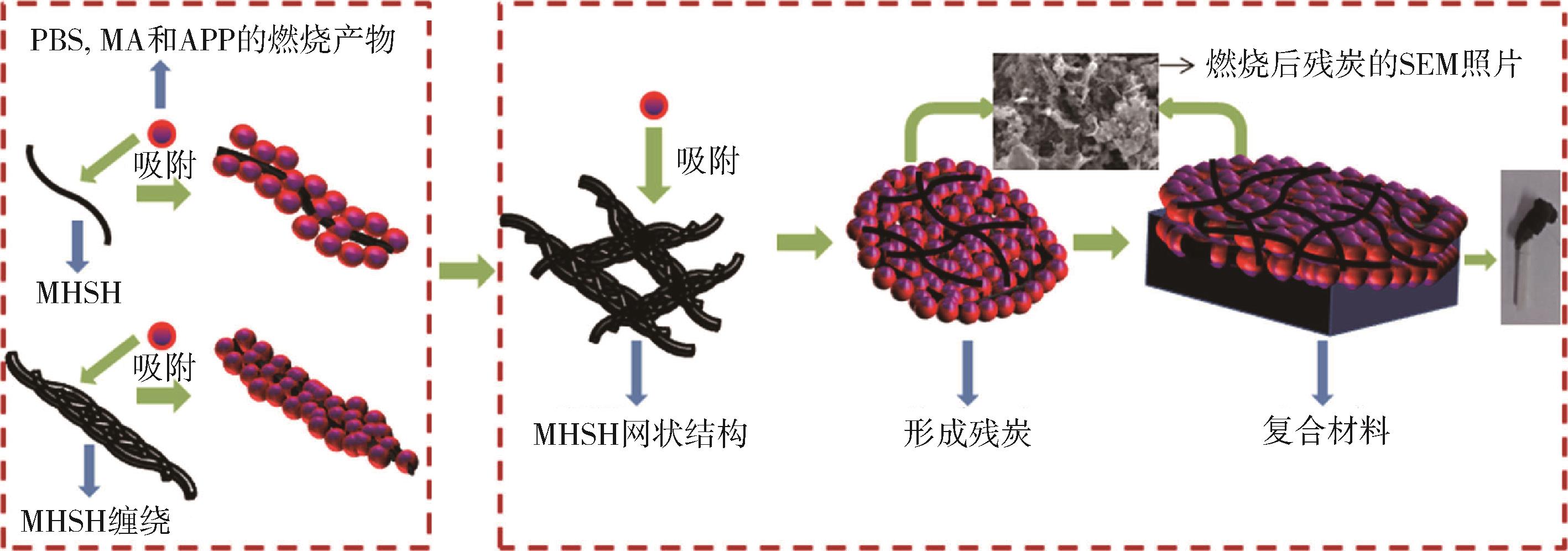

Fig.1. Flame retardant mechanism of PBS/IFR/MHSH［8］

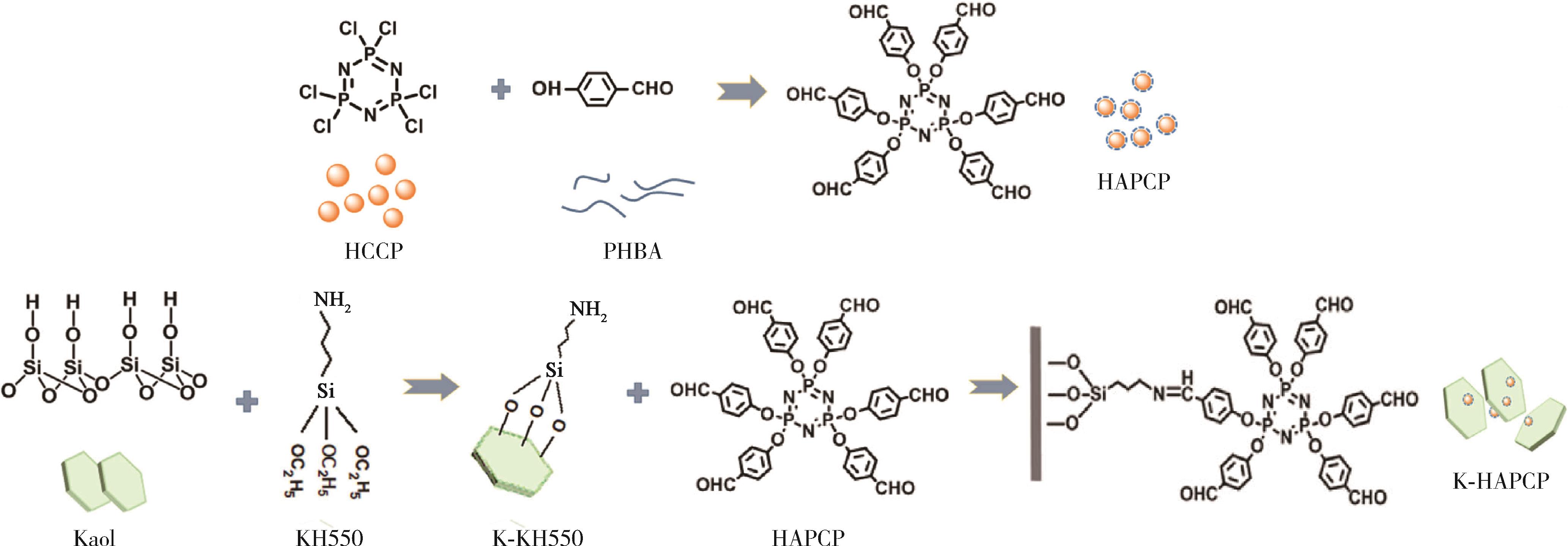

Fig.2. Preparation routes of HACPC and K⁃HAPAC［9］

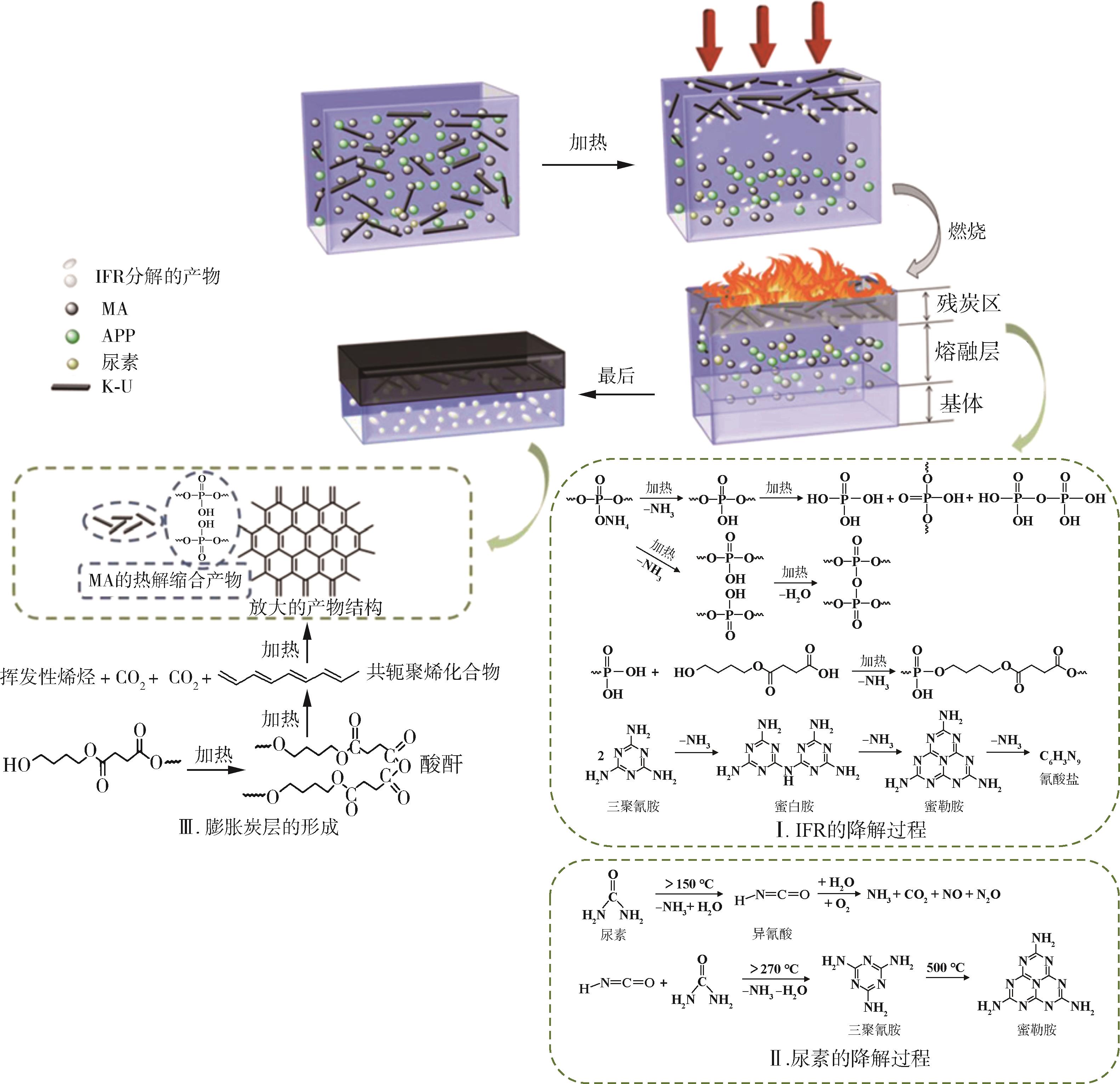

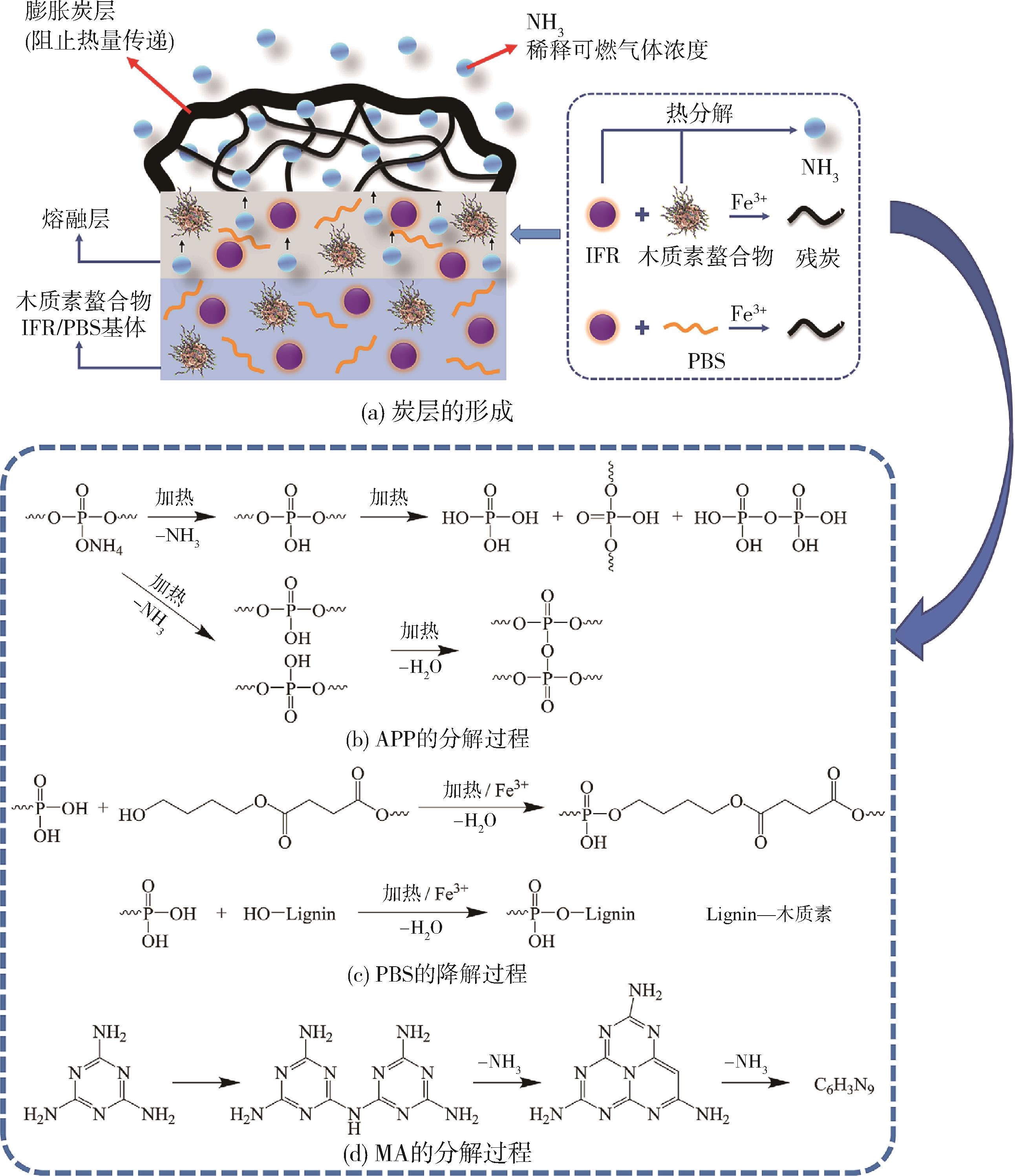

Fig.3. Flame retardant mechanism of PBS/IFR/K⁃U［10］

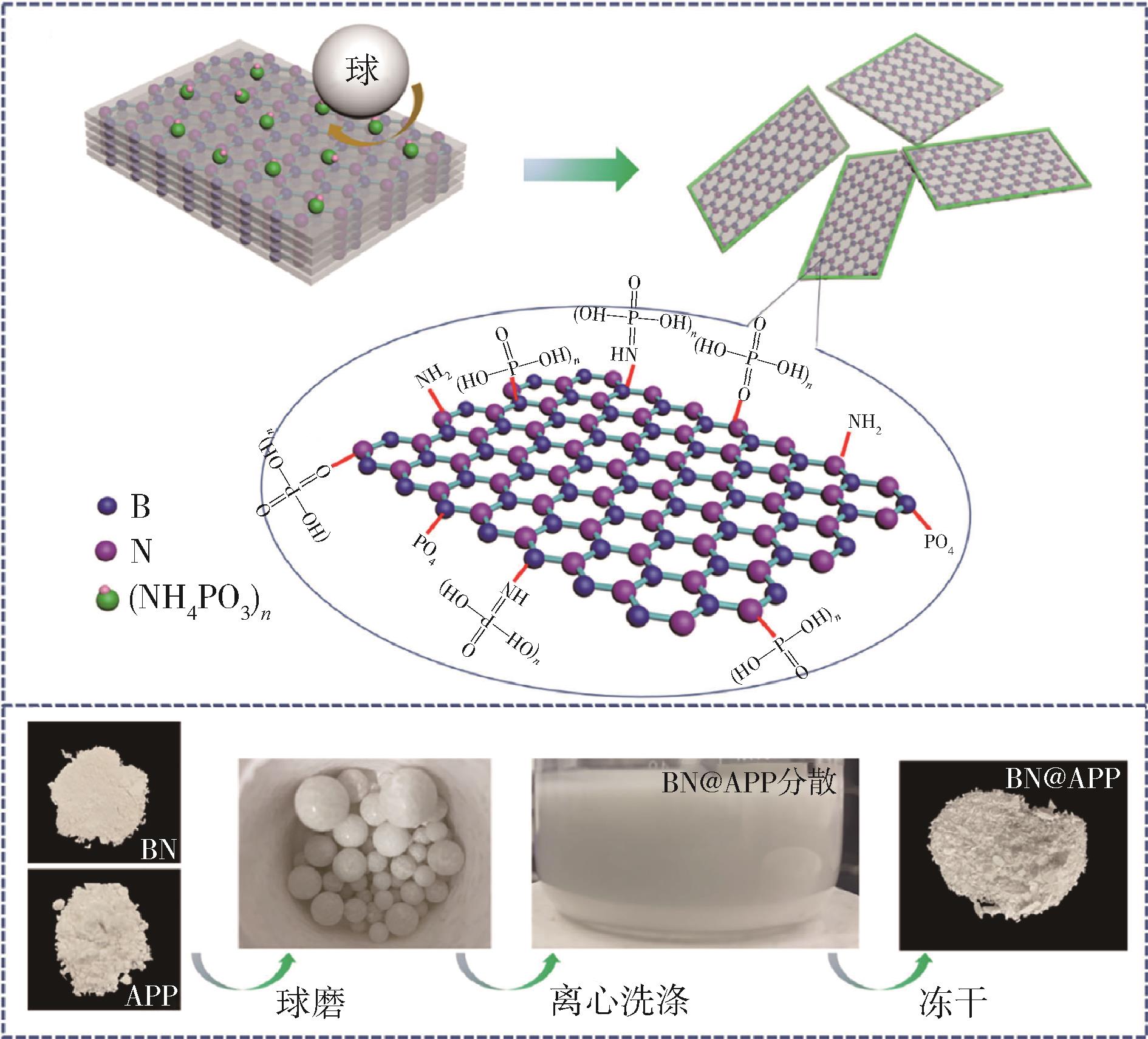

Fig.4. Preparation process of BN@APP［11］

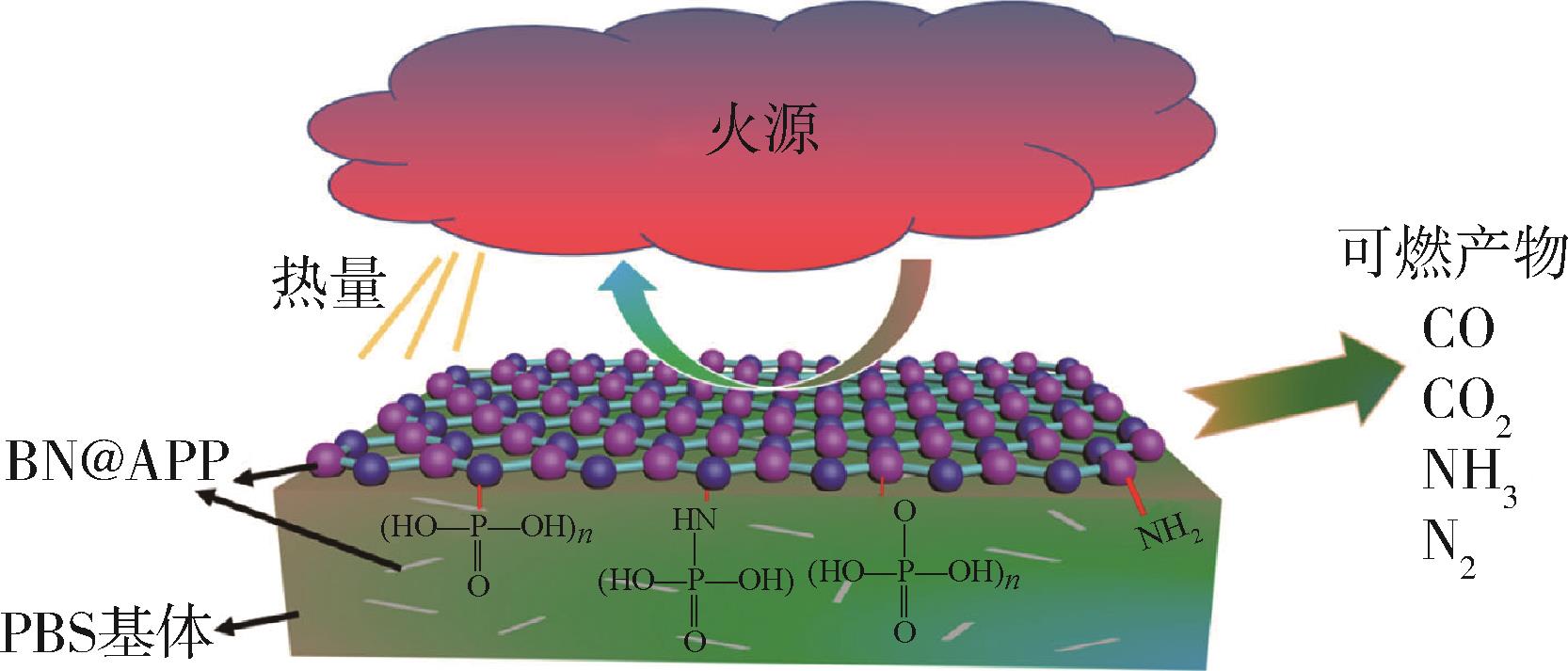

Fig.5. Flame retardant mechanism of PBS/BN@APP［11］

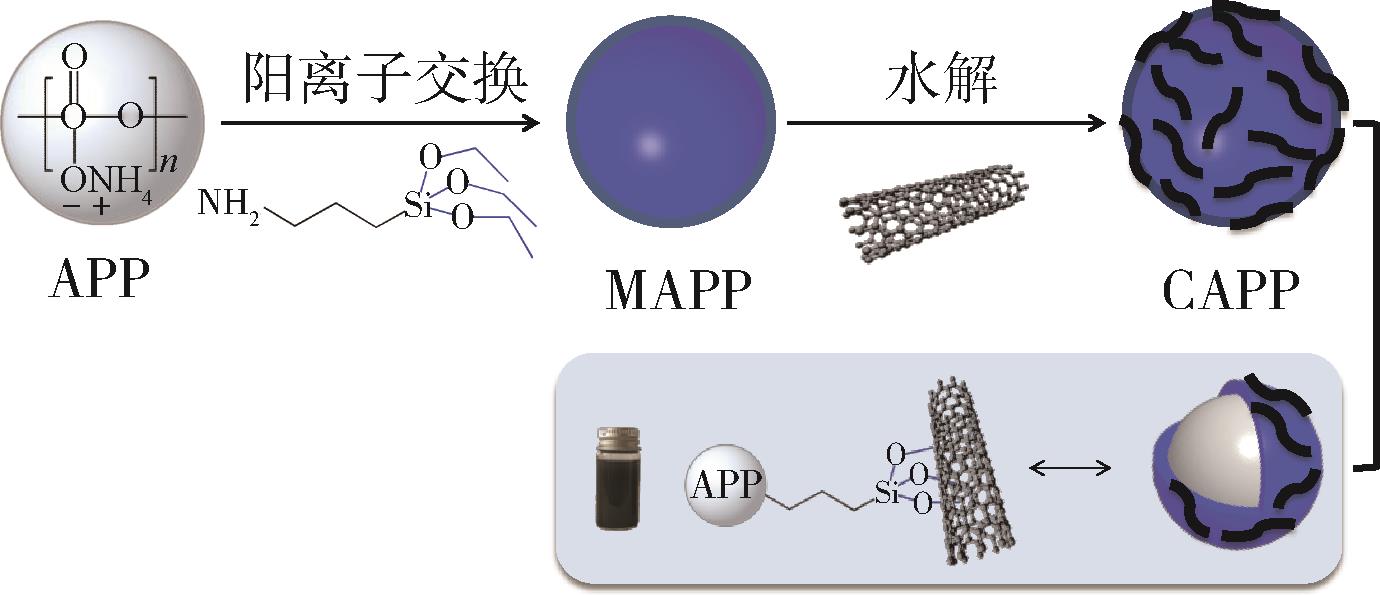

Fig.6. Preparation process of CAPP［12］

Fig.7. Flame retardant mechanism of PBS/CAPP ［12］

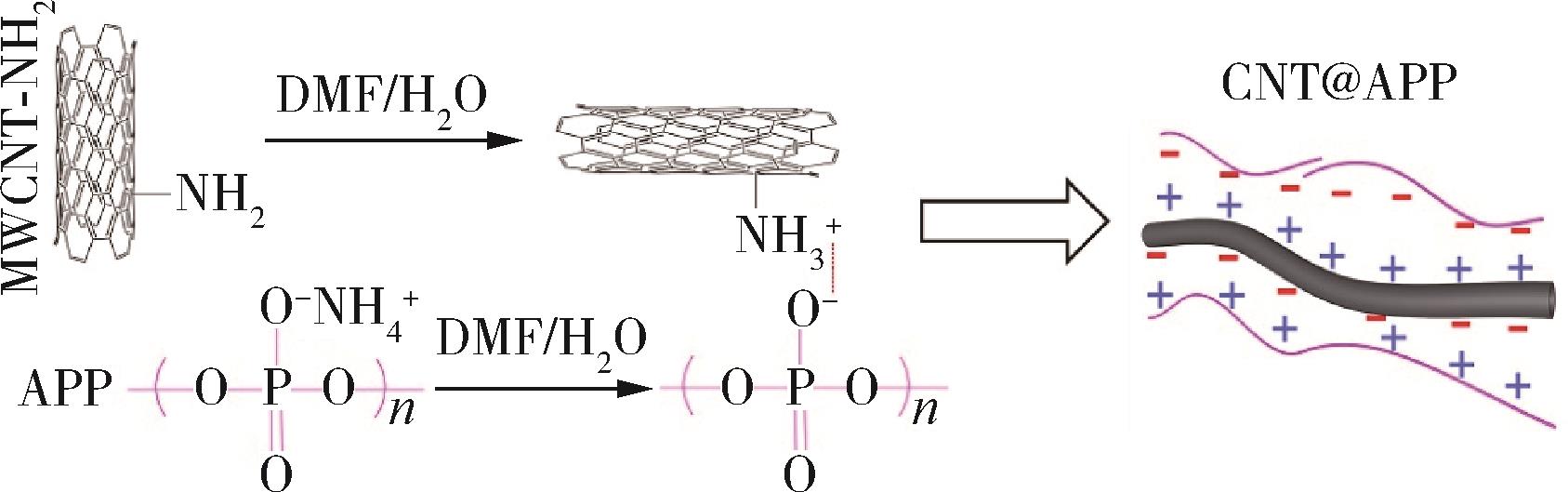

Fig.8. Preparation process of CNT@APP ［13］

Fig.9. Flame retardant mechanism of PBS/APP and PBS/PIC/APP［15］

Fig.10. Cooperative flame retardant mechanism of PBS/IFR/Cas［18］

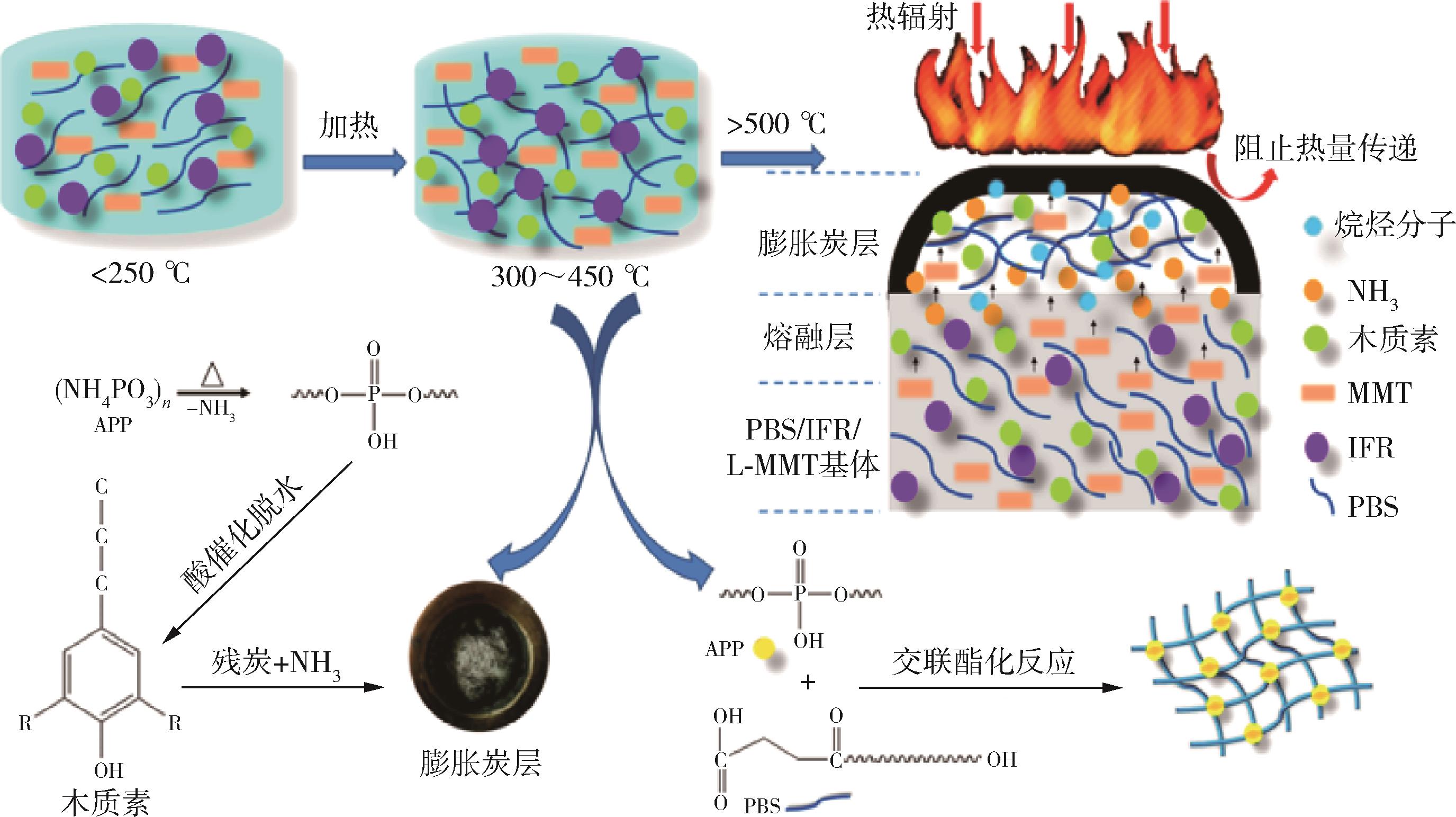

Fig.11. Cooperative flame retardant mechanism of PBS/IFR/LC［19］

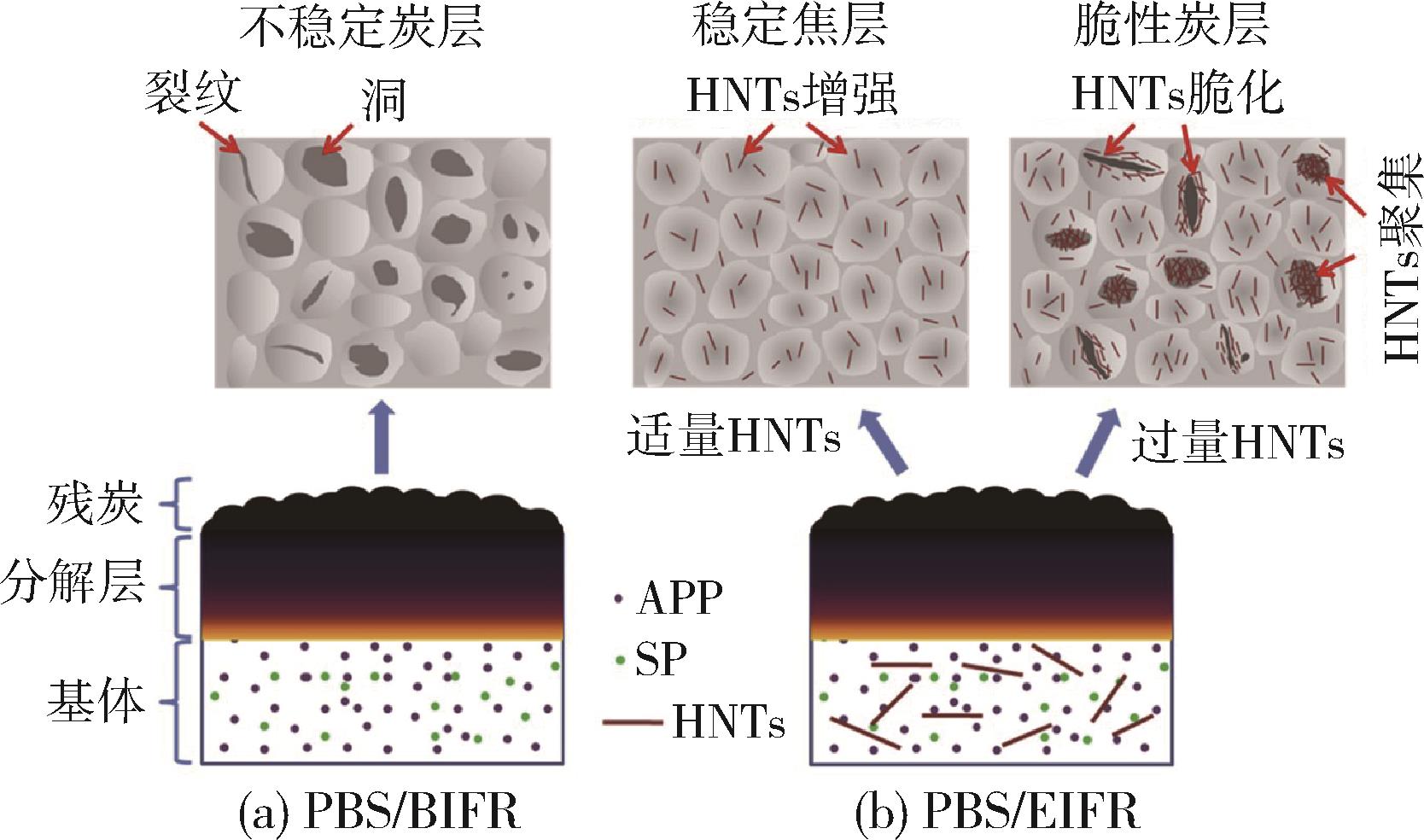

Fig.12. Flame retardant mechanism of PBS/BIFR and PBS/EIFR［16］

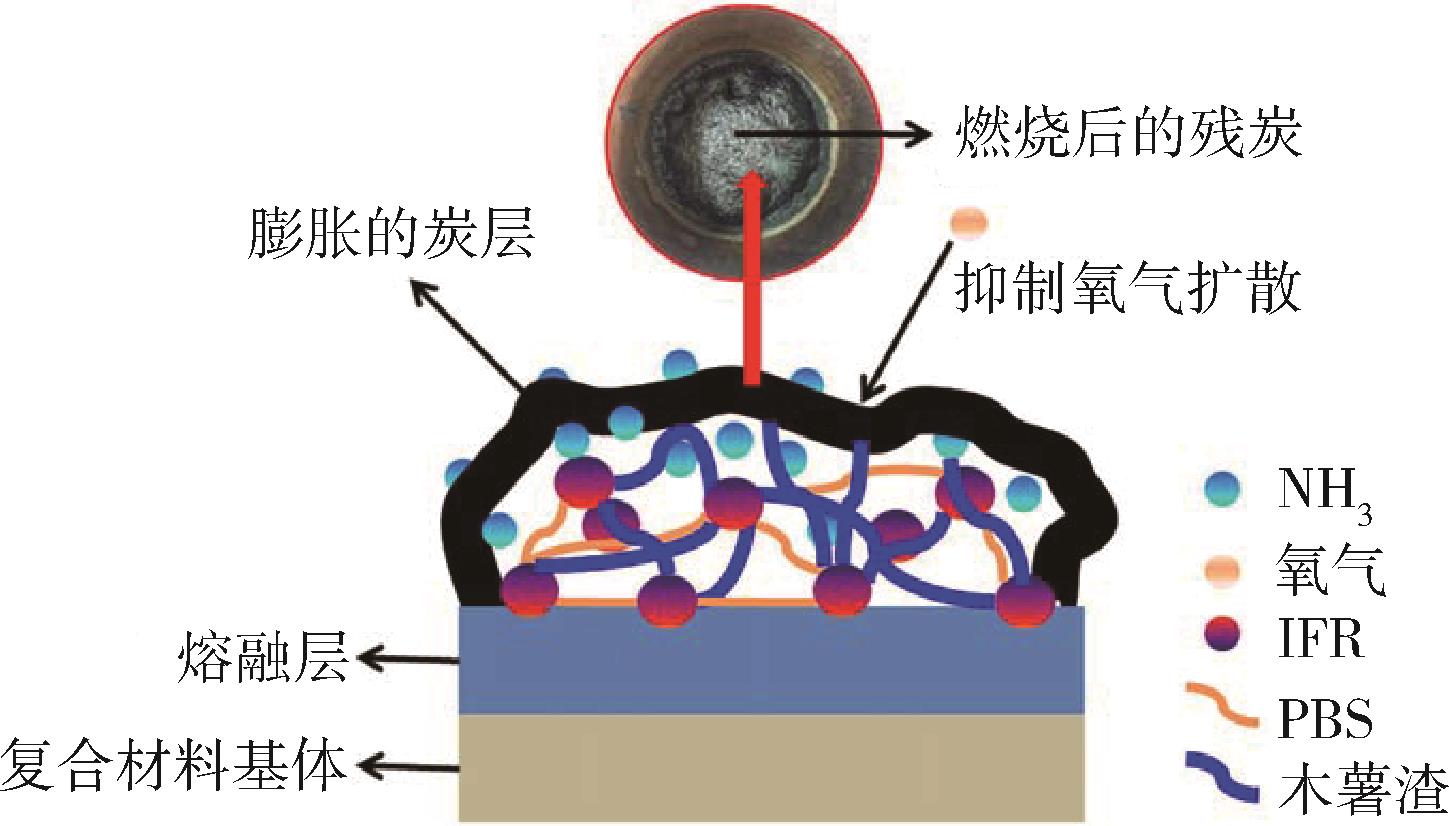

Fig.13. Cooperative flame retardant mechanism of PBS/IFR/LM［21］

Fig.14. Flame retardant mechanism of PBS/PAPP/ZnB［22］

Fig.15. Flame retardant mechanism of PBS/PAPP/ZnB［24］

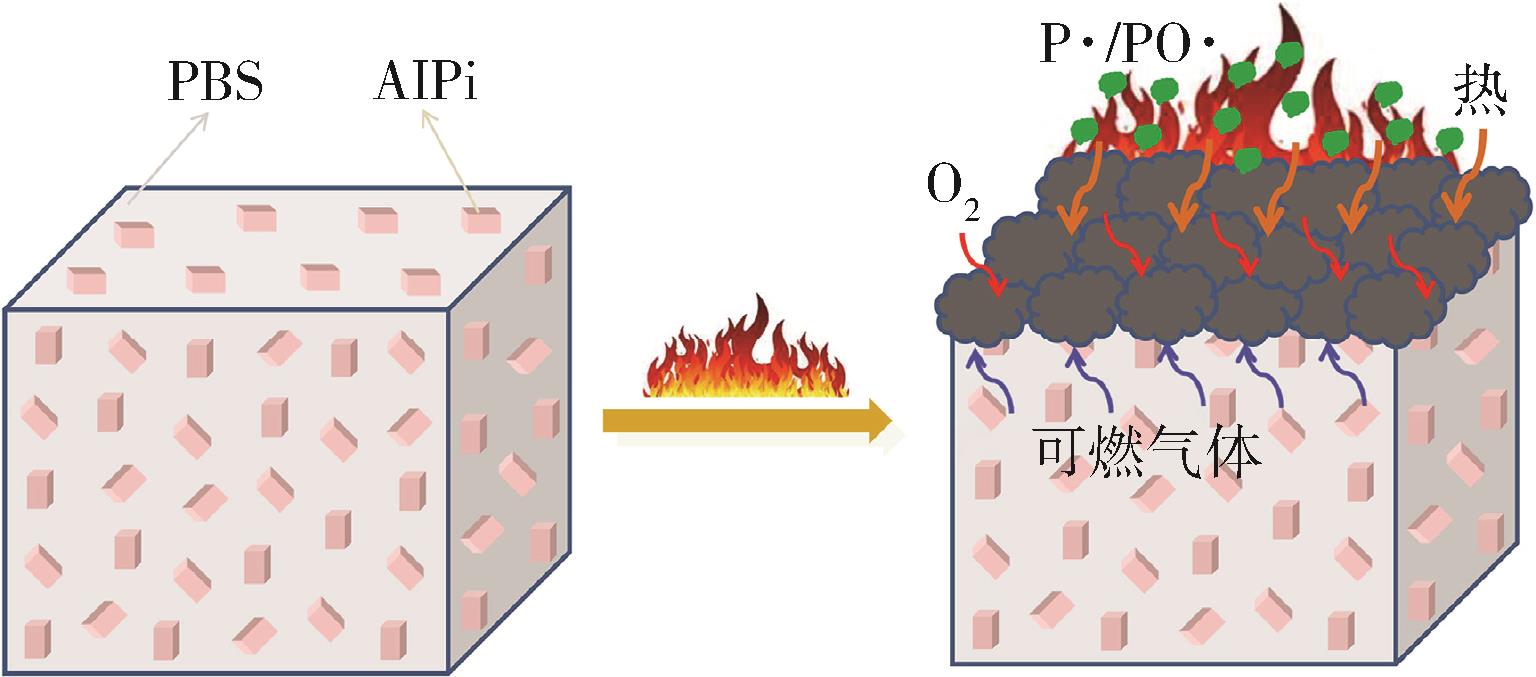

Fig.16. Flame retardant mechanism of PBS/AlPi［25］

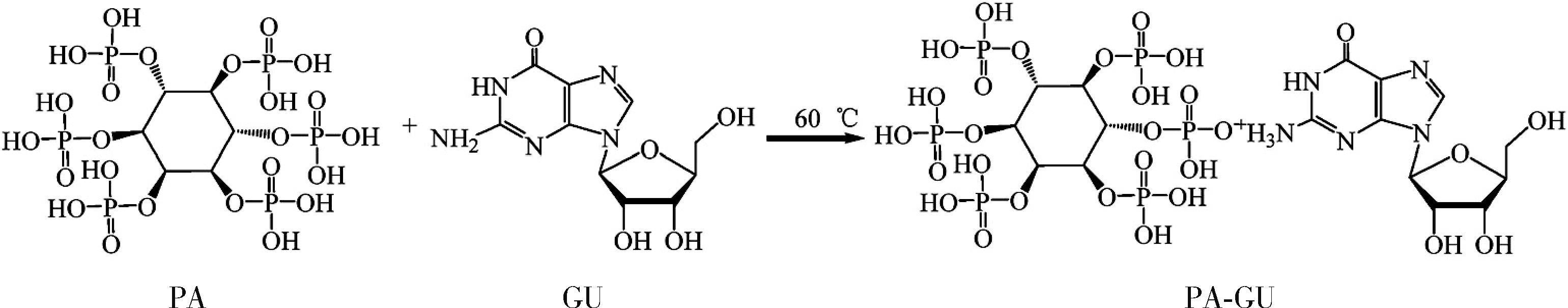

Fig.17. Preparation process of CNT@APP ［27］

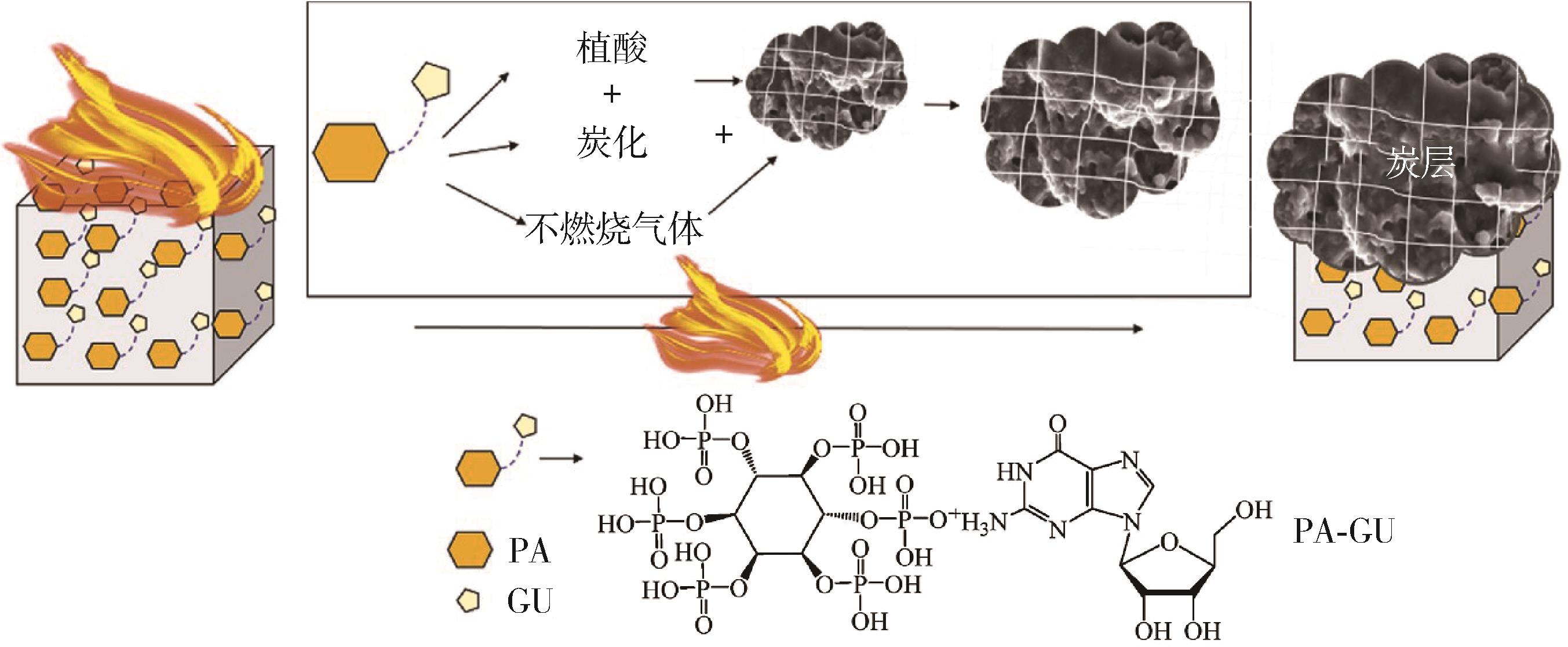

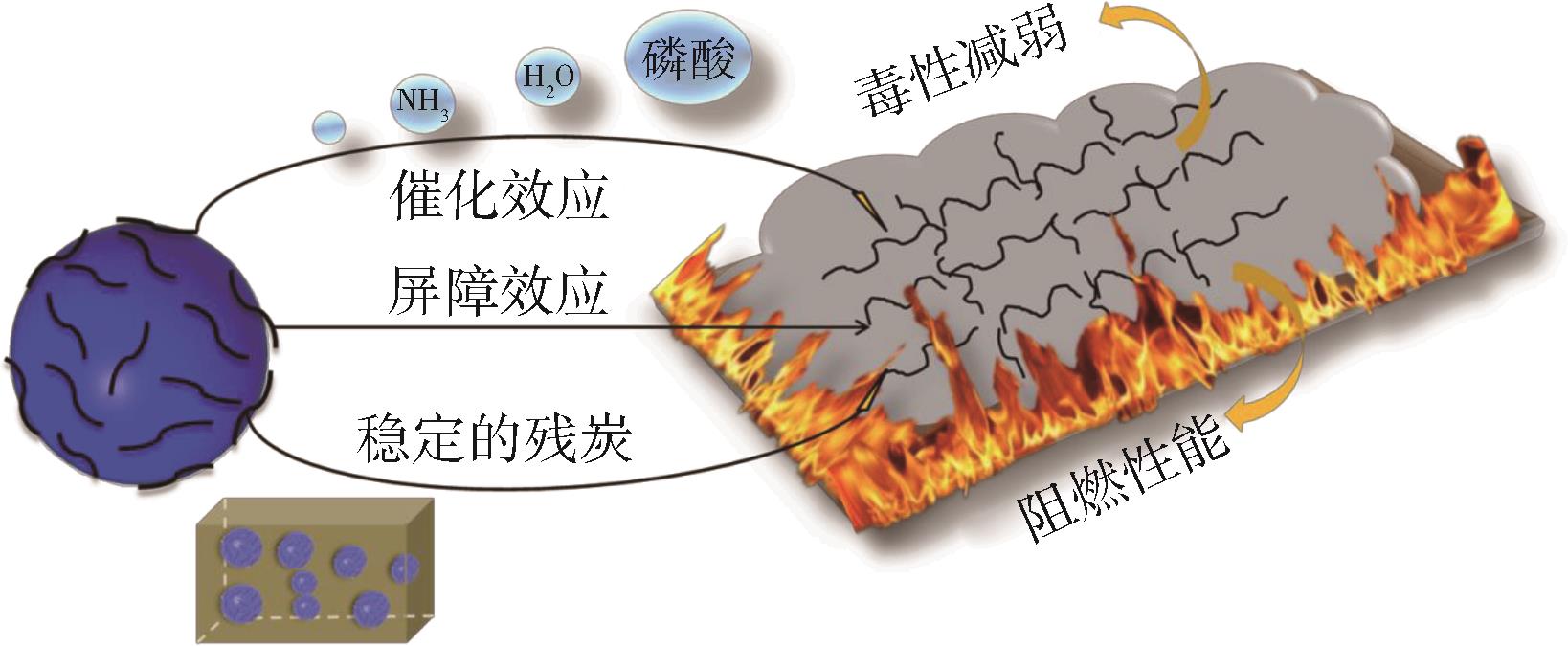

Fig.18. Flame retardant mechanism of PBS/PA⁃GU ［27］

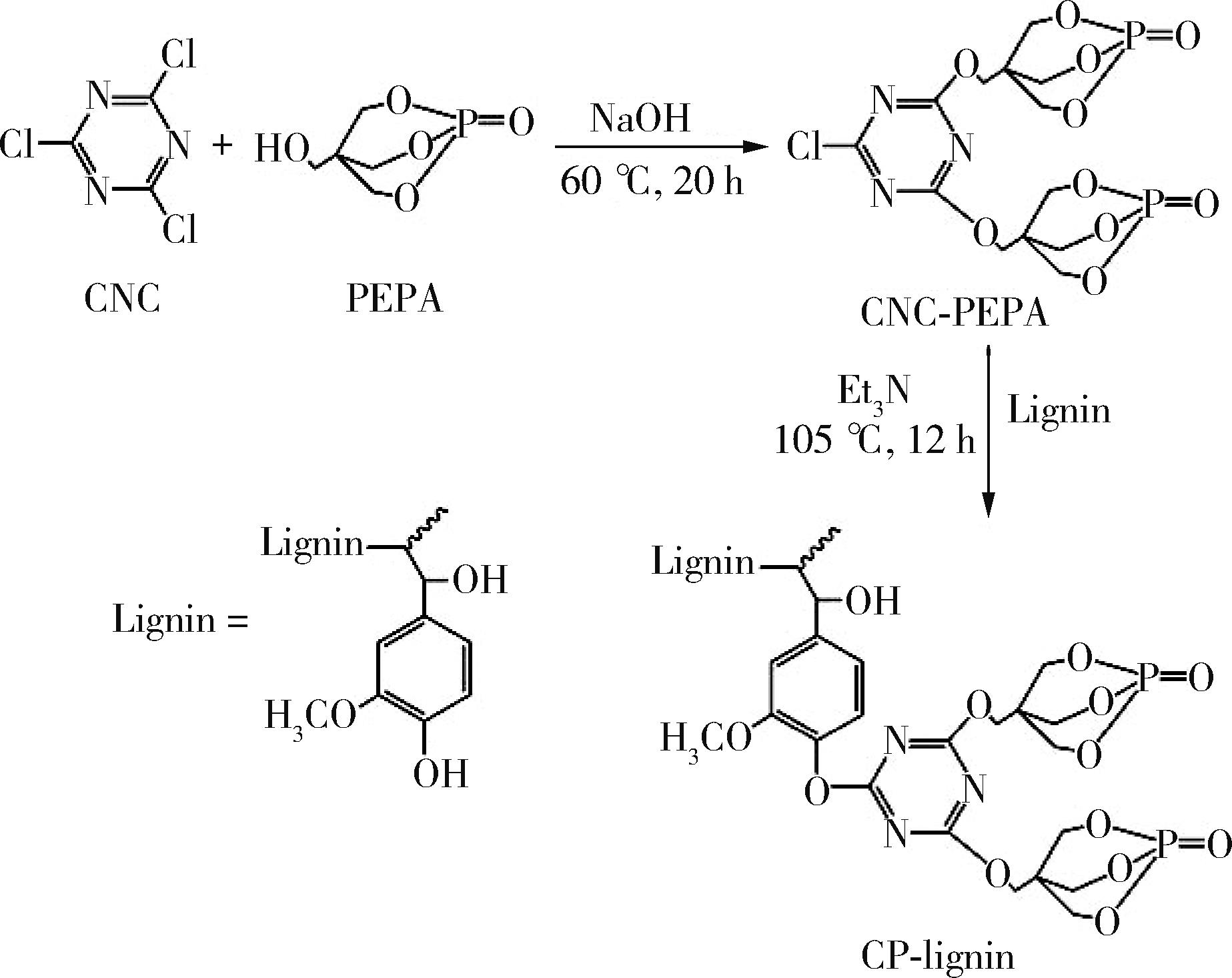

Fig.19. Preparation process of CP⁃ Lignin［28］

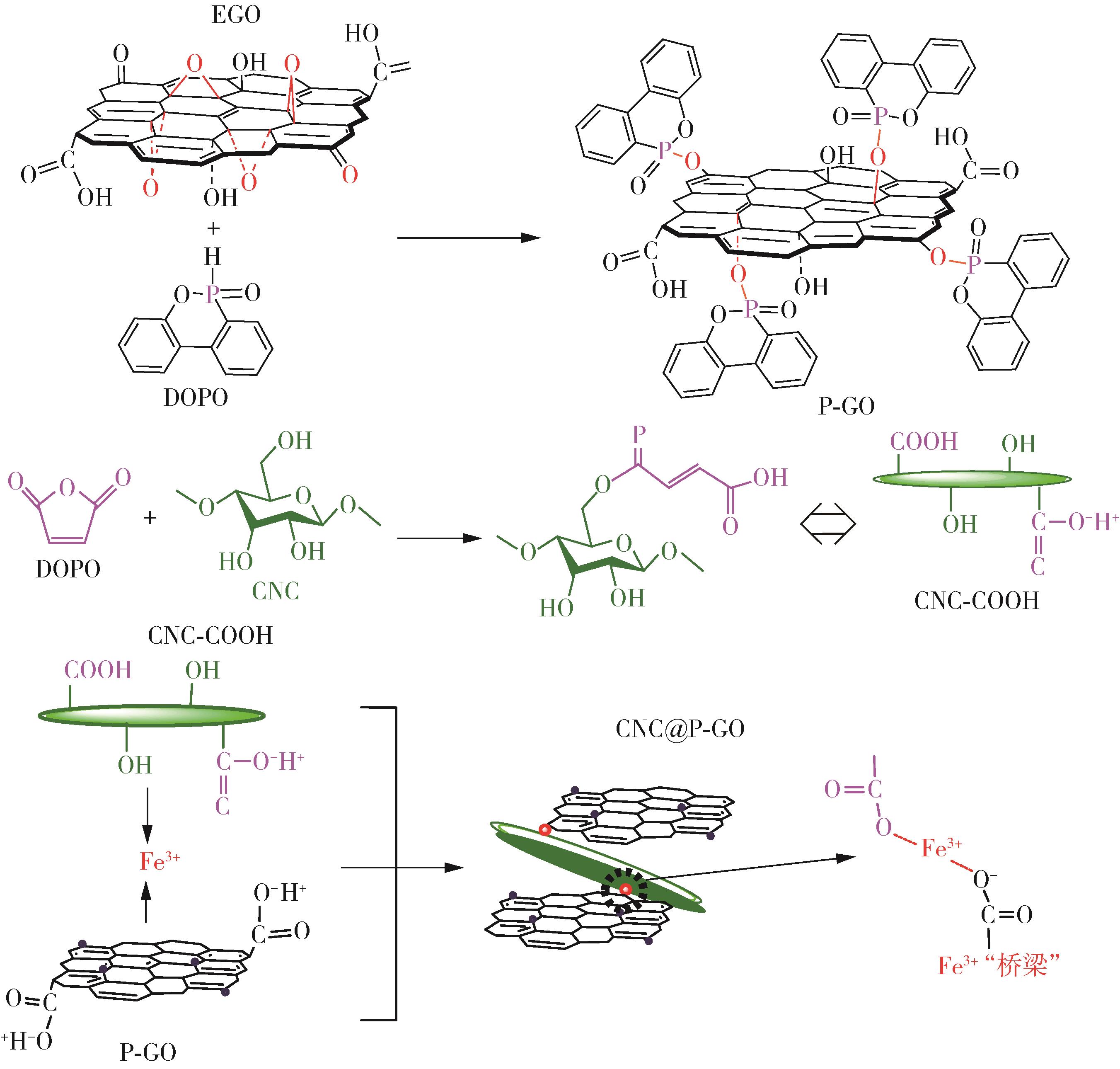

Fig.20. Preparation process of CNC@P⁃GO ［36］

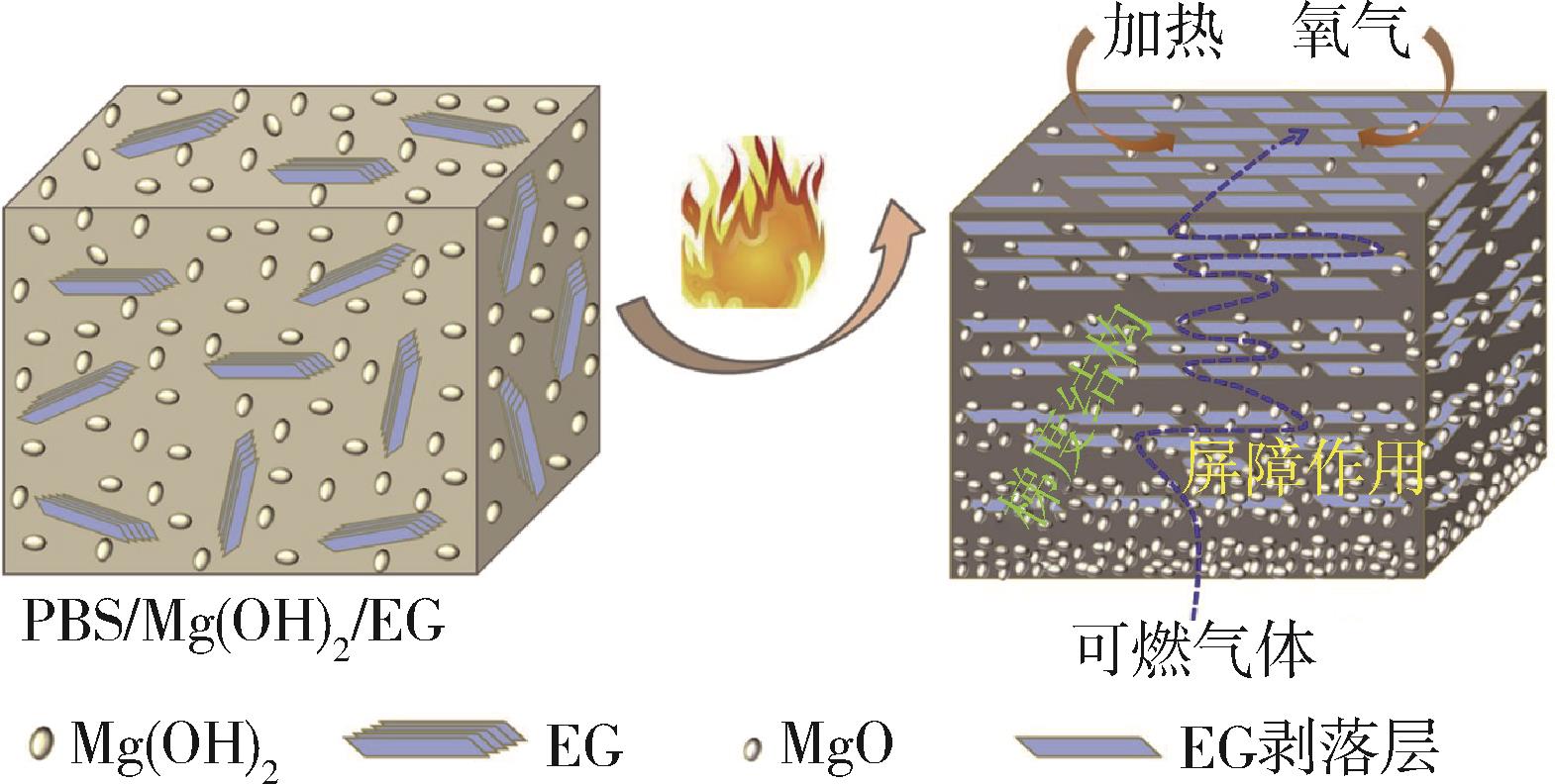

Fig.21. Flame retardant mechanism of PBS/EG/Mg（OH）2［37］

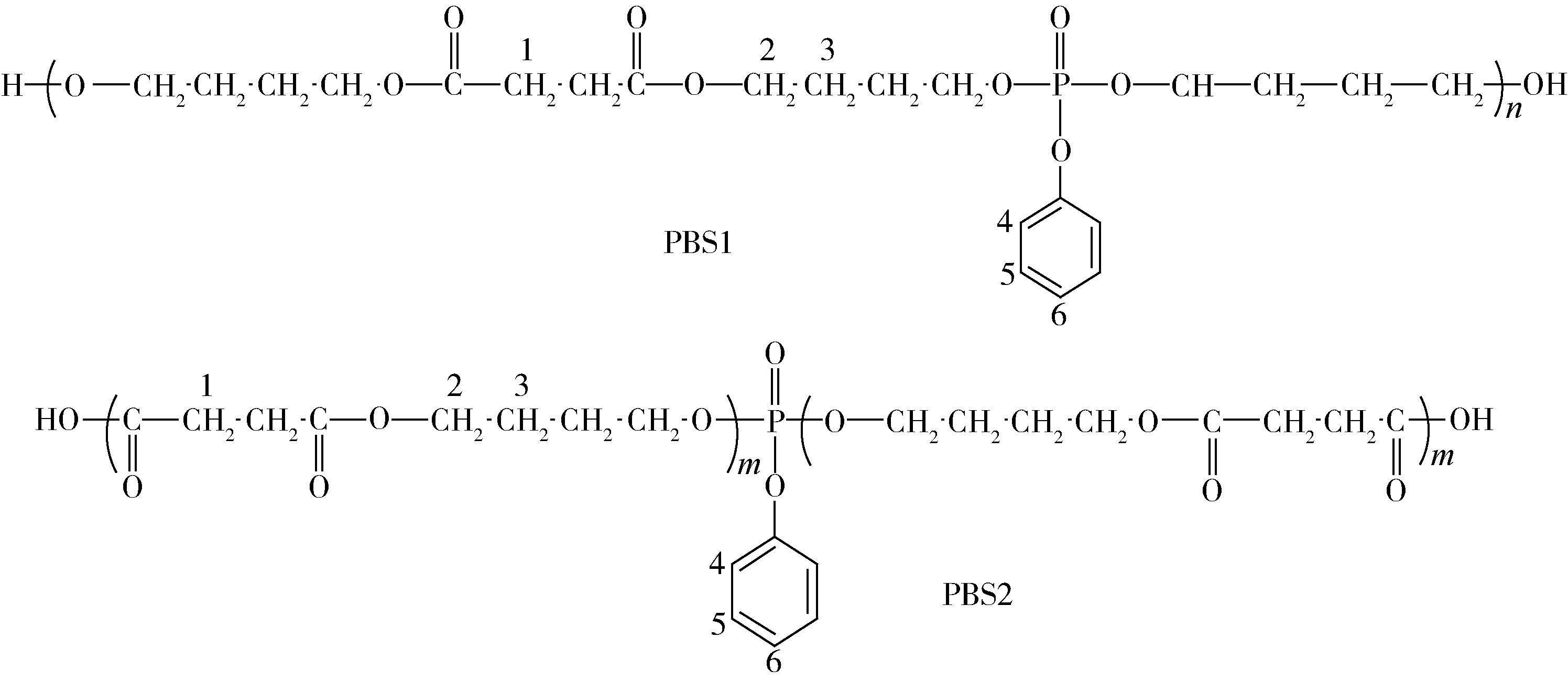

Fig.22. Structural formula of PPBS1 and PPBS2 ［38］

样品	添加量/%	点火时间/s	热释放速率峰值下降率/%	总热释放量下降率/%	LOI/%	UL 94级别	参考文献
TEOS处理的APP	15	—	—	—	28.0	V⁃0	［7］
APP/MA/MHSH	25	85	50	11	39.8	V⁃0	［8］
APP/MA/K⁃HAPAC	25	31	48	88	36.6	V⁃0	［9］
APP/MA/K⁃U	25	25	49	27	40.3	V⁃0	［10］
BN@APP	1	59	28	23	—	—	［11］
CAPP1	20	41	48	21	29.5	V⁃0	［12］
CNT@APP/PER	20	66	73	79	—	V⁃0	［13］
APP/MA/PER/ HNTs	30	40	81	41	58.2	V⁃0	［14］
APP/PIC	30	—	24	48	—	—	［15］
APP/SP	20	—	42	16	30.2	V⁃1	［16］
APP/SP/ HNTs	20	—	36	—	34.8	V⁃0	［16］
APP/WHF/PBS⁃g⁃GMA	55	—	—	—	29.1	V⁃0	［17］
APP/MA/Cas	30	—	—	—	37.3	V⁃0	［18］
APP/MA/LC	25	—	59	1	36.2	V⁃0	［19］
APP/MA/EL	25	—	55	—	31.3	V⁃0	［20］
APP/MA/LM	25	70	57	29	36.5	V⁃0	［21］
PAPP/ZnB	20	104	72	28	—	V⁃0	［22］
EDAP/ZnB	10	110	57	11	—	—	［23］
EDAP/MPAlP/ZnB	10	110	63	13	—	—	［24］
AlPi	25	41	49	23	29.5	V⁃0	［25］
APTMP	30	—	37	—	29.7	V⁃0	［26］
PA⁃GU	30	10	74	64	26.0	V⁃2	［27］
CP⁃木质素	30	31	27	31	—	—	［28］
ER	30	45	43	27	—	—	［29］
CB	10	85	62	31	28.2	—	［34］
EG/Clay	9	50	41	—	—	—	［35］
CNC@P⁃GO	5	47	71	66	—	—	［36］
Mg（OH）₂/EG	25	55	73	41	29.4	—	［37］
PPBS1	20	—	—	—	39.2	—	［38］
PPBS2	20	—	—	—	39.6	—	［38］

Tab.1. Properties of PBS flame retarded by various flame retardants
