Bond⁃slip behavior and model prediction of fiber⁃reinforced polymer⁃reinforced concrete

doi:10.19491/j.issn.1001-9278.2024.04.008

Abstract

Abstract:

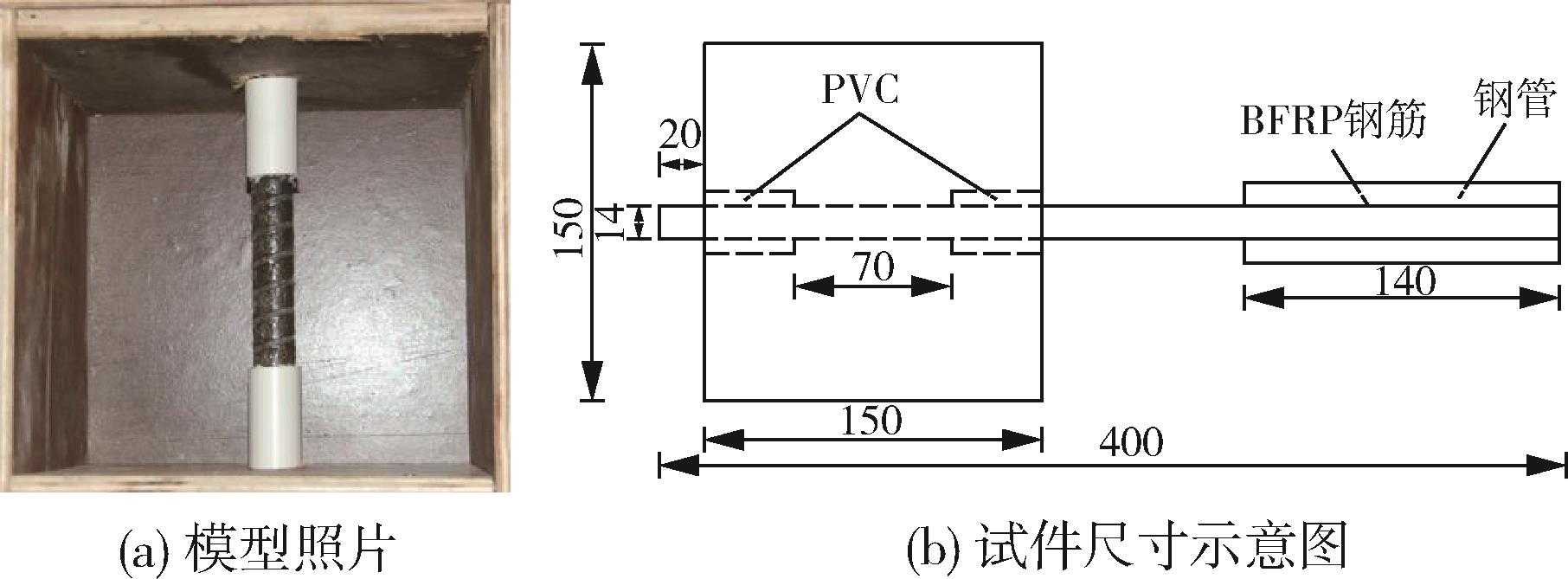

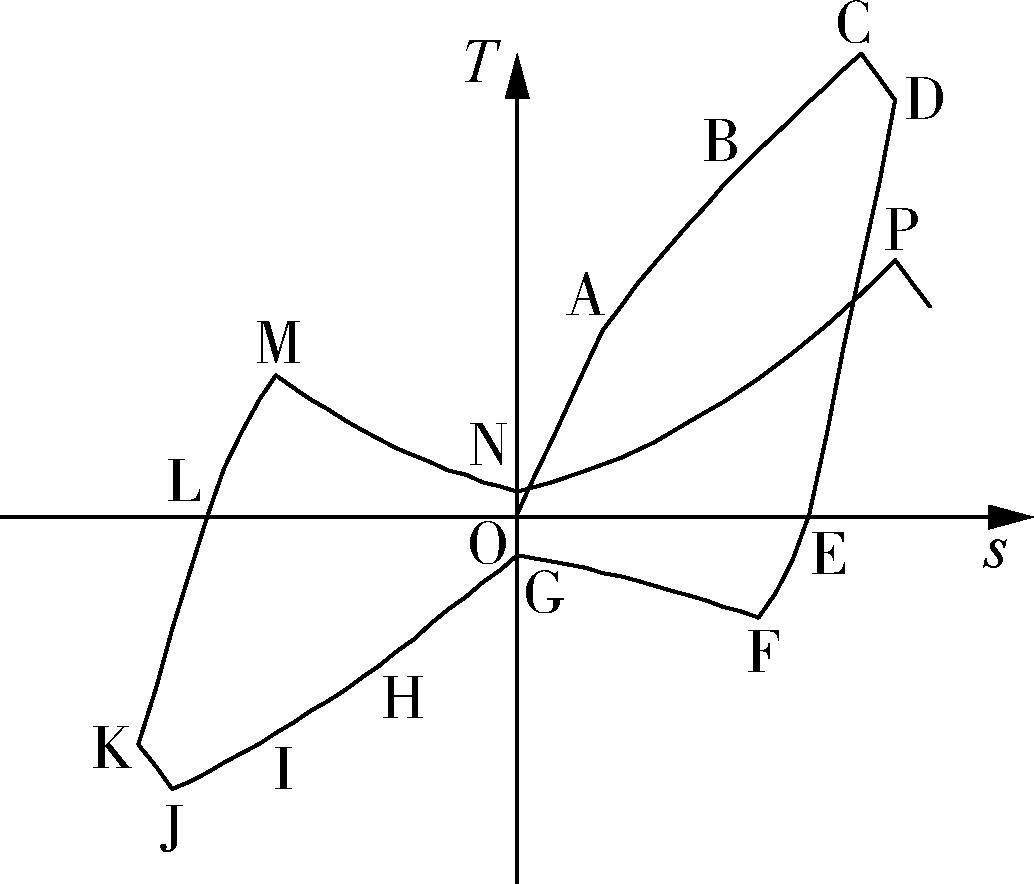

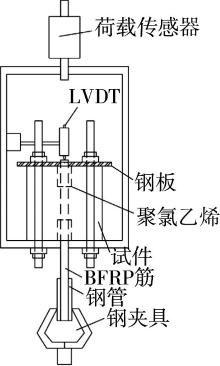

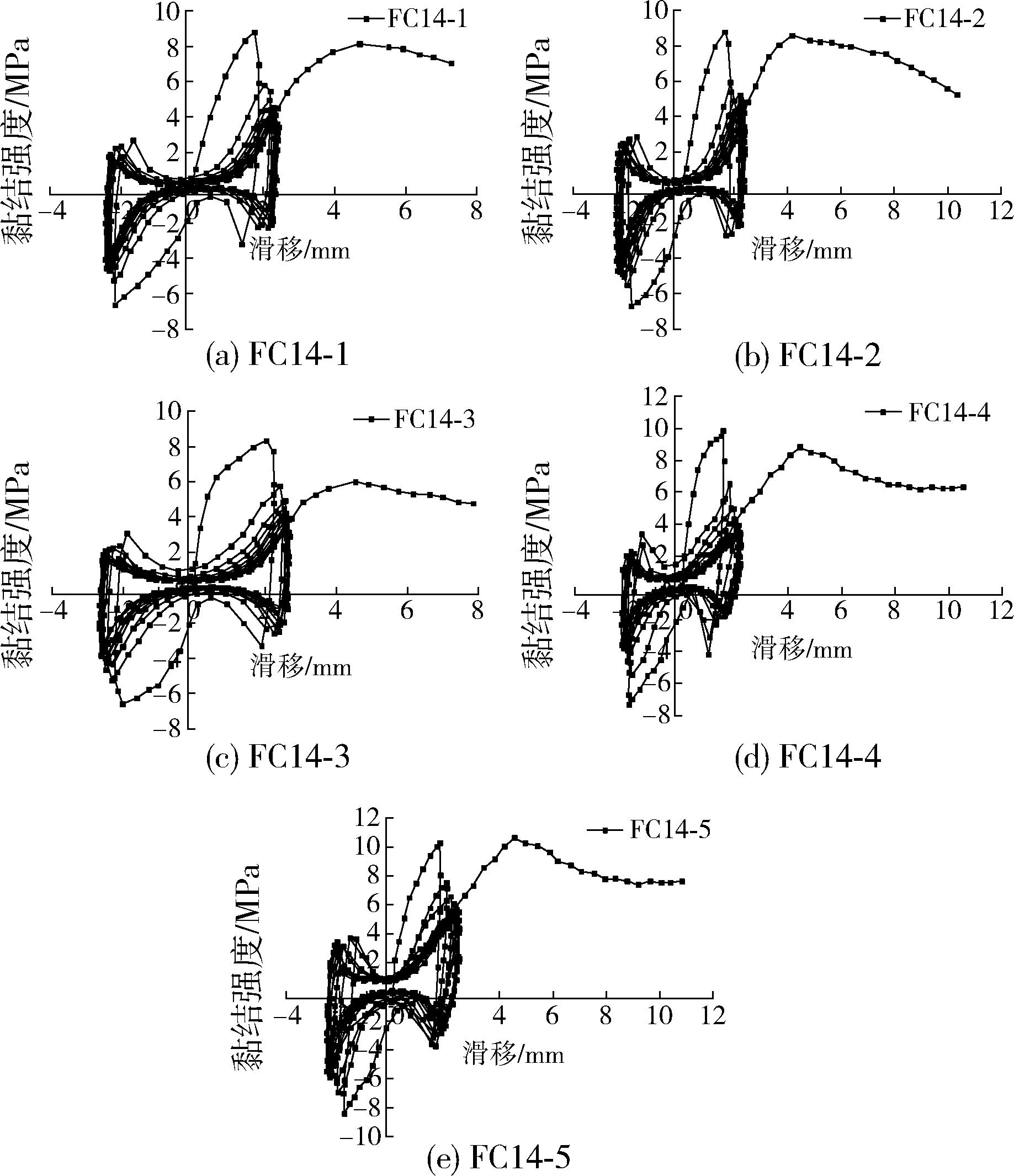

To explore the bonding behavior between the BFRP bars and concrete under dynamic loads， forward and reverse cyclic pull⁃out tests were conducted on the BFRP bars， and their bonding dynamic performance was studied. According to the experimental results， the bond stress⁃strain relationship curve shows that there is a bond behavior between the BFRP reinforcement and concrete under cyclic load， which undergoes four stages of stress characteristics as follows： elastic stage， crack propagation stage， crack closure stage， and friction stage； As the diameter of BFRP polymer bars increased， the bonding strength between the BFRP bars and concrete interface decreased. With an increase in the cycle number， the bond strength between the BFRP reinforcement and concrete decreased， the slip corresponding to the bond strength increased， the shear hysteresis area decreased， and the energy dissipation capacity decreased. Based on the experimental results， a prediction model suitable for calculating the bonding performance between the BFRP bars and concrete under cyclic loading was established， laying an experimental and theoretical foundation for the seismic and fatigue behaviors of the BFRP⁃reinforced concrete.

Key words: basalt fiber?reinforced polymer reinforcement concrete, bonding characteristics, cyclic pull?out test, slip, hysteresis area

CLC Number:

TQ321

CHAI Songhua, DU Hongxiu, WU Kai, HUANG Rui, ZHOU Chici. Bond⁃slip behavior and model prediction of fiber⁃reinforced polymer⁃reinforced concrete[J]. China Plastics, 2024, 38(4): 47-53.

Figures/Tables 14

References 23

1	Harajli M H. Cyclic response of concrete members with bond⁃damaged zones repaired using concrete confinement［J］.Constr Build Mater， 2007，21 （5）：937⁃951.
2	高永红，彭梦蜜，金清平.温度对玻璃纤维增强聚合物筋与混凝土黏结性能影响试验研究［J］.中国塑料，2022，36（9）：16⁃23.
	GAO Y H， PENG M M， JIN Q P. Experimental study on the influence of temperature on the bonding performance between glass fiber reinforced polymer bars and concrete ［J］. China Plastics， 2022，36 （9）： 16⁃23.
3	王苏炜，张文鑫，薛平，等.基于固态成型工艺聚合物基复合材料自增强技术研究进展［J］.中国塑料，2021，35（12）：166⁃173.
	WANG S W， ZHANG W X， XUE P. Research progress in self⁃reinforcing technology of polymer matrix composites based on solid⁃state molding process ［J］. China Plastics， 2021，35 （12）： 166⁃173.
4	殷雨时，苏庆田，张冠华.BFRP网格布对超高性能混凝土粘结性能的影响［J］.复合材料学报，2023，40（6）：3 473⁃3 485.
	YIN Y S， SU Q T， ZHANG G H. The effect of BFRP mesh fabric on the bonding performance of ultra⁃high performance concrete ［J］. Journal of Composite Materials， 2023，40 （6）： 3 473⁃3 485.
5	武芳文，段钧淇，何岚清，等.PVA⁃ECC与BFRP筋黏结性能试验分析［J］.哈尔滨工业大学学报，2023，55（7）：70⁃79.
	WU F W， DUAN J Q， HE L Q， et al. Test analysis on bonding performance of PVA⁃ECC and BFRP reinforcement ［J］. Journal of Harbin Institute of Technology， 2023，55 （7）： 70⁃79.
6	赵军，王帅斌，王自柯，等.BFRP筋与地聚物混凝土黏结性能试验研究［J］.建筑结构学报，2022，43（6）：245⁃256.
	ZHAO J， WANG S B， WANG Z K，et al. Experimental study on the bonding performance of BFRP reinforcement and geopolymer concrete ［J］. Journal of Building Structures， 2022，43 （6）： 245⁃256.
7	Wang H Z， Belarbi A. Static and fatigue bond characteristics of FRP rebars embedded in fiber⁃reinforced concrete［J］. J Compos Mater， 2010，44 （13）：1 605⁃1 622.
8	Ciampi V， Eligehausen R， Bertero V V， et al. Analytical model for deformed bar bond under generalized excitations［J］. in： proceedings of the iabse colloquium on advanced mechanics of reinforced concrete， delft， 1981， 34 （8）：53⁃67.
9	王斌，吕斌，丁一爽，等.往复荷载作用下锈蚀钢筋混凝土柱黏结滑移模型及数值模拟研究［J］.地震工程学报，2021，43（4）：920⁃929.
	WANG B， LV B， DING Y S， et al. Study on bond slip model and numerical simulation of corroded reinforced concrete columns under reciprocating load ［J］. Journal of Earthquake Engineering， 2021，43 （4）： 920⁃929.
10	孙阳，徐振扬，宋德威，等.循环荷载下钢管混凝土与钢筋黏结的试验研究［J］.西南交通大学学报，2023，58（3）：638⁃644，695.
	SUN Y， XU Z Y， SONG D W， et al. Experimental study on the bond between steel tube concrete and reinforcement under cyclic load ［J］. Journal of Southwest Jiaotong University， 2023，58 （3）： 638⁃644，695.
11	Lee J Y， Kim K H， Kim S W， et al. Strength degradation of glass fiber reinforced polymer bars subjected to reversed cyclic load［J］. Strength Mater，2014，46 （2）：235⁃240.
12	Akbas T T， Celik O C， Yalcin C， et al. Monotonic and cyclic bond behavior of deformed CFRP bars in high strength concrete［J］. Polymers， 2016，8 （6）：211.
13	Ko H， Sato Y.Bond stress⁃slip relationship between FRP sheet and concrete under cyclic load［J］. J Compos Constr， 2007，11 （4）：419⁃426.
14	Shen D J， Zeng X， Zhang J Y， et al. Behavior of RC box beam strengthened with basalt FRP using end anchorage with grooving［J］.J Compos Mater， 2019，53 （23）：3 307⁃3 324.
15	Shen D J， Shi X， Zhang H， et al. Experimental study of early⁃age bond behavior between high strength concrete and steel bars using a pull⁃out test［J］. Constr Build Mater， 2016，113： 653⁃663.
16	Ozbolt J， Eligehauscn R. Simulation of cycling bond⁃slip behavior［J］. Uni Stuttgart Universitätsbibliothek， 1992，78 （6）：912⁃917.
17	Huang L， Chi Y， Xu L H， et al. Local bond performance of rebar embedded in steel⁃polypropylene hybrid fiber reinforced concrete under monotonic and cyclic loading［J］. Constr Build Mater， 2016， 103：77⁃92.
18	Harajli M H. Bond stress⁃slip model for steel bars in unconfined or steel， FRC， or FRP confined concrete under cyclic loading［J］. J Struct Eng， 2009，135 （5）：509⁃518.
19	Oh H B， Kim S H. Realistic models for local bond stress⁃slip of reinforced concrete under repeated loading［J］. J Struct Eng， 2007，133 （2）：216⁃224.
20	Rehm G， Eligehausen R. Bond of ribbed bars under high cycle repeated loads［J］. J Am Concr Inst，1979，76 （9）：297⁃310.
21	Yang SY， Liu X L.Bond⁃slip deterioration model of corroded reinforced concrete members under reversed cyclic loading［J］. J. Shanghai Jiaotong Univ， 2012，46 （10）：1 581⁃1 593.
22	陈宗平，周春恒，蒋香山.螺旋筋约束增强空腹式型钢混凝土柱滞回性能试验研究［J］.土木工程学报，2019，52（7）：69⁃80.
	CHEN Z P， ZHOU C H， JIANG X S. Experimental study on the hysteresis performance of spiral reinforcement reinforced hollow steel reinforced concrete columns ［J］. Journal of Civil Engineering， 2019，52 （7）： 69⁃80.
23	Huang L， Xu LH， Chi Y， et al. Experimental investigation on the seismic performance of steel⁃polypropylene hybrid fiber reinforced concrete columns ［J］. Constr Build Mater，2015，87 ：16⁃27.

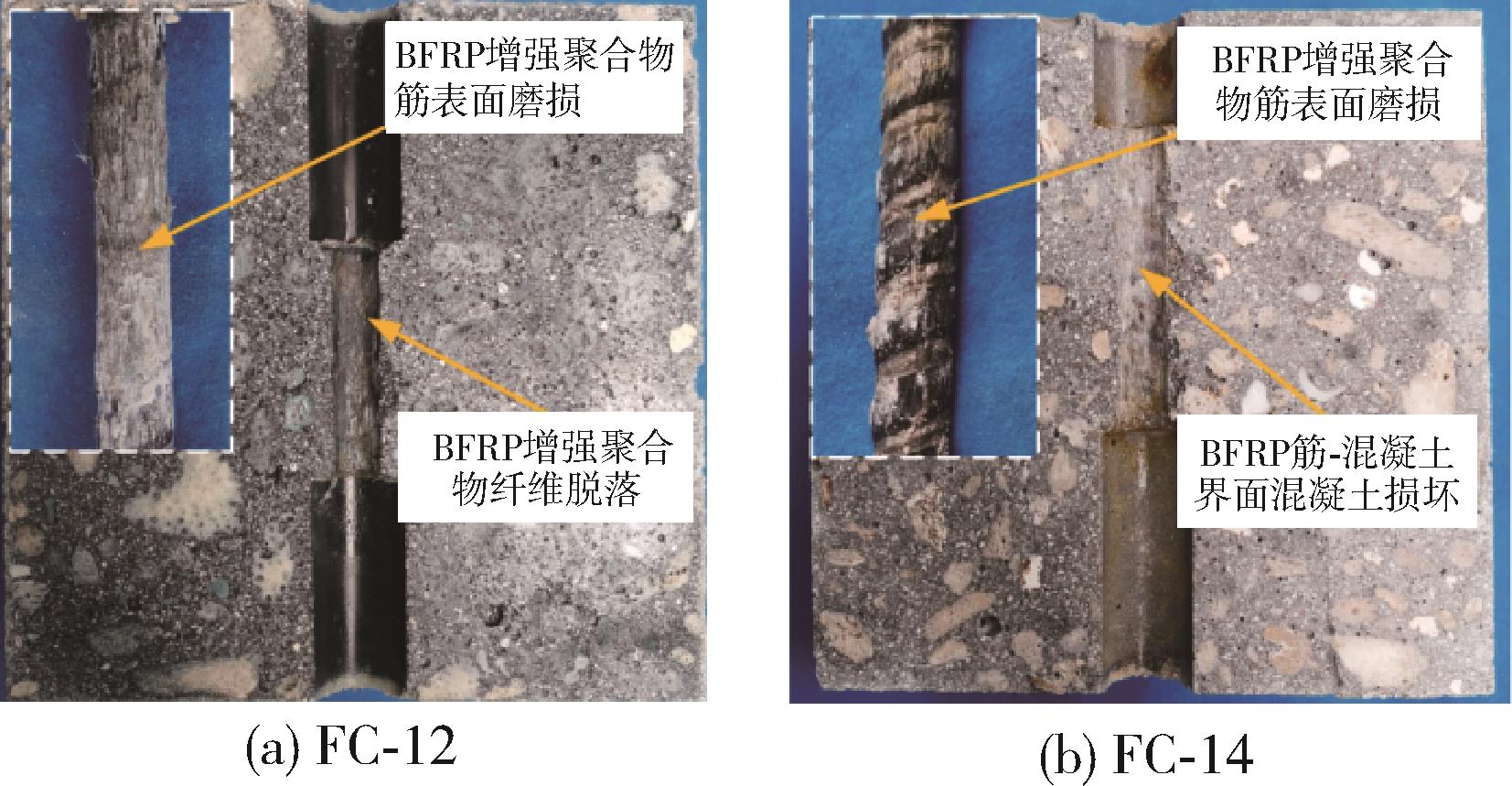

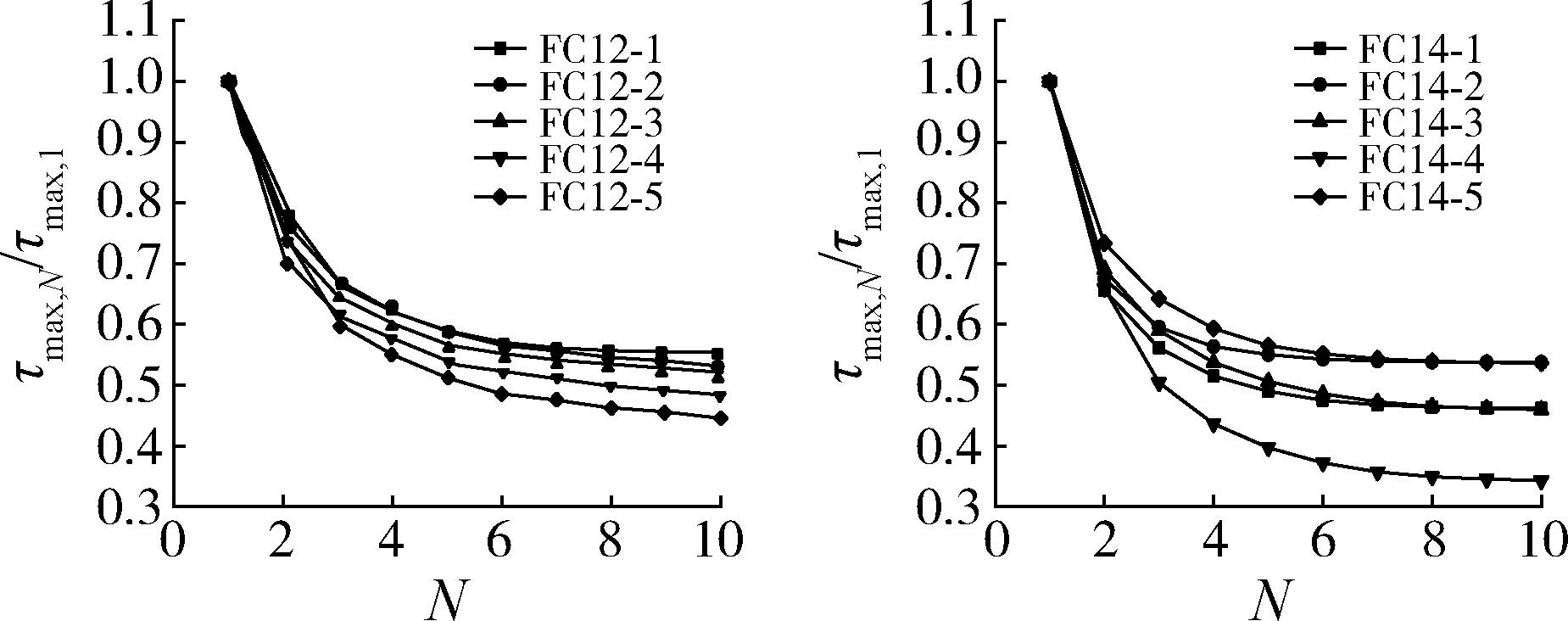

样品编号	黏结强度/MPa						残余黏结强度/MPa
样品编号	n=1	n=3	n=5	n=7	n=9	n=10	残余黏结强度/MPa
FC14⁃1	8.81	4.93	4.32	4.12	4.08	4.05	8.13
FC14⁃2	8.75	5.23	4.84	4.73	4.72	4.72	8.59
FC14⁃3	8.35	4.92	4.24	3.94	3.86	3.85	6.01
FC14⁃4	9.88	4.98	3.92	3.52	3.41	3.39	8.83
FC14⁃5	10.23	6.57	5.78	5.57	5.52	5.51	10.66
平均值	9.20	5.33	4.62	4.37	4.32	4.32	8.43
τ_max，_N /τ_max，1	1.00	0.57	0.50	0.47	0.47	0.47	-
式（6）计算值	1.00	0.57	0.51	0.47	0.46	0.46	-
误差/%	0	0	-2.0	0	2.1	2.1	-

样品编号	黏结强度/MPa						残余黏结强度/MPa
样品编号	n=1	n=3	n=5	n=7	n=9	n=10	残余黏结强度/MPa
FC14⁃1	8.81	4.93	4.32	4.12	4.08	4.05	8.13
FC14⁃2	8.75	5.23	4.84	4.73	4.72	4.72	8.59
FC14⁃3	8.35	4.92	4.24	3.94	3.86	3.85	6.01
FC14⁃4	9.88	4.98	3.92	3.52	3.41	3.39	8.83
FC14⁃5	10.23	6.57	5.78	5.57	5.52	5.51	10.66
平均值	9.20	5.33	4.62	4.37	4.32	4.32	8.43
τ_max，_N /τ_max，1	1.00	0.57	0.50	0.47	0.47	0.47	-
式（6）计算值	1.00	0.57	0.51	0.47	0.46	0.46	-
误差/%	0	0	-2.0	0	2.1	2.1	-

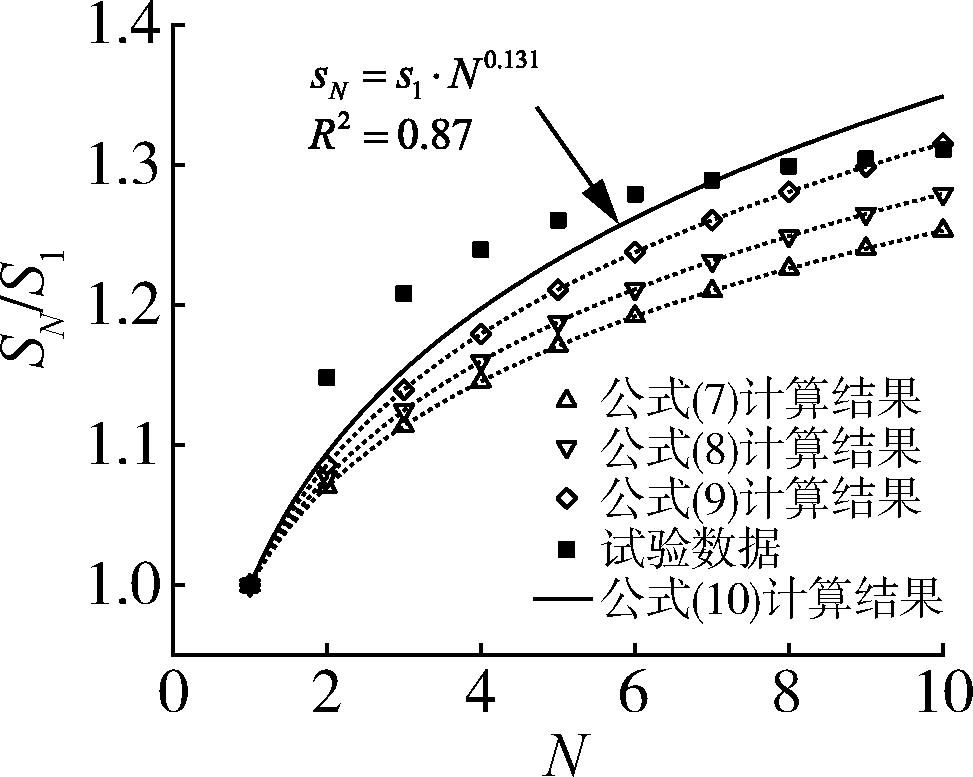

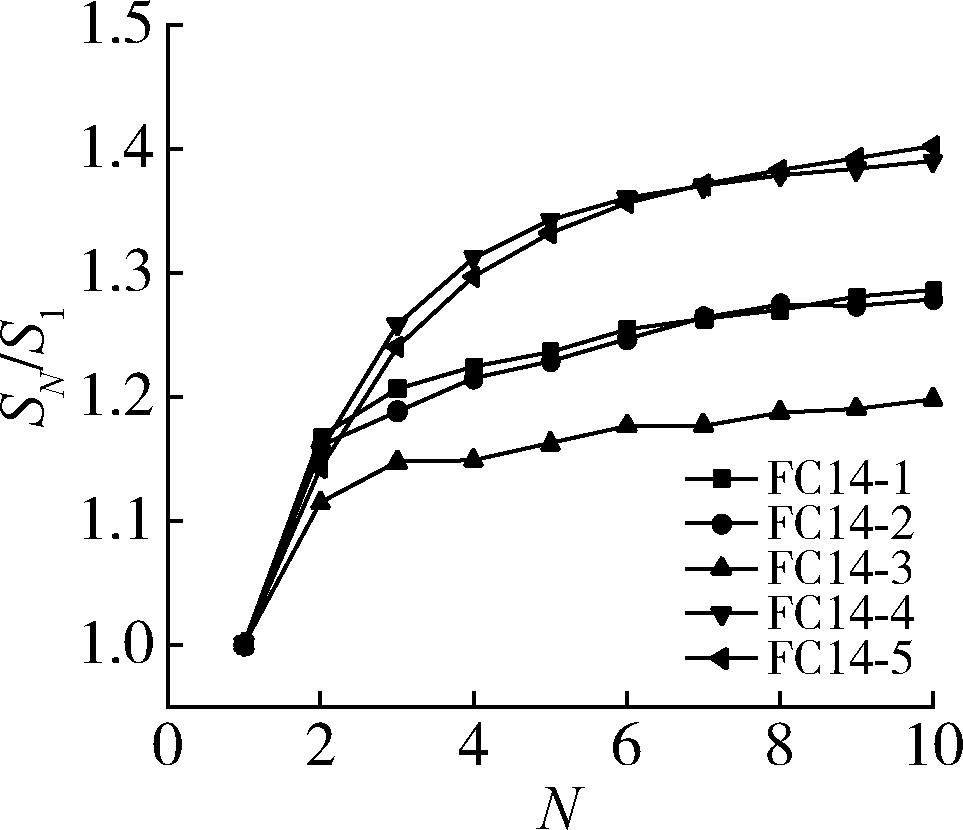

样品编号	滑移值/mm						残余滑移 / mm
样品编号	n=1	n=3	n=5	n=7	n=9	n=10	残余滑移 / mm
FC14⁃1	1.87	2.26	2.34	2.37	2.42	2.43	4.70
FC14⁃2	1.89	2.25	2.33	2.39	2.40	2.40	4.17
FC14⁃3	2.24	2.55	2.61	2.64	2.67	2.68	4.53
FC14⁃4	1.57	1.98	2.12	2.18	2.18	2.21	4.42
FC14⁃5	1.78	2.21	2.38	2.44	2.48	2.48	4.56
平均值	1.87	2.24	2.36	2.41	2.42	2.44	4.47
s_N /s₁	1.00	1.21	1.26	1.29	1.31	1.31	-
式（10）计算值	1.00	1.15	1.23	1.29	1.33	1.35	-
误差/%	0	5.0	2.4	0	-2.3	-3.1	-

样品编号	滑移值/mm						残余滑移 / mm
样品编号	n=1	n=3	n=5	n=7	n=9	n=10	残余滑移 / mm
FC14⁃1	1.87	2.26	2.34	2.37	2.42	2.43	4.70
FC14⁃2	1.89	2.25	2.33	2.39	2.40	2.40	4.17
FC14⁃3	2.24	2.55	2.61	2.64	2.67	2.68	4.53
FC14⁃4	1.57	1.98	2.12	2.18	2.18	2.21	4.42
FC14⁃5	1.78	2.21	2.38	2.44	2.48	2.48	4.56
平均值	1.87	2.24	2.36	2.41	2.42	2.44	4.47
s_N /s₁	1.00	1.21	1.26	1.29	1.31	1.31	-
式（10）计算值	1.00	1.15	1.23	1.29	1.33	1.35	-
误差/%	0	5.0	2.4	0	-2.3	-3.1	-

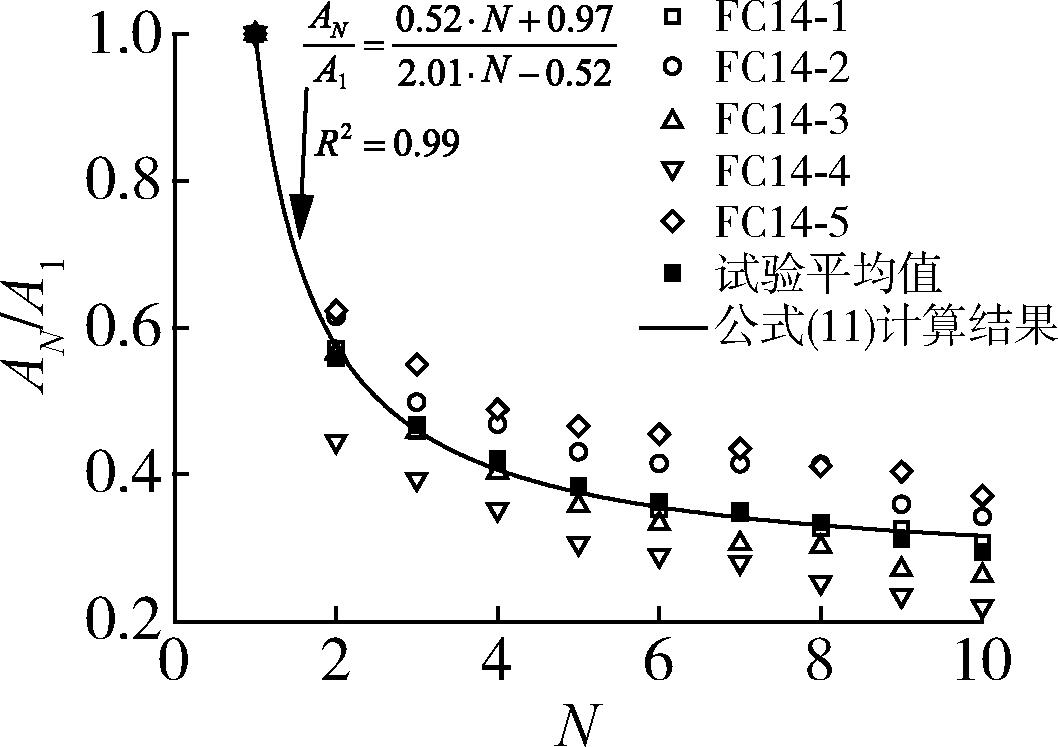

样品编号	滞回曲线面积/N/mm
样品编号	n=2	n=4	n=6	n=8	n=10
FC14⁃1	17.01	8.37	7.47	7.17	7.14
FC14⁃2	16.74	8.95	8.26	8.43	7.75
FC14⁃3	22.49	11.05	9.21	8.36	7.84
FC14⁃4	22.49	9.50	7.88	7.67	6.80
FC14⁃5	17.92	9.06	9.54	9.49	9.32
平均值	19.32	9.68	8.46	8.23	7.78
A_N /A₁	1.00	0.47	0.38	0.35	0.31
式（11）计算值	1.00	0.46	0.38	0.34	0.32
误差/%	0	2.1	0	2.9	-3.2
