Preparation and properties of UV⁃resistant poly（propylene carbonate）/acetylated lignin composites

doi:10.19491/j.issn.1001-9278.2024.07.003

Abstract

Abstract:

To improve the compatibility between enzymatic lignin and bio⁃based poly（propylene carbonate）（PPC） and to endow PPC with UV resistance， acetylated lignin （ACEL） was prepared through an acetylation reaction and then was melt blended with PPC to obtain PPC⁃based composites. When 15 wt%（mass fraction， same below） ACEL was incorporated， the composites showed an increase in the yield tensile properties from 10 to 23 MPa， and their elongation at break reached 725 %. Meanwhile， the addition of ACEL also endows PPC with excellent UV resistance. After 96 h UV irradiation， the PPC⁃ACEL⁃15 composites showed retention rates of all above 80 % in the yield strength and elongation at break. These results are significantly better than those of pure PPC and PPC⁃EL⁃15 composites.

Key words: poly（propylene carbonate）, lignin, UV resistance

CLC Number:

TQ323.4

WU Li, XU Pengwu, YANG Weijun, MA Piming. Preparation and properties of UV⁃resistant poly（propylene carbonate）/acetylated lignin composites[J]. China Plastics, 2024, 38(7): 15-19.

Figures/Tables 8

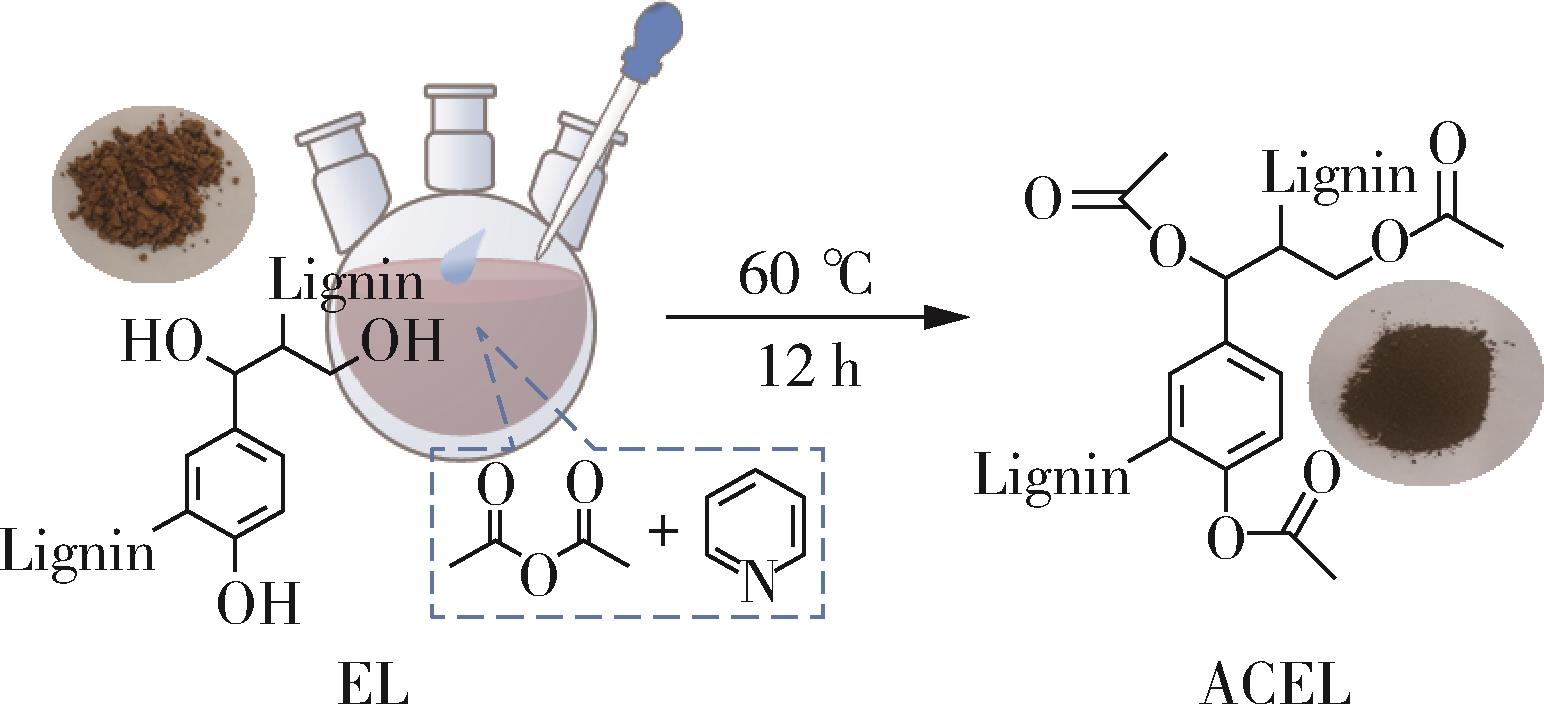

Fig.1. Diagram of preparation process of acetylated lignin

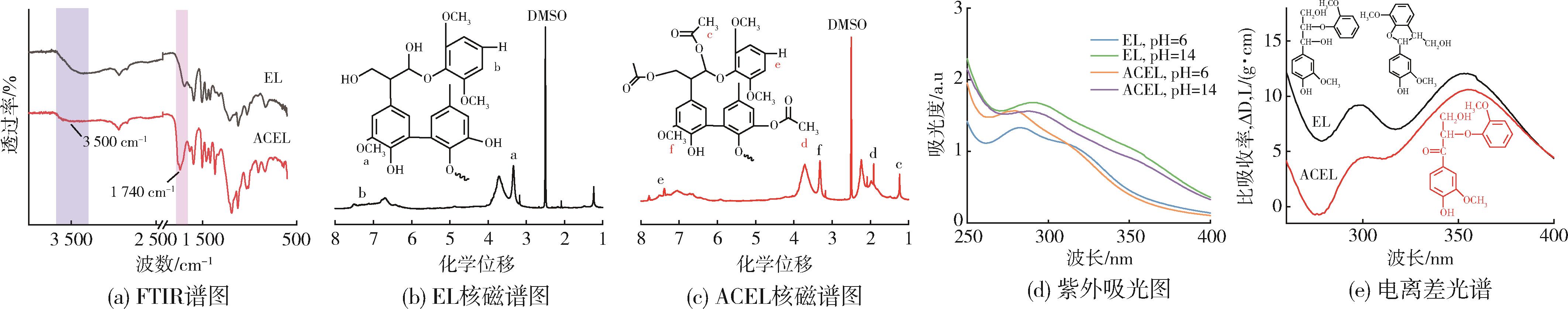

Fig.2. Structure analysis of EL and ACEL

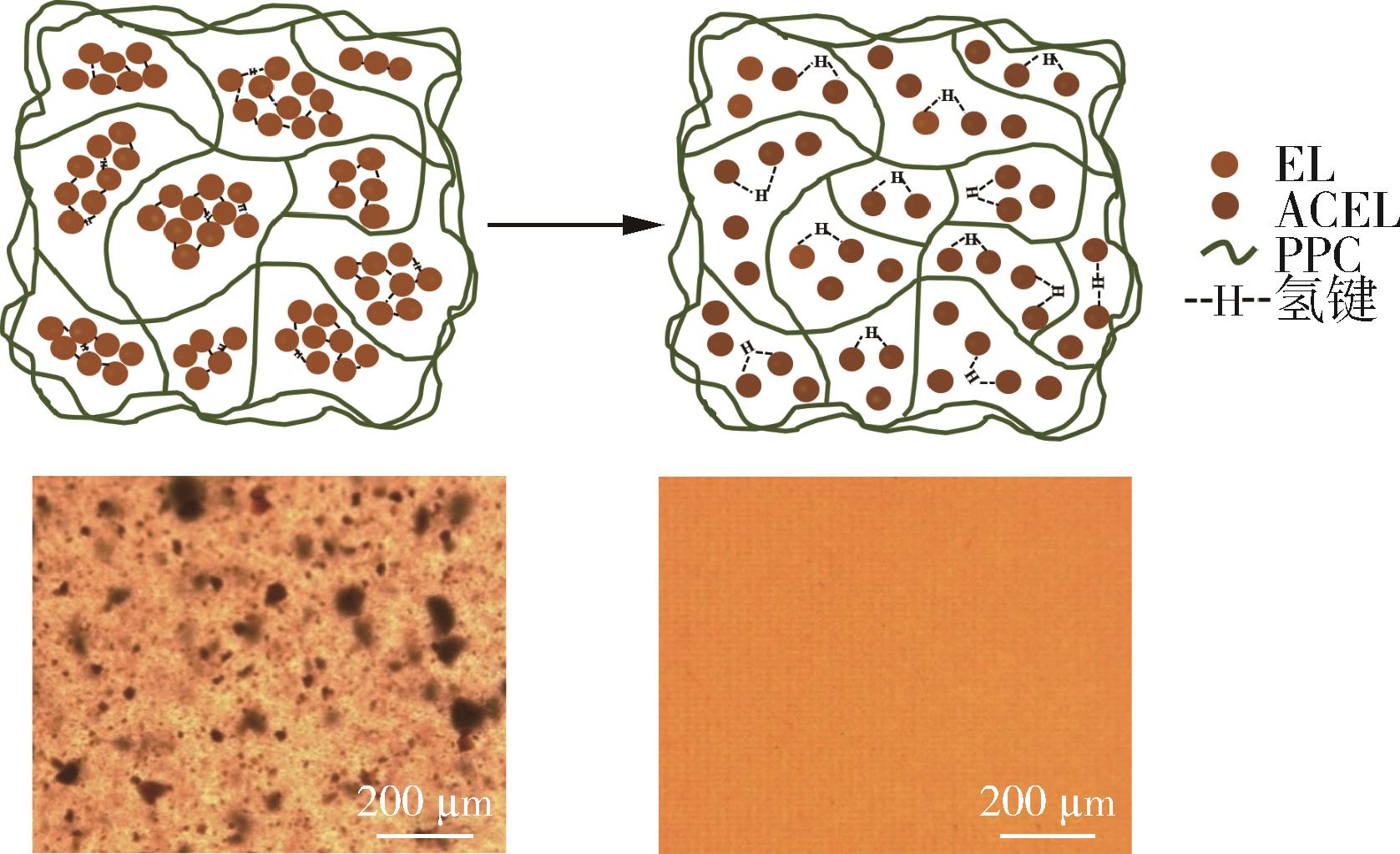

Fig.3. Dispersion of EL and ACEL in PPC matrix

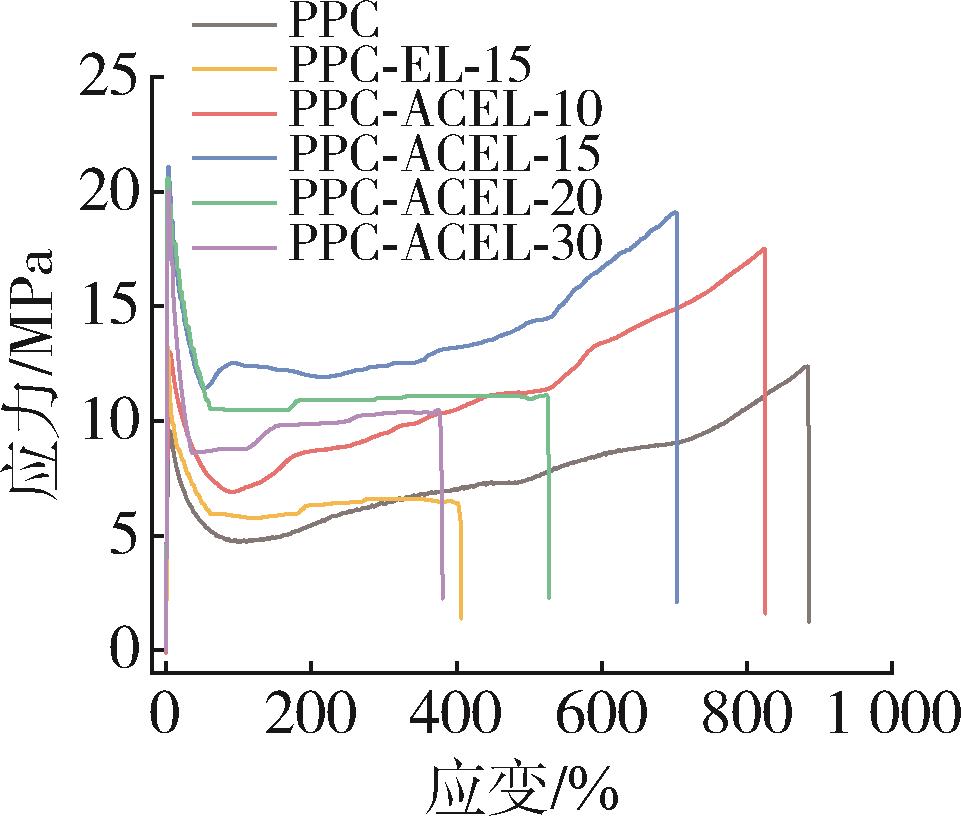

Fig.4. Stress⁃strain curves of PPC， PPC⁃EL and PPC⁃ACEL composites

样品	屈服强度/MPa	断裂伸长率/%
PPC	10.0	947
PPC⁃EL⁃15	14.0	422.5
PPC⁃ACEL⁃10	14.1	840.2
PPC⁃ACEL⁃15	23.0	725.1
PPC⁃ACEL⁃20	22.3	518.9
PPC⁃ACEL⁃30	21.1	381.4

Tab.1. Yield strength and elongation at break of PPC， PPC⁃EL and PPC⁃ACEL composites

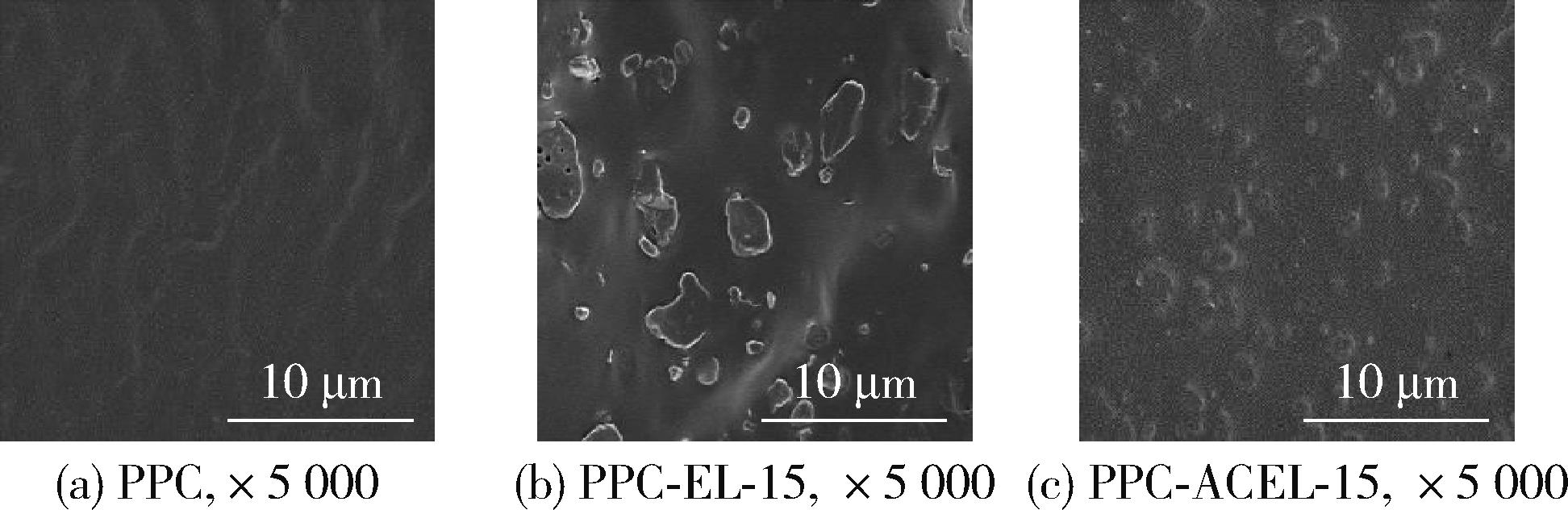

Fig.5. SEM of PPC， PPC⁃EL and PPC⁃ACEL composites

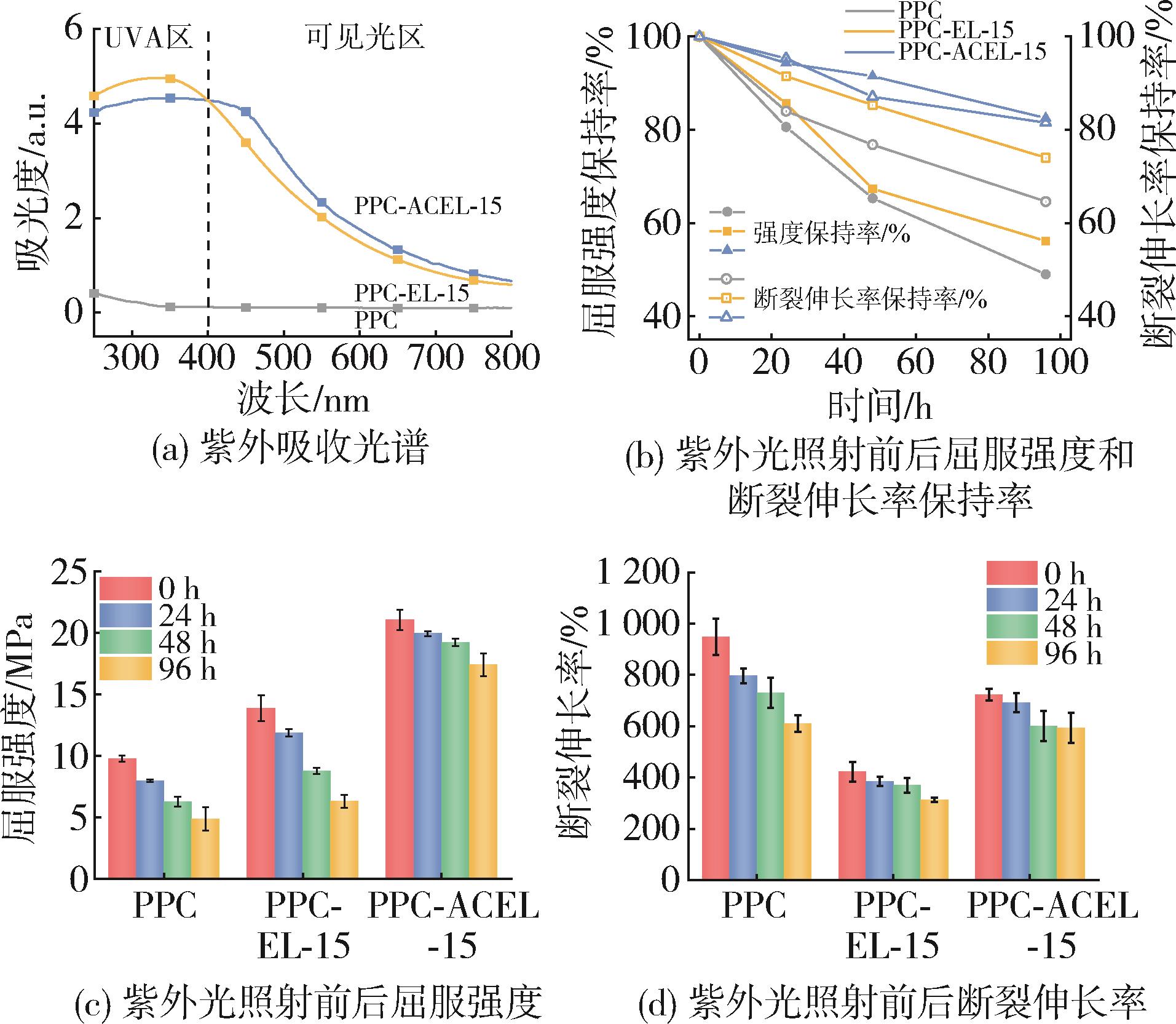

Fig.6. UV shielding and UV resistance properties of PPC， PPC⁃EL and PPC⁃ACEL composites

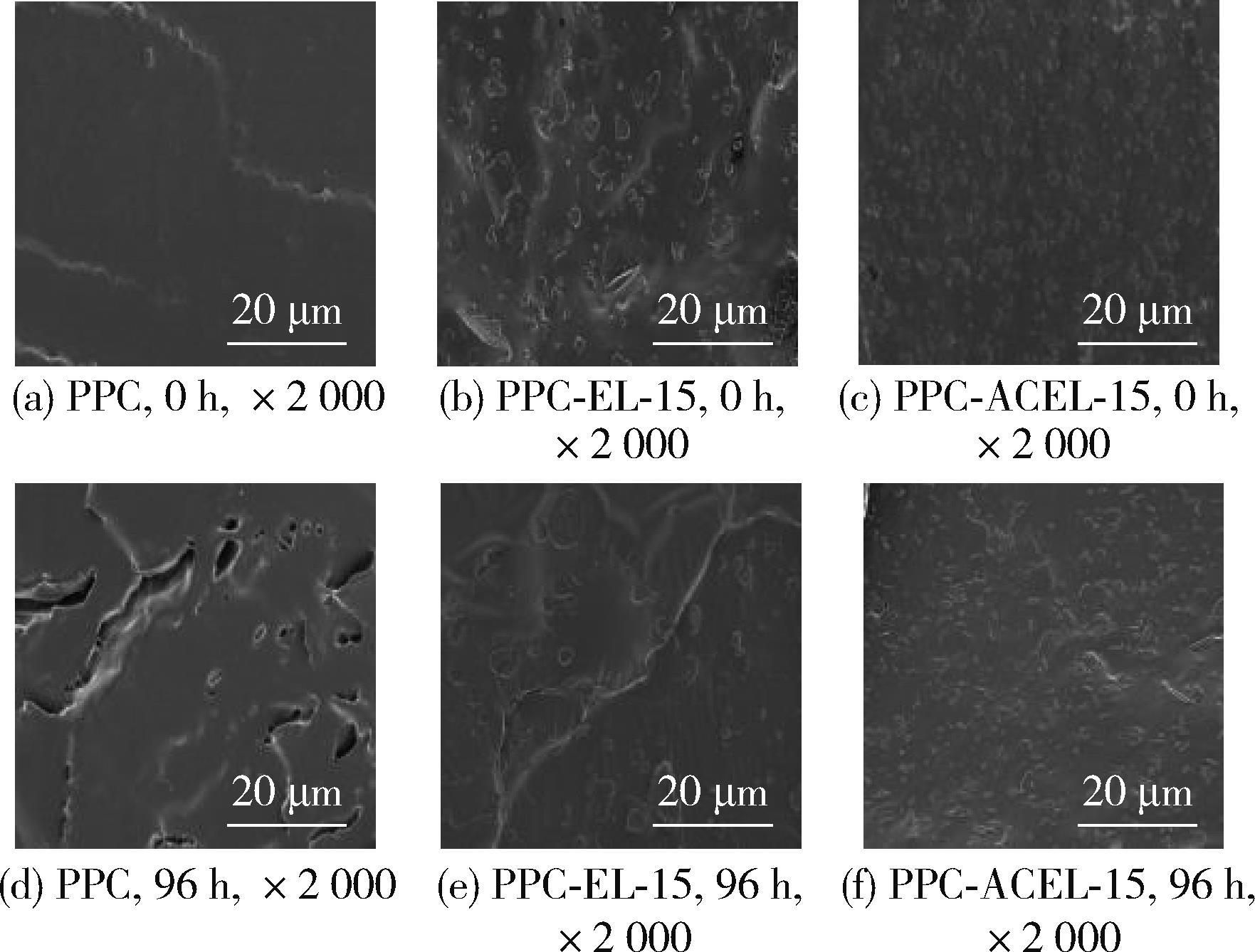

Fig. 7. SEM of PPC， PPC⁃EL and PPC⁃ACEL composites before and after UV irradiation for 96 h

References 21

1	LI X R， MENG L Y， ZHANG Y L， et al. Research and application of polypropylene carbonate composite materials： a review ［J］. Polymers， 2022， 14（11）： 2 159.
2	Rajendran M， Tizazu M. Carbon dioxide–derived poly （propylene carbonate） as a matrix for composites and nanocomposites： performances and applications ［J］. Macromolecular Materials and Engineering， 2018， 303（11）： 1800366.
3	WANG S， HUANG Y， LIAO B， et al. Structure and properties of poly （propylene carbonate）［J］. International Journal of Polymer Analysis and Characterization， 1997， 3（2）： 131⁃143.
4	SONG L， ZHANG Q， HAO Y， et al. Effect of different comonomers added to graft copolymers on the properties of PLA/PPC/PLA⁃g⁃GMA blends ［J］. Polymers， 2022， 14（19）： 4 088.
5	JIANG G， WANG F， ZHANG S， et al. Structure and improved properties of PPC/PBAT blends via controlling phase morphology based on melt viscosity ［J］. Journal of Applied Polymer Science， 2020， 137（31）： 48924.
6	JIANG G， YU L. High strength and barrier properties of biodegradable PPC/PBSA blends prepared by reaction compatibilization for promising application in packaging ［J］. Macromolecular Materials and Engineering， 2021， 306（7）： 2000723.
7	T N， Mai B T， Setti C， et al. Transparent bioplastic derived from CO₂⁃based polymer functionalized with oregano waste extract toward active food packaging［J］. ACS Applied Materials & Interfaces， 2020， 12（41）： 46 667⁃46 677.
8	Zhang Z， Wu D， Yang H， et al. Remarkable enhancement in thermal performance of polypropylene carbonate by using exfoliated boron nitride nanosheets［J］. Chemical Engineering Journal， 2022， 450： 138247.
9	JIANG G， YU L， ZHANG M， et al. Poly （propylene carbonate）/poly （3‐hydroxybutyrate）‐based bio⁃nanocomposites reinforced with cellulose nanocrystal for potential application as a packaging material ［J］. Polymers for Advanced Technologies， 2019， 31（4）： 853⁃863.
10	LIU L， WANG Y， HU Q， et al. Core⁃shell starch nanoparticles improve the mechanical and thermal properties of poly （propylene carbonate）［J］. ACS Sustainable Chemistry & Engineering， 2019， 7（15）： 13 081⁃13 088.
11	WANG D， LI J， ZHANG X， et al. Poly （propylene carbonate）/clay nanocomposites with enhanced mechanical property， thermal stability and oxygen barrier property ［J］. Composites Communications， 2020， 22： 100520.
12	KARTHAUSER J， BIZIKS V， MAI C， et al. Lignin and lignin⁃derived compounds for wood applications⁃ a review ［J］. Molecules， 2021， 26（9）： 2 533.
13	SHU F， JIANG B， YUAN Y， et al. Biological activities and emerging roles of lignin and lignin⁃based products⁃ a review ［J］. Biomacromolecules， 2021， 22（12）： 4 905⁃4 918.
14	潘莉莎，熊亚林，庞素娟，等. 聚碳酸亚丙酯/木质素熔融共混改性研究［J］. 中国造纸， 2011， 30： 26⁃30.
	PAN L S， XIONG Y L， PANG S J， et al. Study on melt blending modification of poly （propylene carbonate）/lignin ［J］. China Pulp & Paper， 2011， 30： 26⁃30.
15	XIAO X， JIANG C， ZHANG Y， et al. Preparation and characterization of formaldehyde⁃modified black liquor lignin/poly （propylene carbonate） composites ［J］. International Journal of Polymer Analysis and Characterization， 2018， 23（4）： 346⁃353.
16	XIA L， LI X， PAN N， et al. Novel green and cost⁃effective preparation of acetylated lignin at high temperature without further separation ［J］. Materials Research Express， 2020， 7（11）： 115401.
17	CYBULSKA I， BRUDECKI G， ROSENTRATER K， et al. Comparative study of organosolv lignin extracted from prairie cordgrass， switchgrass and corn stover ［J］. Bioresource Technology， 2012， 118： 30⁃36.
18	ZHAO X， HUANG Z， ZHANG Y， et al. Efficient solid⁃phase synthesis of acetylated lignin and a comparison of the properties of different modified lignins ［J］. Journal of Applied Polymer Science， 2017， 134（1）： 44276.
19	KIM T H， PARK S H， LEE S， et al. A review of biomass⁃derived UV⁃shielding materials for bio⁃composites ［J］. Energies， 2023， 16（5）： 2 231.
20	LI Y R， ZHAO S Y， HU D B， et al. Role evaluation of active groups in lignin on UV⁃shielding performance ［J］. ACS Sustainable Chemistry & Engineering， 2022， 10： 11 856⁃11 866.
21	XIE H， ZHANG H， LIU X， et al. Design and preparation of multiple function⁃integrated lignin/tannin/ZnONP composite coatings for paper⁃based green packing［J］. Biomacro⁃molecules， 2021， 22（8）： 3 251⁃3 263.
