Preparation and properties of poly（lactic acid）/lignin blends with high lignin content

doi:10.19491/j.issn.1001-9278.2024.02.008

Abstract

Abstract:

The escalating severity of environmental issues stemming from the poor degradability of conventional polymer materials has received an increasing concern. Biodegradable polymers such as poly（lactic acid）（PLA）， have garnered considerable attention. However， their extensive utilization is hindered by the high cost associated with their use. To address this issue， the present study focuses on the development of PLA/lignin blends using glycidyl methacrylate （GMA） as a compatibilizer. The epoxy groups on the GMA molecule could react with the hydroxyl groups of lignin and two end groups of the PLA molecule， thus enhancing the interfacial compatibility between lignin and PLA. The effect of lignin and GMA contents on the performance of PLA was determined through analyzing the encompassing microscopic morphology， mechanical properties， thermal behavior， and rheological characteristics of the PLA/lignin blends. The results indicated that GMA effectively enhanced the interfacial compatibility between lignin and PLA， consequently improving the mechanical properties of the blends. The blend containing 30 wt% lignin exhibited tensile strength of 42 MPa， a tensile modulus of 1 750 MPa， flexural strength of 60 MPa， flexural modulus of 3 460 MPa， impact strength of 26.2 J/m， and elongation at break of 2.4 %. Notably， when the lignin content increased to 60 wt%， the PLA/lignin blends exhibited better performance. This approach retained the biodegradable characteristics of PLA but reduced its cost significantly.

Key words: lignin, poly（lactic acid）, compatibilization, blend, mechanical property

CLC Number:

TQ323.4⁺2

QI Shijie, YOU Xiangyu, WANG Ruichen, ZHOU Linfei, ZHANG Huijie. Preparation and properties of poly（lactic acid）/lignin blends with high lignin content[J]. China Plastics, 2024, 38(2): 45-51.

Figures/Tables 9

样品名称	PLA/%	木质素/%	GMA/份
PLA（+）	100	0	0
L10（+）	90	10	0
L20（+）	80	20	0
L30（+）	70	30	0
L40（+）	60	40	0
L50（-）	50	50	0
L60（-）	40	60	0
L10⁃10G（+）	90	10	10.0
L20⁃10G（+）	80	20	10.0
L30⁃10G（+）	70	30	10.0
L40⁃10G（+）	60	40	10.0
L50⁃10G（+）	50	50	10.0
L60⁃10G（+）	40	60	10.0
L60⁃2.5G（+）	40	60	2.5
L60⁃5G（+）	40	60	5.0
L60⁃7.5G（+）	40	60	7.5
L60⁃15G（+）	40	60	15.0

Tab.1. Sample names and components of each experimental groups

Fig.1. SEM images of cross⁃sections of the PLA/lignin samples

Fig.2. SEM images of cross⁃sections of the GMA⁃enhanced PLA/lignin samples

Fig.3. SEM images of cross⁃sections of the PLA/lignin samples with different GMA contents

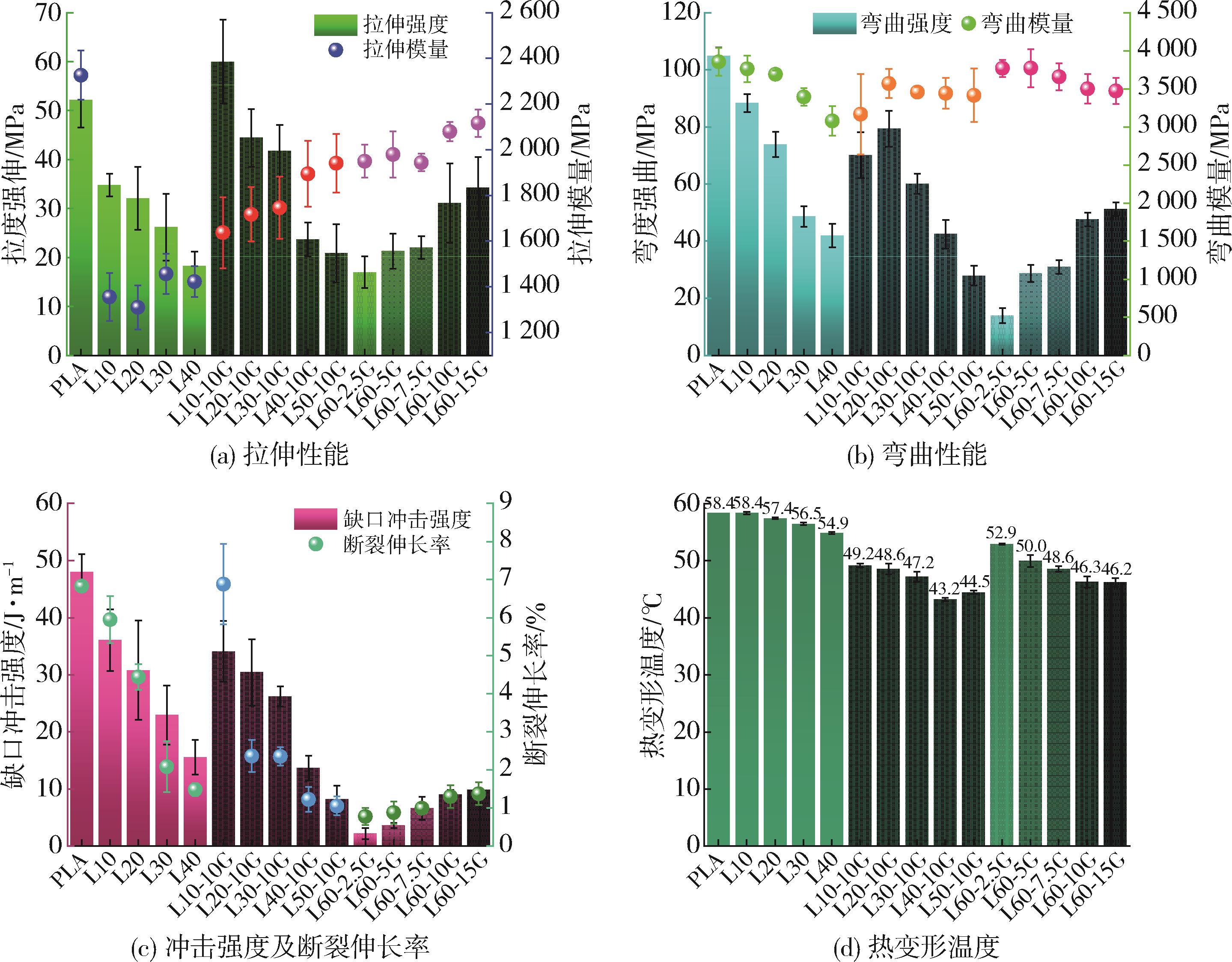

Fig.4. Mechanical properties of the PLA/lignin blends

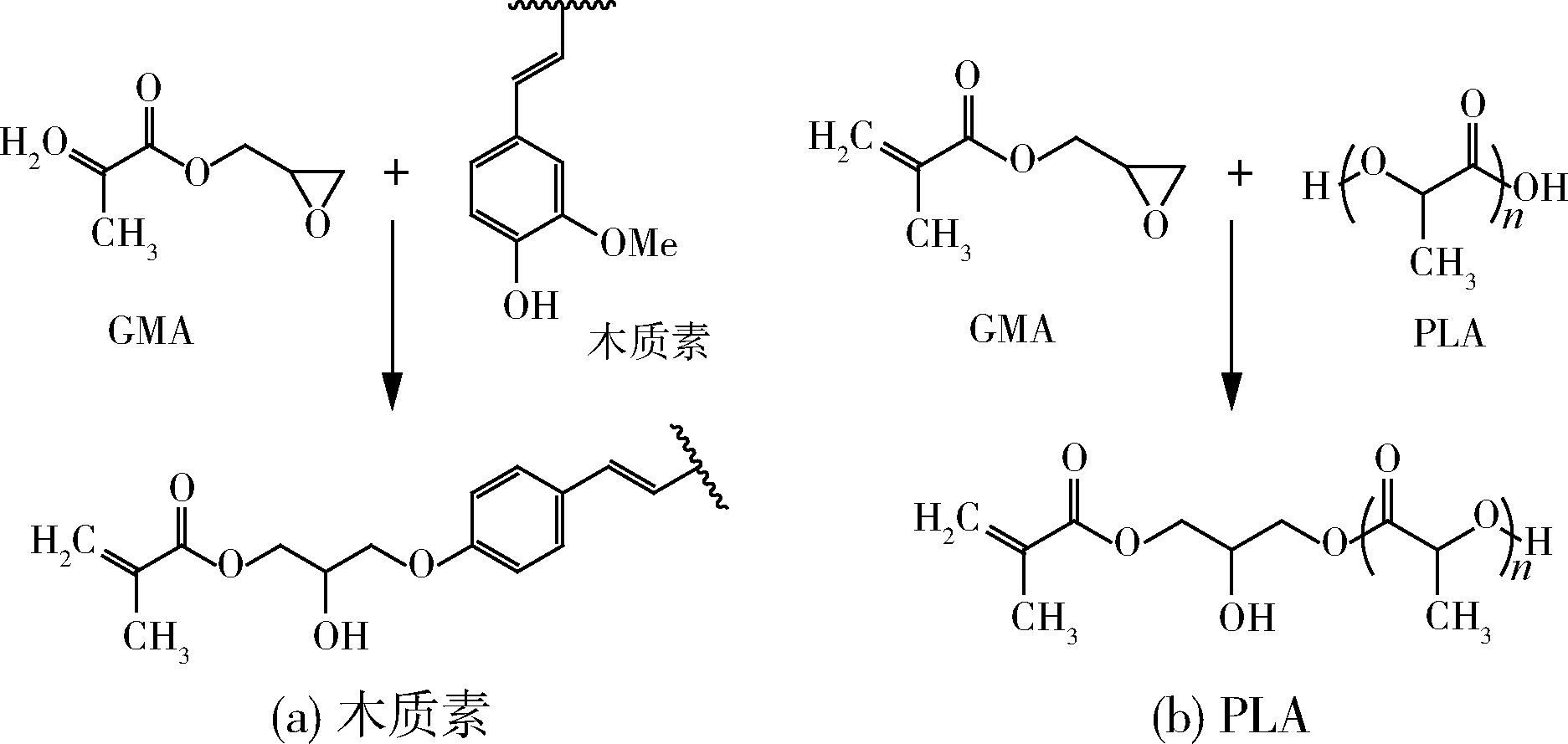

Fig.5. Possible reaction mechanisms between GMA and lignin and PLA，respectively

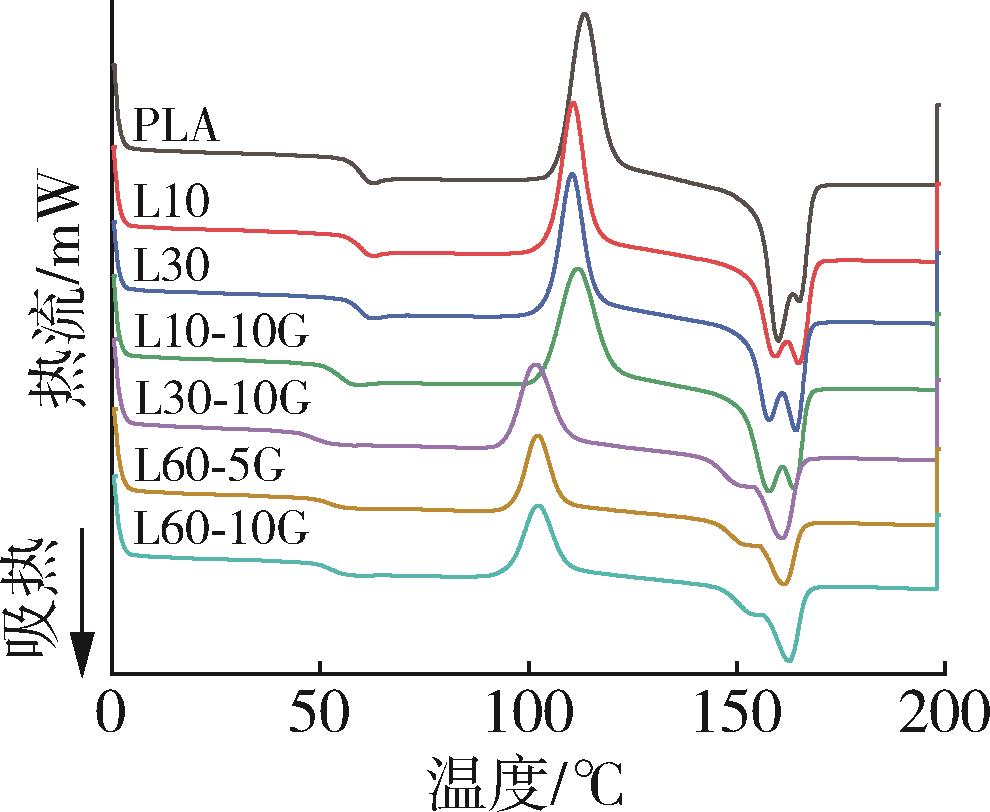

Fig.6. DSC curves of the PLA/lignin blends

样品	T_g/℃	T_cc/℃	ΔH_cc/ J·g^-1	T_m/℃	ΔH_m/ J·g^-1	$χ$ _c/%
PLA	60.06	113.4	33.60	160.0、165.1	37.66	4.33
L10	59.79	110.7	27.00	159.2、164.9	32.13	6.84
L30	59.68	110.5	25.41	157.8、164.2	29.55	7.36
L10⁃10G	54.42	111.8	28.73	157.2、164.1	31.82	4.53
L30⁃10G	47.94	101.6	19.05	160.9	22.60	6.95
L60⁃5G	52.40	102.2	13.96	161.2	16.57	7.31
L60⁃10G	53.19	102.3	15.54	162.5	18.22	7.87

样品	T_g/℃	T_cc/℃	ΔH_cc/ J·g^-1	T_m/℃	ΔH_m/ J·g^-1	$χ$ _c/%
PLA	60.06	113.4	33.60	160.0、165.1	37.66	4.33
L10	59.79	110.7	27.00	159.2、164.9	32.13	6.84
L30	59.68	110.5	25.41	157.8、164.2	29.55	7.36
L10⁃10G	54.42	111.8	28.73	157.2、164.1	31.82	4.53
L30⁃10G	47.94	101.6	19.05	160.9	22.60	6.95
L60⁃5G	52.40	102.2	13.96	161.2	16.57	7.31
L60⁃10G	53.19	102.3	15.54	162.5	18.22	7.87

Tab.2. Thermal properties of the PLA/lignin blends

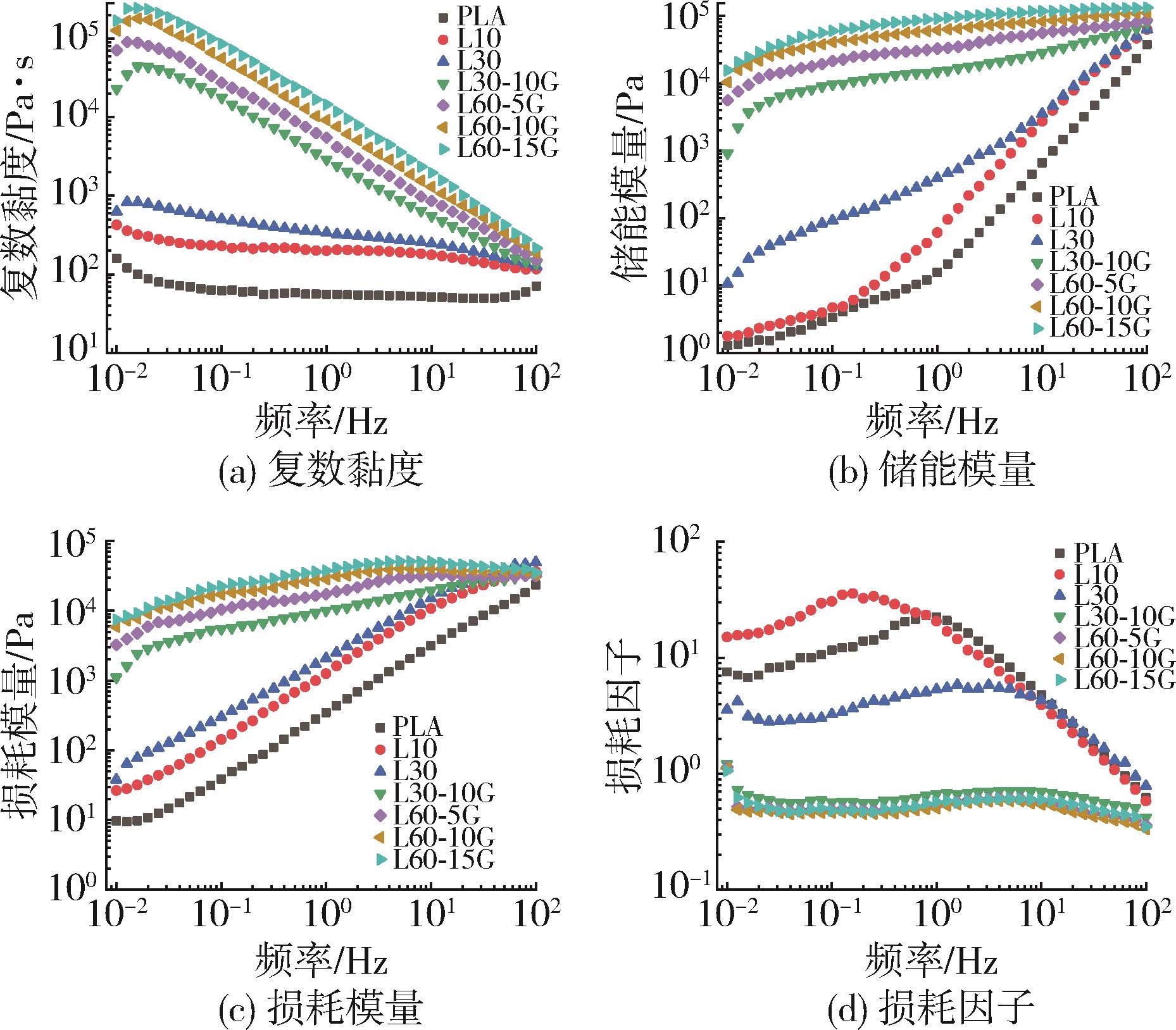

Fig.7. Rheological behavior of the PLA/lignin blends
