Study on properties and mechanism of asphalt modified with active rubber powder/nano⁃calcium carbonate composites

doi:10.19491/j.issn.1001-9278.2024.10.009

Abstract

Abstract:

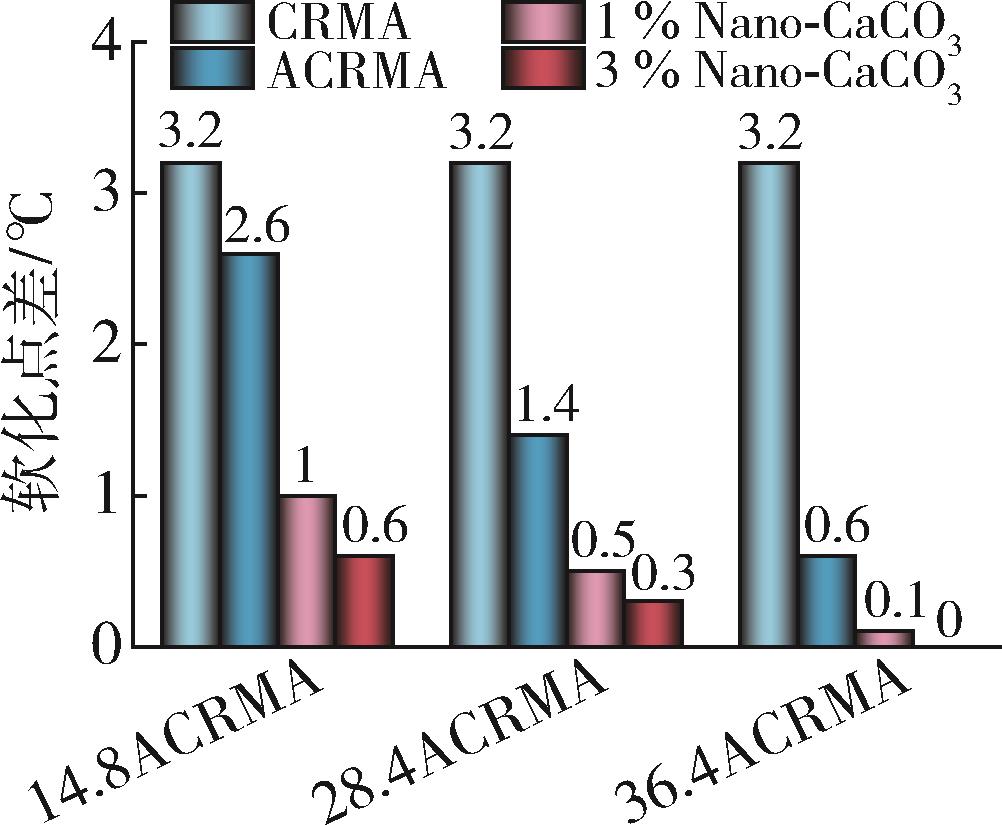

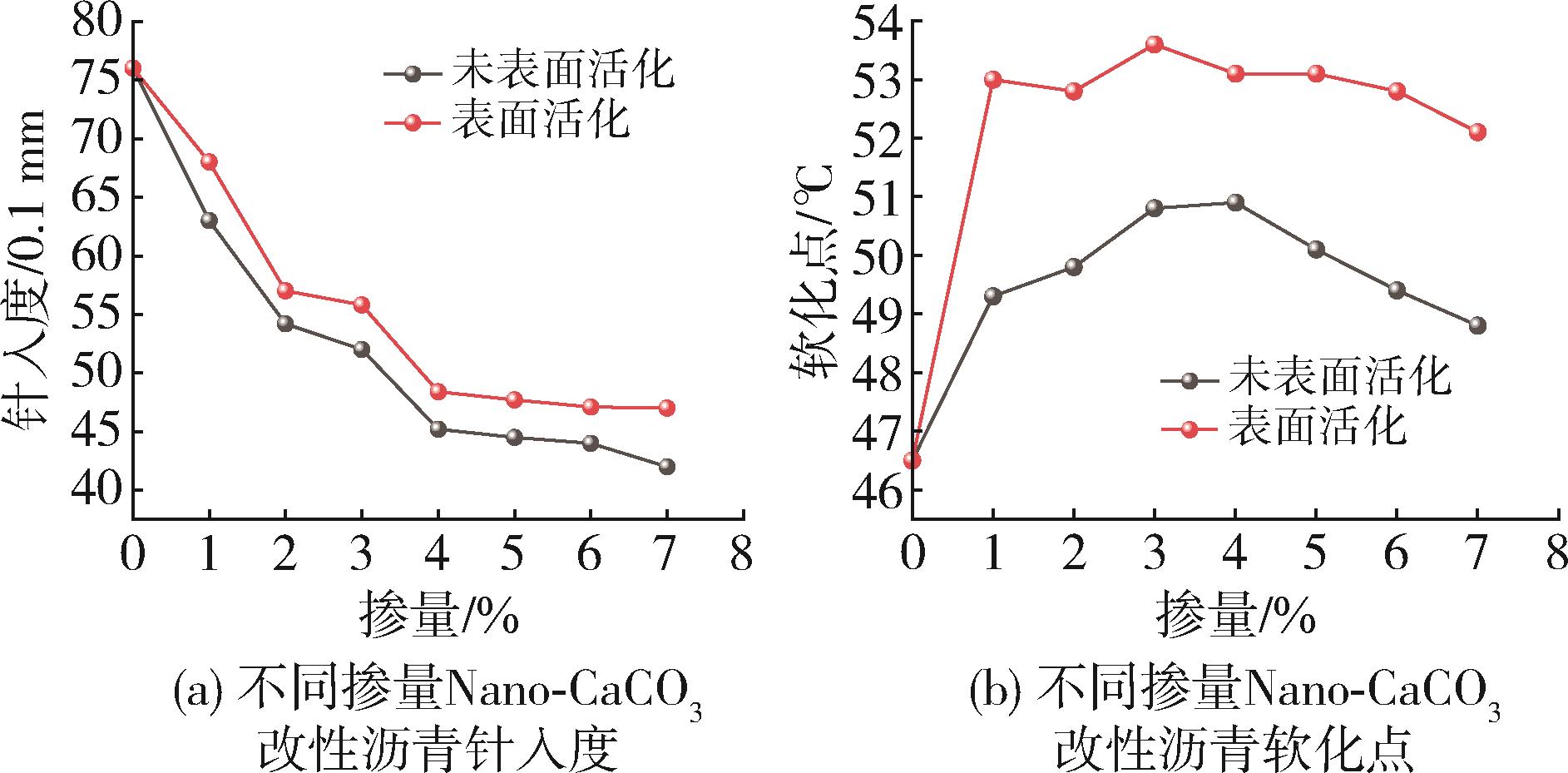

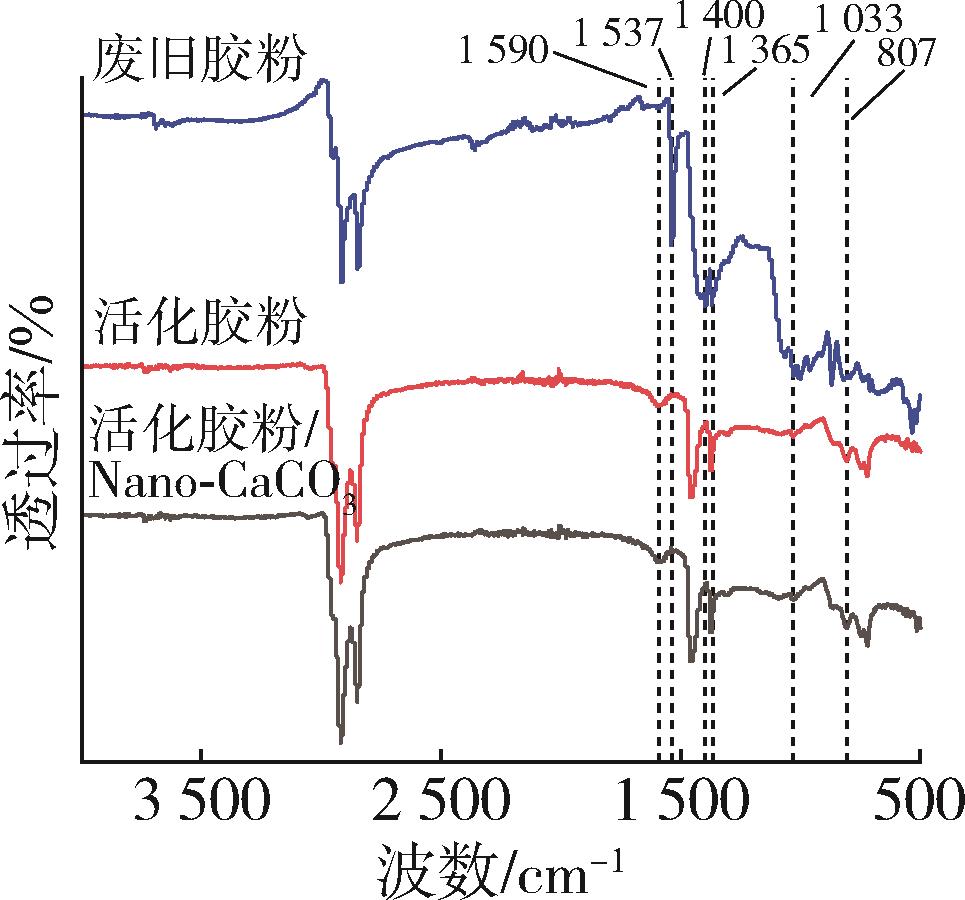

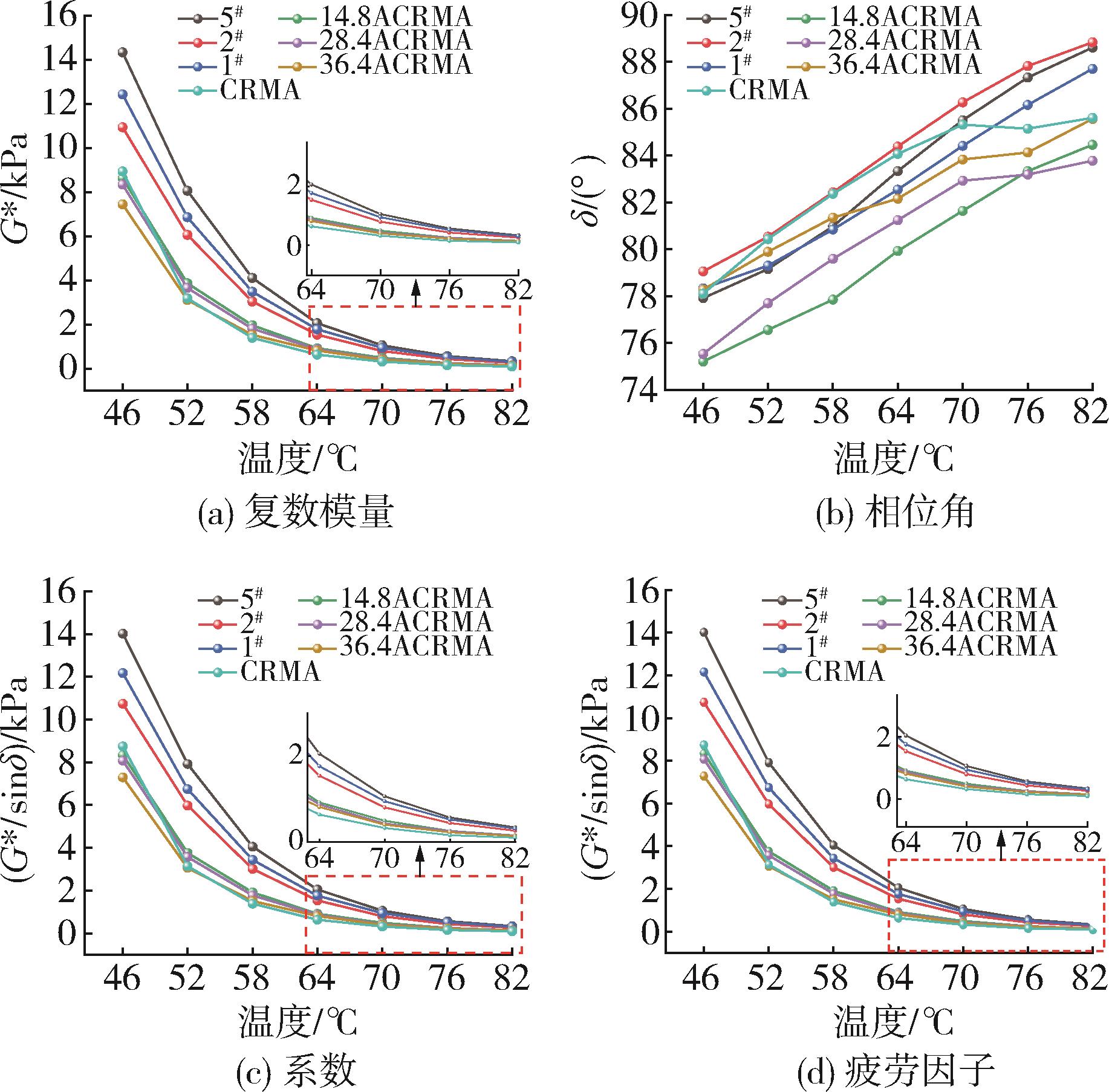

At present the increasing traffic axle load brings a greater pressure to asphalt pavement. In this study， the waste rubber powders with different activation degrees and the surface⁃modified nano⁃CaCO₃ were employed as modifiers to prepare activated rubber powder/nano⁃CaCO₃ composite⁃modified asphalts， and three optimal modification systems were proposed through comparing the penetration and softening point ductility of the modified asphalts. The high⁃temperature performance of the modified asphalts was investigated by DSR， their anti⁃aging performance was evaluated by a thin film oven test， their storage stability was assessed by a segregation test， and their morphology and functional groups were analyzed by fluorescence microscopy and Fourier⁃transform infrared spectroscopy. The results indicated that an activation treatment improved the compatibility between rubber powders and asphalt， thus enhancing the storage stability of the modified asphalts. The modified asphalts obtained from the three optimal modification systems exhibited good high⁃ and low⁃temperature performance， anti⁃aging performance， workability， and storage stability. Both physical reaction and chemical reaction occurred in the modification of activated rubber powders and activated rubber powder/nano⁃CaCO₃ composite⁃modified asphalts. Among the three optimal modification systems， the sample 5# exhibited the best comprehensive performance.

Key words: rubber powder, nano?CaCO₃, asphalt, property, mechanism

CLC Number:

TQ327

DING Tianyu, YANG Yang, YAN Yong, ZHANG Shibo ZHAO Yanfang. Study on properties and mechanism of asphalt modified with active rubber powder/nano⁃calcium carbonate composites[J]. China Plastics, 2024, 38(10): 48-54.

Figures/Tables 9

References 18

1	Duan H， Zhu C， Li Y， et al. Effect of crumb rubber percentages and bitumen sources on high⁃temperature rheological properties of less smell crumb rubber modified bitumen［J］. Construction and Building Materials， 2021， 277： 122248.
2	Office J E， Chen J， Dan H， et al. New innovations in pavement materials and engineering： a review on pavement engineering research 2021［J］. Journal of Traffic and Transportation Engineering （English Edition）， 2021， 8（6）： 815⁃999.
3	Zhu Y， Xu G， Ma T， et al. Performances of rubber asphalt with middle/high content of waste tire crumb rubber［J］. Construction and Building Materials， 2022， 335： 127488.
4	孙杰，许奎，游烽，等. 胶粉改性沥青混合料路用性能研究［J］. 中国塑料， 2019， 33（8）： 83⁃88.
	SUN J， XU K， YOU F， et al. Study on pavement performance of rubber powders⁃modified asphalt mixture［J］. China Plastics， 2019， 33（8）： 83⁃88.
5	何东坡，潘志强，王宏光. 胶粉加工参数对活化胶粉/丁苯橡胶复合改性沥青性能的影响［J］. 化工新型材料， 2021， 49（2）： 259⁃262.
	HE D P， PAN Z Q， WANG H G. Influence of crumb rubber processing parameter on the performance of activated crumb rubber/SBR composite modified asphalt［J］. New Chemical Materials， 2021， 49（2）： 259⁃262.
6	袁海涛，熊保林.多聚磷酸/活化胶粉/SBS复合改性沥青性能研究［J］.西部交通科技，2022（10）：19⁃22，86.
7	李颖，张德宝，杜腾飞. 纳米 CaCO₃⁃SBR 复合改性沥青路用性能研究［J］. 山东理工大学学报：自然科学版， 2021，35（3）：75⁃80.
	LI Y， ZHANG D B， DU T F. Pavement performance of nano⁃CaCO₃ and SBR composite modified asphalt［J］. Journal of Shandong University of Technology：Natural Science Edition， 2021，35（3）：75⁃80.
8	常越凡，张慧捷，王珊珊，等. 不同粒度纳米碳酸钙的可控制备［J］. 无机盐工业， 2020， 52（12）： 29⁃33.
	CHANG Y F， ZHANG H J， WANG S S， et al. Controllable preparation of nano⁃calcium carbonate with different particle sizes［J］. Inorganic Cemicals Industry， 2020， 52（12）： 29⁃33.
9	刘艳军. PP/POE/纳米 CaCO₃ 复合材料的制备及性能研究［J］. 山东化工， 2019， 48（8）： 10⁃11.
	LIU Y J. Study on preparation and properties of PP/POE/ nano⁃CaCO₃ composites［J］. Shandong Chemical Industry， 2019， 48（8）： 10⁃11.
10	孙培，张楠，王霁，等. 纳米碳酸钙改性沥青混合料路用性能研究［J］. 黑龙江工业学院学报（综合版）， 2022， 22（6）： 41⁃46.
	SUN P， ZHANG N， WANG J，et al. Study on the pavement performance of nano⁃CaCO₃ modified asphalt mixture［J］.Journal of Heilongjiang University of Technology， 2022， 22（6）： 41⁃46.
11	张世博，杨洋，晏永，等.工艺变量对废旧胶粉脱硫程度的影响及其改性沥青性能［J/OL］.化工进展， 2024， 9（11）： 1⁃17
	ZHANG S B， YANG Y， YAN Y， et al. Effect of process variables on the degree of desulfurization of waste rubber powder and its modified asphalt properties［J/OL］. Chemical Industry and Engineering Progress， 2024， 9（11）： 1⁃17
12	Wen Y， Liu Q， Chen L， et al. Review and comparison of methods to assess the storage stability of terminal blend rubberized asphalt binders［J］. Construction and Building Materials， 2020， 258： 119586.
13	Yan Y， Guo R， Liu Z， et al. Property improvement of thermosetting natural rubber asphalt binder by mineral oil［J］. Journal of Materials Research and Technology， 2023， 24： 8 807⁃8 825.
14	Liu Y， Zheng M， Zhu Y， et al. Preparation and performance of oxidized crumb rubber （OCR）/nano⁃SiO₂ composite⁃modified asphalt［J］. Construction and Building Materials， 2021， 279： 122488.
15	张哲轩，周洋，李润丰，等.纳米碳酸钙——生产、改性和应用［J］. 材料导报， 2023， 37（S2）： 162⁃171.
	ZHANG Z X， ZHOU Y， LI R F， et al.Nano⁃CaCO₃：production，modification and application［J］. Materials Reports， 2023， 37（S2）： 162⁃171.
16	杨喜英，张文才，赵志新. 纳米碳酸钙/废旧聚乙烯功能化复合改性沥青性能影响及机理研究［J］. 中国塑料， 2023， 37（10）： 85.
	YANG X Y， ZHANG W C， ZHAO Z X. Study on properties and mechanism of asphalt modified with nano⁃calcium carbonate/waste polyethylene composite［J］. China Plastics， 2023， 37（10）： 85.
17	Duarte G M， Faxina A L. High⁃temperature rheological properties of asphalt binders modified with recycled low⁃density polyethylene and crumb rubber［J］. Construction and Building Materials， 2021， 298： 123852.
18	Chen Z， Pei J， Wang T， et al. High temperature rheological characteristics of activated crumb rubber modified asphalts［J］. Construction and Building Materials， 2019， 194： 122⁃131.

推荐体系	针入度/ 0.1 mm	软化点/ ℃	延度/ cm
1^#（1 %Nano⁃CaCO₃+14.8ACRMA）	96.2	50.8	9.7
2^#（1 %Nano⁃CaCO₃+28.4ACRMA）	88.9	50.3	10.1
3^#（1 %Nano⁃CaCO₃+36.4ACRMA）	94.7	49.2	10.5
4^#（3 %Nano⁃CaCO₃+14.8ACRMA）	90.5	51.6	8.9
5^#（3 %Nano⁃CaCO₃+28.4ACRMA）	87.6	52.0	9.3
6^#（3 %Nano⁃CaCO₃+36.4ACRMA）	92.5	49.6	10.1
7^#（5 %Nano⁃CaCO₃+14.8ACRMA）	87.5	49.3	8.3
8^#（5 %Nano⁃CaCO₃+28.4ACRMA）	85.5	49.7	8.9
9^#（5 %Nano⁃CaCO₃+36.4ACRMA）	89.6	48.9	9.6

推荐体系	针入度/ 0.1 mm	软化点/ ℃	延度/ cm
1^#（1 %Nano⁃CaCO₃+14.8ACRMA）	96.2	50.8	9.7
2^#（1 %Nano⁃CaCO₃+28.4ACRMA）	88.9	50.3	10.1
3^#（1 %Nano⁃CaCO₃+36.4ACRMA）	94.7	49.2	10.5
4^#（3 %Nano⁃CaCO₃+14.8ACRMA）	90.5	51.6	8.9
5^#（3 %Nano⁃CaCO₃+28.4ACRMA）	87.6	52.0	9.3
6^#（3 %Nano⁃CaCO₃+36.4ACRMA）	92.5	49.6	10.1
7^#（5 %Nano⁃CaCO₃+14.8ACRMA）	87.5	49.3	8.3
8^#（5 %Nano⁃CaCO₃+28.4ACRMA）	85.5	49.7	8.9
9^#（5 %Nano⁃CaCO₃+36.4ACRMA）	89.6	48.9	9.6

改性体系	质量损失/%	残留针入度比/%	软化点增量/℃	TFOT前延度/cm	TFOT后延度/cm
CRMA	0.49	61.5	9.8	7.5	4.34
14.8ACRMA	0.32	80.7	4.4	10	6.72
28.4ACRMA	0.26	82.3	4.0	10.7	7.55
36.4ACRMA	0.20	84.9	3.7	11.3	8.14
1^#	0.24	83.8	3.7	9.7	7.08
2^#	0.20	84.2	3.2	10.1	7.91
5^#	0.14	88.1	2.8	9.3	7.4

改性体系	质量损失/%	残留针入度比/%	软化点增量/℃	TFOT前延度/cm	TFOT后延度/cm
CRMA	0.49	61.5	9.8	7.5	4.34
14.8ACRMA	0.32	80.7	4.4	10	6.72
28.4ACRMA	0.26	82.3	4.0	10.7	7.55
36.4ACRMA	0.20	84.9	3.7	11.3	8.14
1^#	0.24	83.8	3.7	9.7	7.08
2^#	0.20	84.2	3.2	10.1	7.91
5^#	0.14	88.1	2.8	9.3	7.4
