Effect of maleic anhydride graft⁃modified ground tire rubber on properties of poly（lactic acid）

doi:10.19491/j.issn.1001-9278.2024.07.004

Abstract

Abstract:

Maleic anhydride （MAH） was grafted onto the surface of waste rubber powder （GTR） to obtain GTR⁃g⁃MAH （MGTR） using benzoyl peroxide as an initiator. Poly（lactic acid）（PLA）/MGTR blends were prepared through melt blending， and their micromorphology， crystallization behavior， and mechanical properties were thoroughly investigated. As a result of successful grafting of MAH onto GTR， the MGTR particles were uniformly distributed in the PLA matrix due to good phase compatibility. Additionally， MGTR could facilitate the crystallization of PLA and the formation of more perfect crystals. The tensile strength of the PLA/MGTR blends decreased with an increase in the MGTR content， while their elongation at break and impact strength exhibited an increasing trend at first and then a decrease. The blends containing 10 wt% MGTR exhibited the highest crystallinity of 16.4 %， which is 7 times that of pure PLA. With 15 wt% MGTR was incorporated， the blends showed the highest elongation at break and impact strength， which were 30 % and 60 % greater than those of pure PLA， respectively. This allowed the blends to maintain good tensile strength and also resulted in effective toughening for PLA.

Key words: poly（lactic acid）, ground tire rubber, grafted maleic anhydride, compatibility, mechanical property

CLC Number:

TQ321

HU Yongxiang, XIE Jiling, LI Weiming, ZHANG Lu, TANG Xianggang, LYU Yitong, SHEN Hongwang, JU Guannan. Effect of maleic anhydride graft⁃modified ground tire rubber on properties of poly（lactic acid）[J]. China Plastics, 2024, 38(7): 20-24.

Figures/Tables 6

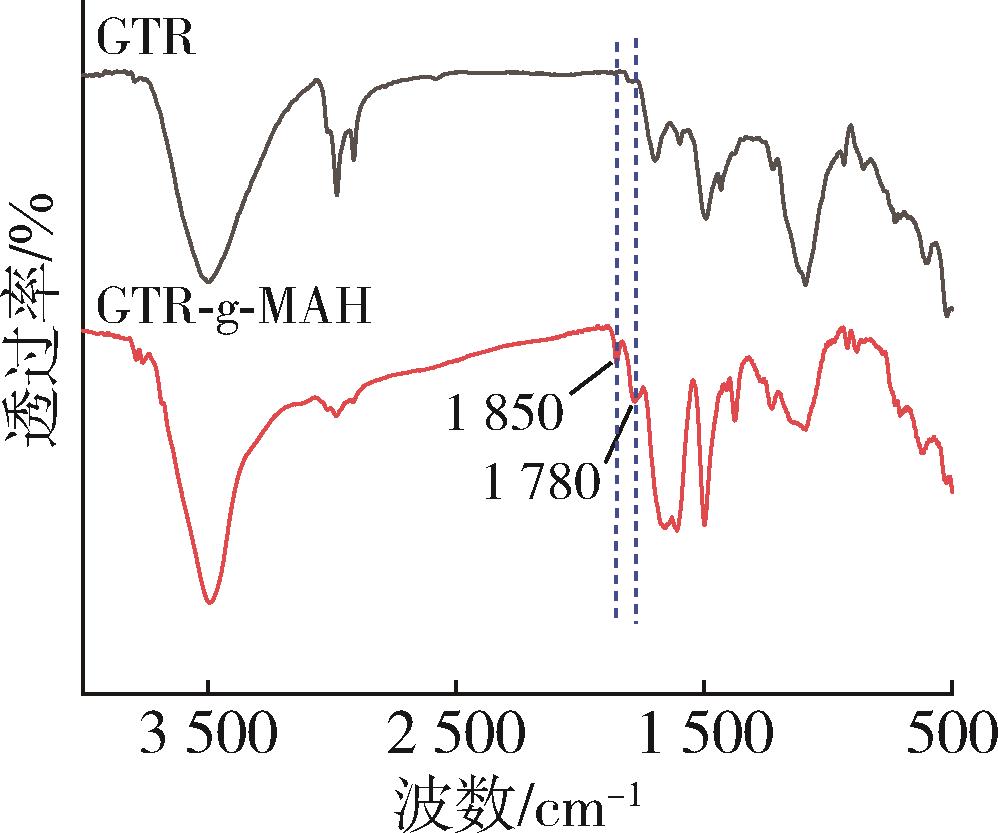

Fig.1. FTIR of GTR and MGTR

Fig.2. SEM of brittle sections of PLA and PLA/GTR samples

Fig.3. SEM of brittle sections of PLA and PLA/MGTR samples

Fig.4. DSC secondary heating curves of PLA and PLA/MGTR composites

样品	T_g/℃	T_cc/℃	T_m/℃	∆H_cc/ J·g^-1	∆H_m/ J·g^-1	X_c/%
PLA	59.9	111.7	151.0	27.8	29.9	2.3
PLA/5 %GTR	59.5	112.3	151.1	23.4	29.2	6.0
PLA/5 %MGTR	61.4	108.1	169.1	24.9	33.1	8.3
PLA/10 %MGTR	60.9	106.2	168.3	13.4	31.6	16.4
PLA/15 %MGTR	62.4	109.0	169.3	18.8	28.8	8.5
PLA/20 %MGTR	61.7	107.0	169.0	19.8	28.2	6.8

Tab.1. DSC data of PLA and PLA/MGTR composite

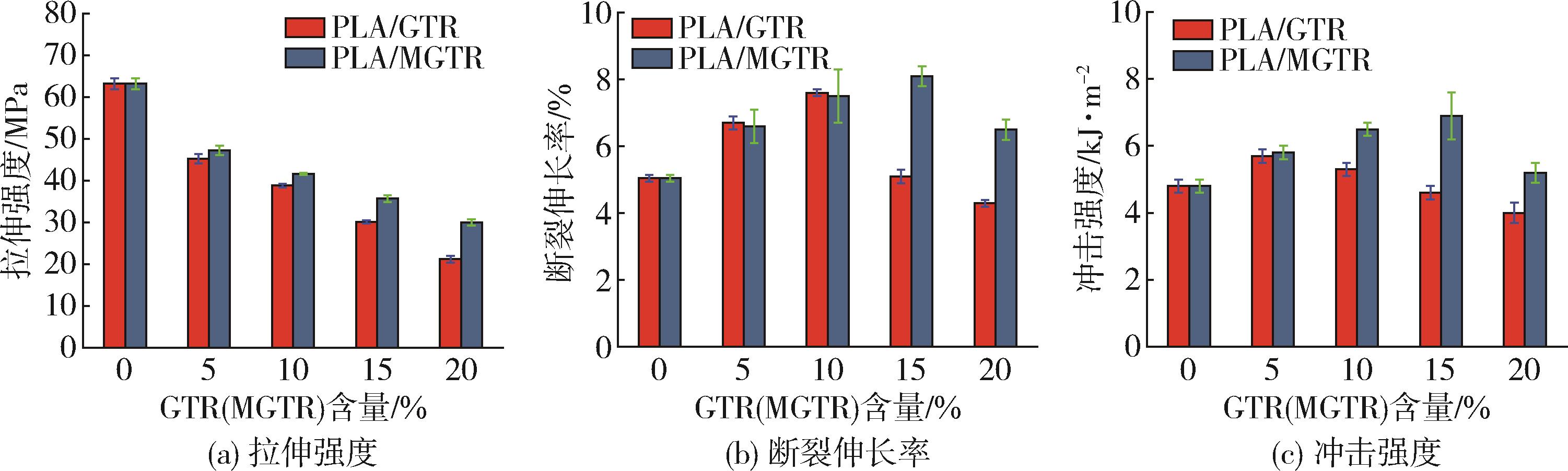

Fig.5. Mechanical properties of composites with different contents of MGTR or GTR

References 20

1	AUTA H S， EMENIKE C U， FAUZIAH S H. Distribution and importance of microplastics in the marine environment： a review of the sources， fate， effects， and potential solutions ［J］. Environment international， 2017， 102： 165⁃176.
2	孙飞. 生物降解高分子材料的研究和发展［J］. 中国石油和化工标准与质量， 2021， 41（2）： 124⁃126.
	SUN F. Research and development of biodegradable polymer materials ［J］. China Petroleum and Chemical Standard and Quality， 2021， 41（2）：124⁃126.
3	尚晓煜，刘晓南，谢锦辉，等. PLA/PBAT复合材料研究进展［J］. 工程塑料应用， 2021， 49（6）： 157⁃164.
	SHANG X Y， LIU X N， XIE J H， et al. Advance in research of polylactic acid/poly （butyleneadipate⁃co⁃terephthalate） composites ［J］. Engineering Plastics Application， 2021， 49（6）：157⁃164
4	BUSLOVICH A， HOREV B， SHEBIS Y， et al. A facile method for the deposition of volatile natural compound⁃based nanoparticles on biodegradable polymer surfaces ［J］. Journal of Materials Chemistry B， 2018， 6（15）： 2 240⁃2 249.
5	SAEED U， NAWAZ M， AL⁃TURAIF H. Wood flour reinforced biodegradable PBS/PLA composites ［J］. Journal of Composite Materials， 2018， 52（19）： 2 641⁃2 650.
6	GAN I， CHOW W S. Synthesis of phosphoric acid⁃treated sugarcane bagasse cellulose nanocrystal and its thermal properties enhancement for poly （lactic acid） nanocomposites ［J］. Journal of Thermoplastic Composite Materials， 2019， 32（5）： 619⁃634.
7	SHAH B L， SELKE S E， WALTERS M B， et al. Effects of wood flour and chitosan on mechanical， chemical， and thermal properties of polylactide ［J］. Polymer Composites， 2008， 29（6）： 655⁃663.
8	PORRAS A， MARANON A. Development and characterization of a laminate composite material from polylactic acid （PLA） and woven bamboo fabric ［J］. Composites Part B： Engineering， 2012， 43（7）： 2 782⁃2 788.
9	SADR S H， DAVARAN S， ALIZADEH E， et al. PLA⁃based magnetic nanoparticles armed with thermo/pH responsive polymers for combination cancer chemotherapy ［J］. Journal of Drug Delivery Science and Technology， 2018， 45： 240⁃254.
10	DRUMRIGHT R E， GRUBER P R， HENTON D E. Polylactic acid technology ［J］. Advanced Materials， 2000， 12（23）： 1 841⁃1 846.
11	孙晨露，刘喜军. 聚乳酸增韧改性研究进展［J］. 化工时刊， 2017， 31（12）： 40⁃42，54.
	SUN C L， LIU X J. Research progress of toughening modification of polylactic acid ［J］. Chemical Industry Times， 2017， 31（12）：40⁃42， 54.
12	刘斌基. 聚乳酸的性质与制备方法［J］. 新疆有色金属， 2015， 38（5）： 54⁃56.
	LIU B J. Properties and preparation of polylactic acid ［J］. Xinjiang Nonferrous Metals， 2015， 38（5）：54⁃56.
13	杨菊香，曾莎，贾园，等. 聚乳酸改性及其应用进展［J］. 塑料， 2020， 49（5）： 102⁃107.
	YANG J X， ZENG S， JIA Y， et al. Progress in modification of polylactic acid and its application ［J］. Plastics， 2020， 49（5）：102⁃107.
14	CAO X W， LUO J， CAO Y， et al. Structure and properties of deeply oxidized waster rubber crumb through long time ozonization ［J］. Polymer degradation and stability， 2014， 109： 1⁃6.
15	CATALDO F， URSINI O， ANGELINI G. Surface oxidation of rubber crumb with ozone ［J］. Polymer Degradation and Stability， 2010， 95（5）： 803⁃810.
16	巩雨注，王小萍，贾德民. 废旧轮胎粉碎技术及其应用进展［J］. 橡胶工业， 2021， 68（1）： 66⁃72.
	GONG Y Z， WANG X P， JIA D M. Crushing technology and application progress of waste tires ［J］. China Rubber Industry， 2021，68（1）：66⁃72.
17	方懿，刘金鑫. 常见废旧橡胶回收利用的途径和创新［J］. 科技传播， 2014， 6（15）： 146，27.
	FANG Y， LIU J X. Ways and innovations in the recycling of common waste rubber ［J］. Public Communication of Science & Technology， 2014， 6（15）：146，27.
18	董鹏，乐犇，赵巧萌. 我国废旧橡胶循环利用之观察［J］. 广东橡胶， 2018（12）： 10⁃13.
	DONG P， LE B， ZHAO Q M. Observations on the recycling of waste rubber in China ［J］. Guangdong Rubber， 2018（12）：10⁃13.
19	MOHAVED S O， ANSARIFAR A， NEZHAD S K， et al. A novel industrial technique for recycling ethylene⁃propylene⁃diene waste rubber ［J］. Polymer Degradation and Stability， 2015， 111： 114⁃123.
20	LORENZO A T， ARNAL M L， ALBUERNE J， et al. DSC isothermal polymer crystallization kinetics measurements and the use of the Avrami equation to fit the data： Guidelines to avoid common problems ［J］. Polymer Testing， 2007， 26（2）： 222⁃231.
