Study on toughening modification and foaming behavior of biobased polyamide 56/polyamide 66 blends by polyamide elastomer

doi:10.19491/j.issn.1001-9278.2024.05.010

Abstract

Abstract:

Biobased polyamide 56 （PA56）/polyamide 66 （PA66） blends were toughened by using polyamide elastomer （MH2030）， and then a series of bio⁃based polyamide blend foams were prepared through a supercritical CO₂ intermittent foaming technology. The effect of MH2030 content on the crystallization， rheological， mechanical properties， and foaming behaviors of the PA56/PA66/MH2030 blends was investigated. The results indicated that the introduction of MH2030 improved the viscoelasticity and foaming performance of the blends， leading to a shift of the crystallization peak toward a high temperature. This may be due to the nucleating effect of MH2030 on the crystallization of the blending system. The addition of MH2030 also increased the toughness of the blends but reduced their rigidity. The blend containing 20 wt% MH2030 exhibits the highest impact strength， which is 30.4 % higher than that without MH2030. The foaming behavior and compression performance of the blend foams were investigated. The blend form containing 10 wt% MH2030 exhibits a higher cell density and better matrix mechanical properties. In this case， the blend foam obtained micro⁃size pores with a smaller cell size of 19.24 μm and higher compressive strength of 0.71 MPa， which was 29.1 % higher than that of the non⁃toughened PA56/PA66 blend foam.

Key words: biobased polyamide 56 foam, polyamide elastomer, foaming behavior, mechanical property

CLC Number:

TQ323.6

ZHANG Zhiqi, WANG Xiangdong, LIU Haiming, CHEN Shihong. Study on toughening modification and foaming behavior of biobased polyamide 56/polyamide 66 blends by polyamide elastomer[J]. China Plastics, 2024, 38(5): 55-60.

Figures/Tables 11

样品编号	PA56/份	PA66/份	MH2030/份	ADR/份	B215/份
1^#	80	20	0	4	0.5
2^#	80	20	5	4	0.5
3^#	80	20	10	4	0.5
4^#	80	20	15	4	0.5
5^#	80	20	20	4	0.5

Tab.1. Formula of the samples

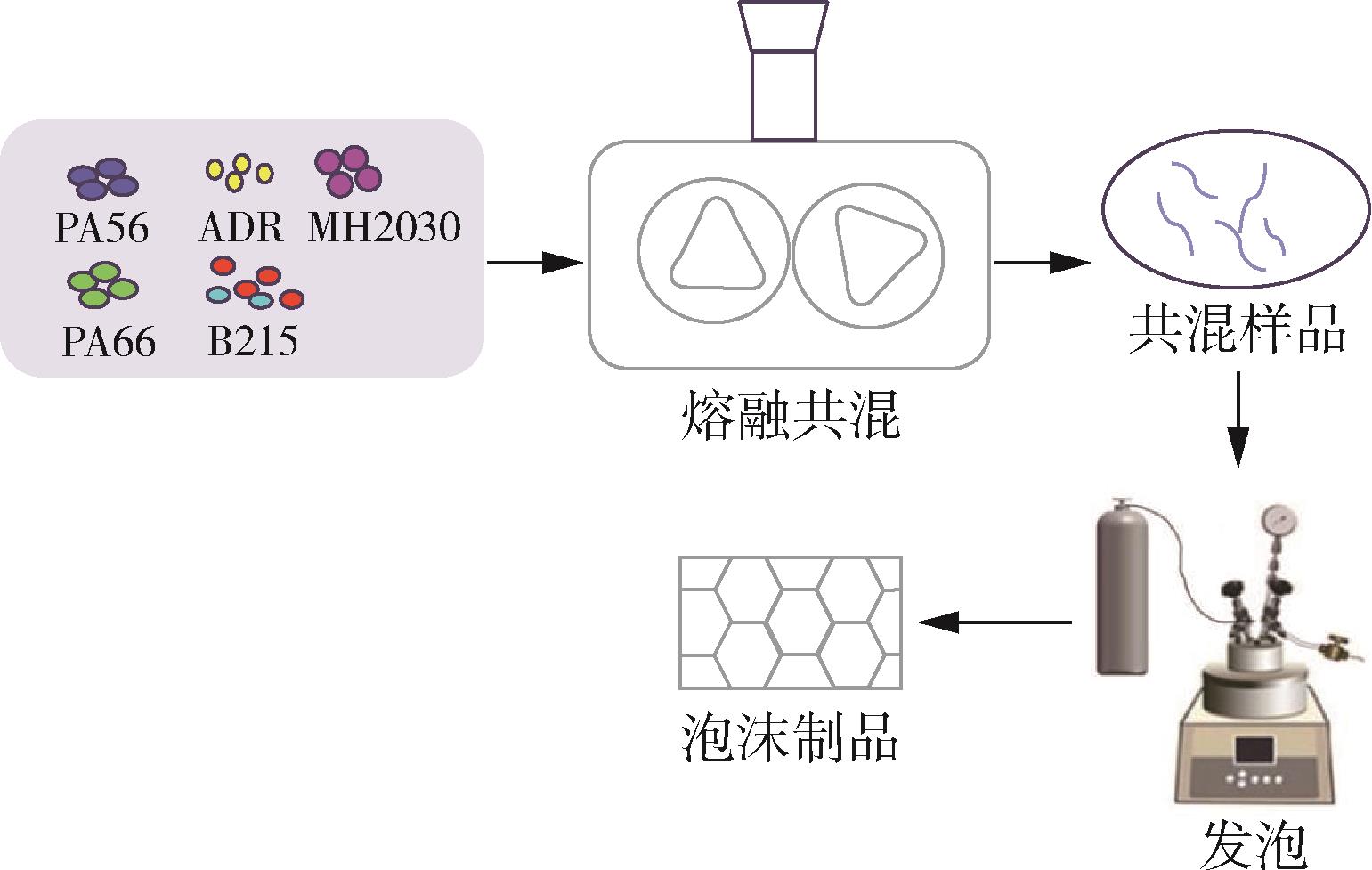

Fig.1. Flowchart of preparation of the modified PA56 foam

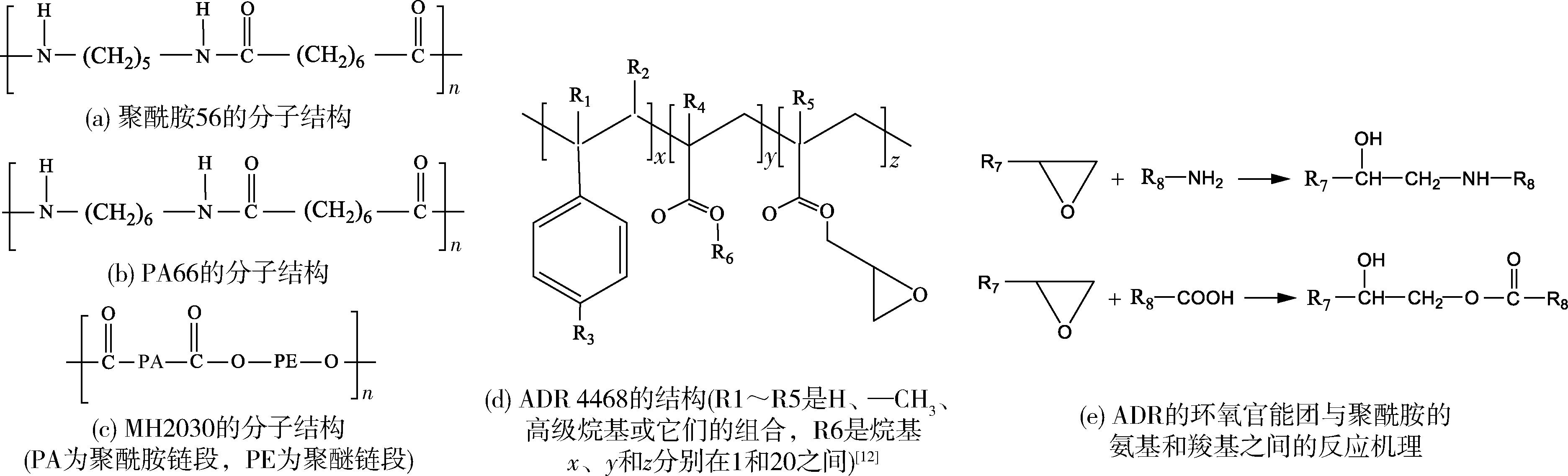

Fig.2. Molecular structure of the main raw materials and reaction mechanism of the melt blending

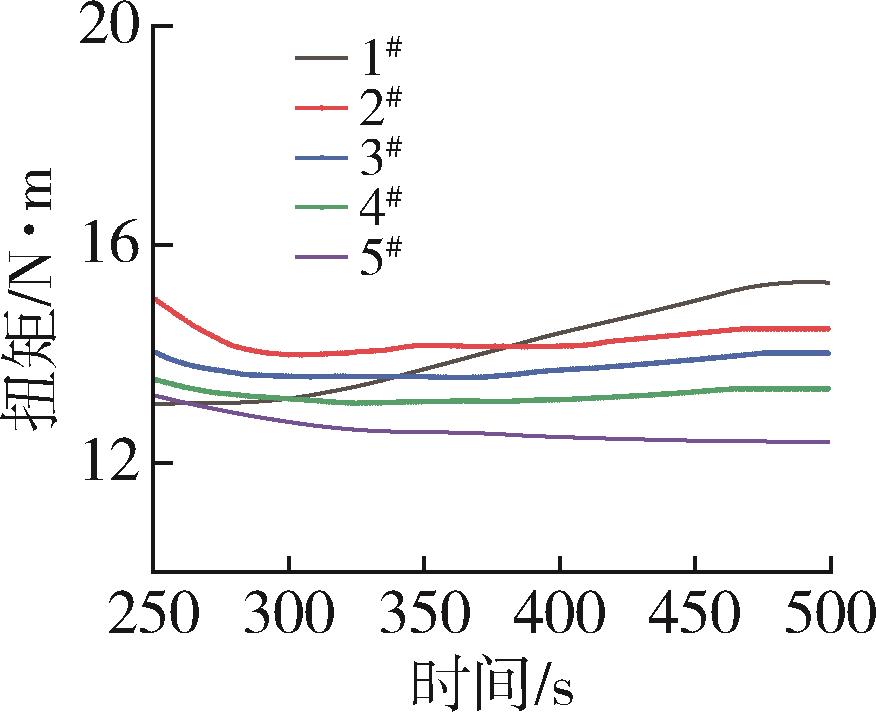

Fig.3. Torque curves of the PA56/PA66 blends with different MH2030 contents

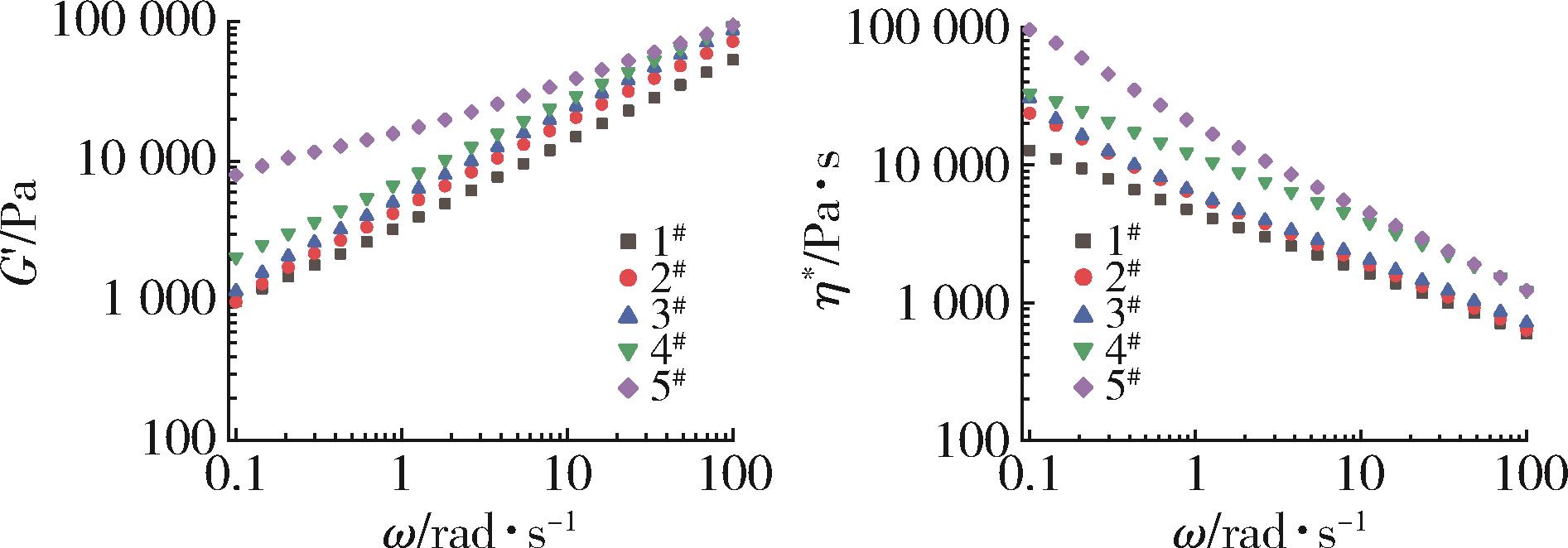

Fig.4. Changes of （a） G′ and （b） η* of the PA56 /PA66 blends with different MH2030 contents with shear frequency

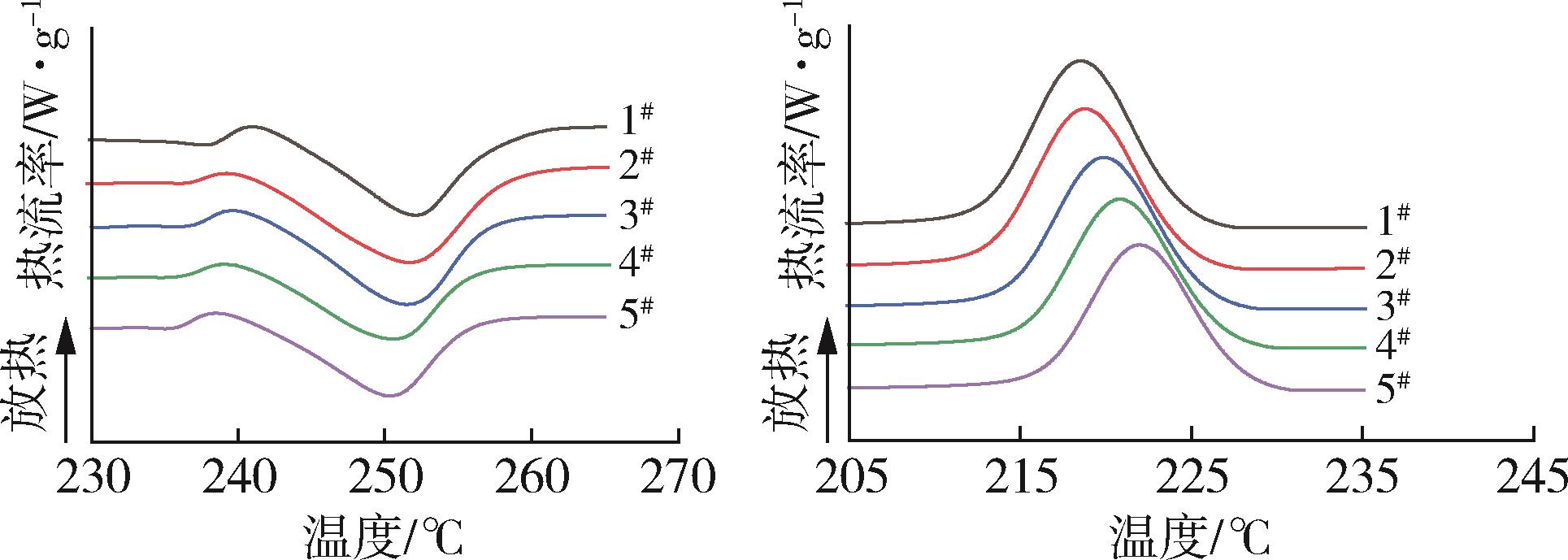

Fig.5. （a） Melting and （b） crystallization curves of the PA56/PA66 blends with different MH2030 contents

样品	结晶温度/℃	熔融温度/℃	熔融焓/（J·g^-1）
1^#	218.14	252.34	29.48
2^#	218.78	252.22	30.57
3^#	219.89	251.30	31.79
4^#	220.83	250.83	34.07
5^#	221.80	250.51	35.13

Tab.2. Thermal properties of the modified PA56 materials

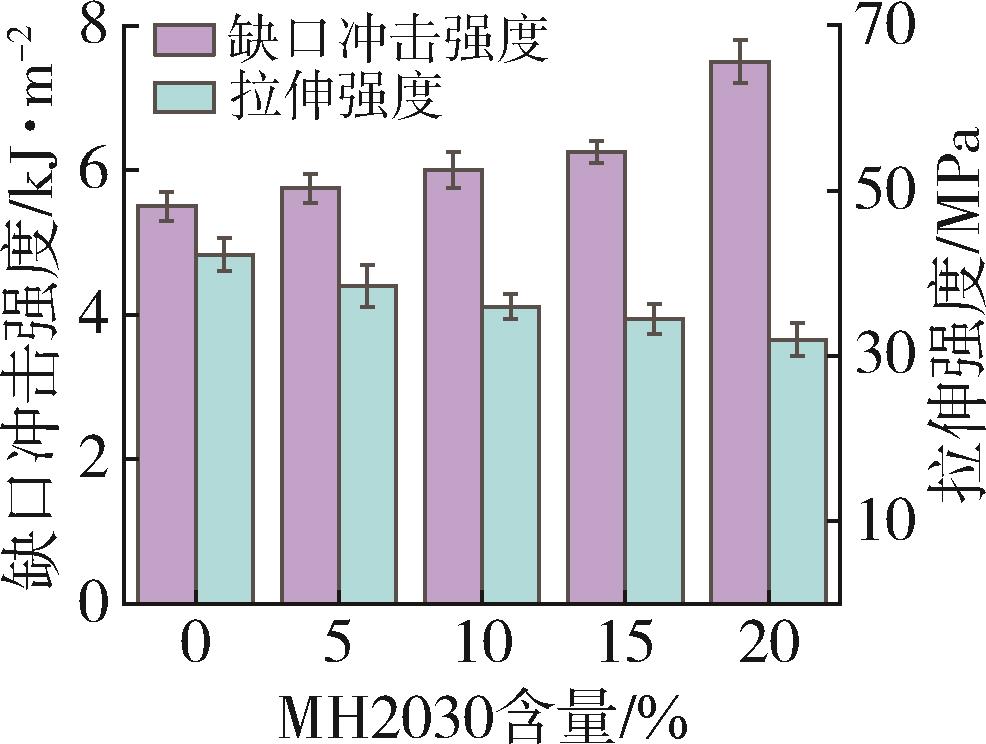

Fig.6. Mechanical properties of the PA56/PA66 blends with different MH2030 contents

Fig.7. Cell morphology of the modified PA56 foams with different MH2030 contents at saturation temperature of （a）251 ℃，（b）255 ℃ and （c）259 ℃

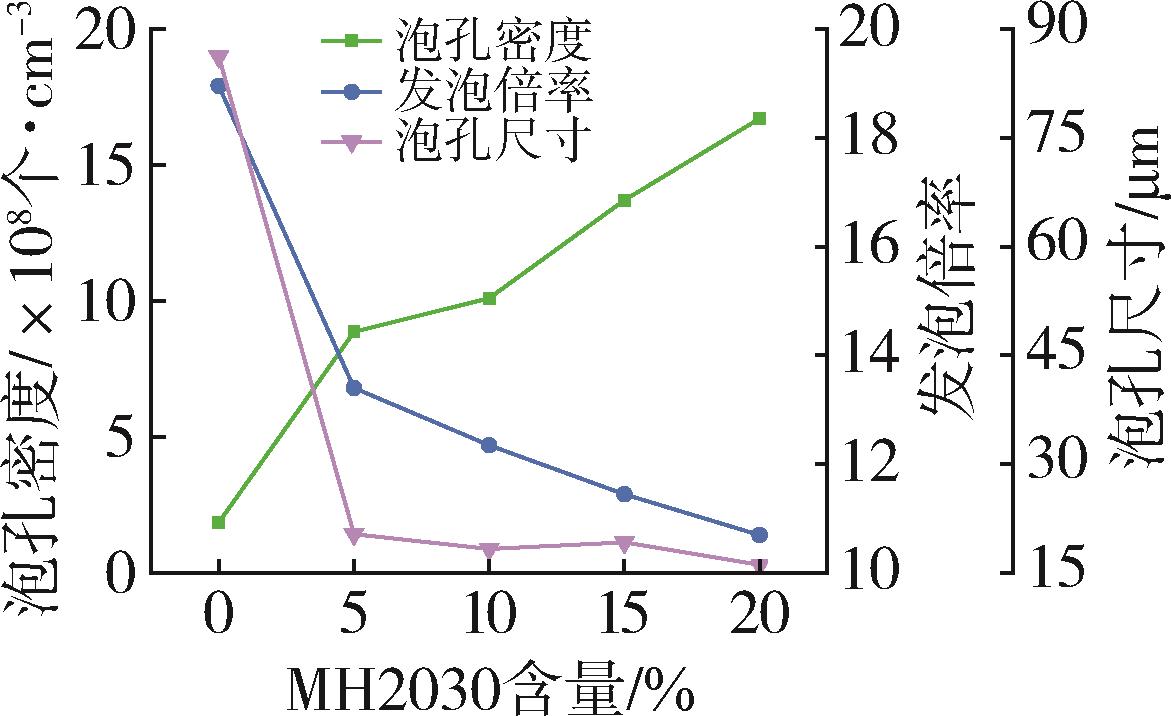

Fig.8. Cell parameters of the modified PA56 foams obtained at 255 ℃

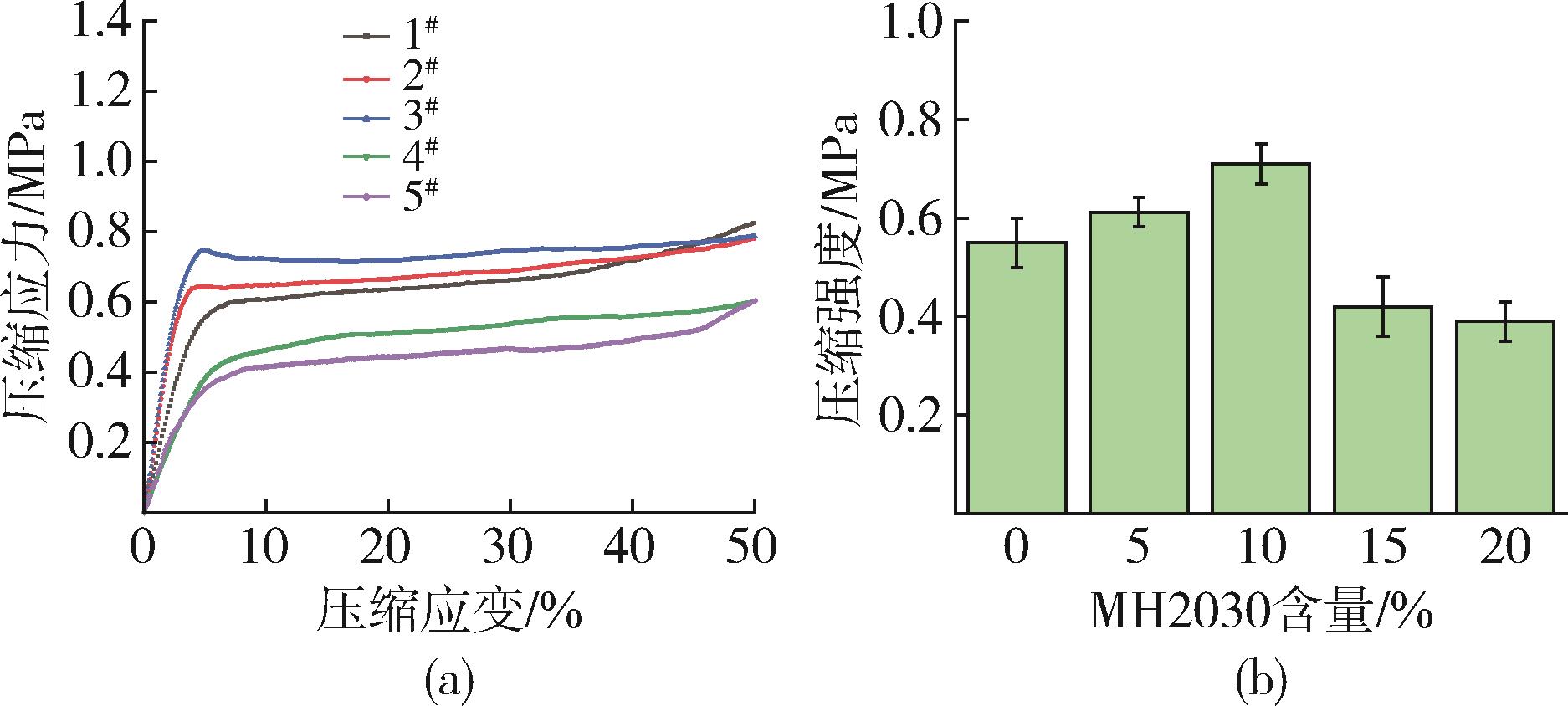

Fig.9. （a） Compressive stress⁃strain curves and （b） compressive strength of the modified PA56 foams

References 17

1	Yang H， Wentao L. Bio⁃based polyamide 56： recent advances in basic and applied research［J］. Polym Eng Sci， 2023，63（8）： 2 484⁃2 497.
2	Li Y L， Hao X M， Guo Y F，et al. Study on the acid resistant properties of bio⁃based nylon 56 fiber compared with the fiber of nylon 6 and nylon 66［J］. AMR，2014， 1 048：57–61.
3	Hao X， Guo Y， Li Y， et al. Study on the structure and properties of novel bio⁃based polyamide56 fiber compared with normal polyamide fibers［C］//International Informatization and Engineering Associations，Atlantis Press.Proceedings of 2015 International Conference on Materials，Environmental and Biological Engineering（MEBE 2015），PressAtlantis，2015：6.
4	Guo Y， Hao X， Li Y. Evaluate on the alkaline resistance properties of bio⁃based nylon 56 fiber compared with the normal nylon fiber［C］//International Conference on Textile Engineering and Materials，2014.
5	魏香，马晟博，汤振棋，等.新型生物基尼龙56的合成工艺研究进展及前景展望［J］.当代化工研究，2022（03）：144⁃146.
	WEI X， MA S B， TANG Z Q，et al. Research progress and prospect of synthetic technology of new biological ginilon 56［J］. Modern Chemical Research，2022（03）：144⁃146.
6	蒋波，蔡飞鹏，秦显忠，等.生物基尼龙材料改性与应用进展［J］.化工进展，2020，39（09）：3 469⁃3 477.
	JIANG B， CAI F P， QIN X Z，et al. Progress in modifications and applications of biobased nylons［J］. Chemical Industry and Engineering Progress，2020，39（09）：3 469⁃3 477.
7	张宜鹏，金尚林，廖辉荣，等. 增韧PA6低压成型的性能［J］.弹性体，2023，33（6）：51⁃55.
	ZHANG Y P， JIN S L， LIAO H R，et al. Properties of toughened PA6 prepared by low pressure molding［J］. China Elastomerics，2023，33（6）：51⁃55.
8	Zhang Yuhui， Yang Wang， Xu Yuhan， et al. Modification of biobased polyamide 56 to achieve ultra⁃toughening［J］.Polymer⁃Plastics Technology and Materials， 2021，60：14， 1 585⁃1 604.
9	彭栗妮.聚酰胺6⁃聚醚胺弹性体的制备及其共混改性研究［J］.合成纤维工业，2023，46（03）：34⁃38.
	PENG L N. Preparation and blending modification of polyamide 6⁃ polyether amine elastomer［J］. China Synthetic Fiber Industry，2023，46（03）：34⁃38.
10	徐宇柏，何志勇，贾凤，等.热塑性聚酰胺弹性体的研究进展［J］.材料导报，2022，36（S2）：513⁃518.
	XU Y B， HE Z Y， JIA F，et al. Research progress of thermoplastic polyamide elastomers［J］. Materials Reports，2022，36（S2）：513⁃518.
11	曾文彬，徐保明，陈坤.聚酰胺弹性体研究进展［J］.应用化工，2022，51（02）：592⁃596.
	ZENG W B， XU BAO M， CHEN K. Research progress of polyamide elastomer［J］. Applied Chemical Industry，2022，51（02）：592⁃596.
12	Erdmann R， Rennert M， Meins T. Influence of epoxy functional chain⁃extenders on the thermal and rheological properties of bio⁃based polyamide 10.10［J］. Polymers， 2023， 15：3571.
13	孙乙博，刘亚宁，芦浩凡，等.PA66扩链改性及其超临界CO₂微孔发泡行为研究［J］.中国塑料，2023，37（12）：41⁃46.
	SUN Y B， LIU Y N， LU H F，et al. Study on chain⁃extending reaction of PA66 and its supercritical CO₂microcellular foaming behavior［J］.China Plastics，2023，37（12）：41⁃46.
14	赖钧. 聚酰胺1212弹性体/聚氨酯复合材料的制备及发泡性能研究［D］.福州：福建工程学院，2023.
15	李胜男，蒋团辉，张翔，等.成核剂对PP发泡行为和力学性能影响［J］.现代塑料加工应用，2019，31（05）：32⁃35.
	LI S N， JIANG T H， ZHANG X，et al. Effects of nucleating agent on the foaming behaviors and mechanical properties of PP composites［J］. Modern Plastics Processing and Applications，2019，31（05）：32⁃35.
16	HOU J J， ZHAO G Q， WANG G L， et al. A novel gas⁃assisted microcellular injection molding method for preparing lightweight foams with superior surface appearance and enhanced mechanical performance［J］. Materials & Design， 2017， 127： 115⁃125.
17	LAGUNA⁃GUTIERREZ E， ESCUDERO J， RODRIGUEZ⁃PEREZ M A. Analysis of the mechanical properties and effective diffusion coefficient under static creep loading of low⁃density foams based on polyethylene/clays nanocomposites［J］. Composites Part B⁃Engineering， 2018， 148： 156⁃165.
