China Plastics ›› 2024, Vol. 38 ›› Issue (4): 13-18.DOI: 10.19491/j.issn.1001-9278.2024.04.003
• Materials and Properties • Previous Articles Next Articles
BO Haiwa, ZHAO Zhongguo(), WANG Chouxuan, XUE Rong
Received:
2023-09-04
Online:
2024-04-26
Published:
2024-04-22
CLC Number:
BO Haiwa, ZHAO Zhongguo, WANG Chouxuan, XUE Rong. Structural design and properties of PLA/CNTs conductive composites with high conductivity and low percolation[J]. China Plastics, 2024, 38(4): 13-18.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.plaschina.com.cn/EN/10.19491/j.issn.1001-9278.2024.04.003
样品编号 | PLA含量/% | CNTs含量/% | PDLA含量/% |
---|---|---|---|
PLA | 100 | 0 | - |
PNT0.2 | 99.8 | 0.2 | - |
PNT0.4 | 99.6 | 0.4 | - |
PNT0.6 | 99.4 | 0.6 | - |
PNT0.8 | 99.2 | 0.8 | - |
PNT1.0 | 99.0 | 1.0 | - |
PNT1.2 | 98.8 | 1.2 | - |
PNT2.0 | 98.0 | 2.0 | - |
PNT2.4 | 97.6 | 2.4 | - |
PNT2.8 | 97.2 | 2.8 | - |
PNT0.6DA0.01 | 99.39 | 0.6 | 0.01 |
PNT0.6DA0.03 | 99.37 | 0.6 | 0.03 |
PNT0.6DA0.1 | 99.3 | 0.6 | 0.1 |
PNT0.6DA0.2 | 99.2 | 0.6 | 0.2 |
PNT0.6DA0.3 | 99.1 | 0.6 | 0.3 |
PNT0.6DA0.4 | 99.0 | 0.6 | 0.4 |
PNT0.6DA0.5 | 98.9 | 0.6 | 0.5 |
样品编号 | PLA含量/% | CNTs含量/% | PDLA含量/% |
---|---|---|---|
PLA | 100 | 0 | - |
PNT0.2 | 99.8 | 0.2 | - |
PNT0.4 | 99.6 | 0.4 | - |
PNT0.6 | 99.4 | 0.6 | - |
PNT0.8 | 99.2 | 0.8 | - |
PNT1.0 | 99.0 | 1.0 | - |
PNT1.2 | 98.8 | 1.2 | - |
PNT2.0 | 98.0 | 2.0 | - |
PNT2.4 | 97.6 | 2.4 | - |
PNT2.8 | 97.2 | 2.8 | - |
PNT0.6DA0.01 | 99.39 | 0.6 | 0.01 |
PNT0.6DA0.03 | 99.37 | 0.6 | 0.03 |
PNT0.6DA0.1 | 99.3 | 0.6 | 0.1 |
PNT0.6DA0.2 | 99.2 | 0.6 | 0.2 |
PNT0.6DA0.3 | 99.1 | 0.6 | 0.3 |
PNT0.6DA0.4 | 99.0 | 0.6 | 0.4 |
PNT0.6DA0.5 | 98.9 | 0.6 | 0.5 |

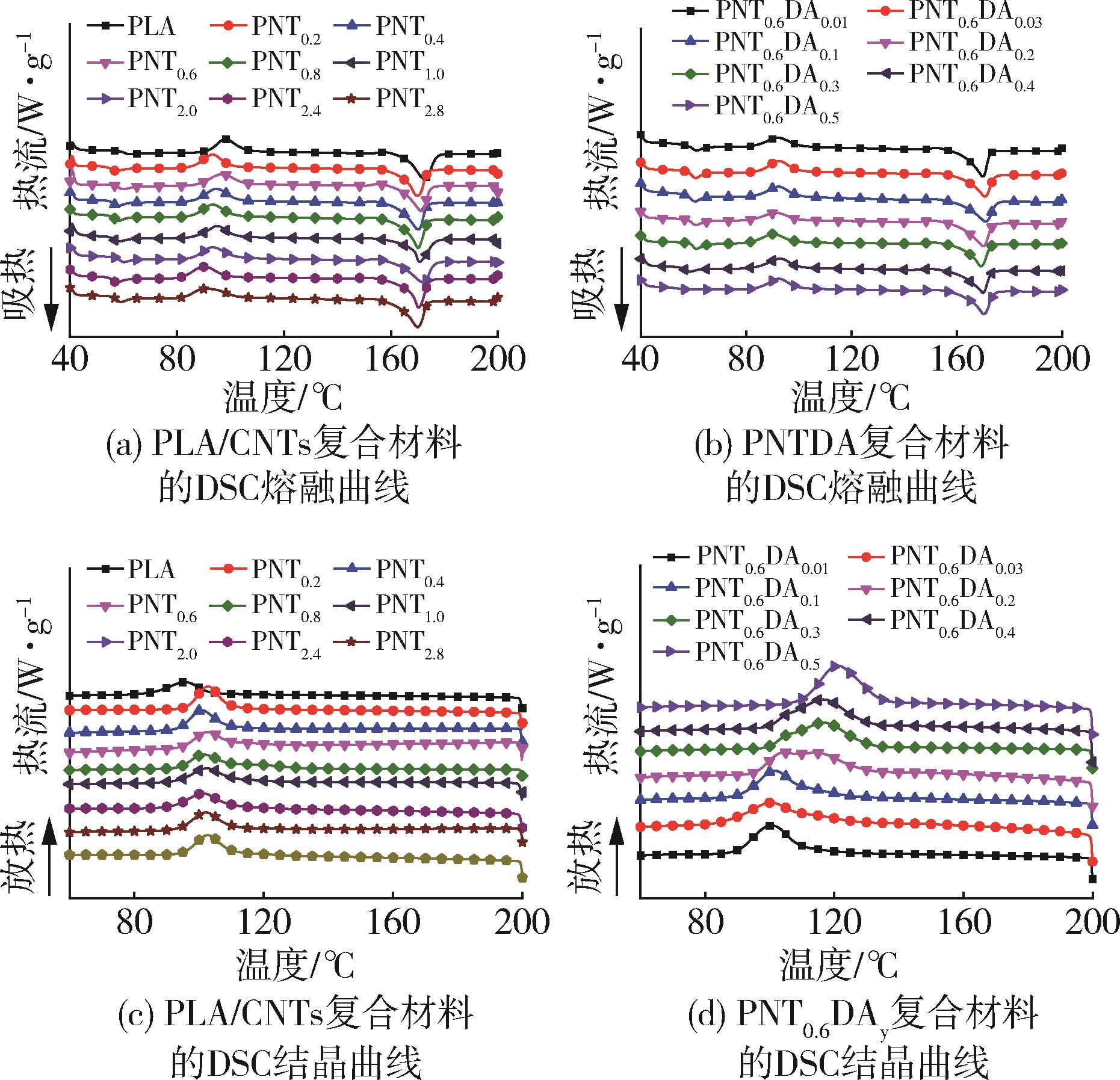

样品 | To/℃ | Tp/℃ | Tm/℃ | ΔHc/J•g-1 | ΔHm/J•g-1 | Xc/% |
---|---|---|---|---|---|---|
PLA | 103.4 | 97.3 | 172.4 | - | 33.9 | 36.2 |
PNT0.2 | 109.1 | 102.8 | 169.5 | 22.4 | 42.6 | 45.5 |
PNT0.4 | 108.2 | 100.8 | 169.8 | 22.8 | 42.7 | 45.6 |
PNT0.6 | 109.5 | 102.4 | 171.3 | 22.7 | 45.9 | 48.9 |
PNT0.8 | 110.2 | 102.1 | 169.7 | 23.1 | 41.5 | 44.3 |
PNT1.0 | 110.7 | 102.4 | 170.4 | 22.9 | 35.3 | 44.1 |
PNT1.2 | 108.5 | 102.3 | 170.7 | 22.8 | 40.7 | 43.4 |
PNT2 | 109.4 | 101.3 | 171.6 | 20.4 | 45.1 | 43.9 |
PNT2.4 | 109.9 | 102.1 | 169.8 | 22.5 | 41.3 | 44.1 |
PNT2.8 | 109.7 | 102.7 | 169.7 | 23.3 | 40.8 | 43.5 |
PNT0.6DA0.01 | 109.4 | 100.6 | 170.5 | 20.7 | 41.6 | 44.4 |
PNT0.6DA0.03 | 110.4 | 100.8 | 169.5 | 20.4 | 41.6 | 44.4 |
PNT0.6DA0.1 | 111.3 | 101.5 | 168.9 | 23.6 | 43.9 | 46.9 |
PNT0.6DA0.2 | 122.9 | 104.6 | 170.1 | 16.9 | 38.8 | 41.4 |
PNT0.6DA0.3 | 129.5 | 116.5 | 168.8 | 20.5 | 40.1 | 42.8 |
PNT0.6DA0.4 | 128.1 | 116.4 | 168.7 | 18.8 | 38.4 | 41.0 |
PNT0.6DA0.5 | 133.9 | 121.4 | 169.1 | 20.6 | 39.9 | 42.7 |
样品 | To/℃ | Tp/℃ | Tm/℃ | ΔHc/J•g-1 | ΔHm/J•g-1 | Xc/% |
---|---|---|---|---|---|---|
PLA | 103.4 | 97.3 | 172.4 | - | 33.9 | 36.2 |
PNT0.2 | 109.1 | 102.8 | 169.5 | 22.4 | 42.6 | 45.5 |
PNT0.4 | 108.2 | 100.8 | 169.8 | 22.8 | 42.7 | 45.6 |
PNT0.6 | 109.5 | 102.4 | 171.3 | 22.7 | 45.9 | 48.9 |
PNT0.8 | 110.2 | 102.1 | 169.7 | 23.1 | 41.5 | 44.3 |
PNT1.0 | 110.7 | 102.4 | 170.4 | 22.9 | 35.3 | 44.1 |
PNT1.2 | 108.5 | 102.3 | 170.7 | 22.8 | 40.7 | 43.4 |
PNT2 | 109.4 | 101.3 | 171.6 | 20.4 | 45.1 | 43.9 |
PNT2.4 | 109.9 | 102.1 | 169.8 | 22.5 | 41.3 | 44.1 |
PNT2.8 | 109.7 | 102.7 | 169.7 | 23.3 | 40.8 | 43.5 |
PNT0.6DA0.01 | 109.4 | 100.6 | 170.5 | 20.7 | 41.6 | 44.4 |
PNT0.6DA0.03 | 110.4 | 100.8 | 169.5 | 20.4 | 41.6 | 44.4 |
PNT0.6DA0.1 | 111.3 | 101.5 | 168.9 | 23.6 | 43.9 | 46.9 |
PNT0.6DA0.2 | 122.9 | 104.6 | 170.1 | 16.9 | 38.8 | 41.4 |
PNT0.6DA0.3 | 129.5 | 116.5 | 168.8 | 20.5 | 40.1 | 42.8 |
PNT0.6DA0.4 | 128.1 | 116.4 | 168.7 | 18.8 | 38.4 | 41.0 |
PNT0.6DA0.5 | 133.9 | 121.4 | 169.1 | 20.6 | 39.9 | 42.7 |
1 | 赵梁成,李 斌,武思蕊,等.功能三维石墨烯⁃多壁碳纳米管/热塑性聚氨酯复合材料的制备及性能[J].复合材料学报,2020,37(2):242⁃251. |
ZHAO L C, LI B, WU S R, etal, Preparation and properties of 3 D graphene⁃multiwalled carbon nanotube/thermoplastic polyurethane composite[J]. Acta Materiae Compositae Sinica, 2020,37(2):242⁃251. | |
2 | 张 鑫,陈立贵,苏巨桥,等.聚乳酸/石墨烯复合材料的制备及温敏响应行为[J].塑料工业,2020,48(10):53⁃58. |
ZHANG X, CHEN L G, SU J Q, et al, Preparation and resistivity⁃temperature performance of poly (lactic acid) /graphene composites[J]. China Plastics Industry, 2020,48(10):53⁃58. | |
3 | ZHANG Y P, ZHOU C G, SUN W J, et al.Injection molding of segregated carbon nanotube/polypropylene composite with enhanced electromagnetic interference shielding and mechanical performance[J]. Composites Science and Technology, 2020, 197:108253. |
4 | LEBEDEV S M, GEFLE O S, AMITOV E T, et al.Poly(lactic acid)⁃based polymer composites with high electric and thermal conductivity and their characterization[J]. Polymer Testing, 2017, 58:241⁃248. |
5 | LIN H, PEI L X, ZHANG L Z. Enhanced thermal conductivity of PLA⁃based nanocomposites by incorporation of graphite nanoplatelets functionalized by tannic acid[J].Journal of Applied Polymer Science, 2018, 135: 46397. |
6 | 田 伟,于文海,罗 鲲,等.PBS增韧改性MWNTs/PLA导电3D打印耗材的制备及性能[J].材料导报,2018,32(S1):274⁃277. |
TIAN W, YU W H, LUO K, al et, Fabrication and properties of PBS toughened MWCNTs/PLA conductive filaments for 3 D printing[J]. Materials Reports, 2018,32(S1):274⁃277. | |
7 | LI J, PENG W J, FU Z J, et al. Achieving high electrical conductivity and excellent electromagnetic interference shielding in poly(lactic acid)/silver nanocomposites by constructing large⁃area silver nanoplates in polymer matrix[J]. Composites Part B: Engineering, 2019, 171:204⁃213. |
8 | IKADA Y, JAMSHIDI K, TSUJI H, et al.Stereocomplex formation between enantiomeric poly(lactides)[J]. Macromolecules 1987, 20(4): 904⁃906. |
9 | QUAN H, ZHANG S J, QIAO J L, et al.The electrical properties and crystallization of stereocomplex poly(lactic acid) filled with carbon nanotubes[J]. Polymer: The International Journal for the Science and Technology of Polymers[J], 2012, 20:53. |
10 | 贾旭妙,刘欣月,刘少飞,等.碳纳米管和立构复合晶对聚乳酸/碳纳米管复合材料结构和性能调控[J].塑料工业,2021,49(4):54⁃59. |
JIA X M, LIU X Y, LIU S F, et al, The Influence of multiwalled carbon nanotube and stereocomplex crystallization on structures and properties of polylactic acid /carbon nanotube composite material[J]. China Plastics Industry, 2021,49(4):54⁃59. | |
11 | LI Z, YE L, ZHAO X, et al.High orientation of long chain branched poly (lactic acid) with enhanced blood compatibility and bionic structure[J]. Journal of Biomedical Materials Research Part A, 2016, 104(5):1 082⁃1 089. |
12 | ZHANG K, YU H O, SHI Y D, et al. Morphological regulation improved electrical conductivity and electromagnetic interference shielding in poly(L⁃lactide)/poly(epsilon⁃caprolactone)/carbon nanotube nanocomposites via constructing stereocomplex crystallites[J]. Journal of Materials Chemistry C, 2017,5(11):2 807⁃2 817. |
13 | ZHA X J, LI T, BAO R Y,et al.Constructing a special 'sosatie' structure to finely dispersing MWCNT for enhanced electrical conductivity, ultra⁃high dielectric performance and toughness of iPP/OBC/MWCNT nanocomposites[J].Composites Science and Technology, 2017, 139:17⁃25. |
14 | 申思扬,赵中国,苏巨桥,等.高导电强韧性聚乳酸/多壁碳纳米管复合材料的制备及其结构调控[J].塑料工业, 2022,50(10):141⁃148. |
SHEN S Y, ZHAO Z G, SU J Q, et al, Preparation and structural control of polylactic acid /multi⁃walled carbon nanotube composites with high conductivity and toughness [J]. China Plastics Industry, 2022,50(10):141⁃148. | |
15 | HAN L, PAN P, SHAN G,et al.Stereocomplex crystallization of high⁃molecular⁃weight poly(l⁃lactic acid)/poly(d⁃lactic acid) racemic blends promoted by a selective nucleator[J]. Polymer, 2015, 63:144⁃153. |
16 | YESIL S, BAYRAM G.Effect of carbon nanotube surface treatment on the morphology, electrical, and mechanical properties of the microfiber⁃reinforced polyethylene/poly(ethylene terephthalate)/carbon nanotube composites[J]. Journal of Applied Polymer Science, 2012, 127:982⁃991. |
