Synthesis and modification of high⁃temperature hydrogen⁃containing vinyl silicone resins

doi:10.19491/j.issn.1001-9278.2025.01.006

Abstract

Abstract:

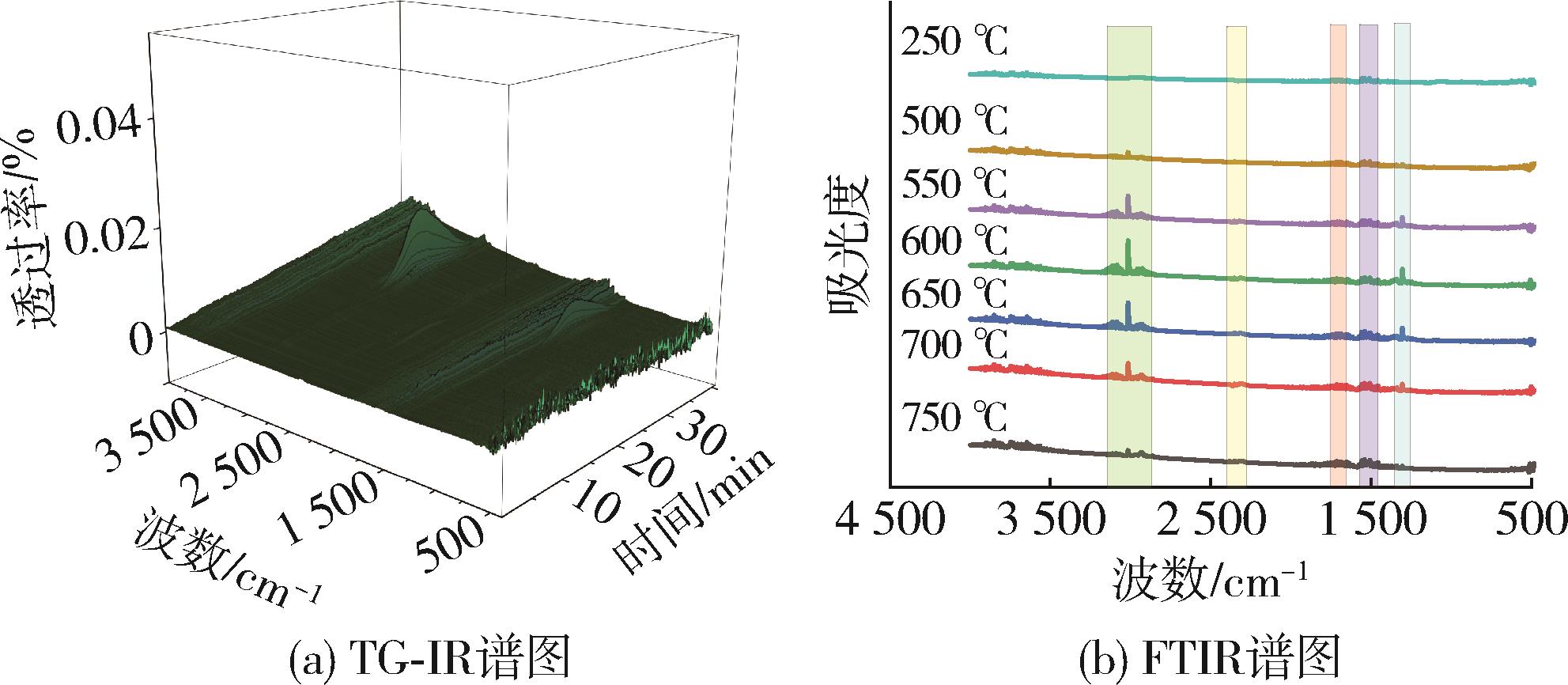

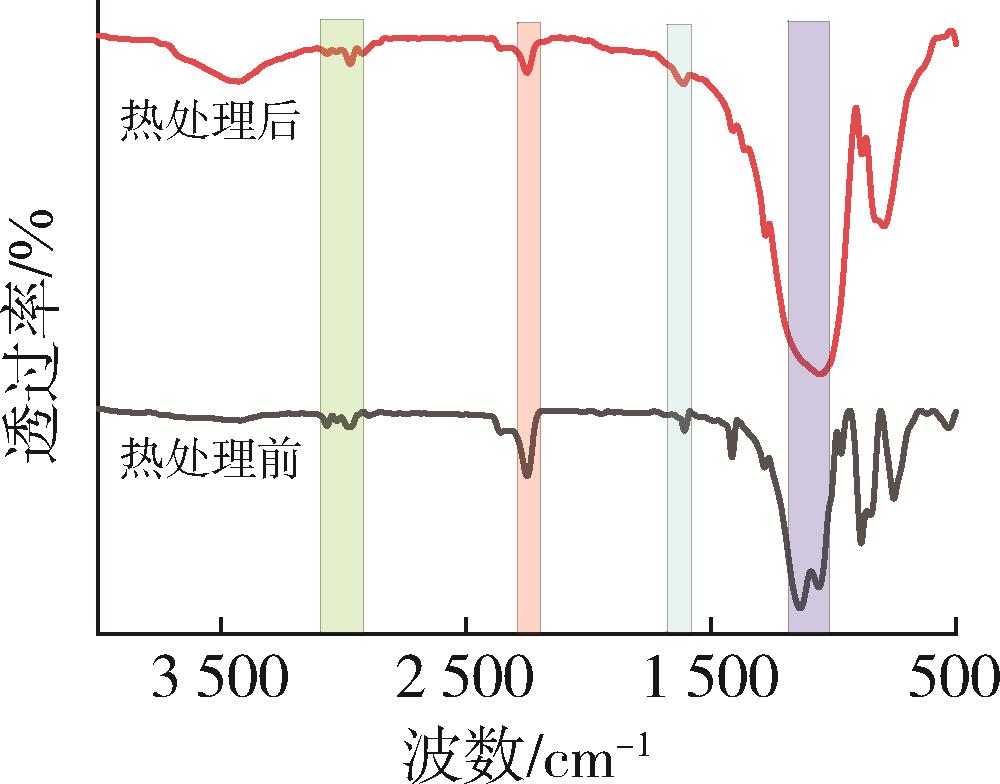

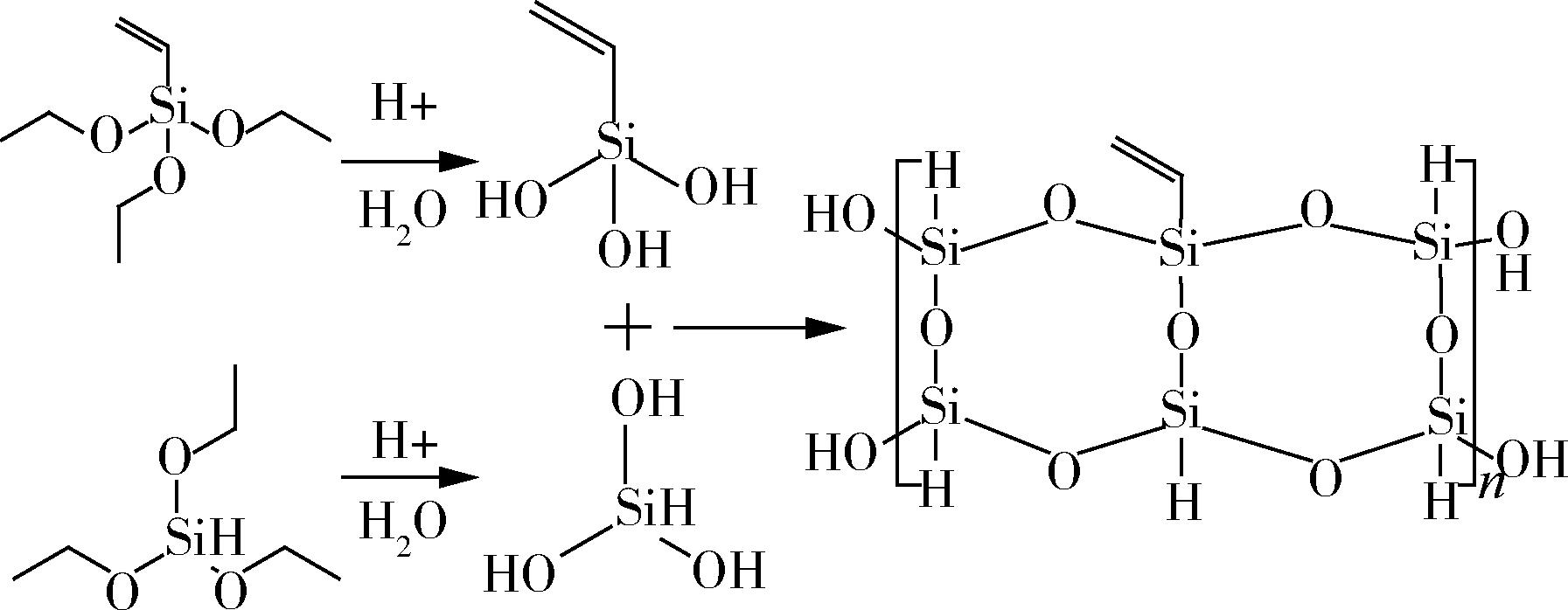

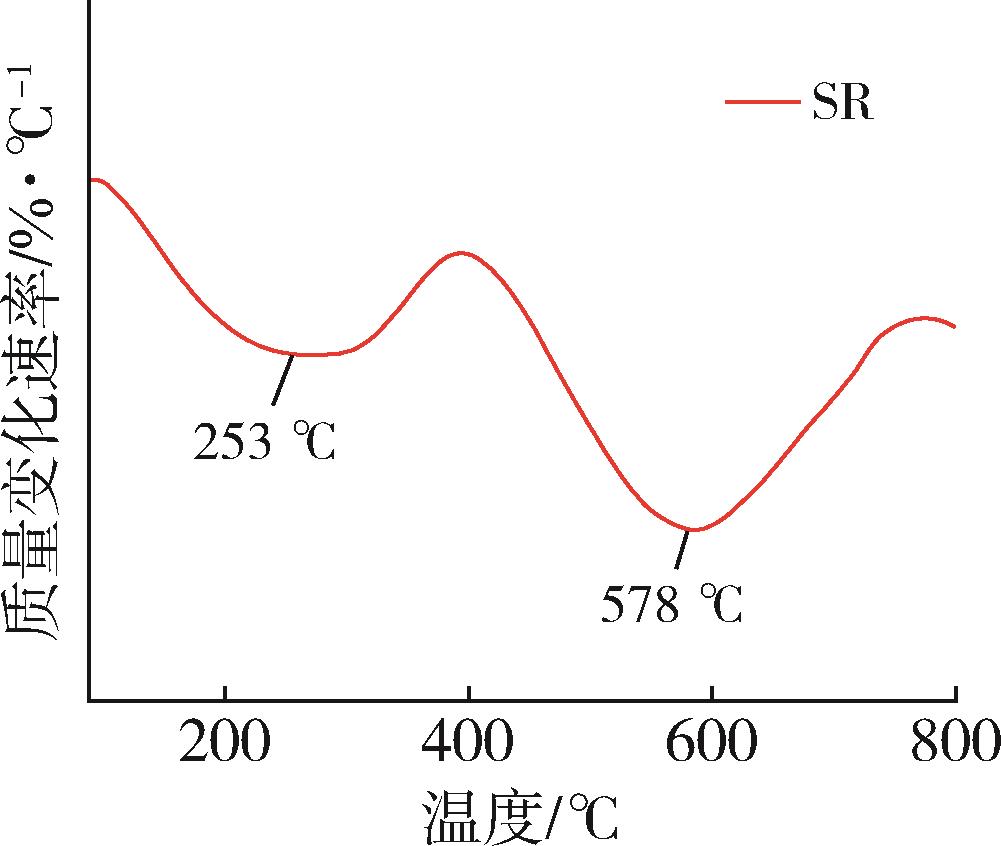

Silicone resin is a type of high⁃temperature⁃resistant material with excellent properties and exhibit broad application prospects in the field of heat resistance. With a rapid development of silicone resin for thermal protection coating in the national defense industry， it is difficult to meet the current requirement of applications. Therefore， there is a great strategic value to improve the high temperature resistance of silicone resin. Thermally stable vinyl silicone resin containing hydrogen was successfully prepared by a simple two⁃step method under acidic conditions using the alkoxysilanes containing silicon⁃hydrogen and silicon⁃ethylene bonds as raw materials. The synthesis conditions of the modified silicone resin were investigated by infrared spectroscopy and thermogravimetry analysis， and its chemical structure， thermal stability， and thermal decomposition mechanism by thermogravimetric Fourier transform infrared analysis. The results indicated that the synthesis conditions were determined to be a pH of 1.0， a hydrolysis temperature of 30 ℃， and a hydrolysis time of 3 h by using triethoxysilane and vinyl triethoxysilane as monomers and ethanol and hydrochloric acid as organic solvents. The as⁃synthesized silicone resin obtained a char yield of 97.84 % at 800 ℃ when synthesized under the optimum conditions， and its high temperature resistance was far higher than that of the ordinary silicone resin. The thermal decomposition of the hydrogen⁃containing vinyl silicone resin included two stages： the first stage occurred at about 253 ºC due to the oxidative degradation of partial vinyl of side⁃linked branches of silicone resin； The second stage taking place at 578 ºC， which was caused by the random fracture and rearrangement of SR skeletons due to the back reaction of silicone hydroxyl end groups of silicone resin.

Key words: high temperature modification, silicone resin, thermal degradation mechanism, polymer

CLC Number:

TQ324.2⁺1

HE Wenfeng, ZHAO Tongjie, XIE Yuhui, MEI Yi, XIE Delong. Synthesis and modification of high⁃temperature hydrogen⁃containing vinyl silicone resins[J]. China Plastics, 2025, 39(1): 31-36.

Figures/Tables 12

References 22

1	Tang Z， Liu Y， Zhang Y， et al. Design and synthesis of functional silane⁃based silicone resin and application in low⁃temperature curing silver conductive Inks［J］. Nanomaterials， 2023， 13（6）： 1 137.
2	Li H， Ai J， Wang C， et al. Synthesis and properties of silicone⁃epoxy polymer with long silicone chain［J］. Journal of Applied Polymer Science， 2023， 140（25）： e53971.
3	Jiang S， Shen Y， Wang S， et al. Properties of novel 0–3 PZT/silicone resin flexible piezoelectric composites for ultrasonic guided wave sensor applications［J］. Frontiers in Materials， 2022， 9： 958775.
4	Ziętkowska K， Przybyszewski B， Grzęda D， et al. Transparent silicone⁃epoxy coatings with enhanced icephobic properties for photovoltaic applications［J］. Applied Sciences， 2023， 13（13）： 7 730.
5	Bian F， Lin S. Preparation of epoxy⁃based silicone prepolymers with applications in UV⁃curable coatings［J］. Pigment & Resin Technology， 2023，53（5）：650⁃658.
6	Wu Q， Jiang J， Xie F， et al. Novel hybrid silicone resin composites with excellent low dielectric and high temperature mechanical pro⁃perties［J］. Composites Communications， 2022， 35： 101288.
7	Sallal H A， Mahboba M H， Radhi M S， et al. Effect of adding （ZrO2⁃ZnO） nanopowder on the polymer blend （lamination and methyl vinyl silicone） in a hybrid nanocomposite material［J］. Journal of King Saud University⁃Science， 2024， 36（2）： 103061.
8	Panmanee P， Okhawilai M， Mora P， et al. Development of a new birthing model material based on silicone rubber/natural rubber blend［J］. Polymer Testing， 2023， 117： 107849.
9	Wang Y， Zeng Z， Huang Z， et al. Preparation and characteristics of silicone⁃modified aging⁃resistant epoxy resin insulation material［J］. Journal of Materials Science， 2022： 57：3 295⁃3 308.
10	Liu Y， Shao Y， Wang Y， et al. An abrasion⁃resistant， photothermal， superhydrophobic anti⁃icing coating prepared by polysiloxane⁃modified carbon nanotubes and fluorine⁃silicone resin［J］. Colloids and Surfaces A： Physicochemical and Engineering Aspects， 2022， 648： 129335.
11	Pan Z， Chen M， Zeng K， et al. Synthesis of epoxy⁃modified methyl phenyl silicone resins for LED encapsulation［J］. Silicon， 2022， 14：1 159⁃1 167.
12	Chen L， Zeng S， Xu Y， et al. Epoxy⁃modified silicone resin based N/P/Si synergistic flame⁃retardant coating for wood surface［J］. Progress in Organic Coatings， 2022， 170： 106953.
13	Zheng J， Cai Y， Hu Y， et al. Bio⁃based epoxy functionalized MQ silicone resins： from synthesis to toughened epoxy composites with good mechanical properties， thermal resistance and transparency［J］. Polymer Chemistry， 2022， 13（37）： 5 325⁃5 336.
14	Zhou W， Wu M， Wang Y， et al. Effect of SiO₂⁃MWCNTs on Mechanical and Tribological Properties of Acrylic Silicone Resin Coating［J］. Journal of Inorganic and Organometallic Polymers and Materials， 2023， 33（2）： 529⁃543.
15	Ding Z， Lin W， Yang W， et al. A silicone resin coating with water⁃repellency and anti⁃fouling properties for wood protection［J］. Polymers， 2022， 14（15）： 3 062.
16	Ma C， Bai J， Zhou Z， et al. Trifluoromethanesulfonic acid⁃assisted one⁃pot catalytic synthesis of phenyl silicone resins［J］. Polymer Bulletin， 2022， 79：985⁃1 000.
17	Antosik A K， Makuch E， Gziut K. Influence of modified attapulgite on silicone pressure⁃sensitive adhesives properties［J］. Journal of Polymer Research， 2022， 29（4）： 135.
18	Montazeri S， Ranjbar Z， Osati M， et al. Preparation and characterization of a thermal barrier heat⁃resistant silicone coating［J］. Progress in Color， Colorants and Coatings， 2022， 15（1）： 65⁃73.
19	Ling Y， Zhang X， Yan L， et al. Silicone⁃grafted epoxy/carbon fiber composites with superior mechanical/ablation performance［J］. Materials Chemistry and Physics， 2022， 275： 125283.
20	陈轲，刘鸣飞，赵彪，等.有机硅改性高分子材料阻燃及耐烧蚀性能研究进展［J］.中国塑料，2022，36（6）：149⁃154.
	CHEN K， LIU M F， ZHAO B， et al. Research progress of flame retardancy and ablation resistance of modified polymer materials in silicone ［J］. China Plastics， 2022，36（6）：149⁃154.
21	Pan H W， Zang C G， Zhang Y L. Effect of vinyl⁃terminated silicone oil chain length and Reinforcing Agent on the Properties of Silicone Rubber［J］. Key Engineering Materials， 2022， 905： 221⁃230.
22	Chen Y， Wang K， Zhang C， et al. The Effect of Various Fillers on the Properties of Methyl Vinyl Silicone Rubber［J］. Polymers， 2023， 15（6）： 1 584.

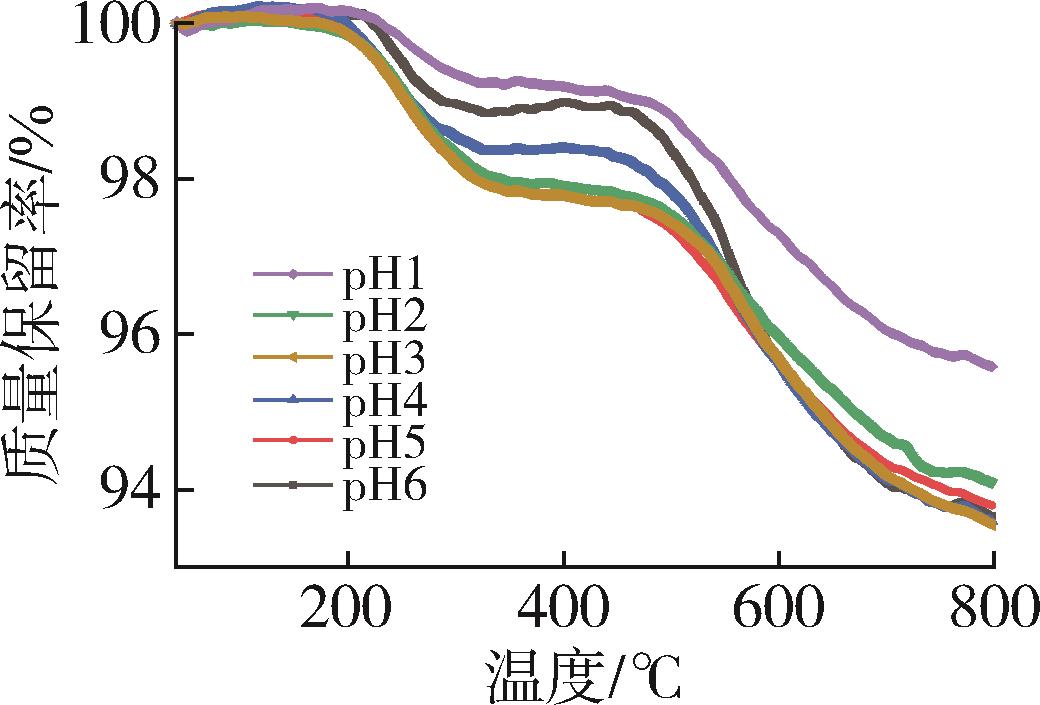

pH值	TES含量/ mol	VTES含量/mol	H₂O含量/ mol	剩余质量/ %
1	0.03	0.03	0.195	95.58
2	0.03	0.03	0.195	94.26
3	0.03	0.03	0.195	93.54
4	0.03	0.03	0.195	93.59
5	0.03	0.03	0.195	94.08
6	0.03	0.03	0.195	93.66

pH值	TES含量/ mol	VTES含量/mol	H₂O含量/ mol	剩余质量/ %
1	0.03	0.03	0.195	95.58
2	0.03	0.03	0.195	94.26
3	0.03	0.03	0.195	93.54
4	0.03	0.03	0.195	93.59
5	0.03	0.03	0.195	94.08
6	0.03	0.03	0.195	93.66

水解温度/℃	TES 含量/mol	VTES 含量/mol	H₂O 含量/mol	pH 值	水解时间/h	剩余质量/%
30	0.03	0.03	0.195	1	3	94.11
40	0.03	0.03	0.195	1	3	95.22
50	0.03	0.03	0.195	1	3	95.58
60	0.03	0.03	0.195	1	3	96.24
70	0.03	0.03	0.195	1	3	95.72
80	0.03	0.03	0.195	1	3	96.06

水解温度/℃	TES 含量/mol	VTES 含量/mol	H₂O 含量/mol	pH 值	水解时间/h	剩余质量/%
30	0.03	0.03	0.195	1	3	94.11
40	0.03	0.03	0.195	1	3	95.22
50	0.03	0.03	0.195	1	3	95.58
60	0.03	0.03	0.195	1	3	96.24
70	0.03	0.03	0.195	1	3	95.72
80	0.03	0.03	0.195	1	3	96.06

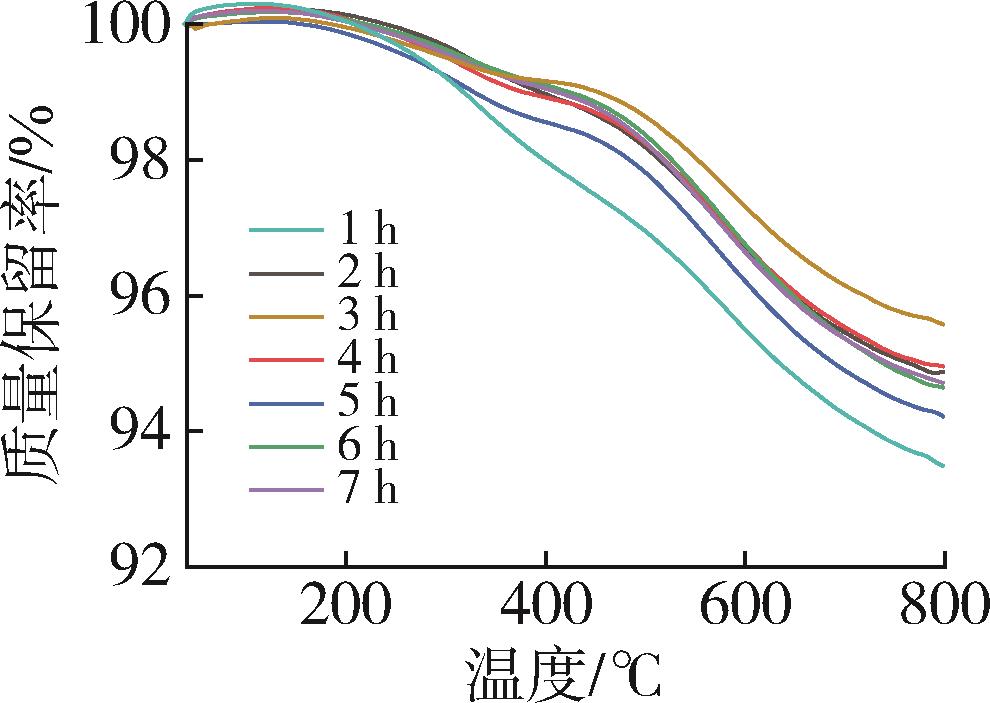

水解时间/h	TES含量/mol	VTES含量/mol	H₂O含量/mol	pH值	水解温度/℃	水解时间/h	剩余质量/%
1	0.03	0.03	0.195	1	30	1	93.49
2	0.03	0.03	0.195	1	30	2	94.87
3	0.03	0.03	0.195	1	30	3	95.58
4	0.03	0.03	0.195	1	30	4	94.96
5	0.03	0.03	0.195	1	30	5	94.22
6	0.03	0.03	0.195	1	30	6	94.65
7	0.03	0.03	0.195	1	30	7	94.71
