Interlaminar interface damage and mechanical properties of glass fiber⁃reinforced plastic mortar pipe

doi:10.19491/j.issn.1001-9278.2025.08.011

Abstract

Abstract:

This study investigates interlayer interface failure mechanisms and mechanical properties of fiberglass⁃reinforced plastic mortar （FRPM） pipes through in⁃situ tensile testing coupled with scanning electron microscopy （SEM） and digital image correlation analysis. Experimental results indicated that failure primarily occurred through interlayer interface damage and localized cracking. Real⁃time SEM observations demonstrated a progressive failure sequence：（1） initial debonding of large， convex particles at the near⁃interface region，（2） subsequent particle interactions in adjacent areas， and （3） extensive particle/matrix interface debonding propagating into the resin matrix， ultimately causing interlayer separation. Notably， far⁃interface particles showed minimal influence on crack initiation. Digital image analysis further indicated that while far⁃interface domains experienced negligible debonding， near⁃interface regions developed significant particle/matrix separation， where continuously increasing strain fields initiated and propagated cracks. Under increasing tensile strain， specimens exhibit non⁃uniform strain distribution， with maximum strain concentration occurring in near⁃interface particle zones. Quantitative analysis established the critical damage region within 735~940 pixels from the interface.

Key words: fiberglass reinforced plastic mortar pipe, interlaminar interface, mechanical property, in?situ tensile test, digital image processing

CLC Number:

TQ320.6

HU Lizhou, SUN Yinghui, JIA Yingjie, WANG Qingzhou. Interlaminar interface damage and mechanical properties of glass fiber⁃reinforced plastic mortar pipe[J]. China Plastics, 2025, 39(8): 69-74.

Figures/Tables 12

Fig.1. Schematic diagram of the fiberglass reinforced plastic mortar pipe

层名	原材料	厚度/mm	树脂含量/%
内衬层1	胶衣、玻璃纤维表面毡、无碱针织毡、化纤网格布、聚磷酸铵阻燃剂和间苯型树脂及辅助材料等	1.5	≥90
外缠绕层2、8（1层环向缠绕+2层交叉缠绕）	玻璃纤维无捻粗纱、缠绕纤维、邻苯型树脂及辅助材料等	2.0	15~25
树脂夹砂层3、5、7	石英砂、树脂及辅助材料、兜纱布等	14.0	≥25
内缠绕层4、6（1层环向缠绕+1层交叉缠绕）	玻璃纤维无捻粗纱、缠绕纤维、邻苯型树脂及辅助材料等	1.2	15~25

Tab.1. Material composition and parameter requirements of each layer

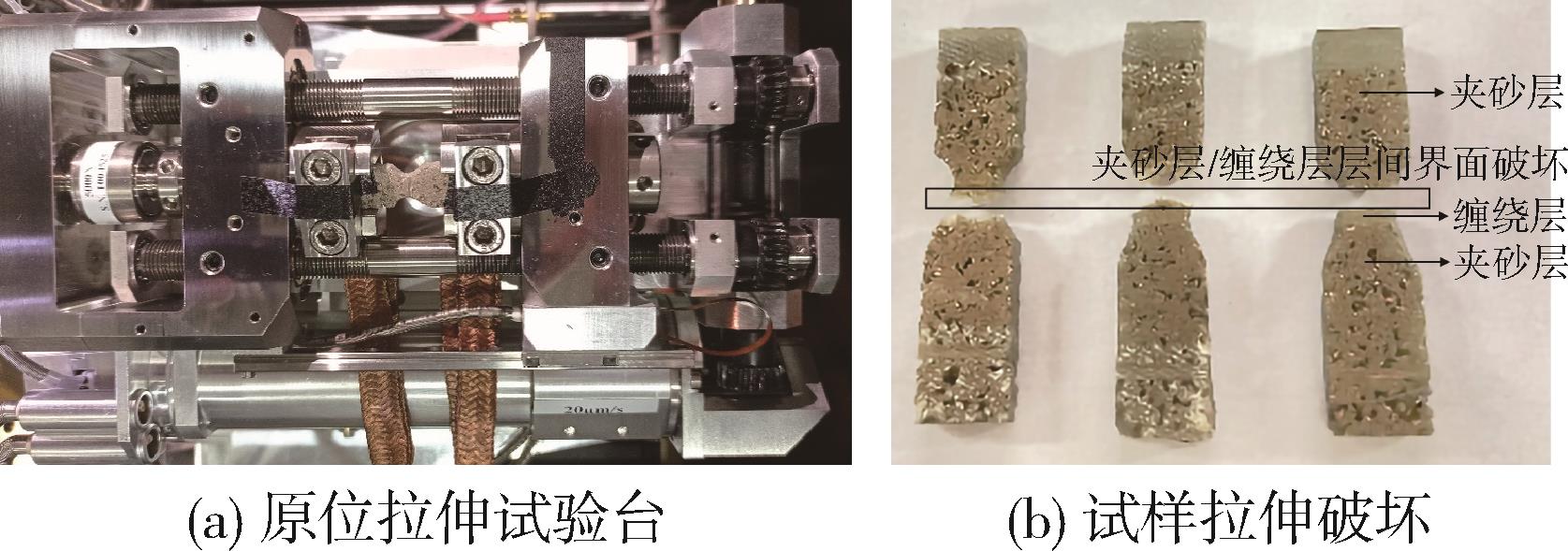

Fig.2. Experiment process

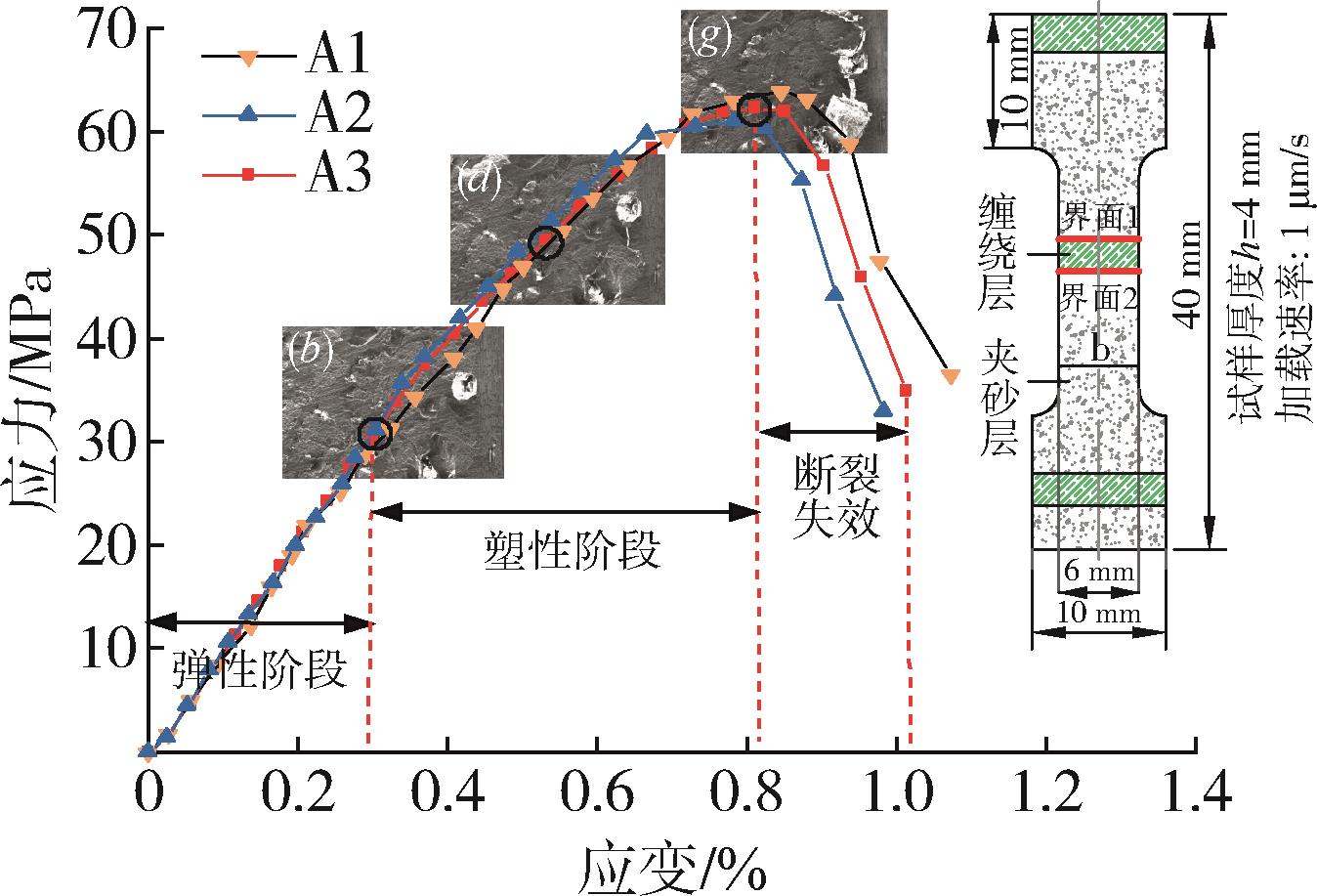

Fig.3. Stretching stress⁃strain curve of the specimen

Fig.4. Meso⁃failure under different strains at the interlayer interface

Fig.5. Deformation locus of particles/matrix near the interface

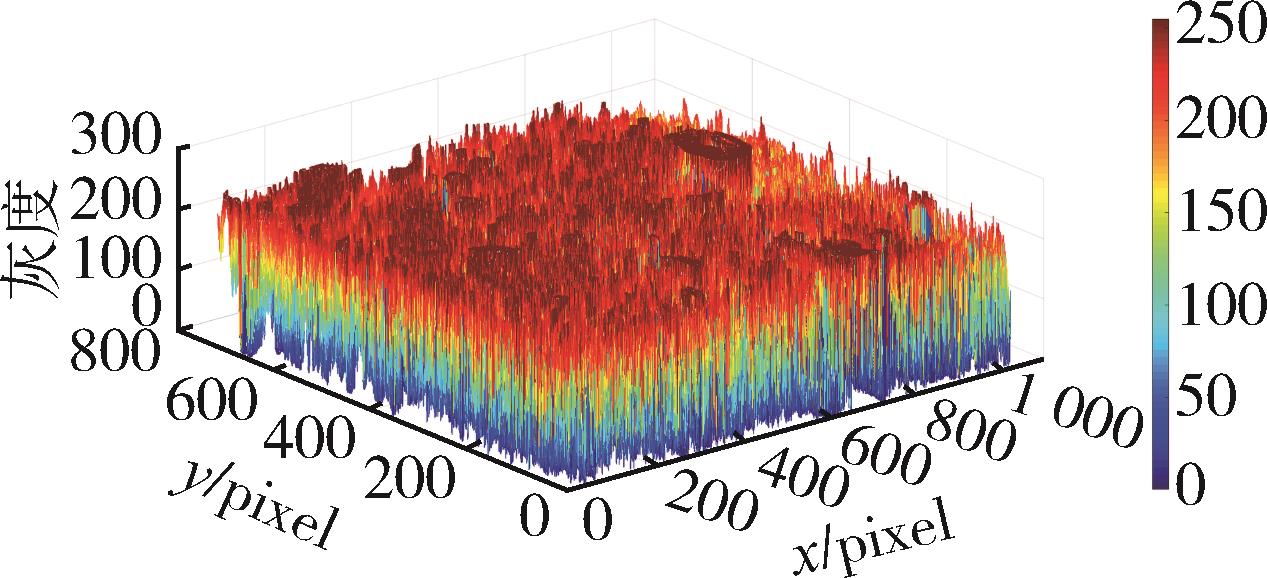

Fig.6. Gray level distribution of surface to be measured of the test piece

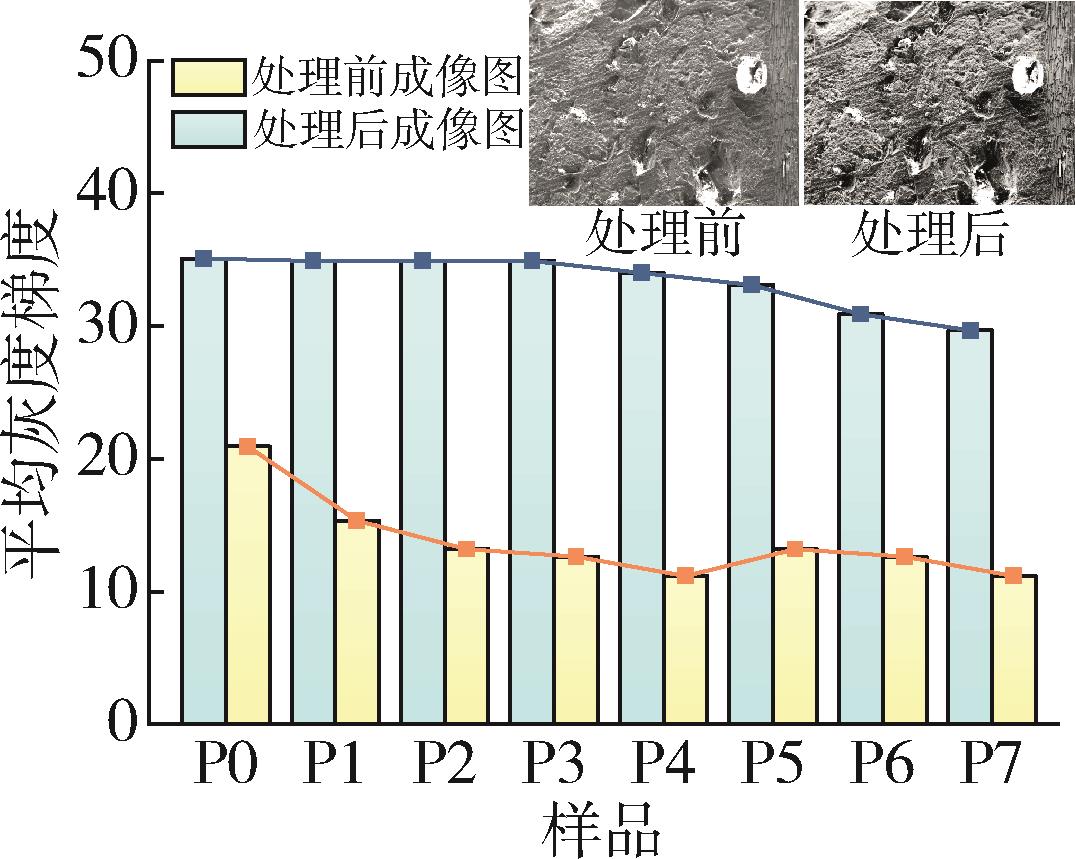

Fig.7. Speckle quality statistics of the SEM image

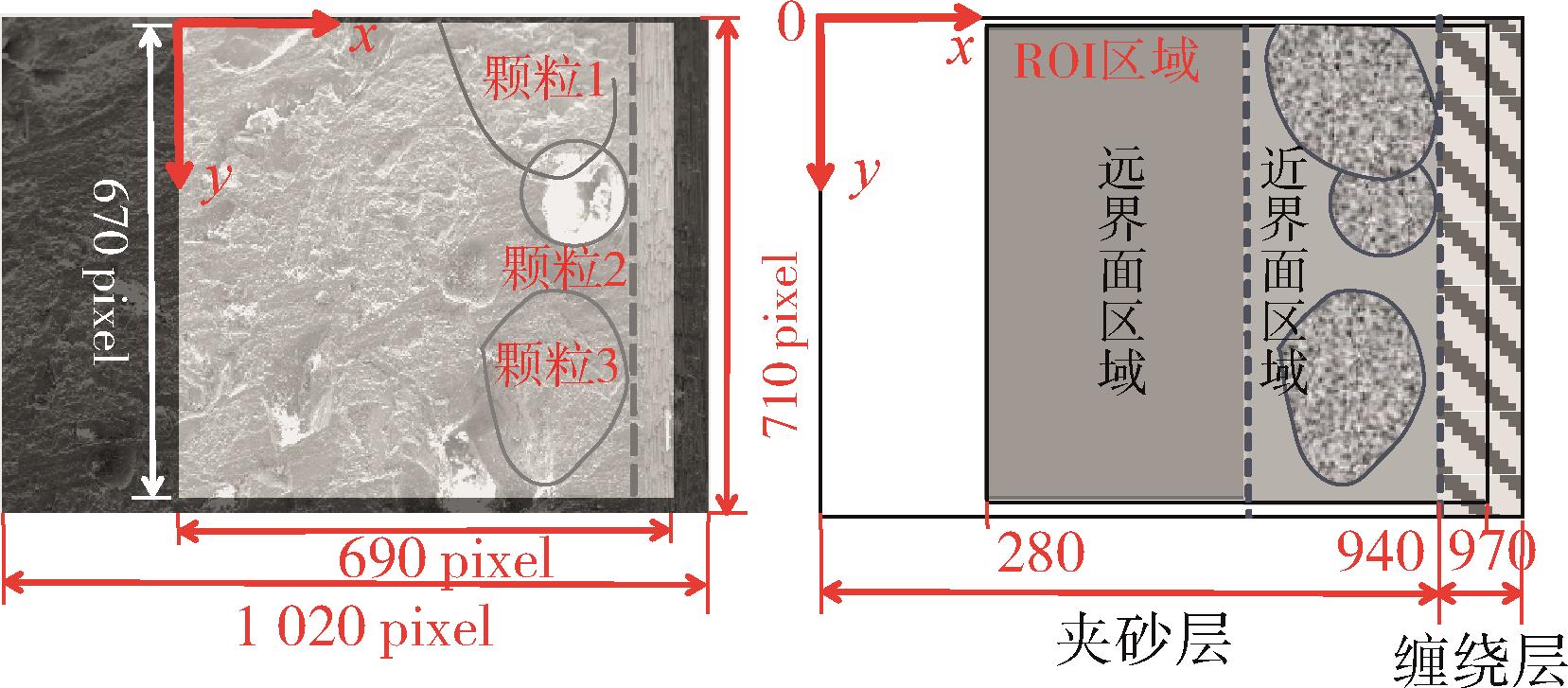

Fig.8. ROI calculation area

Fig.9. 2D and 3D strain cloud maps along x⁃direction under different strain

Fig.10. Interlayer interface damage failure

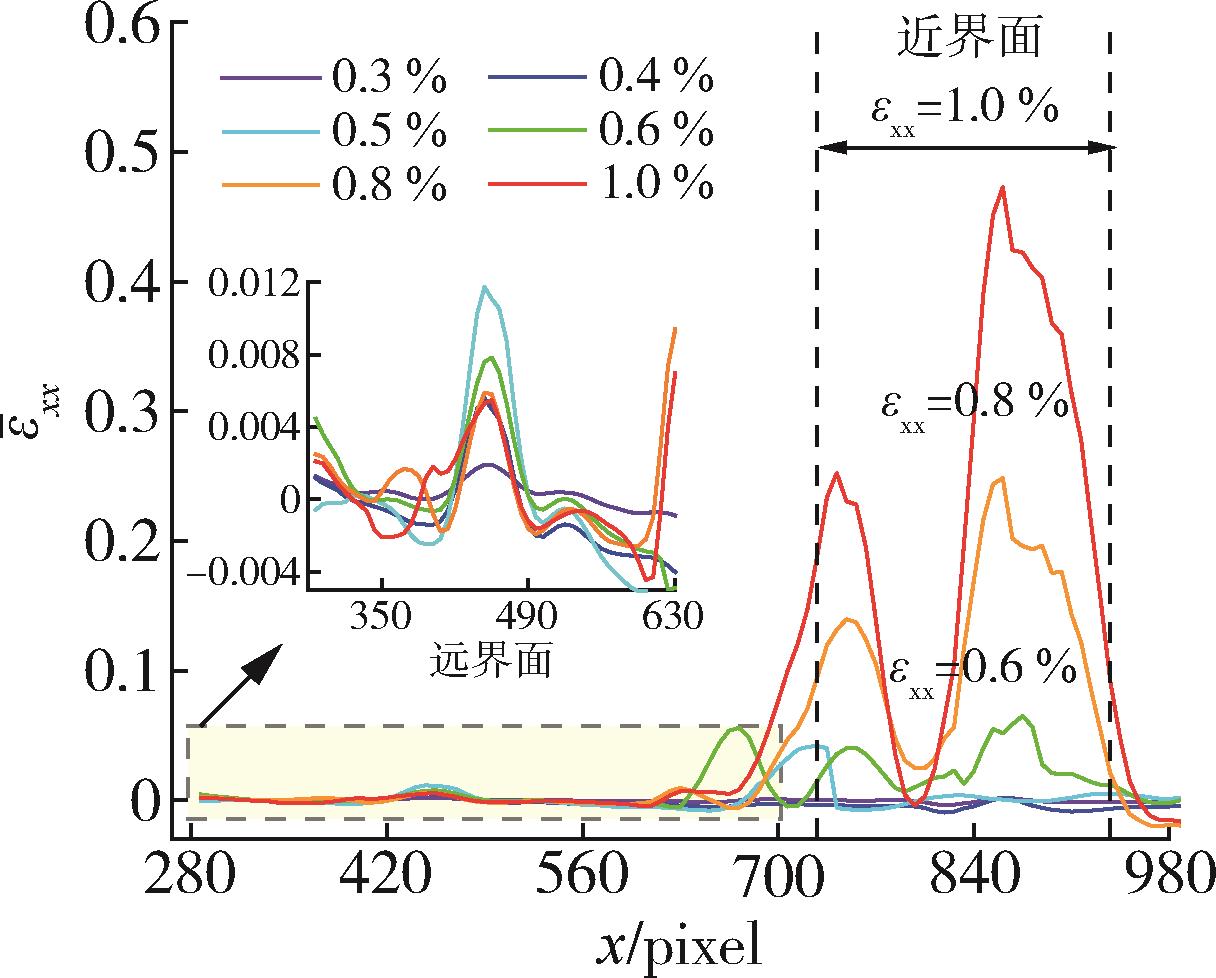

Fig.11. Interface area size⁃ε¯xx curves

References 17

[1]	方韬，苏跃辉.小口径离心浇铸玻璃钢夹砂顶管技术在市政排水管道设计及施工应用［J］.建材与装饰，2020（08）：66⁃67.
	FANG T， Su Y H.Application of small diameter centrifugal casting glass fiber reinforced plastics jacking pipes technology in the design and construction of municipal drainage pipelines［J］.Construction Materials & Decoration，2020（08）：66⁃67.
[2]	王清洲，张朝阳，薛晓，等. 荷载作用下多夹砂层玻璃钢夹砂管涵结构破坏模式［J］. 工程塑料应用， 2020， 48（12）： 107⁃113.
	WANG Q Z， ZHANG Z Y， XUE X，et al. Failure mode of FRPM sand pipe culvert structure with multiple sand layers under load［J］.Engineering Plastics Application，2020，48（12）：107⁃113.
[3]	王清洲，梁瑛硕，张朝阳，等. 多夹砂层玻璃钢夹砂管涵的剪切性能及破坏模式［J］.工程塑料应用，2022，50（08）： 103⁃107.
	WANG Q Z， LIANG Y S， ZHANG Z Y，et al.Shear performance and failure mode of FRPM pipe with multiple sand layers［J］.Engineering Plastics Application， 2022，50（08）：103⁃107.
[4]	刘淑艳，崔洪军，张朝阳，等.多夹砂层玻璃钢夹砂管弯曲性能及破坏模式［J］.工程塑料应用， 2021， 49（07）： 126⁃131.
	LIU S Y， CUI H J， ZHANG Z Y，et al. Bending performance and failure mode of glass fiber reinforced plastic mortar pipe with multiple mortar layers［J］. Engineering Plastics Application，2021，49（7）：126⁃131.
[5]	Li X， Yang Y， Xu Y， et al. Deformation behavior and crack propagation on interface of Al/Cu laminated composites in uniaxial tensile test［J］. Rare Metals， 2020， 39（3）： 296⁃303.
[6]	Qin L， Wang J， Wu Q， et al. In⁃situ observation of crack initiation and propagation in Ti/Al composite laminates during tensile test［J］. Journal of Alloys and Compounds， 2017， 71 269⁃71 275.
[7]	Guo F J， Xu G R， Zhao L，et al. In situ SEM investigation of tensile fracture process of Fe-25Cr-35Ni based superalloy［J］.Advanced Materials Research，2011，1 325（279）： 39⁃43.
[8]	Akçaoğlu T， Tokyay M， Çelik T. Effect of coarse aggregate size and matrix quality on ITZ and failure behavior of concrete under uniaxial compression［J］. Cement and Concrete Composites， 2004， 26（6）： 633⁃638.
[9]	曹睿，林有智，陈剑虹，等. 全层状TiAl基合金拉伸试验断裂过程及机理［J］. 机械工程学报， 2008（01）： 40⁃45.
	CAO R， LIN Y Z， CHEN J H，et al.Fracture process and fracture mechanism in fully lamellar TiAl alloys with tensile tests［J］.Chinese Journal of Mechanical Engineering， 2008（01）： 40⁃45.
[10]	杨明，李高春，邱欣，等. 基于SEM原位拉伸的HTPB推进剂/衬层粘接界面破坏过程分析［J］. 含能材料， 2015， 23（06）：553⁃557.
	YANG M， LI G C； QIU X，et al.HTPB propellant/liner adhesive interface failure behavior based on SEM in situ tension［J］.Chinese Journal of Energetic Materials， 2015， 23（06）：553⁃557.
[11]	Bolhassani M， Rajaram S， Hamid A A， et al.Damage detection of concrete masonry structures by enhancing deformation measurement using DIC［C］//Drexel Univ. （United States）， 2016.
[12]	伍鹏，李高春，韩永恒，等. 基于SEM与数字图像相关的固体发动机黏接界面微观损伤过程分析［J］. 火炸药学报， 2021， 44（01）： 106⁃112.
	WU P， LI G C， HAN Y H，et al.Analysis of microscopic damage process of solid engine adhesive interface based on SEM and digital image correlation. ［J］.Chinese Journal of Explosives and Explosives， 2021， 44（01）：106⁃112.
[13]	周圣杰. B₄C/2024Al复合材料变形断裂行为研究［D］. 哈尔滨工业大学， 2020.
[14]	Han Q， Kang Y， Hodgson P D，et al.Quantitative measurement of strain partitioning and slip systems in a dual⁃phase steel［J］. Scripta Materialia， 2013， 69（1）： 13⁃16.
[15]	Ying J， Guo J.Fracture behaviour of real coarse aggregate distributed concrete under uniaxial compressive load based on cohesive zone model［J］.Materials，2021，14（15）： 4314.
[16]	王清洲，孙言文，肖成志，等. 基于层间分离的玻璃钢夹砂管渐进损伤仿真与强度计算［J］. 振动与冲击，2021，40（18）：164⁃17
	WANG Q Z， SUN Y W， XIAO C Z，et al. Progressive damage simulation and strength calculation of FRP sand pipes based on interlayer separation［J］. Journal of Vibration and Shock，2021，40（18）：164⁃173.
[17]	Pan B. Recent progress in digital image correlation［J］. Experimental Mechanics， 2011， 51： 1223.
