Effect of dibenzoyl hydrazide sebacic acid on crystallization properties of poly（ethylene succinate⁃co⁃ethylene oxalate）

doi:10.19491/j.issn.1001-9278.2025.10.001

Abstract

Abstract:

Poly（ethylene succinate⁃co⁃ethylene oxalate）（PESOx） is an environmentally friendly， biodegradable polyester whose practical application is hindered by its slow crystallization kinetics following copolymerization. To address this drawback， we incorporated the organic nucleating agent dibenzoyl hydrazide sebacic acid （TMC⁃300） into PESOx via solution blending. While TMC⁃300 did not alter the crystal structure or thermal stability of the polymer， it remarkably enhanced its crystallization properties. The nucleating agent significantly increased the crystallization temperature and enthalpy， shortened the half⁃crystallization time， and accelerated the overall crystallization rate. Isothermal crystallization kinetics indicated that the efficacy of TMC⁃300 is concentration⁃dependent， with an optimal promotion effect observed at 1 wt%， suggesting a saturation concentration within the polymer matrix. Polarized optical microscopy confirmed a substantial increase in nucleation density， leading to smaller spherulite sizes and a faster crystallization rate. These findings demonstrate TMC⁃300's effectiveness in improving the processability of PESOx for commercial applications.

Key words: poly（ethylene succinate?co?ethylene oxalate）, dibenzoyl hydrazide sebacic acid, crystallization behavior, nucleating agent, crystallization kinetics

CLC Number:

TQ323.4

WEI Xuewei, ZHANG Xinwen, YE Haimu, XU Jun, GUO Baohua. Effect of dibenzoyl hydrazide sebacic acid on crystallization properties of poly（ethylene succinate⁃co⁃ethylene oxalate）[J]. China Plastics, 2025, 39(10): 1-5.

Figures/Tables 7

Fig.1. WAXD and TG curves of PESOx5/TMC⁃300 blends

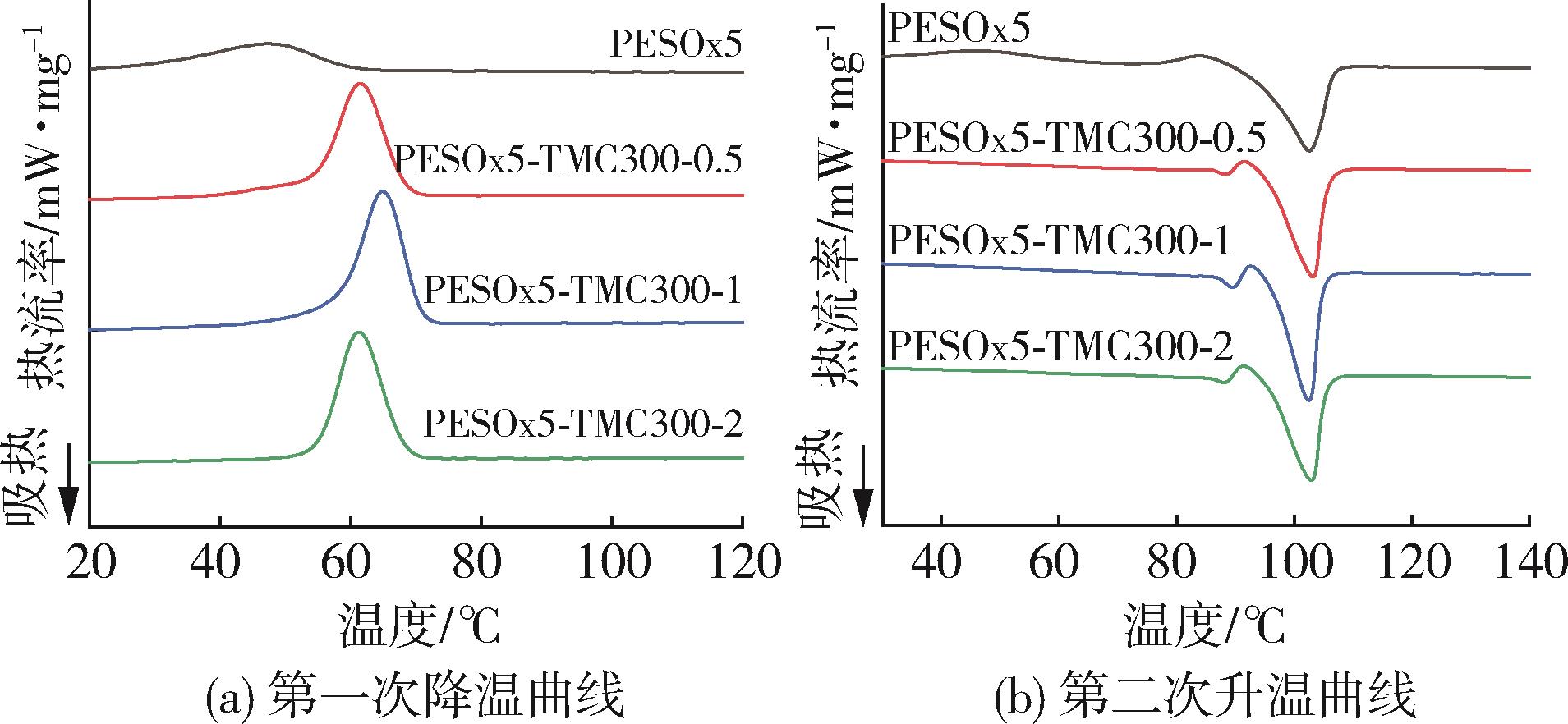

Fig.2. DSC curves of first cooling and second heating of PESOx5 and PESOx5/TMC⁃300 blends

PESOx5

PESOx5/TMC300⁃0.5

PESOx5/TMC300⁃1

PESOx5/TMC300⁃2

103.1

103.2

102.5

103.0

36.74

47.55

49.58

43.50

40.5

61.5

64.9

61.3

7.62

49.20

53.70

47.67

Tab.1. Summary of thermal parameters of PESOx5/TMC⁃300 blends

Fig.3. The relation curves of relative crystallinity and crystallization time of PESOx5，PESOx5/TMC300⁃0.5， PESOx5/TMC300⁃1 and PESOx5/TMC300⁃2 blends

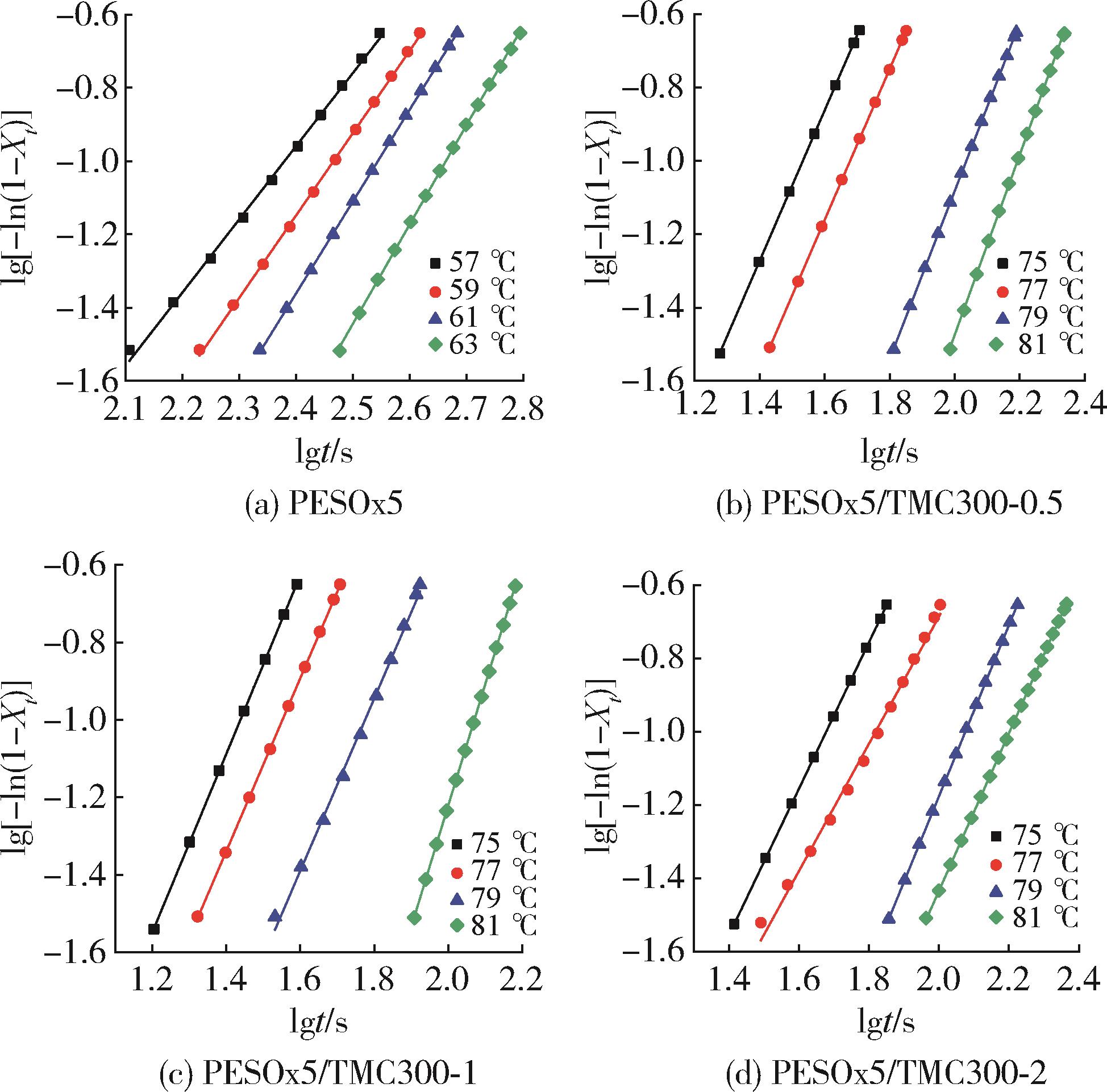

Fig.4. Avrami fitting curves of PESOx5， PESOx5⁃TMC300⁃0.5， PESOx5⁃TMC300⁃1 and PESOx5⁃TMC300⁃2 blends

样品	T_c/℃	n	K/s^⁃ⁿ	t_1/2/s
PESOx5	57	2.0	1.3×10^-3	632
	59	2.3	1.2×10^-3	692
	61	2.5	1.1×10^-3	757
	63	2.7	0.9×10^-3	941
PESOx5/TMC300⁃0.5	75	2.1	9.6×10^-3	88
	77	2.1	6.9×10^-3	122
	79	2.3	3.4×10^-3	253
	81	2.5	2.5×10^-3	344
PESOx5/TMC300⁃1	75	2.3	1.3×10^-2	64
	77	2.2	1.0×10^-2	85
	79	2.2	0.6×10^-2	142
	81	3.1	0.4×10^-2	218
PESOx5/TMC300⁃2	75	2.0	6.6×10^-3	126
	77	1.7	4.0×10^-3	201
	79	2.3	3.1×10^-3	273
	81	1.7	2.2×10^-3	392

Tab.2. Avrami parameters for PESOx5， PESOx5⁃TMC300⁃0.5， PESOx5⁃TMC300⁃1 and PESOx5⁃TMC300⁃2 blends

Fig.5. Spherulite morphologies of PESOx5， PESOx5⁃TMC300⁃0.5， PESOx5⁃TMC300⁃1 and PESOx5⁃TMC300⁃2 blends isothermally crystallized at 75 ℃

References 14

[1]	SHI C， QUINN E C， DIMENT W T， et al. Recyclable and （bio）degradable polyesters in a circular plastics economy ［J］. Chemical Reviews， 2024， 124（7）： 4 393⁃4 478.
[2]	ZHONG Y， GODWIN P， JIN Y， et al. Biodegradable polymers and green⁃based antimicrobial packaging materials： a mini⁃review ［J］. Advanced Industrial and Engineering Polymer Research， 2020， 3（1）： 27⁃35.
[3]	TEZUKA Y， ISHII N， K⁃i KASUYA，et al. Degradation of poly（ethylene succinate） by mesophilic bacteria ［J］. Polymer Degradation and Stability， 2004， 84（1）： 115⁃121.
[4]	LIU C. Biodegradable Poly（ethylene succinate⁃co⁃ethylene oxalate⁃co⁃diethylene glycol succinate）： effects of a small amount of ethylene oxalate content on the properties of poly（ethylene succinate）［J］. 폴리머， 2021， 45（2）： 294⁃302.
[5]	KUILLA T， BHADRA S， YAO D， et al. Recent advances in graphene based polymer composites ［J］. Progress in Polymer Science， 2010， 35（11）： 1 350⁃1 375.
[6]	YANG L L， WEI X W， WU T， et al.Crystallization manipulation of poly（butylene succinate） via hydrazide⁃based self⁃assembled hydrogen⁃bonding interactions ［J］. Polymer， 2024， 298： 126933.
[7]	ZHOU C， CHEN K， ZHANG Z H， et al. Enhanced crystallization of poly（butylene adipate⁃co⁃terephthalate） by a self⁃assembly nucleating agent ［J］. Chinese Journal of Polymer Science， 2024， 42（5）： 663⁃674.
[8]	TAN J， CUI L， QIN Z， et al.Structural evolution and mechanism of PLA/TMC-300 films under uniaxial and biaxial stretching ［J］. Cryst Eng Comm， 2025， 27（12）： 1 722⁃1 735.
[9]	YE S， ZHOU Q， YU C， et al. Crystallization behavior of poly（lactic acid） nucleated by benzoylhydrazide compounds with different methylene numbers： a comparative study ［J］. International Journal of Biological Macromolecules， 2025， 306： 141423.
[10]	GUO X， LUO C， FANG M， et al. Effects of self‐assembled nucleating agent on the crystallization behavior， thermal properties， and mechanical properties of polylactic acid ［J］. Journal of Applied Polymer Science， 2023， 140（31）： e54222.
[11]	ZHANG Y F， ZHOU P Z， MAO J J，et al. Influences of octamethylenedicarboxylic dibenzoylhydrazide on crystallization， melting behaviors， and properties of isotactic polypropylene ［J］. Polymer Bulletin， 2019， 76： 1 685⁃1 696.
[12]	李向阳，杨林柱，翟国强，等. 成核剂对聚丁二酸丁二醇酯结晶与性能的影响［J］. 中国塑料， 2021， 35（8）： 146⁃151.
	LI X Y， YANG L Z， ZHAI G Q，et al.Effect of nucleating agent on crystallization and properties of poly（butylene succinate）［J］. China Plastics， 2021， 35（8）： 146⁃151.
[13]	AVRAMI M. Kinetics of phase change. i general theory［J］. The Journal of Chemical Physics， 1939， 7（12）： 1 103⁃1 112.
[14]	LORENZO A T， ARNAL M L， ALBUERNE J，et al. DSC isothermal polymer crystallization kinetics measurements and the use of the Avrami equation to fit the data： Guidelines to avoid common problems ［J］. Polymer Testing， 2007， 26（2）： 222⁃231.
