Cracking analysis of PC component initiated by plasticized PVC

doi:10.19491/j.issn.1001-9278.2025.10.010

Abstract

Abstract:

This study investigates the root cause of cracking in the screw areas of a polycarbonate （PC） connector assembled within a device. A combination of analytical techniques， including differential scanning calorimetry， thermogravimetric analysis， gas chromatography⁃mass spectrometry （GC⁃MS）， and Fourier⁃transform infrared spectroscopy， was employed to compare cracked and normal samples. GC⁃MS analysis identified dibutyl phthalate （DBP）， a plasticizer， exclusively in the cracked components. The source of the DBP was traced to a polyvinyl chloride （PVC） soft tube installed through the connector. Hansen solubility parameter analysis confirmed a high affinity between DBP and PC （with a relative energy difference， RED， of 0.72）， indicating DBP's capability to solubilize and plasticize the PC matrix. The failure mechanism was identified as environmental stress cracking （ESC）： DBP migrated from the PVC tube into the PC housing， reducing its cohesive strength and enabling brittle fracture initiation under the stress concentrated at the screw threads. This case provides a classic example of ESC and highlights the critical need for compatibility screening between adjacent polymer components and their additives.

Key words: polyvinyl chloride, polycarbonate, dibutyl phthalate, environmental stress cracking, solubility parameter

CLC Number:

TQ325.3

LIU Zhongping, XIAO Yinhe, GE Huijun. Cracking analysis of PC component initiated by plasticized PVC[J]. China Plastics, 2025, 39(10): 54-59.

Figures/Tables 14

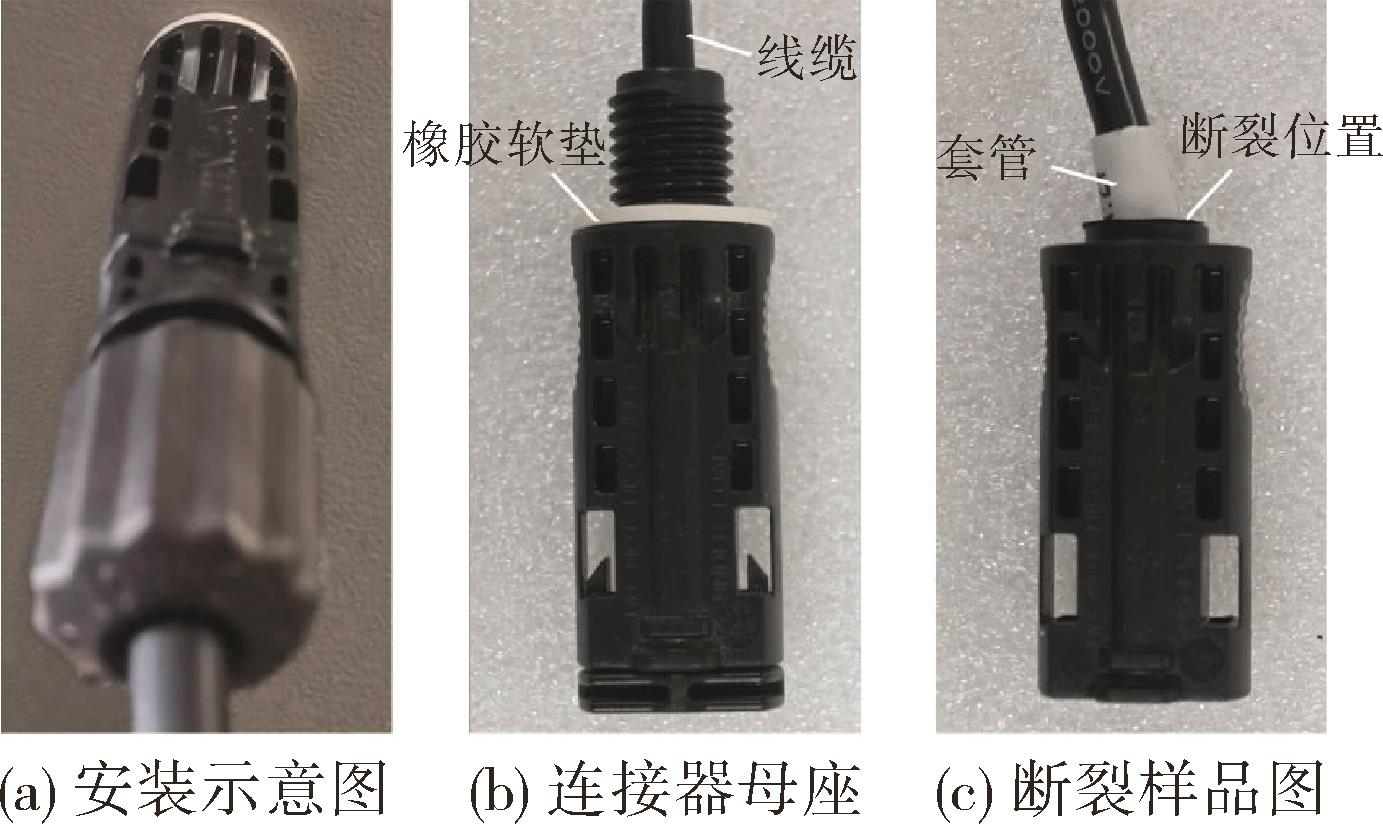

Fig.1. The assembled state and cracked location of the connector

Fig.2. SEM of the cracked areas on the connector

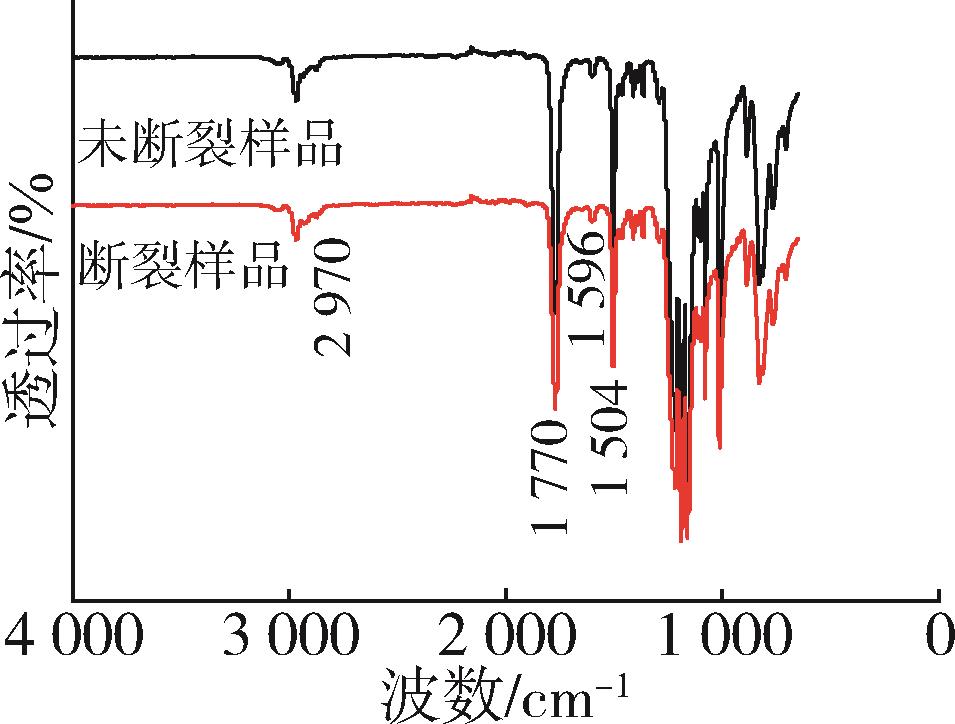

Fig.3. FTIR spectra of the main body for cracked sample and normal sample

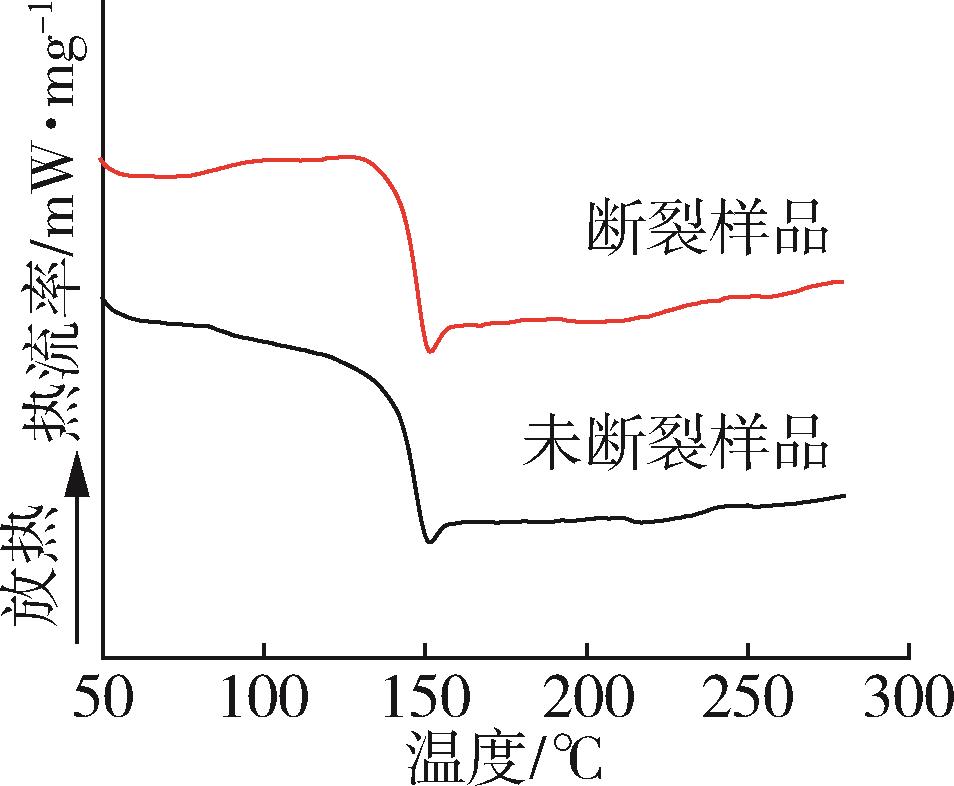

Fig.4. DSC curves of the main body for cracked sample and normal sample

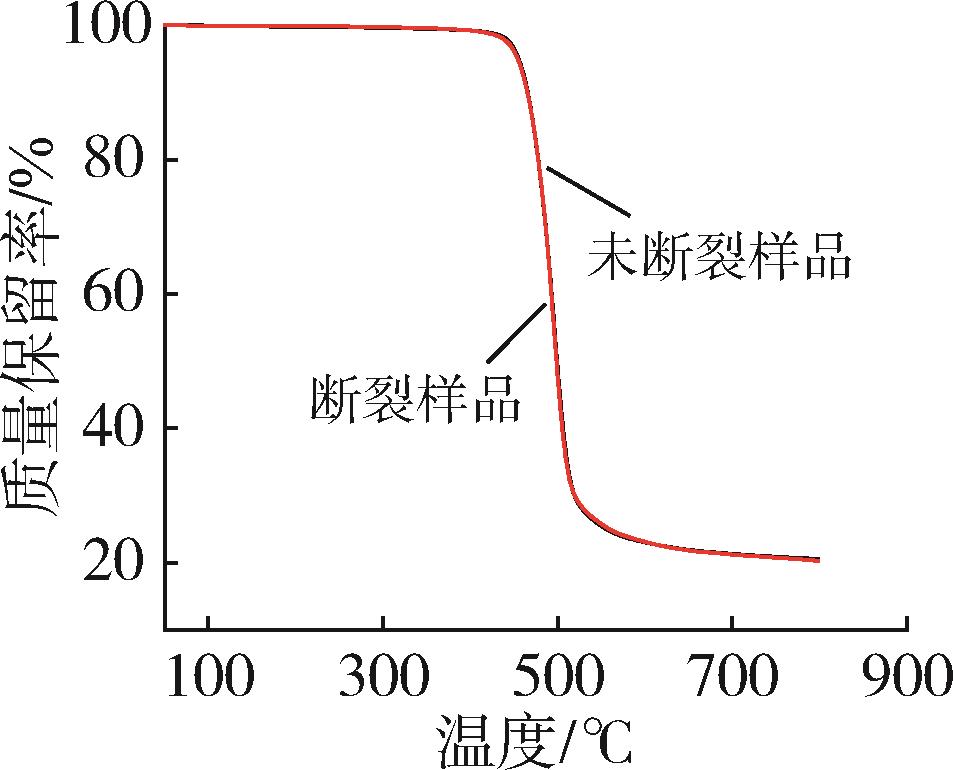

Fig.5. TG curves of the main body for cracked sample and normal sample

样品	T_g/^oC	T_onset/^oC	残留质量/%
未断裂样品	146.5	467.0	20.5
断裂样品	146.3	468.4	20.25

Tab.1. Results of DSC and TG tests

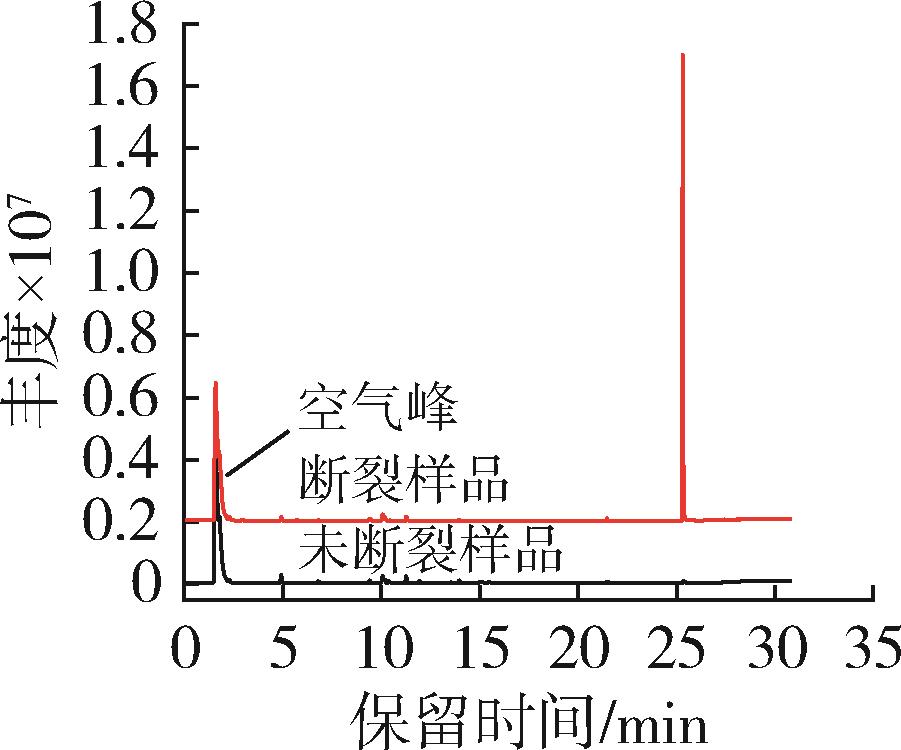

Fig.6. Total ion chromatograms of volatiles from the areas near the screw of cracked sample and normal sample

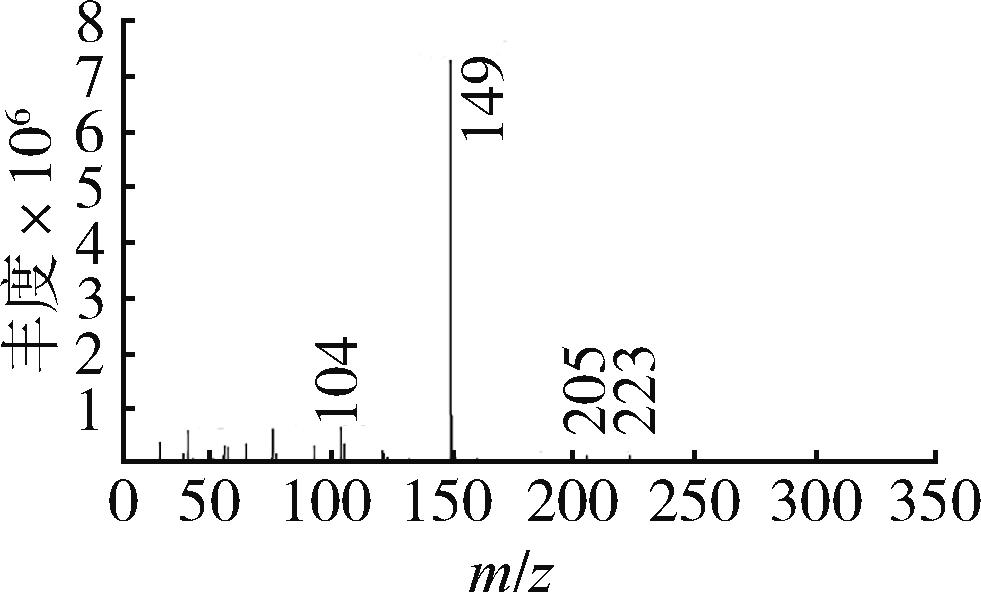

Fig.7. MS spectra of volatiles from the cracked sample at the retention time 25.3 minute

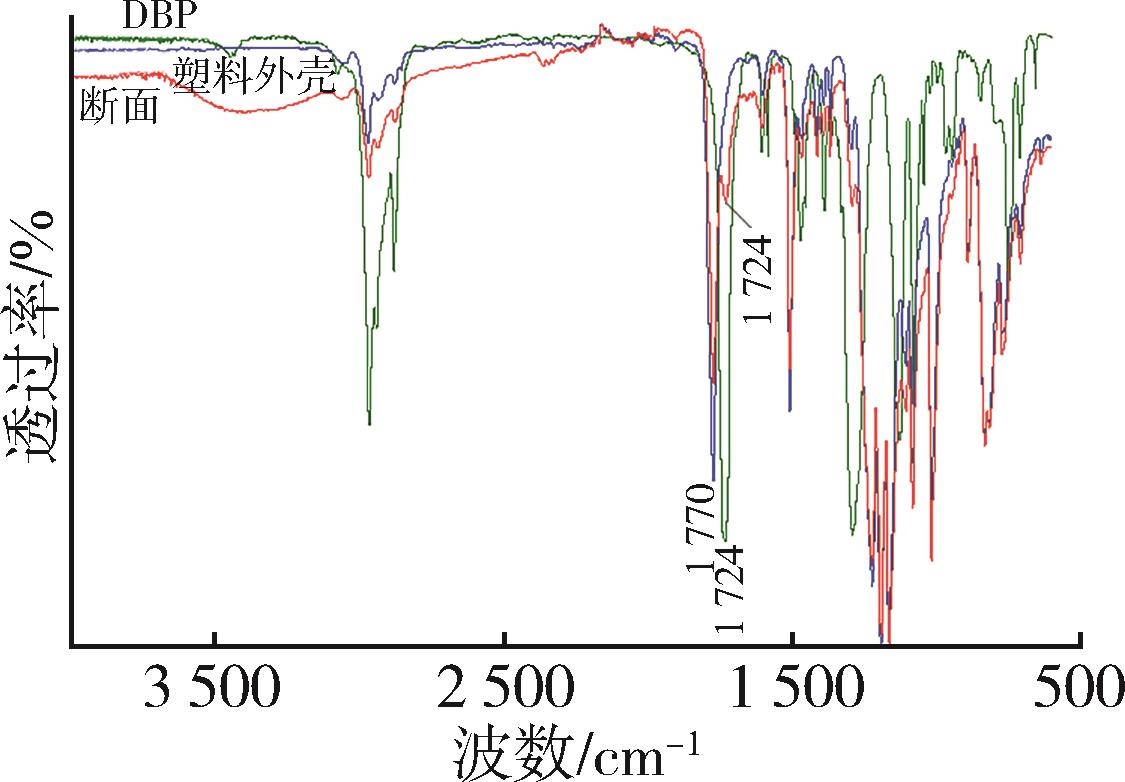

Fig.8. FTIR spectra of cracked area of cracked sample， the body of normal sample and DBP

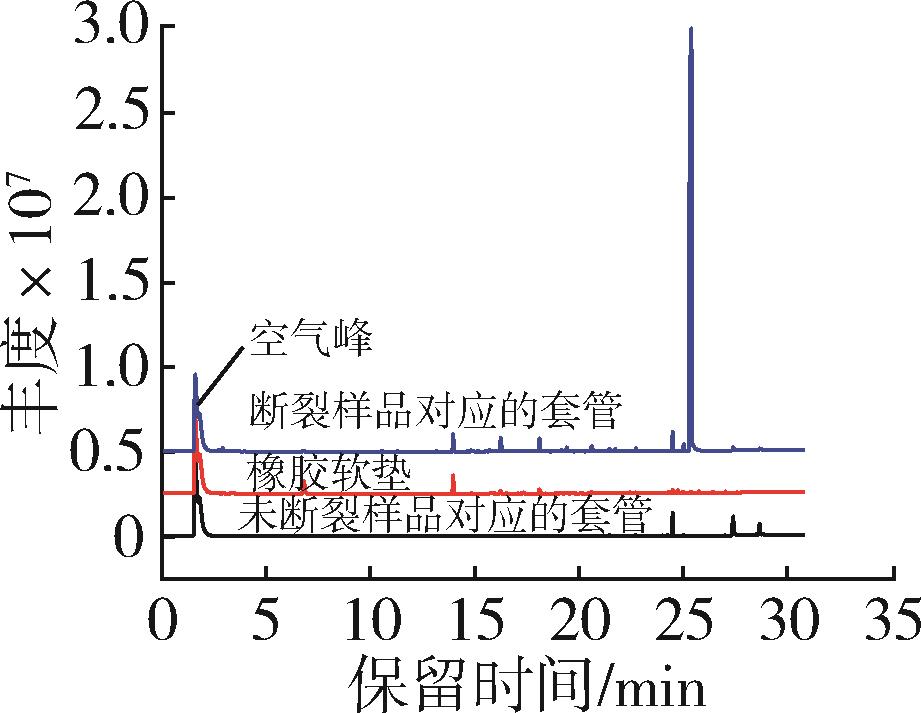

Fig.9. GC spectra of volatiles from the rubber sealing pad， the tube of cracked sample and the tube of normal sample

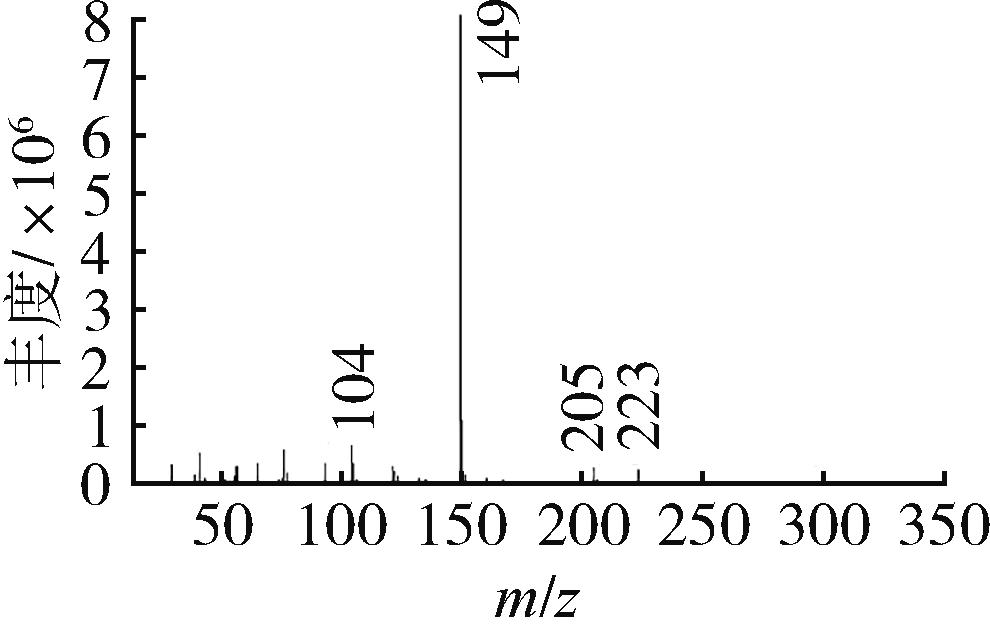

Fig.10. MS spectra of volatiles from the tube of the cracked sample at the retention time 25.3 minute

材料	δ_D/MPa^1/2	δ_P/MPa^1/2	δ_H/MPa^1/2	Ro/MPa^1/2
PC	18.1	5.9	6.9	5.5
PA66	16	11	24	3
DBP	17.8	8.6	4.1

Tab.2. The Hansen parameters of PC， PA66 and DBP

材料组合	Ra/MPa^1/2	RED
PC⁃DBP	3.94	0.72
PA66⁃DBP	20.36	6.79

Tab.3. The solubility parameter distance and RED number of PC with DBP and PA66 with DBP

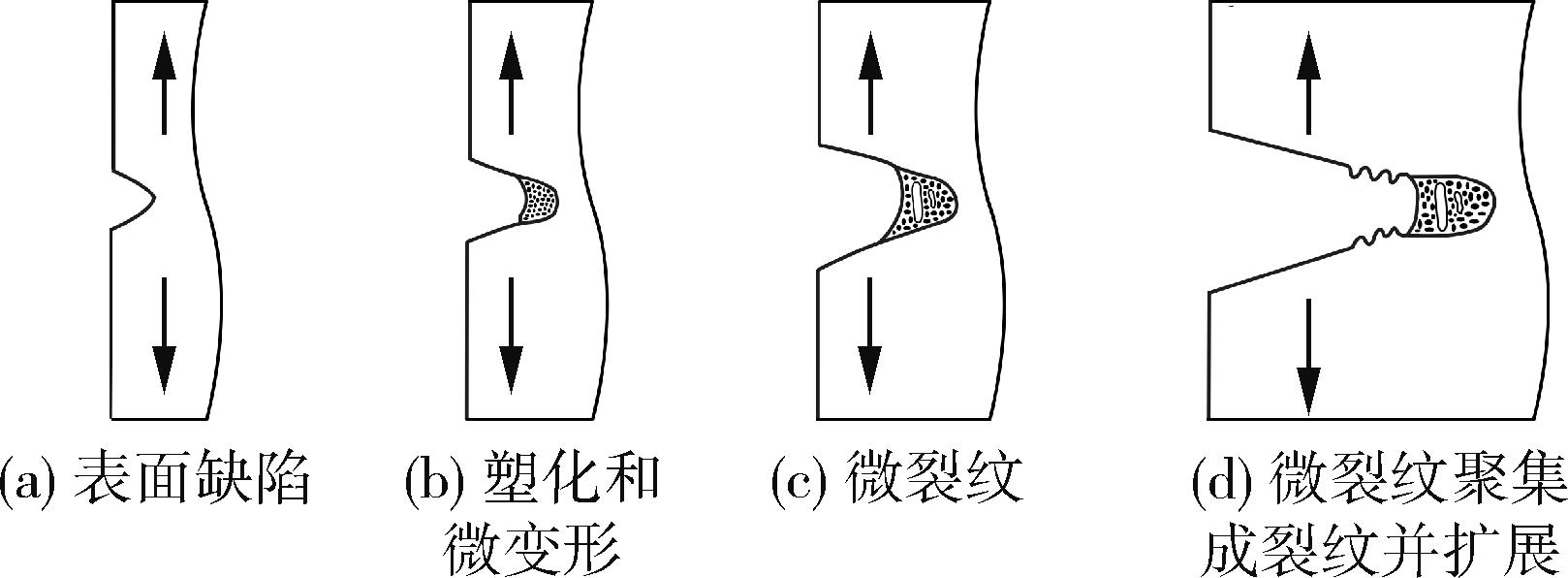

Fig.11. Diagram of ESC process
