Study on enhancement of thermal stability of chlorinated polyvinyl chloride

doi:10.19491/j.issn.1001-9278.2025.11.009

Abstract

Abstract:

Chlorinated polyvinyl chloride （CPVC） suffers from a narrow processing window and poor thermal stability. To address these limitations， this study first established suitable processing conditions based on CPVC's structural characteristics and pyrolysis mechanism， providing a foundation for subsequent compounding modification. The effects of Ca/Zn metal soap， methyl⁃tin， and TiO₂ on the thermal stability， plasticization behavior， and thermal decomposition of CPVC were then investigated. Torque rheology and plasticization analysis determined the optimal processing parameters for TiO₂⁃filled CPVC to be a temperature of 145 ℃， a shear rate of 45 r/min， and a processing time of 10 minutes， with TiO₂ found to promote rapid plasticization. Based on yellowness index and thermogravimetric⁃infrared analysis， methyl⁃tin significantly improved thermal stability， increasing the initial pyrolysis temperature from 240 to 250 ℃. Furthermore， torque rheological curves revealed that the thermal decomposition of pristine CPVC commenced at approximately 810 s， a process that was substantially delayed by the addition of methyl⁃tin. The results demonstrated that methyl⁃tin was a highly effective stabilizer for enhancing the long⁃term thermal stability of CPVC.

Key words: chlorinated polyvinyl chloride, methyl tin, thermal stability, modification

CLC Number:

TQ325.3

DU Haojie, ZHANG Ying, HUANG Jian, SUN Huali, XU Haiyun, ZHAO Xiaoying, XIANG Aimin. Study on enhancement of thermal stability of chlorinated polyvinyl chloride[J]. China Plastics, 2025, 39(11): 53-58.

Figures/Tables 11

序号	1	2	3	4	5	6
加工温度/℃	160	165	170	175	180	185
转速设置/r·min^-1	60	60	60	60	60	60
加工时间1/min	5	5	5	5	5	5
加工时间2/min	10	10	10	10	10	10
加工时间3/min	20	20	20	20	20	20
加工时间4/min	30	30	30	30	30	30
加工时间5/min	40	40	40	40	40	40

Tab.1. Pure CPVC processing temperature exploration experiment

序号	1	2	3	4	5
加工温度/℃	145	145	145	145	145
转速设置/r·min^-1	45	60	80	100	120

Tab.2. Inquiry experiments exploring CPVC shear rate

序号	CPVC/份	Ca/Zn金属皂/份	甲基锡/份	TiO₂/份
1	100	0	1.2	-
2	100	0	1.5	-
3	100	0	1.5	0.2
4	100	0	1.5	0.5
5	100	0	1.5	1.0
6	100	0	1.5	1.5
7	100	2	-	-

Tab.3. Experimental scheme design of the CPVC/heat stabilizer composite system

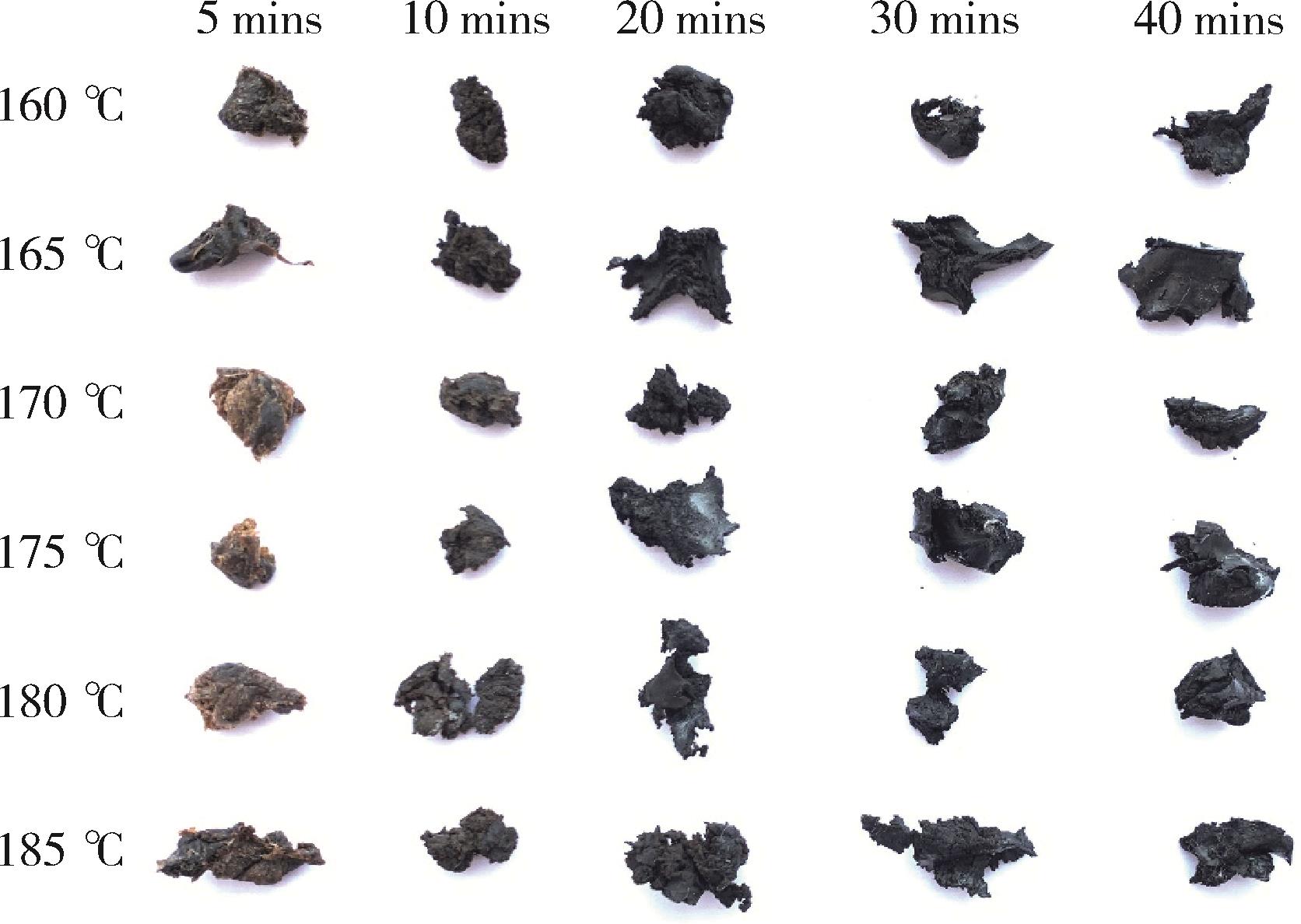

Fig.1. The degree of plasticization of pure CPVC at different processing temperatures

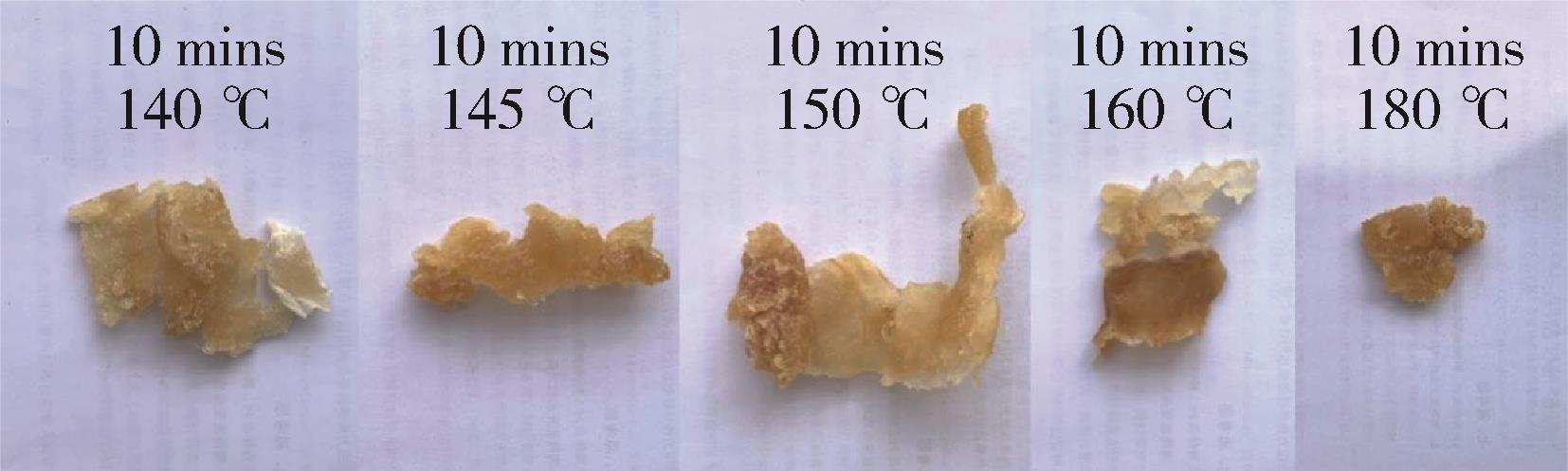

Fig. 2. The degree of plasticization of CPVC with added methyltin at different processing temperatures

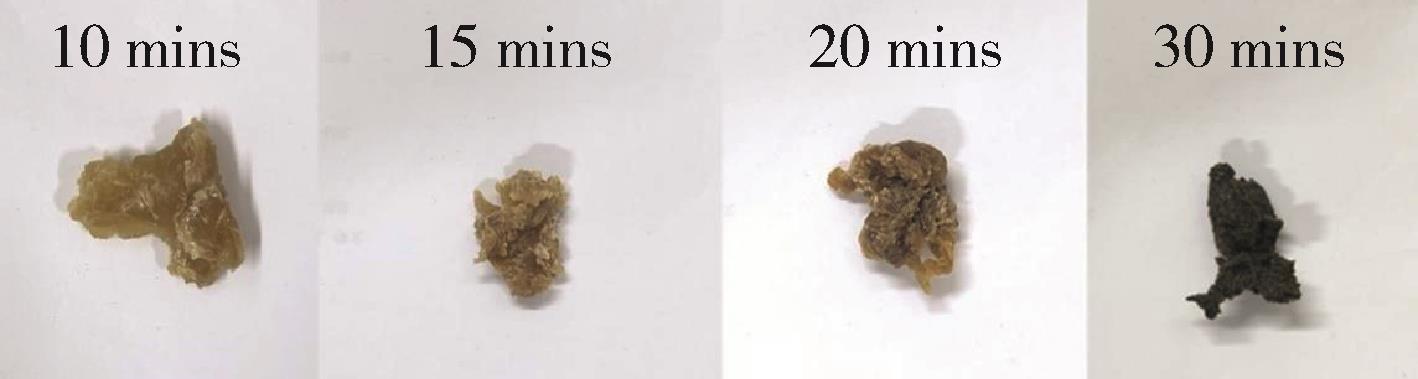

Fig. 3. The degree of plasticization of CPVC in the experimental group with added methyltin at different processing times

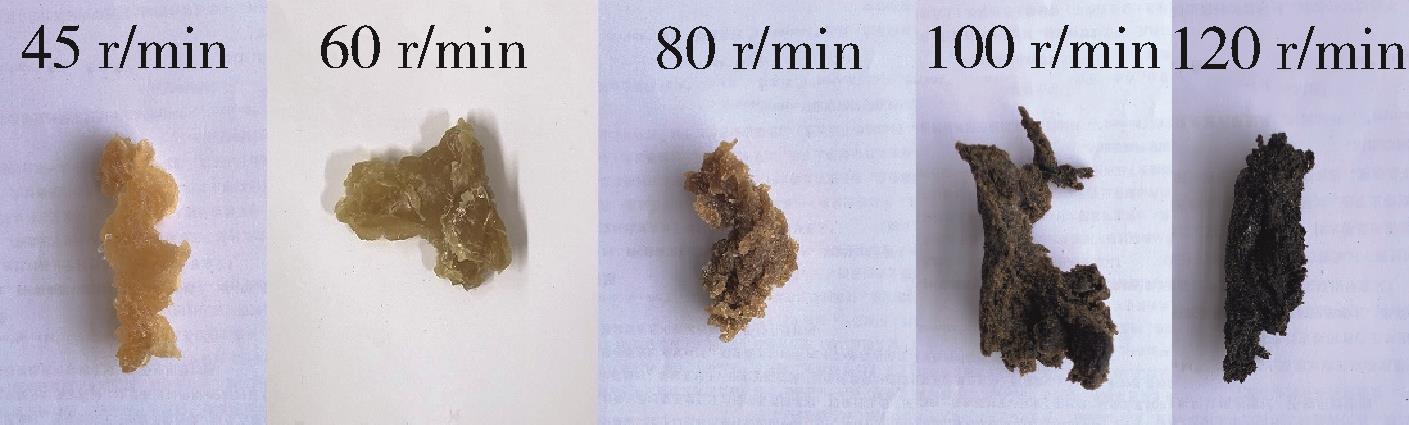

Fig. 4. The degree of plasticization of CPVC in the methyltin experimental group at different shear rates

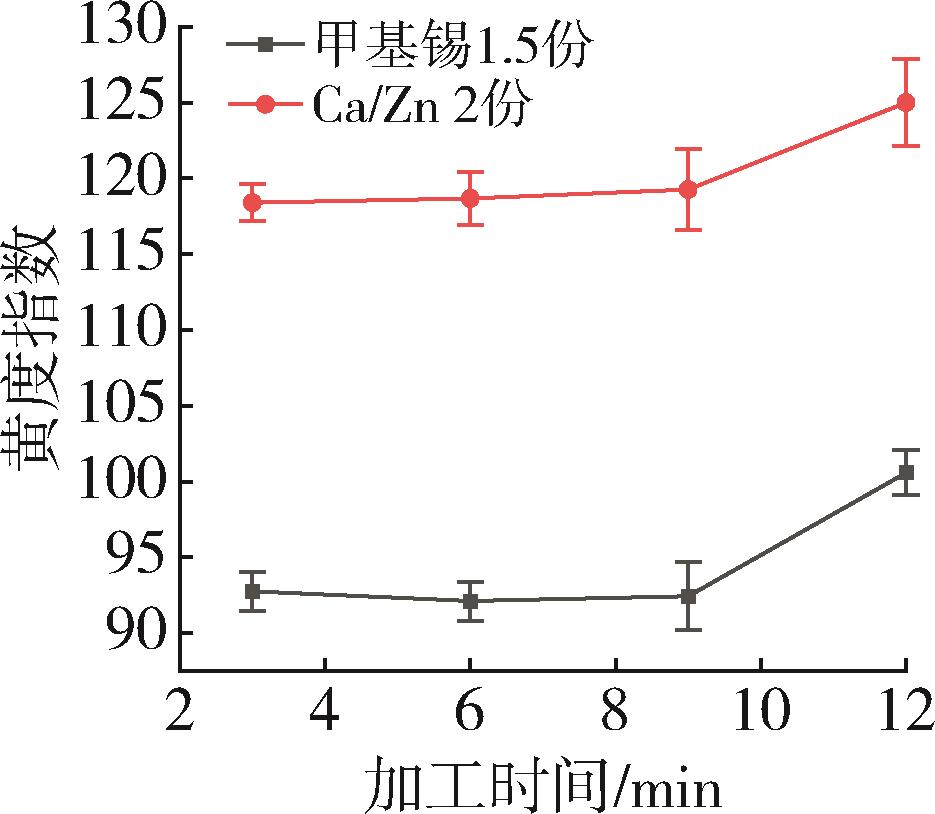

Fig.5. The change in CPVC yellowness index with processing time

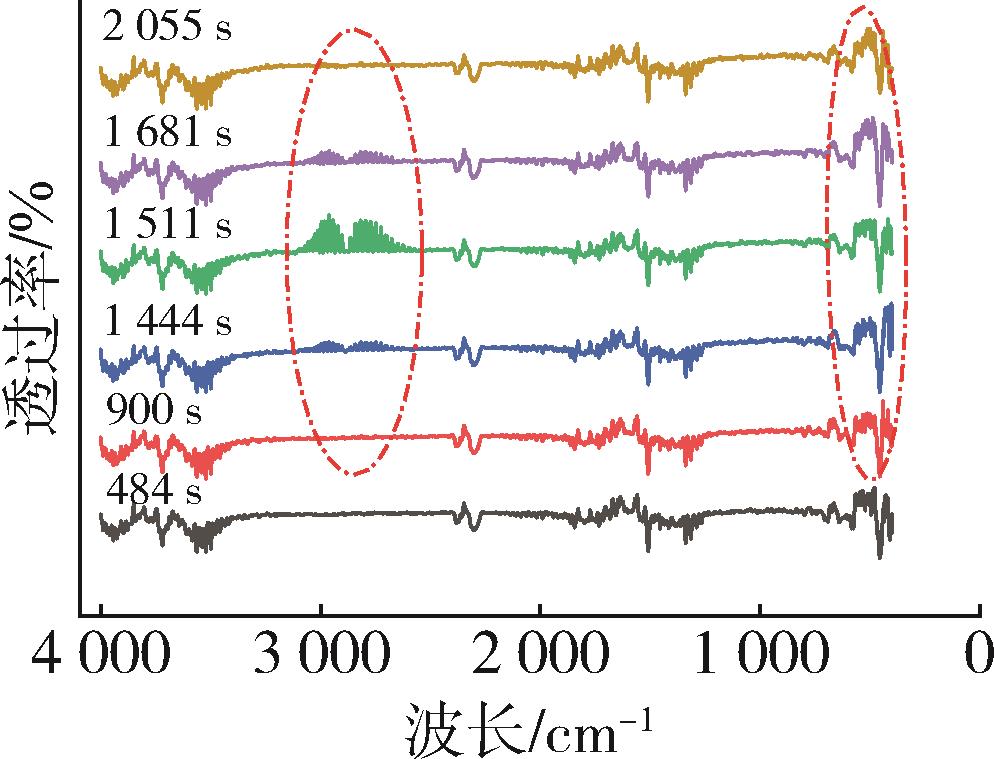

Fig.6. TGA⁃IR spectral diagrams at different stages of thermal decomposition of CPVC with 1.5phr of methyltin

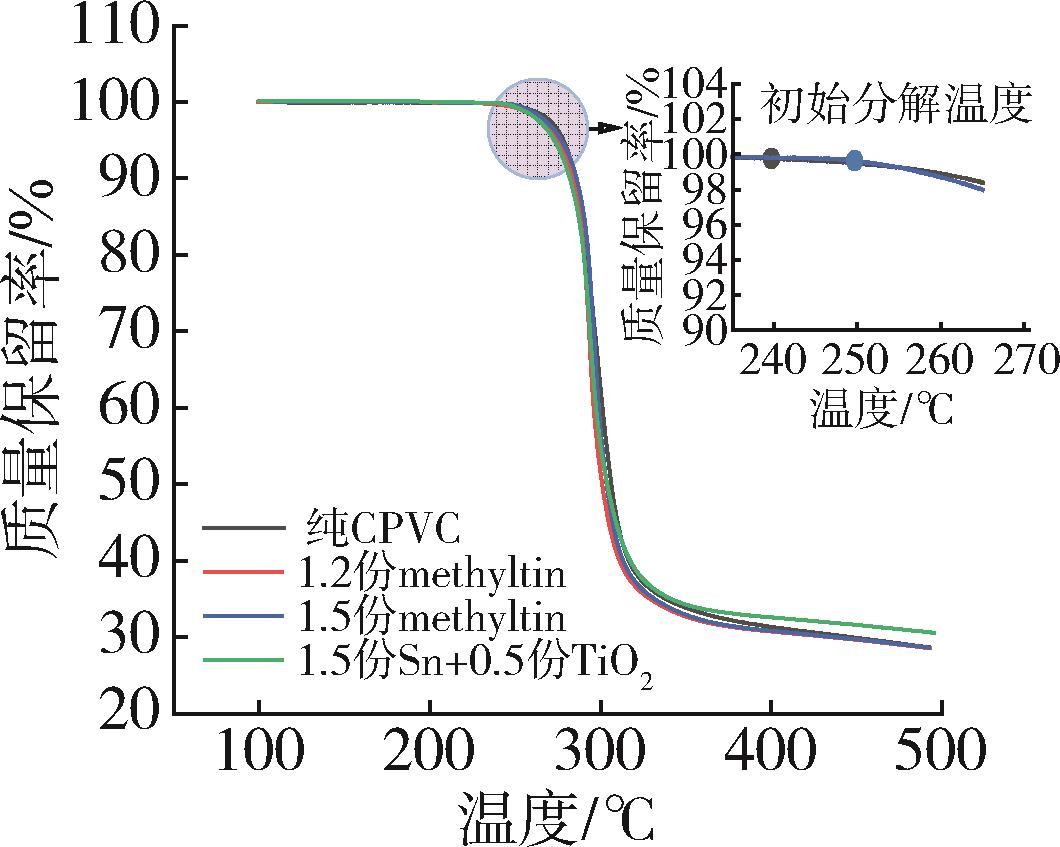

Fig.7. TGA curves of CPVC with different contents of heat stabilizers

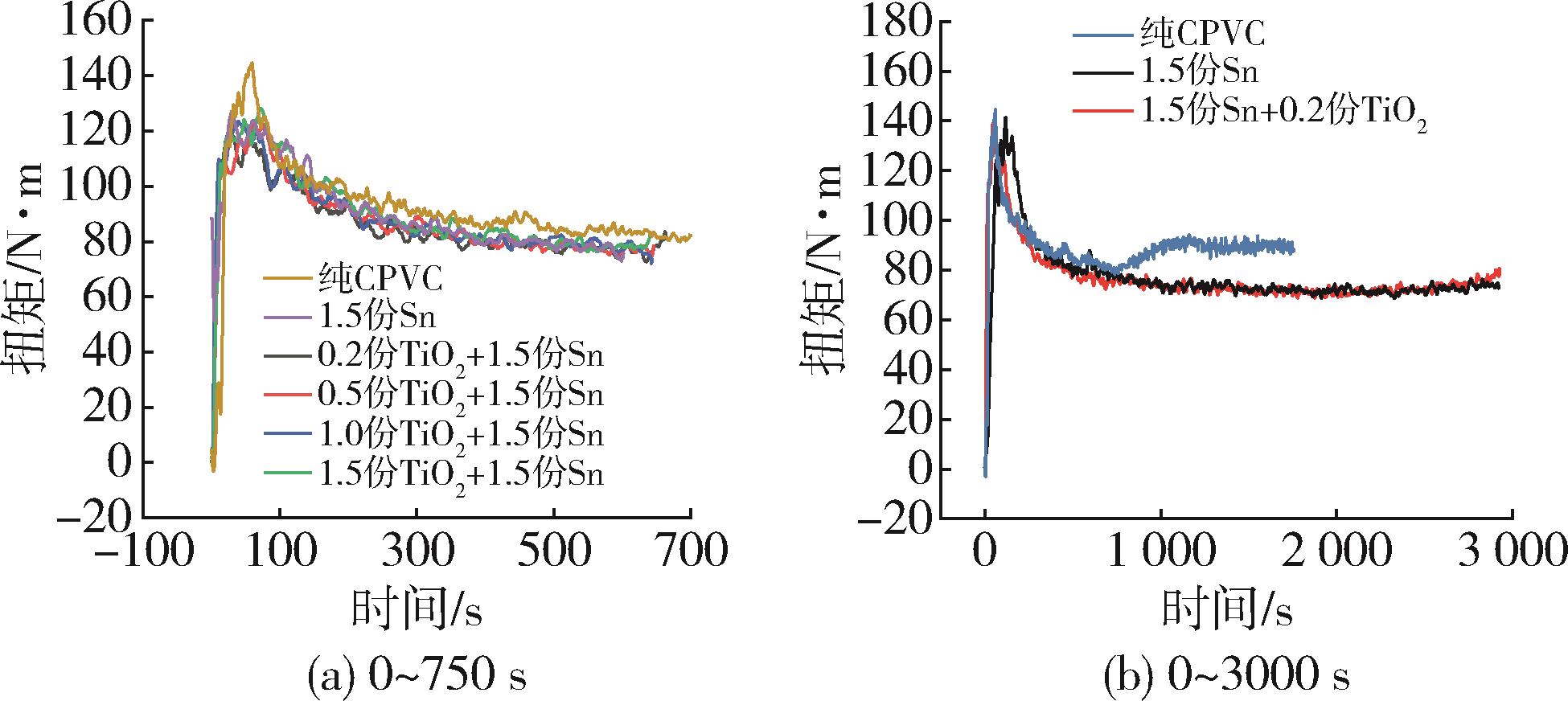

Fig.8. Torque curves for the CPVC mixing system with different TiO2 content

References 14

[1]	Zhang J， Huang Y， Shang F， et al. Study on kinetic parameters and reaction mechanism of chlorinated polyvinyl chloride using thermogravimetry and peak⁃differentiating analyses ［J］. Polymer Bulletin， 2022， 1.
[2]	Elakesh E O， Hull T R， Price D， et al. Effect of stabilisers and lubricant on the thermal decomposition of chlorinated poly（vinyl chloride）（CPVC）［J］. Polymer Degradation and Stability， 2005， 88（1）：41⁃45.
[3]	Sun Y J， Gao M， Chai Z H， et al. Thermal behavior of the flexible polyvinyl chloride including montmorillonite modified with iron oxide as flame retardant ［J］. Journal of Thermal Analysis and Calorimetry， 2018， 131（1）： 65⁃70.
[4]	Xu J L， Li C S， Ren S B， et al. Influence of ammonium octamolybdate on flame retardancy and smoke suppression of PVC matrix flame retardant composites ［J］. International Polymer Processing， 2022， 37（3）：316⁃328.
[5]	Newby R， Michelle K. Specifying CPVC in chemical process environments： proven +45⁃year track record demonstrates longer service life， lower maintenance costs and reduced downtime ［J］. Chemical Engineering， 2006， 113（10）.
[6]	Xu C， Wang S， Shao L， et al. Structure and properties of chlorinated polyvinyl chloride graft copolymer with higher property ［J］. Polymers for Advanced Technologies， 2012， 23（3）：470⁃477.
[7]	Carty P， Dennis P， John M G. Chlorinated poly（vinyl chloride） and plasticized chlorinated poly（vinyl chloride）⁃thermal decomposition studies ［J］. Journal of Vinyl and Additive Technology， 2002， 8（4）：227⁃237.
[8]	Chen B J， Failure of CPVC Pipes⁃Study of Mechanical Properties ［D］. Canada： University of Alberta， 2018.
[9]	Heba A K， Raid B. Investigation of the Mechanical Behavior of the Oil Shale Ash Filled Chlorinated Polyvinyl Chloride Composite Material ［J］. International Journal of Composite Materials， 2021， 11（1）：13⁃21.
[10]	Liao X， He B， Chen X. Chlorinated poly（vinyl chloride） stabilization by pentaerythritol/calcium⁃zinc stearate mixtures： The fate of pentaerythritol ［J］. Journal of Vinyl and Additive Technology， 2011， 17（1）：1⁃8.
[11]	Liu S， Zhang Y. Synthesis of CPVC⁃modified SnS₂/TiO₂ composite with improved visible light⁃driven photocatalysis ［J］. Materials Research Bulletin， 2021， 135.
[12]	Li M， Jiang J， Zhang J， et al. Preparation of a new liquid thermal stabilizer from rosin and fatty acid and study of the properties of the stabilized PVC ［J］. Polymer Degradation and Stability， 2014， 109：129⁃136.
[13]	Fahmy M M， Mohamed R R， Mohamed N A. Novel antimicrobial organic thermal stabilizer and co⁃stabilizer for rigid PVC ［J］. Molecules， 2012， 17（7）：7 927⁃7 940.
[14]	王明磊.CaO添加下PVC热解特性及HCl脱除规律研究［D］.内蒙古科技大学，2022.DOI：10.27724/d.cnki.gnmgk.2022.000215 .
