Preparation of high⁃strength flame⁃retardant poly（phenylene ether） composite foams using supercritical carbon dioxide

doi:10.19491/j.issn.1001-9278.2024.11.004

Abstract

Abstract:

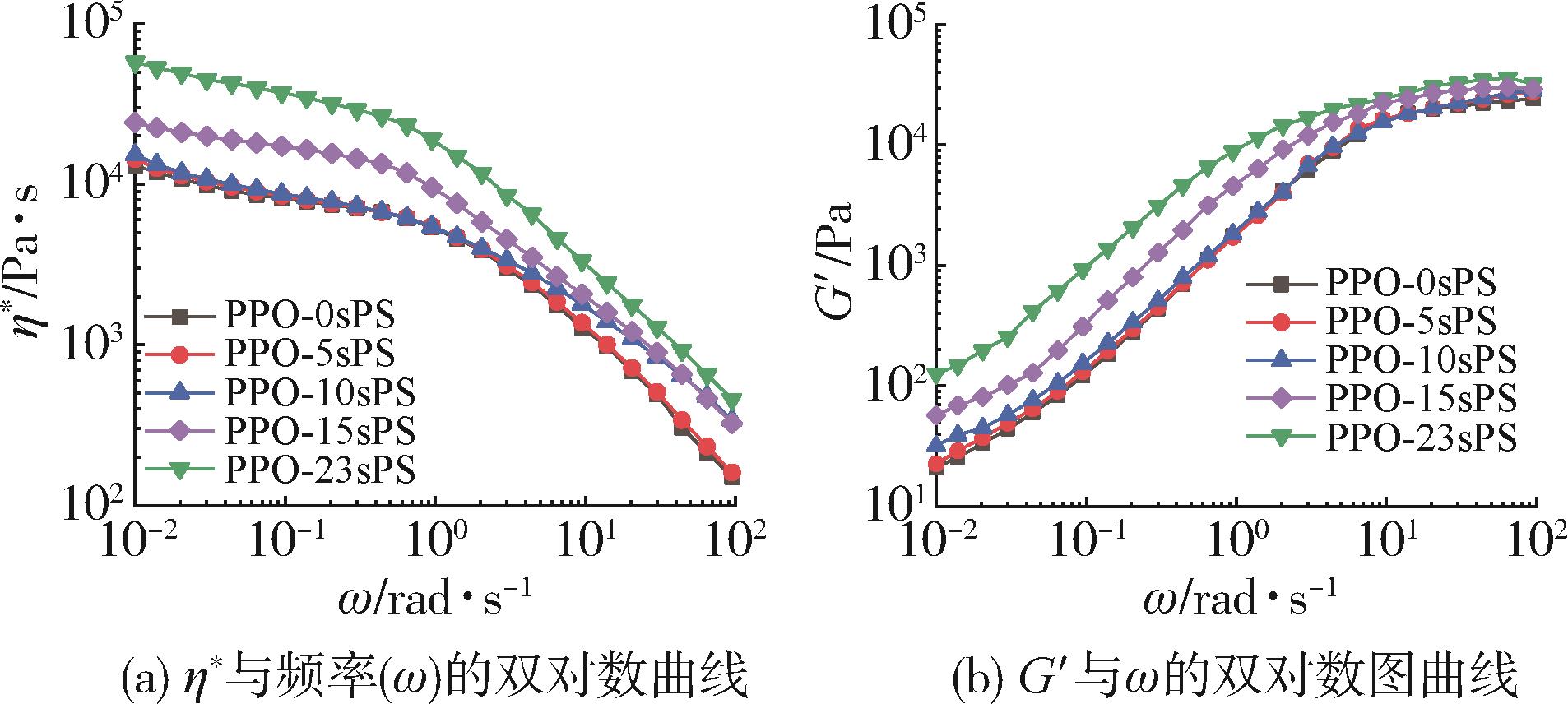

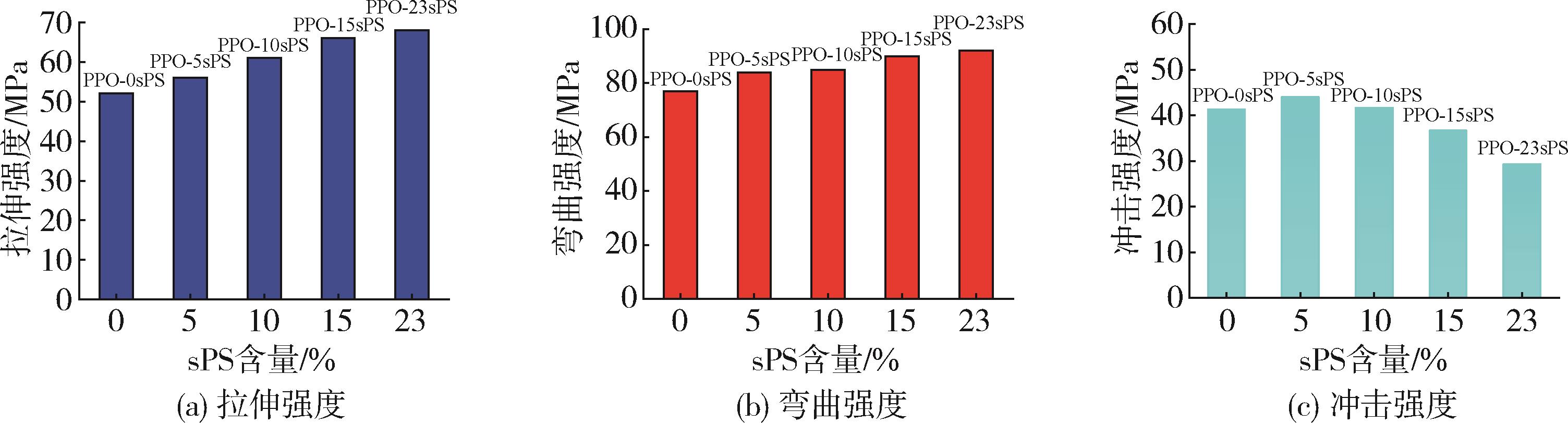

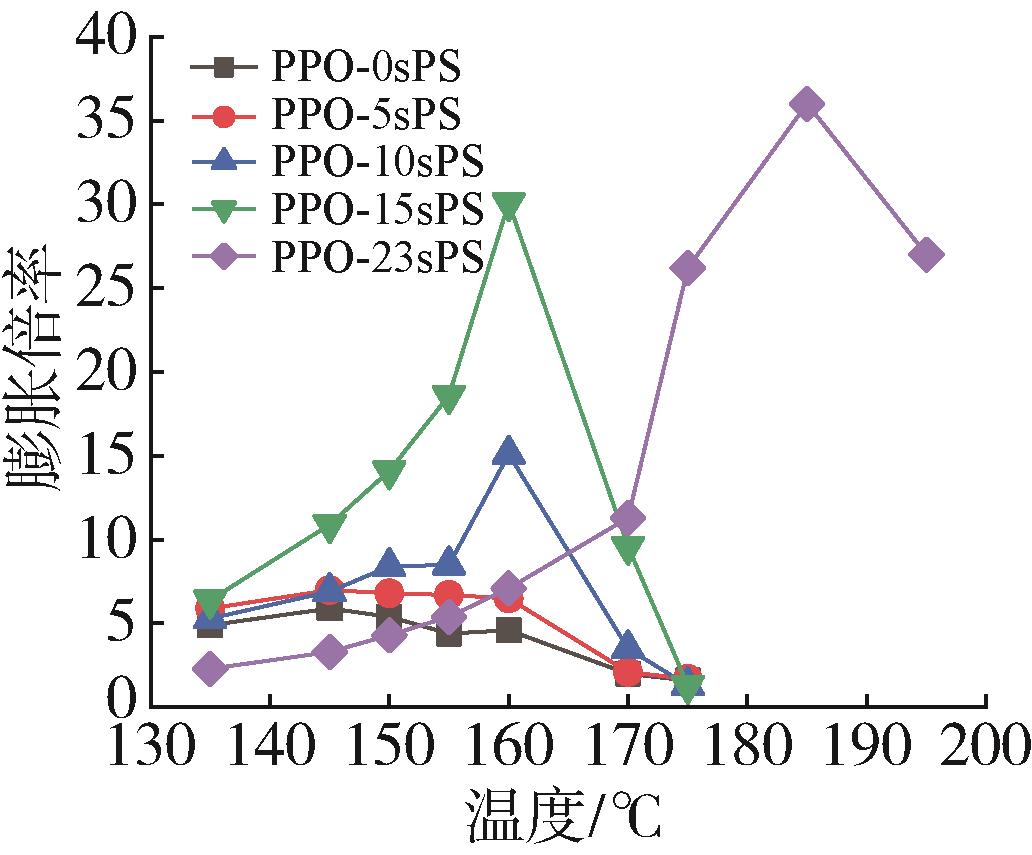

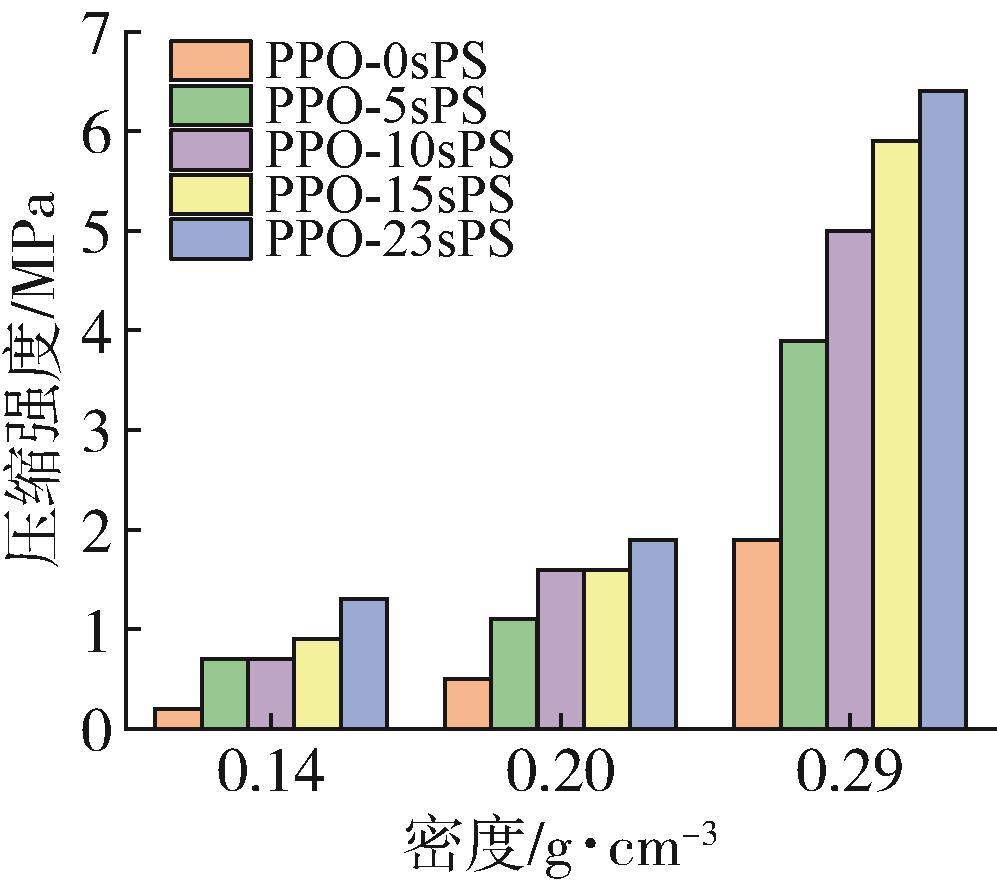

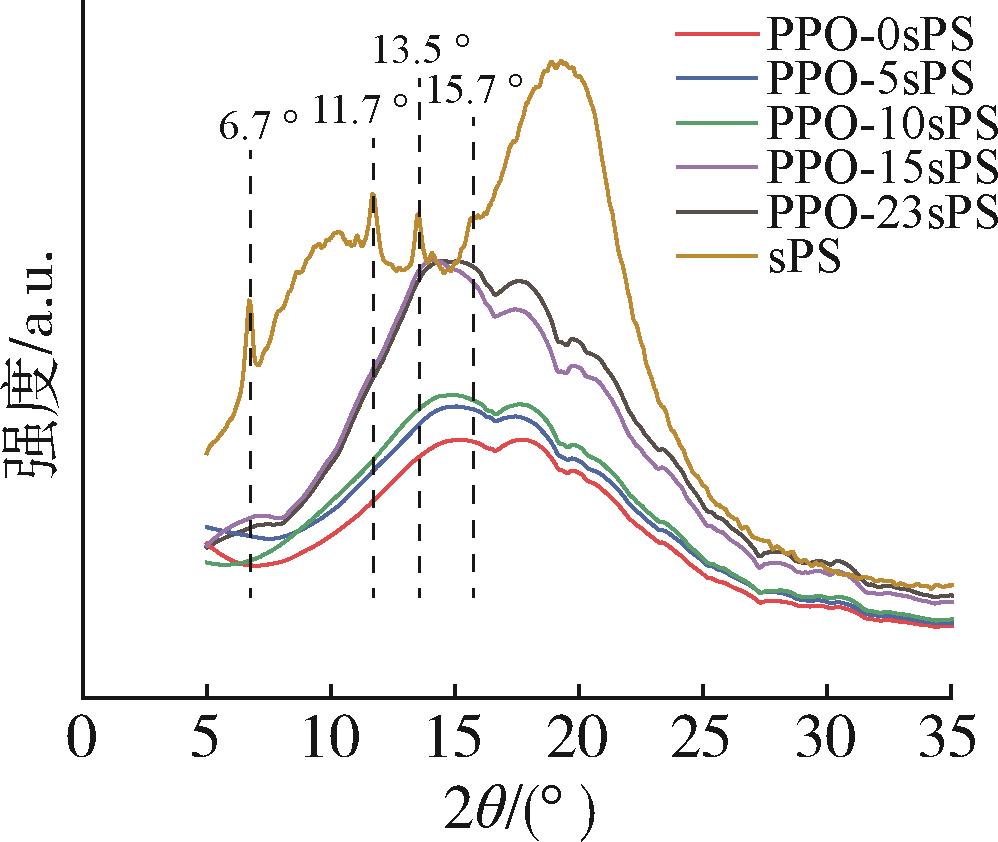

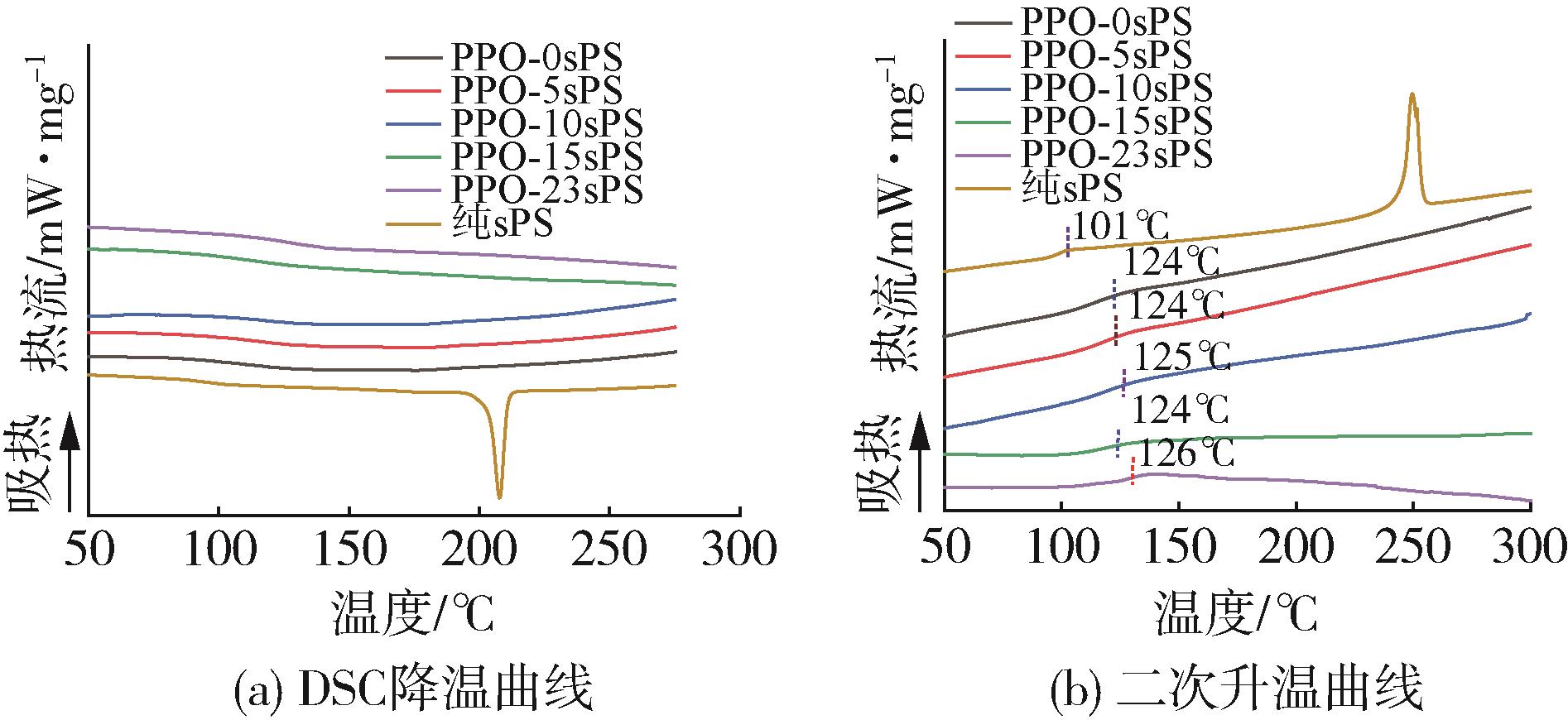

In this study， a type of high⁃strength and high⁃flame retardant polyphenylene ether （PPO） composite foams was prepared by using syndiotactic polystyrene （sPS） instead of high⁃impact polystyrene （HIPS）， styrene⁃ethylene/butadiene⁃styrene block copolymers （SEBS）， and halogen⁃free flame retardants through supercritical carbon dioxide foaming. The effect of sPS on the mechanical properties， foaming behavior， compressive strength， and flame⁃retardant performance of the composite foams were investigated. The results indicated that the introduction of sPS improved the rigidity and melt viscoelasticity of the composites significantly. The foamability of the composites was enhanced with an increase in the melt viscoelasticity. When 23 wt% sPS was added， the foaming rate of the composites increased from 5.9 to 36 times. The introduction of composite halogen⁃free flame retardants improved the flame⁃retardant performance of composite foams significantly. The PPO/HIPS/sPS composite foam with a density of 0.14 g/cm³ reached a flame⁃retardant grade of the UL94 V⁃0 rating and exhibited a limiting oxygen index of 27.4 vol%. At a density of 0.29 g/cm³， the PPO/HIPS/sPS composite foam containing 23 wt% of sPS presented an increase in the compressive strength from 1.9 MPa to 6.4 MPa.

Key words: poly（phenylene ether）, foam material, flame retardant, mechanical property

CLC Number:

TQ326.53

LYU Zhengyang, QIU Jian, XING Haiping, JIANG Zhiwei, LIU Jie, TANG Tao, LI Sanxi. Preparation of high⁃strength flame⁃retardant poly（phenylene ether） composite foams using supercritical carbon dioxide[J]. China Plastics, 2024, 38(11): 21-26.

Figures/Tables 10

References 19

1	DONG M Y， WANG G， et al. An overview of polymer foaming assisted by supercritical fluid ［J］. Advanced Composites and Hybrid Materials，2023，6：207.
2	ZHAI W T， JIANG J J， PARK C B. A review on physical foaming of thermoplastic and vulcanized elastomers［J］. Polymer Reviews， 2022， 62： 95⁃141.
3	ZHOU H F， HU D D， ZHU M， et al. Review on poly （butylene succinate） foams： Modifications， foaming behaviors and applications.［J］. Sustainable Materials and Technologies，2023，38： e00720.
4	RAHIMIDEHGOLAN F， LIU Y， ALTENHOF W. Experimental， numerical and analytical investigations on the elevated strain rate compressive behavior of high⁃performance PES foam up to 200 s^-1 ［J］. International Journal of Impact Engineering， 2022， 161： 104088.
5	CAI R， YOU Y， WU P， et al. Preparation of open⁃cell rigid polyimide foam via nonaqueous high internal phase emulsion⁃templating technique［J］. ACS Applied Polymer Materials， 2023， 5（10）： 7 795⁃7 804.
6	ZHANG S L， LIU B F， HONGWEI YANG H W， et al. PEI⁃functionized cellulose foam for the visual recognition and removal of Cr（VI）［J］. Materials Letters， 2021， 293： 129685.
7	SHIMOYAMA Y， NAKAJIMA Y. Oxidative depolymerization of polyphenylene oxide into benzoquinone［J］. Chem Sus Chem，2023，16（24）： e202300684.
8	李蝶，翟文涛，黄朋科，等. 改性聚苯醚微发泡材料的制备及阻燃性能表征［J］. 工程塑料应用，2018，46（11）：115–120.
	LI D， ZHAI W T， HUANG P K，et al. Preparation and flame retardancy characterization of microcellular modified PPE ［J］. Engineering Plastics Application，2018，46（11）：115–120.
9	ZHAI W T， LI D， HUANG P K. Influences of high‐impact polystyrene loading on the foaming behavior and flame⁃retardant properties of polyphenylene oxide composites blown with CO₂ ［J］. Journal of Applied Polymer Science， 2021， 138（13）： 50122.
10	LI Z L， TANG Y J， CHEN S H， et al. Ultrahigh compressive strength and heat resistance of polystyrene/polyphenylene oxide foams of supercritical carbon dioxide foaming［J］. Journal of Applied Polymer Science， 2023， 141（9）： e55014.
11	WANG H M， YOU J A， TANG T， et， al. Preparing flame⁃retardant poly（phenylene oxide）/polyurea nanocomposite foam with excellent heat⁃resistance and shape memory performance ［J］. Composites Communications， 2023， 40： 101589.
12	JIANG J J， ZHAI W T， LIU H W， et al. Fabrication of lightweight polyphenylene oxide/high‐impact polystyrene composite bead foam parts via in‐mold foaming and molding technology［J］. Advanced Engineering Materials， 2022， 24（3）： 2101100.
13	郭梦浩，乔世泽，信春玲，等. 无机粒子对聚苯醚发泡性能的影响［J］. 塑料工业， 2022， 50（11）： 145⁃150.
	GUO M H， QIAO S Z， XIN C L，et al.Influence of inorganic particles on foaming properties of polyphenylene ether［J］.China Plastics Industry， 2022（11）：145⁃150.
14	官习鹏，周魏华，诸泉等. 间规聚苯乙烯/高抗冲聚苯乙烯共混物相容性研究［J］.工程塑料应用， 2011， 39（01）： 21⁃24.
	GUAN X P， ZHOU W H， ZHU Q，et al.Compatibilization of syndiotatic polystyrene/ highly⁃impact polystyrene blends ［J］.The Journal of Engineering Plastics Application， 2011， 39（01）： 21⁃24.
15	GOMEZ M A， TONELLI A E. Structural， conformational， and motional studies of the crystalline polymorphs of syndiotactic polystyrene［J］. Macromolecules， 1991， 24（12）： 3 533⁃3 536.
16	周魏华，陆明，郑军军，等. 间规聚苯乙烯/高抗冲聚苯乙烯（sPS/HIPS）共混物非等温结晶的晶型与熔融行为［J］. 材料科学与工程学报， 2007， 25（2）： 182⁃186.
	ZHOU W H， LU M， ZHENG J J，et al. Crystal forms and melting behavior of syndiotatic polystyrene/highly⁃impact polystyrene （sPS/HIPS） blends crystallized dynamically from melting state ［J］.Journal of Materials Science ＆Engineering， 2007， 25（2）： 182⁃186.
17	WANG Y X， ZOUC Y， BAI N， et al. Effect of octene block copolymer （OBC） and high⁃density polyethylene （HDPE） on crystalline morphology， structure and mechanical properties of octene random copolymer［J］. Polymers， 2023， 15（18）： 3655.
18	陈斌，郭丹，赵丽萍，等. SEBS增容等规聚丙烯/间规聚苯乙烯共混体系的结构与性能［J］.高分子材料科学与工程， 2011， 27（01）： 104⁃107.
	CHEN B， GUO D， ZHANG X Q，et al.Morphology and mechanical properties of isotactic polypropylene/syndiotactic polystyrene blends compatibilized by SEBS copolymers［J］.Polymer Materials Science & Engineering， 2011， 27（01）： 104⁃107.
19	PAWLOWSKI K H， SCHARTEL B， FICHERA M A， et al. Flame retardancy mechanisms of bisphenol A bis（diphenyl phosphate） in combination with zinc borate in bisphenol A polycarbonate/acrylonitrile⁃butadiene⁃styrene blends［J］. Thermochimica Acta， 2010， 498（1/2）： 92⁃99.

样品	发泡温度/℃	泡孔直径/μm	泡孔密度/个·cm^-3
PPO⁃10sPS	150	89	5.4×10⁹
	160	65	4.4×10⁹
	170	55	2.9×10⁹
PPO⁃15sPS	150	65	1.0×10¹⁰
	160	58	9.7×10⁹
	170	51	5.5×10⁹
PPO⁃23sPS	150	60	1.1×10¹⁰
	160	55	4.2×10⁹
	170	37	3.4×10⁹

样品	发泡温度/℃	泡孔直径/μm	泡孔密度/个·cm^-3
PPO⁃10sPS	150	89	5.4×10⁹
	160	65	4.4×10⁹
	170	55	2.9×10⁹
PPO⁃15sPS	150	65	1.0×10¹⁰
	160	58	9.7×10⁹
	170	51	5.5×10⁹
PPO⁃23sPS	150	60	1.1×10¹⁰
	160	55	4.2×10⁹
	170	37	3.4×10⁹

样品	密度/g·cm^-3	LOI/%	厚度/mm	t₁/s	t₂/s	是否滴落	等级
PPO⁃0sPS	0.29	29.7	3	7	—	是	V⁃2
PPO⁃0sPS	0.29	29.7	5	3	4	否	V⁃0
PPO⁃5sPS	0.29	29.4	3	5	—	是	V⁃2
PPO⁃5sPS	0.29	29.4	5	4	3	否	V⁃0
PPO⁃10sPS	0.14	27.5	5	7	—	是	V⁃2
PPO⁃10sPS	0.14	27.5	7	5	3	否	V⁃0
PPO⁃15sPS	0.14	27.4	5	5	—	是	V⁃2
	0.14	27.4	7	4	5	否	V⁃0
	0.10	26.8	3	2	—	是	V⁃2
			5	7	—	是	V⁃2
			8	10	—	是	V⁃2
PPO⁃23sPS	0.20	28.4	5	7	—	是	V⁃2
	0.20	28.4	8	6	4	否	V⁃0
	0.14	27.3	8	7	—	是	V⁃2
	0.10	26.5	8	8	—	是	V⁃2

样品	密度/g·cm^-3	LOI/%	厚度/mm	t₁/s	t₂/s	是否滴落	等级
PPO⁃0sPS	0.29	29.7	3	7	—	是	V⁃2
PPO⁃0sPS	0.29	29.7	5	3	4	否	V⁃0
PPO⁃5sPS	0.29	29.4	3	5	—	是	V⁃2
PPO⁃5sPS	0.29	29.4	5	4	3	否	V⁃0
PPO⁃10sPS	0.14	27.5	5	7	—	是	V⁃2
PPO⁃10sPS	0.14	27.5	7	5	3	否	V⁃0
PPO⁃15sPS	0.14	27.4	5	5	—	是	V⁃2
	0.14	27.4	7	4	5	否	V⁃0
	0.10	26.8	3	2	—	是	V⁃2
			5	7	—	是	V⁃2
			8	10	—	是	V⁃2
PPO⁃23sPS	0.20	28.4	5	7	—	是	V⁃2
	0.20	28.4	8	6	4	否	V⁃0
	0.14	27.3	8	7	—	是	V⁃2
	0.10	26.5	8	8	—	是	V⁃2
