中国塑料

中国塑料 ›› 2021, Vol. 35 ›› Issue (1): 8-12.DOI: 10.19491/j.issn.1001-9278.2021.01.002

• 材料与性能 • 上一篇    下一篇

口罩聚丙烯熔喷纤维与聚丙烯熔喷原料的塑化及结晶行为对比研究

詹瑾1(), 马晶晶2, 高达利3, 李好义1, 杨卫民1

  1. 1.北京化工大学机电工程学院，北京 100029
    2.航天材料及工艺研究所，北京 100076
    3.中国石油北京化工研究院，北京 100013
  • 收稿日期:2020-09-30 出版日期:2021-01-26 发布日期:2021-01-22
  • 基金资助:
    国家重点研发计划(2020YFC0844800)

Plasticization and Crystallization Behaviors of Polypropylene Melt Blown Fibers and Polypropylene Melt Blown Plastics for Mask Filter Layer

ZHAN Jin1(), MA Jingjing2, GAO Dali3, LI Haoyi1, YANG Weimin1

  1. 1.Mechanical and Electrical Engineering，Beijing University of Chemical Technology，Beijing 100029，China
    2.Aerospace Research Institute of Materials & Processing Technology，Beijing 100076，China
    3.Sinopec Beijing Research Institute of Chemical Industry，Beijing 100013，China
  • Received:2020-09-30 Online:2021-01-26 Published:2021-01-22
  • Contact: ZHAN Jin E-mail:2019730007@mail.edu.cn

RichHTML

15

PDF

810

摘要：

为阐明口罩过滤层聚丙烯（PP）熔喷纤维与熔喷PP塑料的塑化和结晶行为间的差异性，采用差示扫描量热仪（DSC）和热台偏光显微镜系统研究了3种熔喷PP塑料与4种口罩过滤层PP熔喷纤维的塑化和结晶行为。结果表明，PP熔喷塑料试样3显示单峰，PP熔喷纤维试样5呈现3峰，而其余PP熔喷塑料和PP熔喷纤维均呈现双峰；与PP熔喷塑料相比，口罩过滤层PP熔喷纤维的晶体塑化起始温度较低，晶体完全塑化温度区间宽，且偏向低温区方向；PP熔喷塑料试样开始发生结晶的温度较高，口罩过滤层PP熔喷纤维试样开始发生结晶的温度较低，与其晶体塑化起始温度和完全塑化温度偏低一致，这是由于口罩过滤层PP熔喷纤维较大的数均相对分子质量（Mn），使其结晶温度和塑化温度均较高；PP熔喷塑料试样的结晶化温度区间较窄，口罩过滤层PP熔喷纤维试样的结晶化温度区间较宽，表现出不同的结晶形态演变过程，且异相成核过程中晶核的形成和晶体生长均比均相成核过程快。

关键词: 聚丙烯, 熔喷布, 塑化行为, 结晶行为, 演变机理

Abstract:

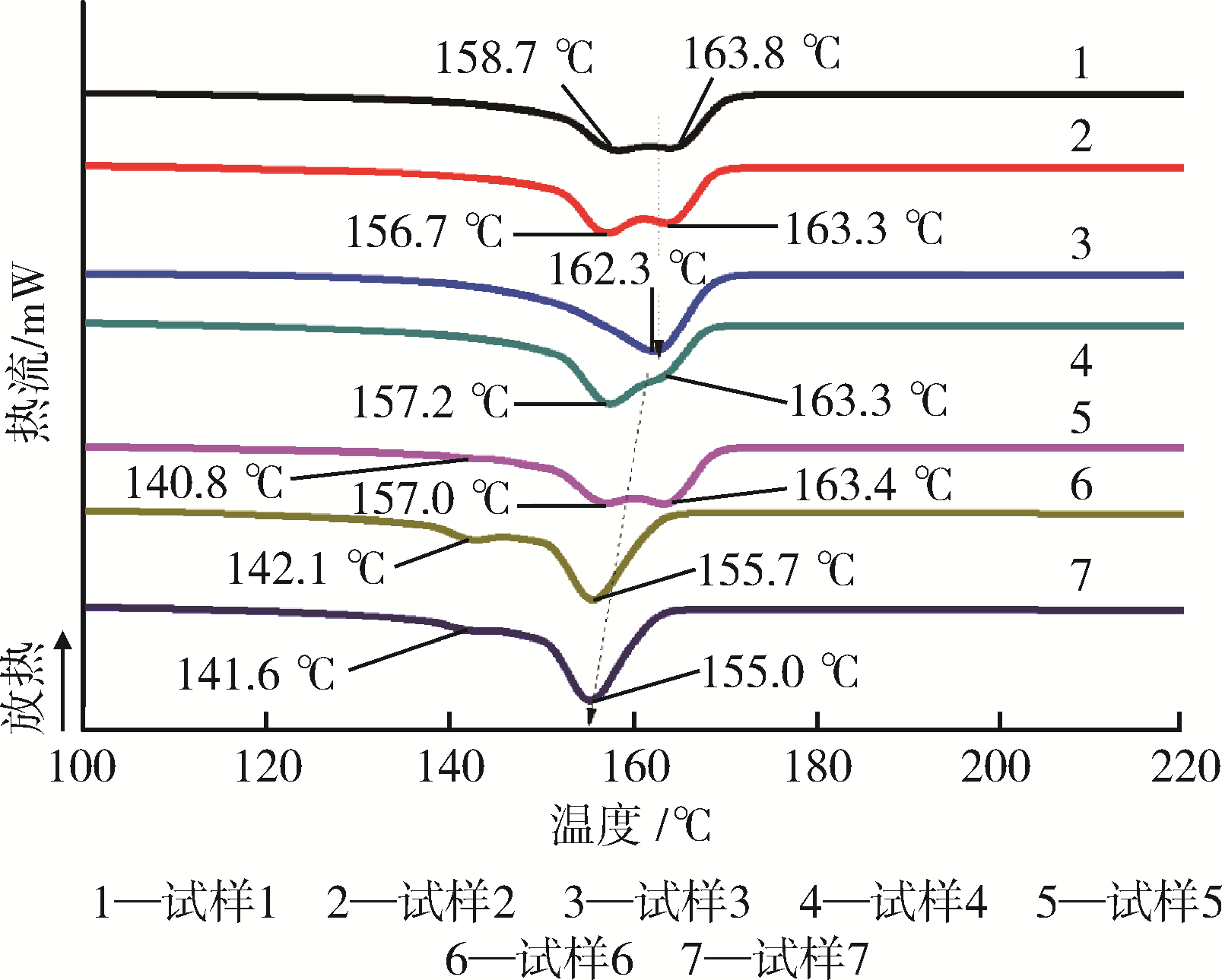

The plasticization and crystallization behaviors of three types of melt blown PP plastics and four types of PP melt blown fibers for mask filter layer were investigated by DSC and hot stage polarizing microscopy. In the DSC thermograms， the sample 3# showed a single melting peak， whereas the sample 1#， sample 2#， sample 4#， sample 6# and sample 7# revealed a bimodal melting behavior. Moreover， the sample 5# showed three peaks in its DSC thermogram. Compared to the PP melt blown plastic samples， the crystal plasticization of the PP melt blown fabric samples for mask filter layer started at a lower initial temperature with a wider temperature range for completing the plasticizing process. The presence of such a temperature range also shifted to a lower temperature zone. The initial crystallization temperature of the PP melt blown plastic samples was higher than that of the PP melt blown fabric ones. These results are consistent with their crystal plasticization temperatures and plasticization completion temperatures. This may due to the fact that the PP melt blown fabric samples for the mask filter layer have higher number average molecular weights， resulting in higher crystallization and plasticization temperatures. The crystallization temperature range of the PP melt blown plastic samples is narrower than that of the PP melt blown cloth ones for the mask filter layer， indicating different evolution mechanisms in their crystalline morphology.

Key words: polypropylene, melt blown fabric, plasticizing behavior, crystallization behavior, evolution mechanism

中图分类号:

京公网安备11010802034965号　 京ICP备13020181号-2
《中国塑料》编辑部 ©2008-2024 版权所有
地址:北京市海淀区阜成路11号　邮编：100048
编辑部：010-68985541　联系信箱：cp@plaschina.com.cn
广告部/发行部：010-68985253　本系统由北京玛格泰克科技发展有限公司设计开发
