Effect of Two⁃Component Small Molecule Alcoholysis Agent on Recycling and Reuse of Waste PU Foam

doi:10.19491/j.issn.1001-9278.2020.10.012

Abstract

Abstract:

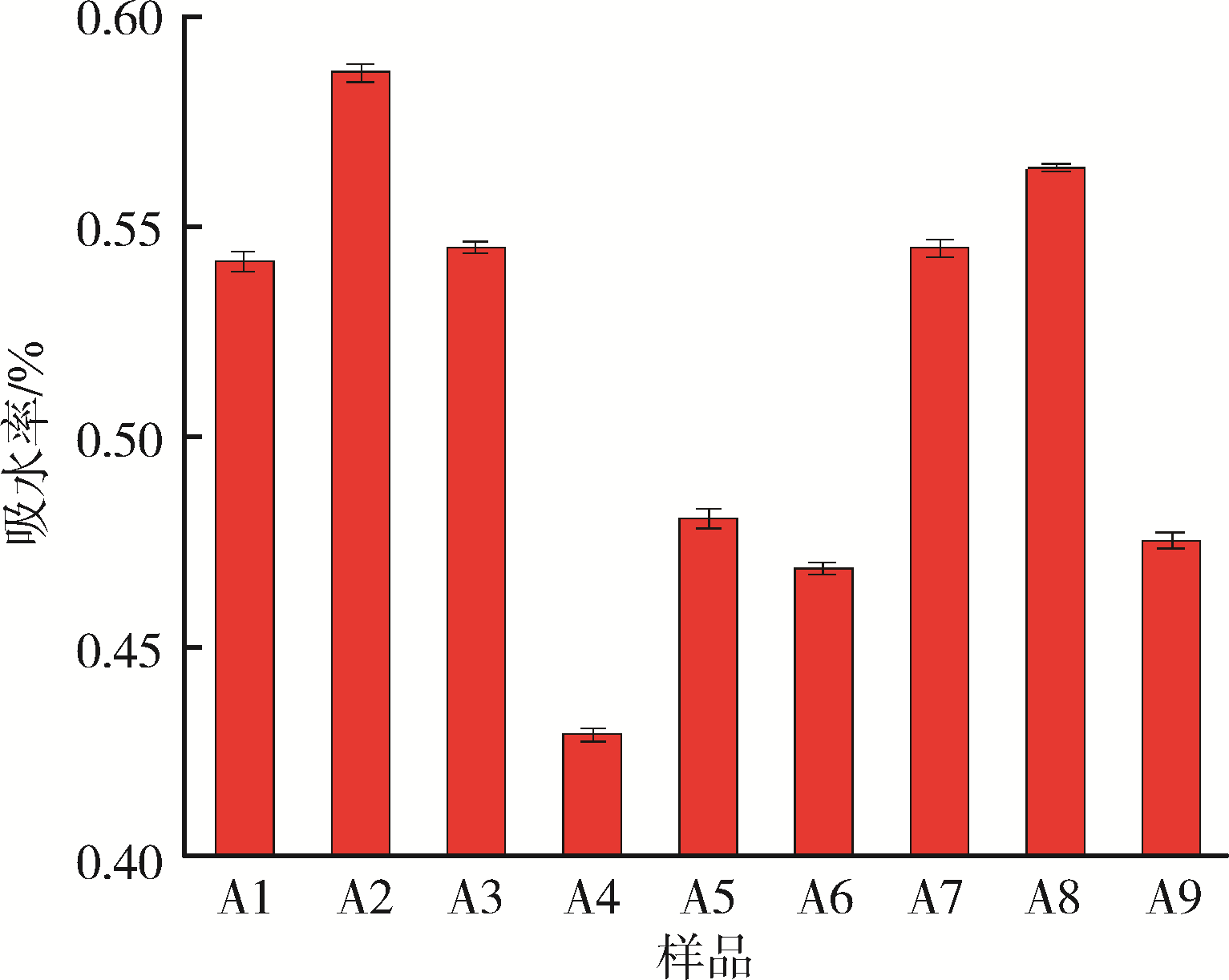

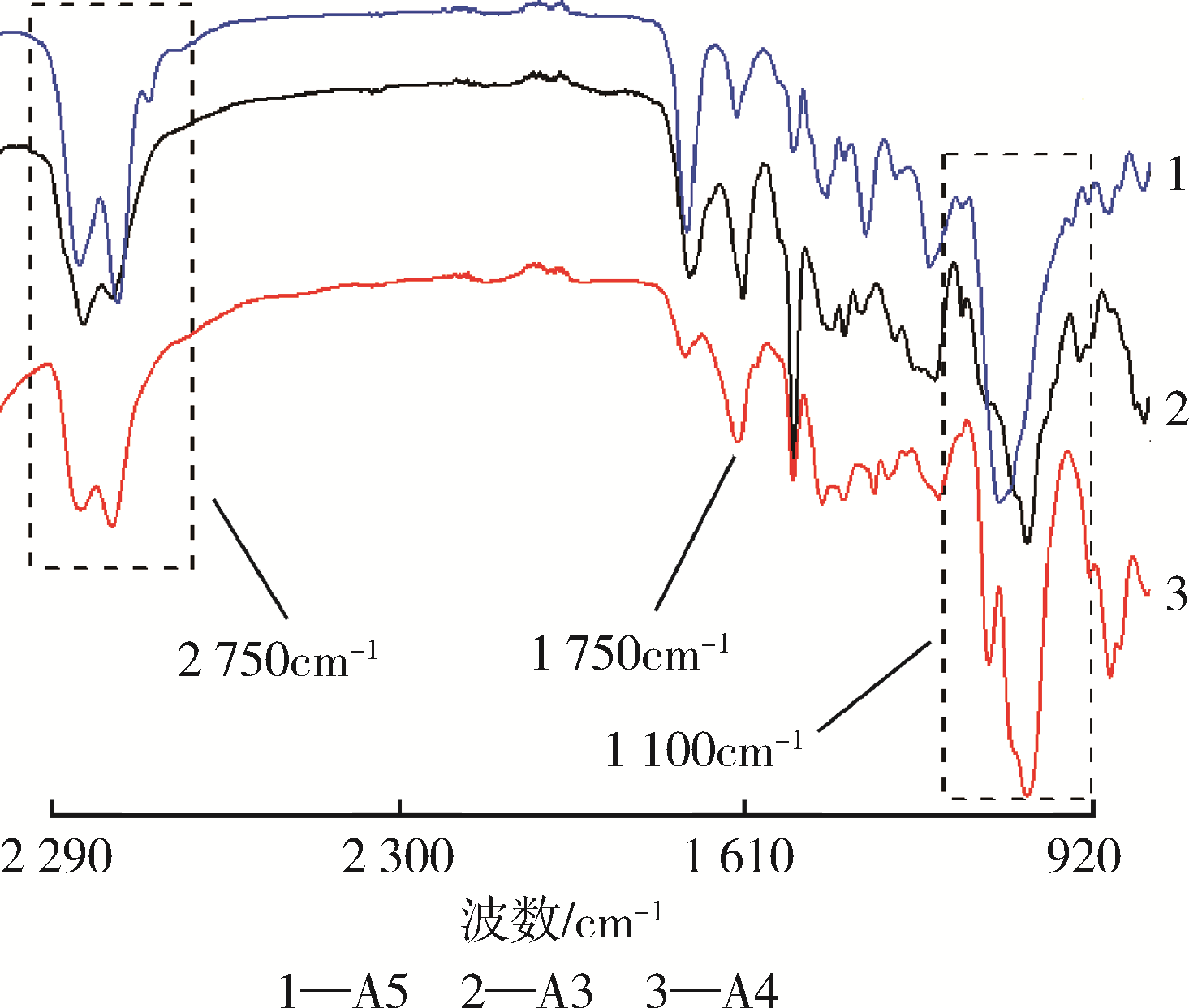

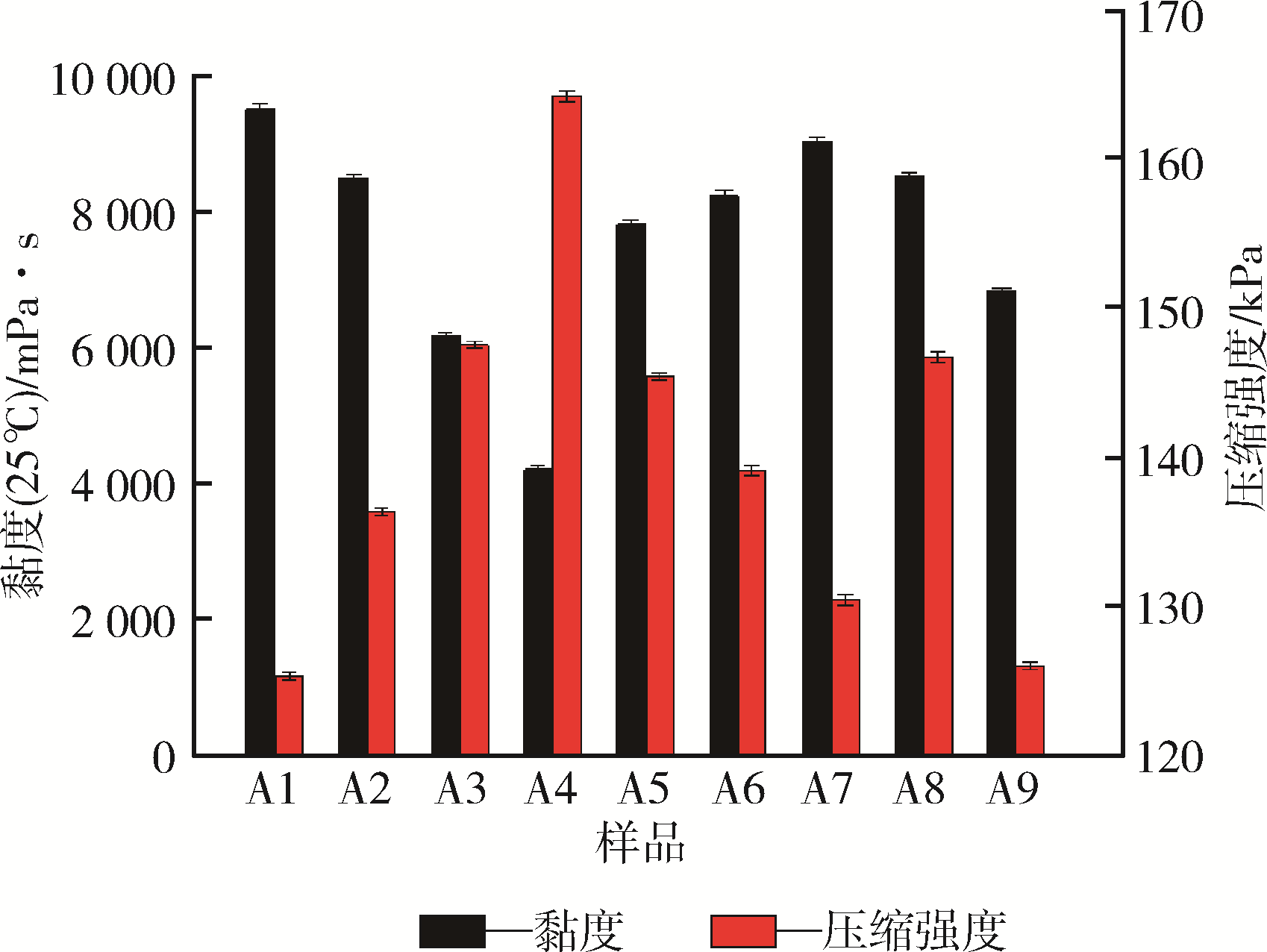

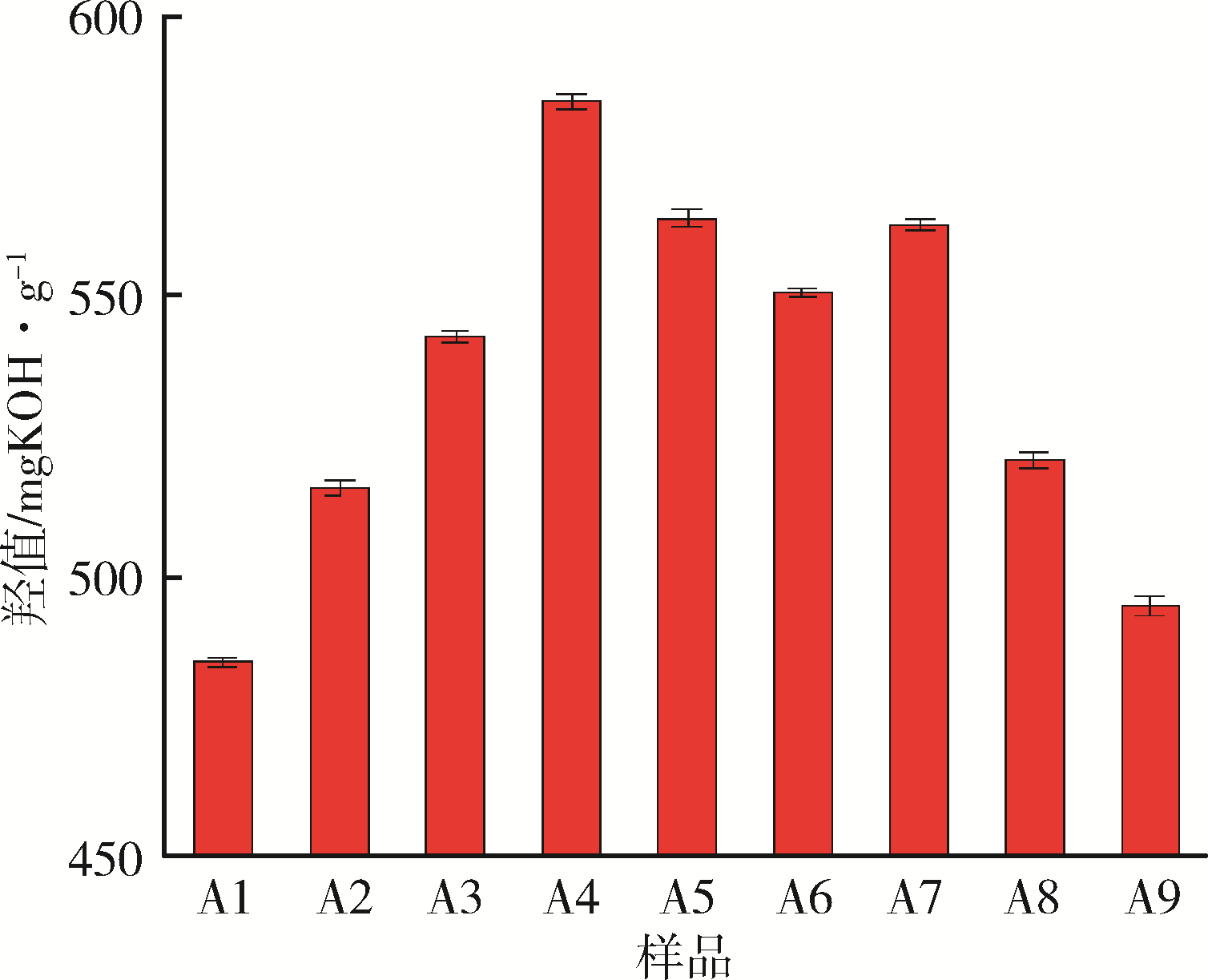

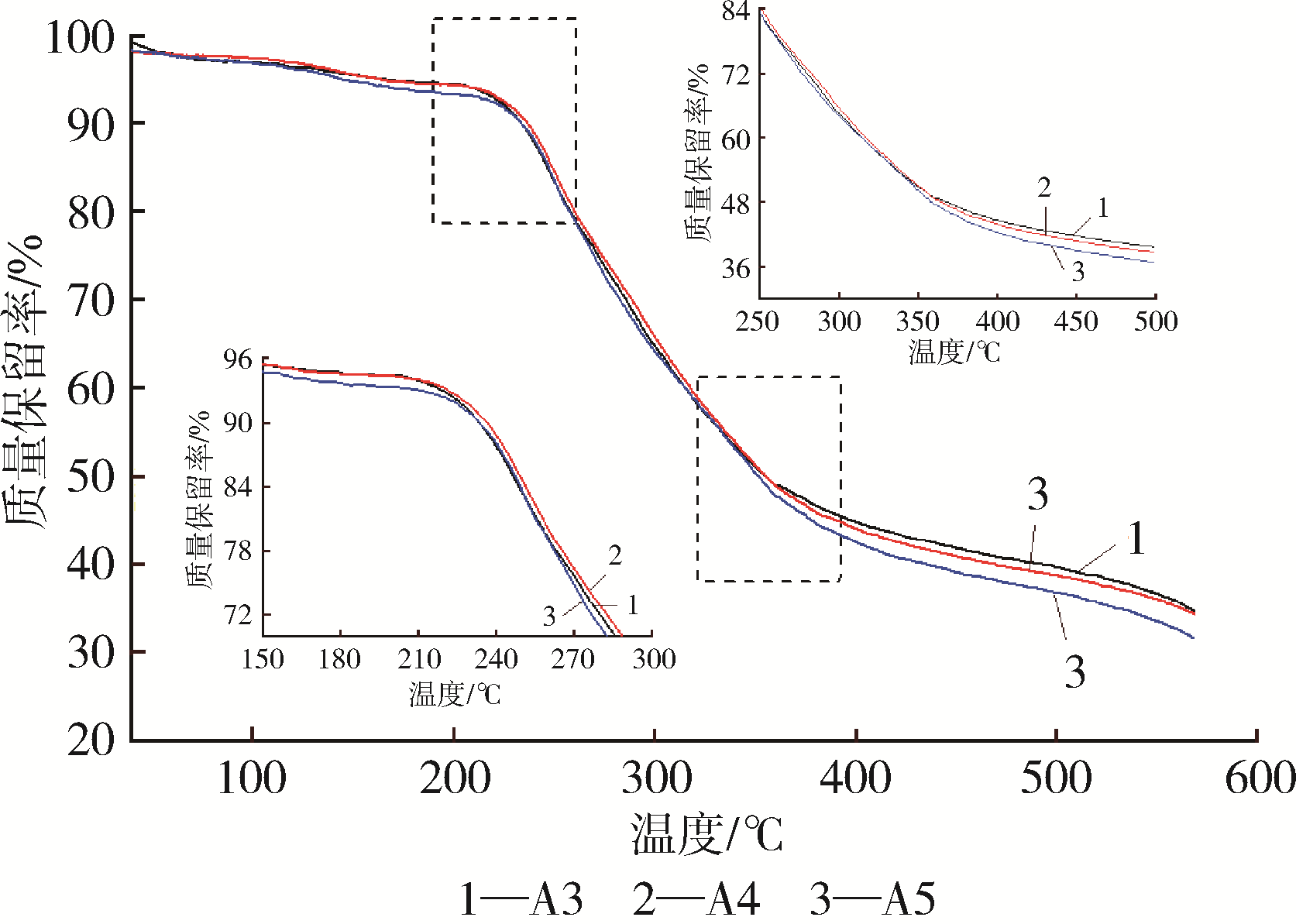

Polyols were obtained by degrading waste PU rigid foams with cross-linking agents and catalysts containing small-molecular alcohols. The resultant degradable materials were blended with polyether polyols， catalysts and blowing agents to prepare white materials and then mixed with black isocyanates to get the regenerated PU hard foam. The rege-nerated PU rigid foam was analyzed in terms of the viscosity， hydroxyl value， density， strength， water absorption， thermal stability， infrared spectroscopy and scanning electron microscopy， and the effect of addition amount of catalyst on the recycling and reuse of the waste PU rigid foams was investigated. The results indicated that the waste PU rigid foams achieved the optimum degradation effect when 0.9 g of KOH catalyst was added. The density of regenerated PU hard foam was 37.6 kg/cm³， its compressive strength was 164.2 kPa， its thermal conductivity was 0.015 24 W/（m·K ）， and the water absorption rate was 0.429 5 %.

Key words: waste polyurethane rigid foam, small molecule alcohol, alcoholysis, foaming, additive

CLC Number:

TQ 323.8

GU Xiaohua, LYU Shiwei, LUO Hongxiang, LI Yan. Effect of Two⁃Component Small Molecule Alcoholysis Agent on Recycling and Reuse of Waste PU Foam[J]. China Plastics, 2020, 34(10): 69-74.

Figures/Tables 7

References 12

1	王静荣，陈大俊. 聚氨醋废弃物的化学降解机理［J］. 高分子通报，2015，1（2）：85⁃90.
	WANG J R， CHEN D J. The Chemical Degradation Mechanism of Polyurethane Vinegar Waste ［J］. Bulletin of High Officials， 2015， 1（2）： 85⁃90.
2	卢灿辉，张新星，梁梅. 难回收废弃交联高份子材料再生利用新技术［J］. 国外塑料， 2015， 26（2）：66⁃69.
	LU C H， ZHANG X X， LIANG M. New Technologies for Recycling of Waste Cross⁃linked High Molecular Materials that Are Difficult to Recycle［J］. Foreign Plastics， 2015， 26（2）： 66⁃69.
3	江涛，杨光，武丽梅. 聚酯废料化学解聚新工艺［J］. 重庆大学学报：自然科学版， 2016， 23（5）：70⁃73.
	JIANG T， YANG G， WU L M. New Technology of Chemical Depolymerization of Polyester Waste ［J］. Journal of Chongqing University： Natural Science Edition， 2016， 23（5）： 70⁃73.
4	杨粉蓉. 软质聚氨酯废料的回收与再利用研究［D］.西北大学，2011. 32（1）：12⁃18.
5	徐文超，宋文生，朱长春，等.聚氨酯的回收再利用［J］.软泡，2008，18（2）：65⁃68.
	XU W C， SONG W S， ZHU C C， et al. Polyurethane recovery and Reuse ［J］. Soft foam， 2008， 18（2）： 65⁃68.
6	葛志强，徐浩星.聚氨酯废弃物的处理和回收利用［J］.化学推进剂与高分子材料，2008，6（1）： 25⁃28.
	GE Z Q， XU H X. Treatment and Recycling of Polyurethane Waste ［J］. Chemical Propellants and Polymer Materials， 2008， 6（1）： 25⁃28.
7	胡朝辉，王小妹，许玉良.醇解废旧聚氨酯回收多元醇研究进展［J］.聚氨酯工业，2008，23（4）： 9⁃11.
	HU C H， WANG X M， XU Y L. Research Progress of Alcohol Recovery from Waste Polyurethane for Alcohol Recovery ［J］. Polyurethane Industry， 2008， 23（4）： 9⁃11.
8	刁青. 废旧聚氨酯材料的醇解研究［D］.复旦大学，2012. 18（1）： 19⁃28.
9	山柏芳.绿色化学发展及相关技术［J］.化工时刊，2015，29（8）： 32⁃34.
	SHAN B F. Green Chemistry Development and Related Technologies ［J］. Chemical Industry Times， 2015， 29 （8）： 32⁃34.
10	王西峰，胡晓莲.超临界水氧化废旧聚氨酯的研究［J］.环境工程，2007（5）： 61⁃63.
	WANG X F， HU X L. Study on Supercritical Water Oxidation of Waste Polyurethane［J］. Environmental Engineering， 2007（5）： 61⁃63.
11	BEHRENDT G， NABER B W. The Chemical Recycling of Poly［J］. J Univ Chem Technol Metallurgy， 2009，44（1）： 3⁃23.
12	MURAI M， TAKAGI T. Recycling of Polyurethane Foam Refrigerator Insulation［J］. Mitsubishi Electr Adv，2003，10： 77–85.

名称	黏度（25 ℃）/mPa·s	压缩强度/kPa	吸水率/%	羟值/mgKOH·g^-1	泡孔参数闭孔率/%	导热系数/W·（m·K）^-1
A1	9 532	123.5	0.558 6	485	86.7	0.018 28
A2	8 329	133.3	0.552 5	516	88.4	0.016 89
A3	9 302	123.8	0.561 2	543	95.6	0.016 14
A4	10 230	108.3	0.564 2	585	98.2	0.015 24
A5	9 430	115.4	0.532 6	564	95.5	0.017 47
A6	8 802	125.5	0.522 1	551	89.4	0.018 75
A7	10 990	106.2	0.544 1	563	84.7	0.018 72
A8	11 200	103.9	0.562 3	521	86.5	0.019 85
A9	9 232	112..2	0.585 4	495	85.2	0.021 85

名称	黏度（25 ℃）/mPa·s	压缩强度/kPa	吸水率/%	羟值/mgKOH·g^-1	泡孔参数闭孔率/%	导热系数/W·（m·K）^-1
A1	9 532	123.5	0.558 6	485	86.7	0.018 28
A2	8 329	133.3	0.552 5	516	88.4	0.016 89
A3	9 302	123.8	0.561 2	543	95.6	0.016 14
A4	10 230	108.3	0.564 2	585	98.2	0.015 24
A5	9 430	115.4	0.532 6	564	95.5	0.017 47
A6	8 802	125.5	0.522 1	551	89.4	0.018 75
A7	10 990	106.2	0.544 1	563	84.7	0.018 72
A8	11 200	103.9	0.562 3	521	86.5	0.019 85
A9	9 232	112..2	0.585 4	495	85.2	0.021 85
