Synthesis and Properties of PAAS/PVA/Zn0.2Fe2.8O4 Magnetic Composite Hydrogels

doi:10.19491/j.issn.1001-9278.2021.04.003

Abstract

Abstract:

The citric acid-coated zinc-doped nano?ferroferric oxide（Zn_0.2Fe_2.8O₄，ZFO）nanoparticles with good dispersibility in water were prepared by a chemical coprecipitation method and then characterized by X-ray diffractometer， transmission electron microscope and comprehensive physical property tester. The results indicated that the nanoparticles presented a relatively uniform distribution with a particle size of 3~8 nm as well as saturation magnetization up to 60 emu/g. A new type of PVA/PAAS/ZFO interpenetrating network hydrogels were prepared through the initiates polymerization of sodium acrylate by crosslinking in the aqueous phase， followed by freezing and thawing cross-linking. It was found that the introduction of nano-ZFO particles increased the tensile strength of the hydrogels by about 1.5 times and also improved their thermal stability. Moreover， the addition of nano-ZFO particles accelerated the electrical response rate and strength of hydrogels.

Key words: sodium polyacrylate, polyvinyl alcohol, zinc-doped nano-ferroferric oxide, electrical response

CLC Number:

TQ 325.9

WU Shouang, TU Zheng, LIU Beijun, GONG Xinghou. Synthesis and Properties of PAAS/PVA/Zn_0.2Fe_2.8O₄ Magnetic Composite Hydrogels[J]. China Plastics, 2021, 35(4): 12-17.

Figures/Tables 5

Fig.1. Analysis of the morphology and magnetic properties of nanoparticles

Fig.2. TEM image of PAAS/PVA/ZFO composite hydrogel containing 3 %ZFO particles

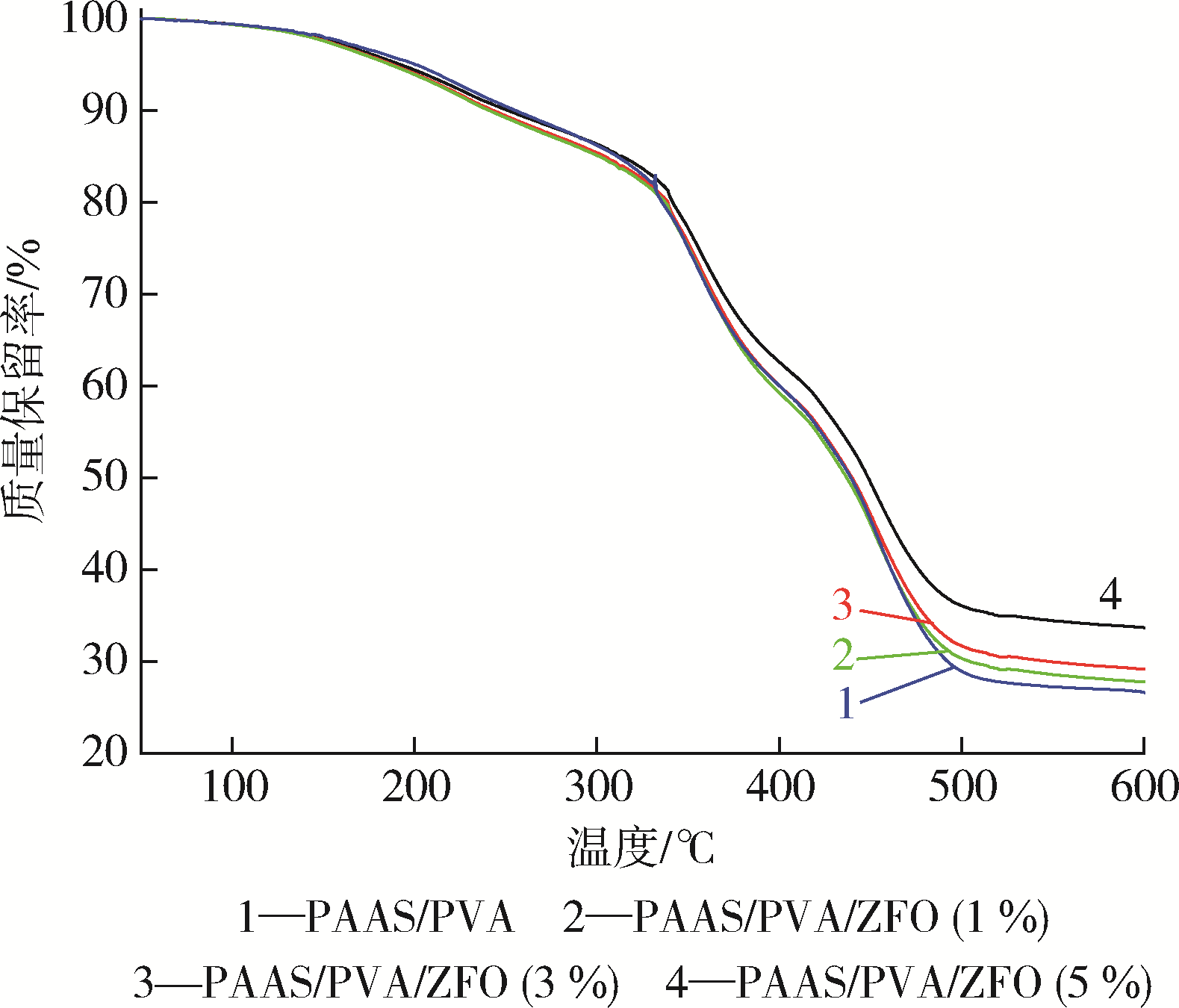

Fig.3. TG curves of PAAS/PVA and PAAS/PVA/Zn0.2Fe2.8O4 composite hydrogel

ZFO含量/%	拉伸强度/kPa	断裂伸长率/%
0.0	112±38	178±21
0.5	166±33	168±23
1.0	220±30	185±25
3.0	279±40	143±32
5.0	211±45	132±30

Tab. 1. Tensile strength and elongation at break of the compo?site hydrogels with different ZFO contents

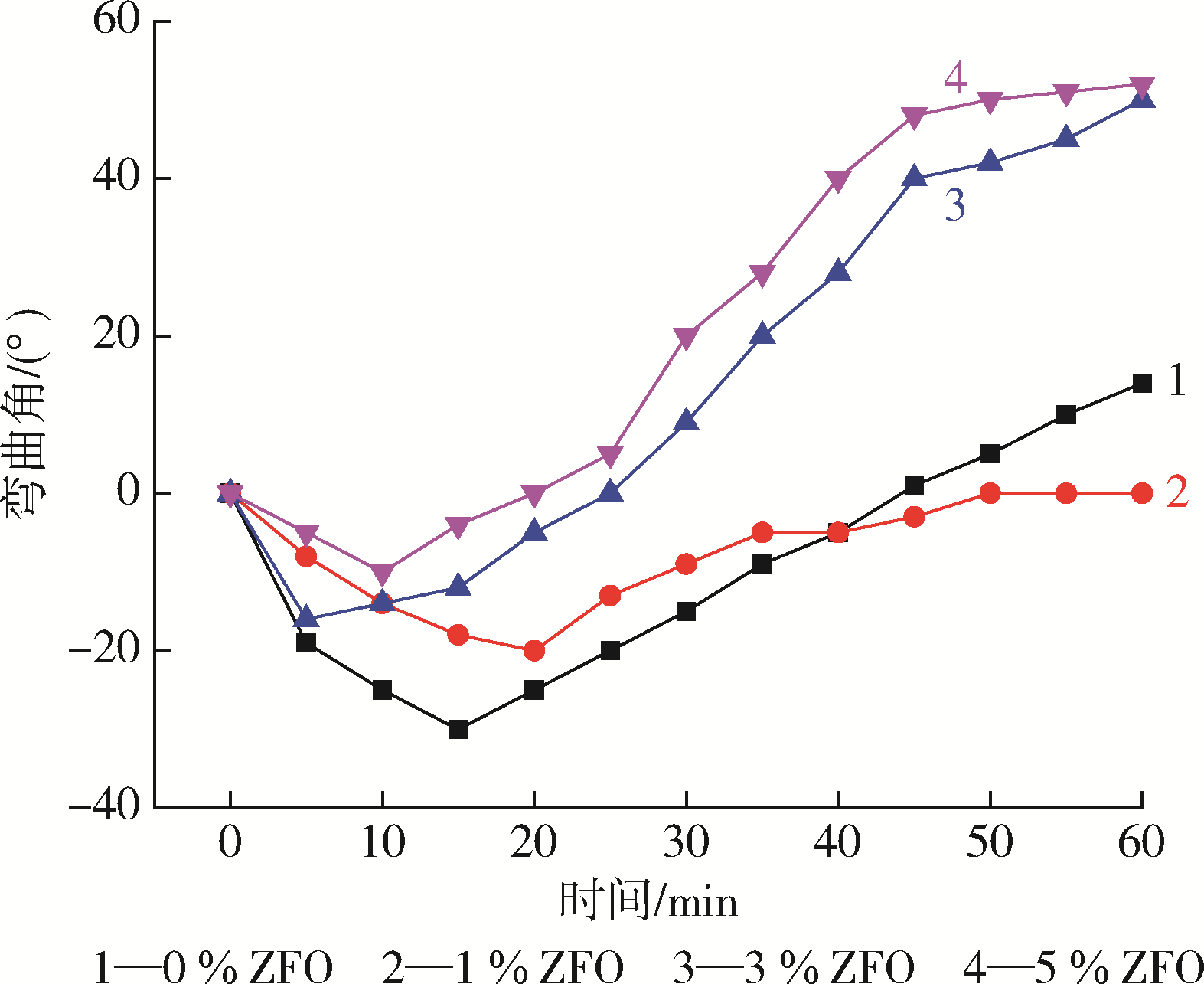

Fig.4. Electrical response behavior of hydrogels with different ZFO contents

References 17

1	EIVAZZADEH⁃KEIHAN R， RADINEKIYAN F， MALEKI A， et al. A Novel Biocompatible Core⁃Shell Magnetic Nanocomposite Based on Cross⁃Linked Chitosan Hydrogels for in Vitro Hyperthermia of Cancer Therapy［J］. International Journal of Biological Macromolecules， 2019， 140： 407⁃414.
2	LIU Q， LIU M， Li H. A Transient Simulation to Predict the Kinetic Behavior of Magnetic⁃Sensitive Hydrogel Responsive to Magnetic Stimulus［J］. International Journal of Mechanical Sciences， 2020， 182： 105765.
3	ZHANG S， GAO H， GUO P ， et al. Fabrication and Extrusion of the PAAm⁃SAlg Hydrogels with Magnetic Particles［J］. Colloids and Surfaces A： Physicochemical and Engineering Aspects， 2020， 603： 125280.
4	GARNER B W， CAI T， GHOSH S， et al. Refractive Index Change Due to Volume⁃Phase Transition in Polyacrylamide Gel Nanospheres for Optoelectronics and Bio⁃Photonics［J］. Applied Physics Express， 2009， 2（5）： 057001.
5	CHO Y， SHI R， IVANISEVIC A， et al. A Mesoporous Silica Nanosphere⁃Based Drug Delivery System Using An Electrically Conducting Polymer［J］. Nanotechnology， 2009， 20（27）： 275102.
6	KIM D， BEEBE D J. Hydrogel⁃Based Reconfigurable Components for Microfluidic Devices［J］. Lab on A Chip， 2007， 7（2）： 193⁃198.
7	WANG J， CHEN Z， MAUK M， et al. Self⁃Actuated， Thermo⁃Responsive Hydrogel Valves for Lab on A Chip［J］. Biomedical Microdevices， 2005， 7（4）： 313⁃322.
8	BASHIR R. BioMEMS： State⁃of⁃the⁃Art in Detection， Opportunities and Prospects［J］. Advanced Drug Delivery Reviews， 2004， 56（11）： 1 565⁃1 586.
9	SATARKAR N S， HILT J Z. Magnetic Hydrogel Nanocomposites for Remote Controlled Pulsatile Drug Release［J］. Journal of Controlled Release， 2008， 130（3）： 246⁃251.
10	SATARKAR N S， HILT J Z. Hydrogel Nanocomposites as Remote⁃Controlled Biomaterials［J］. Acta Biomaterialia， 2008， 4（1）： 11⁃16.
11	涂征，袁月，裴志，等. 聚乙烯醇/聚丙烯酸钠复合水凝胶的制备及其电响应行为［J］. 中国塑料， 2019， 33（5）： 18⁃24.
	TU Z， YUAN Y， PEI Z， et al. Preparation and Electrical Response Behavior of PAAS/PVA Composite Hydrogels［J］. China Plastic， 2019， 33（5）： 18⁃24.
12	李振湖，马玉荣，齐利民. 钴掺杂的磁性氧化铁纳米粒子的可控合成［J］. 物理化学学报， 2012（10）： 2 493⁃2 499.
	LI Z H， MA Y R， QI L M. Controlled Synthesis of Cobalt⁃Doped Magnetic Iron Oxide Nanoparticles［J］. Journal of Physical Chemistry， 2（10）： 2493⁃2499.
13	WANG S， LI H. Structure Directed Reversible Adsorption of Organic Dye on Mesoporous Silica in Aqueous Solution［J］. Microporous and Mesoporous Materials， 2006， 97（1）： 21⁃26.
14	ZHANG J， LI B， YANG W， et al. Synthesis of Magnetic Fe₃O₄@hierarchical Hollow Silica Nanospheres for Efficient Removal of Methylene Blue from Aqueous Solutions［J］. Industrial & Engineering Chemistry Research， 2014， 53（26）： 10 629⁃10 636.
15	刘翠云，高喜平，刘捷，等. 聚乙烯醇/明胶/氧化石墨烯纳米复合水凝胶的制备及性能［J］. 高分子材料科学与工程， 2015， 31（008）：156⁃161.
	LIU C， GAO X， LIU J， et al. Preparation and Properties of Polyvinyl Alcohol/Gelatin/Graphene Oxide Nanocomposite Hydrogels［J］. Polymer Materials Science & engineering， 2015， 31（008）： 156⁃161.
16	BARROS G G D， RICARDO N M P， VIEIRA V W， et al. Effect of Iron Oxides on the Thermal Degradation of Natural Rubber from Manihot Glaziovii［J］. Journal of Applied Polymer Science， 1992， 44（8）：1 371⁃1 376.
17	SHIGA T， HIROSE Y， OKADA A， et al. Deformation of Ionic Polymer Gel Films in Electric Fields［J］. Journal of Materials Science， 1994， 29（21）：5 715⁃5 718.
