Effect of Chitosan on Properties of Edible Corn Starch Films

doi:10.19491/j.issn.1001-9278.2021.04.007

Abstract

Abstract:

Chitosan/corn starch composite edible films were prepared by a solution-casting method using corn starch as a raw material in the presence of plasticizer glycerin. Their membrane structure and microscopic morphology were characterized using Fourier-transform infrared spectroscopy and scanning electron microscopy. The effects of chitosan content on the mechanical properties， water vapor permeability， oil resistance and antibacterial properties of the resultant films were investigated. The results indicated that chitosan not only improved the mechanical properties of the films but also enhanced their water-proof and oil-proof properties. The membrane obtained at a chitosan/starch mass ratio of 1/3 exhibited a uniform structure， and it tensile strength and water vapor transmission rate reached 21.54 MPa and 4.52×10^-5 g·mm^-1·d^-1， respectively. The membranes could inhibit the growth of Escherichia coli and Staphylococcus aureus， with antibacterial rates of 43.55 % and 32.89 %， respectively.

Key words: chitosan, corn starch, antibacterial behavior, physical property

CLC Number:

O 636.1⁺2

CHENG Long, HAO Yanling, SONG Xiaoshuang. Effect of Chitosan on Properties of Edible Corn Starch Films[J]. China Plastics, 2021, 35(4): 35-41.

Figures/Tables 9

样品编号

壳聚糖质量/g

淀粉与壳聚糖质量比

CS?C6/1

CS?C5/1

CS?C4/1

CS?C3/1

CS?C2/1

0.50

0.60

0.75

1.00

1.50

3∶0

6∶1

5∶1

4∶1

3∶1

2∶1

Tab.1. Sample symbols

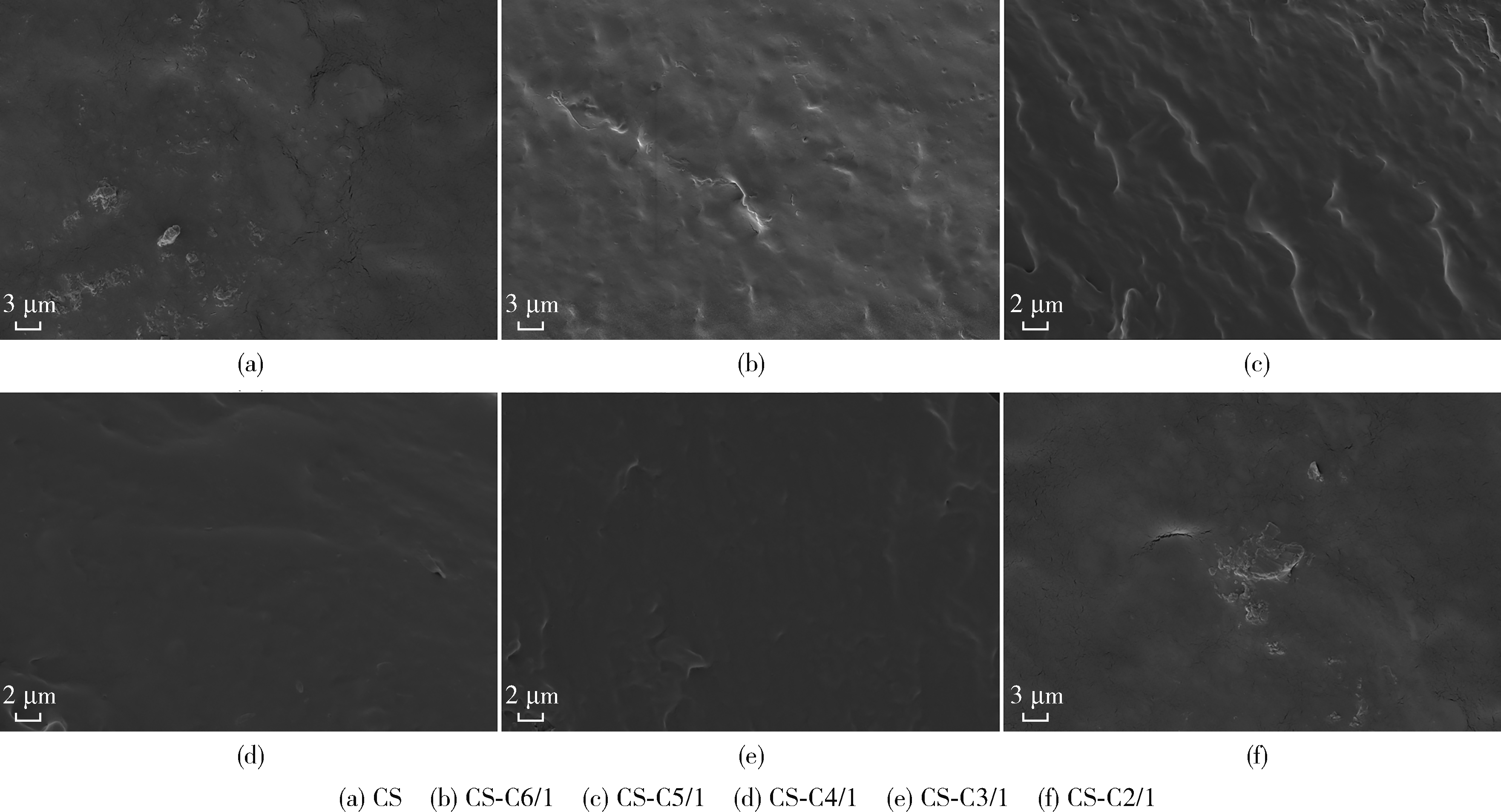

Fig.1. SEM of the surfaces of the films

Fig.2. SEM of the cross?sections of the films

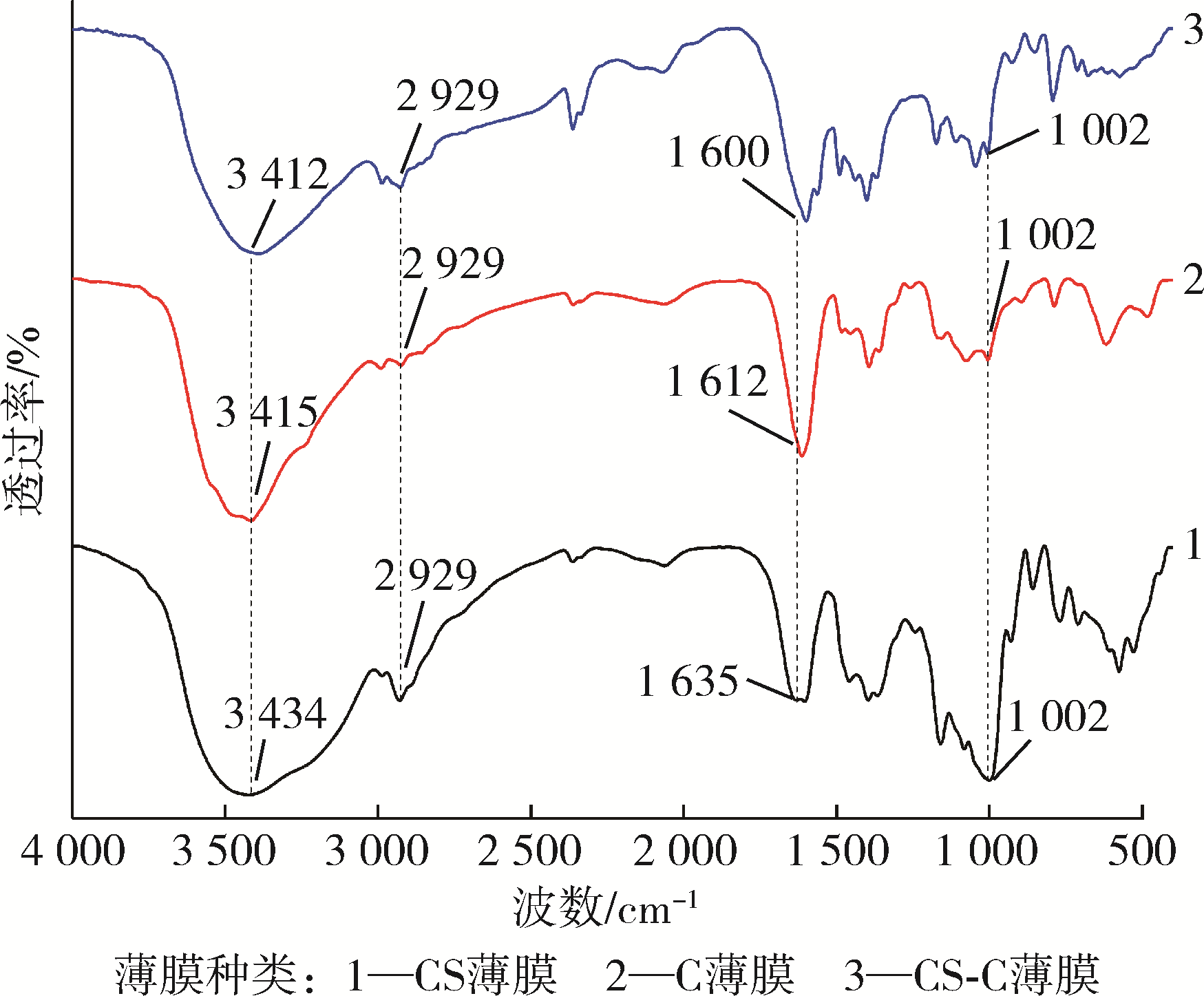

Fig.3. FTIR spectra of the films

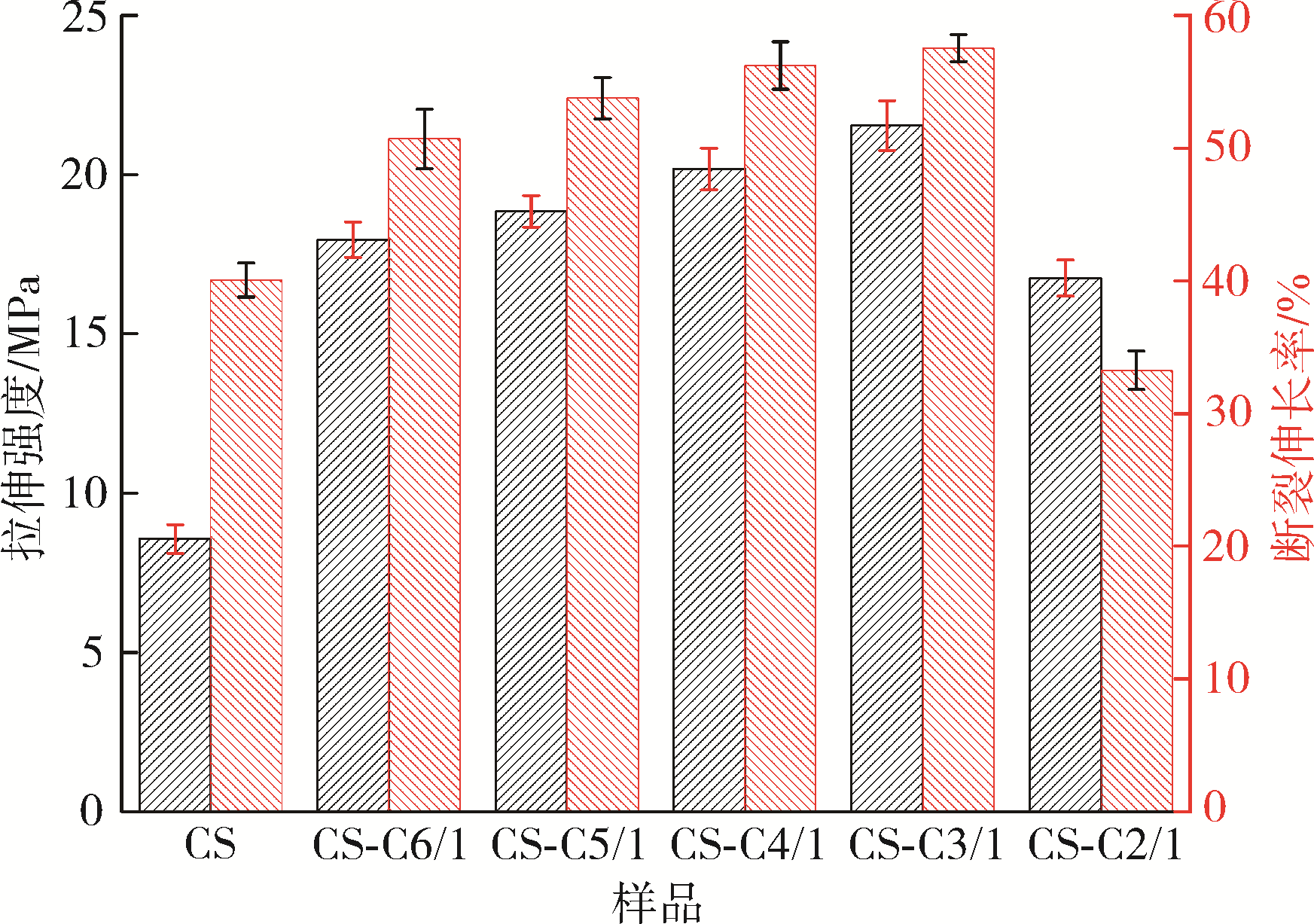

Fig.4. Tensile strength and elongation at break of the films

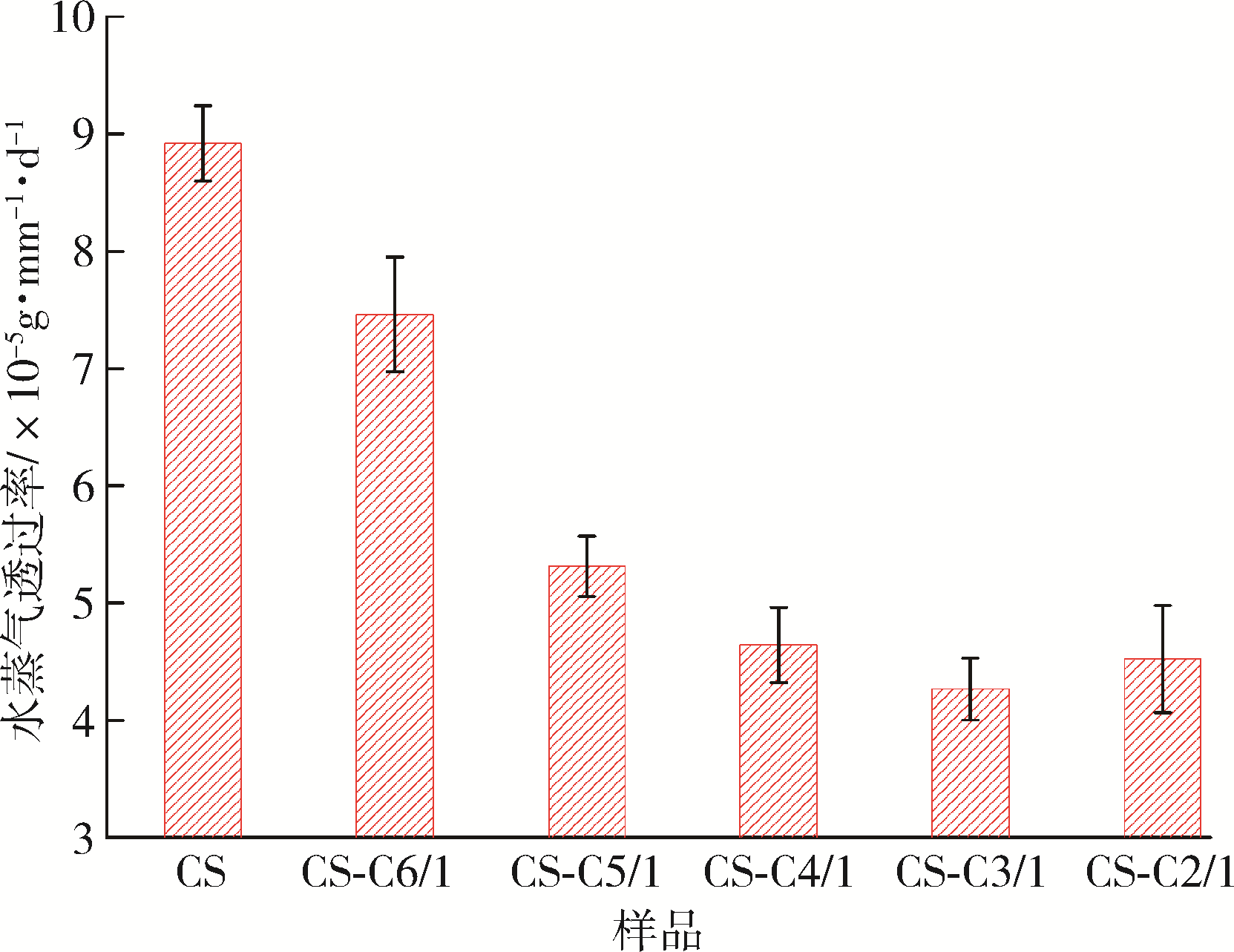

Fig.5. Water vapour transmittance of the films

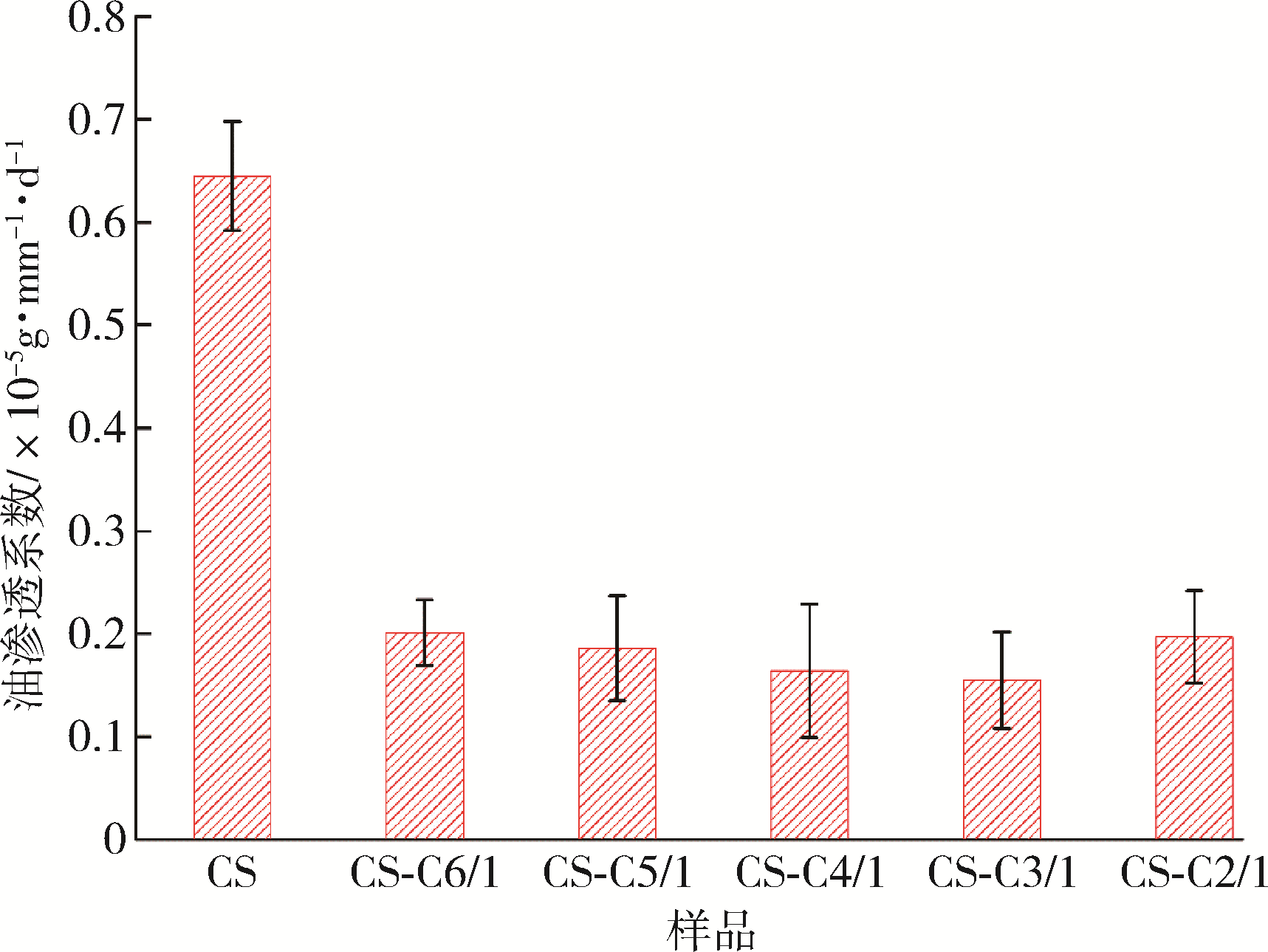

Fig.6. Oil permeability coefficients of the films

Fig.7. Bacteriostatic ring in the films

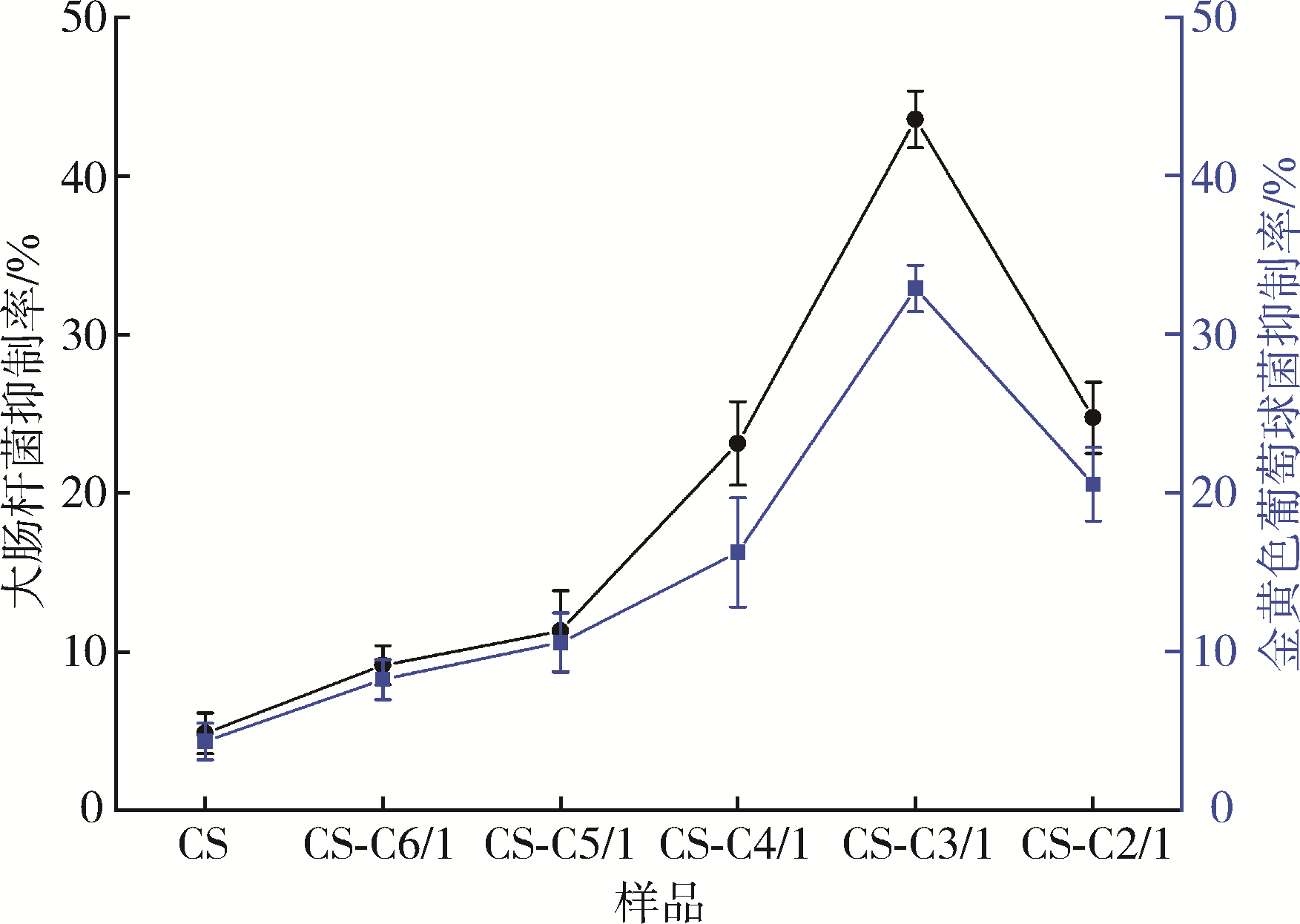

Fig.8. Bacteriostatic activity of the films

References 18

1	TOKIWA Y， CALABIA B， UGWU C， et al. Biodegradability of Plastics［J］. International Journal of Molecular Sciences， 2009， 10（09）： 3 722⁃3 742.
2	韩永生，赵丽美. 变性淀粉⁃壳聚糖可食性膜的包装性能研究［J］. 包装工程， 2009， 30（12）： 34⁃36.
	HAN Y S， ZHAO L M. Study of Packaging Performance of Modified Starch⁃Chitosan Edible Film［J］. Packaging Engineering， 2009， 30（12）： 34⁃36.
3	司徒文贝，李珊珊，李佳莹，等. 具有不同微结构的壳聚糖/淀粉复合材料的性能及其应用［J］. 现代食品科技， 2019， 241（09）： 146⁃152.
	SITU W B， LI S S， LI J Y， et al. The Property of Chitosan With Different Microstructure/Starch Compositeand Its Application［J］. Modern Food Science and Tehnology， 2019， 241（09）： 146⁃152.
4	杨婧雯，李湘琪，李珊珊，等. 不同淀粉的壳聚糖/淀粉复合薄膜结构性能比较［J］. 现代食品科技， 2020， 36（6）：68⁃74.
	YANG J W， LI X Q， LI S S， et al. Structure and Property of Chitosan/Starch Composite Film with Different Kinds of Starch［J］. Modern Food Science and Tehnology， 2020， 36（6）： 68⁃74.
5	徐珍珍，祝志峰，张朝辉，等. 季铵醚化⁃辛烯基琥珀酸酯化淀粉与PVA共混膜力学性能研究［J］. 中国塑料， 2018， 32（11）： 66⁃70.
	XU Z Z， ZHU Z F， ZHANG C H， et al. Study on Me⁃chanical Properties of Quaternized and Octenylsuccinylated Starch/PVA Blend Films［J］. China Plastics， 2018， 32（11）： 66⁃70.
6	赵郁聪，靳刘萍，陈满儒，等. 甘油对壳聚糖⁃淀粉复合可食性膜力学性能的影响［J］. 包装工程， 2019， 40（21）： 68⁃73.
	ZHAO Y C， JIN L P， CHEN M R， et al. Effect of Glycerol on Mechanical Properties of Chitosan⁃Starch Compo⁃site Edible Film［J］. Packaging Engineering， 2019， 40（21）： 68⁃73.
7	塑料拉伸性能的测试第3部分：薄膜和薄片的试验条件［S］. 中国标准出版社：国家质量监督检验检疫总局和国家标准化管理委员会， 2006.
8	钟秋平，夏文水. 壳聚糖木薯淀粉明胶复合可食抗菌保鲜膜性能的研究［J］. 食品科学， 2006， 27（06）： 59⁃64.
	ZHONG Q P， XIA W S. Study on Properties of Edible Preservative Compound Films Made of Chitosa/Cassava Starch/Gelatin［J］. Food Science， 2006， 27（06）： 59⁃64.
9	WANG Y， WU J Q， WAN Q， et al. Preparation of Chitosan/Polyvinyl Alcohol Electrospinning Nano⁃Membranes Using the Green Solvent， Plasma Acid［J］. Journal of Macromolecularence Part B， 2020：1⁃16.
10	BONILLA J， ATARES L， VARGAS M， et al. Properties of Wheat Starch Film⁃Forming Dispersions and Films as Affected by Chitosan Addition［J］. Journal of Food Engineering， 2013， 114（3）：303⁃312.
11	武媛媛. 改性纳米二氧化钛/变性淀粉/壳聚糖膜与纸复合材料制备及复合强度研究［D］. 长春：吉林大学， 2018.
12	REN L， YAN X， ZHOU J， et al. Influence of Chitosan Concentration on Mechanical and Barrier Properties of Corn Starch/Chitosan Films［J］. International Journal of Biological Macromolecules， 2017，（105）： 1 636⁃1 643.
13	XU Y X， KIM K M， HANNA M A， et al. Chitosan–Starch Composite Film： Preparation and Characterization［J］. Industrial Crops and Products， 2005，（21）： 185⁃192.
14	陈琼，邱礼平，马细兰. 高直链玉米淀粉⁃壳聚糖复合膜透气透水性能研究［J］. 现代食品科技， 2011， 27（8）： 891⁃895.
	CHEN Q， QIU L P， MA X L. Gas Transmission and Water Vapor Transmission Properties of High⁃Amylose Corn Starch/Chitosan Edible［J］. Modern Food Science and Tehnology， 2011， 27（8）： 891⁃895.
15	胡芳，张惠君，王亮，等. 壳聚糖⁃淀粉涂布抗菌纸的制备及性能研究［J］. 中国造纸， 2013， 32（02）： 1⁃5.
	HU F， ZHANG H J， WANG L， et al. Preparation and Properties of Antibacterial Paper with Chitosan⁃starch Coating［J］. China Pulp & Paper， 2013， 32（02）： 1⁃5.
16	刘楠，陈西广，刘成圣，等. 壳聚糖抑菌性能研究进展［J］. 海洋科学， 2005， 29（10）： 90⁃92.
	LU N， CHEN X G， LIU C S， et al. Development of Antibacterial Activity of Chitosan［J］. Marine Sciences， 2005， 29（10）： 90⁃92.
17	郑连英，朱江峰，孙昆山. 壳聚糖的抗菌性能研究［J］. 材料科学与工程， 2000， 18（2）： 22⁃24.
	ZHENG L Y， ZHU J F， SUN K S. Development of Antibacterial Activity of Chitosan［J］. Materials Science and Engineering， 2000， 18（2）： 22⁃24.
18	VASCONEZ M B， FLORES S K， CAMPOS C A， et al. Antimicrobial Activity and Physical Properties of Chitosan–Tapioca Starch Based Edible Films and Coatings［J］. Food Research International， 2009， 42（7）： 762⁃769.
