Effects of chitosan on thermal stability of PVC

doi:10.19491/j.issn.1001-9278.2022.07.010

Abstract

Abstract:

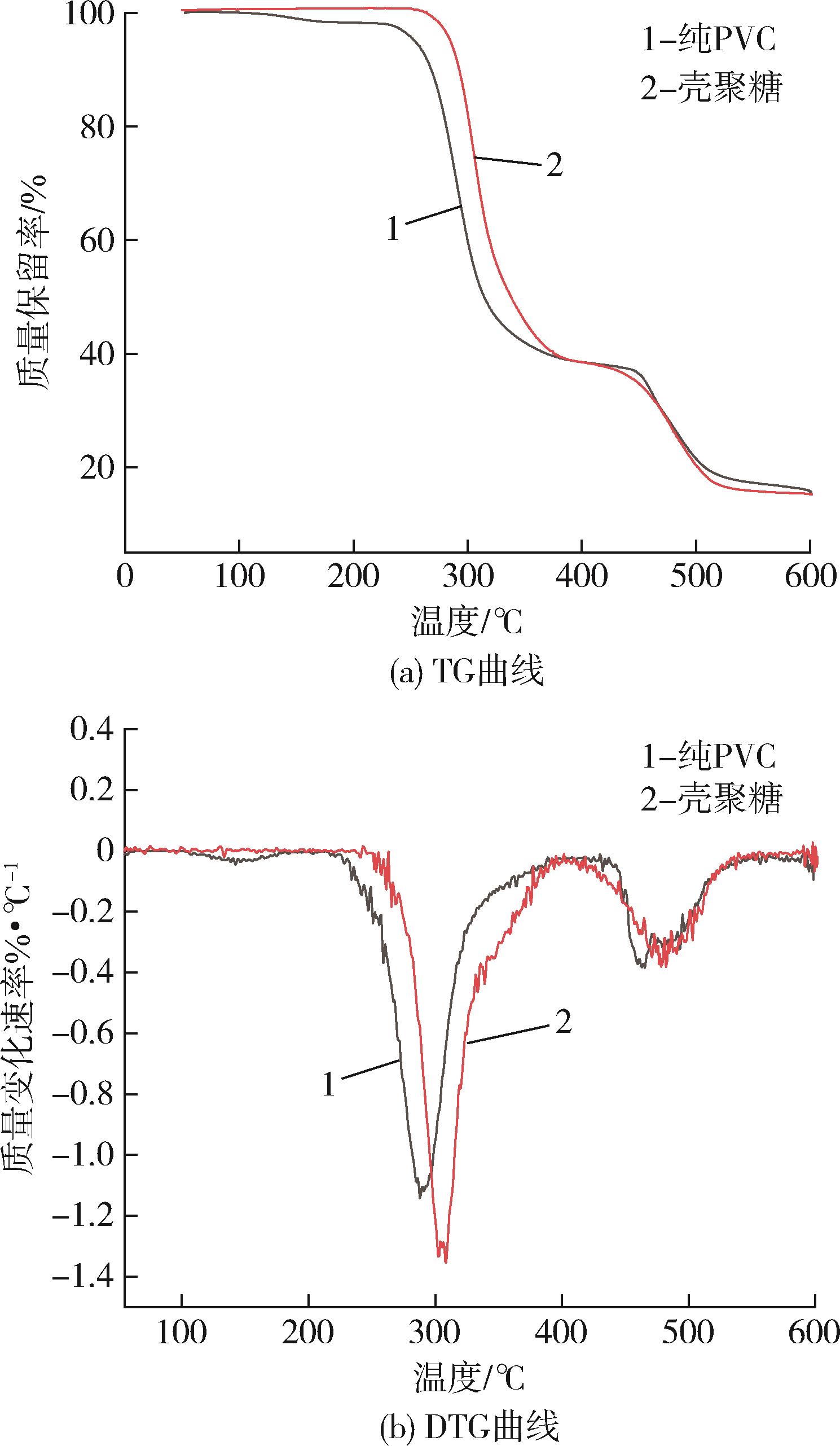

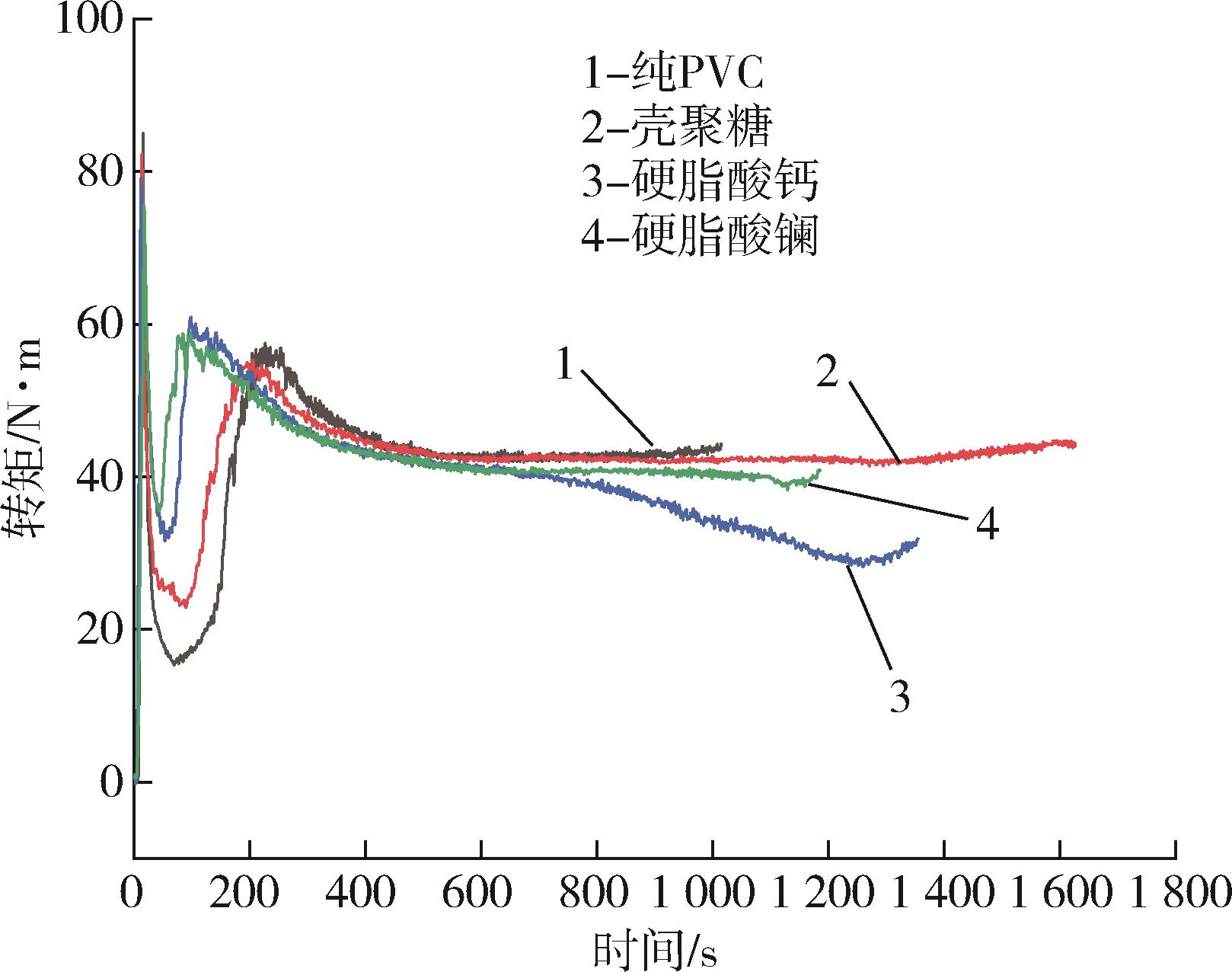

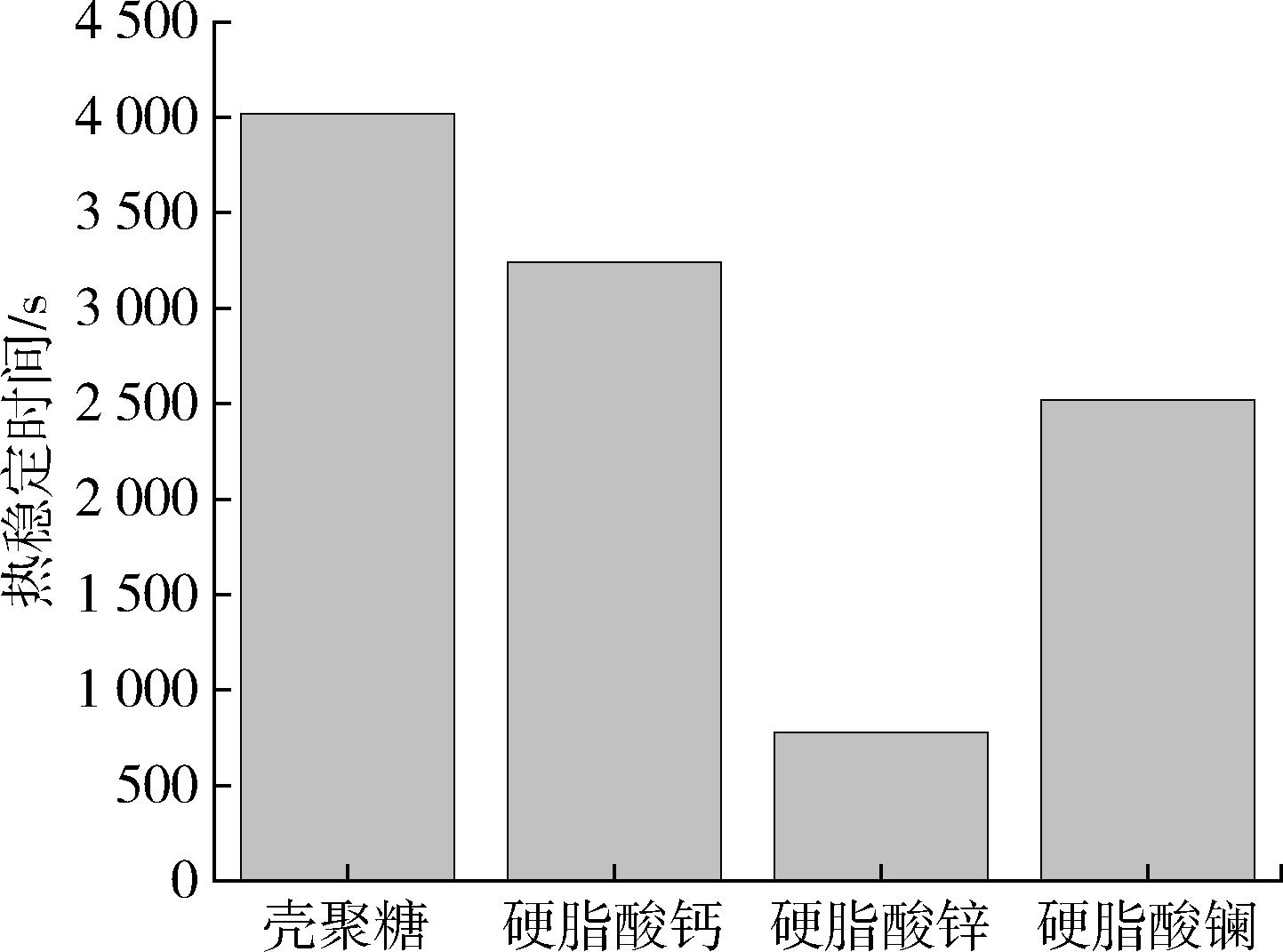

A series of polyhydroxyl compounds with a low price were selected， and their static thermal stability was comparatively investigated using a Congo red method. The results indicated that the presence of chitosan could generate an optimal static thermal stabilizing effect on PVC. The static thermal stabilizing effects of chitosan and conventional primary heat stabilizers， including calcium stearate， zinc stearate and lanthanum stearate， were further evaluated using the Congo red method， and their anti?discoloration ability was compared using a thermal aging oven method. The dynamic thermal stabilizing effect on PVC was compared between chitosan and conventional stabilizers using a torque rheometer. The effect of chitosan on the thermal degradation process of PVC was studied through thermogravimetric analysis. Chitosan exhibited an optimal thermal stabilizing effect on PVC with static and dynamic thermal stabilization time of 4 020 and 1 355 s， respectively.

Key words: poly（vinyl chloride）, heat stabilizer, chitosan

CLC Number:

TQ325.3

YANG Xiaochun, YU Jing, ZHANG Qing. Effects of chitosan on thermal stability of PVC[J]. China Plastics, 2022, 36(7): 68-73.

Figures/Tables 6

References 13

1	LI Y P， LI D G， HAN W Y， etal. Facile synthesis of di⁃mannitol adipate ester⁃based zinc metal alkoxide as a bi⁃Functional additive for poly（vinyl chloride）［J］.Polymers， 2019， 11（2）： 813
2	ZHANG M Q， HAN W Y， HU X M， et al. Pentaerythritol p⁃hydroxybenzoate ester⁃based zinc metal alkoxides as multifunctional antimicrobial thermal stabilizer for PVC［J］.Polymer Degradation and Stability，2020，181：1⁃9.
3	DONG T B，LID G，LIY P， et al. Design and synthesis of polyol ester⁃based zinc metal alkoxides as abi⁃functional thermal stabilizer for poly（vinyl chloride）［J］.Polymer Degradation and Stability，2019，159 ： 125⁃132.
4	许家友，谢丽琼，龙金凤，等.多元醇对PVC 热稳定和色泽的影响［J］.塑料，2011，40（4）：75⁃77，49.
	XU J Y， XIE L Q， LONG J F， et al. The effect of polyols on the thermal stability and initial colour of PVC［J］.Plastics，2011，40（4）：75⁃77，49.
5	金科，吕奇，胡慧，等.多元醇对聚氯乙烯热稳定作用的影响［J］.塑料，2020，49（2）：14⁃22.
	JIN K，LYU Q， HU H， et al. Effect of polyols on thermal stability of polyvinyl chloride［J］.Plastics，2020，49（2）：14⁃22.
6	XU X P， CHEN S， TANG W， et al. Synthesis and application of uracil derivatives as novel thermal stabilizersfor rigid poly（vinyl chloride）［J］.Polymer Degradation and Stability. 2013，98：659⁃665.
7	于静，李敏贤. 哌嗪基单丁酰胺酸钙/锌的合成及对PVC 热稳定性研究［J］.中国塑料，2020， 34（7）：74⁃79.
	YU J， LI M X. Synthesis of piperazinyl monobutyric amic acid calcium/zinc and its thermal stabilization for PVC［J］.China Plastics，2020， 34（7）：74⁃79.
8	许家友，郭少云.季戊四醇对PVC/钙锌稳定体系的热稳定化机理［J］.高分子材料科学与工程，2005，21（3）：148⁃151.
	XU J Y， GUO S Y. Study on thermal stabilizing mechanims of pentacrythritol for PVC/Ca⁃Zn stable system［J］. Polymer Materials Science and Engineering，2005，21（3）：148⁃151.
9	WANG M， SONG X H， JIANG J C，et al. Excellent hydroxyl and nitrogen rich groups⁃containing tung⁃oil⁃based Ca/Zn and polyol stabilizers for enhanced thermal stability of PVC［J］.Thermochimica Acta，2017，658：84⁃92.
10	SHI Y Q， LU S Y， MA B，et al. A “one stop” thermal stabilizer， zinc arginine complex， with excellentcomprehensive thermal stability effect on poly（vinyl chloride）［J］. Polymer Degradation and Stability，2019 （167）： 58⁃66.
11	Svan Es Dann， Steenwijk Johan，Gaas E Frissen，et al.Thecompatibility of （natural）polyols with heavy metal⁃and Zinc⁃free Poly（ vinyl Chloride）： their effect on rheology and implications for plateout［J］. Polymer Degradation and Stability， 2008，93： 50⁃58.
12	方海林.高分子材料加工助剂［M］.北京：化学工业出版社，2007：9，52⁃53.
13	ZHANG Q， LI D L， ZHANG H X， etal. Preparation and properties of poly（lactic acid）/sesbania gum/nano⁃TiO₂ composites［J］. Original Paper， 2018，75：623⁃635.

样品	分子式	静态热稳定时间t/s
木糖醇	C₅H₁₂O₅	660
季戊四醇	C₅H₁₂O₄	570
甘露醇	C₆H₁₄O₆	590
1，1，1⁃三（羟甲基）乙烷	C₅H₁₂O₃	540
田菁胶	（C₁₇H₂₈O₁₆）_n	1 080
淀粉	（C₆H₁₀O₅）_n	720
壳聚糖	（C₆H₁₁NO₄）_n	4 020

样品	分子式	静态热稳定时间t/s
木糖醇	C₅H₁₂O₅	660
季戊四醇	C₅H₁₂O₄	570
甘露醇	C₆H₁₄O₆	590
1，1，1⁃三（羟甲基）乙烷	C₅H₁₂O₃	540
田菁胶	（C₁₇H₂₈O₁₆）_n	1 080
淀粉	（C₆H₁₀O₅）_n	720
壳聚糖	（C₆H₁₁NO₄）_n	4 020

稳定剂	热老化时间/min
稳定剂	5	10	15	20	25	30	35	40	45	50	60	70	80	90	100
壳聚糖
硬脂酸钙
硬脂酸锌
硬脂酸镧

稳定剂	热老化时间/min
稳定剂	5	10	15	20	25	30	35	40	45	50	60	70	80	90	100
壳聚糖
硬脂酸钙
硬脂酸锌
硬脂酸镧
