Effects of N⁃ethylpiperazinylphthalomide zinc on thermal stability of PVC

doi:10.19491/j.issn.1001-9278.2022.02.018

Abstract

Abstract:

N?ethylpiperazine?based phthalate was synthesized using phthalic anhydride and N?ethylpiperazine as raw materials， and then the obtained product was reacted with zinc chloride to prepare N?ethylpiperazinylphthalomide zinc （ZNEP）. Four types of composite heat stabilizers were obtained separately through compounding ZNEP with pentaerythritol， dimethylbenzoyl methane （β?diketone）， epoxy soybean oil， and phenyl diisooctyl phosphate， and their effect on the static thermal stability， dynamic thermal stability and thermal degradation process of PVC was investigated using the Congo red test paper method， thermal aging oven method， torque rheometer， and thermal gravimetric analysis. The results indicated that the PVC compounds achieved an optimum thermal stability at a mass ratio of ZNEP to pentaerythritol of 1∶2. The static and dynamic thermal stability times were determined to be 2 340 and 1 602 s respectively. Comparing to the PVC sample without heat stabilizer， the heat?stabilized PVC exhibited an increase in T_{5 %}， T_{10 %}， and T_max， indicating that the composite heat stabilizer can effectively inhibit the thermal degradation of PVC.

Key words: polyvinylchloride, heat stabilizer, ethylpiperazine

CLC Number:

TQ314.24⁺5.1

YANG Xiaochun, YU Jing, ZHANG Qing. Effects of N⁃ethylpiperazinylphthalomide zinc on thermal stability of PVC[J]. China Plastics, 2022, 36(2): 125-130.

Figures/Tables 8

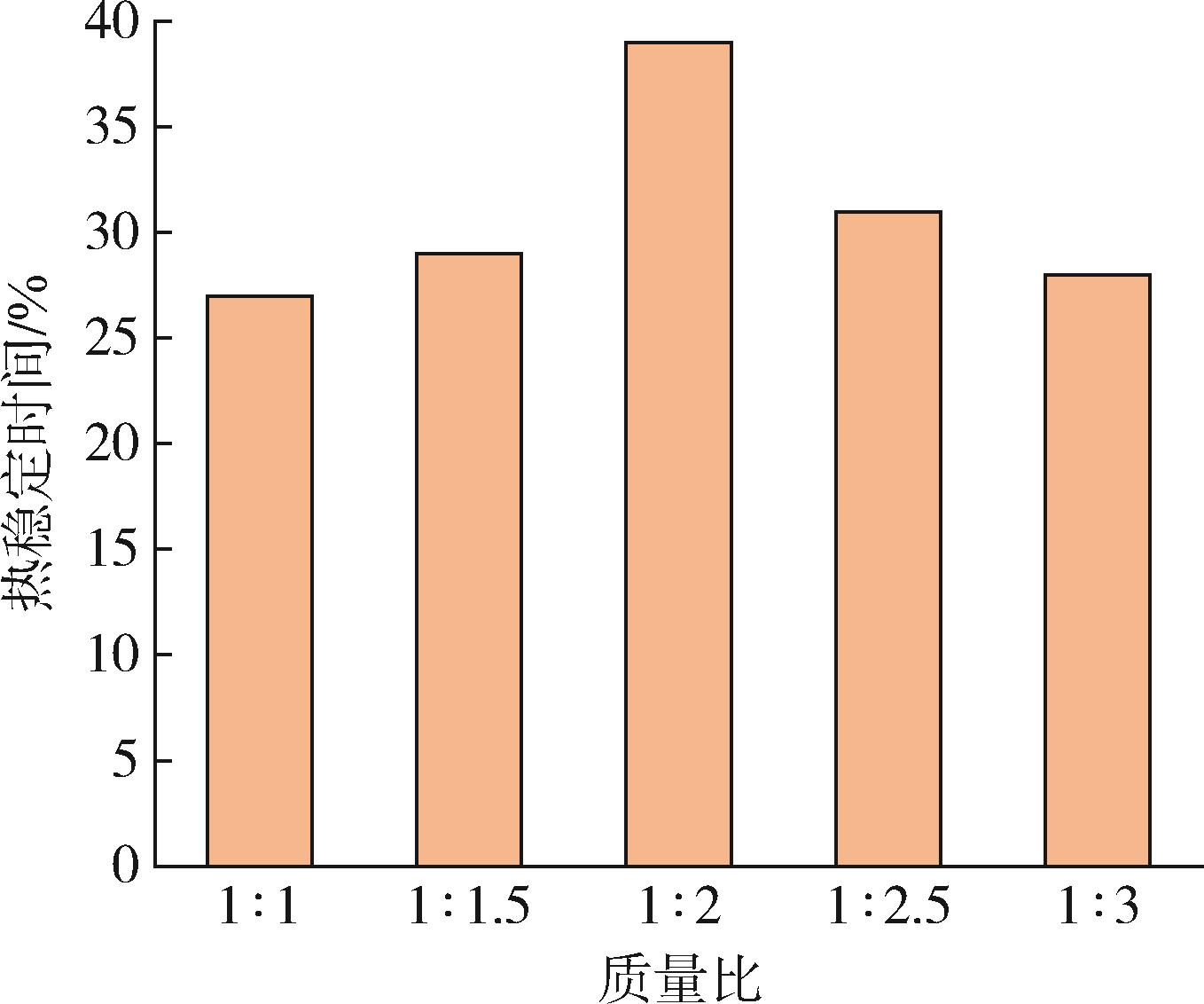

Fig.1. Effect of ZNEP and pentaerythritol compound system on static thermal stability of PVC

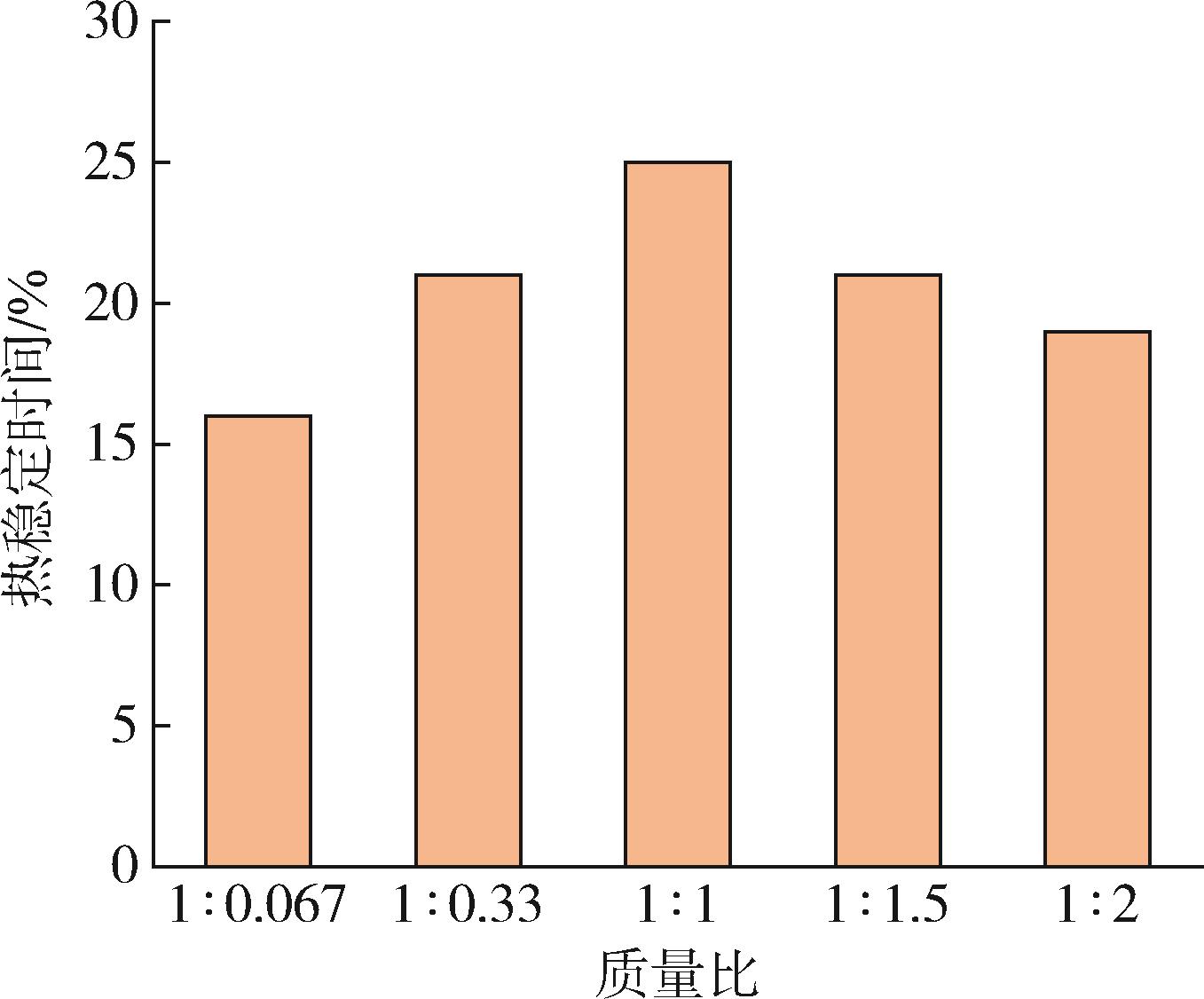

Fig.2. Effectof ZNEP and β?diketone compound system on static thermal stability of PVC

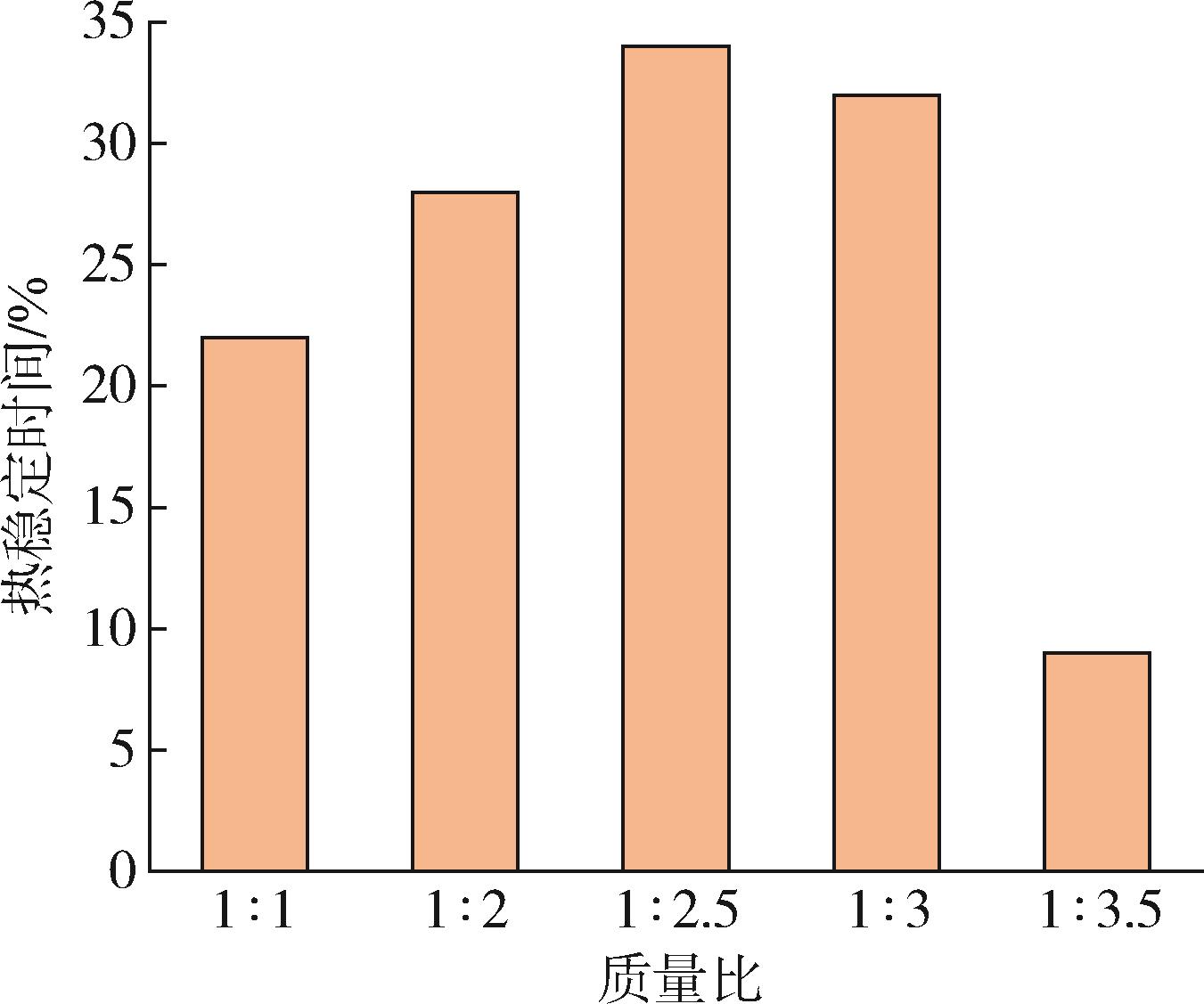

Fig.3. Effectof ZNEP and epoxy soybean oil compound system on static thermal stability of PVC

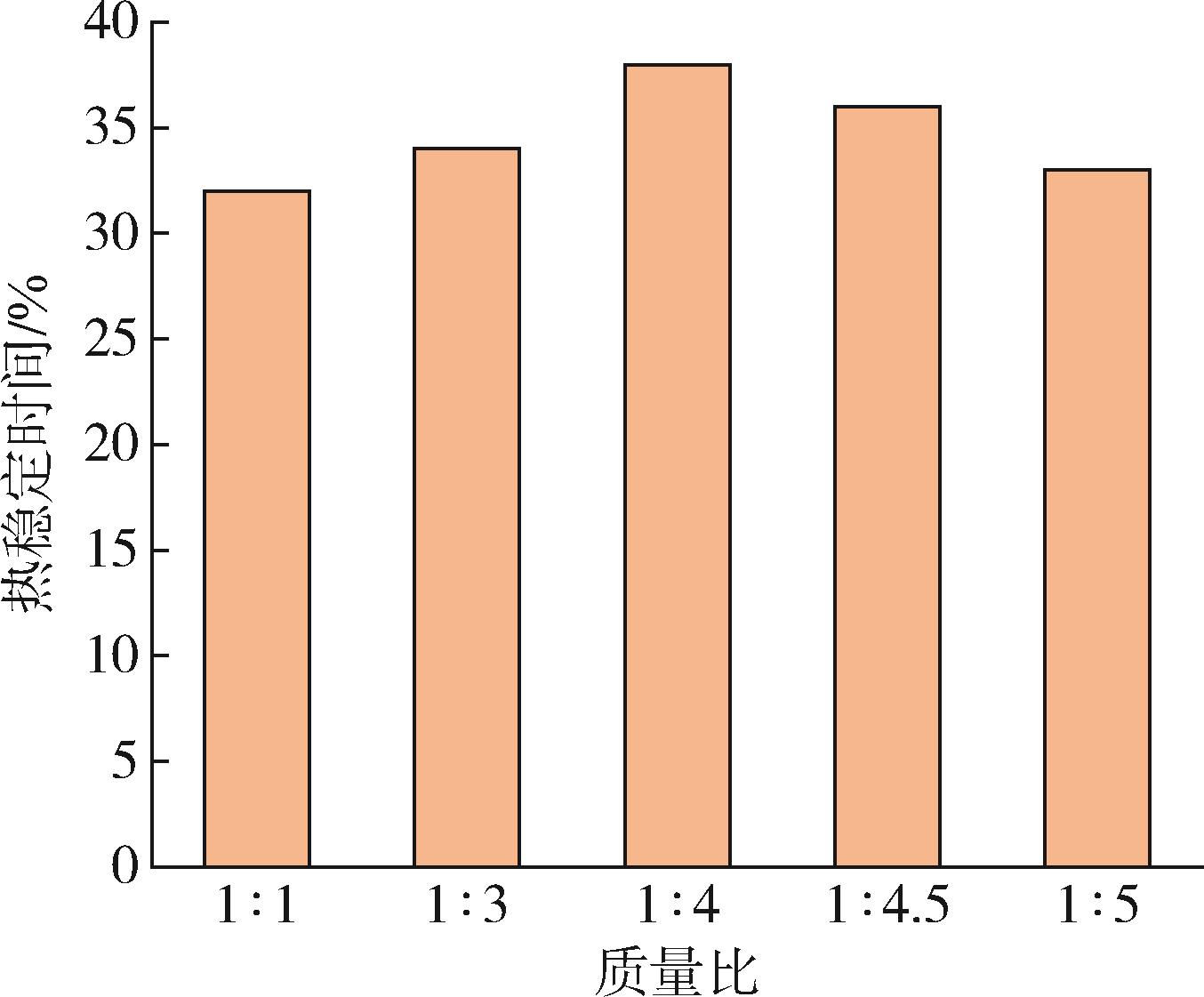

Fig.4. Effectof ZNEP and phenyl diisooctyl phosphate compound system on static thermal stability of PVC

辅助热稳定剂	主辅热稳定剂质量比	热老化时间/min
辅助热稳定剂	主辅热稳定剂质量比	5	10	15	20	25	30	35	40	45	50
—	—
季戊四醇	1∶2
β⁃二酮	1∶1
环氧大豆油	1∶2.5
亚磷酸一苯二异辛酯	1∶4

Tab.1. Thermal aging discoloration of the composite thermal stabilizers

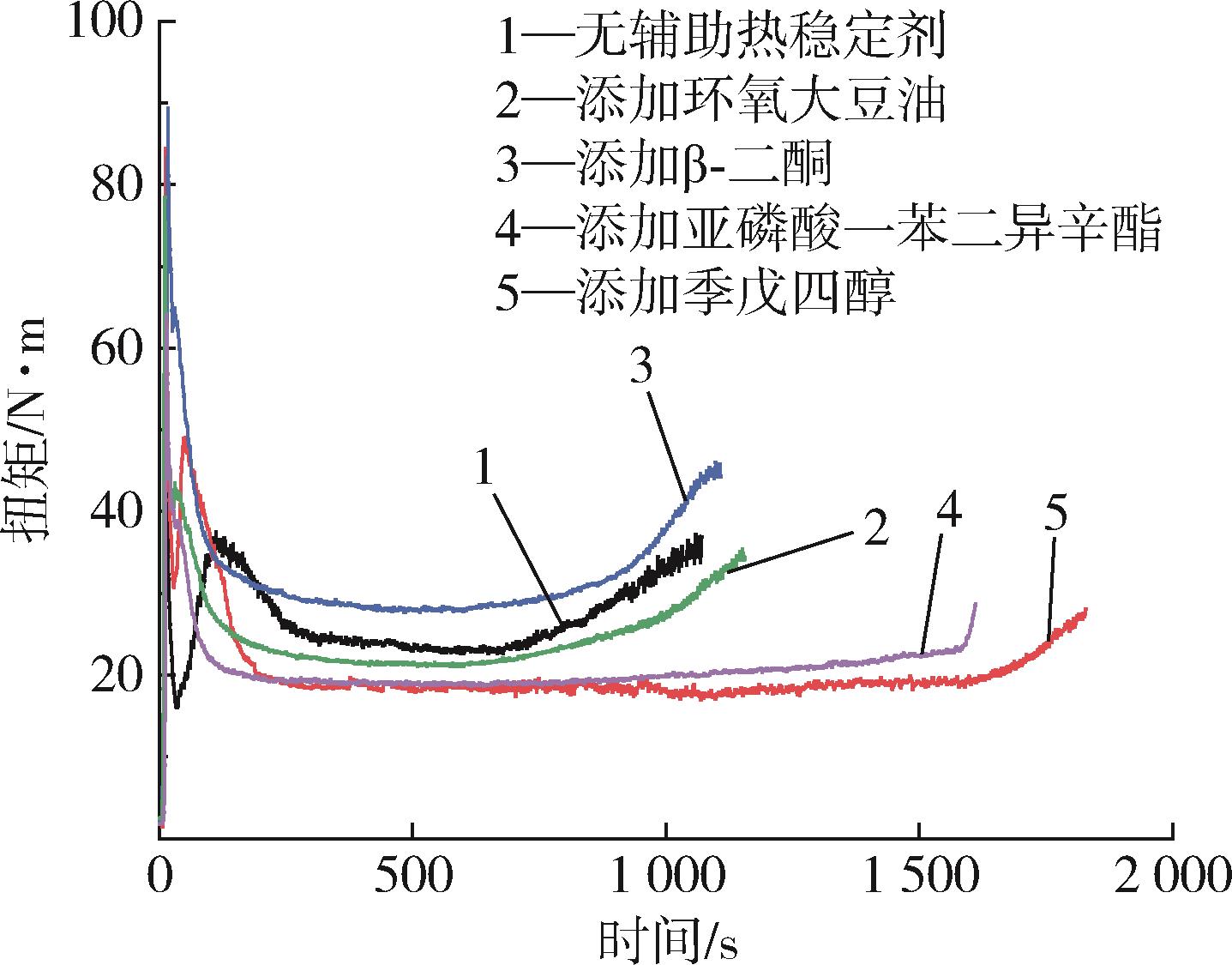

Fig.5. Dynamic thermal stability of the samples

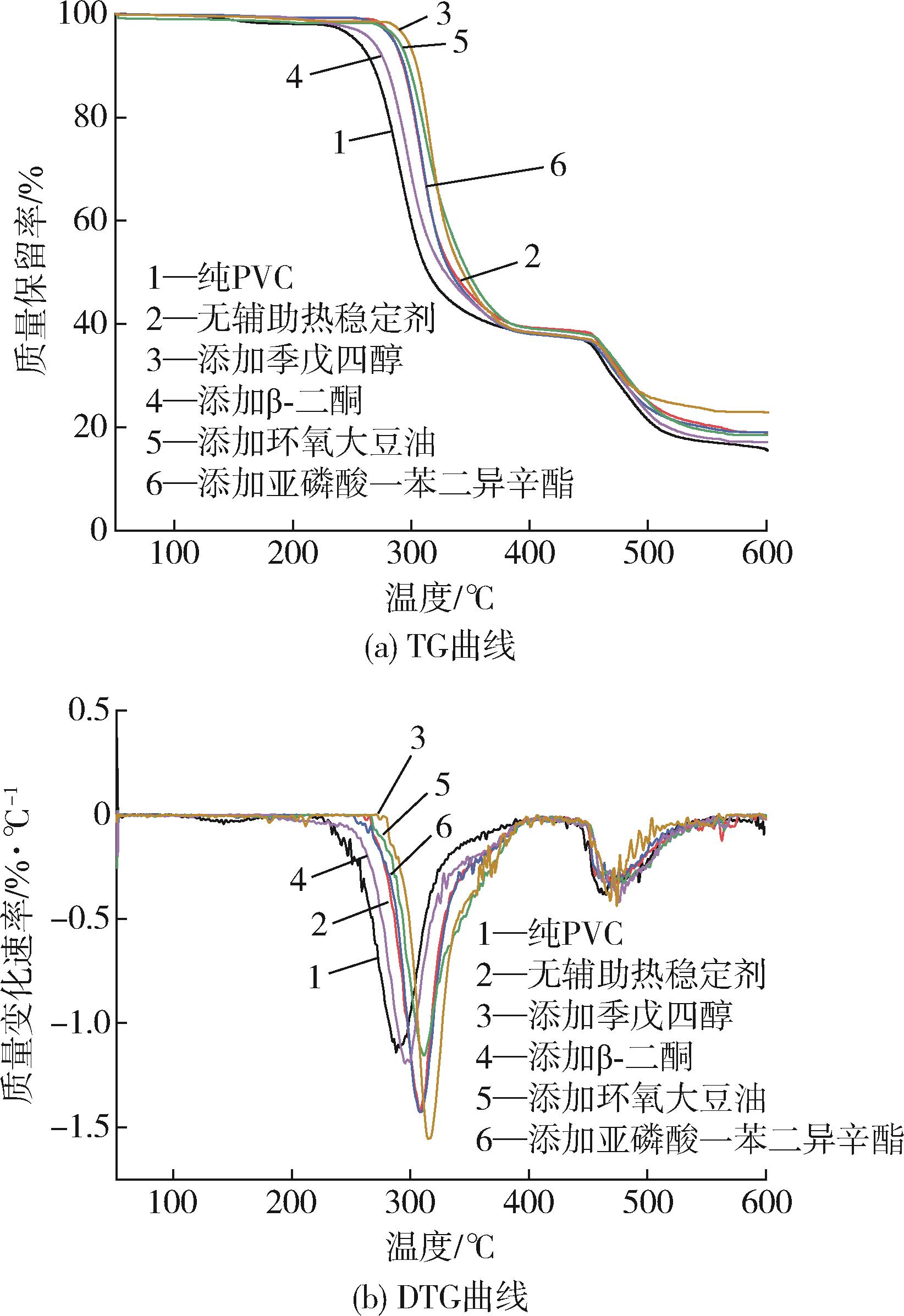

Fig.6. TG and DTG curves of samples containing different heat stabilizers

样品	T_{5 %}/℃	T_{10 %}/℃	T_max/℃
PVC	253	267	288
PVC/ZNEP	284	292	309
PVC/ZNEP/季戊四醇	295	304	315
PVC/ZNEP/β⁃二酮	265	278	296
PVC/ZNEP/环氧大豆油	287	297	311
PVC/ZNEP/亚磷酸一苯二异辛酯	285	293	309

Tab.2. Effect of the compound heat stabilizer on thermal degradation of PVC

References 16

1	DONG T B ， LI D G ， LI Y P ， et al . Design and synthesis of polyol ester⁃based zinc metal alkoxides as a bi⁃functional thermal stabilizer for poly（vinyl chloride）［J］. Polymer Degradation and Stability， 2019， 159：125⁃132.
2	LI Y P ， LI D G ， HAN W Y ， et al . Facile synthesis of di⁃mannitoladipate ester⁃based zinc metal alkoxide as a bi⁃functional additive for poly（vinyl chloride）［J］. Polymers， 2019， 11（2）： 813.
3	WANG M ， SONG X H ， JIANG J C ， etal . Influence of zeo⁃liticimidazolate framework⁃8 on the thermal stabilization of poly（vinyl chloride）［J］. Polymer Degradation and Stability， 2018， 149： 112⁃118.
4	杨惠娣 .聚氯乙烯及其热稳定剂现状与发展趋势［J］.中国塑料，2019，33（4）：111⁃119.
	YANG H D .Current situation and development trends of PVC and its stabilizers［J］.China Plastics，2019，33（4）：111⁃119.
5	文星，杨占红 .水铝钙石的制备及其在PVC中的应用［J］. 塑料助剂，2015，2：27⁃32.
	WEN X ， YANG Z H . Preparation and application of hydrocalumites in PVC［J］. Plastics Additives， 2015， 2：27⁃32.
6	李敏贤，于静，李淑桐，等 .稀土型热稳定剂的性能与研究进展［J］.中国塑料，2019，33（9）：132⁃139.
	LI M X ， YU J ， LI S T ， et al .Performance and research progress of rare⁃earth themal stabilizers［J］. China Plastics， 2019，33（9）：132⁃139.
7	于静 .PVC 用稀土热稳定剂研究进展［J］.中国塑料，2013，27（10）：12⁃17.
	YU J . Research progress in rare earth thermal stabilizers for PVC［J］.China Plastics，2013，27（10）：12⁃17.
8	赵玲，郭绍辉，郑德，等 .无毒钙⁃锌稳定剂的合成与性能研究进展［J］.塑料，2010（1）：126⁃128.
	ZHAO L ， GUO S H ， ZHENG D ，et al .Synthesisand performance research progress of non⁃toxic calcium zinc stabilizers［J］. Plastics，2010（1）：126⁃128.
9	于静，李敏贤，郭强强，等 .苯甲酸⁃蓖麻油酸钙/锌液体热稳定剂的制备与表征［J］.中国塑料，2019，33（10）：78⁃83.
	YU J ， LI M X ， GUO Q Q ， et al .Preparation and characteri⁃zation of calcium/zinc benzoate⁃castoroleate liquid thermal stabilizer［J］. China Plastics，2019，33（10）：78⁃83.
10	许家友，郭少云 .季戊四醇对PVC/钙锌稳定体系的热稳定化机理［J］.高分子材料科学与工程，2005，21（3）：148⁃151.
	XU J Y ， GUO S Y . Study on thermal stabilizing mechanims of pentacrythritol for PVC/Ca⁃Zn stable system［J］.PolymerMaterials Science and Engineering，2005，21（3）：148⁃151.
11	吴茂英，梁玲，林莅蒙 .β⁃二酮盐对聚氯乙烯的热稳定作用——性能递变规律与机理［J］.高分子材料科学与工程，2014，30（5）：87⁃97.
	WU M Y ， LIANG L ， LIN L M .Heatstabilization of β⁃dike⁃tonesalts on PVC： progressive changelaw of performance and mechanism［J］. Polymer Materials Science and Engineering， 2014，30（5）：87⁃97.
12	周敏，许士鲁，李德刚，等 .PVC 热稳定剂研究内容及常用测试方法［J］.工程塑料应用，2011，39（8）：61⁃64
	ZHOU M ， XU S L ， LI D G ，et al .Research contents and common test methods of PVC thermal stabilizers［J］.Engineering Plastics Application， 2011，39（8）：61⁃64
13	许家友，谢丽琼，龙金凤，等 .多元醇对PVC 热稳定和色泽的影响［J］.塑料，2011，40（4）：75⁃77，49.
	XU J Y ， XIE L Q ， LONG J F ， et al . The effect of po⁃lyols on the thermal stability and initial colour of PVC［J］. Plastics， 2011，40（4）：75⁃77，49.
14	张青，苏桂仙，李德玲，等 .聚乳酸/田菁胶共混体系的加工流变性能研究［J］.工程塑料应用，2014，42（1）：62⁃67.
	ZHANG Q ， SU G X ， LI D L ， et al .Study on processing rheological properties of poly（lactic acid）/sesbania gum blend systems［J］.Engineering Plastics Application，2014，42（1）：62⁃67.
15	ZHANG Q ， LI D L ， ZHANG H X ， et al . Preparation and properties of poly（lactic acid）/sesbania gum/nano⁃TiO₂ composites［J］. Original Paper， 2018 ，75：623⁃635.
16	金科，吕奇，胡慧，等 .多元醇对聚氯乙烯热稳定作用的影响［J］.塑料，2020，49（2）：14⁃22.
	JIN K ， LYU Q ， HU H ，et al .Effectof polyols on thermal stability of polyvinyl chloride［J］. Plastics， 2020，49（2）：14⁃22.
