Design of chlorine oxidation resistance test system for high density polyethylene pipes

doi:10.19491/j.issn.1001-9278.2021.12.012

Abstract

Abstract:

To investigate the chlorine oxidation resistance of high density polyethylene （PE?HD） pipes， a closed cycle test system was designed on the basis of the ASTM F2263 standard. The test system accelerated the oxidation failure of samples through changing the temperature， pressure， and available chlorine content under the flowing condition. The results indicated that the system could measure the 24 DN 20 PE?HD tubular samples independently， and the programmable logic controller could be used as a control host to control the pressure， temperature， and flow of the pipelines. Furthermore， the visual human?computer interface could be realized through coupling with various sensors， and the built?in alarm system could ensure the safety and reliability of the test. Therefore， the test system can be used to evaluate the chlorine oxidation resistance of the PE?HD pipes.

Key words: high density polyethylene pipe, oxidation failure, test system

CLC Number:

TQ320.66⁺2

SUN Linjie, ZHANG Jingwei, CHEN Shushan, LAI Huansheng, WEI Zuoyou. Design of chlorine oxidation resistance test system for high density polyethylene pipes[J]. China Plastics, 2021, 35(12): 70-75.

Figures/Tables 11

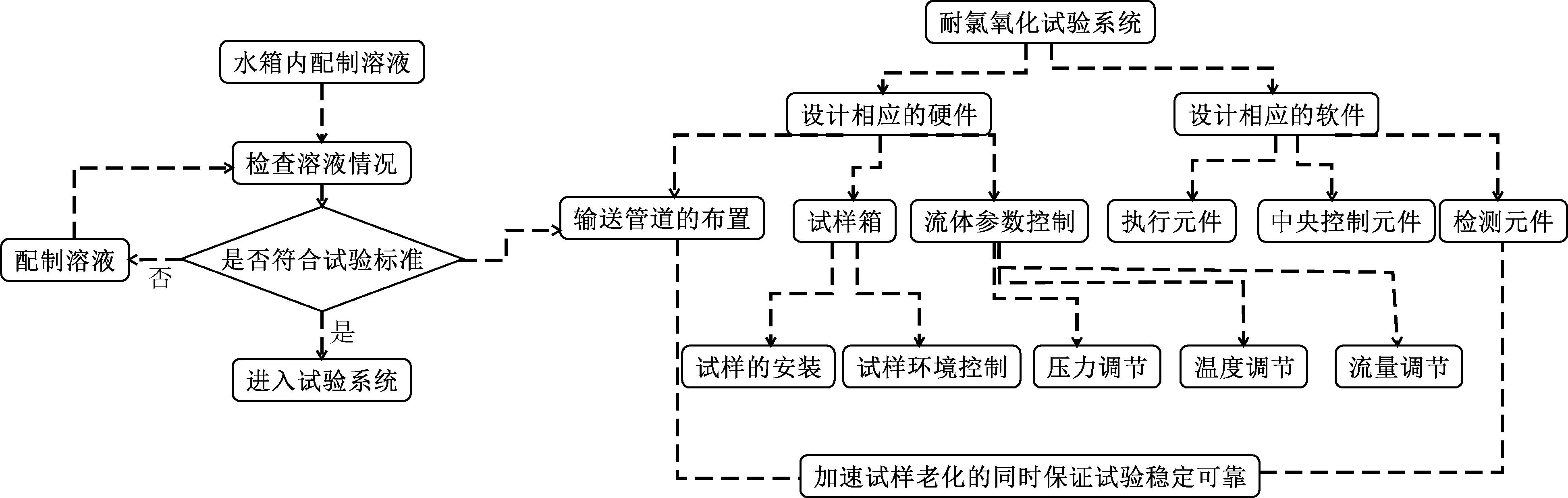

Fig.1. Design flow chart

试验参数	单位	最小值	最大值	允许误差
有效氯含量	mg/L	0	50	1
水温	℃	50	90	1
空气温度	℃	50	90	1
氧化还原电位	mV	825	-	10
流量	L/min	0.23	1.10	0.02
pH	-	6.5	8.0	0.1
管道压力	MPa	0.61	0.83	0.02

Tab.1. Test conditions of samples

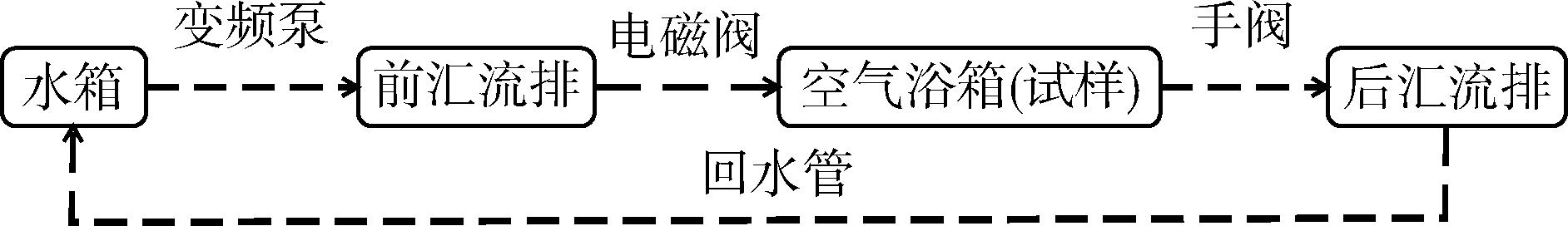

Fig.2. System structure diagram

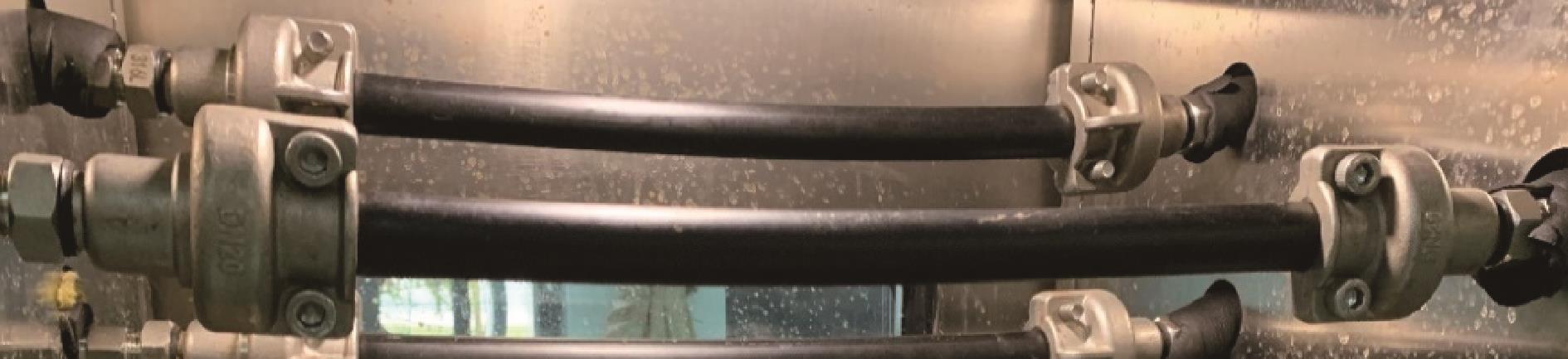

Fig.3. Sample assembly drawing

Fig.4. Test process flow chart

分组编号	管道压力1/ MPa	管道压力2/MPa
1	0.61	0.75
2	0.63	0.77
3	0.65	0.79
4	0.66	0.8
5	0.68	0.82
6	0.69	0.83

Tab.2. Pipes′ pressure of sample

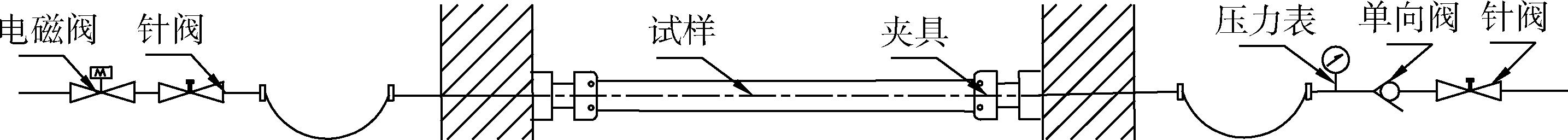

Fig.5. Schematic diagram of the principle of branch pressure and flow adjustment

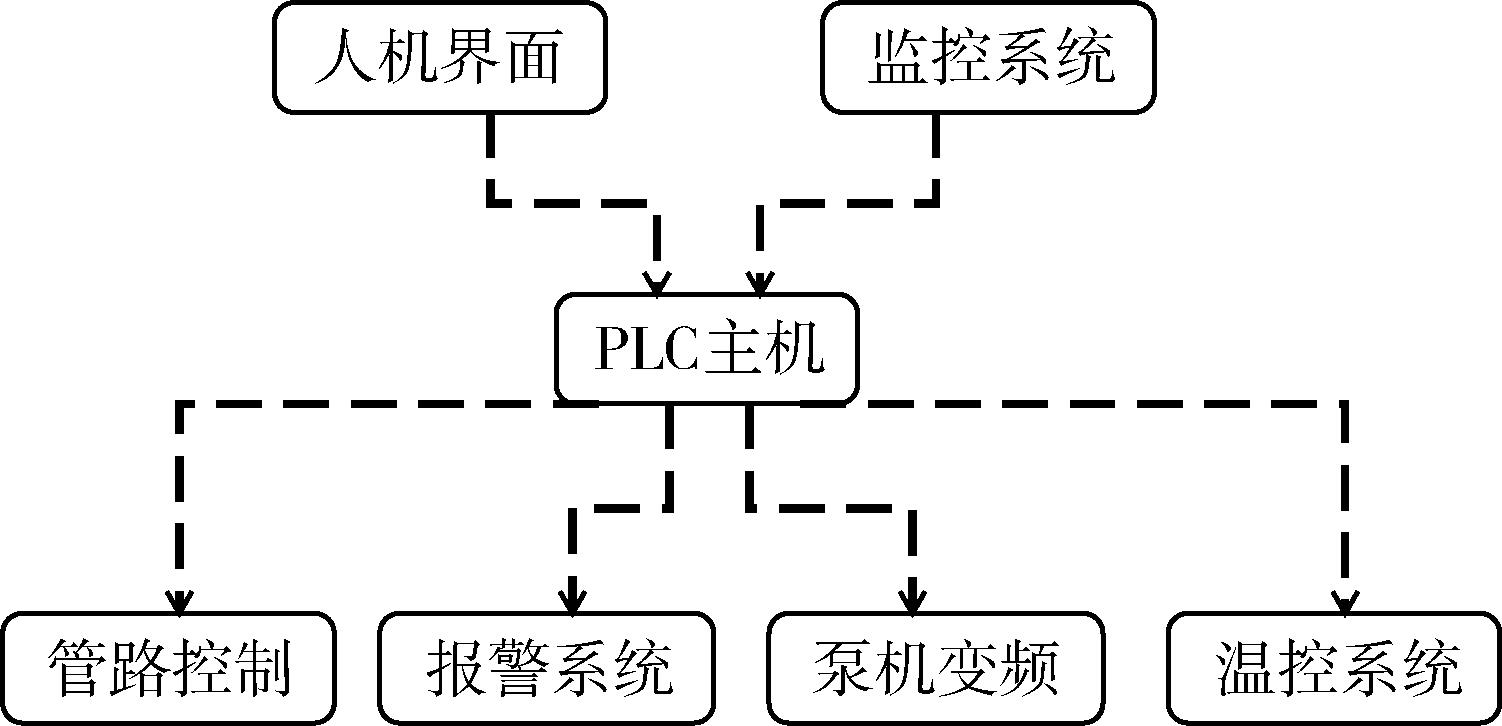

Fig.6. Schematic diagram of system control system structure

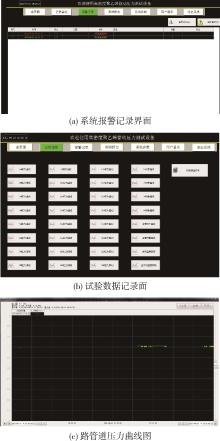

Fig.7. Test interface of the system

Fig.8. Display of the system

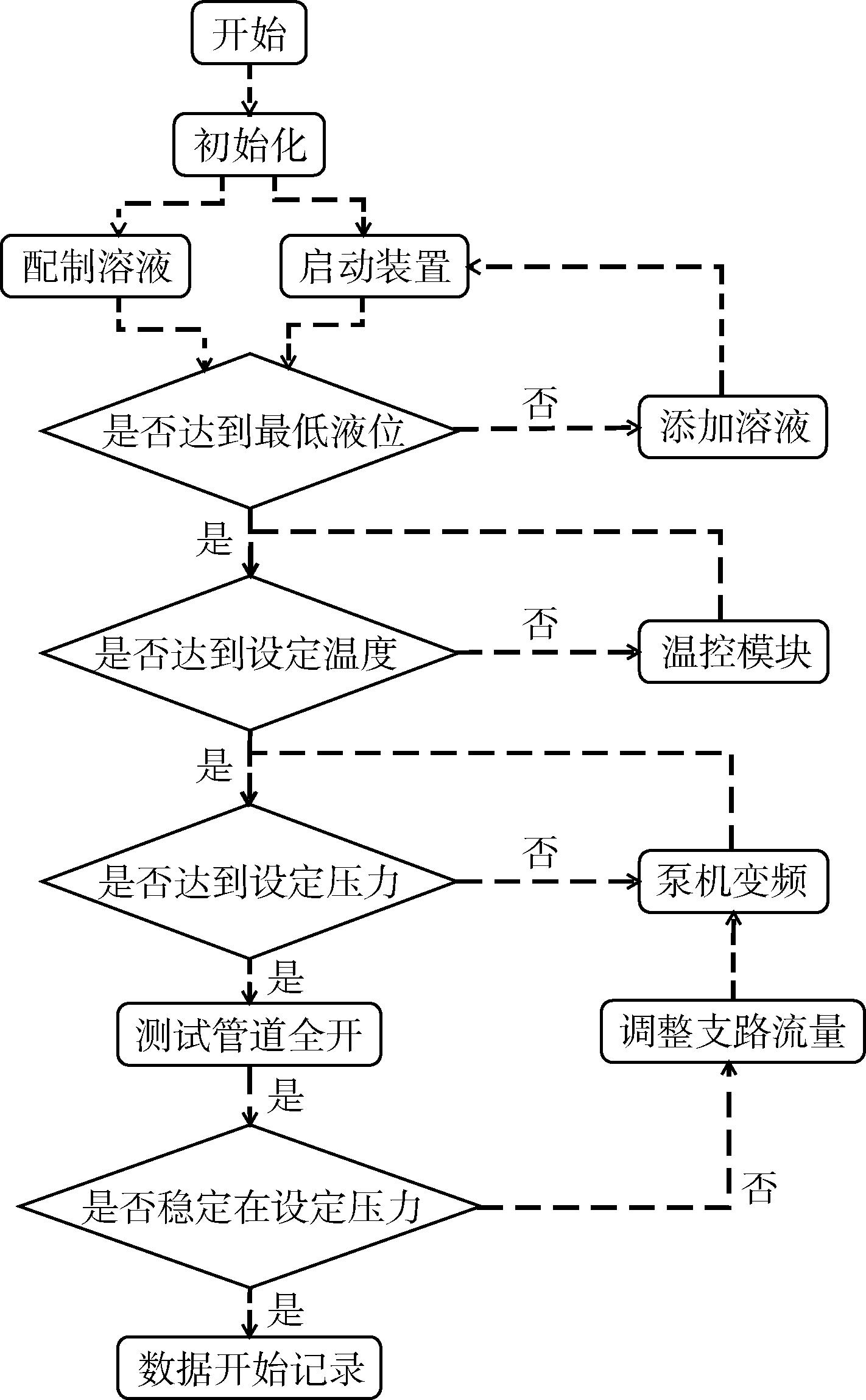

Fig.9. System control flow chart

References 17

1	VLASE S， MARIN M， SCUTARU M， et al. Study on the mechanical responses of plastic pipes made of high density polyethylene （HDPE） in water supply network［J］. Applied Sciences⁃Basel， 2020，10（5）：1 658.
2	PENGLI G， WENWEN X， YANYAN X， et al. Differentiation of regenerated plastics in PE⁃HD pipe used in oilfield environment［J］. Plastics， 2020，49（2）：81⁃84.
3	赖焕生，范登帅，贾云飞，等. 高密度聚乙烯管在核设备中应用的关键技术挑战［J］. 压力容器， 2017，34（12）：45⁃54.
	LAI H S， FAN D S， JIA Y F， et al. Key Technical challenges of high density polyethylene（HDPE）pipe in nuclear equipment［J］. Pressure Vessel Technology，2017，34（12）：45⁃54.
4	孙晋，李玉娥，武志军，等. 塑料管材的耐氯氧化性能研究进展［J］. 中国塑料， 2018，32（7）：1⁃9.
	SUN J， LI Y E， WU Z J， et al. Research progress in chlorine⁃oxidation resistance of plastic pipes［J］. China Plastics，2018，32（7）：1⁃9.
5	COLIN X， AUDOUIN L， VERDU J， et al. Aging of polyethylene pipes transporting drinking water disinfected by chlorine dioxide. Part II⁃Lifetime prediction［J］. Polymer Engineering & Science， 2009，49（8）：1 642⁃1 652.
6	MITROKA S M， SMILEY T D， TANKO J M， et al. Reaction mechanism for oxidation and degradation of high density polyethylene in chlorinated water［J］. Polymer Degradation and Stability， 2013，98（7）：1 369⁃1 377.
7	SAMARTH N B， MAHANWAR P A. Study and characterization of LDPE/Polyolefin elastomer and LDPE/EPDM blend： effect of chlorinated water on blend performance［J］. Advanced Manufacturing： Polymer & Composites Science， 2017，3（2）：62⁃72.
8	ROZENTAL⁃EVESQUE M， GUEUGNAUT D. A Solution for drinking water networks： emerging new generation PE100 pipes with higher chlorine resistance［J］. Plastics Pipe XVI， Barcelona， Spain， 2012.
9	KOWALSKA B， KLEPKA T， KOWALSKI D. Influence of chlorinated water on mechanical properties of polyethylene and polyvinyl chloride pipes［J］. WIT Transactions on the Built Environment， 2016，165：63⁃74.
10	YU W， AZHDAR B， ANDERSSON D， et al. Deterioration of polyethylene pipes exposed to water containing chlorine dioxide［J］. Polymer Degradation and Stability， 2011，96（5）：790⁃797.
11	VOGT H， ENDERLE H F， SCHULTE U， et al. Thermal ageing of PE 100 pipes for accelerated lifetime prediction under service conditions： International plastic pipe exchange conference［C］//Beijing， 2009.
12	CASTAGNETTI D， MAMMANO G， DRAGONI E. Effect of chlorinated water on the oxidative resistance and the mechanical strength of polyethylene pipes［J］. Polymer Testing， 2011，30（3）：277⁃285.
13	FUJII T， MATSUI Y， HIRABAYASHI H， et al. Influence of residual chlorine and pressure on degradation of polybutylene pipe［J］. Polymer Degradation and Stability， 2019，167：1⁃9.
14	National Sanitation Foundation. Chlorine resistance of plastic piping materials： N［S］. Michigan： NSF International， 1999.
15	COMMITTEE A. Standard test method for evaluating the oxidative resistance of crosslinked polyethylene （PE⁃X）tubing and systems to hot chlorinated water［S］. West Conshohocken： ASTM International： 2009.
16	COMMITTEE A. Test method for evaluating the oxidative resistance of polyethylene （PE） pipe to chlorinated water［S］. West Conshohocken： ASTM International： 2014.
17	CURTIN W A， AHN B K， TAKEDA N. Modeling brittle and tough stress⁃strain behavior in unidirectional ceramic matrix composites［J］. Acta Materialia， 1998，46（10）：3 409⁃3 420.
