Design of injection mold for split air conditioning chassis

doi:10.19491/j.issn.1001-9278.2021.12.021

Abstract

Abstract:

Aiming at the problem that the split air conditioning chassis is easy to fracture and deform during injection production， an injection mold with a simple structure and a reliable operation was developed. According to the structure of the air conditioning chassis， the combined slider structure was adopted to solve the demolding problem of the air outlet and the upper stud of the air outlet. The demolding structure of sliding block plus horizontal inclined top was adopted to solve the problem that the central axis of the air guide plate hole in the middle could not stay on the same line with that of the air guide plate hole at both ends. The demolding structure of inclined core pulling plus slider and cylinder was adopted to solve the problem that the drainage hole of chassis was easy to produce the edge. A damping spring was installed on the inclined guide pillar slider. This can effectively overcome the impact of the slider on other mold parts when opening and closing the mold. The inclined top seat of the fixed mold inclined top was installed on the hot runner electrical parts plate. This makes the two plate molds have the characteristics of the three plate molds， and the demolding problem of the fixed mold inclined top is solved. A reinforcing rod was installed on the inclined top of the fixed mold to effectively avoid the deformation of the inclined top of the fixed mold.

Key words: air conditioning chassis, combined slide block, slide block plus horizontal inclined top, inclined core pulling plus slide block, horizontal inclined top, fixed mold inclined top

CLC Number:

TQ320.66⁺2

SUN Lingzhen, YE Shuo. Design of injection mold for split air conditioning chassis[J]. China Plastics, 2021, 35(12): 129-136.

Figures/Tables 15

Fig.1. Air conditioning chassis structure diagram

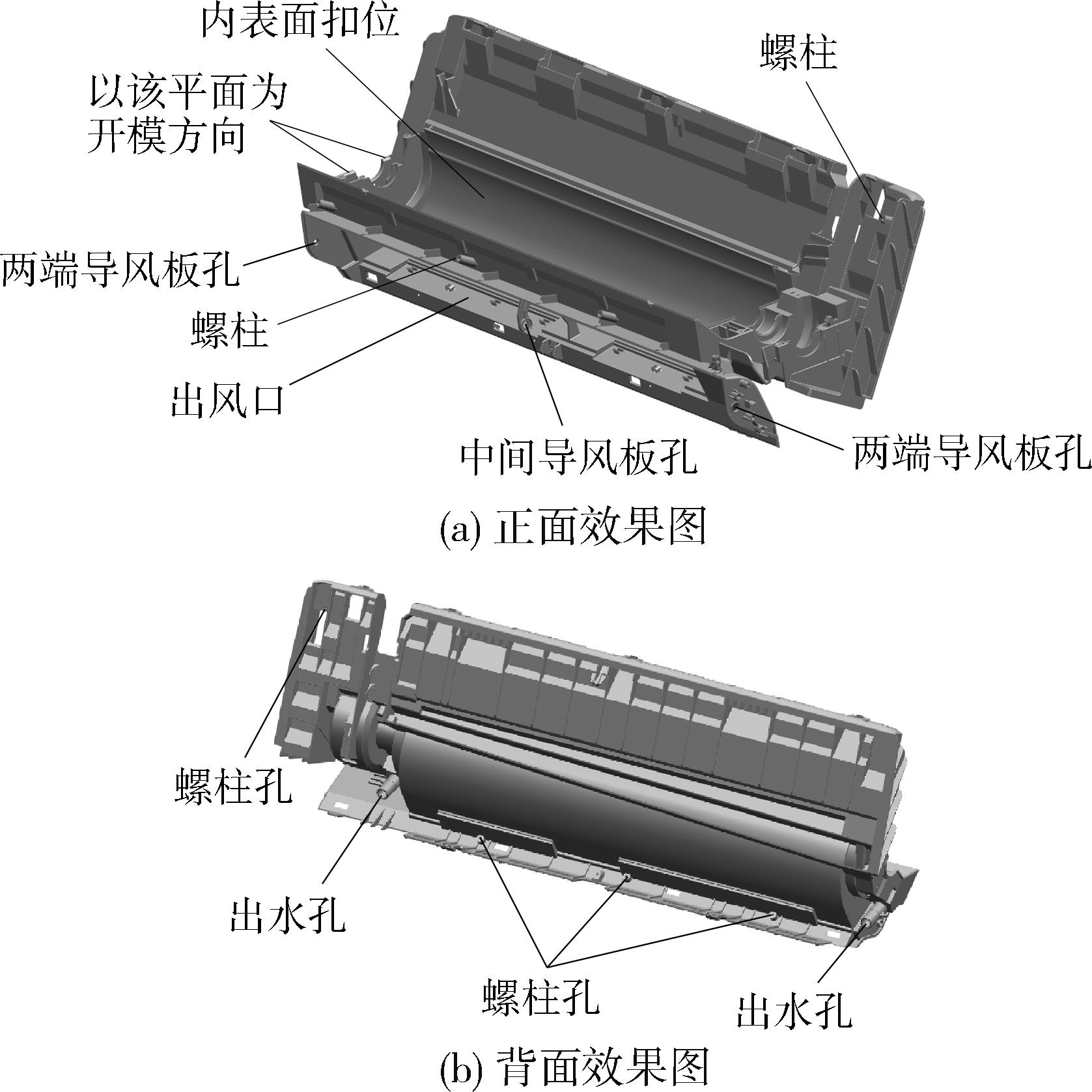

Fig.2. Detailed features on the product

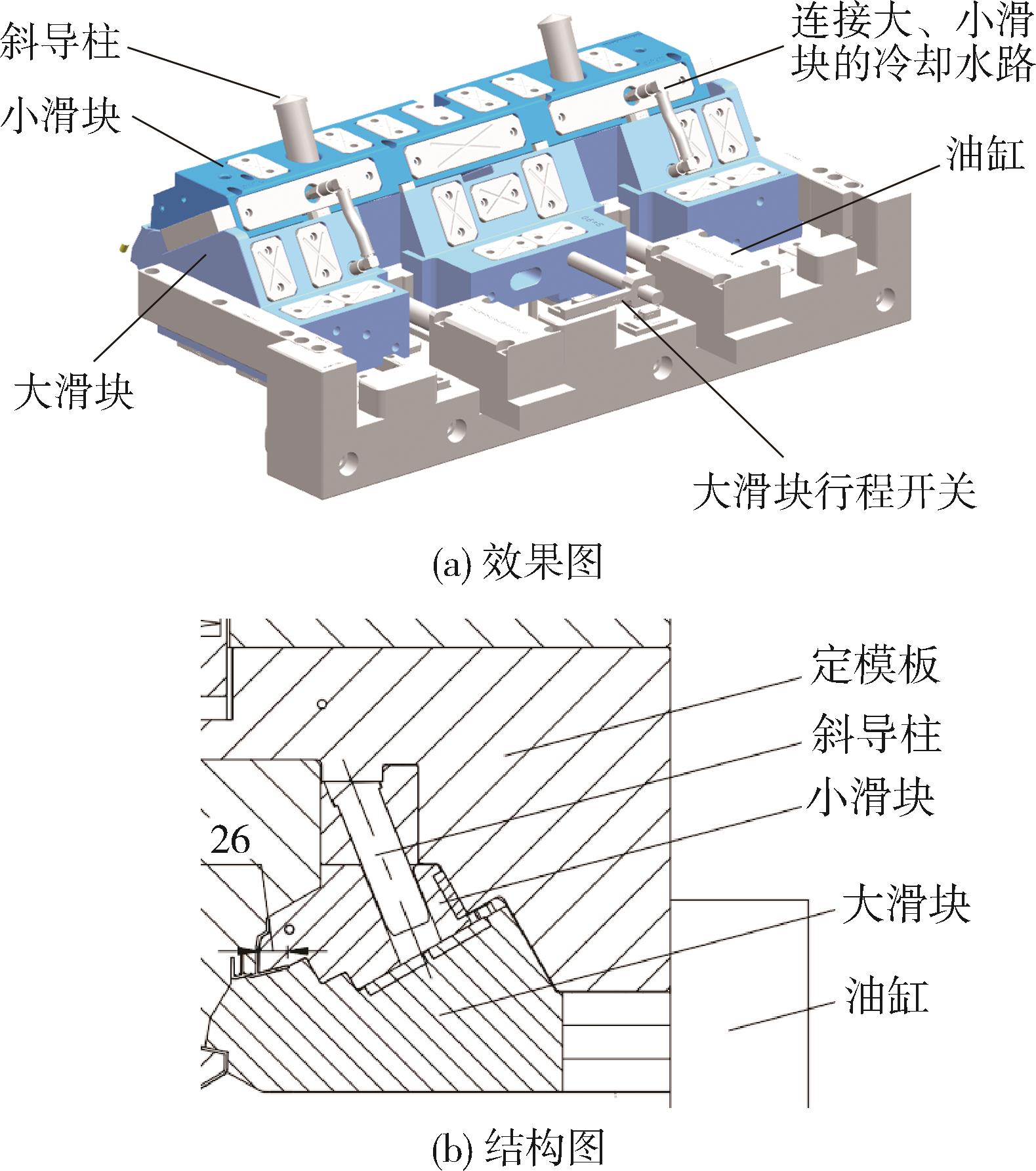

Fig.3. Structure diagram of combined slider

Fig.4. Demoulding structure drawing of air guide plate hole with slider+horizontal inclined bar

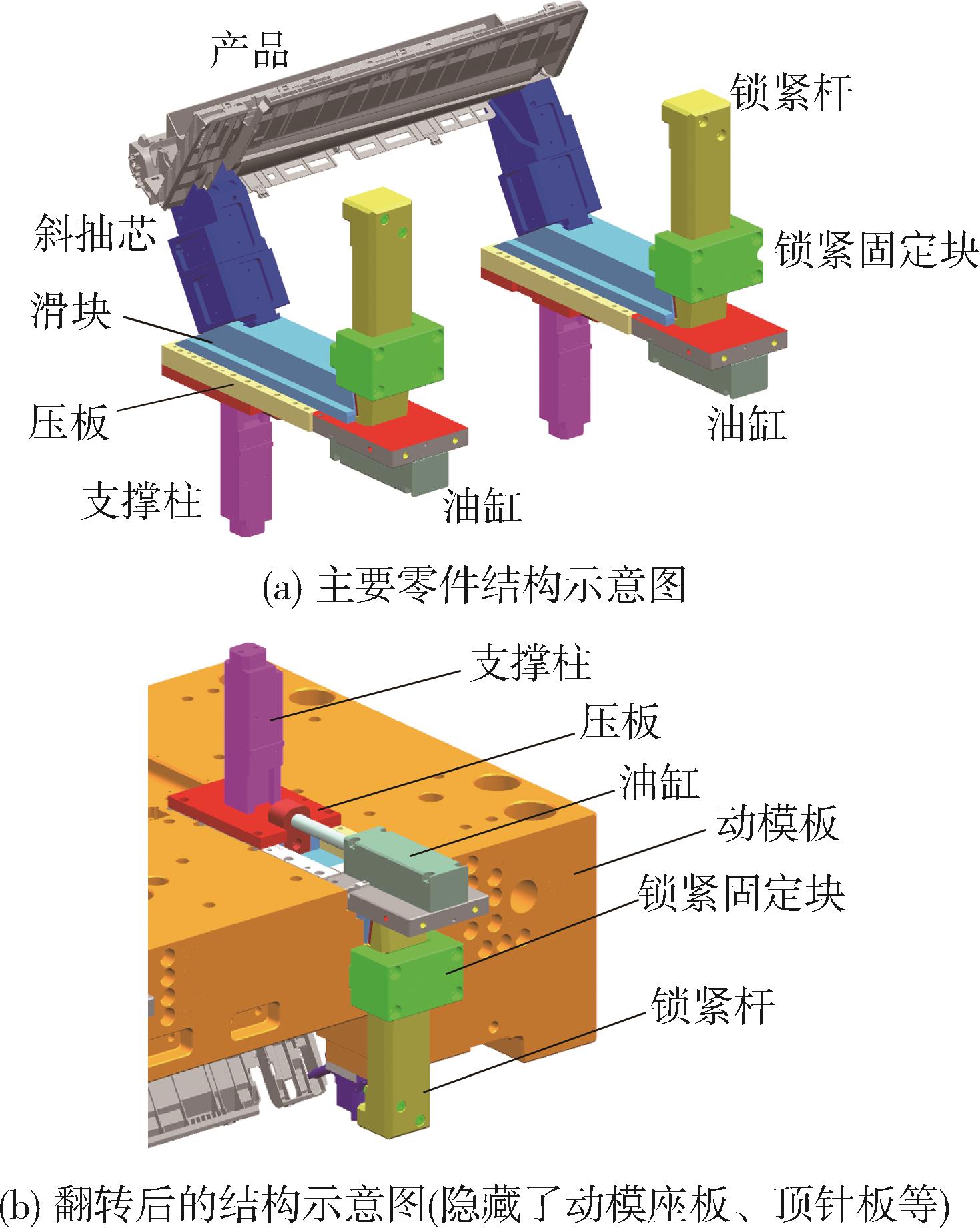

Fig.5. Demoulding structure of oblique core?pulling + slider + cylinder

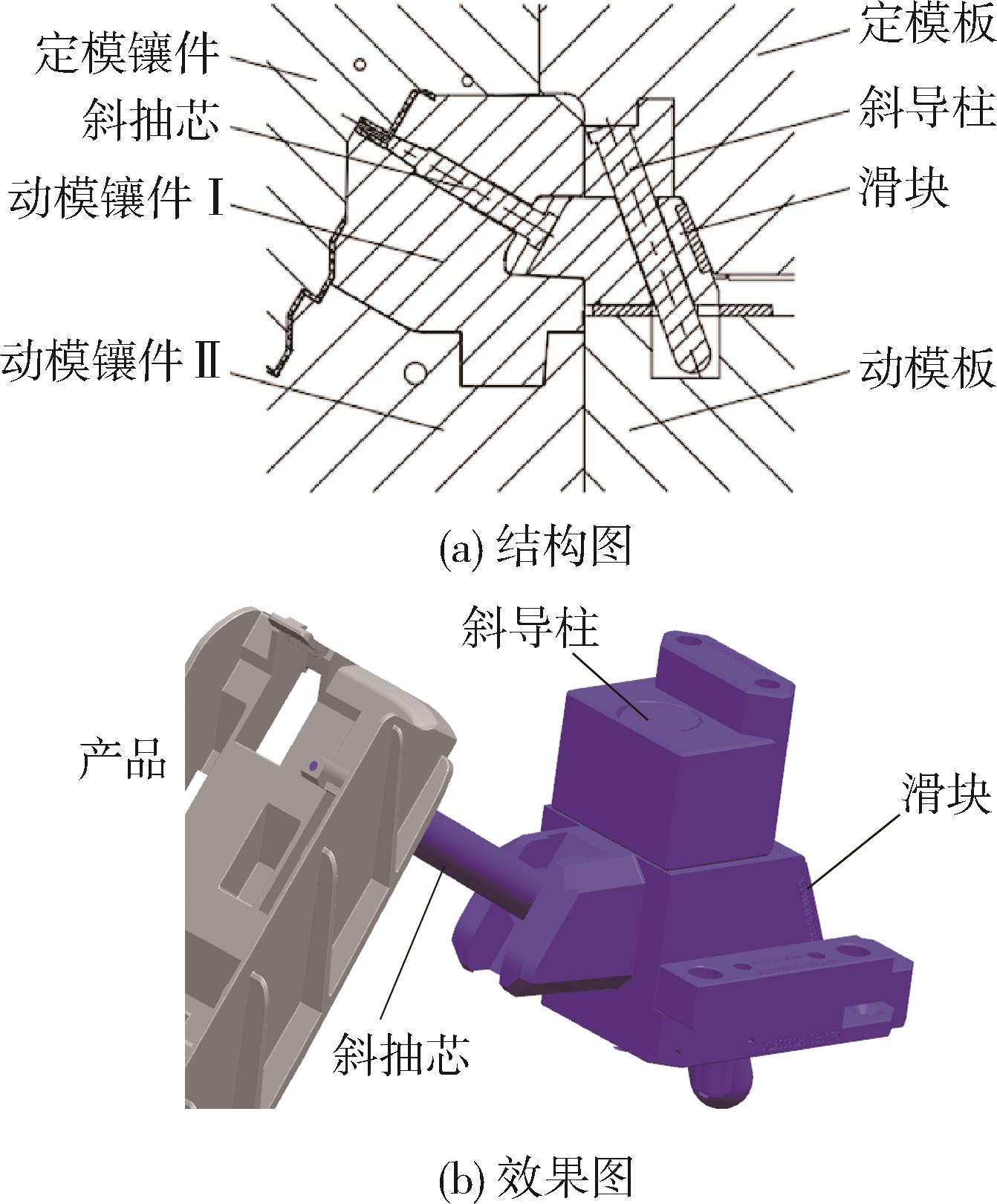

Fig.6. Demoulding structure of inclined stud with inclined core?pulling+slider

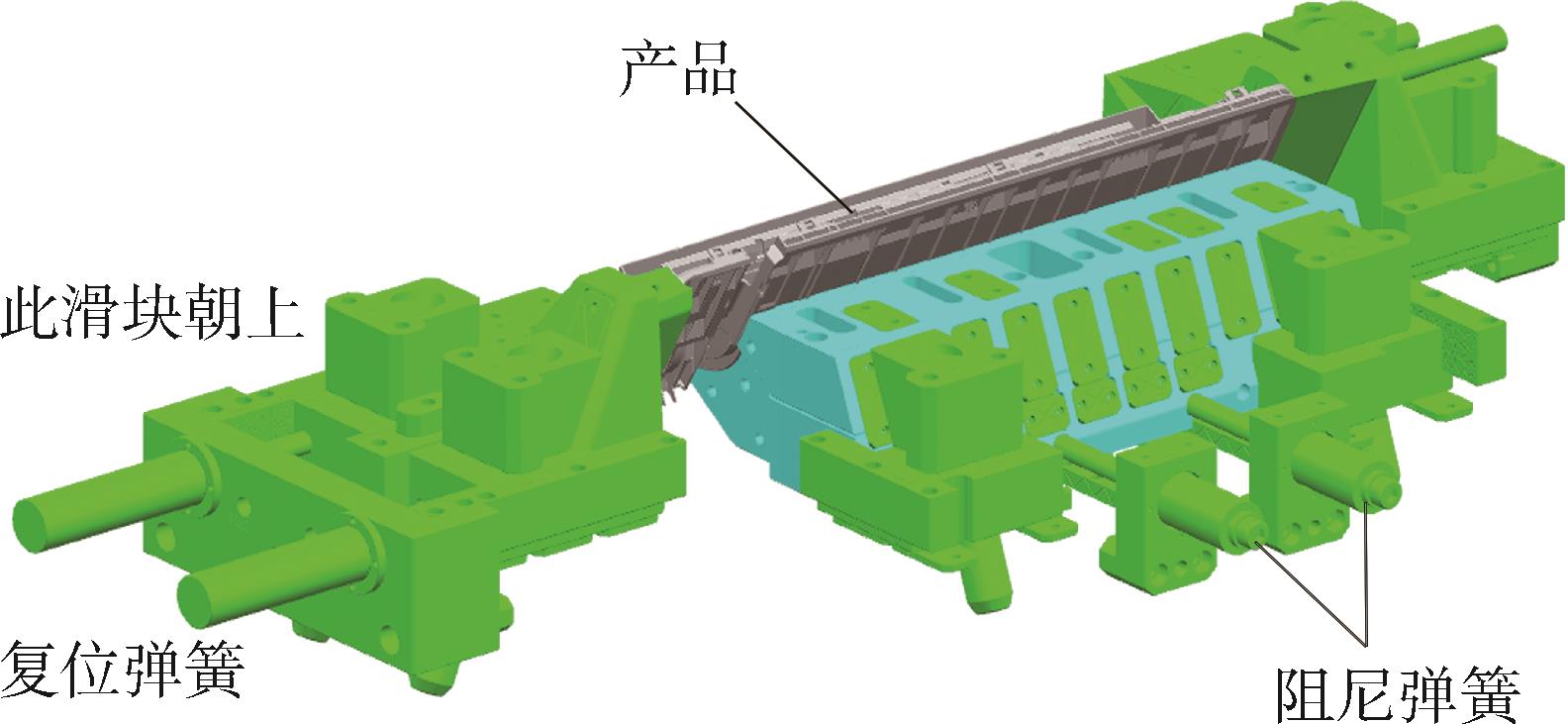

Fig.7. Slider structure with spring

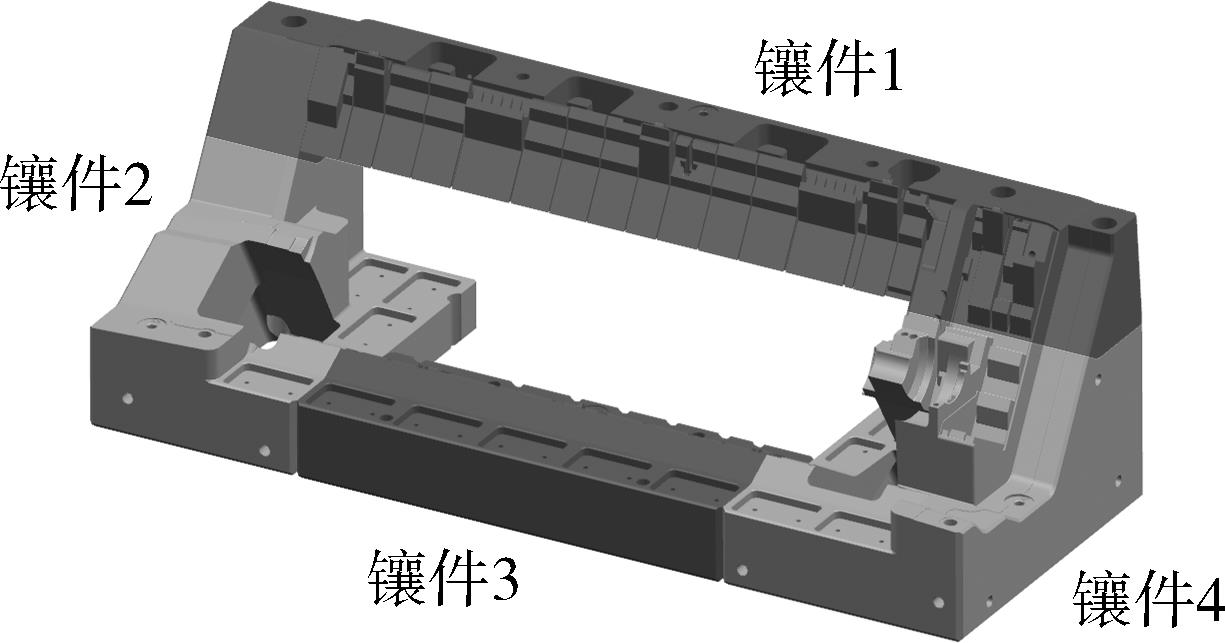

Fig.8. Schematic diagram of moving die inserts

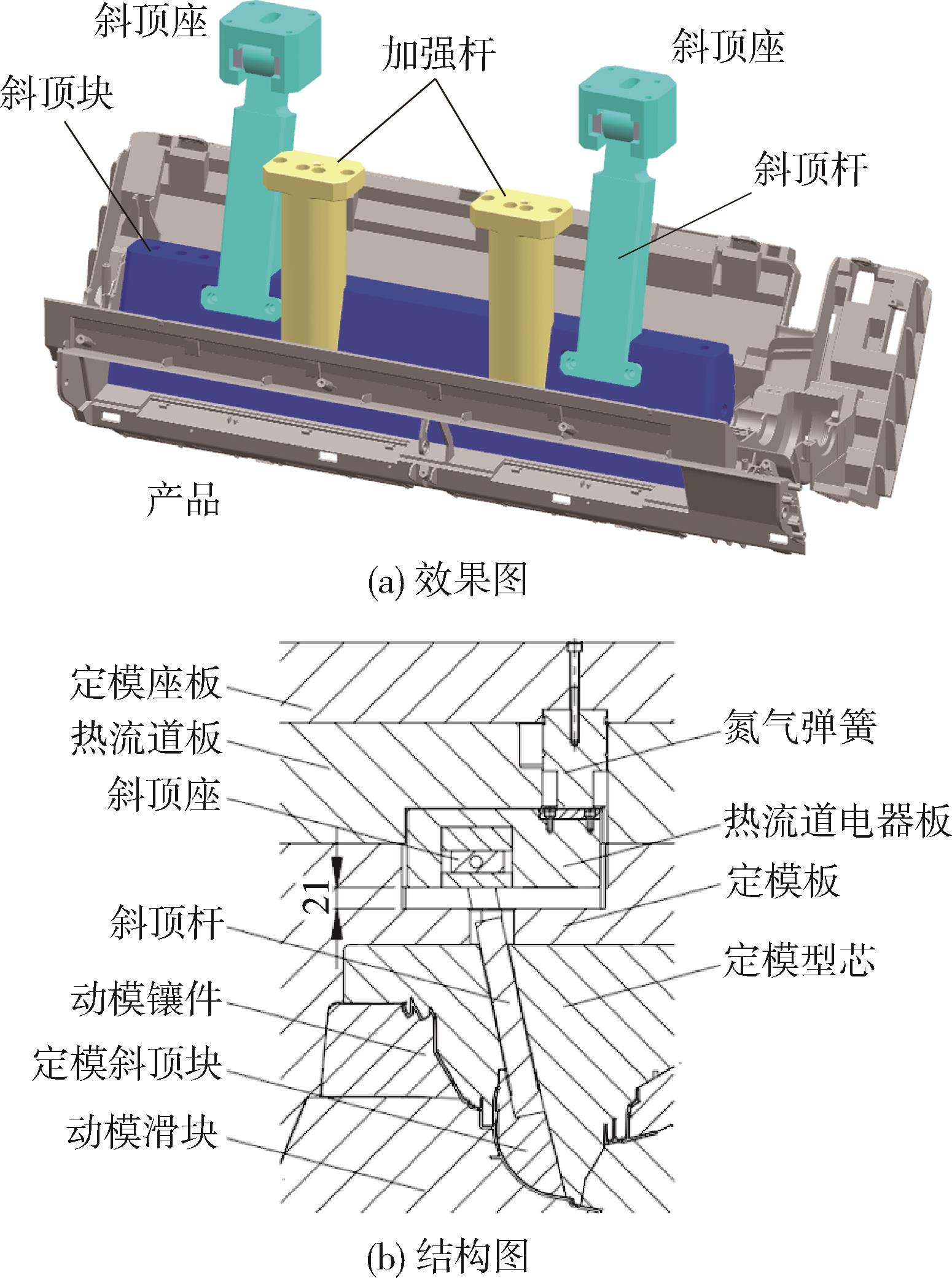

Fig.9. Fixed die inclined roof structure

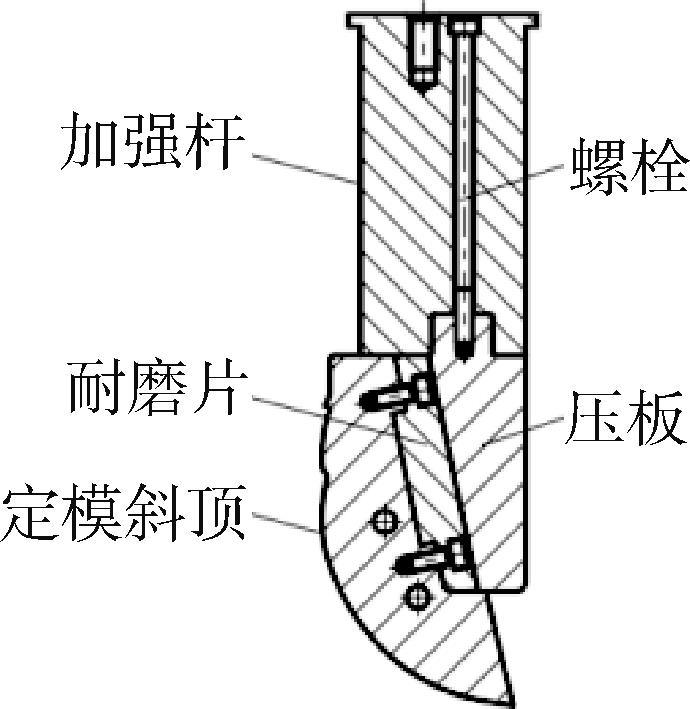

Fig.10. Assembly schematic diagram of inclined top stiffening rod and fixed die inclined top

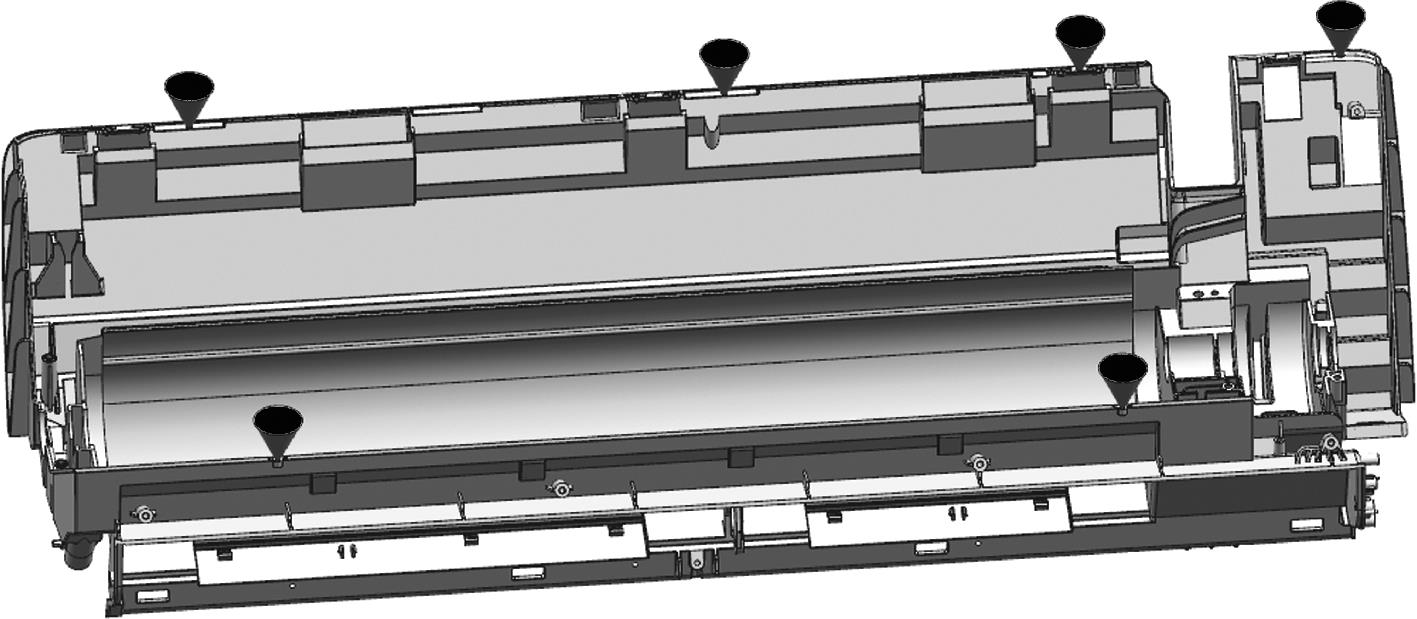

Fig.11. Six feed points

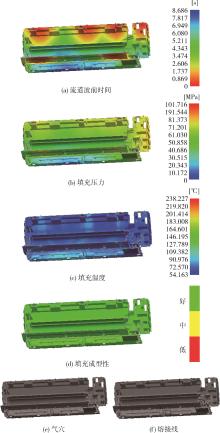

Fig.12. Modular flow analysis effect diagram

Fig.13. Cooling system of moving mold part

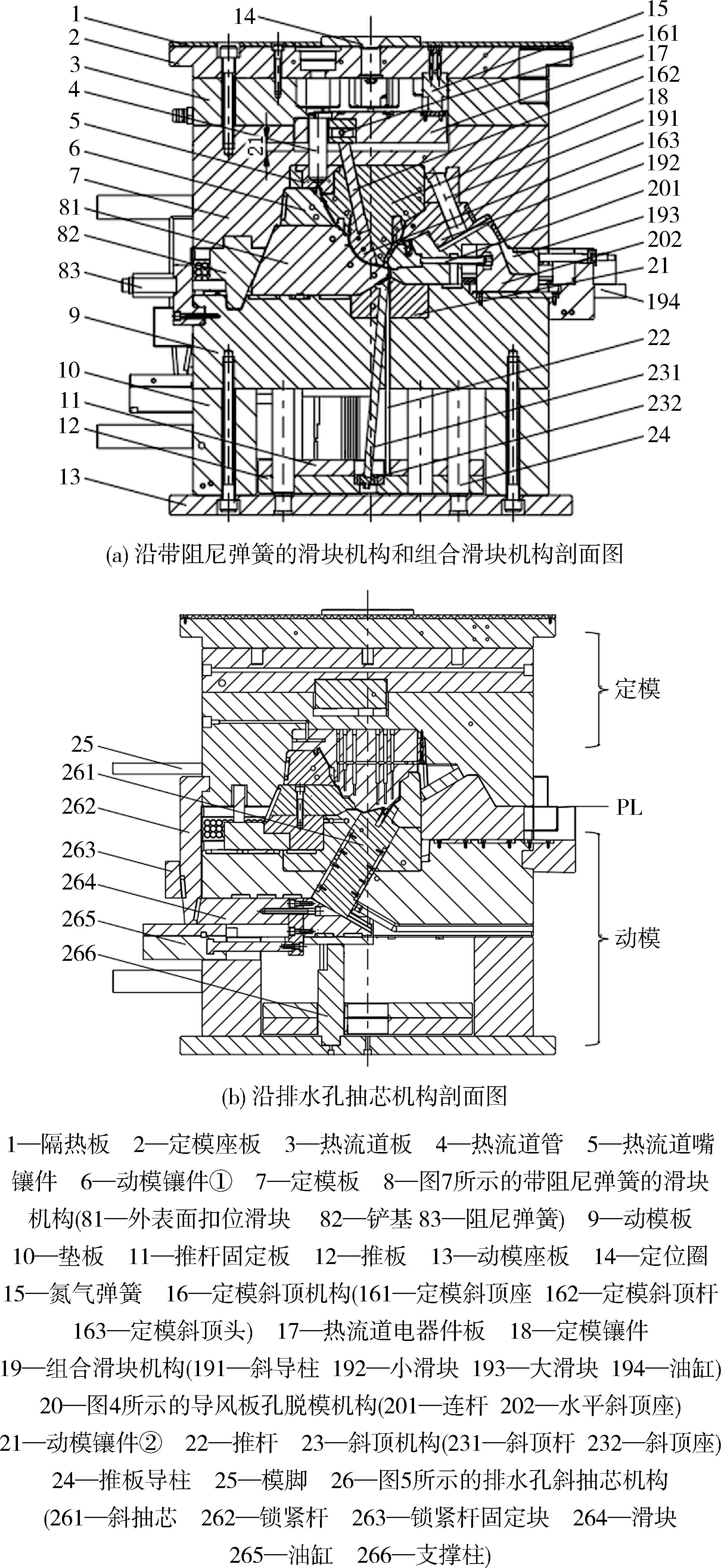

Fig.14. Profile structure of the mould

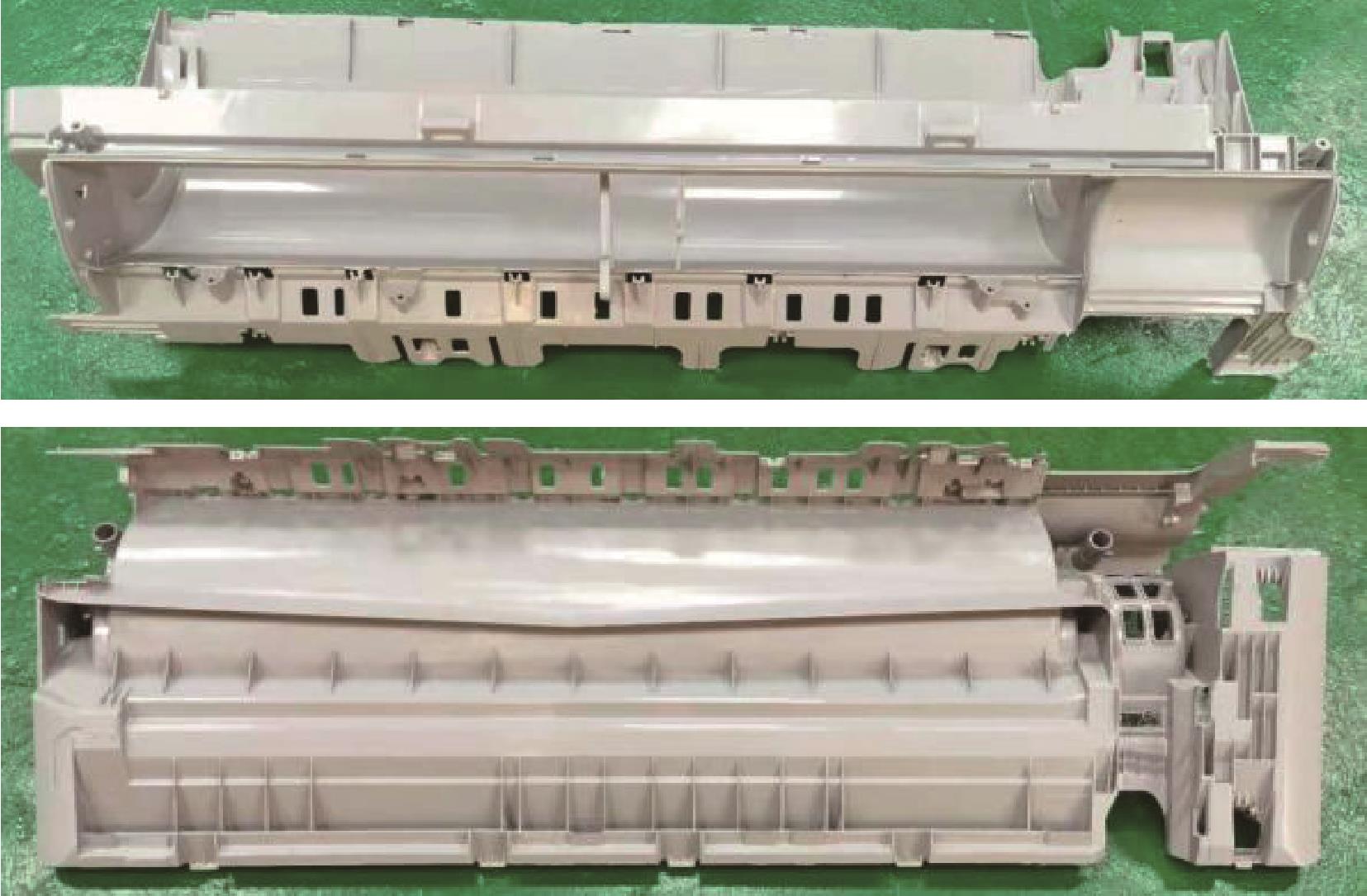

Fig.15. Photos of the split air conditioning chassis
