Synthesis thermal performance of PBS copolyester modified with MPO

doi:10.19491/j.issn.1001-9278.2022.04.005

Abstract

Abstract:

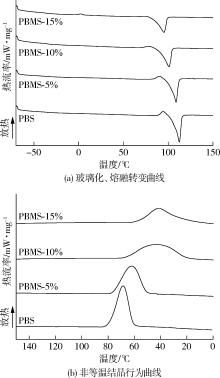

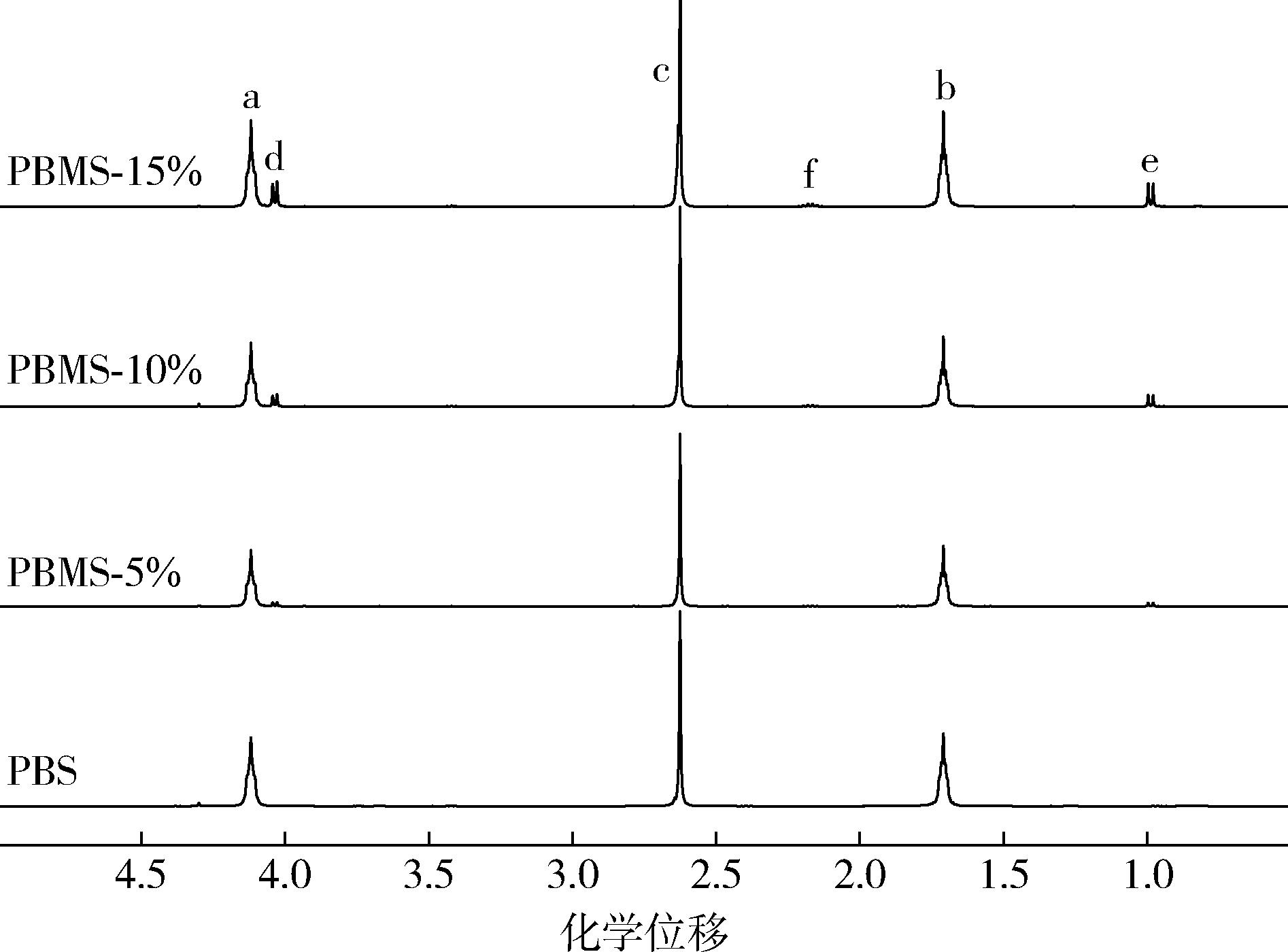

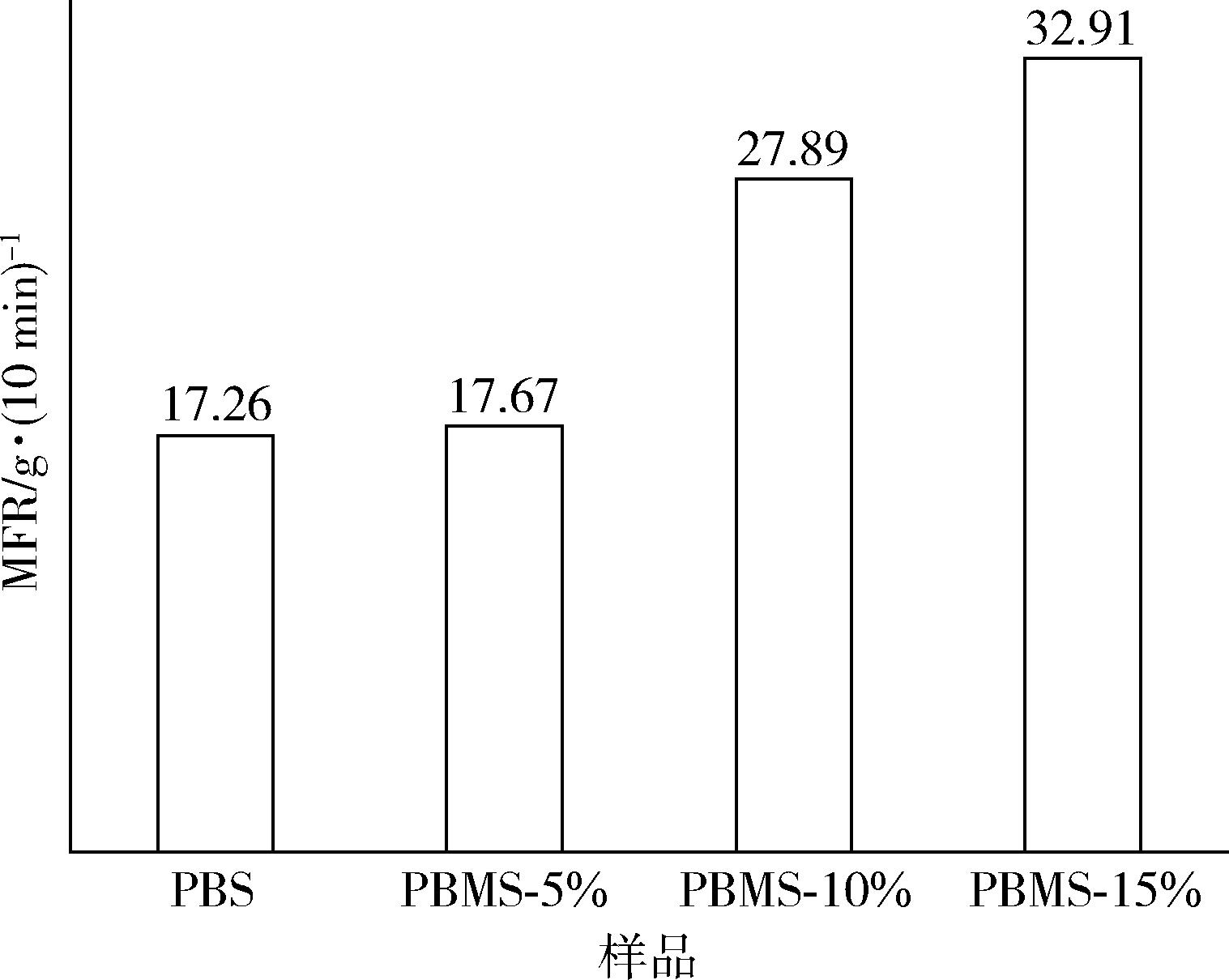

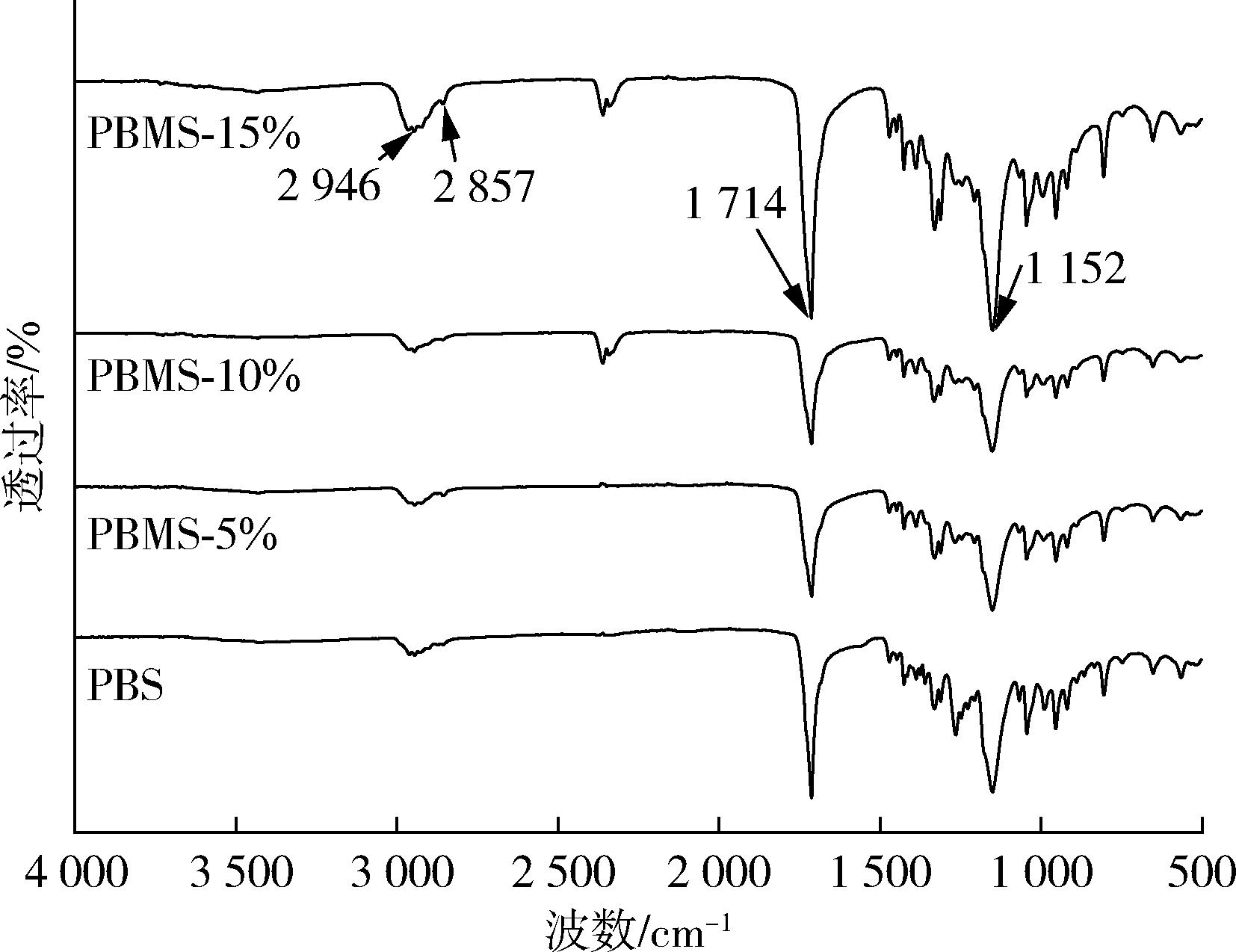

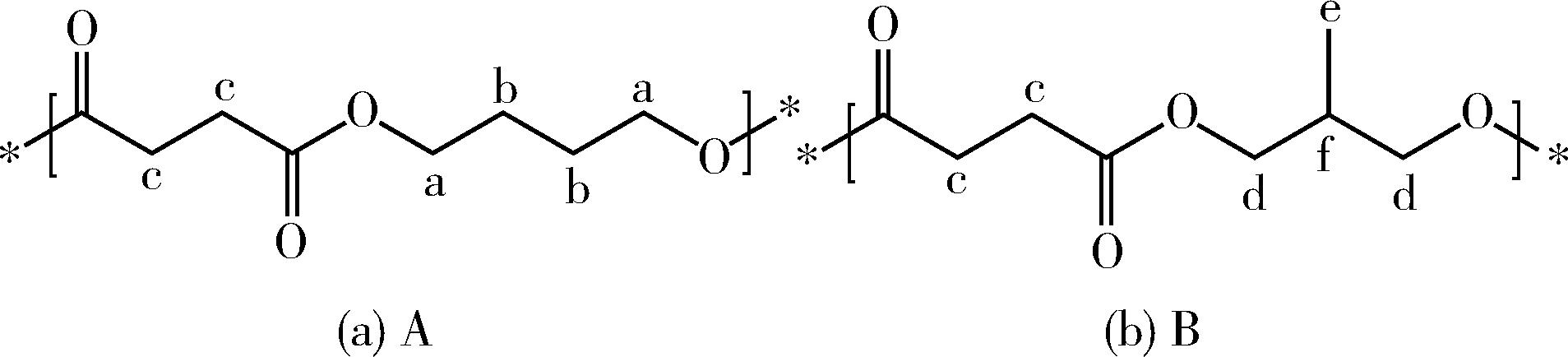

Poly（butylene succinate）（PBS） and its copolyester with 2?methyl?1，3?propanediol （MPO）（PBMS） were synthesized through direct esterification?melt polycondensation. The chemical structure and molecular weight of the resultant PBS and its copolyester were characterized by Fourier?transform infrared spectrometry， nuclear magnetic resonance spectrometry （¹H?NMR）， and gel permeation chromatograph， and their thermal performance was valuated by differential scanning calorimetry， simultaneous thermal analyzer， and melt flow rate tester. The structural characterization results indicated that there were repeating structural units of butanediol succinate （BS） and 2?methyl?1，3?propanediol succinate （MS） in the main chains of the copolyester molecules. The content of MS was almost the same as that of MPO added in the synthetic process， confirming the successful synthesis of the PBMS copolyester according to our design strategy. The weight?average molecular weights of PBS and PBMS were determined to be 7.87×10⁴~8.75×10⁴ g/mol. Thermal analysis results indicated that the glass?transition temperature of PBMS gradually increased with an increase in the MPO content but its melting temperature decreased gradually. Moreover， the non?isothermal crystallization capability of PBMS weakened gradually and its degree of crystallinity decreased from 74.57 % to 49.42 %. The thermal degradation temperature of PBMS was higher than 400 ℃ without any change with a variation of MPO content. As the content of MPO increased， the melt index of PBMS increased gradually. Compared to pure PBS， PBMS exhibited better melt fluidity at the same temperature.

Key words: poly （butylene succinate）, 2?methyl?1，3?propanediol, synthesis, thermal property

CLC Number:

TQ323.4⁺1

JIANG Sen, WANG Liyan, CHEN Yanming, ZHANG Le, ZHAI Guifa. Synthesis thermal performance of PBS copolyester modified with MPO[J]. China Plastics, 2022, 36(4): 24-29.

Figures/Tables 10

References 15

1	SHIMAO M. Biodegradation of plastics［J］. Current Opinion in Biotechnology， 2001， 12（3）：242⁃247.
2	NAZRIN A， SAPUAN SM， ZUHRI MYM， et al. Nanocellulose reinforced thermoplastic starch （TPS）， polylactic acid （PLA）， and polybutylene succinate （PBS） for food packaging applications［J］. Frontiers in Chemistry， 2020， 8：213.
3	KAPANEN A， SCHETTINI E， VOX G， et al. Performance and environmental impact of biodegradable films in agriculture： a field study on protected cultivation［J］. Journal of Polymers and the Environment， 2008， 16（2）：109⁃122.
4	EUBELER JP， BERNHARD M， KNEPPER TP. Environmental biodegradation of synthetic polymers II. biodegradation of different polymer groups［J］. Trac⁃trends in Analytical Chemistry， 2009， 29（1）：84⁃100.
5	LUCAS N， BIENAIME C， BELLOY C， et al. Polymer biodegradation： mechanisms and estimation techniques［J］. Chemosphere， 2008， 73（4）：429⁃442.
6	FUJIMAKI T. Processability and properties of aliphatic polyesters， ‘BIONOLLE’， synthesized by polycondensation reaction［J］. Polymer Degradation and Stability， 1998， 59（1）：209⁃214.
7	孙元碧，徐军，徐永祥，等.生物可降解聚丁二酸/甲基丁二酸丁二酯系列共聚物的合成和表征［J］.高等学校化学学报，2006，27（2）：360⁃364.
	SUN Y B， XU J， XU Y X，et al. Synthesis and Characterization of Biodegradable Poly（butylene succinate⁃co⁃butylenemethylsuccinate）［J］.Chemical Journal of Chinese Universities， 1998， 59（1）：209⁃214.
8	LI Y， HUANG G Y， CHEN C， et al. Poly（butylene succinate⁃co⁃butylene acetylenedicarboxylate）： copolyester with novel nucleation behavior［J］. Polymers， 2021， 13（3）：365.
9	XU J， GUO B H. Poly（butylene succinate） and its copolymers： research， development and industrialization［J］. Biotechnology Journal， 2010， 5（11）：1 149⁃1 163.
10	HUANG Q Y， KIMURA S， IWATA T. Development of self⁃degradable aliphatic polyesters by embedding lipases via melt extrusion［J］. Polymer Degradation and Stability， 2021，190：109647.
11	SHEIKHOLESLAMI S N， RAFIZADEH M， TAROMI F A， et al. Crystallization and photo⁃curing kinetics of biodegradable poly（butylene succinate⁃co⁃butylene fumarate） short⁃segmented block copolyester［J］. Polymer International， 2017， 66（2）：289⁃299.
12	孙杰，张大伦，谭惠民，等.聚丁二酸丁二醇酯的共聚改性［J］.中国塑料，2004，18（1）：47⁃49.
	SUN J， ZHANG D L， TAN H M， et al. Copolymerization modification of poly（butylene succinate）［J］. China Plastics， 2004， 18（1）：47⁃49.
13	许国贺，揣成智，刘宇，等.聚丁二酸丁二醇酯合成工艺及性能表征［J］.天津科技大学学报，2013，28（4）：19⁃23.
	XU G H， CHUAI C Z， LIU Y， et al. Synthetic technology and properties of poly（butylene succinate）［J］. Journal of Tianjin University of Science & Technology， 2013， 28（4）：19⁃23.
14	白桢慧，苏婷婷，王战勇.聚丁二酸丁二醇酯基脂肪族聚酯生物降解研究进展［J］.中国塑料，2018，32（12）：10⁃15，33.
	BAI Z H， SU T T， WANG Z Y. Progress in biodegradation research of poly（butylene succinate） and its copolyesters［J］. China Plastics， 2018， 32（12）： 10⁃15，33.
15	尹德荟，高建国，李炳海，等.HDPE改进UHMWPE加工性能的研究［J］.塑料，2000，29（3）：27⁃32.
	YIN D H， GAO J G， LI B H， et al. Processing property of UHMWPE modified by HDPE［J］. Plastics， 2000， 29（3）：27⁃32.

样品	T_g/℃	T_m/℃	T_c/℃	ΔH_m/ J•g^-1	ΔH_c/ J•g^-1	X_c/%
PBS	-38.16	118.58	68.72	82.25	64.73	74.57
PBMS⁃5%	-35.69	115.39	61.82	75.23	63.76	68.20
PBMS⁃10%	-36.92	107.91	42.48	62.90	62.13	57.03
PBMS⁃15%	-32.72	102.94	40.84	54.51	49.36	49.42

样品	T_g/℃	T_m/℃	T_c/℃	ΔH_m/ J•g^-1	ΔH_c/ J•g^-1	X_c/%
PBS	-38.16	118.58	68.72	82.25	64.73	74.57
PBMS⁃5%	-35.69	115.39	61.82	75.23	63.76	68.20
PBMS⁃10%	-36.92	107.91	42.48	62.90	62.13	57.03
PBMS⁃15%	-32.72	102.94	40.84	54.51	49.36	49.42

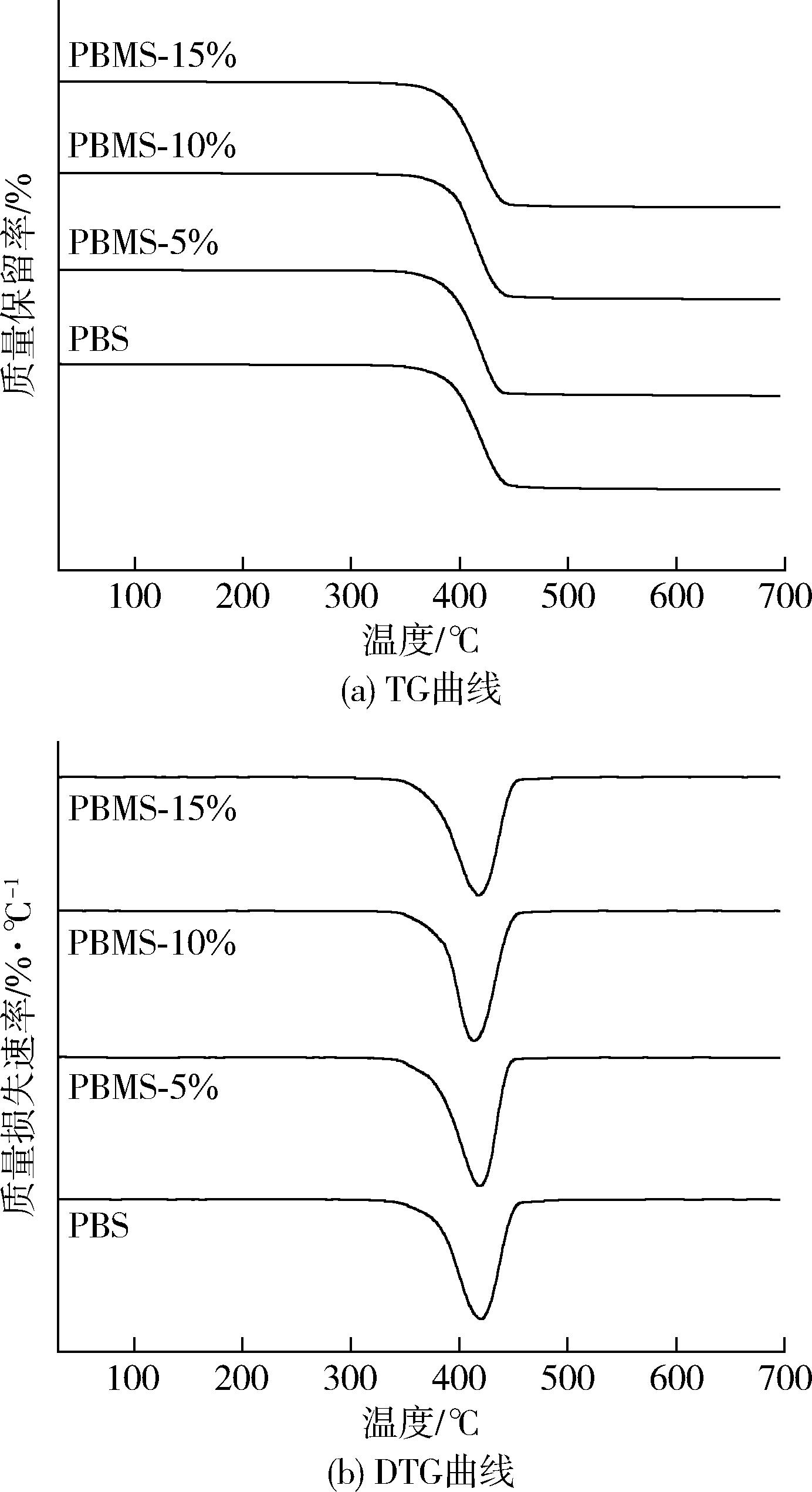

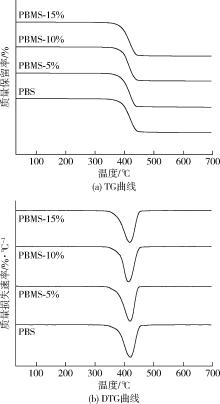

样品	T_onset/℃	T_max/℃	W_{700 ℃}/%
PBS	368	420	2.35
PBMS⁃5%	369	419	2.47
PBMS⁃10%	372	413	1.21
PBMS⁃15%	366	419	1.85

样品	T_onset/℃	T_max/℃	W_{700 ℃}/%
PBS	368	420	2.35
PBMS⁃5%	369	419	2.47
PBMS⁃10%	372	413	1.21
PBMS⁃15%	366	419	1.85
