Analysis of structure and performance of thin⁃walled injection⁃molded polypropylene with high melt flow rate

doi:10.19491/j.issn.1001-9278.2021.12.005

Abstract

Abstract:

The melt crystallization properties， optical properties， molecular weight distribution， mechanical properties， capillary rheological properties， and thermal shrinkage properties of three types of thin-walled injection-molded polypropylenes were investigated. The results indicated that K1860 has the same properties with the commercial PP products， PP1 and PP2， and its molecular weight distribution was narrower than PP1 and PP2. The bending and tensile properties of the K1860 were better than those of PP1 and PP2. The K1860 can completely meet the requirements for the production of large thin?walled injection-molded products.

Key words: polypropylene, high melt flow rate, thin?wall, injection molding, thermal property, optical performance, mechanical property

CLC Number:

TQ325.1⁺5

BAO Lulu, LIU Yi, HAN Liwang, YANG Tingjie, MENG Xin, GUO Xiaodong, WANG Yong, GOU Rongheng, LI Guofeng, ZHANG Minghui. Analysis of structure and performance of thin⁃walled injection⁃molded polypropylene with high melt flow rate[J]. China Plastics, 2021, 35(12): 27-31.

Figures/Tables 9

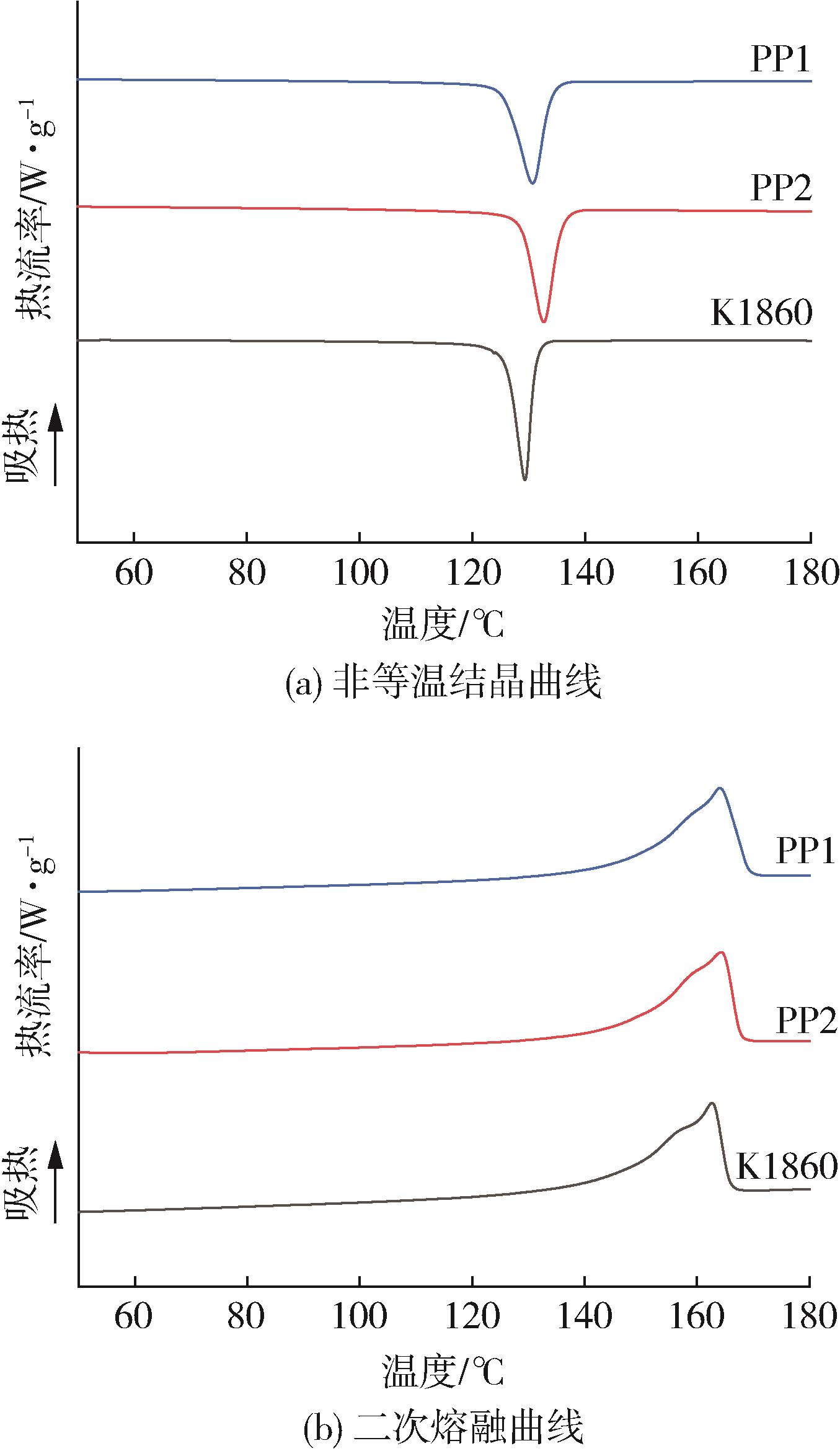

Fig.1. Non?isothermal crystallization curves and secondary melting curves of three kinds of thin?walled injection PP materials

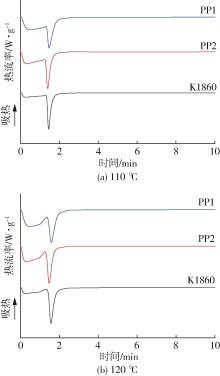

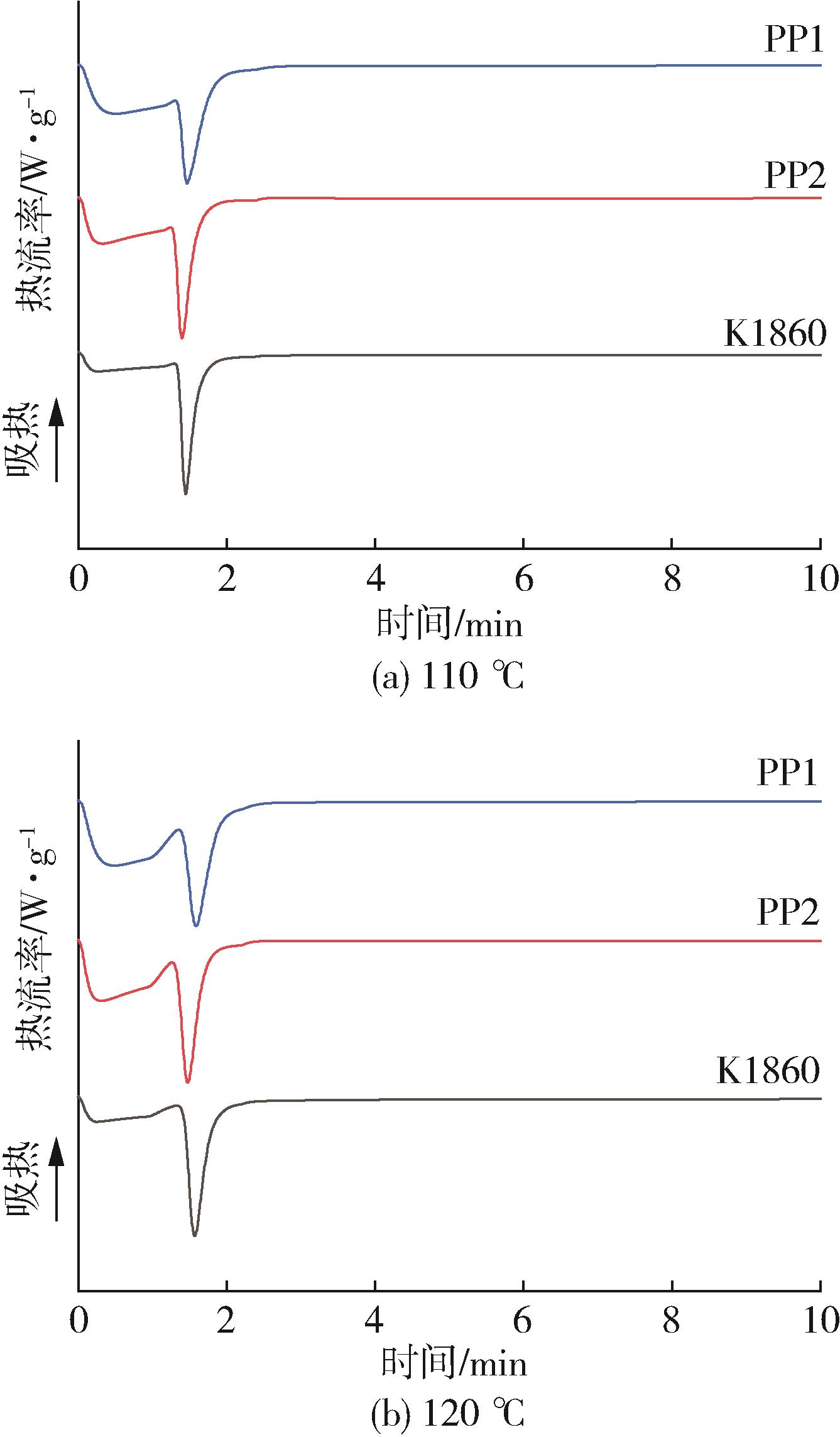

Fig.2. Isothermal crystallization curves of three kinds of thin?walled injection PP materials

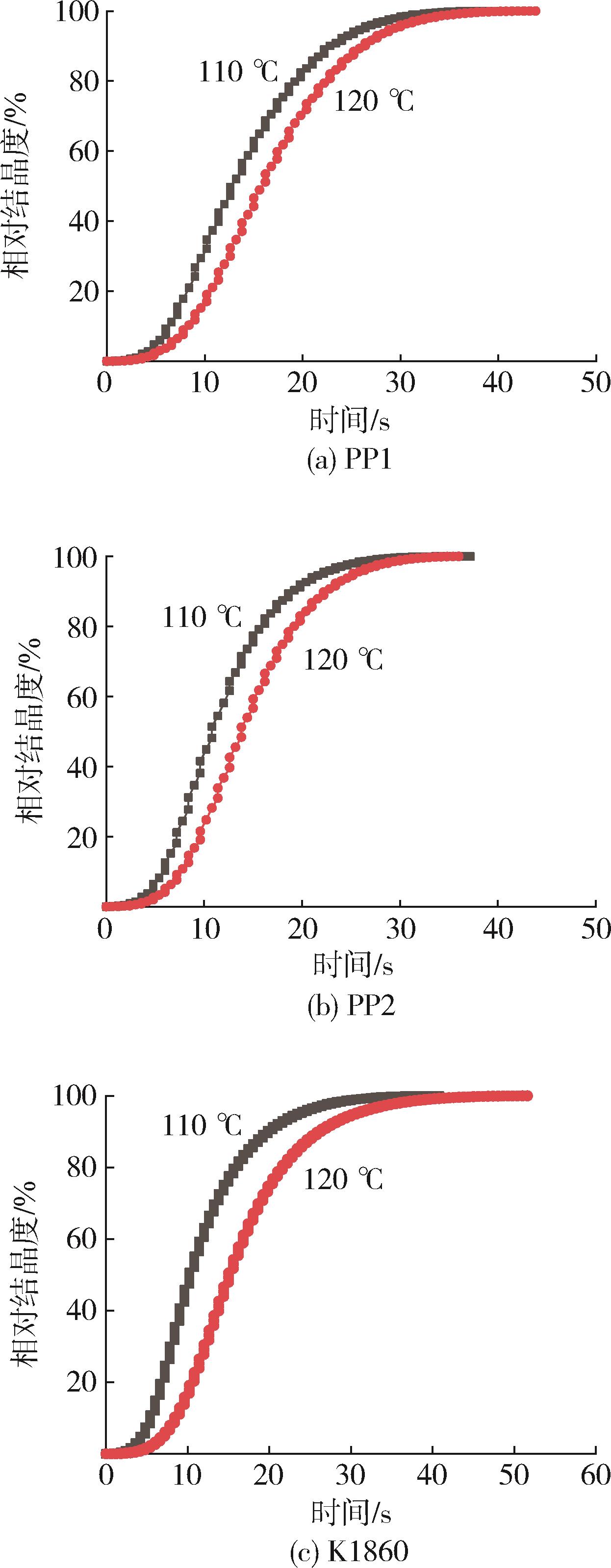

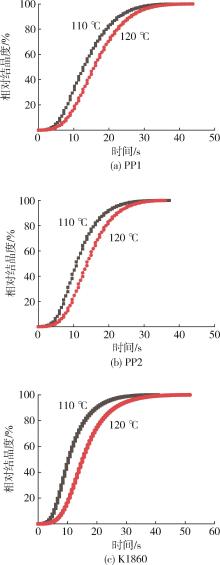

Fig.3. Relative crystallinity vs time curves of three kinds of thin?walled injection PP materials

样品	熔融温度/ ℃	结晶热焓/ J·g^-1	结晶温度/ ℃	t_1/2/s
样品	熔融温度/ ℃	结晶热焓/ J·g^-1	结晶温度/ ℃	110 ℃	120 ℃
PP1	164.2	105.8	130.7	12.6	15.8
PP2	164.2	104.9	132.7	10.8	13.8
K1860	162.7	102.7	129.3	10.2	15.0

Tab.1. Crystallization properties of three kinds of thin?walled injection PP materials

样品	黄度	雾度/%	透光率/%
PP1	-6.3~-6.7	73.8	81.8
PP2	-1.4~-1.7	80.7	79.4
K1860	-1.4~-1.9	59.0	84.6

Tab.2. Optical performance of thin?walled injection PP materials

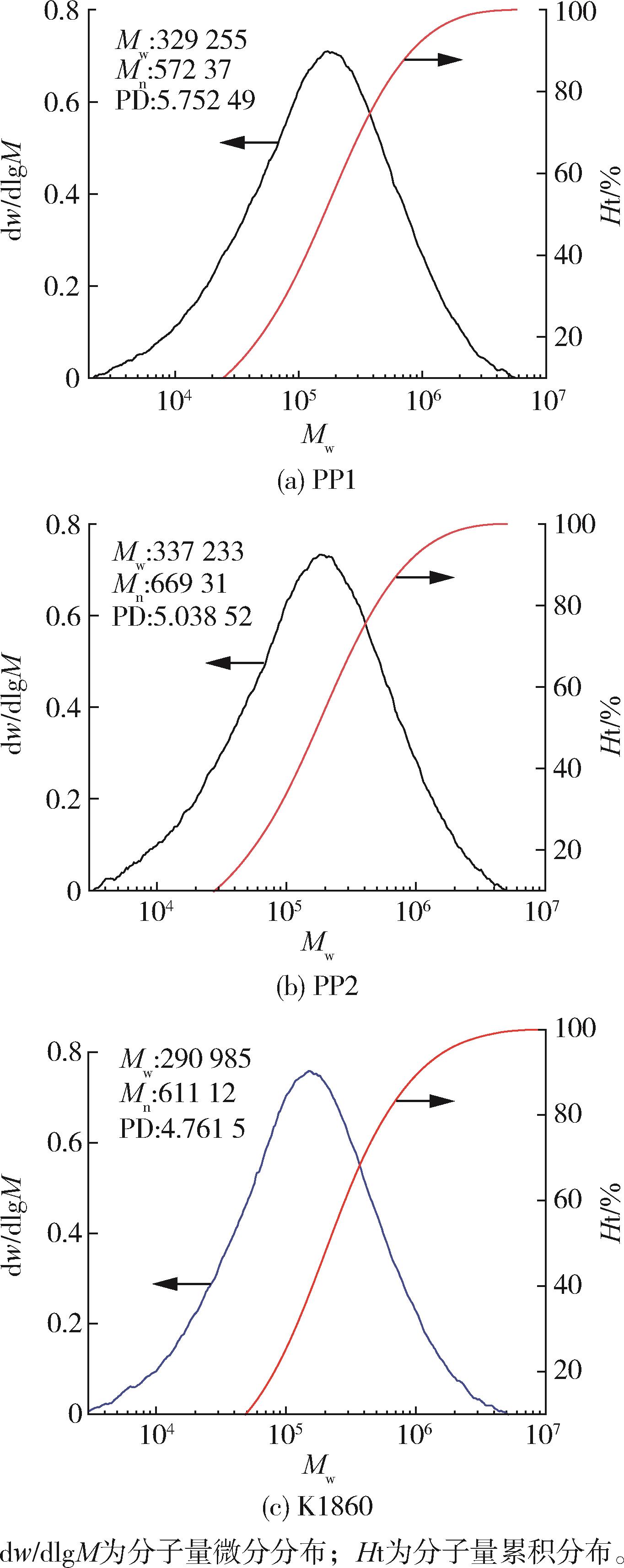

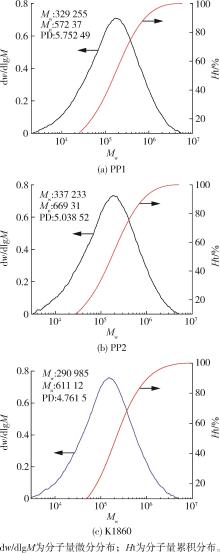

Fig.4. GPC curves of three kinds of thin?walled injection PP materials

样品

拉伸强度/

MPa

弯曲模量/

MPa

简支梁冲击强度/

kJ·m^-2

熔体流动速率/

g·（10 min）^-1

Tab.3. Mechanical properties of three kinds of thin?walled injection PP materials

Fig.5. Apparent viscosity vs shear rate curves of three kinds of thin?walled injection PP materials

样品	横向收缩率	纵向收缩率
PP1	1.16	1.26
PP2	1.27	1.37
K1860	1.23	1.36

Tab.4. Thermal shrinkage of three kinds of thin?walled injection PP materials

References 9

1	曲涛，郭悦，张桂鑫，等. 高刚性薄壁专用树脂的结构与性能［J］. 当代化工，2014，43（9）：1 689⁃1 691.
	QU T，GUO Y，ZHANG G，et al. Structure and performance of high stiffness thin⁃walled special resin［J］. Contemporary Chemical Industry 2014，43 （9） 1 689⁃1 691.
2	胡琳，王林，袁炜，等.薄壁注塑专用煤基聚丙烯1040TE的结构与性能［J］. 合成树脂及塑料，2019，36（6）：71⁃74.
	HU L，WANG L，YUAN W，et al. Structure and properties of coal⁃based thin wall injection molded polypropylene 1040TE［J］. China Synthetic Resin and Plastics，2019， 36（6）71⁃74.
3	乃国星，杜夕彦，黄河，等. Novolen工艺氢调法高流动聚丙烯1040TU的结构与性能［J］. 合成树脂及塑料，2020，37（6）：51⁃54.
	NAI G X，DU X Y，HUANG H，et al. Structure and properties of high flow polypropylene 1040TU produced by hydrogen regulation in Novolen process［J］. China Synthetic Resin and Plastics，2020， 37（6）：51⁃54.
4	孟永智，胡琳，曾祥国，等. 高熔薄壁注塑聚丙烯新产品1040TE开发与应用［J］. 塑料工业，2019，47（S1）：52⁃54，63.
	MENG Y Z，HU L，ZENG X G，et al. Development and application of high melting thin⁃wall injection polypropylene new product 1040TE［J］. China Plastics Industry，2019， 47（S1）52⁃54，63.
5	张云，葛骞. 薄壁注塑聚丙烯综述［J］. 当代化工，2018，47（3）：600⁃602，606.
	ZHANG Y，GE Q. An overview of the TWIM polypropylene［J］. Contemporary Chemical Industry，2018， 47（3）600⁃602，606.
6	李国锋，包璐璐，郭晓东，等.薄壁注塑专用煤基聚丙烯K1860的工业化生产及应用［J］.合成树脂及塑料，2020，37（4）：48⁃52.
	LI G F，BAO L L，GUO X D，et al. Industrial production and application of thin⁃walled injection coal⁃based PP K1860 ［J］. China Synthetic Resin and Plastics，2020， 37（4）：48⁃52.
7	SONG T T， REN Z J， LI H H，et al. Modification of illite with calcium pimelate and its influence on the crystallization and mechanical property of isotactic polypropylene［J］. Composites Part A：Applied Science and Manufacturing， 2019，123：200⁃207.
8	王松杰，张晓黎，申长雨，等.聚丙烯剪切流变测试与分析［J］.现代塑料加工应用，2010，22（2）：53⁃54.
9	焦旗，田广华，杨坚，等.中熔均聚聚丙烯1100N流变性能研究［J］.工程塑料应用，2016，44（5）：78⁃81，111.
	JIAO Q，TIAN G H，YANG J，et al. Study on rheological behavior of mid⁃melting⁃homopolypropylene 1100N［J］. Engineering Plastics Application，2016， 44（5）：78⁃81，111.
