Preparation of three⁃sources⁃in⁃one shell⁃core structural flame retardants and its application in poly（lactic acid）

doi:10.19491/j.issn.1001-9278.2022.09.014

Abstract

Abstract:

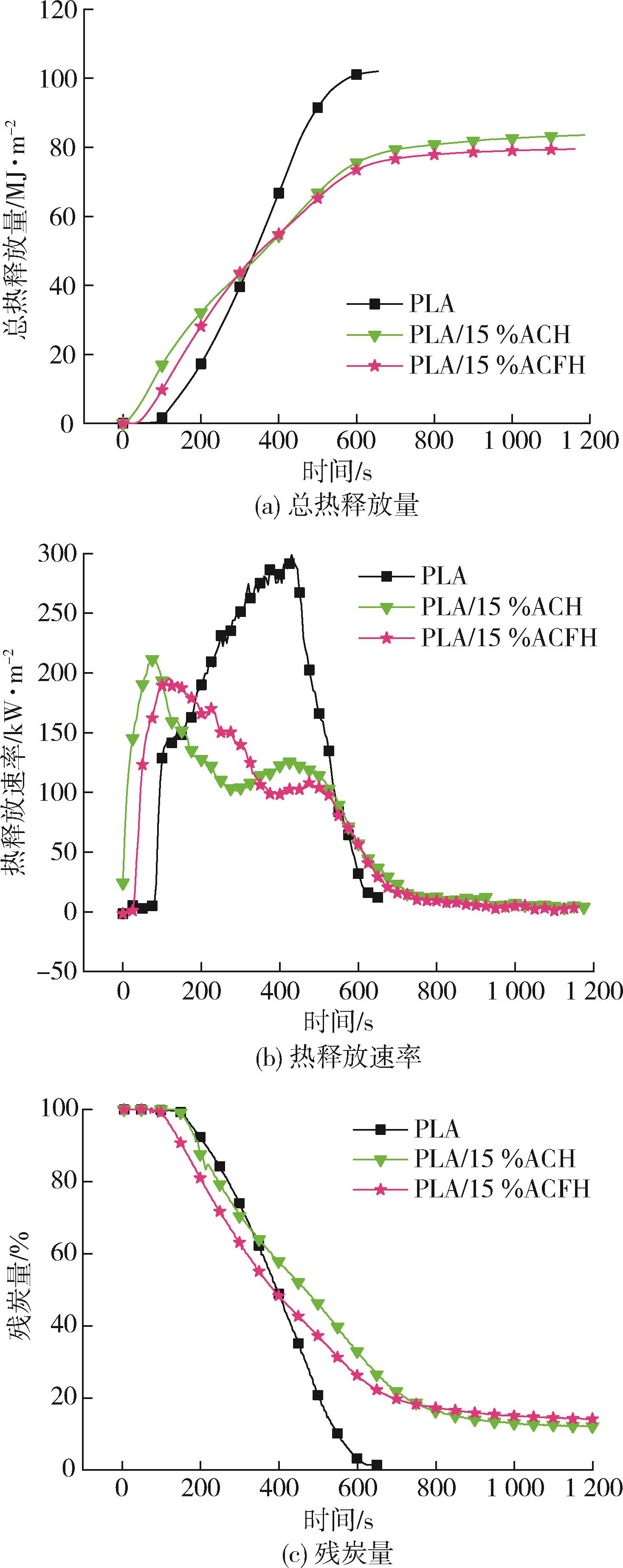

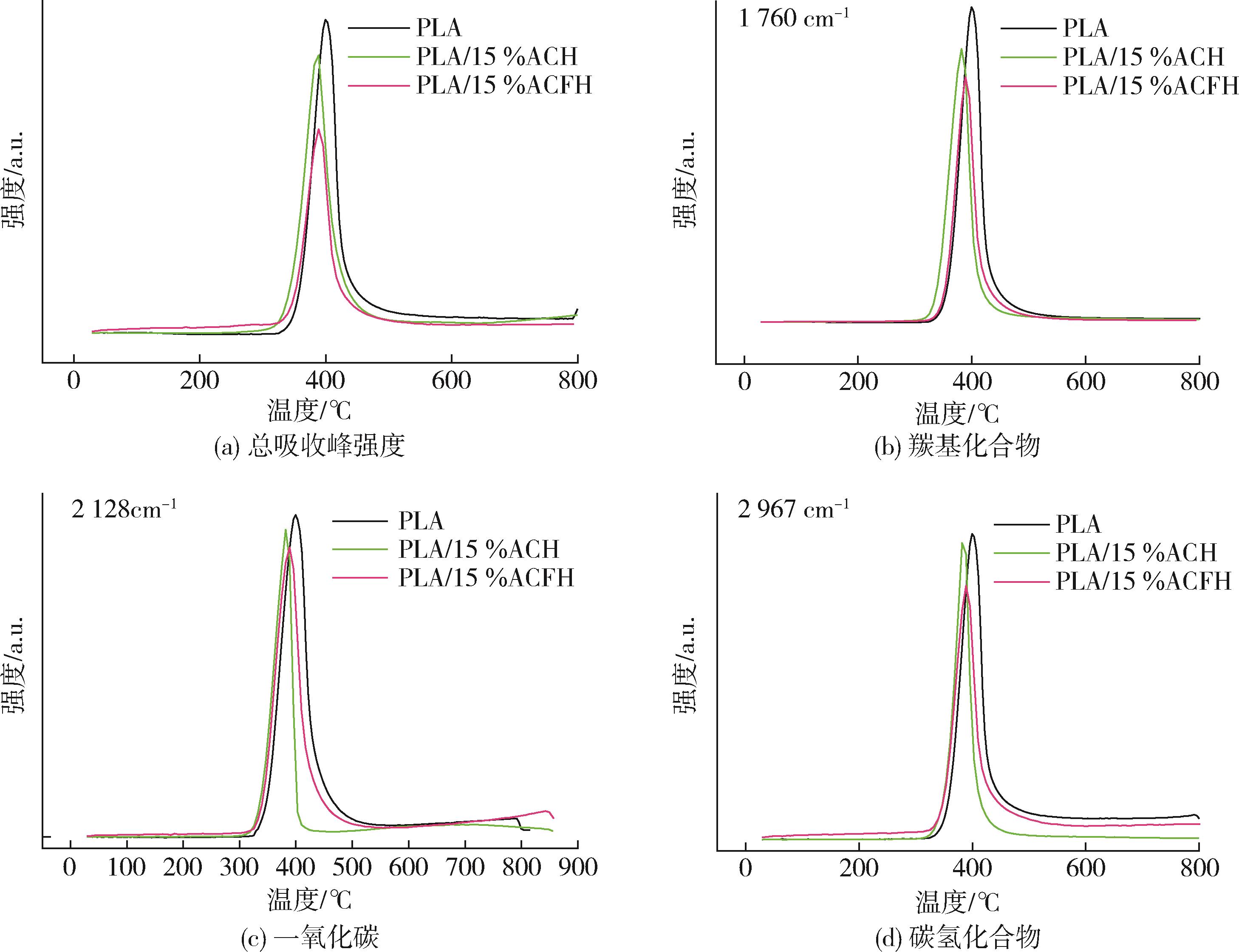

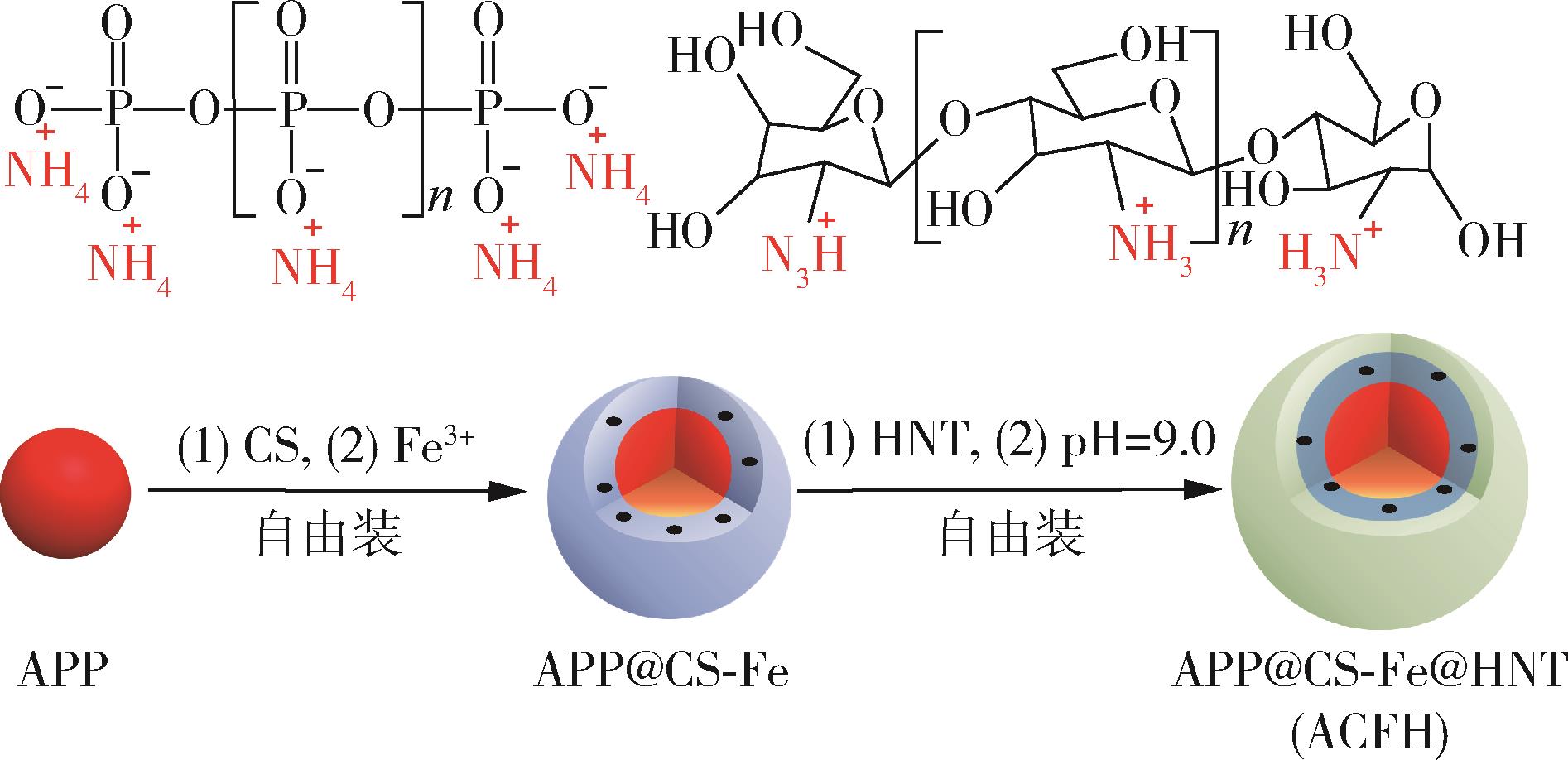

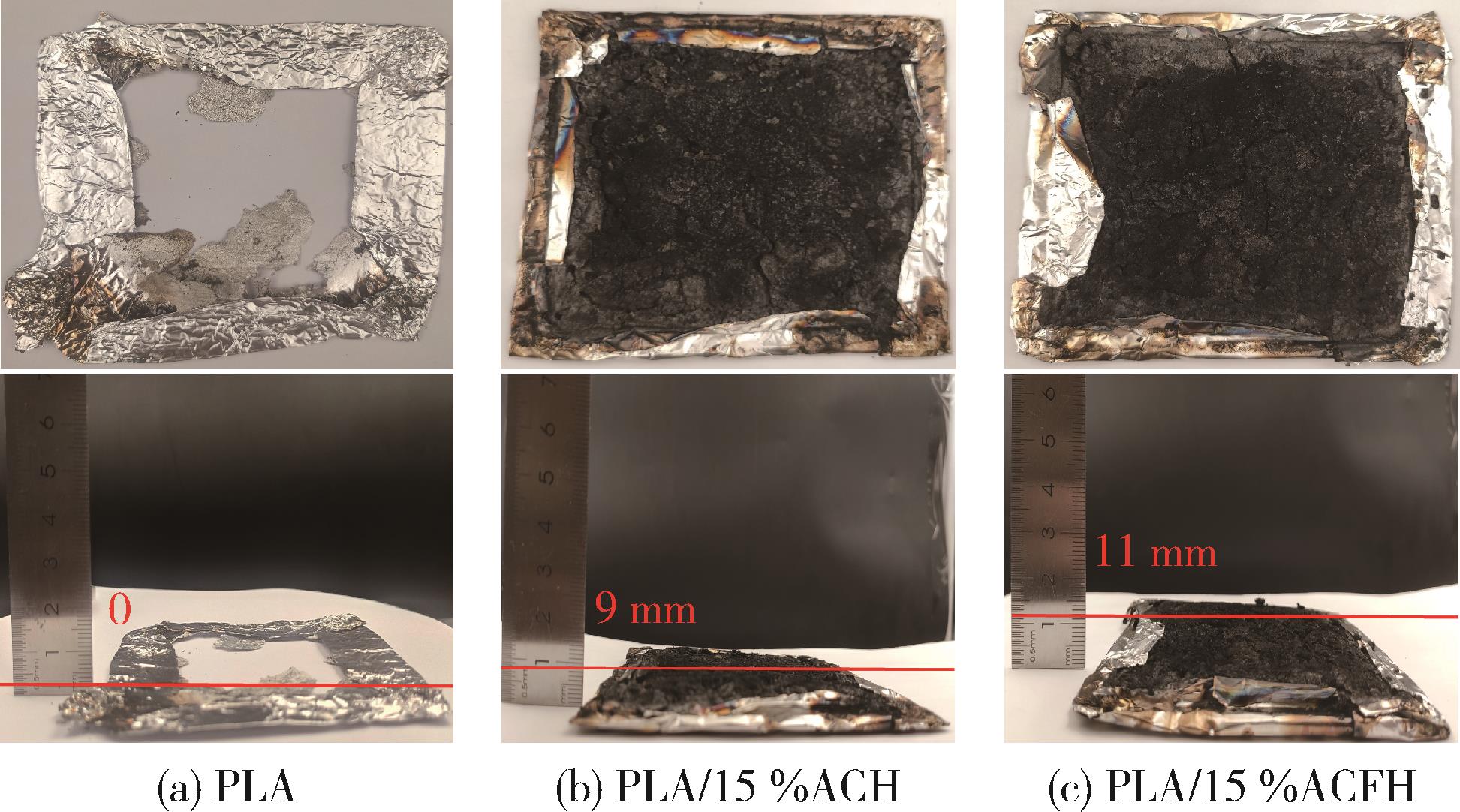

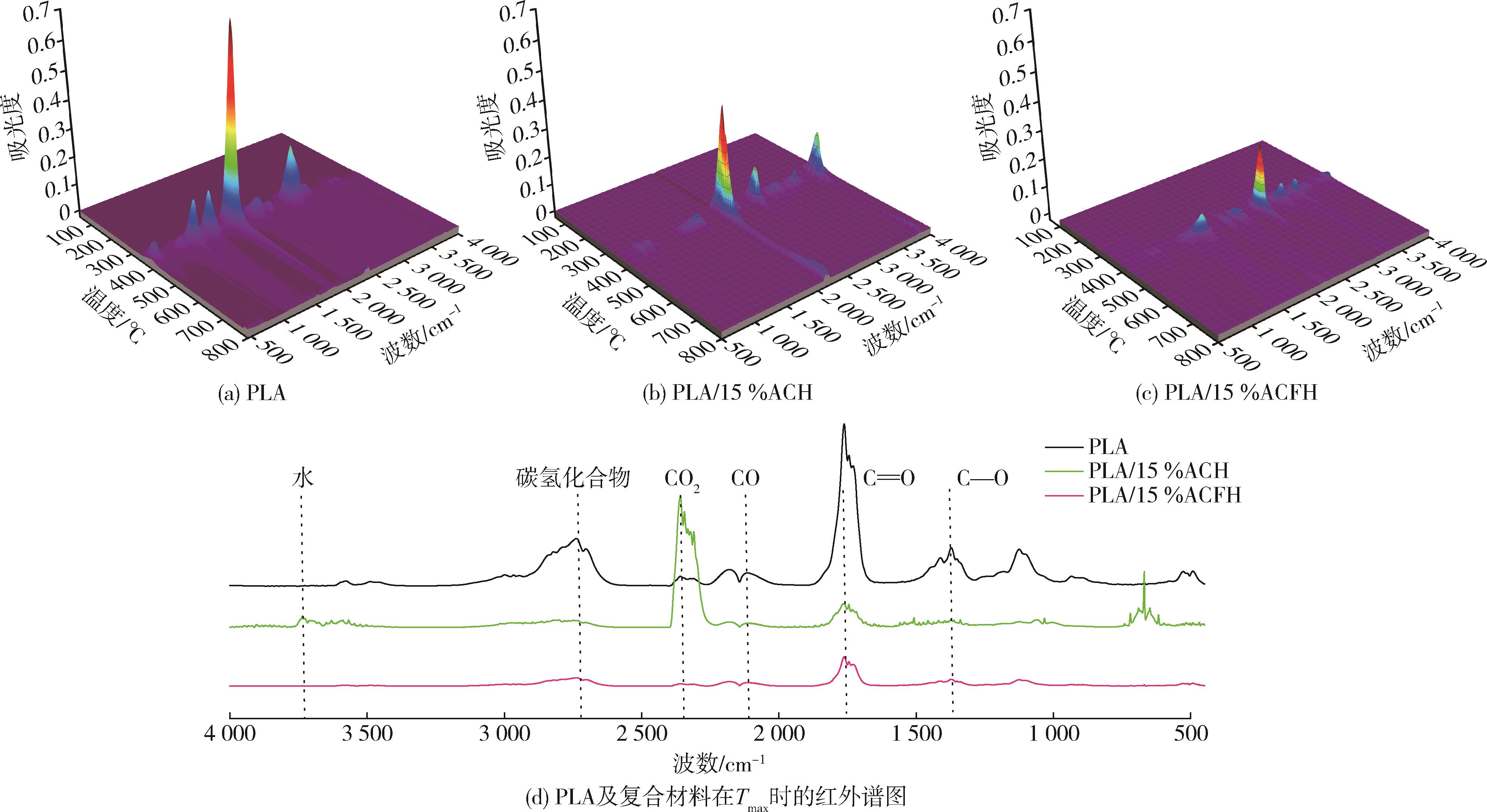

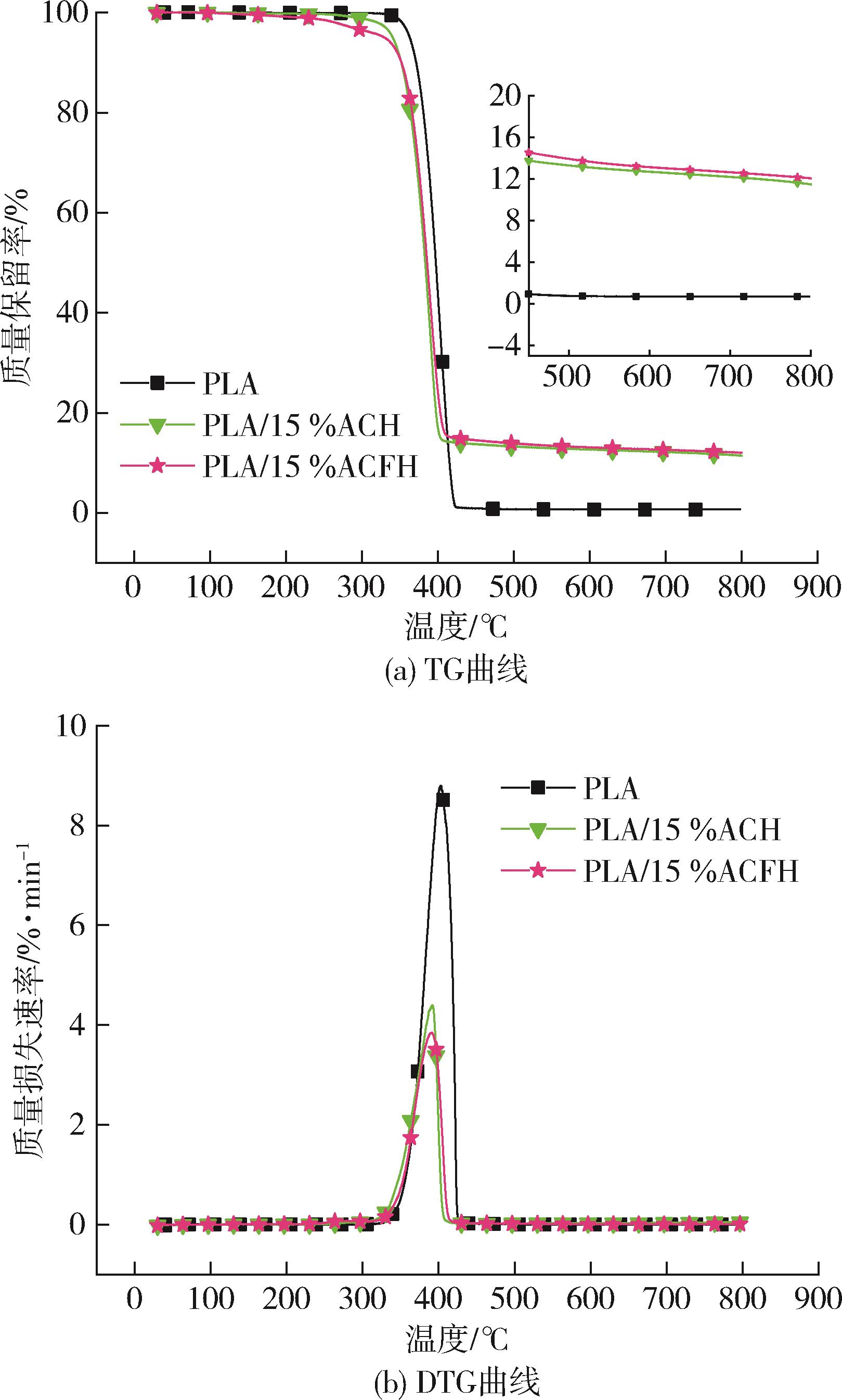

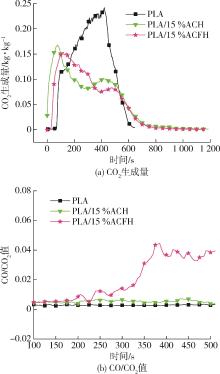

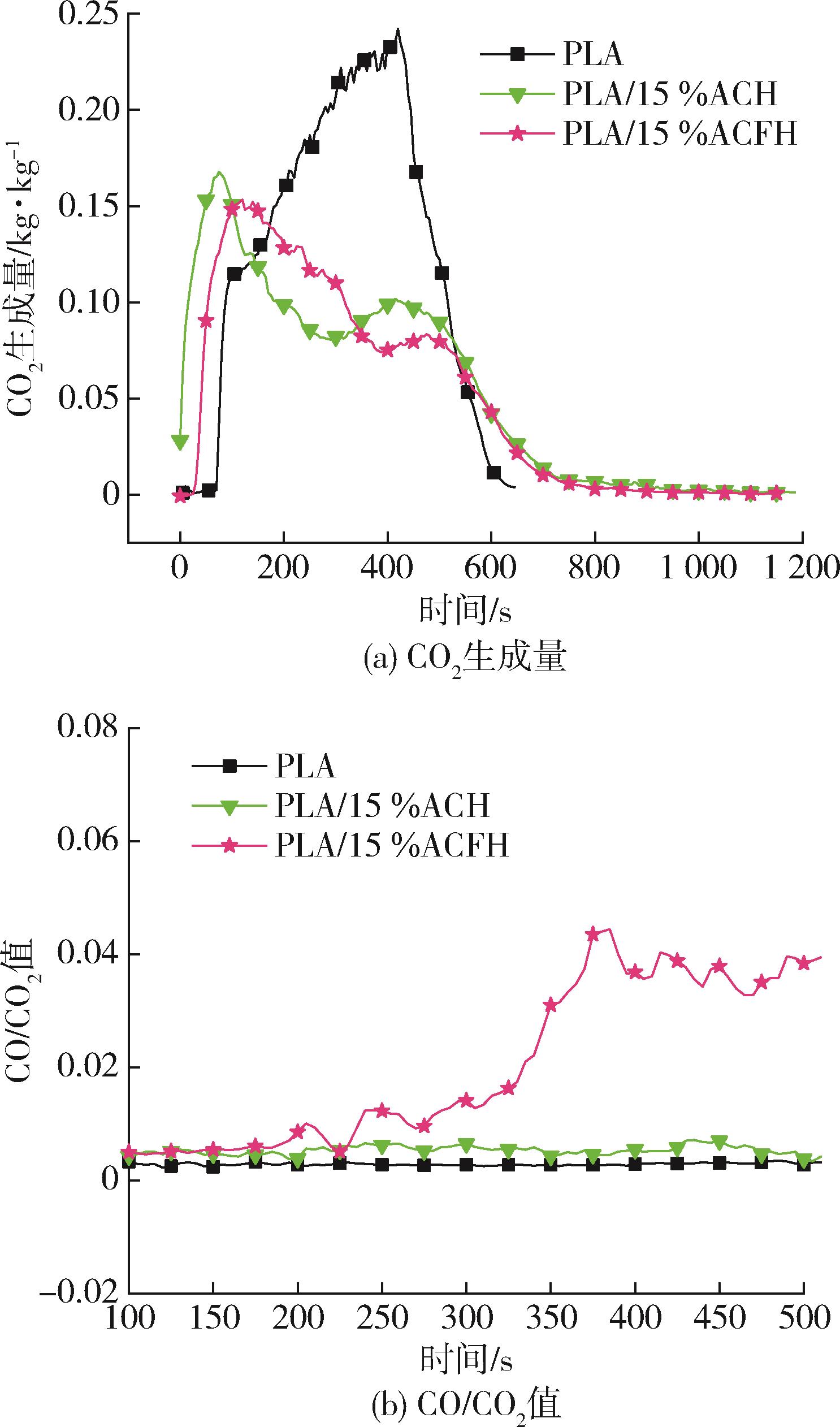

Two types of three⁃sources⁃in⁃one shell⁃core structural flame retardants， ammonium polyphosphate （APP）@chitosan （CS）@halloysite （HNT）（ACH） and APP@CS⁃Fe@HNT （ACFH）， were prepared through a self⁃assembly method using water as the solvent， APP as a core， and CS/ferric chloride/HNT composite as a shell. ACFH was employed to improve the flame retardancy of PLA. The composition and structure of ACFH were analyzed using scanning electron microscope and thermogravimetry （TG）. The flame retardancy of PLA composites was characterized using limi⁃ting oxygen index （LOI）， vertical combustion （UL 94）， cone calorimeter （CCT）， and TG⁃FTIR. The results indicated that the flame retardancy of the PLA/15 %ACFH composite was better than that of pure PLA and the PLA/15 %ACH composite. The PLA/15 %ACFH composite exhibited the highest LOI value of 29.5 vol% with a UL 94 classification of V⁃0. Compared to pure PLA， the PLA/1 5%ACFH composite presented a decrease in peak heat release rate and total heat release by 33.5 % and 22.0 %， respectively， and its residual char yield increased by 12.5 wt%. ACFH mainly generated a flame⁃retardant effect in the condensed phase， promoting the formation of a large number of continuous and dense carbon layers in the PLA matrix. The resulting carbon layers acted as a barrier to inhibit the diffusion of oxygen and heat.

Key words: poly（lactic acid）, shell?core, flame retardant, halloysite, chitosan

CLC Number:

TQ321

MENG Xin, WANG Xiaolong, GONG Weiguang, JIN Yi. Preparation of three⁃sources⁃in⁃one shell⁃core structural flame retardants and its application in poly（lactic acid）[J]. China Plastics, 2022, 36(9): 96-104.

Figures/Tables 18

References 28

1	TSUJI H. Poly（lactide） stereocomplexes： formation， structure， properties， degradation， and applications［J］. Macromolecular Bioscience. 2005， 5（7）： 569⁃597.
2	MARTIN O， AVEÂROUS L. Poly （lactic acid）： plasticization and properties of biodegradable multiphase systems［J］. Polymer. 2001， 42（14）： 6 209⁃6 219.
3	NOFAR M， PARK C B. Poly （lactic acid） foaming［J］. Progress in Polymer Science， 2014， 39（10）： 1 721⁃1 741.
4	GABRIELE P， GIAN DC， CATIA B. Effect of molecular weight and crystallinity on poly（lactic acid） mechanical properties［J］. Journal of Applied Polymer Science， 1996， 59（1）： 37⁃43.
5	YU S， XIANG H， ZHOU J， et al. Enhanced flame⁃retardant performance of poly （lactic acid）（PLA） composite by using intrinsically phosphorus⁃containing PLA［J］. Progress in Natural Science： Materials International， 2018， 28（5）： 590⁃597.
6	JIN X， CUI S， SUN S， et al. The preparation of a bio⁃polyelectrolytes based core⁃shell structure and its application in flame retardant polylactic acid composites［J］. Composites Part A： Applied Science and Manufacturing， 2019， 124： 105 485⁃105 496.
7	LIM LT， AURAS R， RUBINO M. Processing technologies for poly（lactic acid）［J］. Progress in Polymer Science， 2008， 33（8）： 820⁃852.
8	GARLOTTA D. A Literature review of poly（lactic acid）［J］. Journal of Polymers and the Environment， 2001， 9（2）： 63⁃84.
9	GANDINI A. Polymers from renewable resource： A challenge for the future of macromolecular materials［J］. Macromolecular Bioscience， 2008， 41（24）： 9 492⁃9 504.
10	CHEN Y， WANG W， QIU Y， et al. Terminal group effects of phosphazene⁃triazine bi⁃group flame retardant additives in flame retardant polylactic acid composites［J］. Polymer Degradation and Stability， 2017， 140： 166⁃175.
11	WANG Y T， LIAO S F， SHANG K， et al. Efficient approach to improving the flame retardancy of poly（vinyl alcohol）/clay aerogels： incorporating piperazine⁃modified ammonium polyphosphate［J］. ACS Appl Mater Interfaces， 2015， 7（3）： 1 780⁃1 786.
12	QIAN Y， WEI P， JIANG P， et al. Synthesis of a novel hybrid synergistic flame retardant and its application in PP/IFR［J］. Polymer Degradation and Stability， 2011， 96（6）： 1 134⁃1 140.
13	GONG W， FAN M， LUO J， et al. Effect of nickel phytate on flame retardancy of intumescent flame retardant polylactic acid［J］. Polymers for Advanced Technologies， 2020， 32（4）： 1 548⁃1 559.
14	JIAO C， CHEN X， ZHANG J. Synergistic effects of Fe₂O₃ with layered double hydroxides in EVA/LDH composites［J］. Journal of Fire Sciences， 2009， 27（5）： 465⁃479.
15	ZHOU Y， LIU X， WANG F. Effect of metal oxides on fire resistance and char formation of intumescent flame retardant coating［J］. Journal of Inorganic Materials， 2014， 29（9）： 972⁃978.
16	LI Z， ZHANG J， NIE S， et al. Bioinspired growth of iron derivatives on mesoporous silica： effect on thermal degradation and fire behavior of polystyrene［J］. Nanotechnology， 2019， 31（6）： 1⁃13.
17	MA W， WU H， HIGAKI Y， et al. Halloysite nanotubes： Green nanomaterial for functional organic⁃inorganic nanohybrids［J］. The Chemical Record， 2018， 18（7）： 986⁃999.
18	JI X， CHEN D， WANG Q， et al. Synergistic effect of flame retardants and carbon nanotubes on flame retarding and electromagnetic shielding properties of thermoplastic polyurethane［J］. Composites Science and Technology， 2018， 163： 49⁃55.
19	JOO Y， JEON Y， LEE SU， et al. Aggregation and stabilization of carboxylic acid functionalized halloysite nanotubes （HNT⁃COOH）［J］. The Journal of Physical Chemi⁃stry C， 2012， 116（34）： 18 230⁃18 235.
20	ZHENG T， NI X. Loading an organophosphorous flame retardant into halloysite nanotubes for modifying UV⁃curable epoxy resin［J］. RSC Advances， 2016， 6（62）： 57 122⁃57 130.
21	BOONKONGKAEW M， SIRISINHA K. Halloysite nanotubes loaded with liquid organophosphate for enhanced flame retardancy and mechanical properties of polyamide 6［J］. Journal of Materials Science， 2018， 53（14）： 10 181⁃10 193.
22	YANG G， CAI J， GENG Y， et al. Cu⁃modified ZSM zeolite has synergistic flame retardance， smoke suppression， and catalytic conversion effects on pulp fiber after ammonium polyphosphate flame⁃retardant treatment［J］. ACS Sustainable Chemistry & Engineering， 2020， 8（38）： 14 365⁃14 376.
23	DENG C， ZHAO J， DENG C⁃L， et al. Effect of two types of iron MMTs on the flame retardation of PE⁃HD composite［J］. Polymer Degradation and Stability， 2014， 103： 1⁃10.
24	LI Z， LIU L， JIMéNEZ GONZáLEZ A， et al. Bioinspired polydopamine⁃induced assembly of ultrafine Fe（OH）₃ nanoparticles on halloysite toward highly efficient fire retardancy of epoxy resin via an action of interfacial catalysis［J］. Polymer Chemistry， 2017， 8（26）： 3 926⁃3 936.
25	XIONG Z， ZHANG Y， DU X， et al. Green and scalable fabrication of core⁃shell biobased flame retardants for reducing flammability of polylactic acid［J］. ACS Sustainable Chemistry & Engineering， 2019， 9（7）： 8 954⁃8 963.
26	诸健强，陆馨，辛忠. 苯基聚硅氧烷微胶囊化聚磷酸铵的制备及其在PP中阻燃性能研究［J］. 中国塑料. 2018， 32（7）： 28⁃32.
	ZHU J， LU X， XIN Z. Preparation and application of microencapsulated ammonium polyphosphate with phenyl polysiloxane shell for flame retardancy of polypropylene［J］. China Plastics， 2018， 32（7）： 28⁃32.
27	ZHANG Y， XIONG Z， GE H， et al. Core⁃shell bioderived flame retardants based on chitosan⁃alginate coated ammonia polyphosphate for enhancing flame retardancy of polylactic acid［J］. ACS Sustainable Chemistry & Engineering， 2020， 16（8）： 6 402⁃6 412.
28	JING J， ZHANG Y， FANG Z， et al. Core⁃shell flame retardant/graphene oxide hybrid： a self⁃assembly strategy towards reducing fire hazard and improving toughness of polylactic acid［J］. Composites Science and Technology， 2018， 165： 161⁃167.

样品名称	PLA/%	ACH/%	ACFH/%
纯PLA	100	0	0
PLA/13 %ACH	87	13	0
PLA/15 %ACH	85	15	0
PLA/17 %ACH	83	17	0
PLA/13 %ACFH	87	0	13
PLA/15 %ACFH	85	0	15
PLA/17 %ACFH	83	0	17

样品名称	PLA/%	ACH/%	ACFH/%
纯PLA	100	0	0
PLA/13 %ACH	87	13	0
PLA/15 %ACH	85	15	0
PLA/17 %ACH	83	17	0
PLA/13 %ACFH	87	0	13
PLA/15 %ACFH	85	0	15
PLA/17 %ACFH	83	0	17

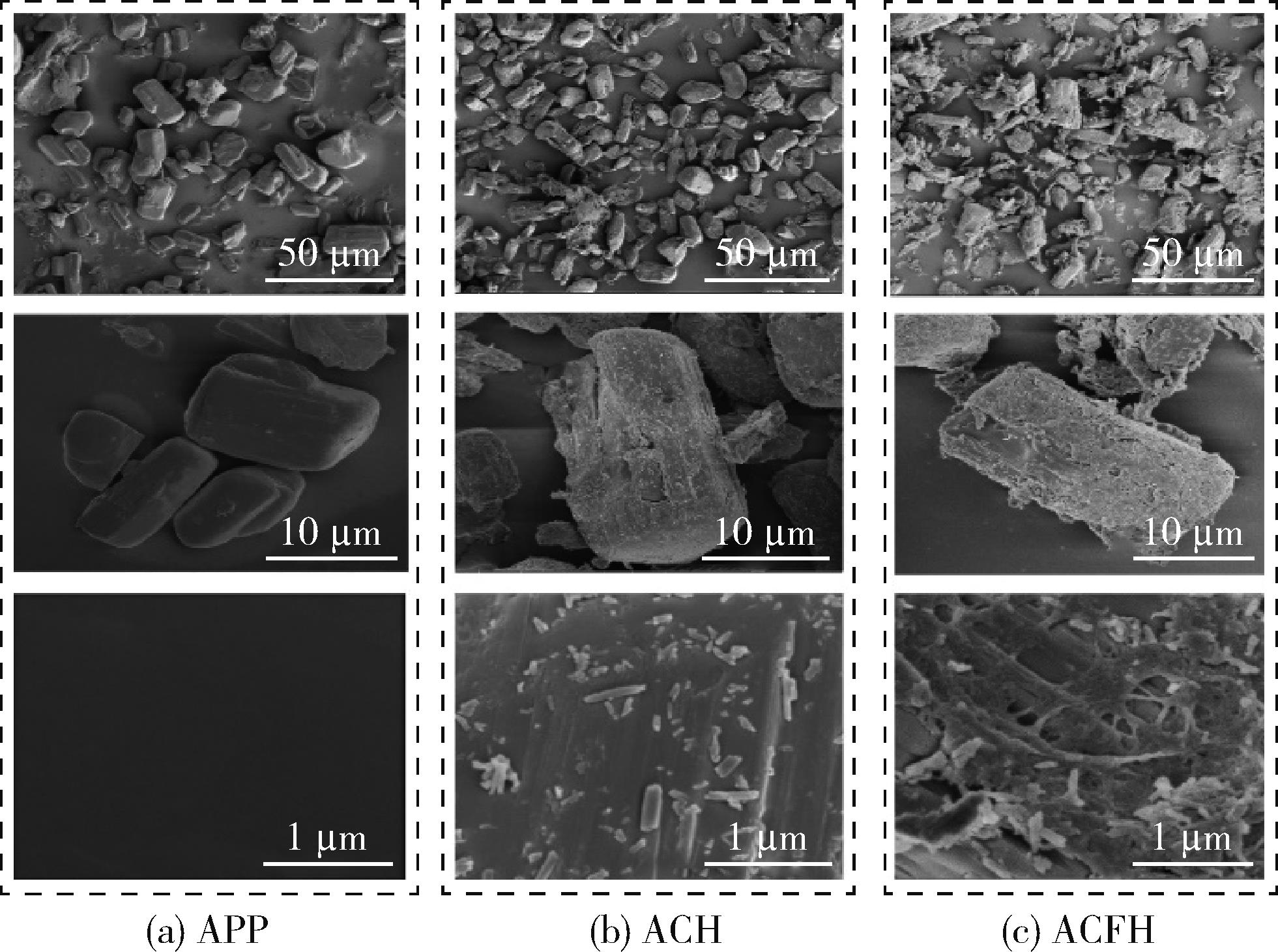

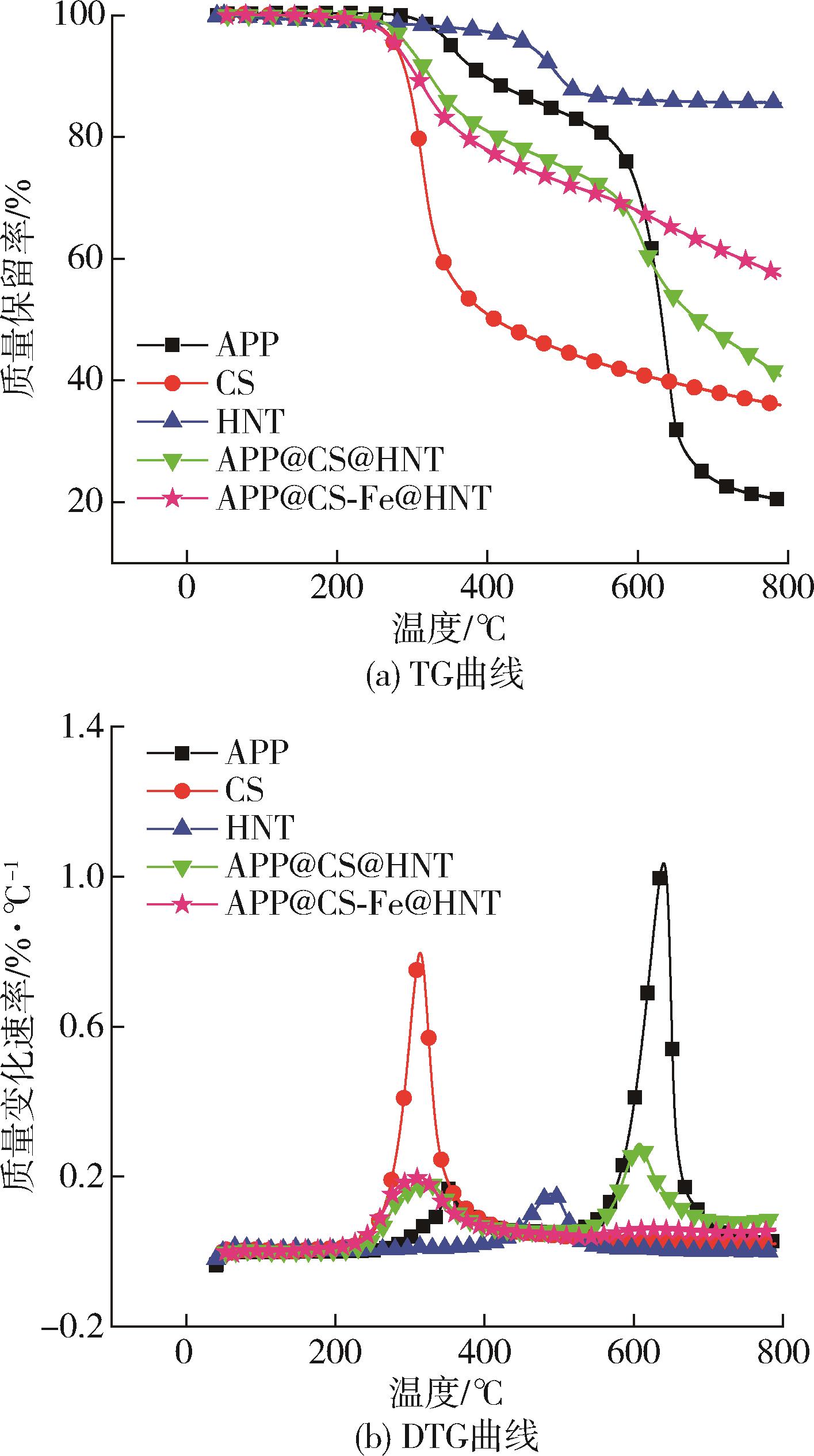

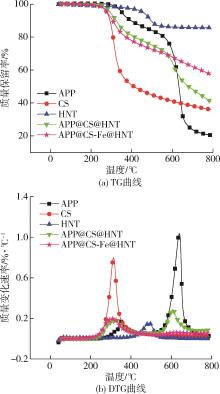

样品名称	T_{5 %}/℃	T_max/℃	PHRR/%•℃^-1	残炭量/%
APP	351.5	639.9	1.035	20.4
HNT	455.9	489.4	0.154	85.9
CS	277.8	312.3	0.796	36.0
ACH	293.8	607.3	0.286	40.8
ACFH	279.0	315.0	0.198	57.2

样品名称	T_{5 %}/℃	T_max/℃	PHRR/%•℃^-1	残炭量/%
APP	351.5	639.9	1.035	20.4
HNT	455.9	489.4	0.154	85.9
CS	277.8	312.3	0.796	36.0
ACH	293.8	607.3	0.286	40.8
ACFH	279.0	315.0	0.198	57.2

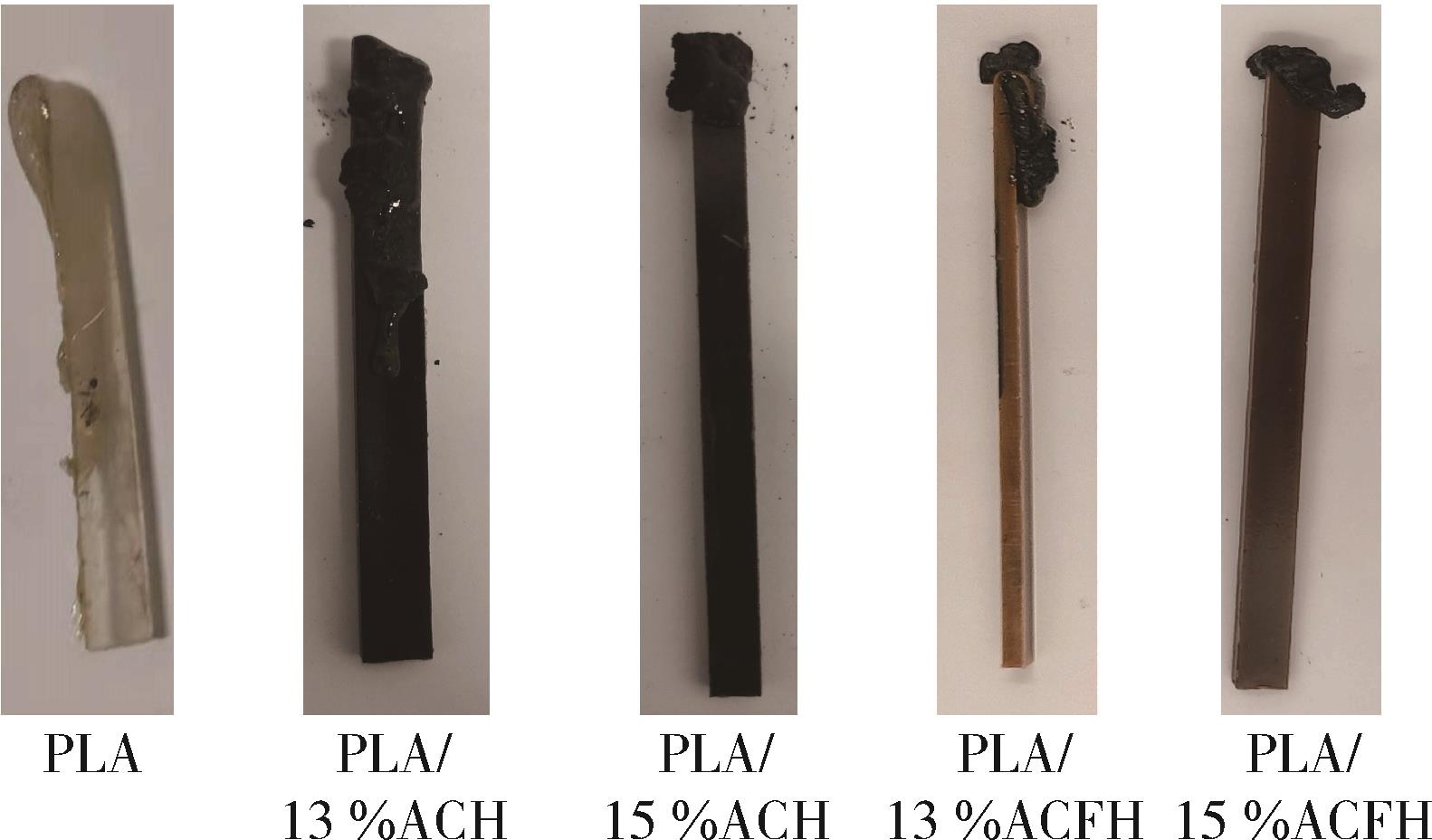

样品名称	UL 94等级	LOI/%
纯PLA	NR	18.1
PLA/13 %ACH	V⁃2	27.3
PLA/15 %ACH	V⁃2	28.3
PLA/17 %ACH	V⁃0	29.4
PLA/13 %ACFH	V⁃2	27.8
PLA/15 %ACFH	V⁃0	29.5
PLA/17 %ACFH	V⁃0	30.2
