Experimental study on rheological properties of highly filled solid propellant simulant

doi:10.19491/j.issn.1001-9278.2022.11.015

Abstract

Abstract:

The rheological properties of a highly filled solid propellant stimulant were studied using capillary and rotational rheometers under the steady shear and dynamic shear conditions. The effects of melt pressure and shear amplitude on the shear viscosity of the solid propellant stimulant were investigated in the temperature ranges of 100~120 ℃ and 50~100 ℃， respectively. The dependency of shear viscosity on the melt pressure was evaluated through a pressure coefficient， correcting the effect of pressure on viscosity. The results indicated that the pressure coefficient was distributed between 4.81 and 9.65 GPa^-1 at a pressure between 12 and 121 MPa. The shear viscosity of the solid propellant stimulant increased as a power⁃law trend， indicating a steady capillary shear. In addition， dynamic shear test results indicated that the viscosity of solid propellant stimulant increased two times when the normal force rose from 15 to 42 N. Furthermore， the effect of shear amplitude on the rheological properties of the highly filled solid propellant stimulant was found to be sensitive. A slip occurred between the sample and plate at a relatively low temperature and large shear amplitude. This should be avoided in practical use.

Key words: polymer, highly filled solid propellant stimulant, rheology, viscosity, pressure

CLC Number:

TQ320.6

LIN Xiang, ZHANG Jun. Experimental study on rheological properties of highly filled solid propellant simulant[J]. China Plastics, 2022, 36(11): 101-107.

Figures/Tables 7

Fig.1. Morphologies of solid propellant simulant after banburying

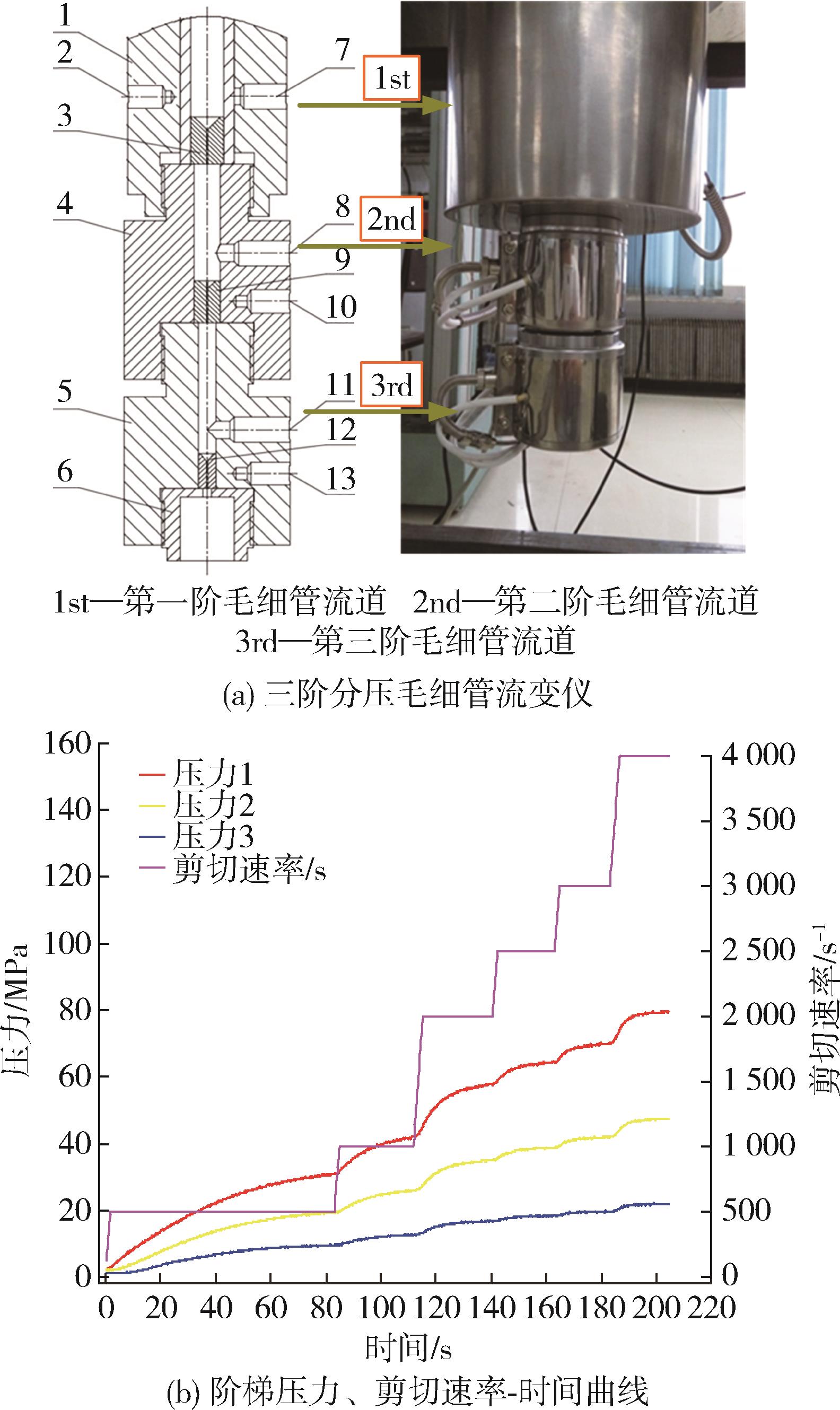

Fig.2. Triple⁃stage capillary rheometer and an example of step pressure and shear rate⁃time curves for typical melts

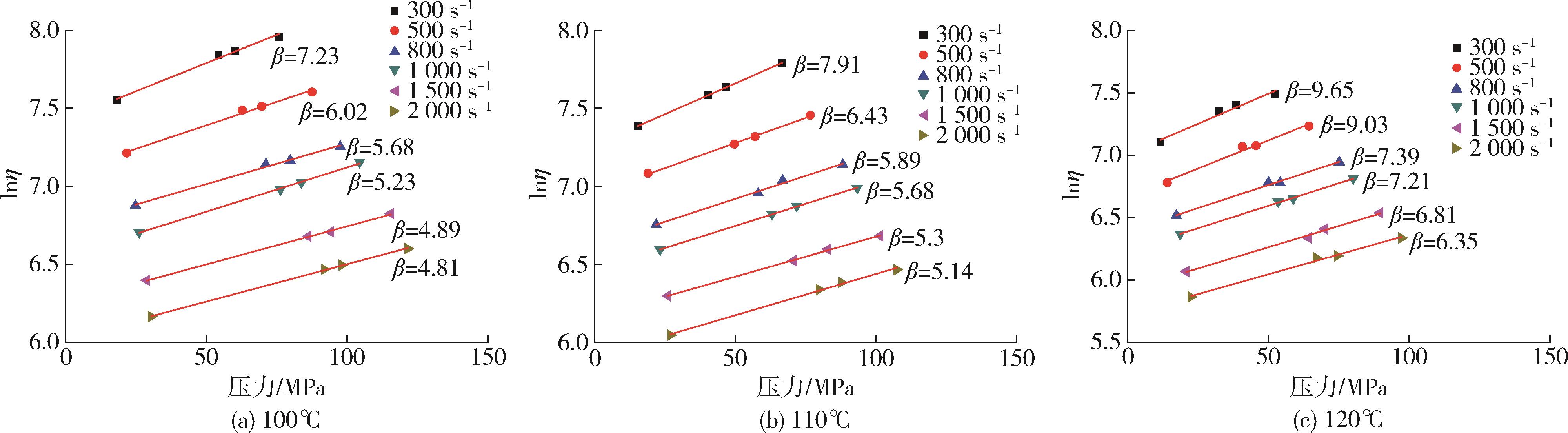

Fig.3. Pressure depencence of η of the simulant at different shear rate and temperature

Fig.4. Apparatus and samples of small amplitude oscillation shear meansurement

Fig.5. Relationship between complex shear viscosity and pressure of the simulant at 80 ℃ and amplitude of 0.5 %

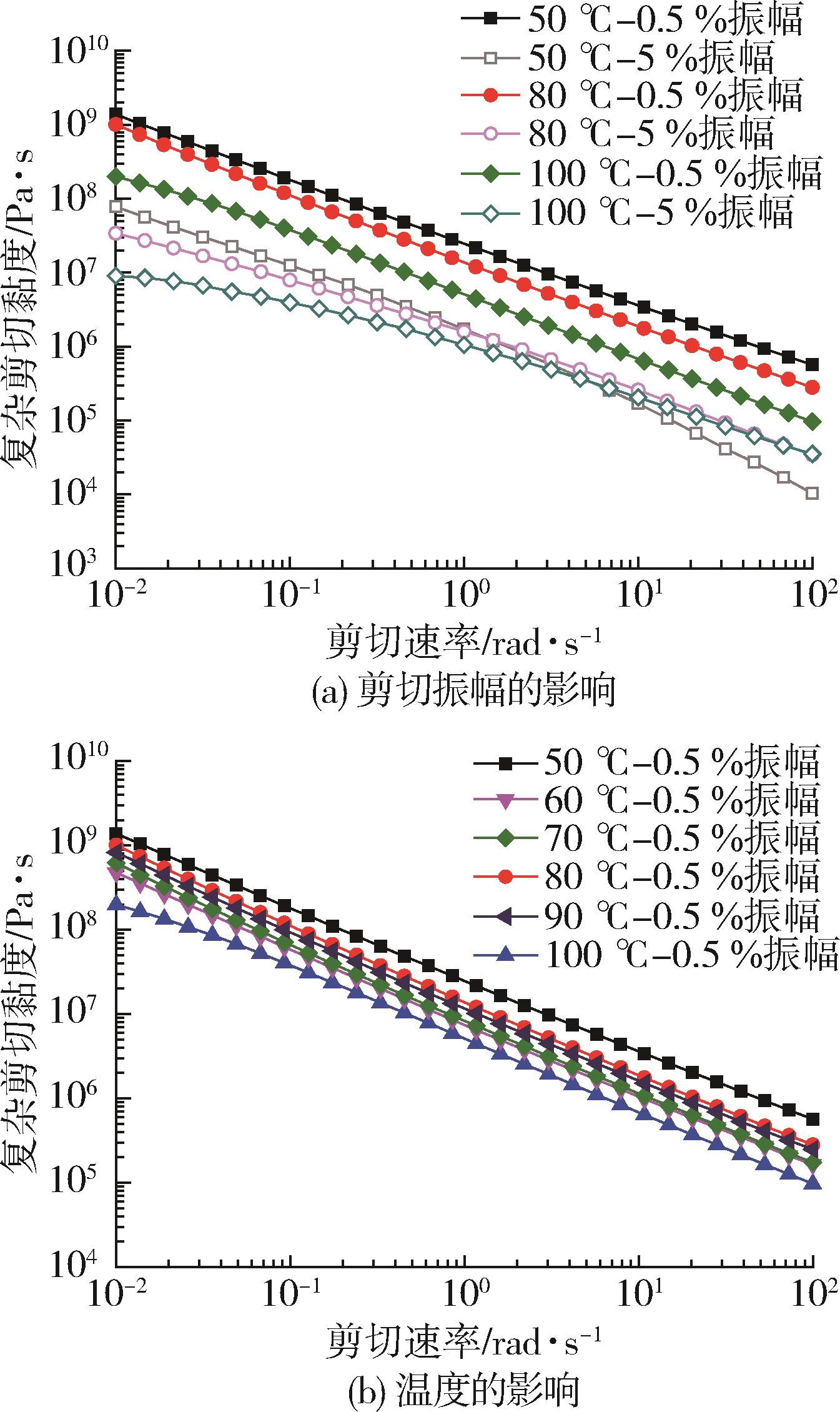

Fig.6. Complex shear viscosity of the simulant at amplitude of 0.5 % and 5 %

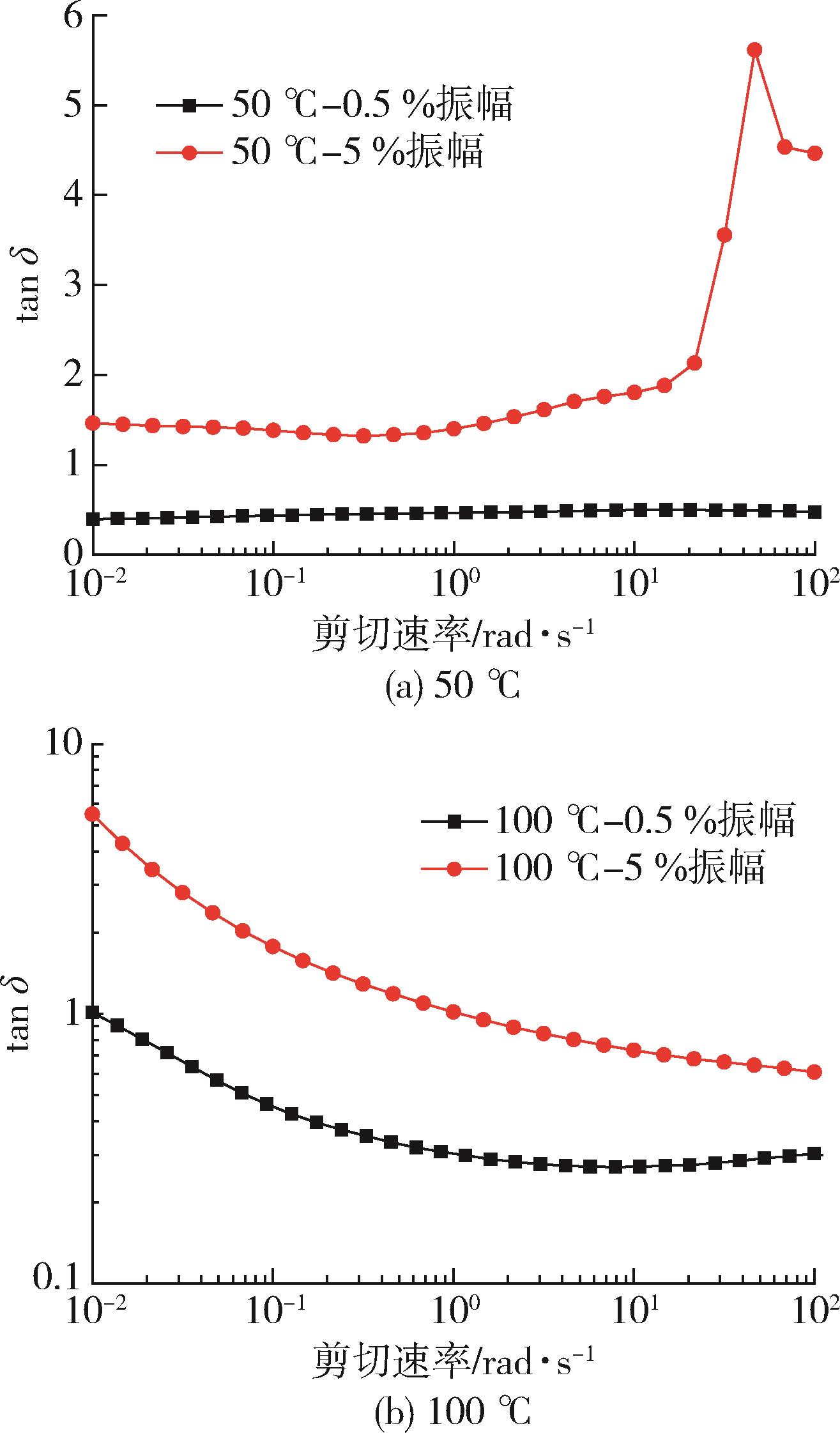

Fig.7. Effects of temperature and shear amplitude on tanδ of the stimulant

References 29

1	LEE S H， KIM S Y， YOUN J R. Rheological behavior and theoretical modeling of uniaxial elongational flow proper⁃ties of polypropylene/layered silicate nanocomposites［J］. Polymer Composites， 2009， 30（10）： 1 426⁃1 436.
2	KARAMIPOUR S， EBADI⁃DEHAGHANI H， ASHOURI D，et al. Effect of nano⁃CaCO₃ on rheological and dynamic mechanical properties of polypropylene： experiments and models［J］. Polymer Testing， 2011， 30（1）： 110⁃117.
3	THIÉBAUD F， GELIN J C. Characterization of rheological behaviors of polypropylene/carbon nanotubes composi⁃tes and modeling their flow in a twin⁃screw mixer［J］. Composites Science and Technology， 2010， 70（4）： 647⁃656.
4	ZHANG J， FANG J， WU J L，et al. Study on the viscosity of polypropylene composites filled with different size and size distribution CaCO₃ ［J］. Polymer Composites， 2011， 32（7）： 1 026⁃1 033.
5	RAY S S， MAITI P， OKAMOTO M，et al. New polylactide/layered silicate nanocomposites 1： preparation， characterization， and properties［J］ .Macromolecules， 2002， 35（8）： 3 104⁃3 110.
6	KRISHNAMOORTI R， RICHARD A V， GIANNELIS E P. Structure and dynamics of polymer⁃layered silicate nanocomposites［J］. Chemistry of Materials， 1996， 8（8）： 1 728⁃1 734.
7	SARVESTANI A S， PICU C R. Network model for the viscoelastic behavior of polymer nanocomposites［J］. Polymer， 2004， 45（22）： 7 779⁃7 790.
8	SARVESTANI A S. Nonlinear rheology of unentangled polymer melts reinforced with high concentration of rigid nanoparticles［J］. Nanoscale Research Letters， 2010， 5（4）： 791.
9	Santos P H S， Campanella O H， Carignano M A. Brow⁃nian dynamics study of gel⁃forming colloidal particles［J］. Journal of Physical Chemistry B， 2010， 114（41）： 13052.
10	D’ARJUZON R J， FRITH W， MELROSE J R. Brownian dynamics simulations of aging colloidal gels［J］. Physical Review E：Statistical Nonlinear & Soft Matter Physics， 2003， 67（1）： 061404.
11	KOURKI H， MORTEZAEI M， NAVID⁃FAMILI M H. Prediction of the viscoelastic response of filler network in highly nanofilled polymer composites［J］. Journal of Composite Materials， 2015， 30（49）： 3 799⁃3 807.
12	REN J， SILVA A， KRISHNAMOORTI R. Linear viscoelasticity of disordered polystyrene⁃polyisoprene block copolymer based layered⁃silicate nanocomposites［J］. Macromolecules， 2000， 33（10）： 3 739⁃3 746.
13	KRISHNAMOORTI R. Rheology and structure of polymer layered⁃silicate nanocomposites［J］. Polymer Preprints， 1999， 40（2）： 122⁃123.
14	XIE X L， LIU Q X， LI K Y， et al. Rheological and mechanical properties of PVC/CaCO₃， nanocomposites prepared by in situ polymerization［J］. Polymer， 2004， 45（19）： 6 665⁃6 673.
15	JAHANI Y. Comparison of the effect of mica and talc and chemical coupling on the rheology， morphology， and mechanical properties of polypropylene composites［J］. Polymers for Advanced Technologies， 2011， 22（6）： 942⁃950.
16	PENG W， LIU J， WEI Y， et al. Dynamic rheological properties of wood polymer composites： from linear to nonlinear behaviors［J］. Polymer Bulletin， 2011， 66（5）： 683⁃701.
17	CHENG B， LI X， HAO J， et al. Rheological behavior of polycarbonate/ultrafine octaphenyl silsesquioxane （OPS） composites［J］. Journal of Applied Polymer Science， 2016， 33（27）： 1⁃7.
18	GOLDANSAZ H， GOHARPEY F， AFSHARTAROMI F， et al. Anomalous rheological behavior of dendritic nanoparticle/linear polymer nanocomposites［J］. Macromolecules， 2015， 48（10）： 3 368⁃3 375.
19	KOURKI H， MORTEZAEI M， FAMILI M H N. Filler networking in the highly nanofilled systems［J］. Journal of Thermoplastic Composite Materials， 2014， 29（8）： 1 047⁃1 063.
20	MAXWELL B， JUNG A. Hydrostatic pressure effection polymer melt viscosity［J］. Modern Plastics，1957， 35（3）： 174⁃182.
21	COUCH M A， BINDING D M. High pressure capillary rheometry of polymeric fluids［J］. Polymer， 2000， 41（16）： 6 323⁃6 334.
22	COUCH M A， BINDING D M， WALTERS K. The pressure dependence of the shear and elongational properties of polymer melts［J］. Non⁃Newtonian Fluid Mechani⁃ce， 1998， 79（2/3）： 137⁃155.
23	LIN X， KELLY A， WOODHEAD M， et al. Capillary study on geometrical dependence of shear viscosity of polymer melts［J］. Journal of Applied Polymer Science， 2014， 131（6）： 596⁃602.
24	LIN X， KELLY A， REN D Y， et al. Geometrical dependence of viscosity of polymethylmethacry⁃late melt in capillary flow［J］. Journal of Applied Polymer Science， 2013， 130（5）： 3 384⁃3 394.
25	吴长庆，林祥，任冬云. 高填充性聚丙烯基纳米复合材料挤出胀大行为研究［J］.中国塑料，2018，32（9）：32⁃35.
	WU C Q， LIN X， REN D Y. Study on extrusion swell behavior of highly filled polypropylene nanocomposites［J］. China Plastics，2018，32（9）：32⁃35.
26	何家隆，谷琳，朱钰婷，等. 固体推进剂螺旋压伸挤出过程流变模型建立［J］. 中国塑料，2021， 35（2）：58⁃62.
	HE J L， GU L， ZHU Y T，et al. Establishment of rheologi⁃cal model of solid propellant in spiral extrusion process ［J］. China Plastics， 2021， 35（2）：58⁃62.
27	赵凯晨. 高黏度双料筒流变仪的研制与三基发射药流变性能的研究［D］. 太原：中北大学，2021.
28	马秀清，金律，张亚军，等. 固体推进剂同向双螺杆元件混合性能模拟［J］. 中国塑料，2018，32（8）：131⁃136.
	MA X Q， JIN L， ZHANG Y J， et al. Simulation of mi⁃xing performance of co⁃rotation twin⁃screw elements for solid propellants［J］. China Plastics， 2018，32（8）：131⁃136.
29	唐刚，罗运军，李霄羽. 热熔胶基推进剂的流变性能［J］. 火炸药学报， 2022， 45（2）： 264⁃270.
	TANG G， LUO Y J， LI X Y. Rheological properties of hot⁃melt adhesive⁃based propellant［J］. Chinese Journal of Explosive & Propellants， 2022， 45（2）： 264⁃270.
