Study on preparation and resilience of PBAT foams with high volume expansion ratio

doi:10.19491/j.issn.1001-9278.2023.09.004

Abstract

Abstract:

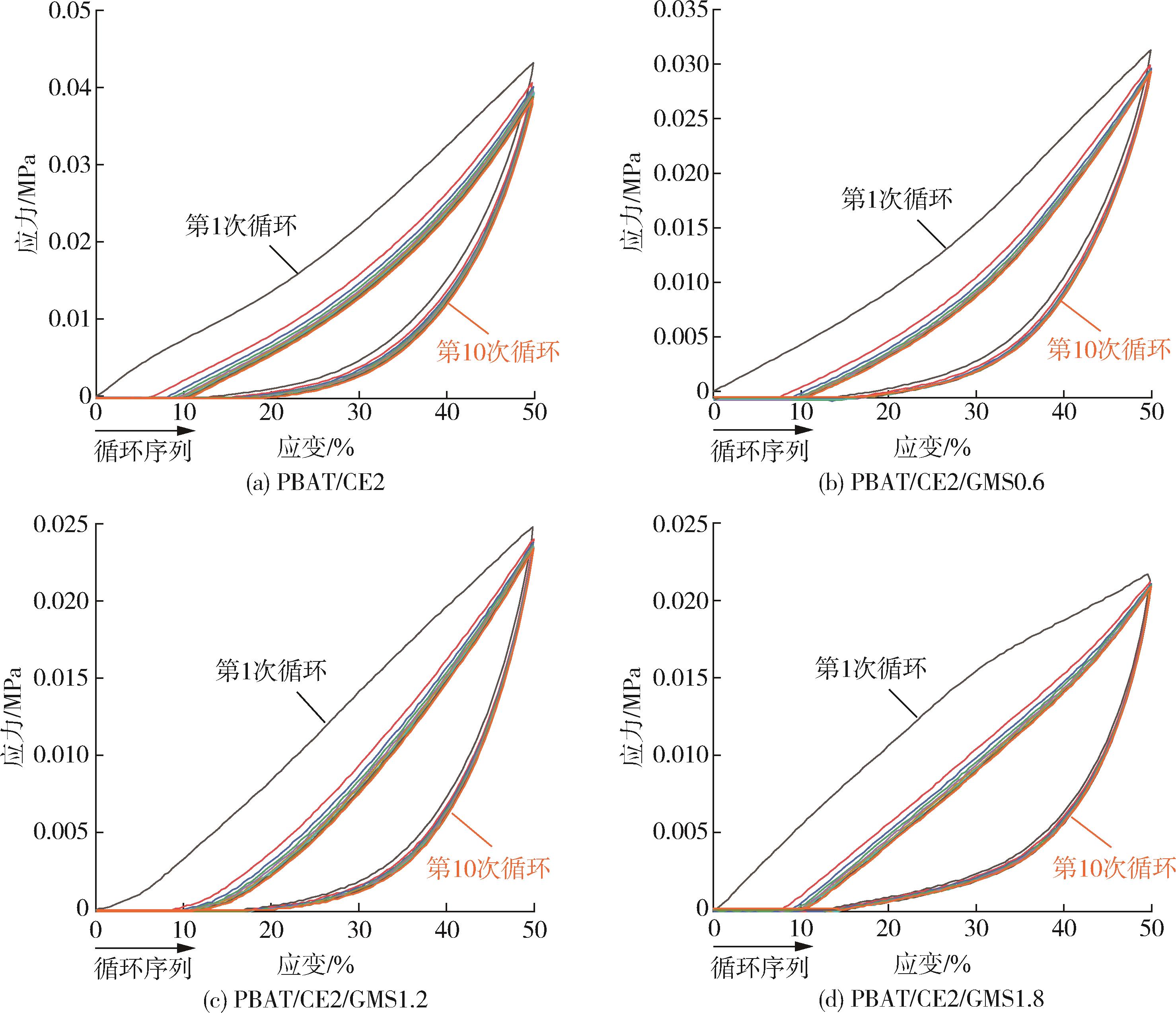

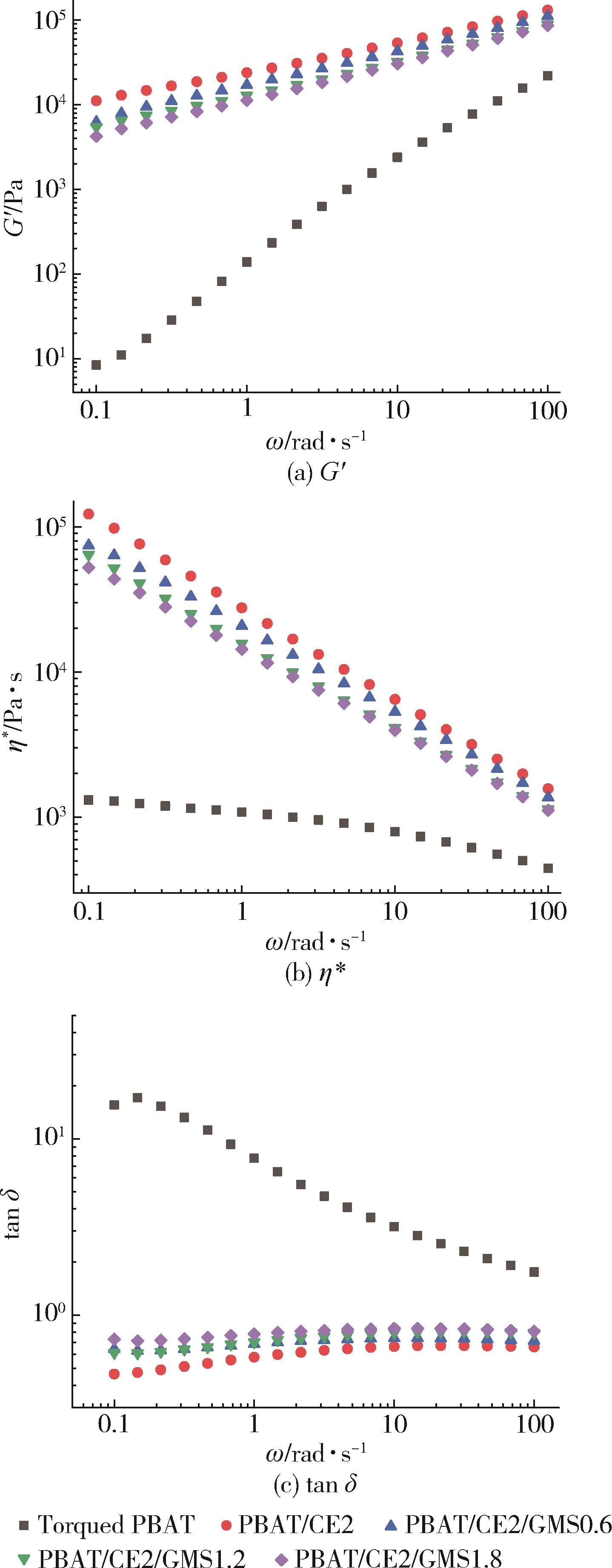

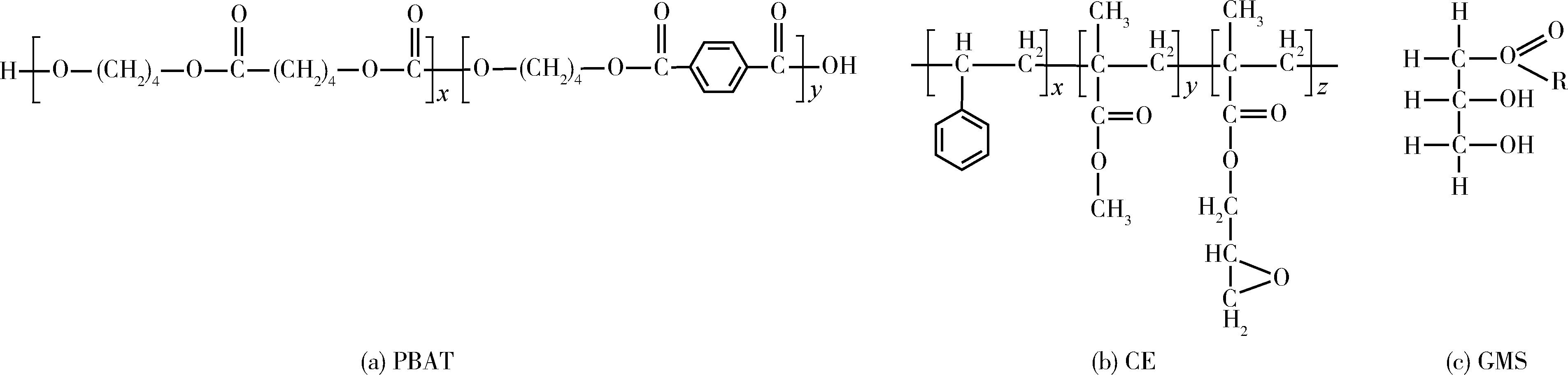

In this paper， a green， simple， and feasible method was developed for solving the shrinking problem of poly（butylene adipate⁃butylene terephthalate）（PBAT） foams with a high volume expansion ratio. Firstly， a chain extender （CE） and a cell stabiliser （GMS） were melt blended with PBAT， and then supercritical CO₂ was used to prepare PBAT foams. The rheological test results indicated that the addition of CE increased the energy⁃storage modulus by 3 orders of magnitude and the complex viscosity by 2 orders of magnitude. The dimensional stability of the PBAT foams increased gradually with an increase in the GMS content. The PBAT foams obtained an expansion ratio of 23.1 at a CE content of 2 wt% and a GMS content of 1.8 wt%， and their shrinkage rate and resilience rate was 8 % and 90 %， respectively. This indicated the successful preparation of the PBAT foams with a high expansion ratio， and excellent resilience， and good dimensional stability.

Key words: poly （butylene adipate?butylene terephthalate）, chain extension, supercritical carbon dioxide, foaming, high volume expansion ratio, resilience

CLC Number:

TQ323.4

JIAO Yang, WANG Longzhen, CAI Zhuorui, LIU Ronghao, ZHANG Yuxia, ZHOU Hongfu. Study on preparation and resilience of PBAT foams with high volume expansion ratio[J]. China Plastics, 2023, 37(9): 19-27.

Figures/Tables 11

References 20

1	ZHENG Y， PAN P J. Crystallization of biodegradable and biobased polyesters： Polymorphism， cocrystallization， and structure⁃property relationship［J］. Progress in Polymer Science， 2020， 109， 101291.
2	LEE M H， LEE J， JUNG S K， et al. Kang. A biodegradable secondary battery and its biodegradation mechanism for eco⁃friendly energy⁃storage systems［J］. Advanced Materials， 2021， 33， 2004902.
3	HE Y Y， LI S， ZHOU L， et al. Cellulose nanofibrils⁃based hybrid foam generated from Pickering emulsion toward high⁃performance microwave absorption［J］. Carbohydrate Polymers， 2021， 255， 117333.
4	QIAO Y H， Li Q， JALALI A， et al. In⁃situ microfibrillated poly （ε⁃caprolactone）/poly （lactic acid） composites with enhanced rheological properties， crystallization kinetics and foaming ability［J］. Composites Part B， 2021， 208， 108594.
5	王杰，王泽云，辛德华，等. PBAT改性及其发泡材料的研究进展［J］. 高分子通报， 2023， 36（02）： 191⁃199.
	WANG J， WANG Z Y， XIN D H， et al. Research progress of PBAT modification and its foaming materials ［J］. Polymer Bulletin， 2023， 36（02）： 191⁃199.
6	TIAN H L， WANG Z P， JIA S L， et al. Biodegradable foaming material of poly（butylene adipate⁃co⁃ terephthalate）（PBAT）/poly（propylene carbonate）（PPC）［J］. Chinese Journal of Polymer Science， 2022， 40（2）， 208⁃219.
7	LI Y T， ZHANG Z Y， WANG W M， et al. Ultra⁃fast degradable PBAT/PBS foams of high performance in compression and thermal insulation made from environment⁃friendly supercritical foaming［J］. The Journal of Supercritical Fluids， 2022， 181， 105512.
8	HU D D， XUE K， LIU Z， et al. The essential role of PBS on PBAT foaming under supercritical CO₂ toward green engineering［J］. Journal of CO₂ Utilization， 2022， 60， 101965.
9	WANG Z Z， ZHAO J C， WANG G L， et al. Lightweight， low⁃shrinkage and high elastic poly（butylene adipate⁃co⁃terephthalate） foams achieved by microcellular foaming using N⁃2 & CO₂ as co⁃blowing agents［J］. Journal of CO₂ Utilization， 2022， 64， 102149.
10	LI X J， TAN D Y， XIE L， et al. Effect of surface property of halloysite on the crystallization behavior of PBAT［J］. Applied Clay Science， 2018， 157： 218⁃226.
11	ZHOU X B， MOHANTY A， MISRA M. A new biodegradable injection moulded bioplastic from modified soy meal and poly （butylene adipate⁃co⁃terephthalate）： effect of plasticizer and denaturant［J］. Journal of Polymers and the Environment， 2013， 21（3）： 615⁃622.
12	VENKATESAN R， RAJESWARI N. Preparation， mechanical and antimicrobial properties of SiO₂/poly（butylene adipate⁃co⁃terephthalate） films for active food packaging［J］. Silicon， 2016， 11（5）： 2 233⁃2 239.
13	张宇，王成玲，张杰. 聚乳酸辐照交联改性的研究进展［J］. 现代塑料加工应用， 2014， 26（05）： 61⁃63.
	ZHANG Y， WANG C L， ZHANG J. Research progress of radiation-induced crosslinking PLA ［J］. Modern Plastics Processing and Applications， 2014， 26（05）： 61⁃63.
14	陈聪博，范烁，张锐，等. PVDF/PMMA共混物非等温结晶动力学和晶体结构［J］. 中国塑料， 2022，36（11）： 59⁃66.
	CHEN C B， FAN S， ZHANG R， et al. Non-isothermal crystallization kinetics and crystal structure of PVDF/PMMA blends ［J］. China Plastics， 2022， 36（11）： 59⁃66.
15	SHI X T， QIN J B， WANG L， et al. Introduction of stereocomplex crystallites of PLA for the solid and microcellular poly（lactide）/poly（butylene adipate⁃co⁃terephthalate） blends［J］. RSC Advances. 2018， 8（22）： 11850⁃11861.
16	NAGUIB H E， PARK C B， SONG S W. Effect of supercritical gas on crystallization of linear and branched polypropylene resins with foaming additives［J］. Industrial & Engineering Chemistry Research. 2005， 44（17）： 6685⁃6691.
17	DIECKMANN D， HOLTZ B. Aging modifiers for extruded LDPE foam［J］. Journal of Vinyl and Additive Technology. 2000， 6（1）： 34⁃38.
18	RIZVI A， CHU R K， LEE J H， et al. Superhydrophobic and oleophilic open⁃cell foams from fibrillar blends of polypropylene and polytetrafluoroethylene［J］. ACS applied materials & interfaces， 2014， 6（23）： 40⁃21131.
19	CAO Y Y， P Y Y， D X， et al. To clarify the resilience of PEBA/MWCNT foams via revealing the effect of the nanoparticle and the cellular structure［J］. ACS Applied Polymer Materials， 2021， 3（8）： 3 766⁃3 775.
20	WANG X L， WANG Y Q， WANG X D， Fabrication strategy for long⁃chain branched polypropylene foams with high resilience and compressive strength［J］. Journal of Applied Polymer Science. 2022， 139（42）， e53016.

样品	PBAT/份	CE/份	GMS/份
纯PBAT	100	0	0
PBAT/CE2	100	2	0
PBAT/CE2/GMS0.6	100	2	0.6
PBAT/CE2/GMS1.2	100	2	1.2
PBAT/CE2/GMS1.8	100	2	1.8

样品	PBAT/份	CE/份	GMS/份
纯PBAT	100	0	0
PBAT/CE2	100	2	0
PBAT/CE2/GMS0.6	100	2	0.6
PBAT/CE2/GMS1.2	100	2	1.2
PBAT/CE2/GMS1.8	100	2	1.8

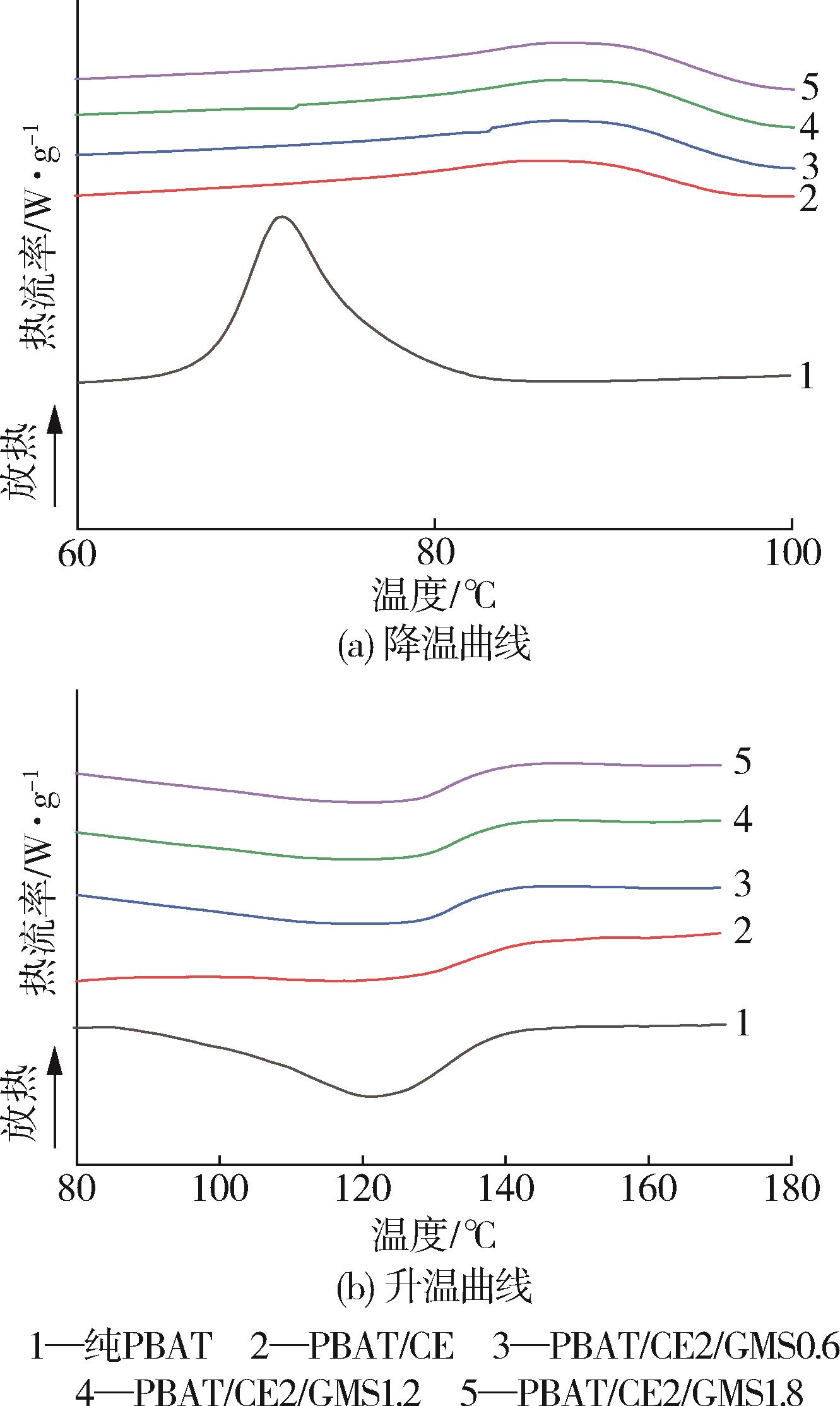

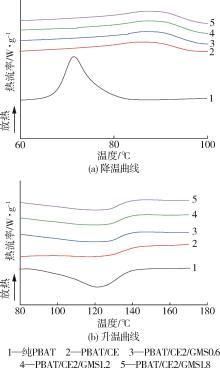

样品	T_c/℃	ΔH_c/ J·g^-1	T_m/℃	ΔH_m/ J·g^-1	χ_c/%
纯PBAT	72.5	13.9	121.57	8.3	7.3
PBAT/CE2	87.24	3.9	127.34	1.8	1.56
PBAT/CE2/GMS0.6	89.02	5.54	126.89	2.122	1.82
PBAT/CE2/GMS1.2	89.33	5.786	127.08	2.113	1.80
PBAT/CE2/GMS1.8	89.32	5.742	127.1	2.153	1.82

样品	T_c/℃	ΔH_c/ J·g^-1	T_m/℃	ΔH_m/ J·g^-1	χ_c/%
纯PBAT	72.5	13.9	121.57	8.3	7.3
PBAT/CE2	87.24	3.9	127.34	1.8	1.56
PBAT/CE2/GMS0.6	89.02	5.54	126.89	2.122	1.82
PBAT/CE2/GMS1.2	89.33	5.786	127.08	2.113	1.80
PBAT/CE2/GMS1.8	89.32	5.742	127.1	2.153	1.82

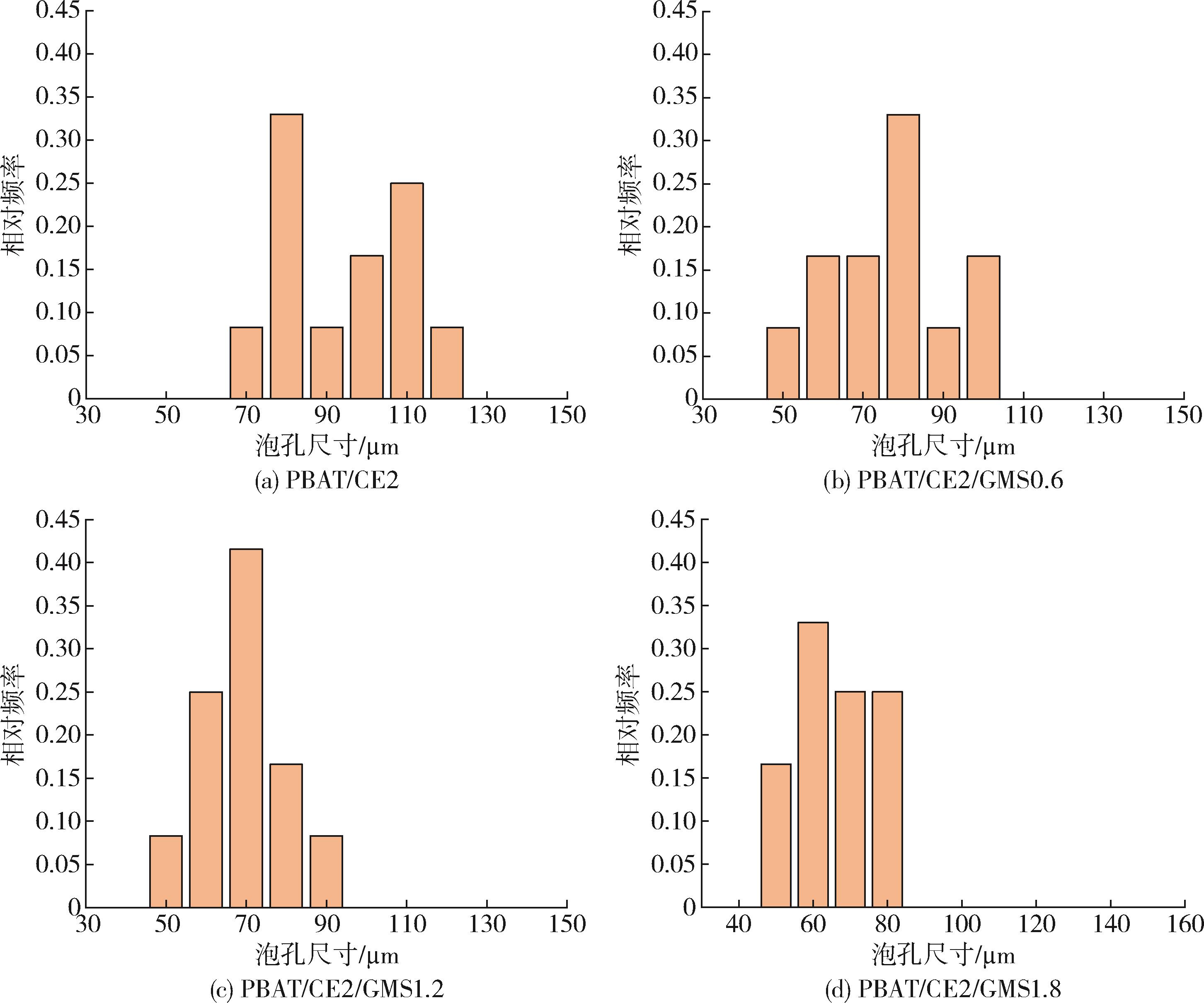

样品	泡孔尺寸/ μm	泡孔密度/ 个·cm^-3	发泡倍率	收缩率/ %
纯PBAT	-	-	4.1	-
PBAT/CE2	99.69	1.36×10⁶	32.84	19
PBAT/CE2/GMS0.6	80.30	1.57×10⁶	31.57	14.6
PBAT/CE2/GMS1.2	75.43	2.4×10⁶	28.65	10
PBAT/CE2/GMS1.8	71.99	3.1×10⁶	23.1	8
