Effect of nano⁃SiO2 content on surface quality and mechanical properties of PES⁃based laser sintered parts

doi:10.19491/j.issn.1001-9278.2023.11.002

Abstract

Abstract:

Polyethersulfone resin （PES）/nano⁃SiO₂ composite sintered parts were prepared through selective laser sintering using PES as a matrix and nano⁃SiO₂ as a filler. The effect of nano⁃SiO₂ content on the surface quality and mechanical properties of the composite sintered parts were investigated. The results indicated that the composite sintered parts presented a little change in the arithmetic mean in the nano⁃SiO₂ content range of 0.1~1.0 wt% and then their deviation increased significantly at a nano⁃SiO₂ content above 1.0 wt%. The tensile strength and flexural strength of the composite sintered parts increased first and then tended to decrease with an increase in the nano⁃SiO₂ content. The tensile strength and bending strength of the composite sintered parts reached a maximum at a nano⁃SiO₂ content of 0.5 wt%. Compared to pure PES sintered parts， the composite sintered parts exhibited an increase in tensile strength and bending strength by 22.66 % and 41.51 %， respectively. Their impact strength reached a maximum at a nano⁃SiO₂ content of 0.7 wt%， which was increased by 12.10 %.

Key words: selective laser sintering, nano silica, polyethersulfone resin, surface quality, mechanical property

CLC Number:

TQ326.5

CHEN Hui, QIAN Weidong, SUN Lingsheng, TAN Bo. Effect of nano⁃SiO₂ content on surface quality and mechanical properties of PES⁃based laser sintered parts[J]. China Plastics, 2023, 37(11): 10-14.

Figures/Tables 8

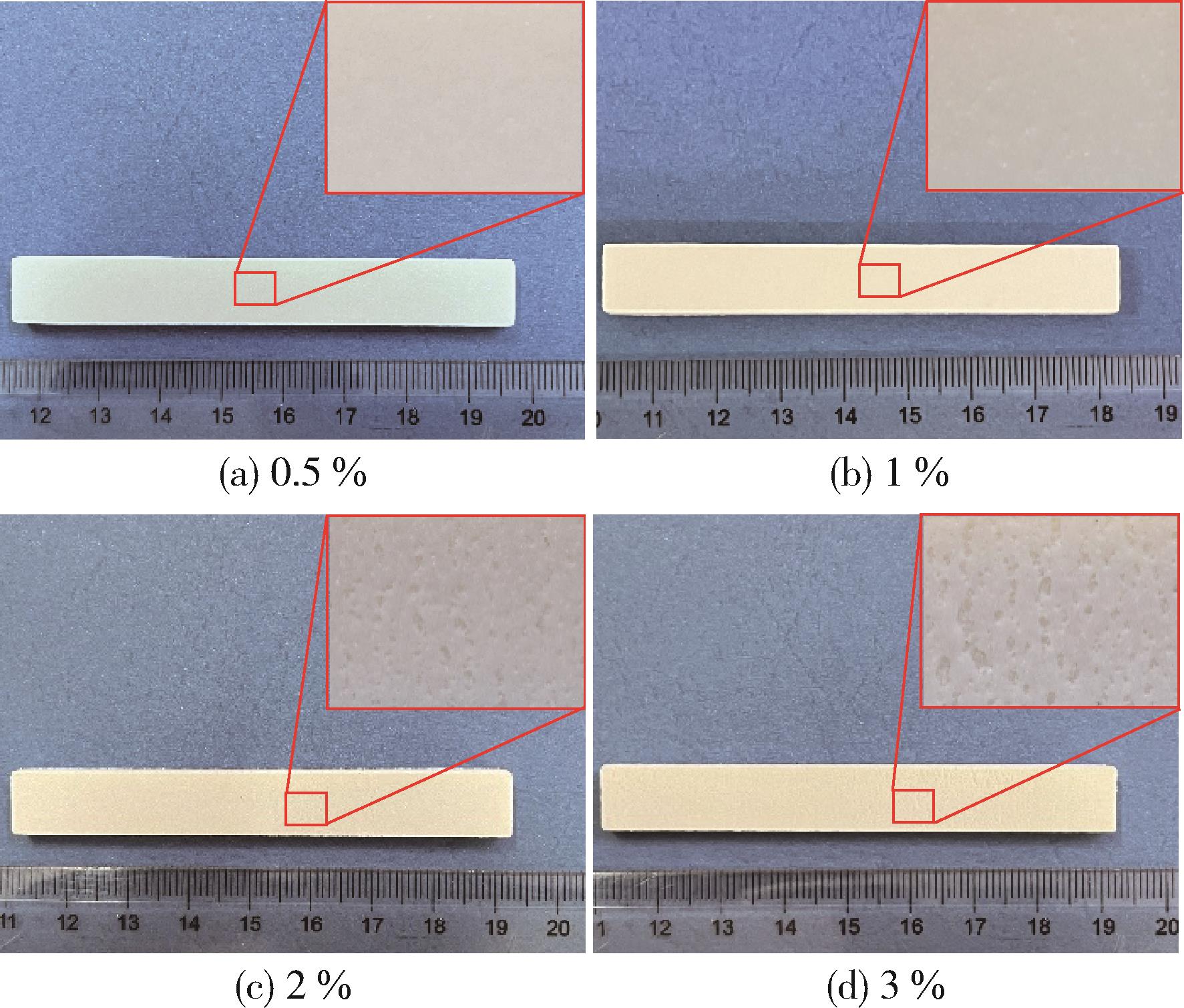

Fig.1. Surface morphology of sintered parts with different nano⁃SiO2 contents

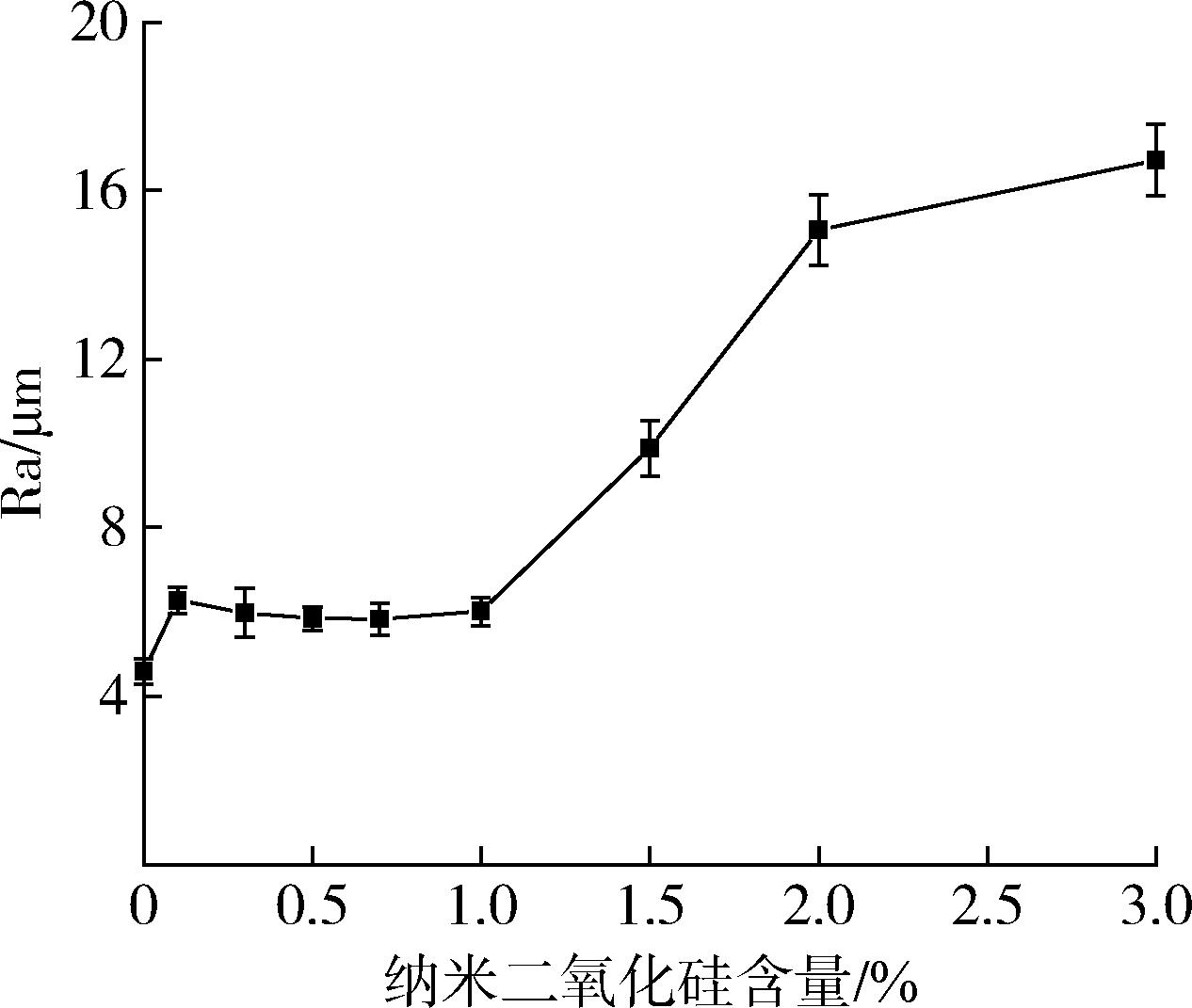

Fig.2. Effect of nano⁃SiO2 content on Ra of the sintered parts

Fig.3. Agglomeration of nano⁃SiO2 in the composite powders

Fig.4. Microstructure photos of tensile fracture of sintered parts with different nano⁃SiO2 contents

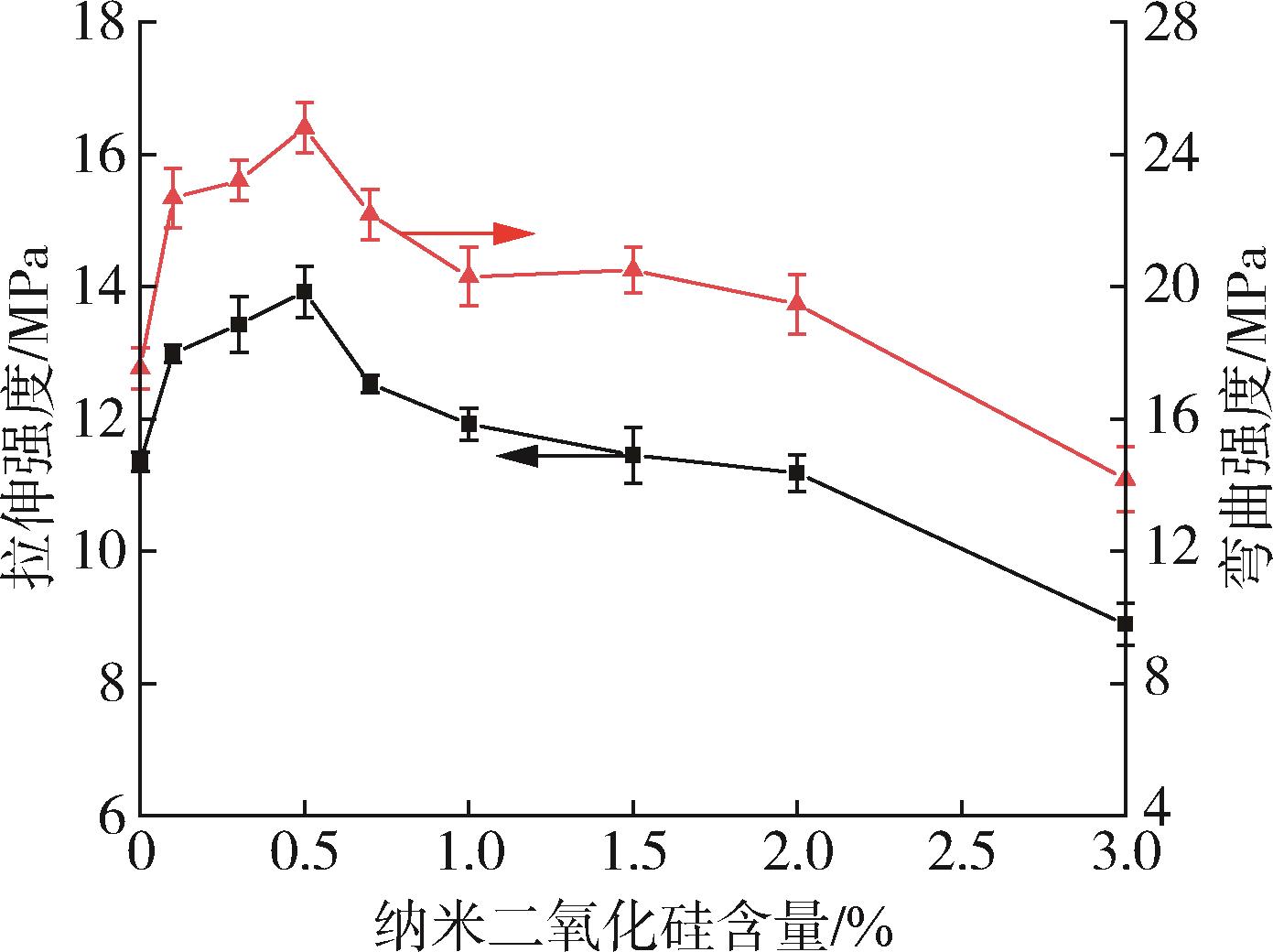

Fig.5. Effect of nano⁃SiO2 content on tensile strength and bending strength of the sintered parts

Fig.6. Interfacial bonding between nano⁃SiO2 and PES

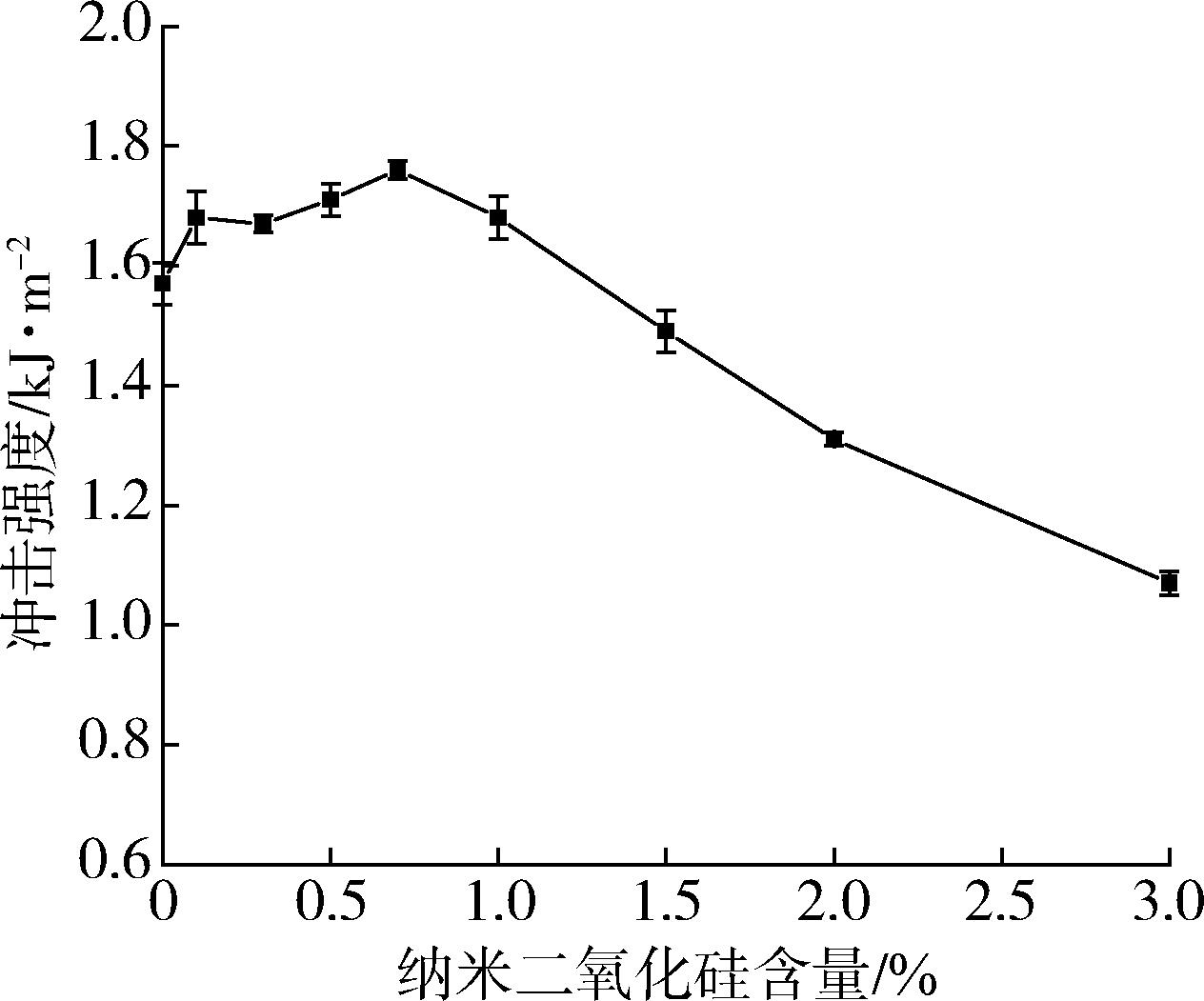

Fig.7. Effect of nano⁃SiO2 content on impact strength of the sintered parts

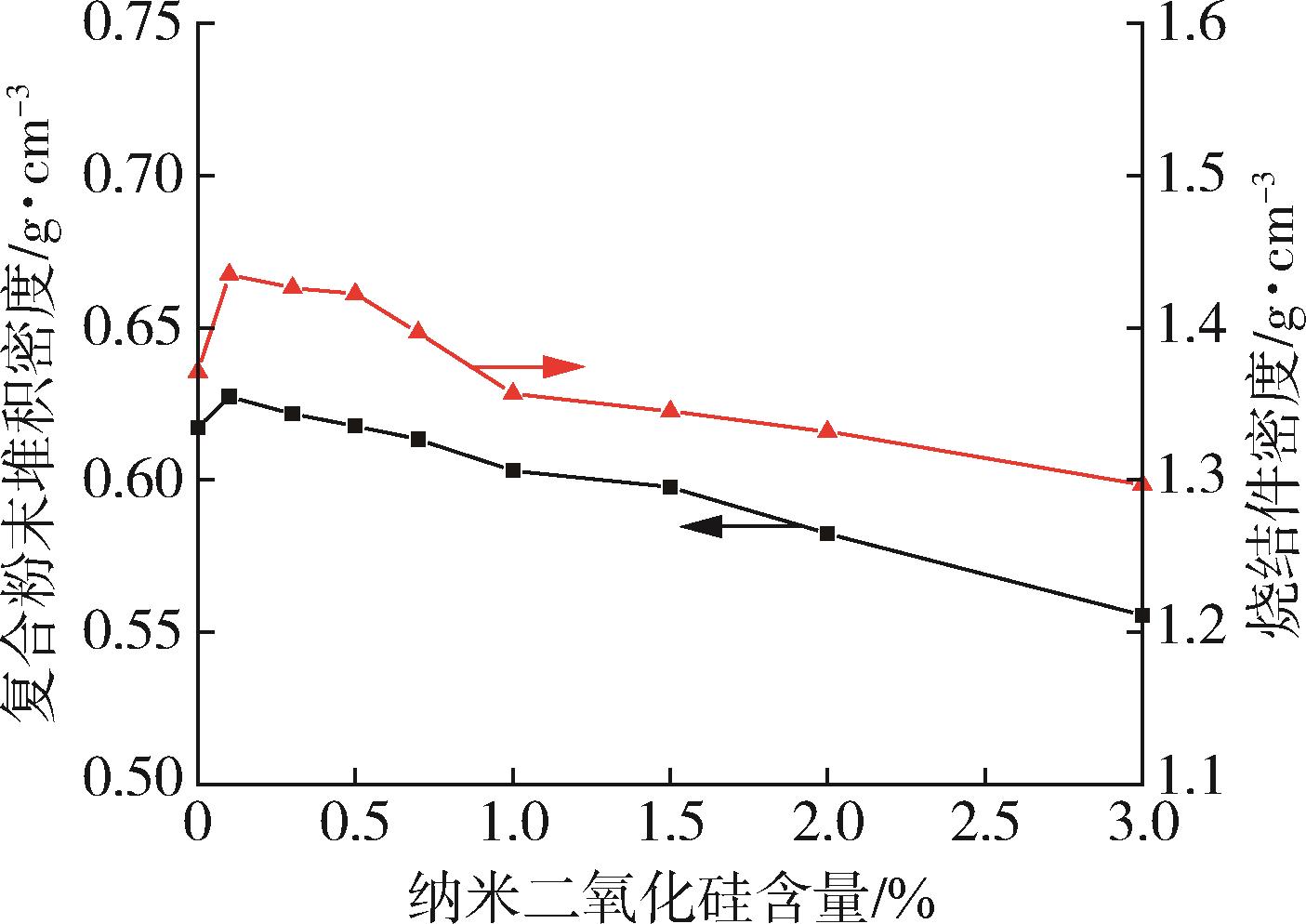

Fig.8. Effect of nano⁃SiO2 content on stacking density and density

References 16

1	NGO T D， KASHANI A， IMBALZANO G， et al. Additive manufacturing （3D printing）： A review of materials， methods， applications and challenges［J］. Composites Part B： Engineering， 2018，143：172⁃196.
2	Awad Atheer， Fina Fabrizio， Goyanes Alvaro， et al. 3D printing： Principles and pharmaceutical applications of selective laser sintering［J］. International Journal of Pharmaceutics， 2020， 586： 119594.
3	刘振盈，李磊，杨玮婧，等.选择性激光烧结成型过程的影响因素［J］.塑料工业，2021，49（11）：20⁃24，89.
	LIU Z Y， LI L， YANG W J， et al. Influencing factors of selective laser sintering process［J］. China Plastic Industry， 2021，49（11）：20⁃24，89.
4	陈晖，郭振，王永吉，等.空心玻璃微珠/聚醚砜树脂轻质激光烧结件的研究［J］.塑料工业，2019，47（9）：95⁃97.
	CHEN H， GUO Z， WANG Y J， et al. Study on mechanical properties of selective laser sintering of hollow glass beads/polyethersulfone resin［J］. China Plastic Industry， 2019，47（9）：95⁃97.
5	陈晖，赵佳琳，谭博，等.激光功率对CB/PES烧结件成型性能和力学性能的影响［J］.塑料工业，2022，50（7）：87⁃90.
	CHEN H， ZHAO J L， TAN B， et al. Effect of laser power on formability and mechanical properties of CB/PES sintered parts［J］. China Plastic Industry， 2022，50（7）：87⁃90.
6	Priyanka Tripathy， Sandhyarani Biswas. Mechanical and thermal properties of basalt fiber reinforced epoxy composites modified with CaCO₃ nanoparticles［J］. Polymer Composites， 2022， 43（11）： 7 789⁃7 803.
7	Lei H， Bingyi L， Zhenhua W，et al. Effect of carbon nanotube content on the microstructure and mechanical properties of CNTs/TiAl alloys［J］. Ceramics International， 2023， 49（5）： 8 196⁃8 203.
8	Liu H， Li Q， Ni S， et al. Effect of nano⁃SiO₂ dispersed at different temperatures on the properties of cement⁃based materials［J］. Journal of Building Engineering， 2022， 46： 1037
9	甘鑫鹏，王金志，费国霞，等.聚氨酯弹性体的选择性激光烧结［J］.高分子材料科学与工程，2019，35（8）：87⁃93，104.
	GAN X P， WANG J Z， FEI G X， et al. Selective laser sintering of polyurethane elastomers［J］. Polymer Materials Science & Engineering，2019，35（8）：87⁃93，104.
10	Mitsuru Tanahashi， Yusuke Watanabe， Lee Jeong⁃Chang. Melt flow and mechanical properties of silica/perfluoropolymer nanocomposites fabricated by direct melt⁃compounding without surface modification on nano⁃silica［J］. Journal of Nanoscience and Nanotechnology，2009，9（1）：539⁃549.
11	Su Chang， Wang Xin， Ding Lining，et al. Enhancement of mechanical behavior of FRP composites modified by silica nanoparticles［J］. Construction and Building Materials，2020，262：120769.
12	张金柱，汪信，陆路德，等.纳米无机粒子对塑料增强增韧的“裂缝与银纹相互转化”机理［J］.工程塑料应用，2003，1：20⁃22.
	ZHANG J Z， WANG X， LU L D， et al.Mutual transfer mechanism of crack and craze of toughening and reforceing of plastics modified by inorganic nanoparticles［J］.Engineering Plastics Application， 2003，1：20⁃22.
13	杨伏生，周安宁，葛岭梅，等.聚合物增强增韧机理研究进展［J］.中国塑料，2001，8：8⁃12.
	YANG F S， ZHOU A N， GE L M， et al. Research progress in toughening and reinforcing mechanism of polymers［J］. China Plastics， 2001，8：8⁃12.
14	何宏，龙柱，戴磊，等.改性纳米二氧化硅/聚己内酯/聚（3⁃羟基丁酸酯⁃co⁃4⁃羟基丁酸酯）的结构与性能研究［J］.材料导报，2013，27（18）：57⁃60.
	HE H， LONG Z， DAI L， et al. Study on properties of the poly（e⁃caprolactone）/poly（3⁃hydroxylbutyrate⁃co⁃4⁃hydroxylbutyrate）/modified nano⁃SiO₂ blends［J］. Material Guide，2013，27（18）：57⁃60.
15	史玉升.粉末材料选择性激光快速成形技术及应用［M］.北京：科学出版社，2012：133.
16	陈师岐，王选伦.无规共聚聚丙烯/纳米二氧化硅复合材料的制备与性能研究［J］.中国塑料，2021，35（10）：56⁃59.
	CHEN S Q， WANG X L. Preparation and properties of polypropylene random copolymer/nano⁃SiO₂ composites［J］. China Plastics， 2021，35（10）：56⁃59.
