Research progress in metal⁃organic framework⁃based flame retardants in flame⁃retardant polymers

doi:10.19491/j.issn.1001-9278.2024.02.017

Abstract

Abstract:

This paper introduced the applications of metal⁃organic frameworks and their derivatives in the fire⁃retardant polymer field in recent years. The design of metal⁃organic framework flame retardants and their effects on the fire⁃retardant properties of epoxy resins， polystyrene， polyurethane and other materials were highlighted. The possible flame⁃retardant mechanisms of metal⁃organic framework flame retardants were discussed， and their development direction in future was prospected.

Key words: metal?organic framework, flame retardancy, epoxy resin, polystyrene, polyurethane, flame retardancy mechanism

CLC Number:

TQ322.4

WANG Dong. Research progress in metal⁃organic framework⁃based flame retardants in flame⁃retardant polymers[J]. China Plastics, 2024, 38(2): 118-125.

Figures/Tables 8

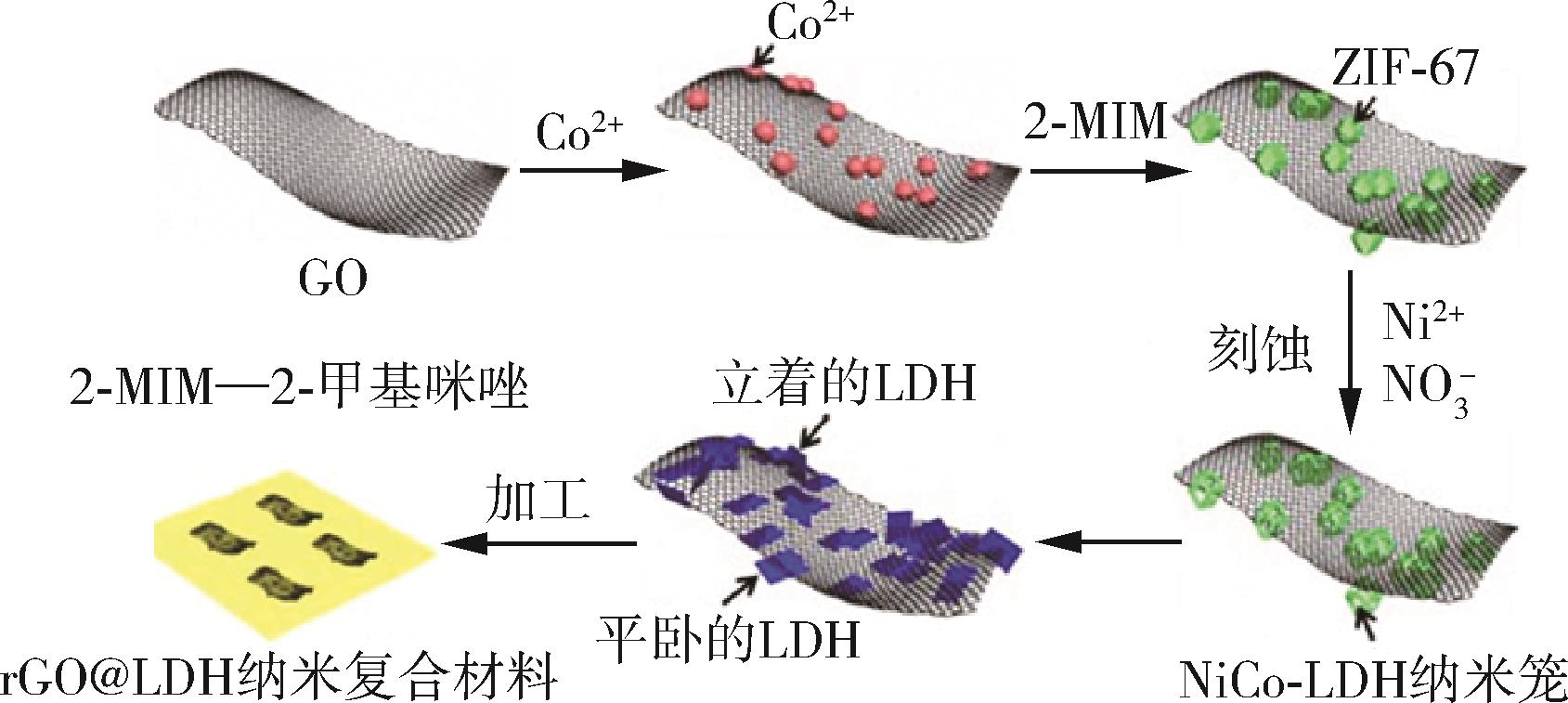

Fig.1. Schematic diagram of preparation of rGO@LDH［23］

Fig.2. Preparation of MgAl@NiCo and morphology and strength of char residue of the EP composites after cone calorimetry test［24］

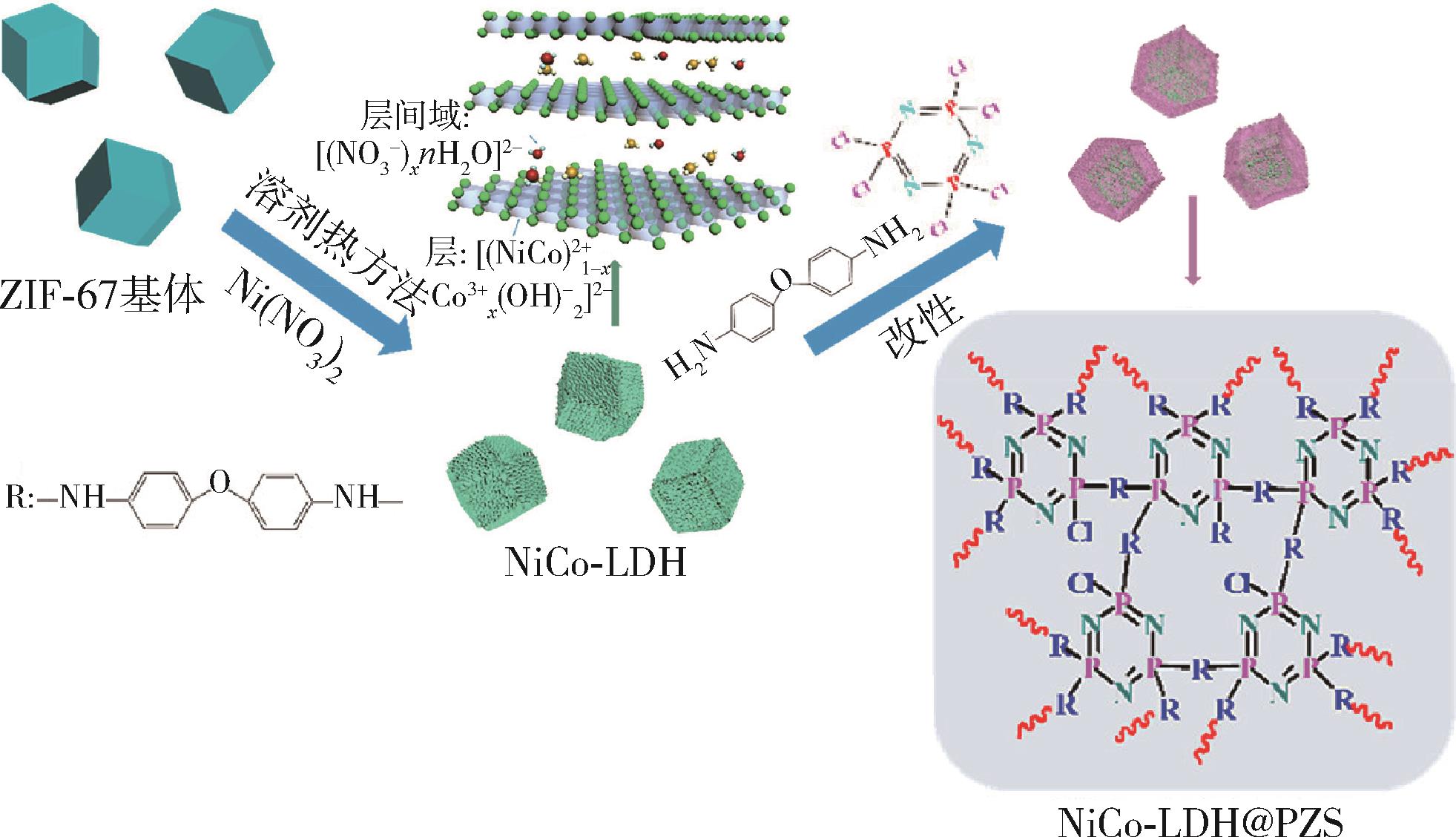

Fig.3. Synthetic route of NiCo⁃LDH@PZS［30］

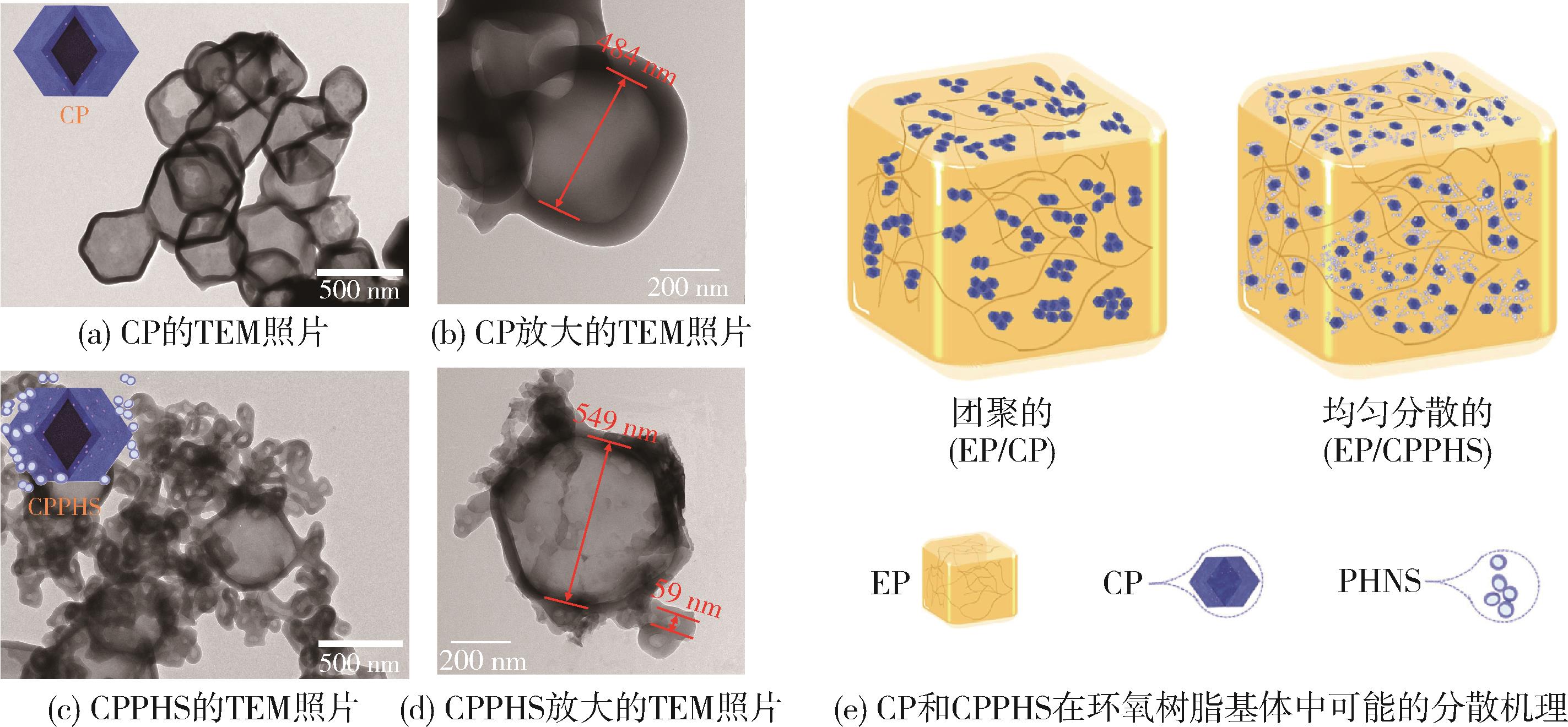

Fig.4. TEM images of CP and CPPHS and the supposed dispersion mechanism in EP matrix［32］

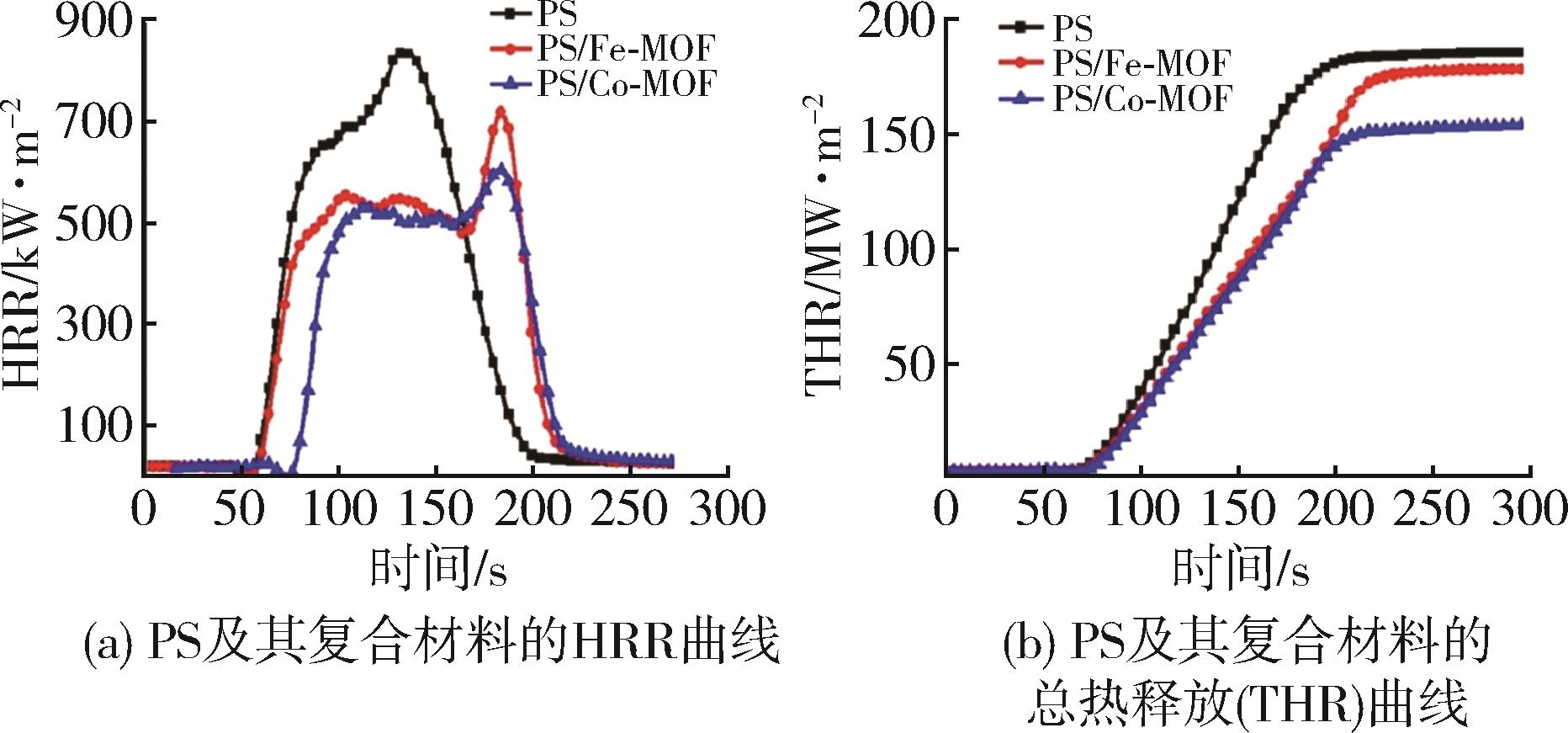

Fig.5. HRR and total heat release curves of PS and its composites［37］

Fig.6. SEM images of Fe⁃MOF， P⁃Fe⁃MOF and T⁃Fe⁃MOF［41］

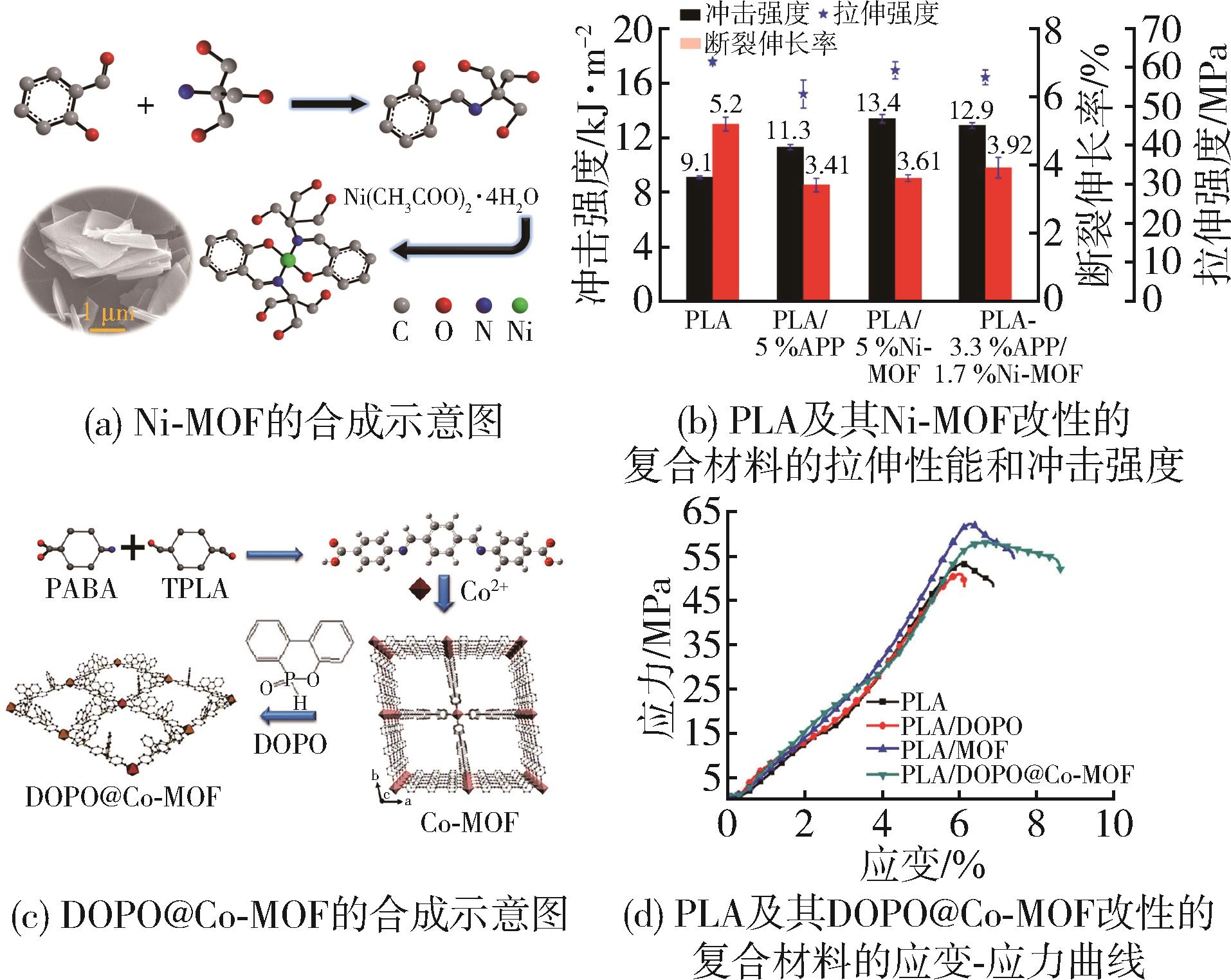

Fig.7. Synthesis schematic diagram of Ni⁃MOF and DOPO@Co⁃MOF and mechanical properties of the modified composites［35，46］

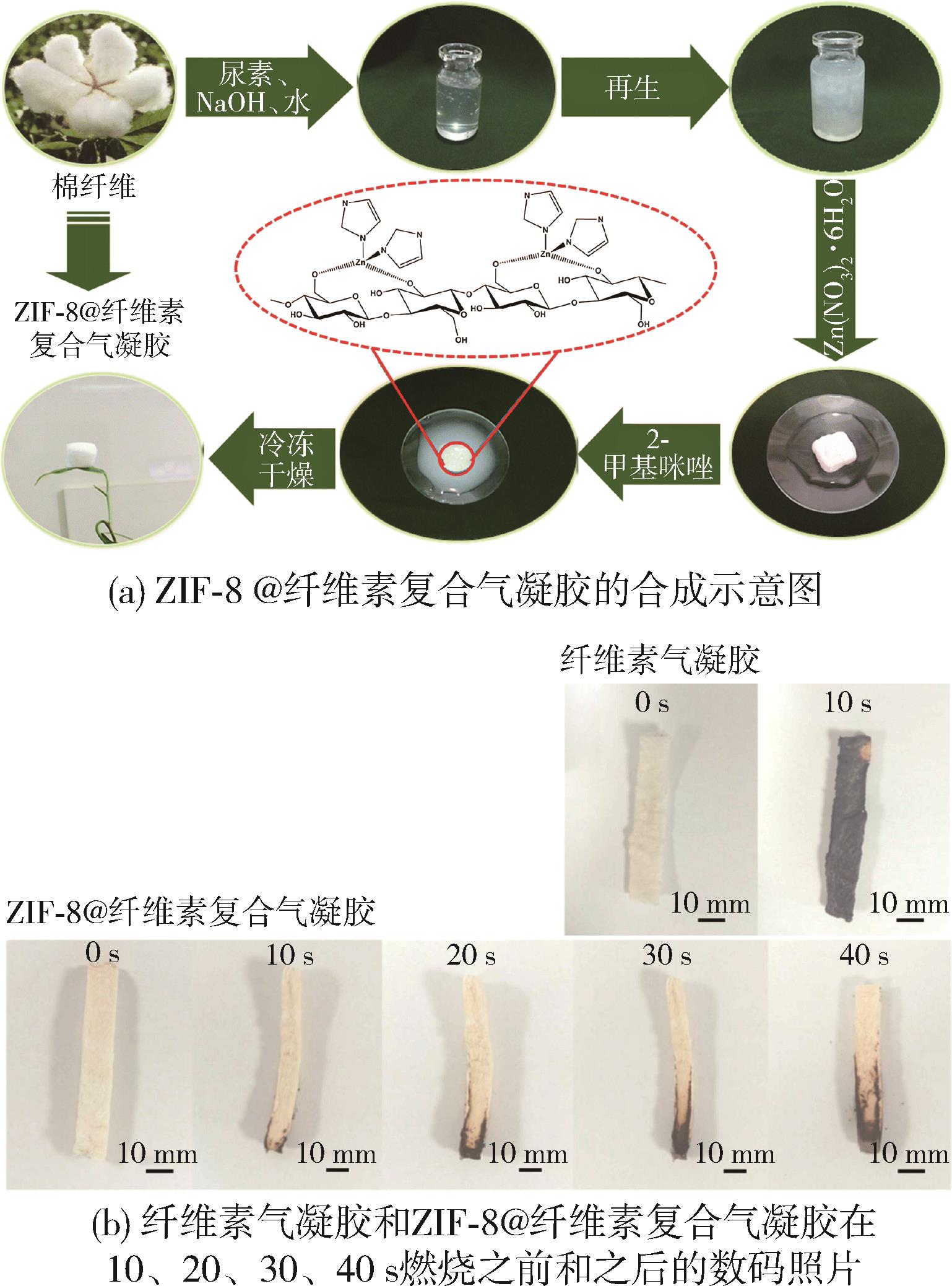

Fig.8. Synthesis schematic diagram and flame retardant properties of ZIF⁃8@cellulose composite aerogel［62］
