Modeling of wear performance of 3D⁃printed gears using grey wolf optimization algorithm

doi:10.19491/j.issn.1001-9278.2025.11.015

Abstract

Abstract:

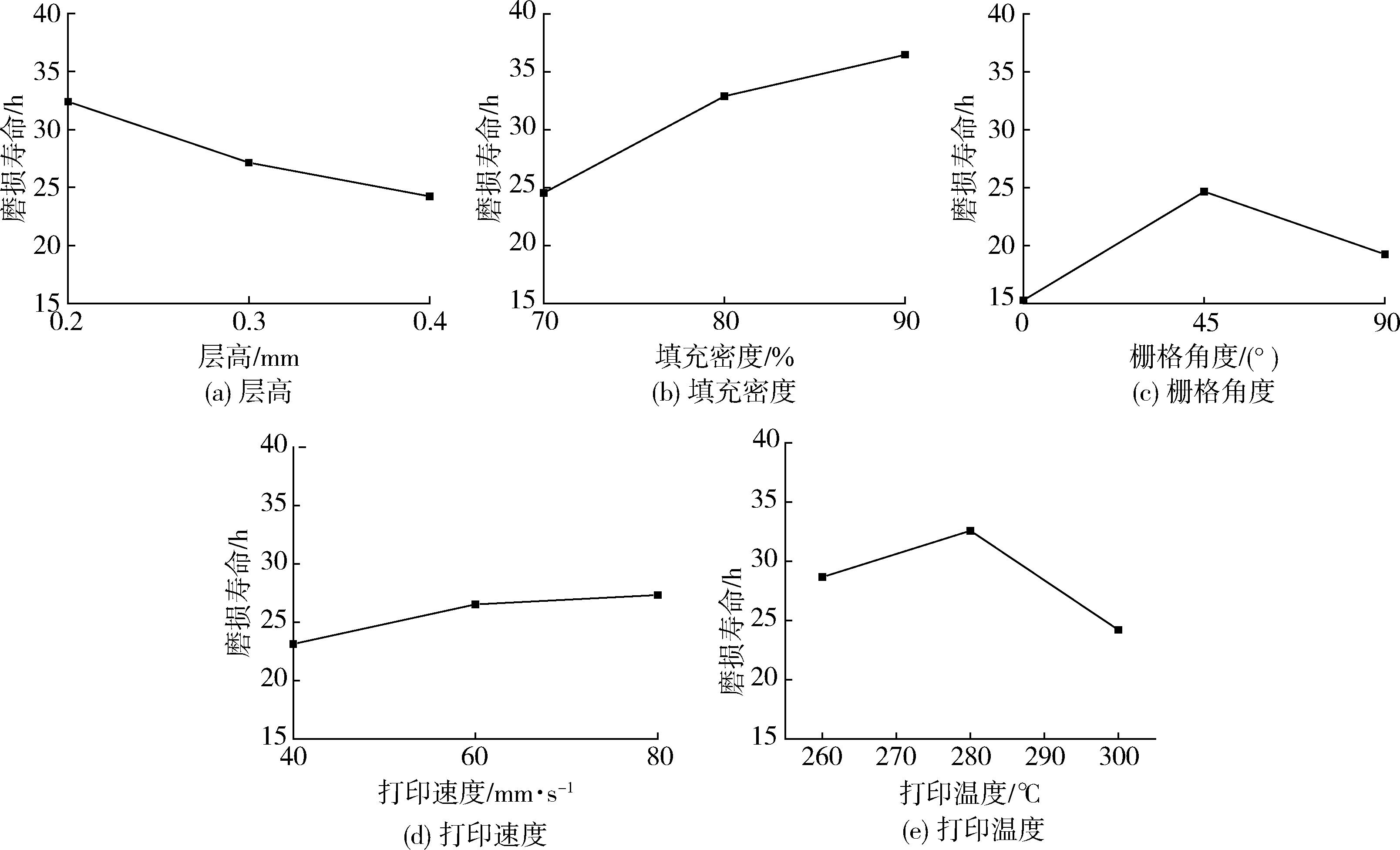

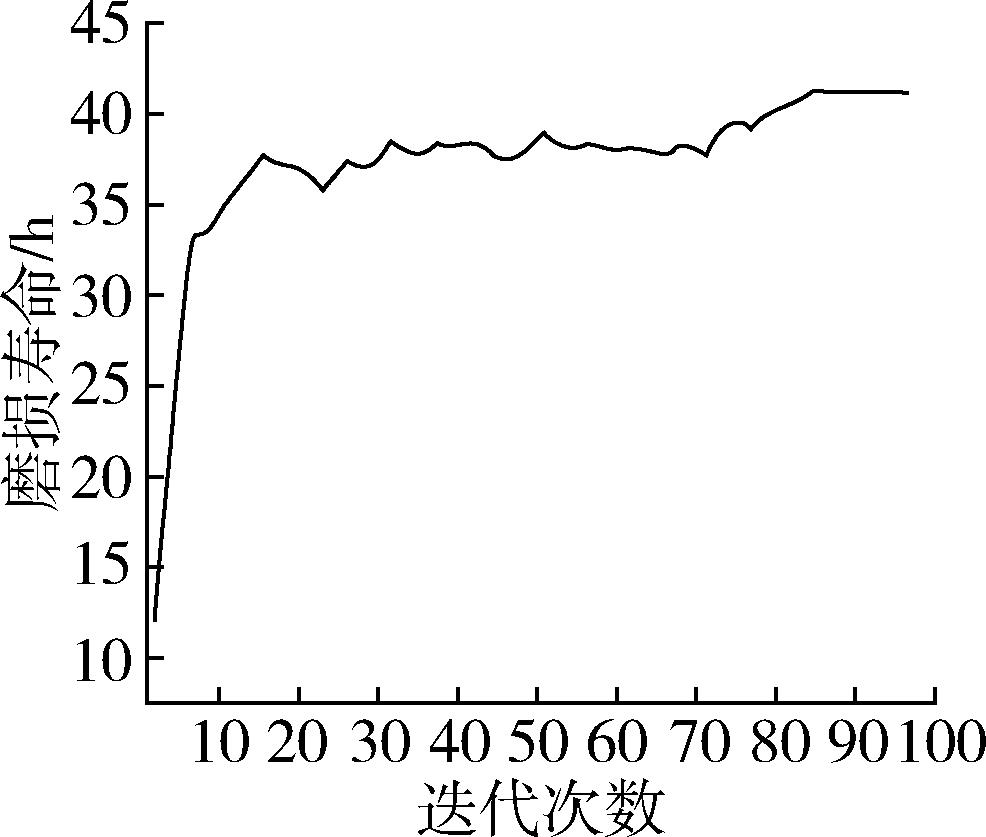

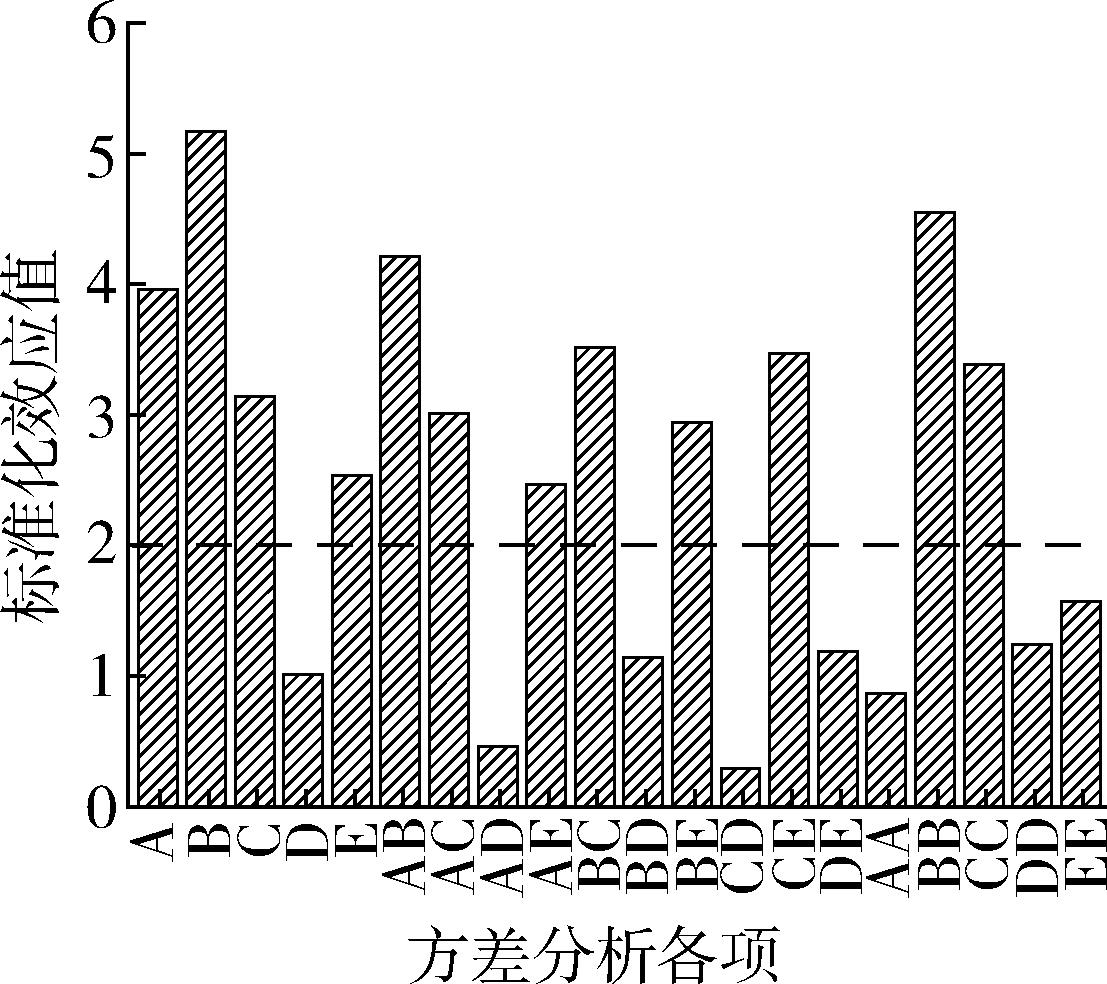

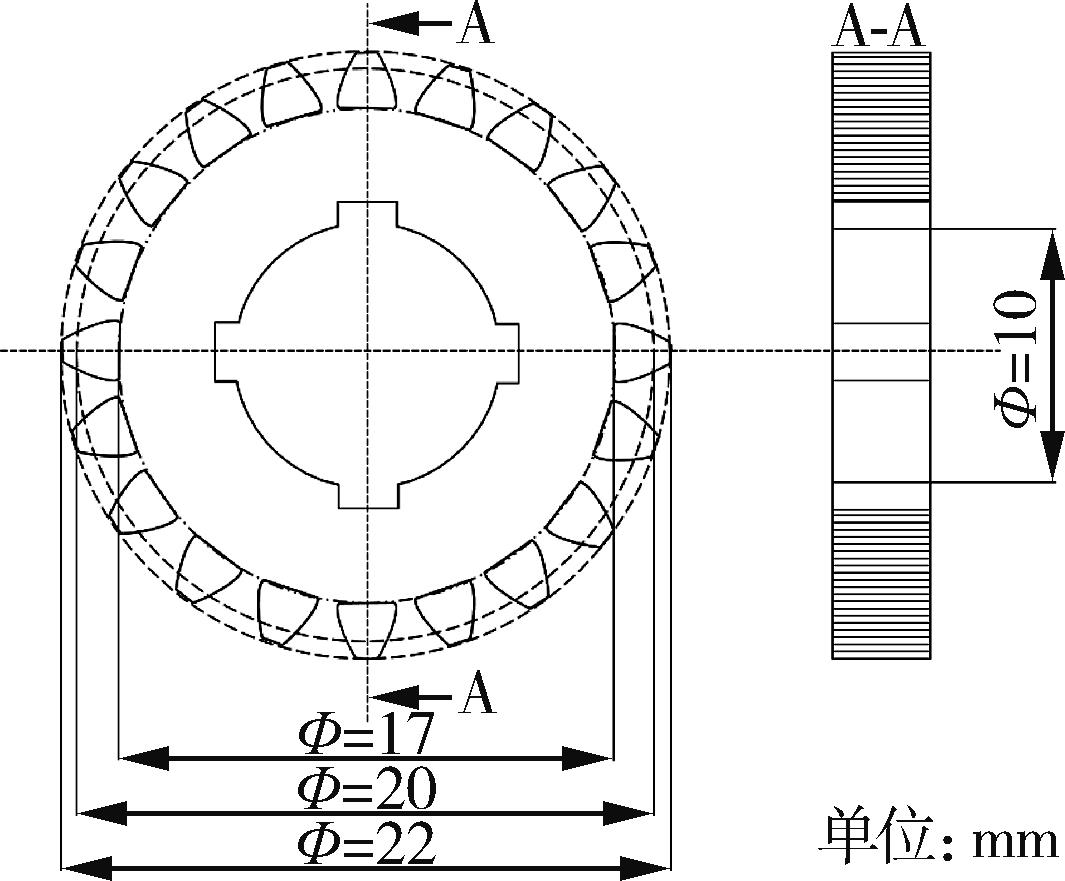

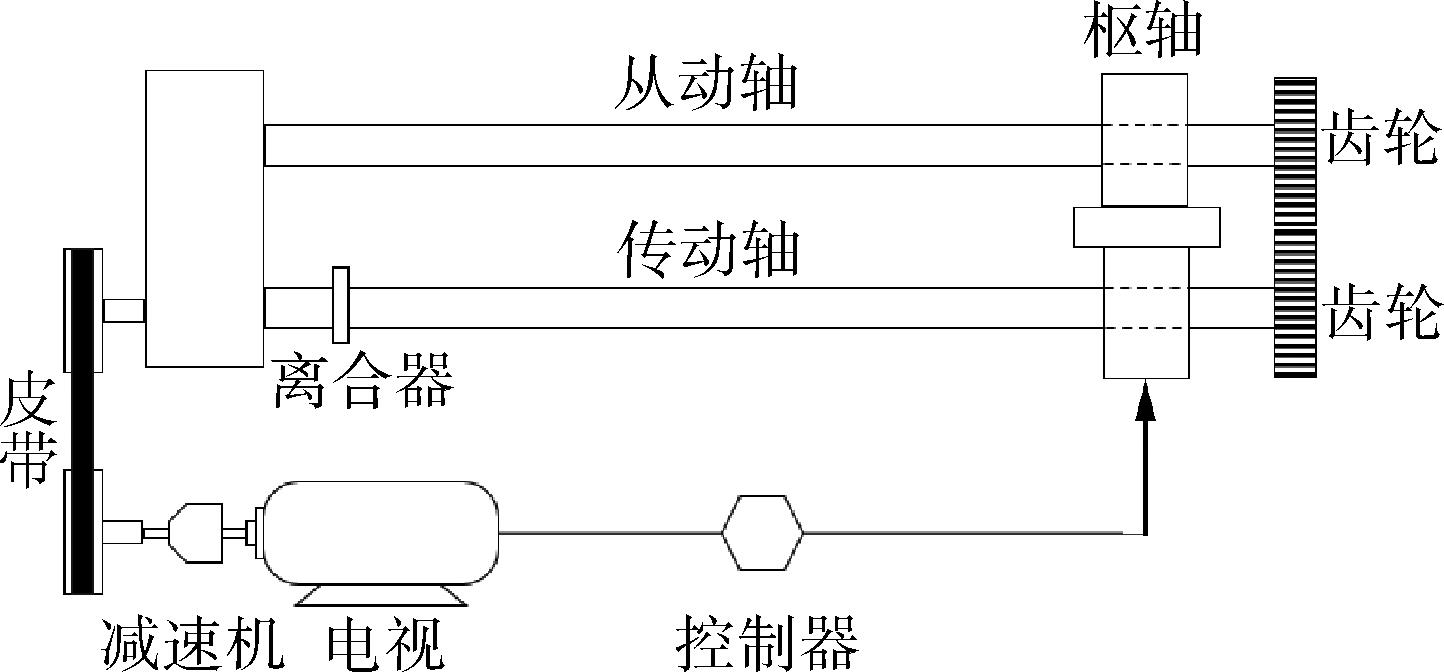

In this study， carbon fiber⁃reinforced nylon gears were fabricated via fused deposition modeling and their wear life was optimized. Utilizing a response surface methodology design， the effects of five key process parameters， including layer height， infill density， raster angle， printing speed， and nozzle temperature， were investigated. The grey wolf optimization （GWO） algorithm was then employed to determine the optimal parameter set for maximizing wear performance. RSM analysis revealed that layer height， infill density， raster angle， and nozzle temperature were significant factors， whereas printing speed had an insignificant effect. Significant interactions were observed between layer height， infill density， raster angle， and temperature. Furthermore， only the second⁃order effects of infill density and raster angle were found to be significant. After 100 iterations， the GWO algorithm predicted an optimal wear life exceeding 40 hours. The corresponding optimal parameters were a layer height of 0.2 mm， an infill density of 89 %， a raster angle of 45 °， a printing speed of 72 mm/s， and a nozzle temperature of 278 ℃. Experimental validation under these conditions yielded a wear life of 41.41 hours， confirming the model's accuracy and the effectiveness of the GWO⁃based optimization approach.

Key words: grey wolf optimization algorithm, response surface model, fused deposition modeling, gear, carbon fiber reinforced nylon, wear performance

CLC Number:

TQ320.66

CHEN Libin, SUN Tengjiao. Modeling of wear performance of 3D⁃printed gears using grey wolf optimization algorithm[J]. China Plastics, 2025, 39(11): 93-99.

Figures/Tables 12

References 19

[1]	Sugunesh A， Vignesh S， Mertens J A， et al. Polymer gear failure prediction： a regression⁃based approach using FEA and photoelasticity technique［J］. Engineering Failure Analysis， 2024， 165： 108808.
[2]	Kunal A， Kumar A S. Magnetorheological finishing process for improved performance of polymer gears［J］. Materials and Manufacturing Processes， 2023， 38（10）： 1 191⁃1 208.
[3]	Reitschuster S， Tobie T， Stahl K. Experimental verification of high⁃performance polymer gears in an electric vehicle powertrain［J］. Forschung im Ingenieurwesen， 2023， 87（3）： 881⁃890.
[4]	Yadav P O， Vyas S N. Polymer Draft Gear Modeling and Simulation for Improved Longitudinal Train Dynamics［J］. Journal of Vibration Engineering & Technologies， 2024，（1）： 1⁃12.
[5]	Elsiedy M A， Hegazi H A， El⁃Kassas A M， et al. Multi⁃objective design optimization of polymer spur gears using a hybrid approach［J］. Journal of Engineering and Applied Science， 2024， 71（1）： 1⁃17.
[6]	Myron C， Myroslav K， Anatolii K， et al. Experimental estimation of wear resistance of polyamide composites， reinforced by carbon and glass fibres used in metal⁃polymer gearings［J］. Acta Mechanica et Automatica， 2020， 14（4）： 206⁃210.
[7]	Takeshi K， Yasuharu N， Gaëtan B， et al. Comparison of the tribological properties of carbon/glass fiber reinforced PA66⁃based composites in contact with steel， with and without grease lubrication［J］. Wear， 2021， 477： 203899.
[8]	Yilmaz M， Yilmaz F N， Gungor A. Wear and thermal coupled comparative analysis of additively manufactured and machined polymer gears［J］. Wear， 2024， 556： 205525.
[9]	王海明. 超声/熔融沉积复合增材制造聚乳酸试验研究［D］. 吉林大学， 2022.
[10]	李福海，王达，王建. 塑料齿轮及其成型制造技术进展［J］.高分子材料科学与工程， 2022， 38（11）： 175⁃182.
[11]	Matija H， Simon K， Awais I， et al. Technological optimization and fatigue evaluation of carbon reinforced polyamide 3D printed gears［J］. Heliyon， 2024， 10（13）： e34037.
[12]	KUO C C， LI D Y， LIN Z C， et al. Characterizations of polymer gears fabricated by differential pressure vacuum casting and fused deposition modeling［J］. Polymers， 2021， 13（23）： 4 126.
[13]	ZHANG Y， PURSSELL C， MAO K， et al. A physical investigation of wear and thermal characteristics of 3D printed nylon spur gears［J］. Tribology International， 2020， 141： 105953.
[14]	JADWIGA P， GRZEGORZ B， PAWEŁ T， et al. An analysis of polymer gear wear in a spur gear train made using FDM and FFF methods based on tooth surface topography assessment［J］. Polymers， 2021， 13（10）： 1 649.
[15]	Karthi V， Raj N M， Baskaran J. Investigations on Varying Compositions of Nylon 6 Polymer Matrix Composites for Wear Reduction in Application to Gears［J］. Materials Science Forum， 2024， 1119： 73⁃86.
[16]	Ignatijev A， Borovinsek M， Glodez S. A computational model for analysing the dry rolling/sliding wear behaviour of polymer gears made of POM［J］. Polymers， 2024， 16（8）： 1 073.
[17]	Mirjalili S， Mirjalili S M， Lewis A. Grey Wolf Optimizer［J］. Advances in Engineering Software， 2014， 69： 46⁃61.
[18]	Fountas N A， Kechagias J D， Manolakos D E， et al. Single and multi⁃objective optimization of FDM⁃based additive manufacturing using metaheuristic algorithms［J］. Procedia Manufacturing， 2020， 51： 740⁃747.
[19]	Bodaghi M， Sadooghi A， Bakhshi M， et al. Glass Fiber Reinforced Acrylonitrile Butadiene Styrene Composite Gears by FDM 3D Printing［J］. Advanced Materials Interfaces， 2023， 10（27）： 101234.

性能	数据	性能	数据
密度/g·cm^-3	1.24	断裂伸长率/%	10.61
热变形温度（0.45 MPa）/℃	155	弯曲强度/MPa	140
熔体流动速率（275 ℃/5 kg）/g·（10 min）^-1	11.46	弯曲模量/MPa	4 363
拉伸强度/MPa	140	悬臂梁缺口冲击强度/kJ·m^-2	18.67

性能	数据	性能	数据
密度/g·cm^-3	1.24	断裂伸长率/%	10.61
热变形温度（0.45 MPa）/℃	155	弯曲强度/MPa	140
熔体流动速率（275 ℃/5 kg）/g·（10 min）^-1	11.46	弯曲模量/MPa	4 363
拉伸强度/MPa	140	悬臂梁缺口冲击强度/kJ·m^-2	18.67

因素	低水平	中水平	高水平
层高（A）/mm	0.2	0.3	0.4
填充密度（B）/%	70	80	90
栅格角度（C）/°	0	45	90
打印速度（D）/mm·s^-1	40	60	80
喷嘴温度（E）/℃	260	280	300

因素	低水平	中水平	高水平
层高（A）/mm	0.2	0.3	0.4
填充密度（B）/%	70	80	90
栅格角度（C）/°	0	45	90
打印速度（D）/mm·s^-1	40	60	80
喷嘴温度（E）/℃	260	280	300

试验序号	层高（A）/mm	填充密度（B）/%	栅格角度（C）/°	打印速度（D）/mm·s^-1	喷嘴温度（E）/℃	磨损寿命/h
1	0.30	80.00	45.00	80.00	300.00	37.82
2	0.30	70.00	45.00	40.00	280.00	11.25
3	0.30	80.00	45.00	80.00	260.00	21.4
4	0.40	90.00	45.00	60.00	280.00	9.92
5	0.20	80.00	0.00	60.00	280.00	29.77
6	0.30	90.00	45.00	60.00	260.00	16.84
7	0.20	90.00	45.00	60.00	280.00	22.31
8	0.30	80.00	90.00	60.00	300.00	5.67
9	0.40	70.00	45.00	60.00	280.00	36.48
10	0.30	70.00	45.00	80.00	280.00	33.52
11	0.30	80.00	45.00	60.00	280.00	30.61
12	0.30	70.00	45.00	60.00	260.00	14.26
13	0.30	80.00	90.00	80.00	280.00	9.88
14	0.30	80.00	45.00	60.00	280.00	17.45
15	0.30	90.00	90.00	60.00	280.00	11.07
16	0.30	70.00	45.00	60.00	300.00	3.98
17	0.30	80.00	0.00	60.00	260.00	23.53
18	0.40	80.00	45.00	80.00	280.00	13.41
19	0.30	90.00	45.00	80.00	280.00	5.32
20	0.40	80.00	45.00	60.00	300.00	12.22
21	0.30	80.00	90.00	60.00	260.00	18.01
22	0.30	80.00	45.00	40.00	260.00	8.44
23	0.30	80.00	45.00	40.00	300.00	25.58
24	0.20	80.00	45.00	60.00	300.00	39.77
25	0.30	90.00	0.00	60.00	280.00	22.99
26	0.40	80.00	90.00	60.00	280.00	13.59
27	0.30	90.00	45.00	60.00	300.00	31.06
28	0.40	80.00	0.00	60.00	280.00	11.35
29	0.30	90.00	45.00	40.00	280.00	26.77
30	0.30	70.00	0.00	60.00	280.00	7.14
31	0.20	80.00	45.00	80.00	280.00	34.5
32	0.30	80.00	0.00	60.00	300.00	19.34
33	0.40	80.00	45.00	60.00	260.00	9.9
34	0.40	80.00	45.00	40.00	280.00	15.63
35	0.20	80.00	45.00	60.00	260.00	38.12
36	0.30	80.00	0.00	80.00	280.00	12.19
37	0.30	80.00	0.00	40.00	280.00	7.98
38	0.30	70.00	90.00	60.00	280.00	19.83
39	0.30	80.00	45.00	60.00	280.00	24.47
40	0.20	80.00	45.00	40.00	280.00	33.41
41	0.30	80.00	90.00	40.00	280.00	6.37
42	0.20	80.00	90.00	60.00	280.00	28.09
43	0.20	70.00	45.00	60.00	280.00	35.72
