Feasibility Analysis of Glass⁃fiber⁃reinforced PA66 Composites Used as Insulation Material for High Voltage Switchgear

doi:10.19491/j.issn.1001-9278.2021.09.012

Abstract

Abstract:

PA66/short glass fiber （SGF） composites with different content of SGF were prepared and their physical properties， mechanical properties and insulation properties were investigated and compared with those of the thermosetting epoxy?based insulating materials. The results indicated that the density of PA66/SGF composites increased with an increase in the SGF content， but it is still lower than the standard of thermosetting epoxy?based insulator material. The composites presented an increase in bending strength， tensile strength and impact strength of when the content of SGF is more than 20 %. The comprehensive mechanical performance of the composite can reach the standard of thermosetting epoxy?based insulator material. Moreover， the dielectric strength and arc resistance time of the composites were improved to be better than the standard of thermosetting epoxy?based insulator material. In conclusion， it is feasible to employ the PA66/GF composites as an insulation material for use in HV switchgear. However， an engineering application research is still necessary for the practical application of the PA66/GF composites.

Key words: short?glass?fiber?reinforced nylon 66 composite, thermosetting epoxy resin based insulator material, mechanical property, insulation property, high voltage switchgear

CLC Number:

TQ 323.6

SI Xiaochuang, YUAN Duanpeng, LI Kai, HAO Liucheng, CHEN Rui, ZHANG Nana. Feasibility Analysis of Glass⁃fiber⁃reinforced PA66 Composites Used as Insulation Material for High Voltage Switchgear[J]. China Plastics, 2021, 35(9): 75-80.

Figures/Tables 9

样品编号	PA66含量	SGF含量	主抗氧剂含量	润滑剂含量	其他助剂含量
1^#	100	0	0	0	0
2^#	86.5	10	0.3	0.8	2.4
3^#	76.5	20	0.3	0.8	2.4
4^#	66.5	30	0.3	0.8	2.4
5^#	56.5	40	0.3	0.8	2.4
6^#	46.5	50	0.3	0.8	2.4

Tab.1. Formulation of SGF/PA66 composites

Fig.1. Density of PA66 / SGF composites with different SGF contents

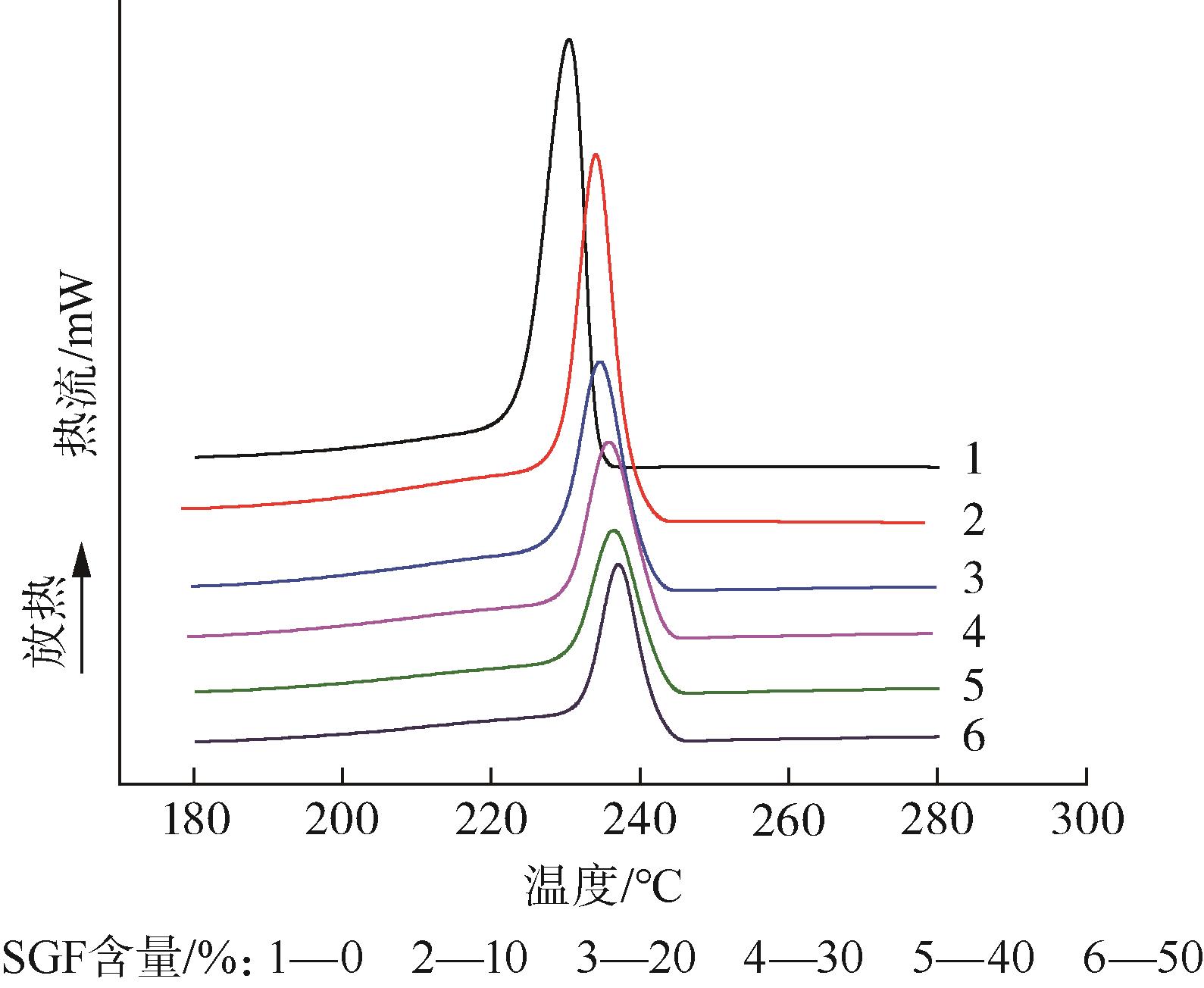

Fig.2. DSC curves of PA66 / SGF composites with different SGF contents

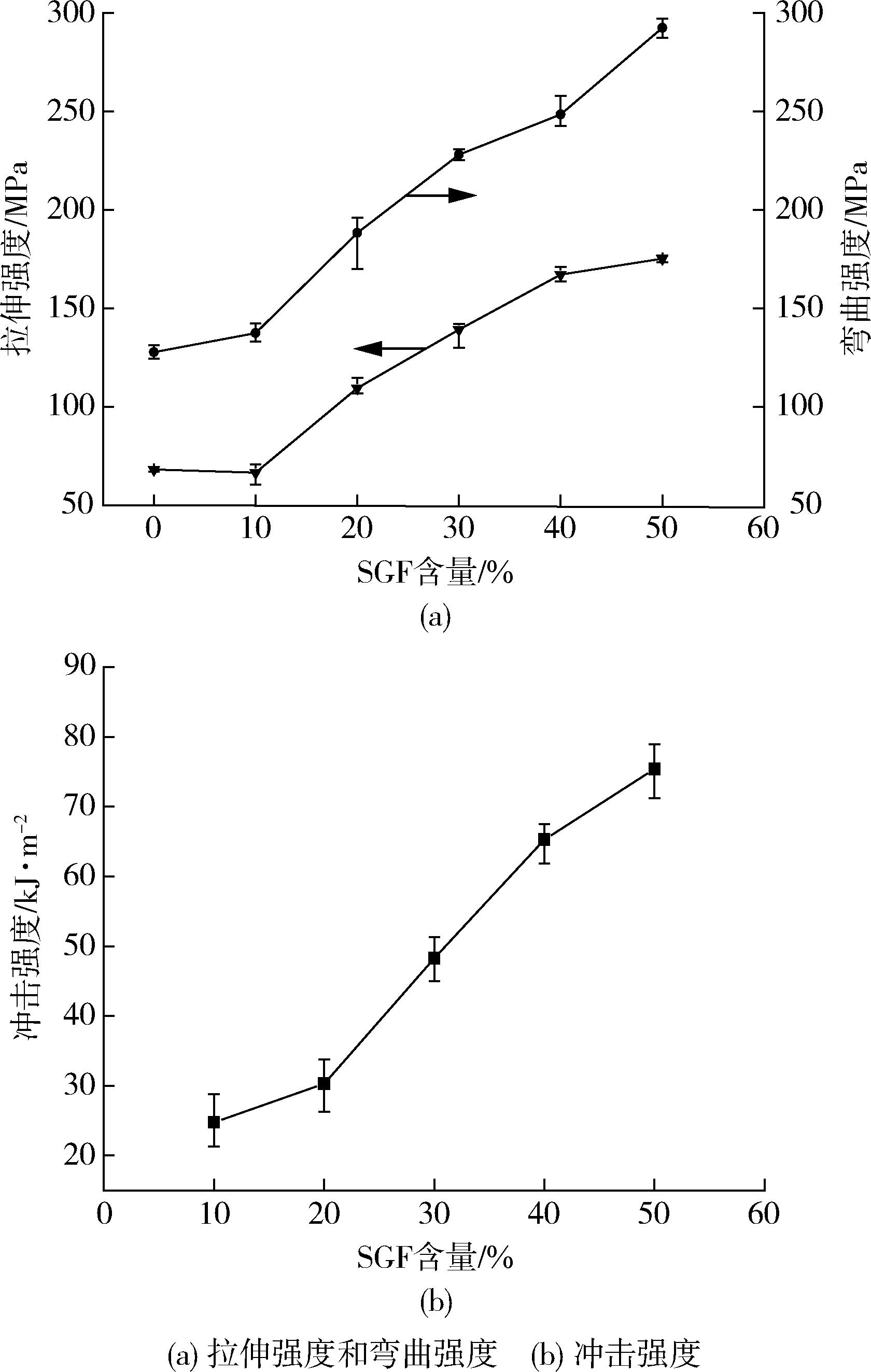

Fig.3. Mechanical properties of PA66/SGF composites with different SGF contents

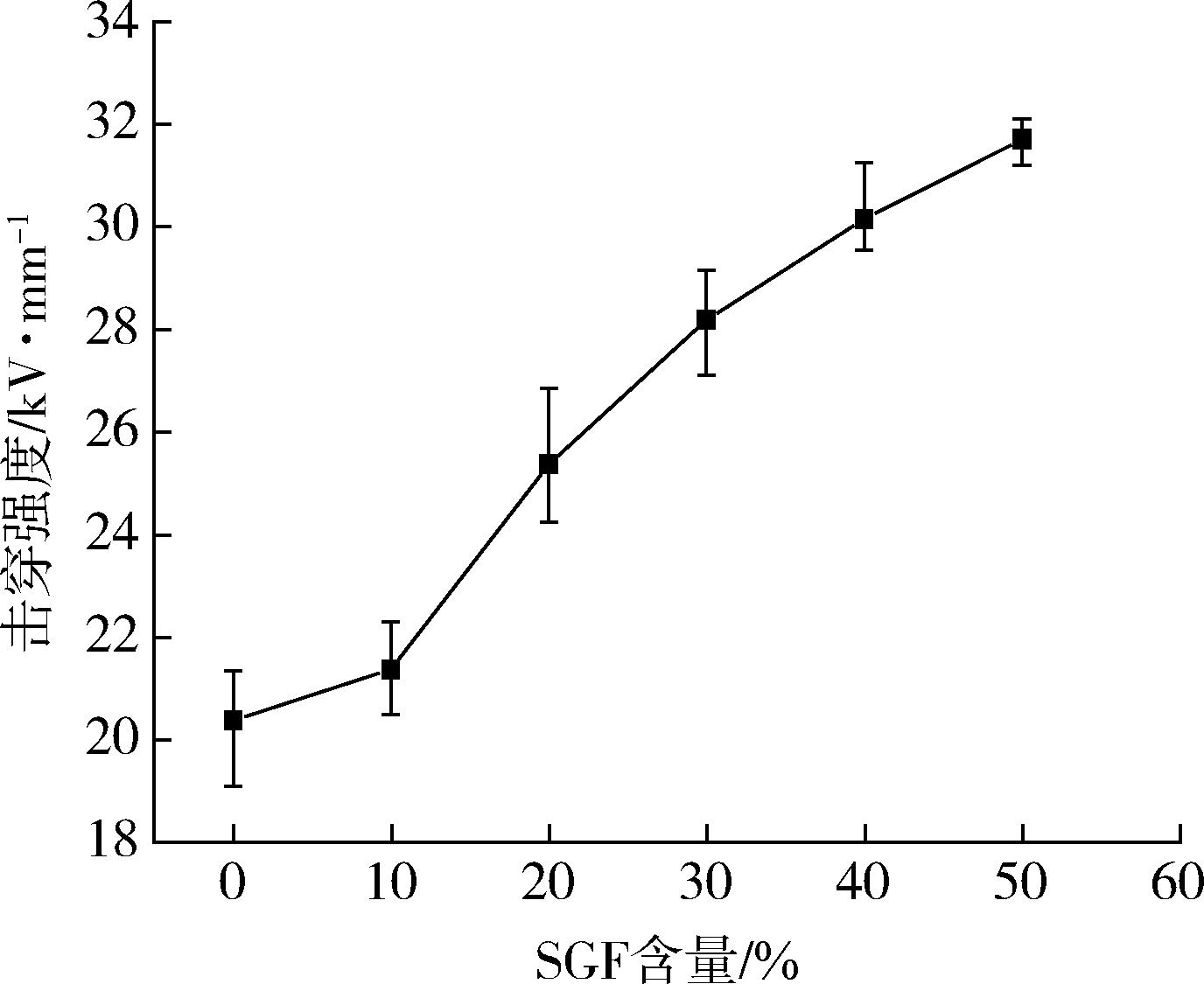

Fig.4. Dielectric strength of PA66 / SGF composites with different SGF contents

Fig.5. SEM of impact section of PA66/SGF composites with 50% SGF contents

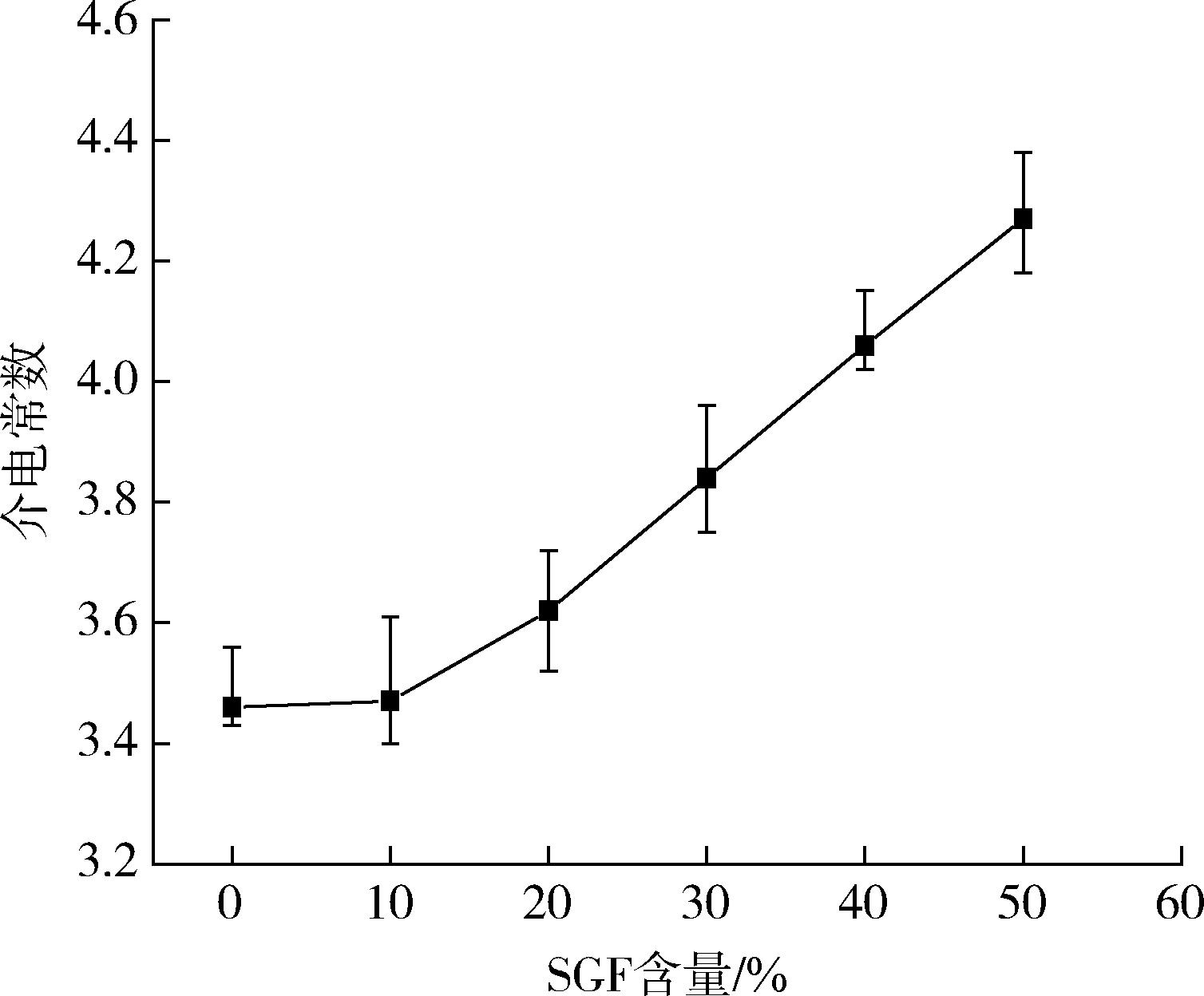

Fig.6. Dielectric constant of PA66/SGF composites with different SGF content

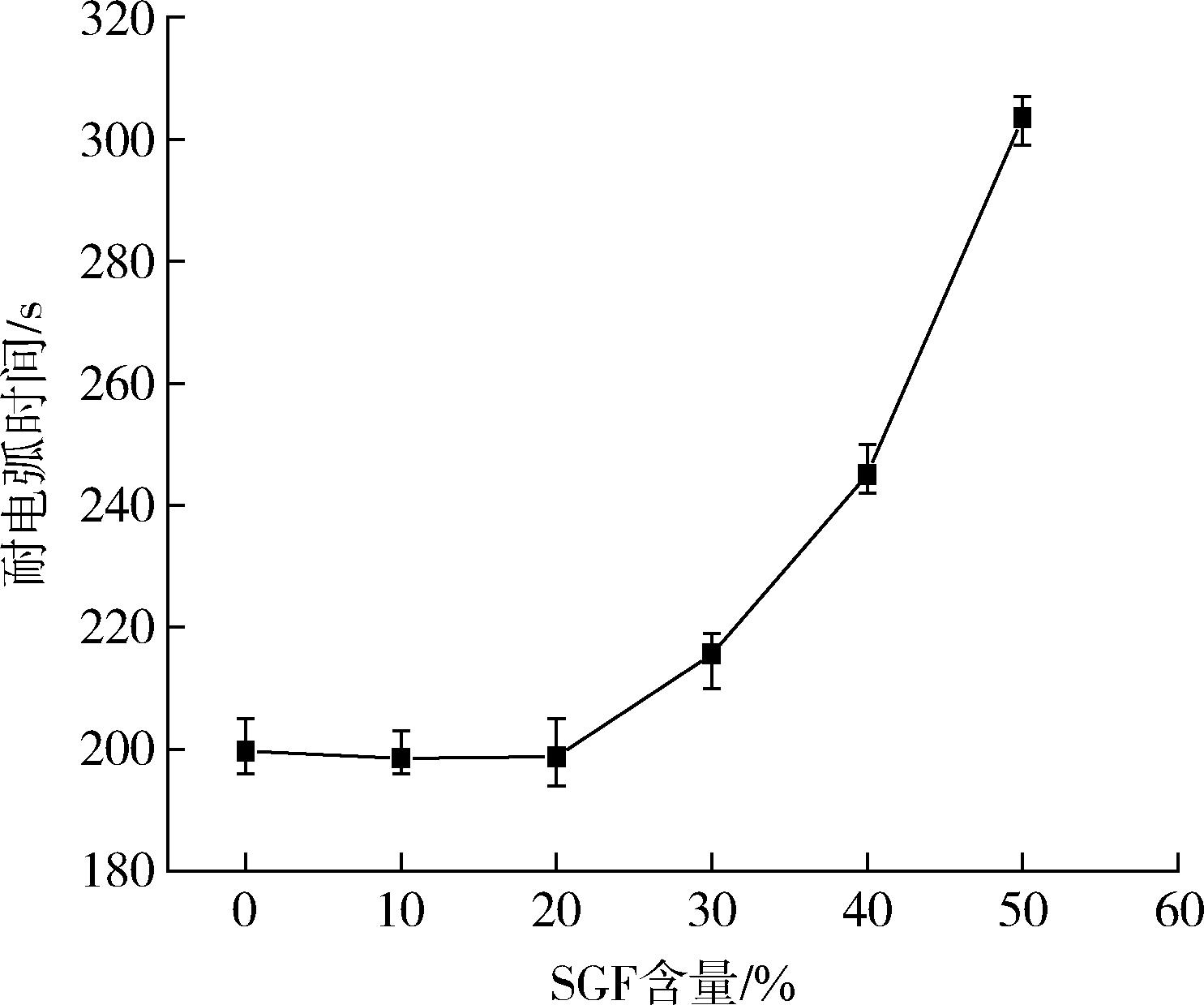

Fig.7. Arc resistance of PA66/SGF composites with different SGF contents

Fig.8. SEM of cross section of PA66/SGF composites with different SGF content

References 16

1	杨莹．热塑性复合材料⁃可循环利用和快速加工［J］．玻璃钢， 2012（2）： 39⁃45．
	YANG Y. Thermoplastic Composites⁃recyclable and Fast Machining［J］. Fiber Reinforced Plastics， 2012（2）： 39⁃45．
2	刘寿华．塑料在电子电气中的应用［J］．国外塑料，1996（4）：42⁃45.
	LIU S H. Application of Plastics in Electronics and Electricity［J］. World Plastics，1996（4）：42⁃45.
3	陈武荣，钟立松，王明军，等．国内外增强型热塑性材料发展概况［J］．绝缘材料，2013，46（6）： 29⁃32．
	CHEN W R，ZHONG L S，WANG M J，et al.Development Situation of Reinforced Thermoplastic Material［J］.Insulating Materials，2013，46（6）： 29⁃32．
4	马从．连续纤维增强热塑性复合材料结构与性能的研究［D］．天津：天津工业大学，2015．
5	FUGEL T，GENTSCH D，KLASKA A，et al．Breaking Ahead of Expectations［J］.ABB Review，2010（1）：57⁃62．
6	陈晓东，杨涛，吴小龙，等．用于低压电器壳体环保型无卤阻燃增强聚酰胺材料的研究［J］．电气制造，2007（1）：70⁃71．
	CHEN X D，YANG T，WU X L，et al．Study on Halogen Free Flame Retarding Reinforced PA66 Used in Low Voltage Electrical Apparatus［J］.Electrical Manufacturing，2007（1）：70⁃71．
7	沈建平．热塑性工程塑料绝缘材料在12 kV手车式开关柜中的应用［J］．高压电器，2018， 54（4）：227⁃232．
	SEHN J P.Application of Thermoplastic Engineering Plastics Material in 12 kV Withdrawable Switchgear［J］.High Voltage Apparatus，2018，54（4）：227⁃232．
8	钱伯章．长纤维增强热塑性塑料的进展［J］．国外塑料，2007，25（3）：42⁃44．
	QIAN B Z. Development of Long Fiber Reinforced Thermoplastics［J］. World Plastics，2007，25（3）：42⁃44．
9	吴德顺．长玻纤增强聚丙烯热塑性复合材料的制备、性能及应用［D］．长沙：湖南大学，2016．
10	张伟，别群梅，袁锦瑶．高CTI值、无卤阻燃玻纤增强尼龙66的研究及应用［J］．工程塑料应用，2006，34（8）：50⁃53．
	ZHANG W，BIE Q M，YUAN J Y．Study on High CTI Value，Halogen Free Flame⁃Retardant Glass Fibre Reinforced Nylon 66［J］.Engineering Plastics Appliction，2006，34（8）：50⁃53．
11	石建江，陈宪宏，肖鹏．阻燃玻纤增强尼龙66的研制及其应用［J］．工程塑料应用，2006，34（1）：35⁃37．
	SHI J J，CHEN X H，XIAO P．Development and Application of Flame⁃Retardant Glass Fiber Reinforced PA66［J］．Engineering Plastics Appliction，2006，34（1）：35⁃37．
12	陈武荣，钟立松，刘有龙，等．无卤阻燃增强尼龙塑料的研究［J］．绝缘材料，2007，40（3）：1⁃3．
	CHEN W R，ZHONG L S，LIU Y L，et al．Study on Halogen⁃free Flame⁃retarded Nylon Molding Compound with High Strength［J］．Insulating Materials，2007，40（3）：1⁃3．
13	彭蛟．中压固体绝缘技术的发展［J］．电气时代，2012（5）：76⁃77．
	PENG J.Development of Medium Voltage Solid Insulation Technology［J］．Electric Age，2012（5）：76⁃77．
14	西安高压电气研究院有限公司等，高压交流气体绝缘金属封闭开关设备用盆式绝缘子：NB/T 4215⁃2016［S］．北京：中国电力出版社，2017．
15	刘希从，刘春为，孙刚．SiC/Al复合材料的电阻率［J］．宇航学报，1990（2）：82⁃87．
	LIU X C，LIU C W，SUN G．Electrical Resistivity of SiC/Al Composite［J］.Journal of Astronautics，1990（2）：82⁃87．
16	周祝林，蒋汉生．"地面雷达天线罩用玻璃纤维增强塑料蜂窝夹层结构件规范"的试验论证及分析［J］．纤维复合材料，1996（2）：42⁃49．
	ZHOU Z L，JIANG H S．The Test Results and Analysis of “Specification of Sandwich Construction Parts Having Glassfiber Reinforced Plastic Facings and Honeycomb Core for Ground Radomes”［J］.Fiber Composites，1996（2）：42⁃49．
