Application research of modified nano⁃calcium carbonate in the PVC building fireproof material

doi:10.19491/j.issn.1001-9278.2025.12.014

Abstract

Abstract:

PVC/CaCO₃ composites were prepared via melt blending using linoleic acid⁃modified nano⁃CaCO₃ as a filler. The influence of the modified nano⁃CaCO₃ on the mechanical properties， flame retardancy， and smoke suppression performance of the composites was systematically investigated. Results indicated that the modified nano⁃CaCO₃ was effectively encapsulated by the PVC matrix. At an optimal loading of 5 wt%， the composite achieved maximum tensile strength and elongation at break of 16.5 MPa and 412.5 %， respectively， corresponding to increases of 47.32 % and 32.3 % compared to pure PVC. Flame retardancy evaluation revealed that the 5 wt% composite exhibited a peak heat release rate of 398.1 kW/m² and a total heat release of 116.1 MJ/m². The incorporation of modified nano⁃CaCO₃ promoted char formation， leading to incomplete combustion characterized by an increased CO generation rate and a decreased CO₂ generation rate. The composite achieved a limiting oxygen index of 39.0 % and a UL 94 rating of V⁃0. These findings demonstrate that the composite possesses excellent flame retardant and smoke suppression properties， suggesting high potential for application in building fireproof materials.

Key words: nano?calcium carbonate, polyvinyl chloride, building fireproof material

CLC Number:

TQ325.3

PANG Yanan, GAO Jianrong. Application research of modified nano⁃calcium carbonate in the PVC building fireproof material[J]. China Plastics, 2025, 39(12): 85-91.

Figures/Tables 11

样品编号	PVC/%	改性纳米CaCO₃/%
PVC	100	0
PVC⁃Ca⁃1	100	1
PVC⁃Ca⁃3	100	3
PVC⁃Ca⁃5	100	5
PVC⁃Ca⁃7	100	7

Tab.1. Formulation table of PVC composites

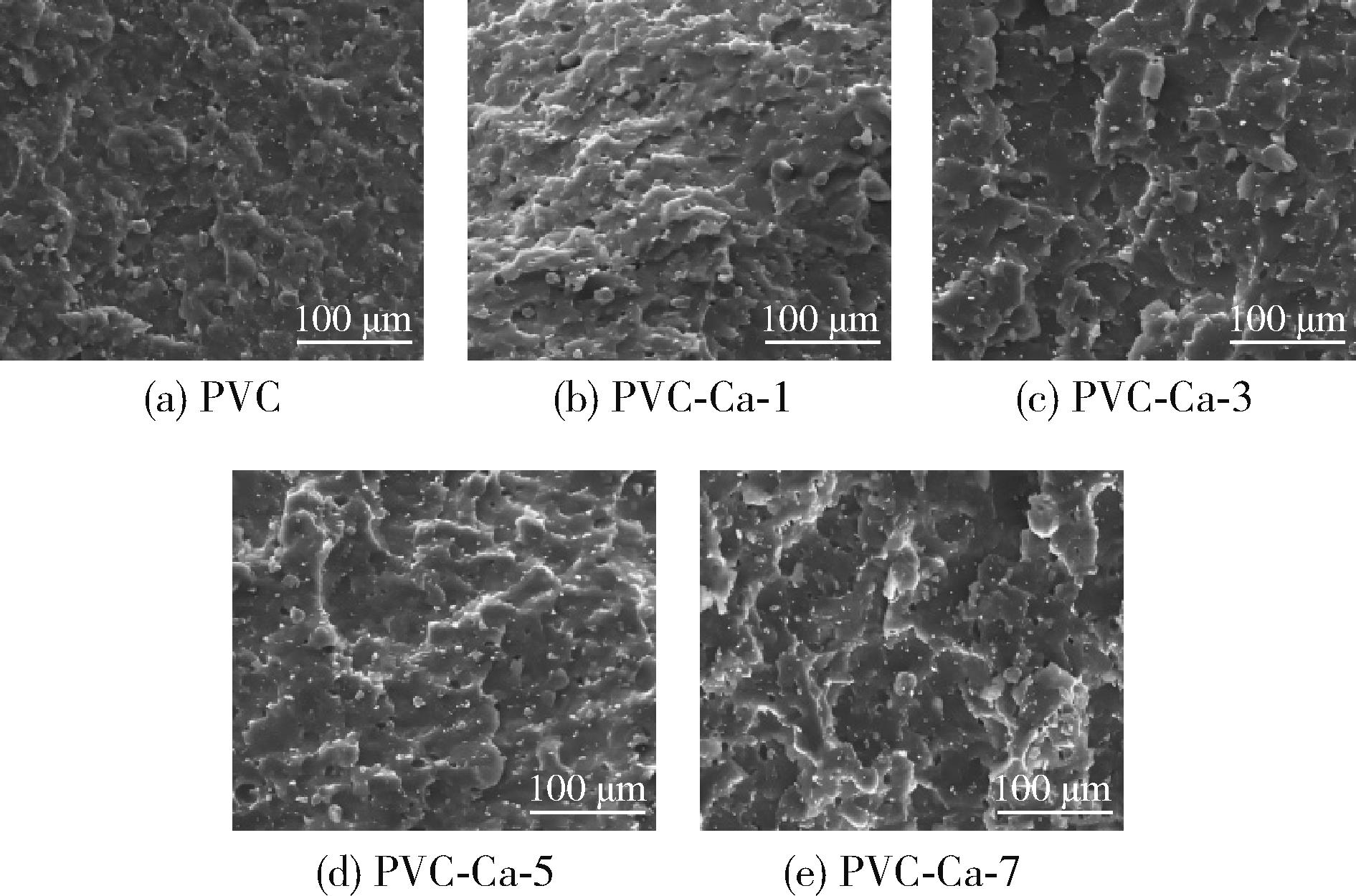

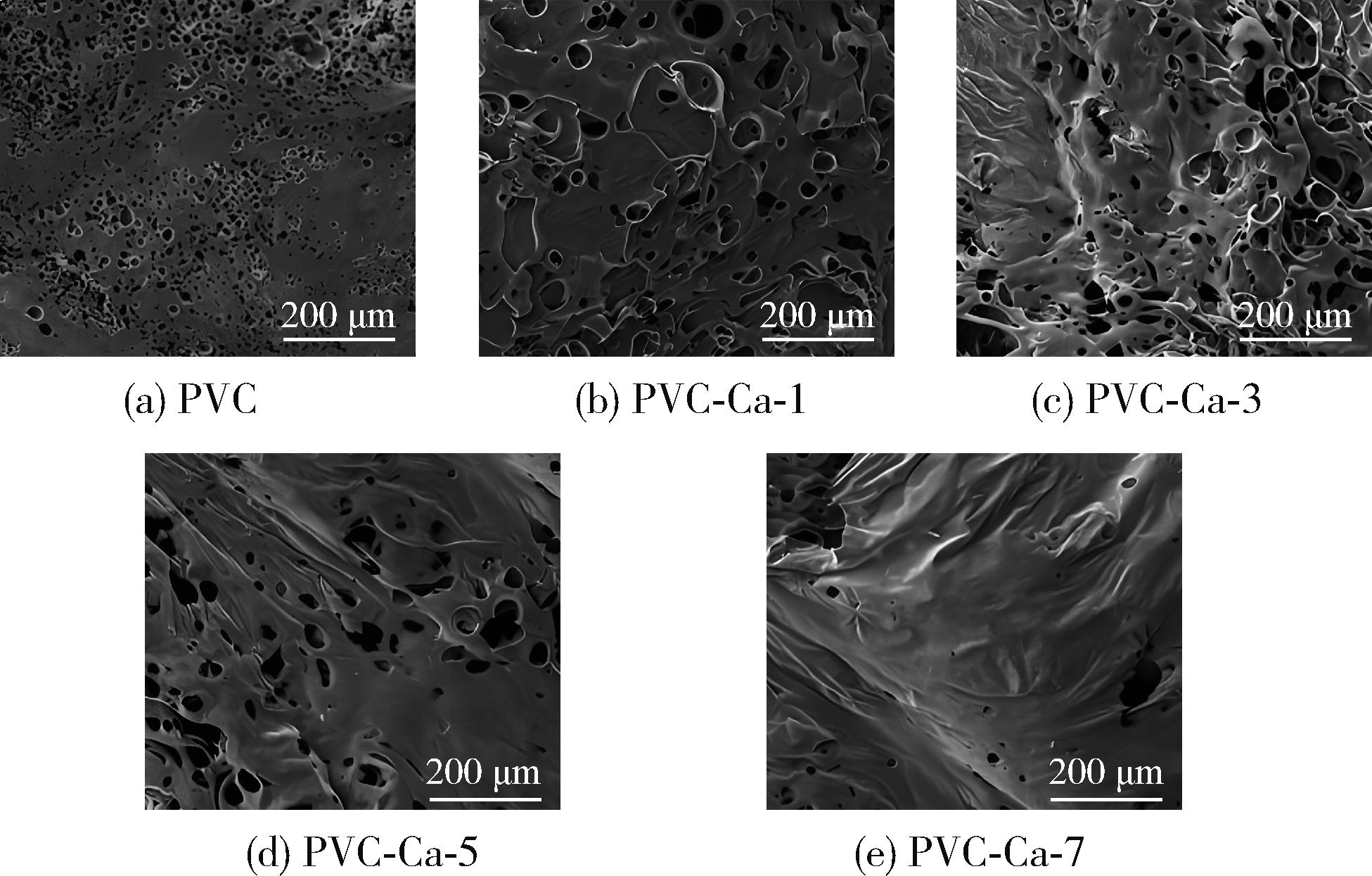

Fig.1. SEM of the fracture surface of the PVC composite

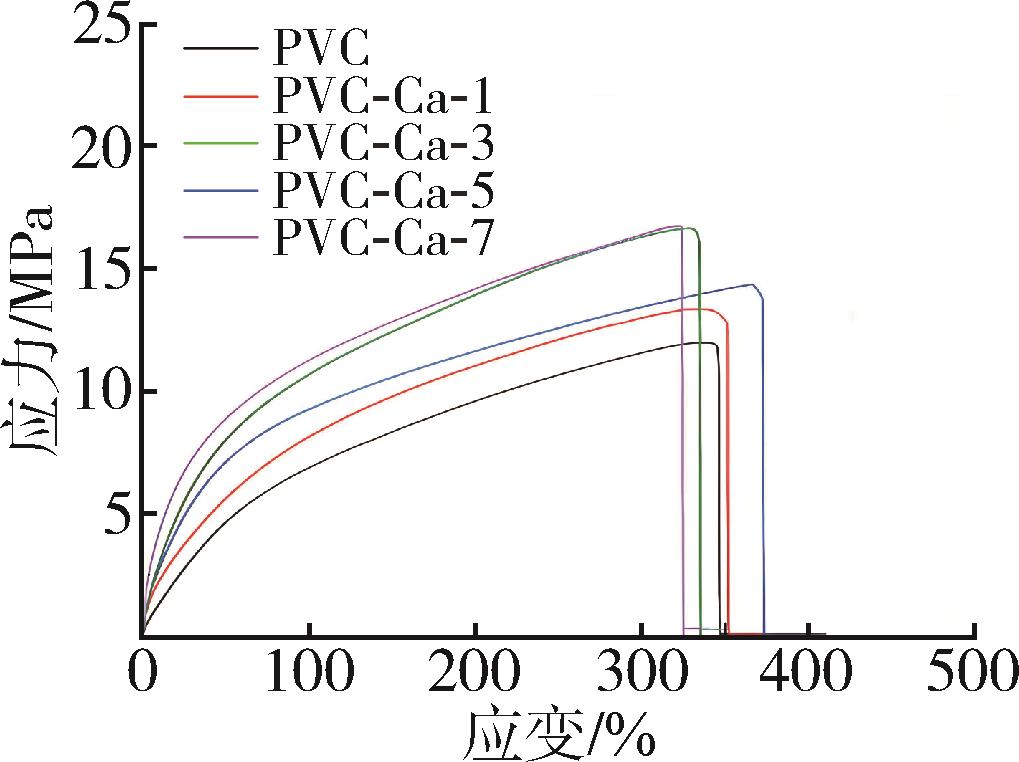

Fig.2. Stress⁃strain curves of the PVC composites

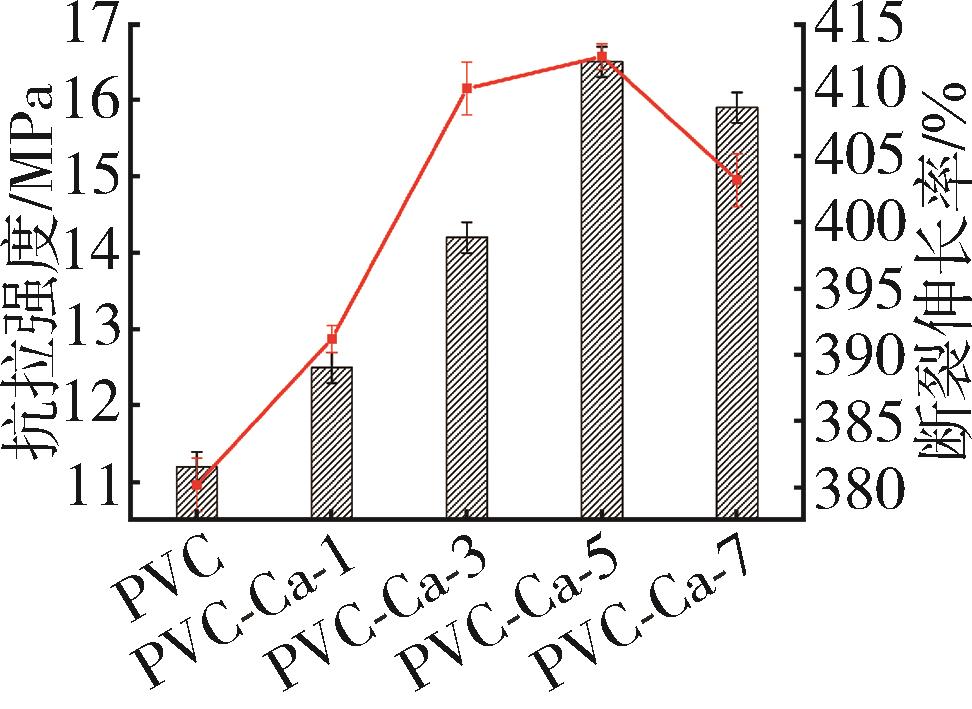

Fig.3. Tensile strength and elongation at break of the PVC composites

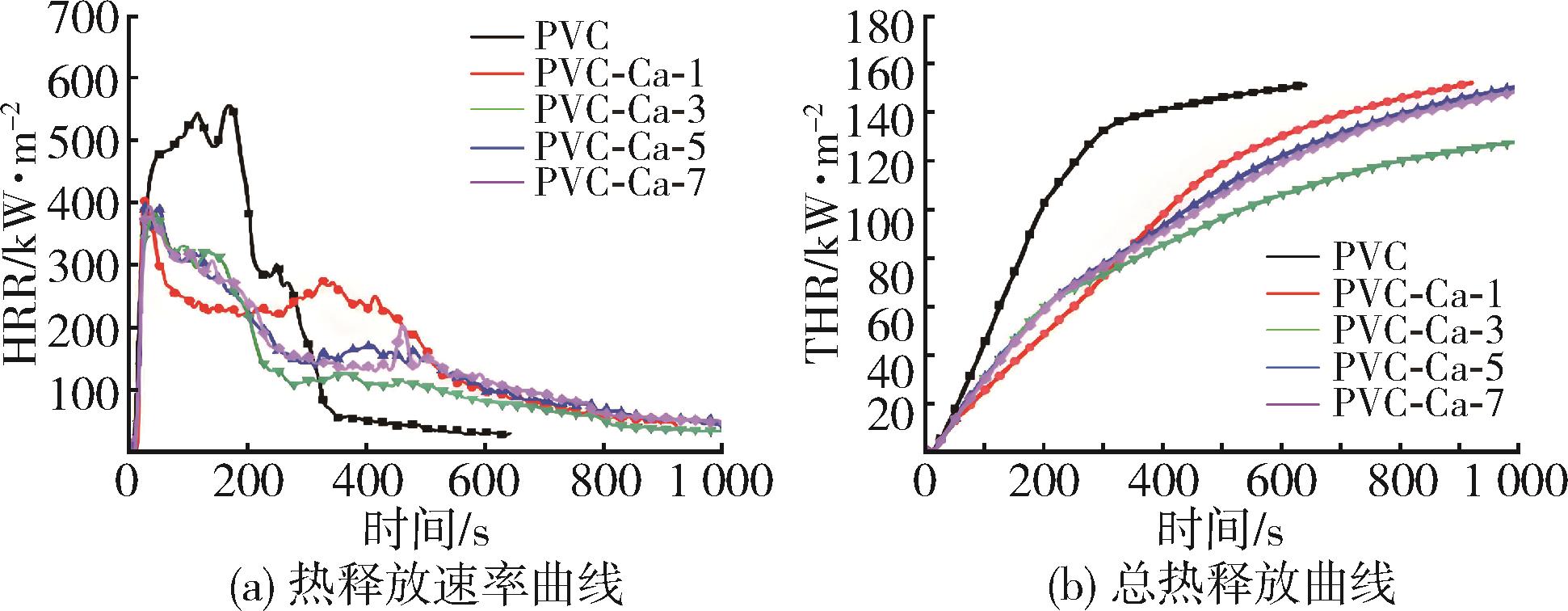

Fig.4. Heat release rate and total heat release curves of the PVC composites

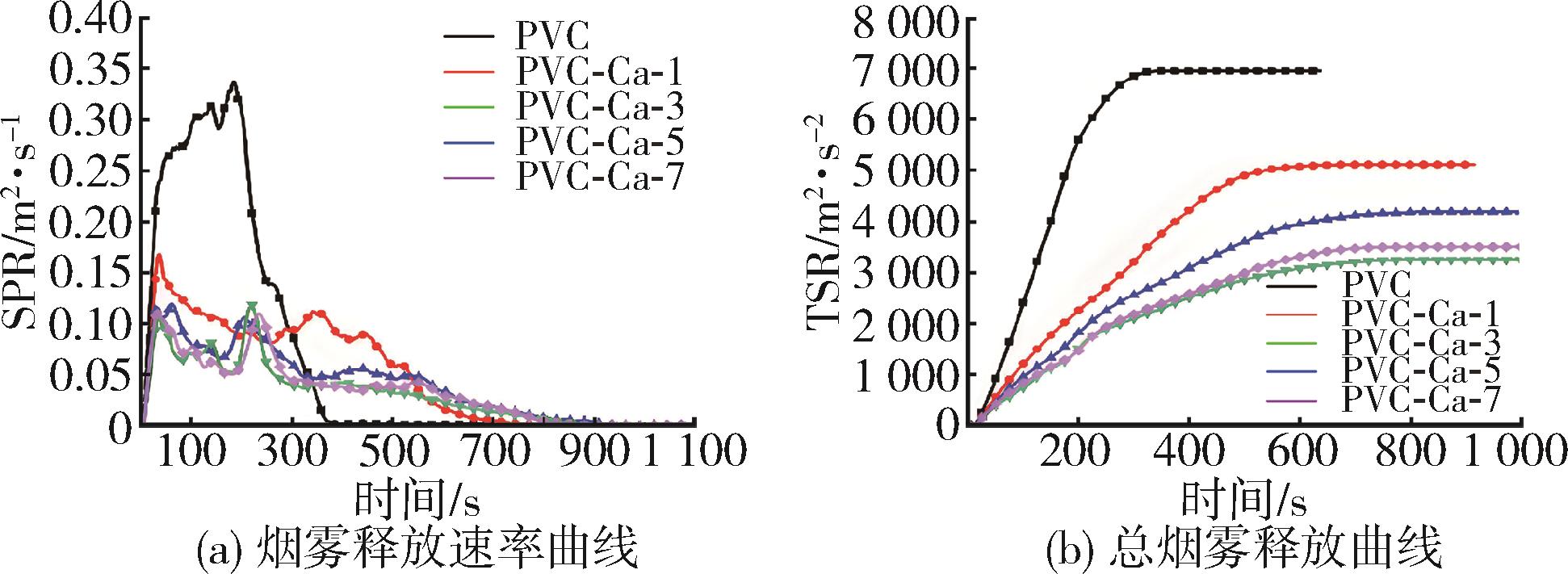

Fig.5. Smoke release rate and total smoke release curves of the PVC composites

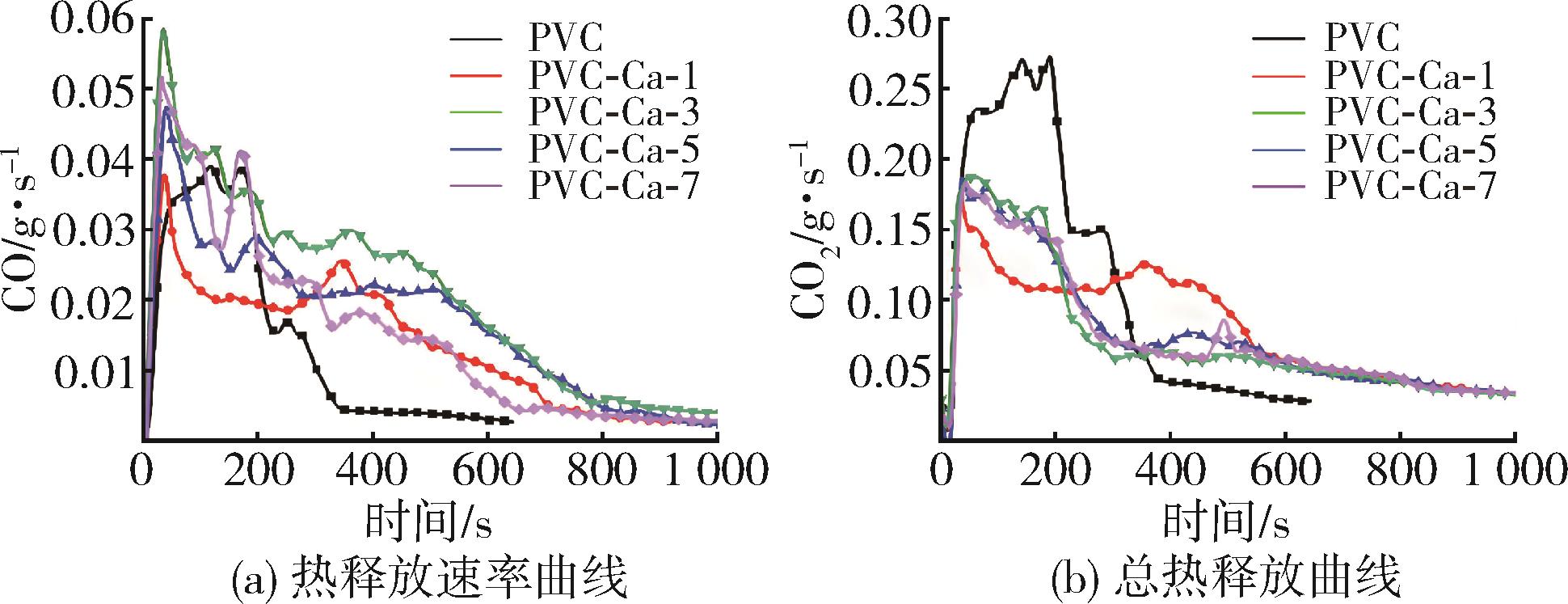

Fig.6. CO release rate and CO2 release rate curves of the PVC composites

样品编号	LOI/%	UL 94等级
样品编号	LOI/%	等级	是否有熔滴	熔滴是否引燃脱脂棉
PVC	37.1	V⁃2	是	是
PVC⁃Ca⁃1	37.5	V⁃1	轻微	否
PVC⁃Ca⁃3	38.7	V⁃1	轻微	否
PVC⁃Ca⁃5	39.0	V⁃0	无	-
PVC⁃Ca⁃7	38.2	V⁃0	无	-

Tab.2. LOI values and UL 94 rating of PVC composites

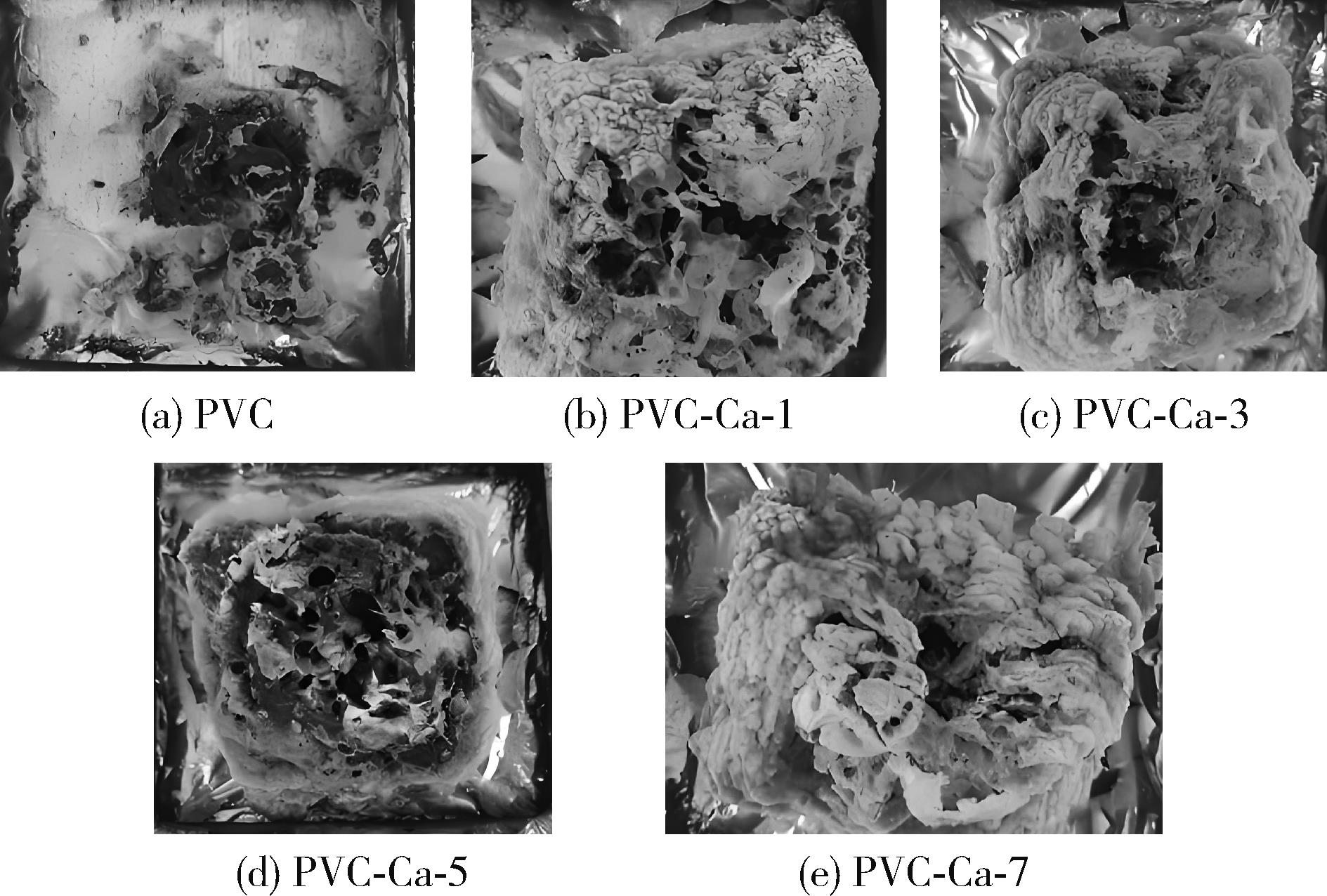

Fig.7. Appearance images of the residual carbon after combustion of the PVC composites

Fig.8. SEM of the residual carbon after combustion of the PVC composites

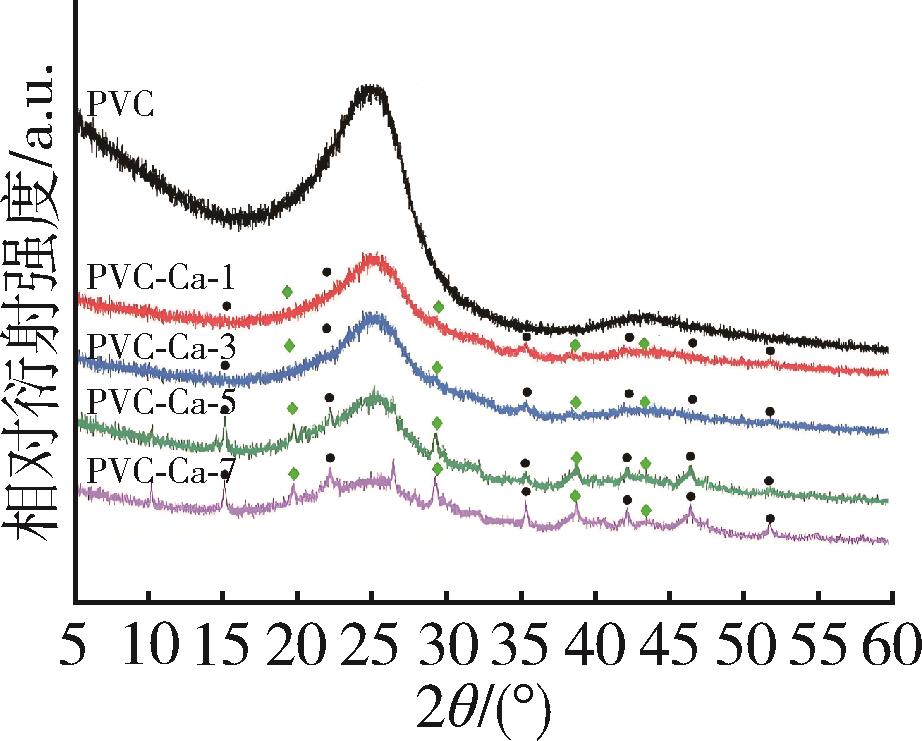

Fig.9. XRD pattern of carbon residue after combustion of the PVC composites
