Study on extrusion safety characteristics of parallel coaxial twin⁃screws for processing energetic materials

doi:10.19491/j.issn.1001-9278.2025.12.019

Abstract

Abstract:

Improving the safety and efficiency of processing energetic materials in twin⁃screw extruders is critical. This study investigates the impact of process conditions on extrusion safety using a simulation approach with EDEM， Ludovic， and Polyflow softwares. The parallel coaxial twin⁃screw extrusion process was modeled to analyze key parameters， including temperature， pressure， and average residence time of the material during mixing and plastication. Simulation results provide specific safe operating windows： at a screw speed of 12 r/min， the recommended feed rate is 5.6~8.4 kg/h； at 15 r/min， the safe feed rate range is 5.6~11.2 kg/h. Furthermore， the material's physical properties， specifically the power law index and consistency coefficient， were found to significantly influence extrusion safety. Therefore， to enhance process safety， it is recommended to select materials with an appropriate moisture content range tailored to different stages of the actual process.

Key words: energetic materials, parallel coaxial twin screw, simulation, process conditions, safety

CLC Number:

TQ320.66⁺2

LI Minghua, XUE Ping, WANG Bin, ZHAO Rong, HAN Minyuan, ZHANG Shuai, HAN Jingjing. Study on extrusion safety characteristics of parallel coaxial twin⁃screws for processing energetic materials[J]. China Plastics, 2025, 39(12): 119-126.

Figures/Tables 22

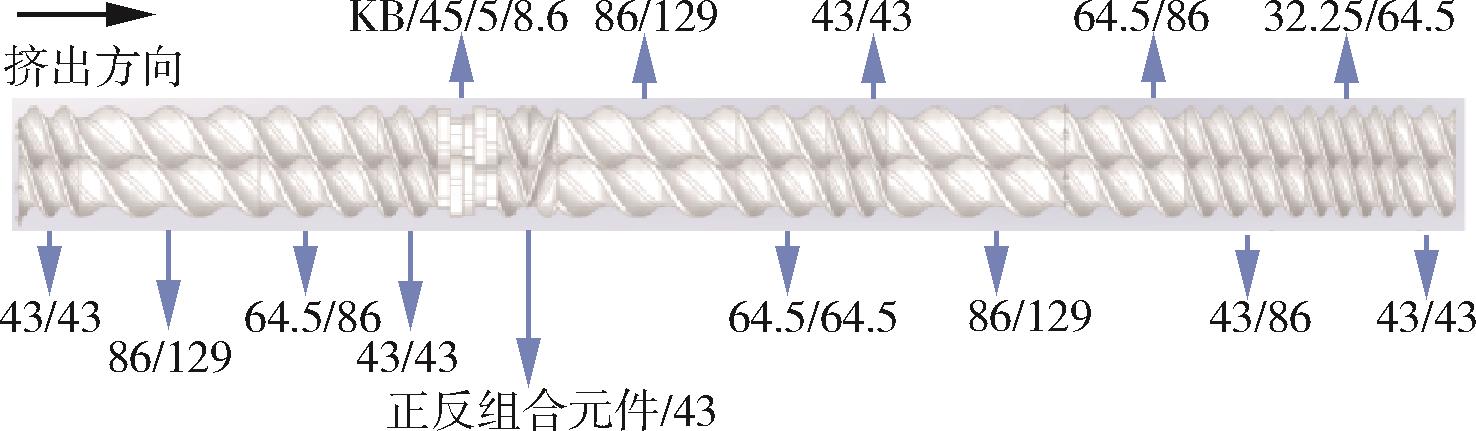

Fig.1. Parallel coaxial twin⁃screw extruder screw element combination diagram

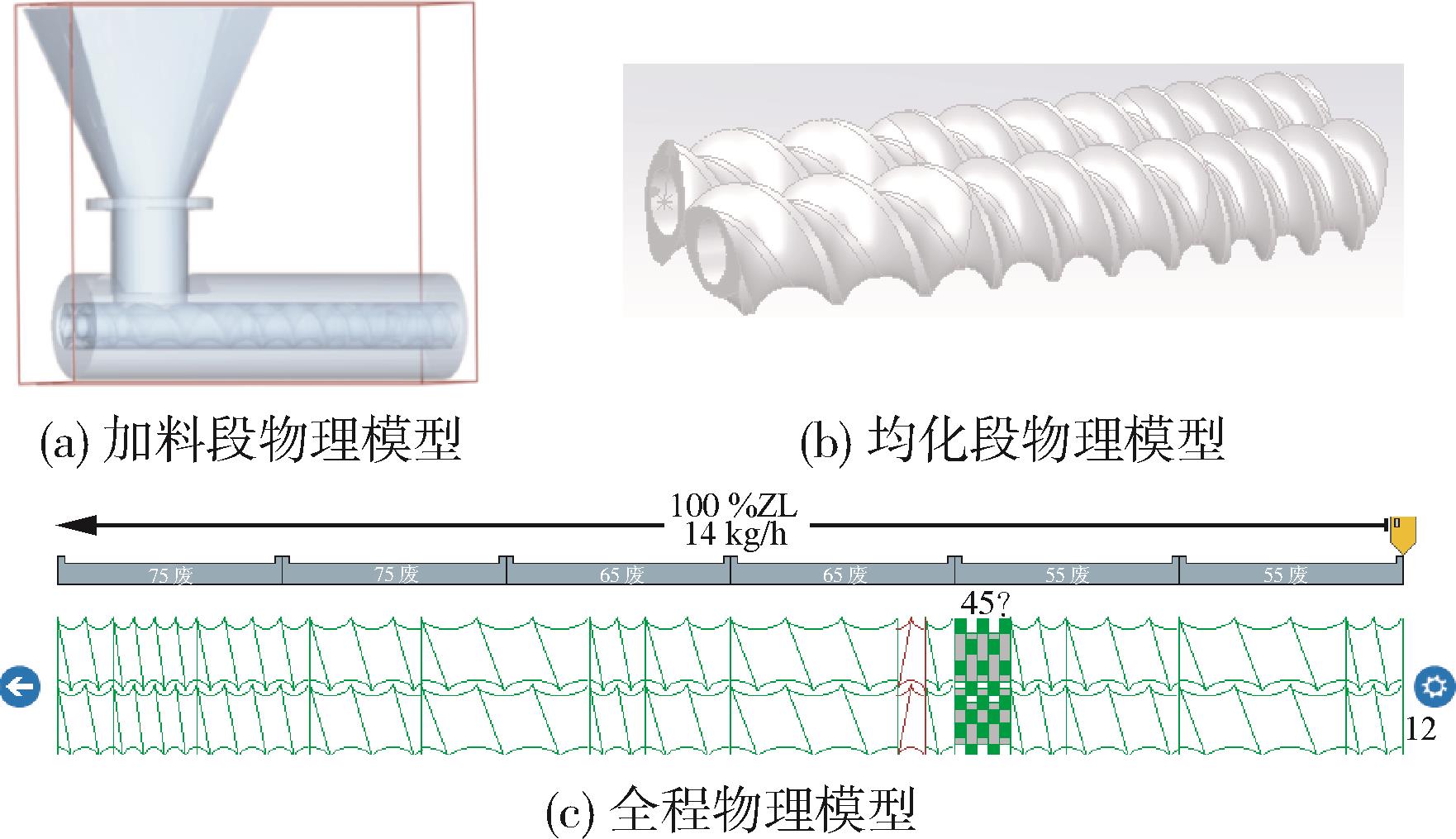

Fig.2. Physical Modeling of Parallel Coaxial Twin Screw Extrusion Sections and Processes

参数	涵义	数值
固相物性参数	颗粒直径/mm	5
	泊松比	0.23
	密度/kg·m^-3	600
	杨氏模量/Pa	6.96×10⁹
设备	泊松比	0.3
	密度/kg·m^-3	7 850
	杨氏模量/Pa	2×10¹¹
塑化物料物性参数	比热容/J·（kg·K）^-1	2 790
	密度/kg·m^-3	1 670
	导热系数/W·（m·K）^-1	0.34

Tab.1. Parameterization of the material conveying process

工艺温度	加料段/℃		混合塑化段/℃		均化段/℃
GYWD⁃1	50	50	70	70	80	80
GYWD⁃2	55	55	65	65	75	75
GYWD⁃3	60	60	70	70	80	80
GYWD⁃4	60	60	65	65	75	75
GYWD⁃5	65	65	75	75	85	85

Tab.2. Setting table for different process temperatures

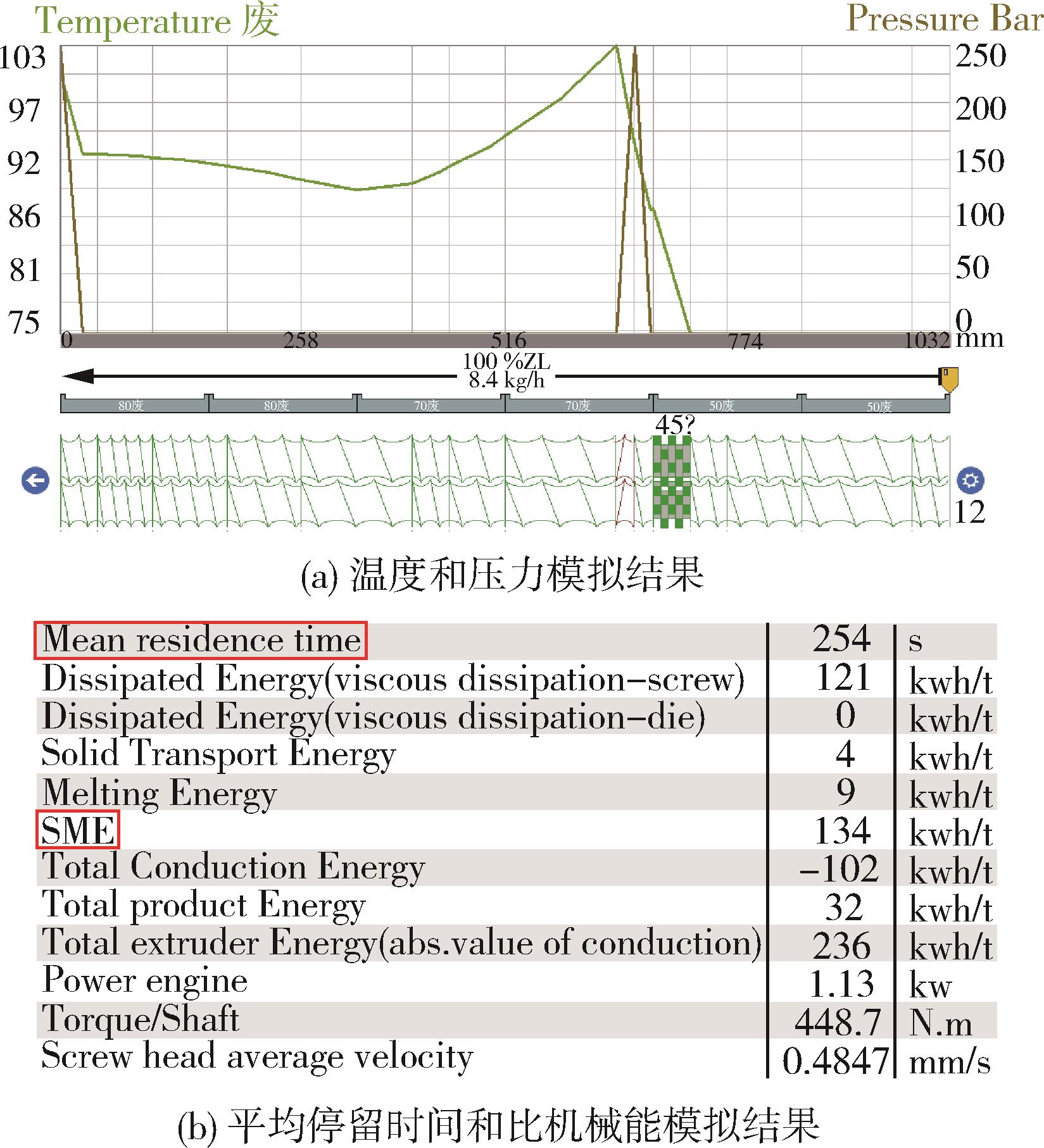

Fig.3. Simulation results under GYWD⁃1 process conditions

工艺温度	最高温度/ ℃	最大压力/ MPa	平均停留时间/ s	比机械能/ kWh·t^-1
GYWD⁃1	103	25.0	253.7	134
GYWD⁃2	103	25.9	252.3	142
GYWD⁃3	104	24.4	253.9	133
GYWD⁃4	103	25.7	252.4	141
GYWD⁃5	106	22.5	256.1	122

Tab.3. Simulation results of parallel coaxial twin⁃screw extrusion equipment at different process temperatures

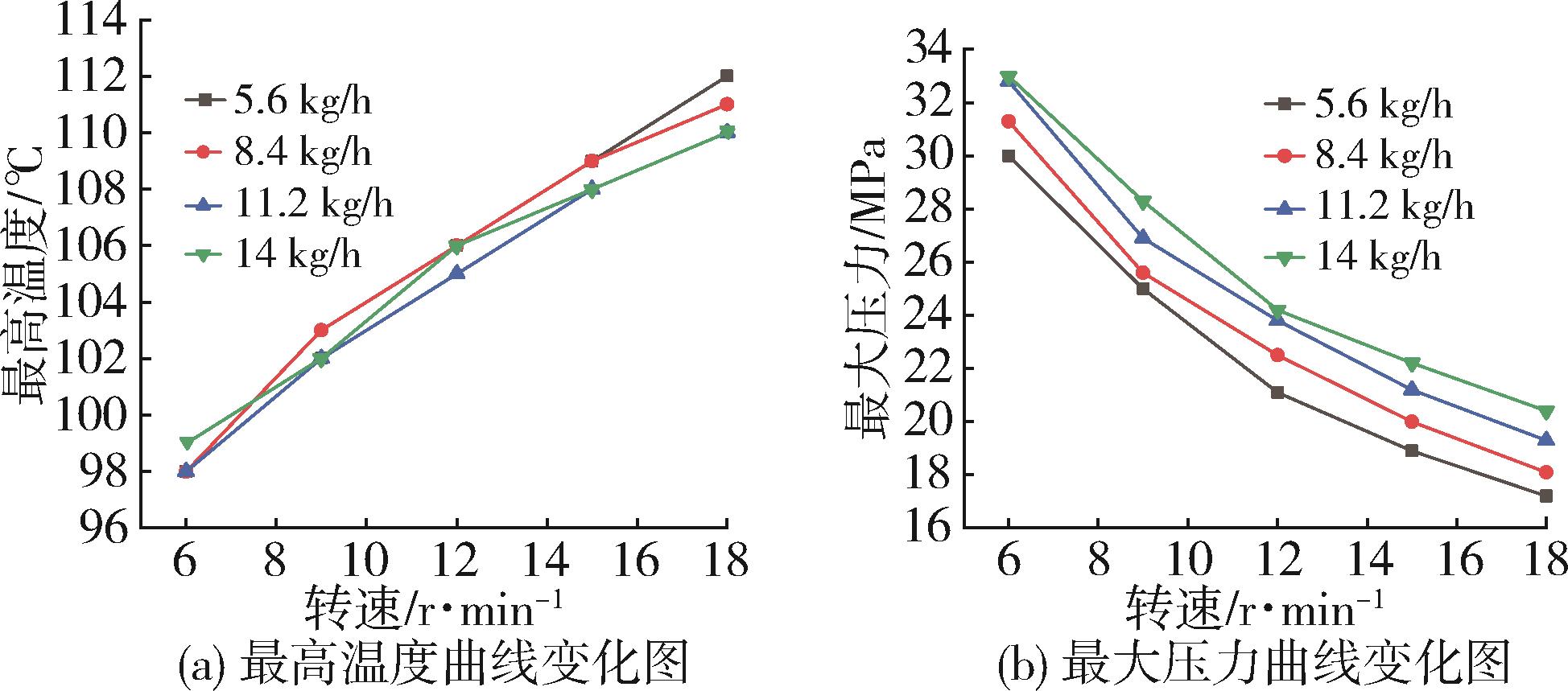

Fig.4. Ludovic simulation results of maximum temperature and maximum pressure variation with screw speed at different charging rates

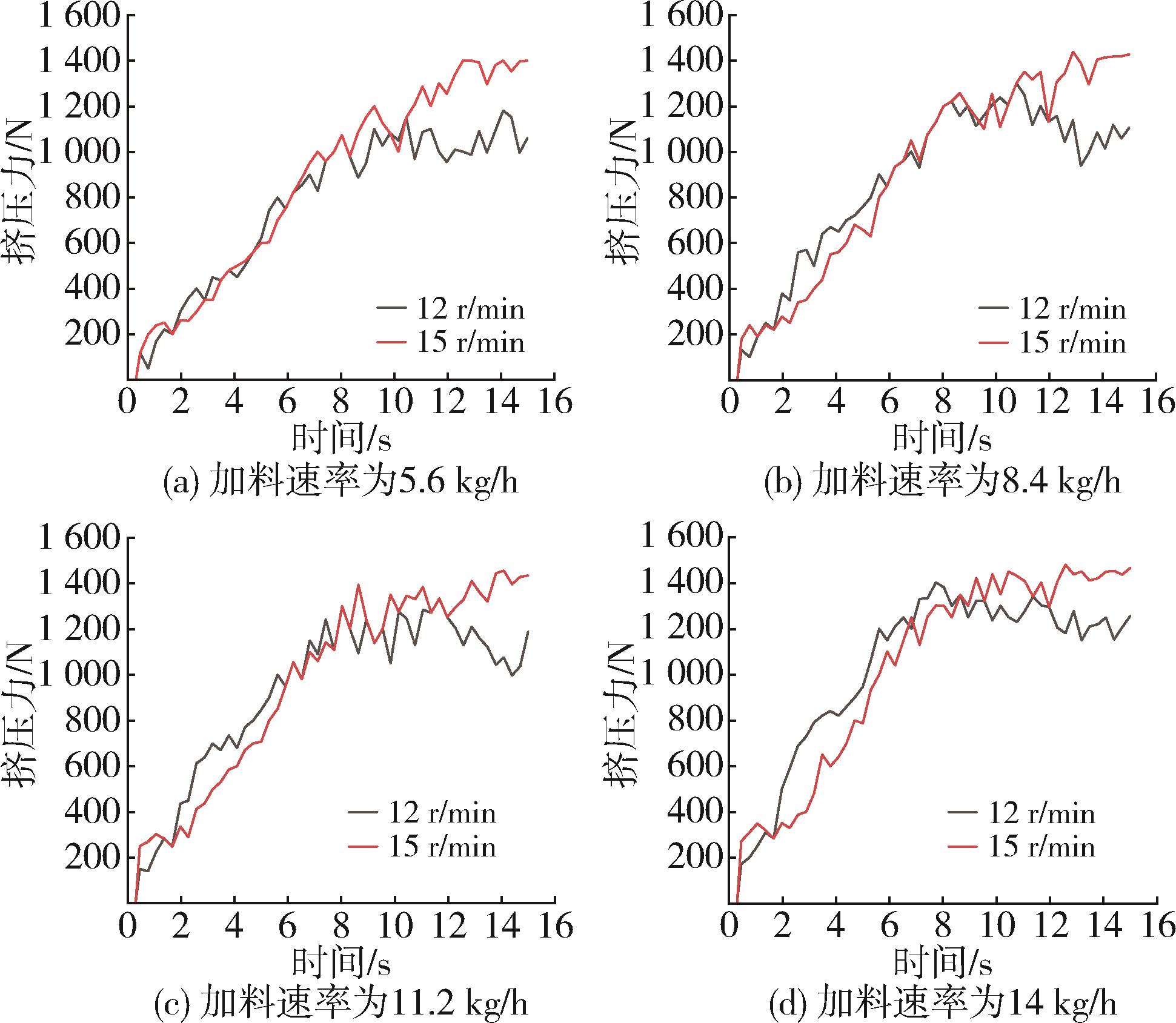

Fig.5. Simulation results of charging section of parallel coaxial twin⁃screw extruder under different screw speeds

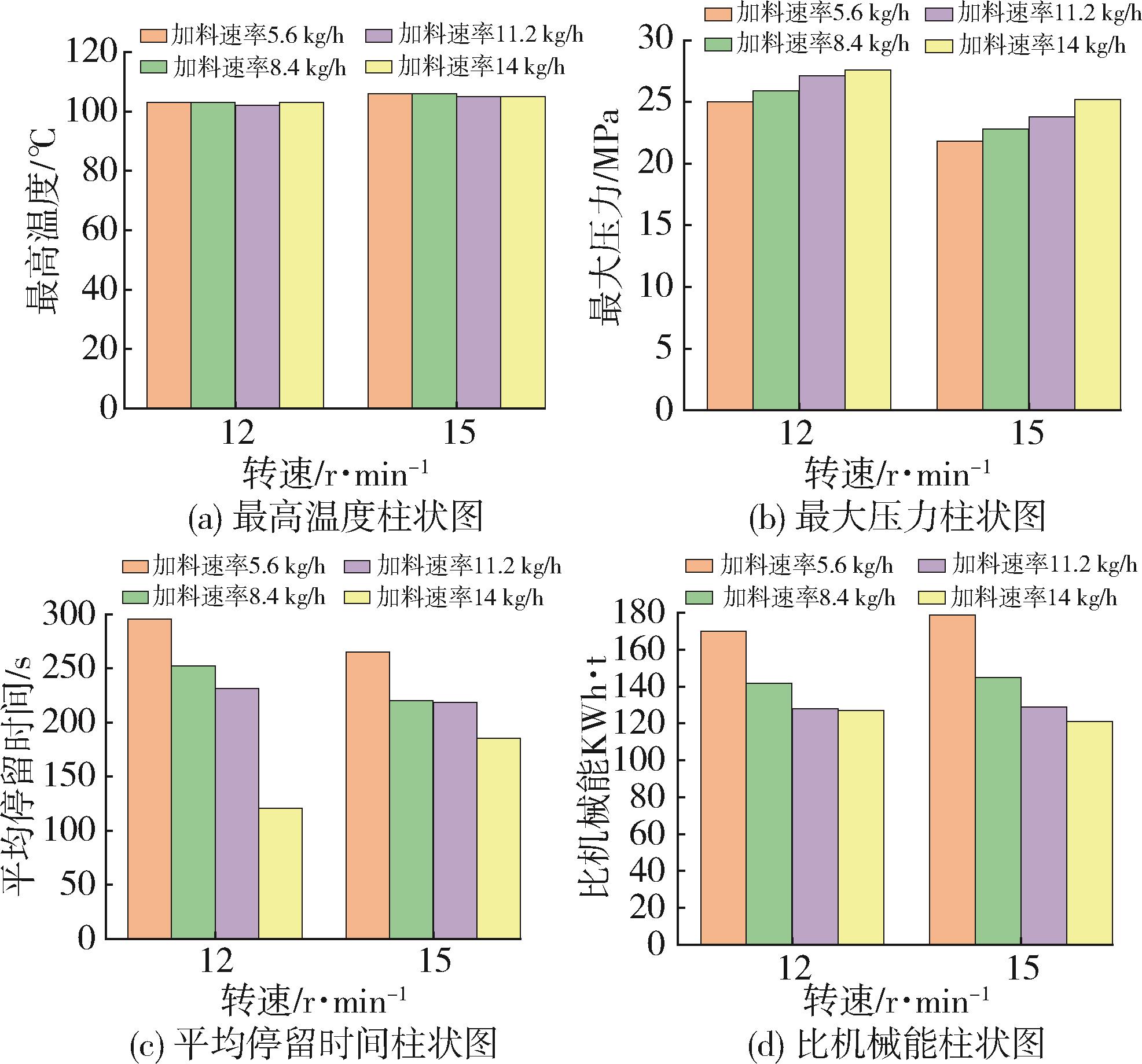

Fig.6. Simulation results under GYWD⁃4 process conditions

Fig.7. Simulation results under GYWD⁃2 process conditions

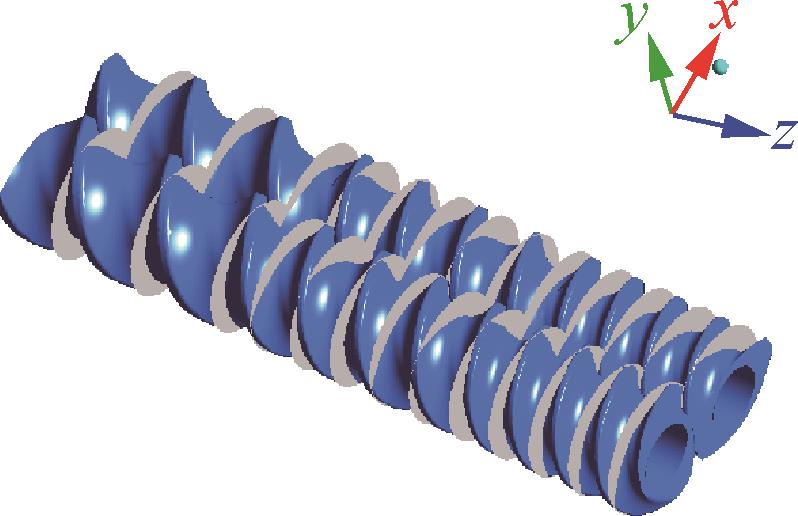

Fig.8. Schematic diagram of homogenization section slicing

Fig.9. Curve of average pressure variation along the axial direction at different screw speeds

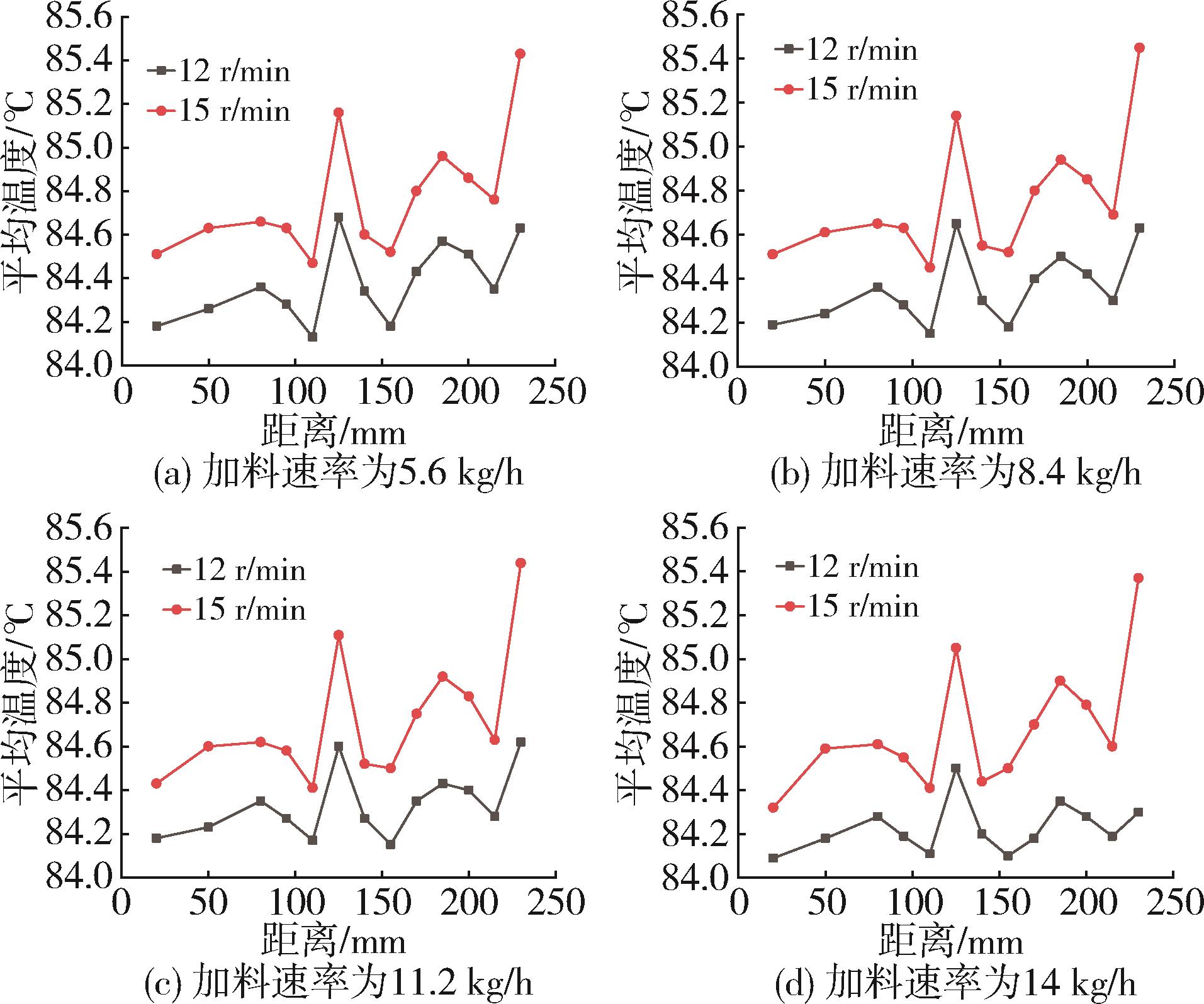

Fig.10. Curve of average temperature change along the axial direction at different screw speeds

Fig.11. Curve of average shear rate along axial direction at different screw speeds

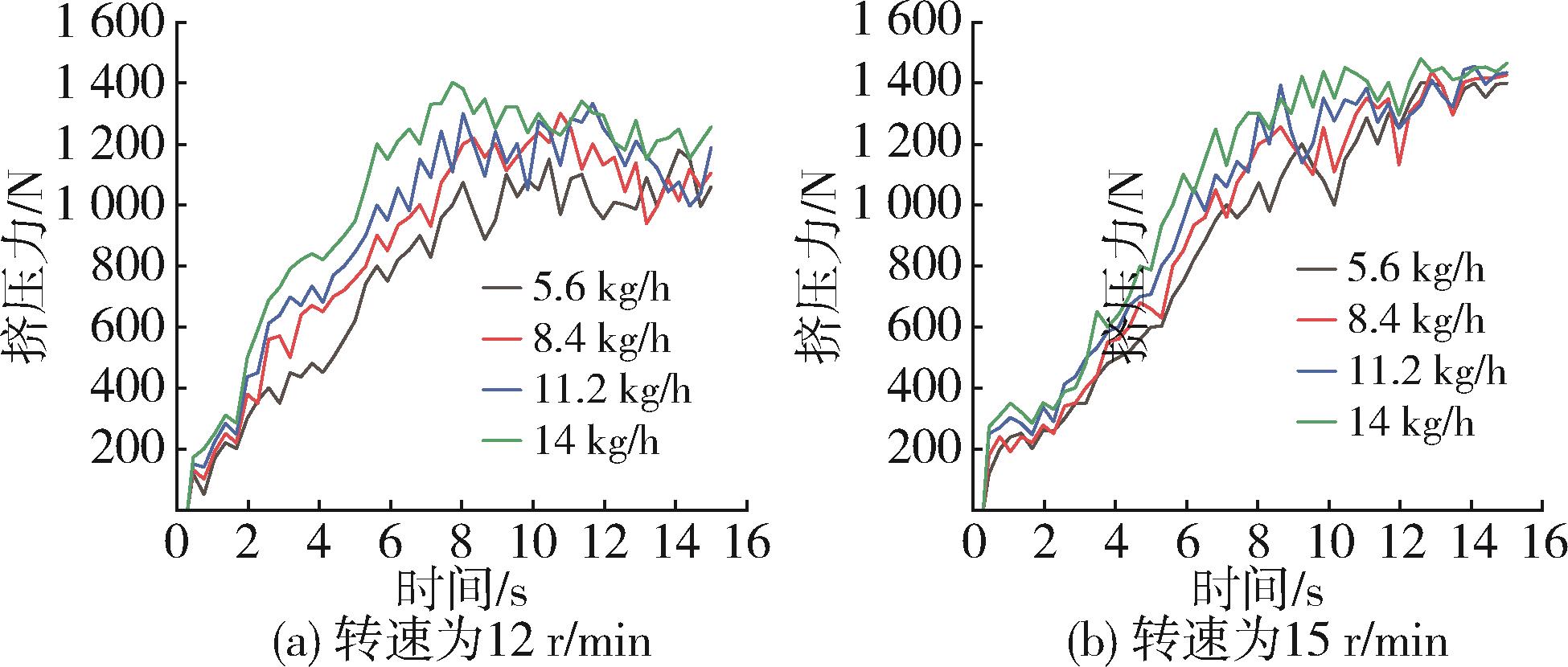

Fig.12. Simulation results of charging section of parallel coaxial twin⁃screw extruder under different charging rates

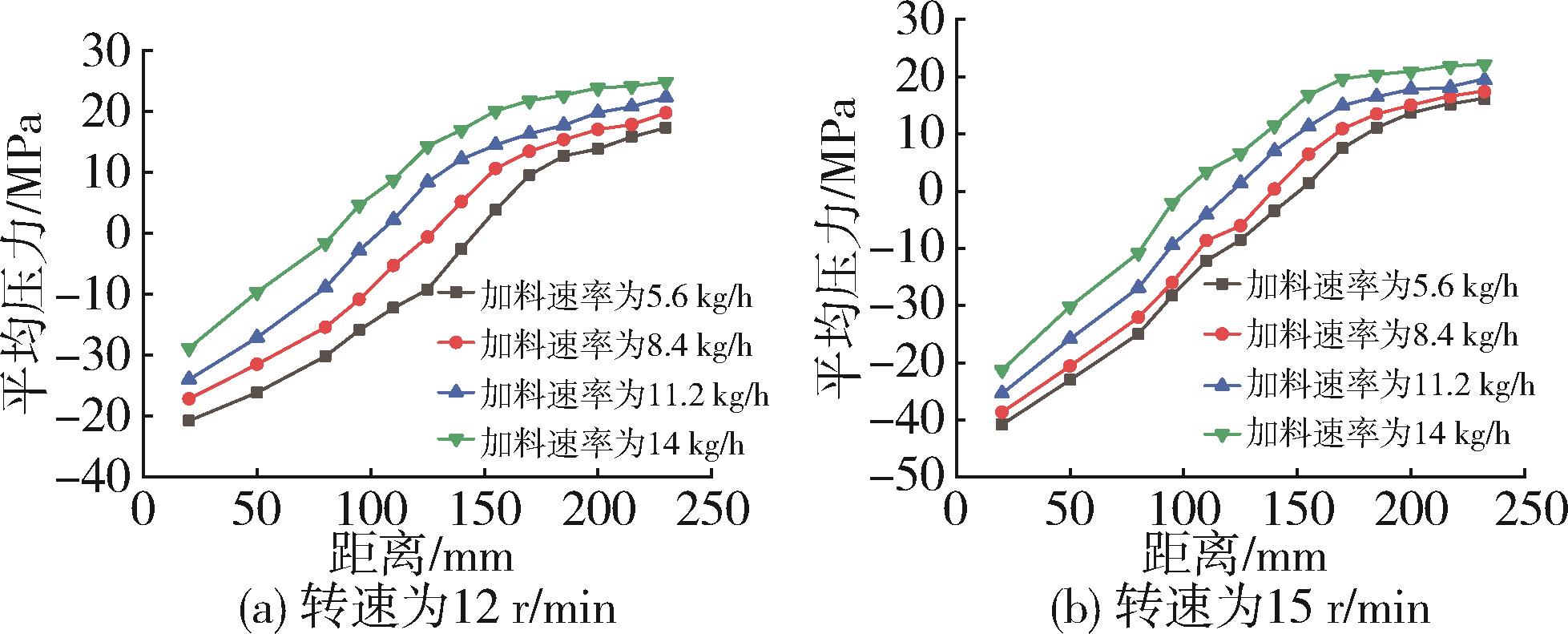

Fig.13. Curve of average pressure variation along the axial direction at different charging rates

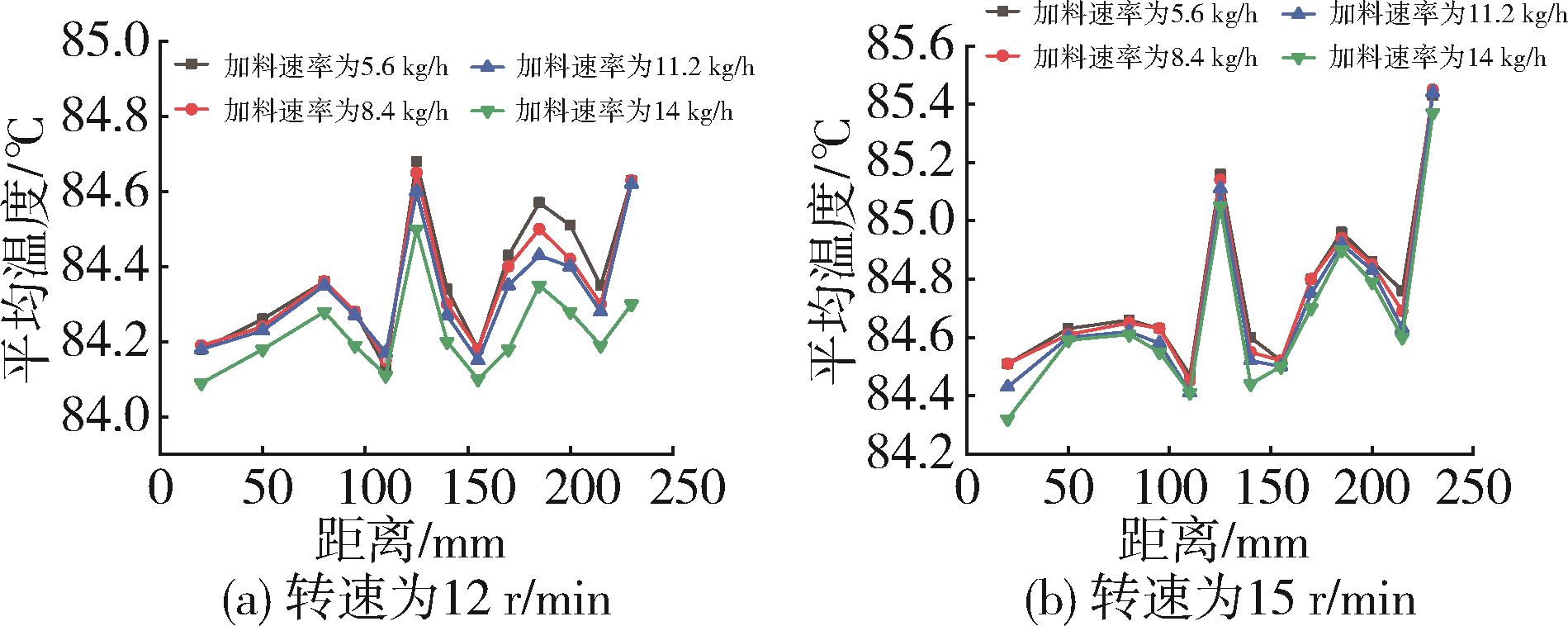

Fig.14. Curve of average temperature change along the axial direction at different charging rates

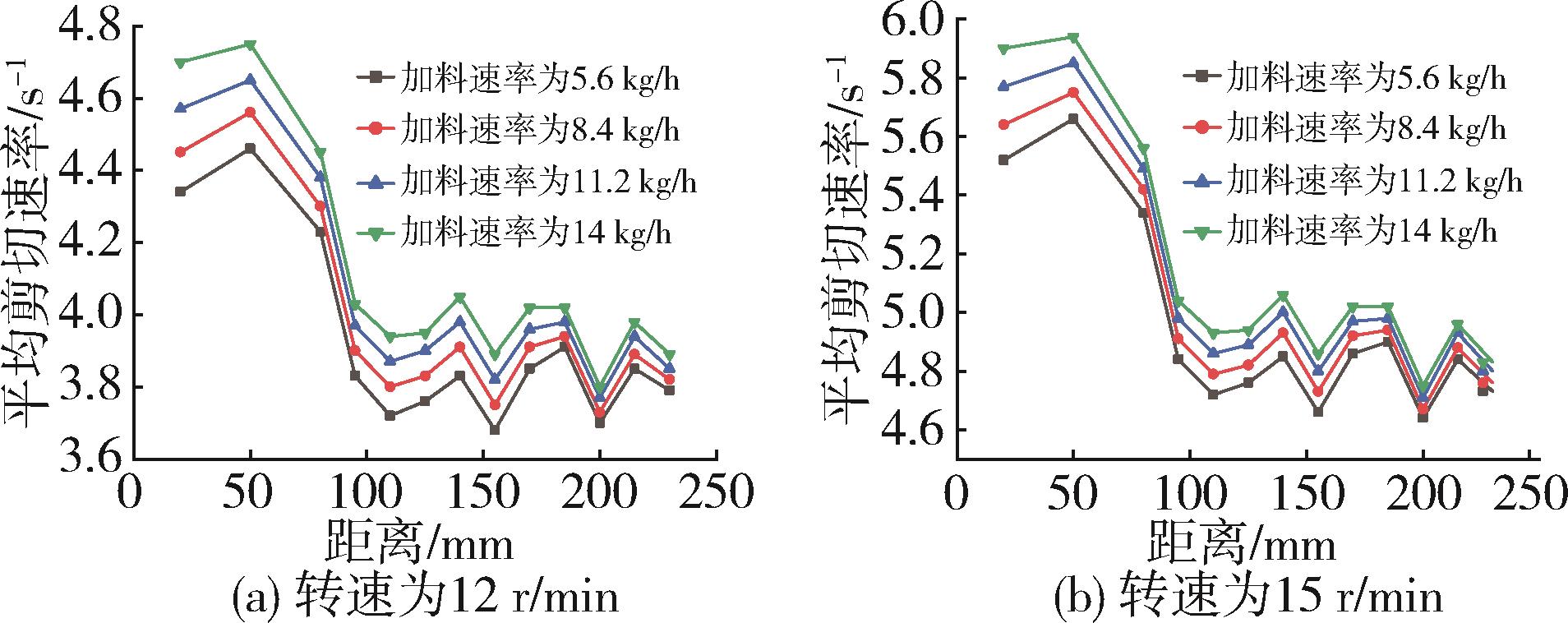

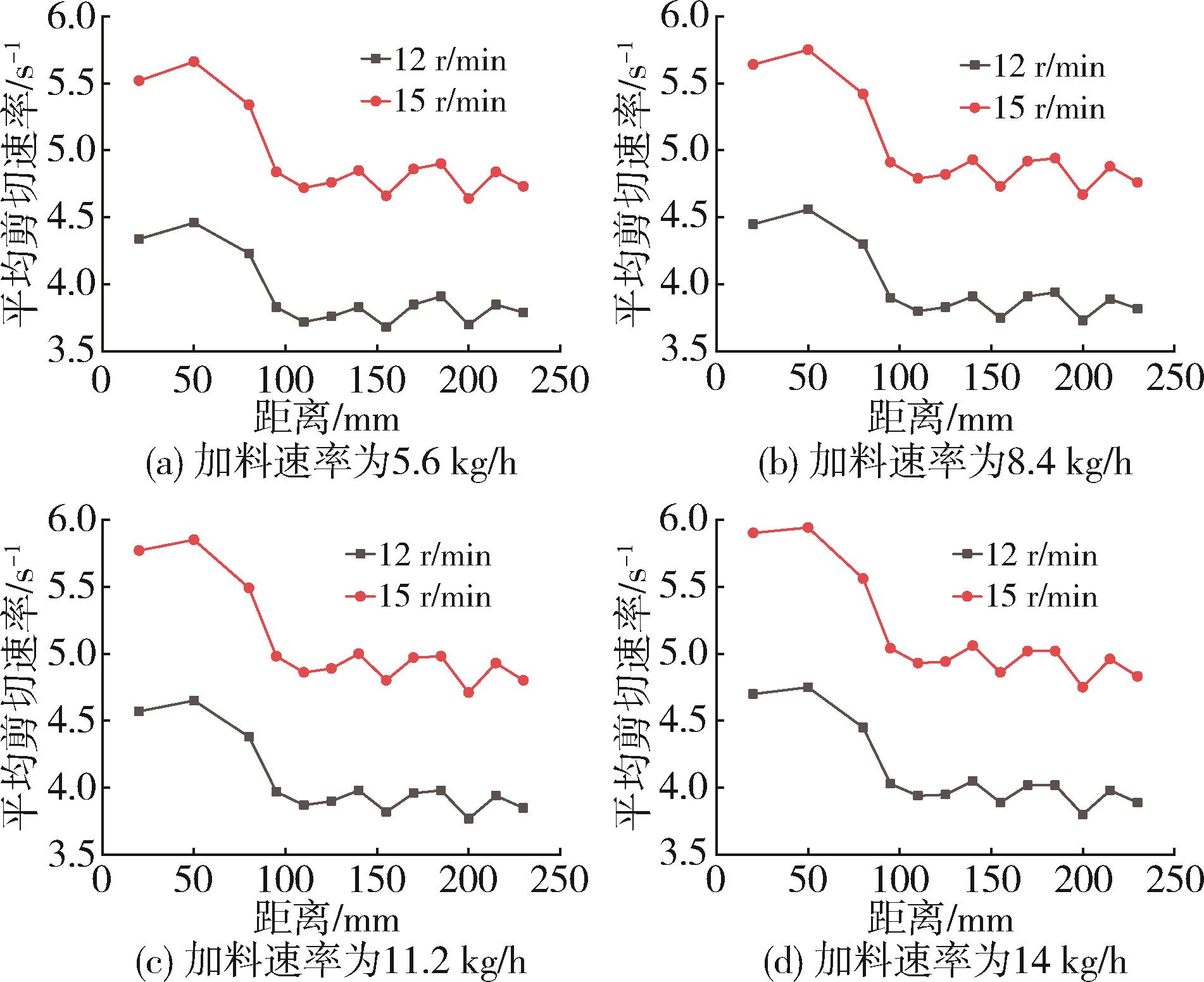

Fig.15. Curve of average shear rate along axial direction at different charging rates

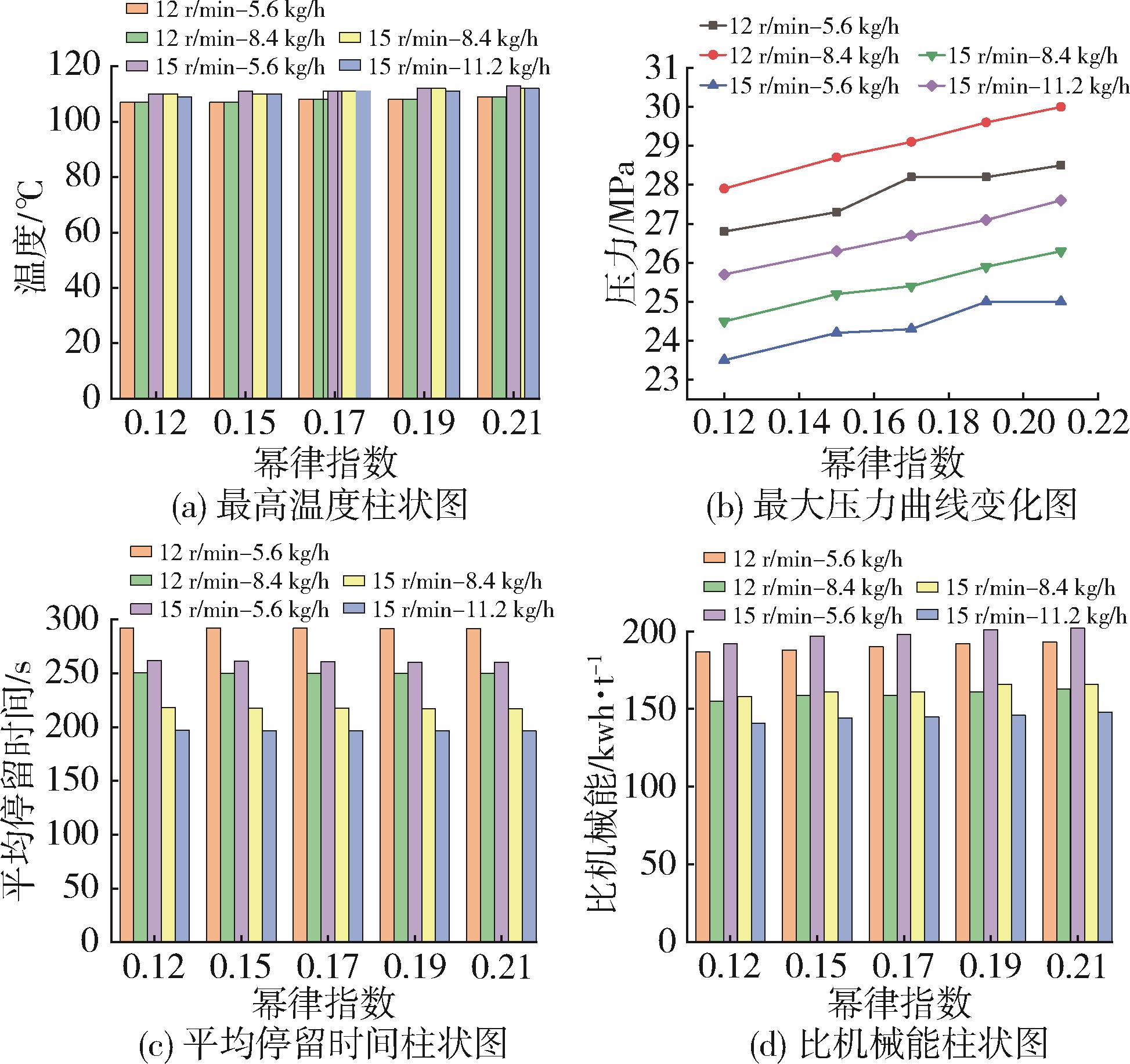

Fig.16. Simulation results with different power law exponents

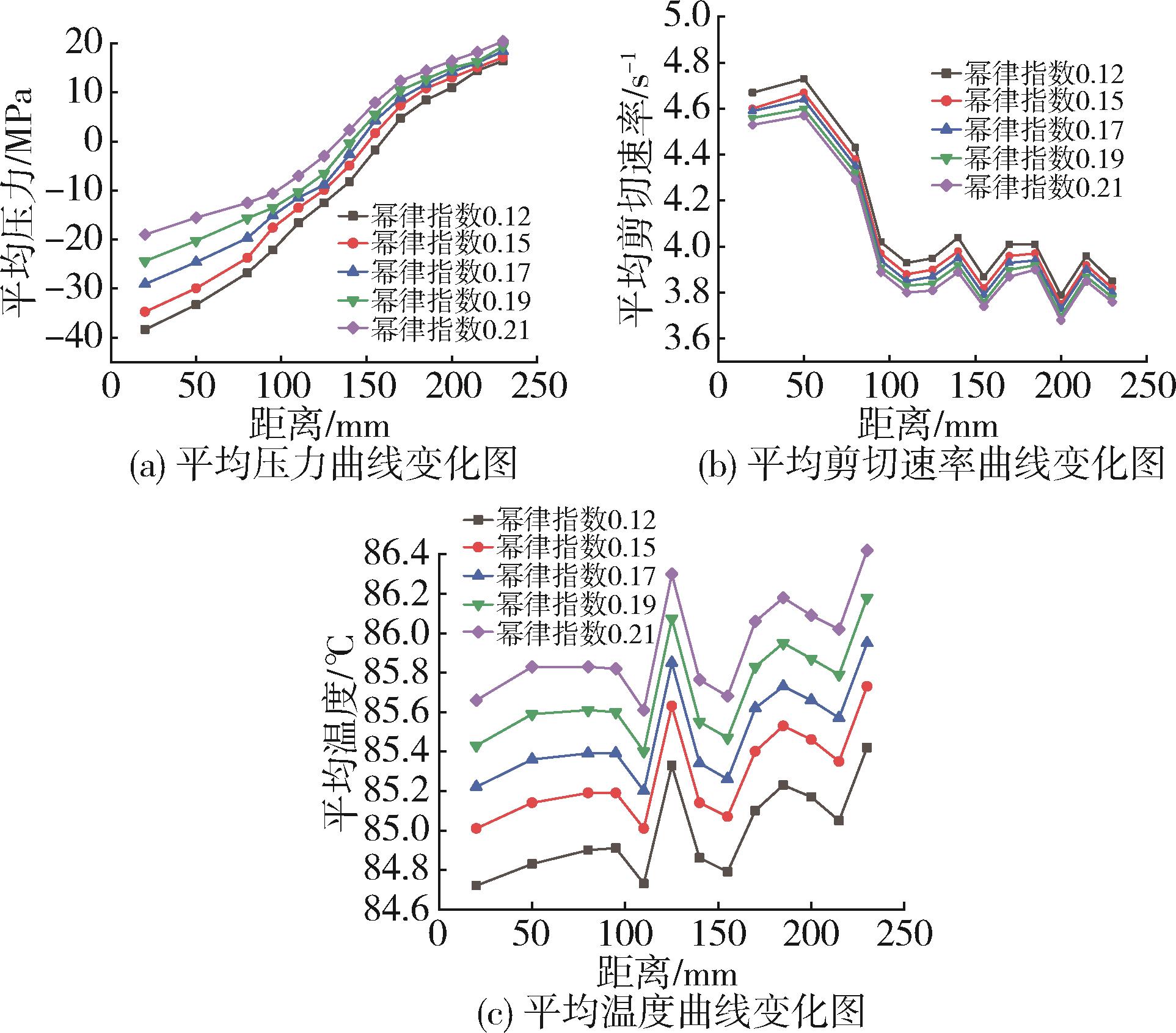

Fig.17. Simulation results with different power law exponents

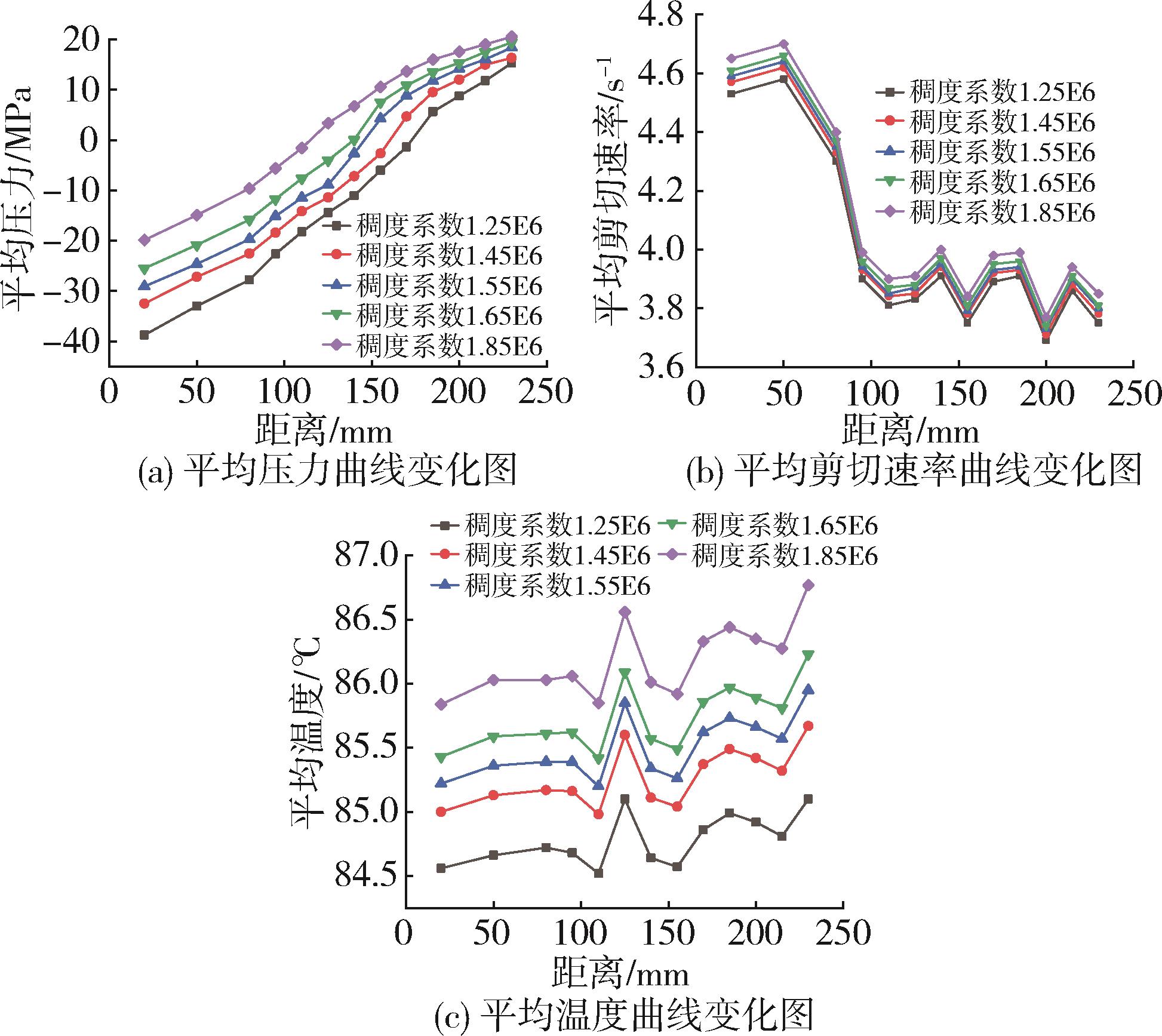

Fig.18. Simulation results with different consistency factors

Fig.19. Simulation results with different consistency factors
