无卤阻燃硬质聚氨酯泡沫塑料的研究进展

doi:10.19491/j.issn.1001-9278.2020.05.017

中国塑料 ›› 2020, Vol. 34 ›› Issue (5): 107-114.DOI: 10.19491/j.issn.1001-9278.2020.05.017

无卤阻燃硬质聚氨酯泡沫塑料的研究进展

王靖宇, 郝建薇()

北京理工大学材料学院, 国家阻燃材料工程技术研究中心，北京 100081

收稿日期:2020-02-19 出版日期:2020-05-26 发布日期:2020-05-22
基金资助:
国家自然科学基金项目(21474008)

Research Progress in Halogen⁃free Flame⁃retardant RPUF

Jingyu WANG, Jianwei HAO()

National Engineering Technology Research Center of Flame Retardant Materials, School of Materials Science and Engineering, Beijing Institute of Technology, Beijing 100081, China

Received:2020-02-19 Online:2020-05-26 Published:2020-05-22
Contact: Jianwei HAO E-mail:hjw@bit.edu.cn

摘要/Abstract

摘要：

在阐述塑料应用领域分布、燃烧特性及无卤阻燃优势的基础上，重点关注了我国新兴战略产业节能环保对建筑保温材料的需求。从生物基多元醇、反应型与传统添加阻燃结合、表面处理及催化成炭抑制烟毒等方面，综述了近些年无卤阻燃聚氨酯泡沫塑料的研究进展；归纳了应用研究中针对的问题，反映了阻燃材料应用研究的发展趋势，为深入阻燃研究及推进产业应用提供了参考。

关键词: 阻燃, 隔热, 硬质聚氨酯泡沫

Abstract:

This paper introduced the application areas and combustion performance of plastics materials as well as the advantages of halogen?free flame retardants and furthermore focused on the demands of thermal insulation materials in the construction field for energy saving and environmental protection in China's emerging strategic industries. The paper also reviewed the recent research progress in halogen?free flame?retardant rigid polyurethane foam (RPUF) from several aspects including bio?based polyols, the combination of reactive and additive?type flame retardants, surface treatment technology, and catalyzing carbonization for inhibiting smoke and toxicity. Moreover, the paper summarized the problems in the application research and prospected the development trend in the application research of flame?retardant materials, which could provide references for further research and industrial application of flame?retardant materials.

Key words: flame retardancy, thermal insulation, rigid polyurethane foam

中图分类号:

TQ323.8

王靖宇, 郝建薇. 无卤阻燃硬质聚氨酯泡沫塑料的研究进展[J]. 中国塑料, 2020, 34(5): 107-114.

Jingyu WANG, Jianwei HAO. Research Progress in Halogen⁃free Flame⁃retardant RPUF[J]. China Plastics, 2020, 34(5): 107-114.

图/表 4

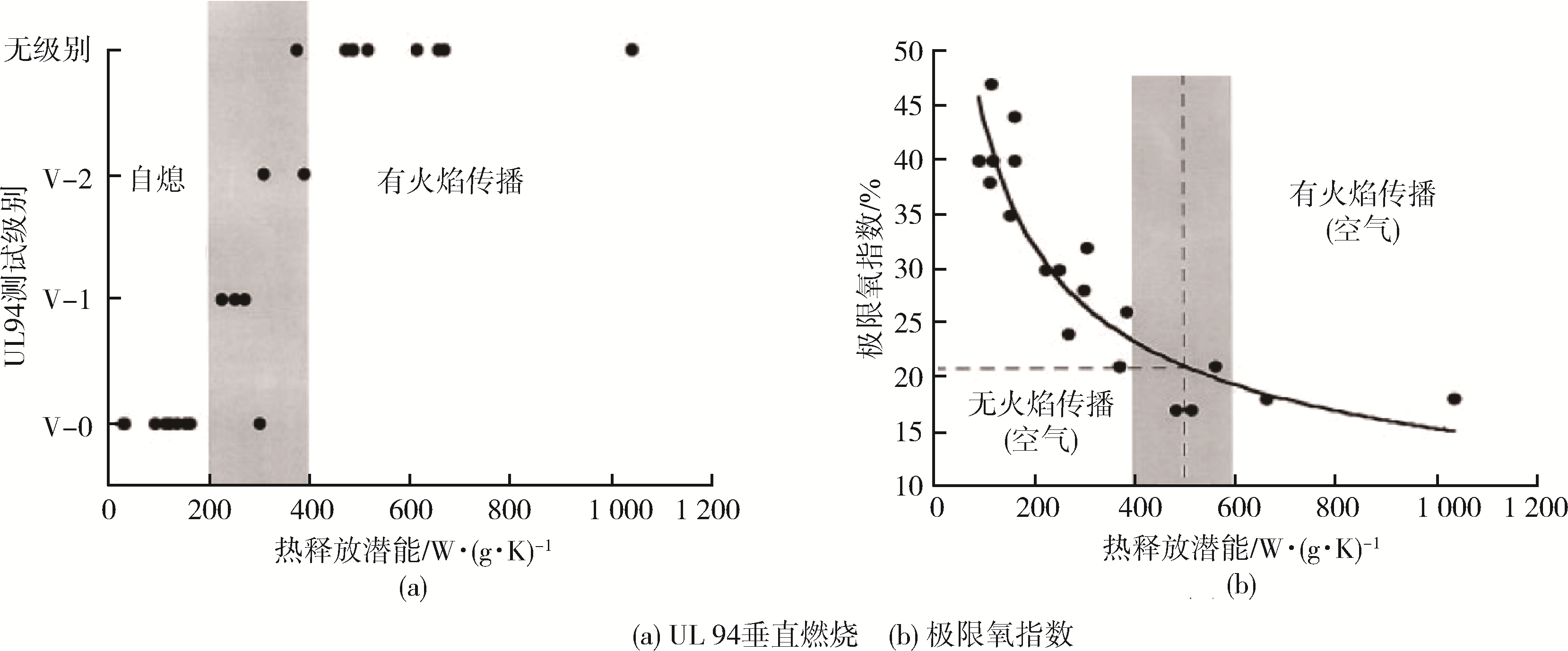

图1 HRC与UL 94垂直燃烧和极限氧指数的关系

Fig.1 Relation of UL 94 vertical burning and limiting oxygen index test results

样品	表观密度/kg?m^?3	极限氧指数/%	压缩强度/kPa	导热系数/ W?(m?K)^-1	吸水率/%	生物降解度/%
商用泡沫	36.0~42.0	19.2	>250	0.028	<3.00	??
RPU?PIR	38.4±1.1	21.7	289.95±7.46	0.025	1.81±0.06	39.0
RPU?PIR/14 %TCMP	35.9±1.3	25.6	303.67±5.32	0.025	0.96±0.03	74.1

表1 生物基RPU?PIR及阻燃泡沫与商用泡沫性能指标对比

Tab.1 Comparison of performance between bio?based RPU?PIR and flame retardant and commercial foams

样品	单元结构元素质量比/%	热分解温度/℃	600 ℃残炭率/%
木质素	C, > 60	230~260	57.0
纤维素	C/O, 44.4/49.4	~270	9.5
植酸	P/O/C, 28.0/59.0/9.0	255	~50
DNA	C/P/N/O, 37.1/9.8/16.7/33.0	150~200	~50

表2 木质素与其他生物基材料热分解性能对比

Tab.2 Comparison of thermal decomposition properties between lignin and other bio?based materials

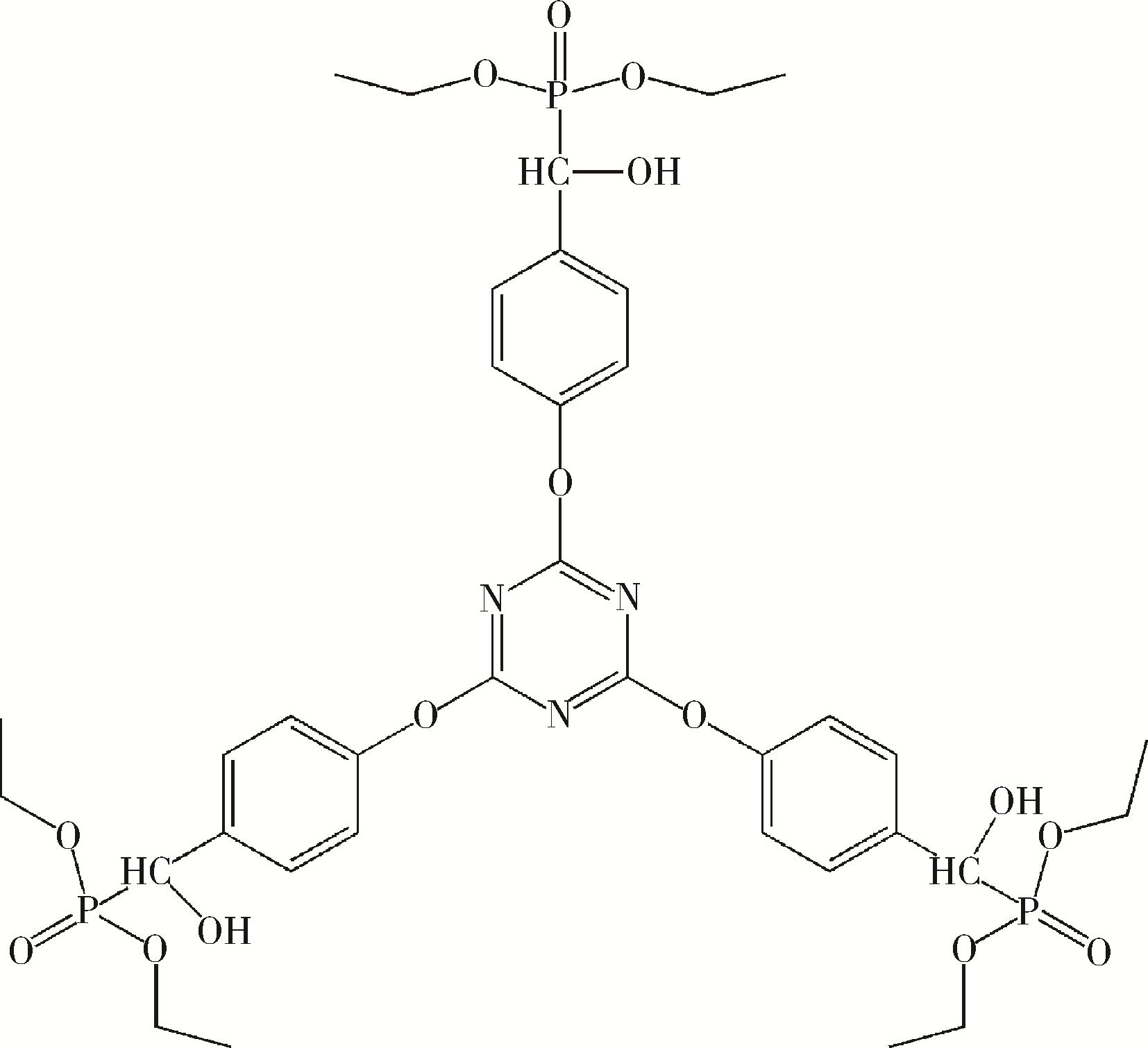

图2 磷氮反应型阻燃剂TDHTPP的分子结构

Fig.2 Structure of reactive flame retardant containing phosphorus?nitrogen TDHTPP

参考文献 47

1	MOHAMMAD S A H. Performance Characteristics and Practical Applications of Common Building Thermal Insulation Materials [J]. Building and Environment, 2005, 40: 353⁃366.
2	费梅花，恽晨. 挤塑聚苯乙烯泡沫板压缩强度控制研究 [J]. 中国塑料, 2014, 28(7): 72⁃76.
	FEI M H, YUN C. Controlling of Compressive Strength of XPS [J]. China Plastics, 2014, 28(7): 72⁃76.
3	韩景，任海涛，李婷婷，等. 蒸馏水含量对三明治结构硬质聚氨酯泡沫性能的影响 [J]. 中国塑料, 2018, 32(12): 20⁃25.
	HAN J，REN H T，LI T T, et al. Influence of Water Content on Properties of Sandwich Polyurethane Foam [J]. China Plastics, 2018, 32(12): 20⁃25.
4	BERND W, ANDRAŽ K, GERMAN S A, et al. Thermally Insulating and Fire⁃retardant Lightweight Anisotropic Foams Based on Nanocellulose and Graphene Oxide [J]. Nature Nanotechnology, 2015, 10(3): 277⁃283.
5	刘秀, 刘国胜, 郝建薇, 等. 阻燃硬质聚氨酯泡沫燃烧热值对阻燃性能的影响 [J]. 北京理工大学学报, 2015, 35(2): 197⁃202.
	LIU X, LIU G S, HAO J W, et al. Effect of Heat of Combustion on Flame Retardancy of Rigid Polyurethan Foams [J]. Transactions of Beijing Institute of Technology, 2015, 35(2): 197⁃202.
6	RICHARD N W, RICHARD E L. Molar Group Contributions to Polymer Flammability [J]. Journal of Applied Polymer Science, 2003, 87: 548⁃563.
7	侯静. 我国城镇公共建筑能耗预测及能效提升路径研究 [D]. 北京: 北京交通大学, 2017.
8	秦颖, 梁广. 我国建筑绝热节能材料现状及趋势研究 [J]. 硅酸盐通报, 2018, 37(12): 3 849⁃3 853.
	QIN Y, LIANG G. Research on the Current Situation and Trend of the Building Energy⁃Saving Insulation Materials in China [J]. Bulletin of the Chinese Ceramic Society, 2018, 37(12): 3 849⁃3 853.
9	IKE V D V, JACOB D B. Phosphorus Flame Retardants: Properties, Production, Environmental Occurrence, Toxicity and Analysis [J]. Chemosphere, 2012, 88: 1119⁃1153.
10	ROLAND G, JENNA R J, KARA L L. Production, Use, and Fate of All Plastics Ever Made [J]. Science Advances. 2017, 3(7): 700 782.
11	YUAN Y, YU B, SHI Y Q, et al. Highly Efficient Catalysts for Reducing Toxic Gases Generation Change with Temperature of Rigid Polyurethane Foam Nanocompo⁃sites: A Comparative Investigation [J]. Composites Part A, 2018, 112: 142⁃154.
12	BERNHARD S, KRISTIN H P, RICHARD E L. Pyrolysis Combustion Flow Calorimeter: A Tool to Assess Flame Retarded PC/ABS Materials? [J]. Thermochimica Acta, 2007, 462: 1⁃14.
13	许冬梅, 郝建薇, 刘国胜, 等. 膨胀阻燃硬质聚氨酯泡沫塑料热降解及燃烧产烟研究 [J]. 高分子学报, 2013,7: 832⁃840.
	XU D M, HAO J W, LIU G S, et al. Thermal Degradation and Smoke Production during Combustion for Intumescent Flame Retardant Rigid Polyurethane Foams[J]. Acta Polymerica Sinica, 2013,7: 832⁃840.
14	DK C, DEAN C W. Thermal Stability and Flame Retardancy of Polyurethanes [J]. Progress in Polymer Science, 2009, 34: 1 068⁃1 133.
15	KIM J Y, LEE H W, LEE S M, et al. Overview of the Recent Advances in Lignocellulose Liquefaction for Producing Biofuels, Bio⁃based Materials and Chemicals [J]. Bioresource Technology, 2019, 279: 373⁃384.
16	ZHANG L Q, ZHANG M, ZHOU Y H, et al. The Study of Mechanical Behavior and Flame Retardancy of Castor Oil Phosphate⁃based Rigid Polyurethane Foam Composites Containing Expanded Graphite and Triethyl Phosphate [J]. Polymer Degradation and Stability, 2013, 98:2 784⁃2 794.
17	CHEN M J, WANG X, TAO M C, et al. Full Substitution of Petroleum⁃based Polyols by Phosphoruscontaining Soy⁃based Polyols for Fabricating Highly Flame⁃retardant Polyisocyanurate Foams [J]. Polymer Degradation and Stability, 2018,154: 312⁃322.
18	BOROWICZ M, PACIOREK⁃SADOWSKA J, LUBCZAK J, et al. Biodegradable, Flame⁃Retardant, and Bio⁃Based Rigid Polyurethane/Polyisocyanurate Foams for Thermal Insulation Application [J]. Polymers, 2019, 11(11): 1 816.
19	DOREZ G, FERRY L, SONNIER R, et al. Effect of Cellulose, Hemicellulose and Lignin Contents on Pyrolysis and Combustion of Natural Fibers [J]. Journal of Analytical and Applied Pyrolysis, 2014, 107: 323⁃331.
20	GAO Y Y, DENG C, DU Y Y, et al. A Novel Bio⁃based Flame Retardant for Polypropylene from Phytic Acid [J]. Polymer Degradation and Stability, 2019, 161: 298⁃308.
21	ALONGI J, BLASIO A D, MILNES J, et al. Thermal Degradation of DNA, an All⁃in⁃one Natural Intumescent Flame Retardant [J]. Polymer Degradation and Stability, 2015, 113: 110⁃118.
22	COSTES L, LAOUTID F, BROHEZ S, et al. Bio⁃based Flame Retardants: When Nature Meets Fire Protection [J]. Materials Science and Engineering R, 2017, 117: 1⁃25.
23	LU W M, LI Q, ZHANG Y, et al. Lignosulfonate/APP IFR and Its Flame Retardancy in Lignosulfonate Based Rigid Polyurethane Foams [J]. Journal of Wood Science, 2018, 64: 287⁃293.
24	ZHU H B, PENG Z M, CHEN Y M, et al. Preparation and Characterization of Flame Retardant Polyurethane Foams Containing Phosphorus⁃nitrogen⁃functionalized Lignin [J]. RSC Advances, 2014, 4(98): 55 271⁃55 279.
25	GAO L P, ZHENG G Y, ZHOU Y H, et al. Improved Mechanical Property, Thermal Performance, Flame Retardancy and Fire Behavior of Lignin⁃based Rigid Polyurethane Foam Nanocomposite [J]. Journal of Thermal Analysis and Calorimetry, 2015, 120: 1 311⁃1 325.
26	NADJI H, BRUZZÈSE C, BELGACEM M N, et al. Oxypropylation of Lignins and Preparation of Rigid Polyurethane Foams from the Ensuing Polyols[J]. Macromolecular Materials and Engineering, 2005, 290: 1 009⁃1 016.
27	PAN X J, SADDLER J N. Effect of Replacing Polyol by Organosolv and Kraft Lignin on The Property and Structure of Rigid Polyurethane Foam [J]. Biotechnology for Biofuels, 2013, 6: 12.
28	VISHTAL A, KRASLAWSKI A. Challenges in Industrial Applications of Technical Lignins [J]. Bioresources, 2011, 6: 3 547⁃3 568.
29	WANG S X, ZHAO H B, RAO W H, et al. Inherently Flame⁃retardant Rigid Polyurethane Foams with Excellent Thermal Insulation and Mechanical Properties [J]. Polymer, 2018,153: 616⁃625.
30	WANG C, WU Y C, LI Y C, et al. Flame⁃retardant Rigid Polyurethane Foam with a Phosphorus Nitrogen Single Intumescent Flame Retardant [J]. Polymers Advanced Technologies, 2018, 29: 668⁃676.
31	JIA D K, HU J, HE J Y, et al. Properties of a Novel Inherently Flame⁃retardant Rigid Polyurethane Foam Composite Bearing Imide and Oxazolidinone [J]. Journal App⁃lied Polymer Science, 2019, 136(37): 47 943.
32	YUAN Y, YANG H Y, YU B, et al. Phosphorus and Nitrogen⁃containing Polyols: Synergistic Effect on the Thermal Property and Flame Retardancy of Rigid Polyurethane Foam Composites [J]. Industrial and Engineering Chemistry Research, 2016, 55: 10 813⁃10 822.
33	XI W, QIAN L J, HUANG Z G, et al. Continuous Flame⁃retardant Actions of Two Phosphate Esters with Expandable Graphite in Rigid Polyurethane Foams[J]. Polymer Degradation and Stability, 2016, 130: 97⁃102.
34	XI W, QIAN L J, CHEN Y J, et al. Addition Flame⁃retardant Behaviors of Expandable Graphite and [Bis(2⁃hydroxyethyl)amino]⁃methyl⁃phosphonic Acid Dimethyl Ester in Rigid Polyurethane Foams[J]. Polymer Degradation and Stability, 2015, 122: 36⁃43.
35	QIAN L J, LI L J, CHEN Y J, et al. Quickly Self⁃extinguishing Flame Retardant Behavior of Rigid Polyurethane Foams Linked with Phosphaphenanthrene Groups[J]. Composites Part B, 2019, 175: 107 186.
36	LI Q M, WANG J Y, CHEN L M, et al. Ammonium Polyphosphate Modified with B⁃cyclodextrin Crosslinking Rigid Polyurethane Foam: Enhancing Thermal Stability and Suppressing Flame Spread [J]. Polymer Degradation and Stability, 2019, 161: 166⁃174.
37	HAN Z D, FINAA A, MALUCELLIA G, et al. Testing Fire Protective Properties of Intumescent Coatings by in⁃line Temperature Measurements on a Cone Calorimeter [J]. Progress in Organic Coatings, 2010, 69: 475⁃480.
38	WEIL E D. Fire⁃protective and Flame⁃retardant Coatings⁃A State⁃of⁃the⁃art Review [J]. Journal of Fire Sciences, 2011, 29: 259⁃296.
39	LI M E, WANG S X, HAN L X, et al. Hierarchically Porous SiO₂/Polyurethane Foam Composites Towards Excellent Thermal Insulating, Flame⁃retardant and Smoke⁃suppressant Performances [J]. Journal of Hazardous Materials, 2019, 375: 61⁃69.
40	WANG S H, WANG X G, WANG X, et al. Surface Coated Rigid Polyurethane Foam with Durable Flame Retardancy and Improved Mechanical Property [J]. Chemical Engineering Journal, 2020, 385: 123 755.
41	LIU H Y, YANG H Y, CHEN M F, et al. An Effective Approach to Reducing Fire Hazards of Rigid Polyurethane Foam: Fire Protective Coating [J]. Journal of Coatings Technology and Research, 2019, 16 (1): 257⁃261.
42	HUANG Y B, JIANG S H, LIANG R C, et al. A Green Highly⁃effective Surface Flame⁃retardant Strategy for Rigid Polyurethane Foam: Transforming UV⁃cured Coating into Intumescent Selfextinguishing Layer [J]. Composites Part A, 2019, 125: 105 534.
43	DASARI A, YU Z Z, CAI G P, et al. Recent Developments in the Fire Retardancy of Polymeric Materials [J]. Progress in Polymer Science, 2013, 38: 1 357⁃1 387.
44	ZHOU Y, FENG J, PENG H, et al. Catalytic Pyrolysis and Flame Retardancy of Epoxy Resins with Solid Acid Boron Phosphate [J]. Polymer Degradation and Stability, 2014, 110: 395⁃404.
45	LIU X, XU D M, WANG Y L, et al. Smoke and Toxicity Suppression Properties of Ferrites on Flame⁃retardant Polyurethane–Polyisocyanurate Foams Filled with Phosphonate [J]. Journal of Thermal Analysis and Calorimetry, 2016, 125(1): 245⁃254.
46	LIU X, WANG J Y, YANG X M, et al. Application of TG/FTIR TG/MS and Cone Calorimetry to Understand Flame Retardancy and Catalytic Charring Mechanism of Boron Phosphate in Flame⁃retardant PUR–PIR Foams [J]. Journal of Thermal Analysis and Calorimetry, 2017, 130: 1 817⁃1 827.
47	XU W Z, WANG G S, XU J Y, et al. Modification of Diatomite with Melamine Coated Zeolitic Imidazolate Framework⁃8 as an Effective Flame Retardant to Enhance Flame Retardancy and Smoke Suppression of Rigid Polyurethane Foam [J]. Journal of Hazardous Materials, 2019, 379: 121 809.
