操控旋钮双色注射成型热流道模具设计

doi:10.19491/j.issn.1001-9278.2020.09.015

中国塑料 ›› 2020, Vol. 34 ›› Issue (9): 84-89.DOI: 10.19491/j.issn.1001-9278.2020.09.015

操控旋钮双色注射成型热流道模具设计

徐新华()

浙江工商职业技术学院机电工程学院，浙江宁波 315012

收稿日期:2020-01-30 出版日期:2020-09-26 发布日期:2020-09-25
基金资助:
浙江省教育厅一般科研项目(Y201636507)

Design of Hot Runner Mould for Control-Knob Bi-color Injection Molding

XU Xinhua()

School of Mechatronic Engineering Zhejiang Business Technology Institute, Ningbo 315012，China

Received:2020-01-30 Online:2020-09-26 Published:2020-09-25
Contact: XU Xinhua E-mail:xuxinhua1970@sina.com

摘要/Abstract

摘要：

设计了一种旋转式双色注射成型热流道模具用于旋钮盖双色塑件的生产，模具选用四板式3次开模双色模模架。双色模具由均为1模2腔的塑件内衬基体注塑模具和包胶层注塑模具组成。模具采用热流道+冷流道相结合的方式进行浇注，解决了圆柱壁模腔充填困难问题，保证了流道废料的自动切除。模具共设计了36个结构相似、占用设计空间小的锁紧块T型槽驱动滑块机构来实施侧抽芯脱模，减少了模具整体结构尺寸。最后，通过一种插杆式机构来对模板的顺序开闭进行控制，机构动作可靠。

关键词: 抽芯机构, 双色成型, 模具结构, 注射, 热流道

Abstract:

A type of rotary bi-color hot runner mould was designed for production of the bi-color plastic parts of knob cover. In this mould, a four-plate with 3-time opening bi-color moldbase was adopted. The bi-color mould was composed of two sub-moulds, in which the first one was the injection sub-mould for the plastic lining matrix, the second one was the injection sub-mould for the plastic over layer, and the cavity layout of the two sub-molds was based on the one mold with two cavities. In the two sub-moulds, the combination of hot runner and cold runner was used for gating. In the first sub-mould, the three inner wall hidden gates were used for gating in the single cavity, and the three inner wall hidden gates were adopted for gating as well in the second sub-mould. The difficulty in filling the cylindrical wall mold cavity was overcome through this design scheme, and the automatic removal of runner waste was guaranteed. In this mould, 36 locking-block T-groove driving slider mechanisms with a similar structure and a small design space were designed to implement side core pulling demolding, which could reduce the overall size of the mould. These 36 mechanisms were driven by 3 times opening of the plates, and a type of inserting bar mechanism was designed to control the sequential opening and closing of the plates. This mechanism is reliable for operation.

Key words: core pulling mechanism, bi-color molding, mold structure, injection, hot runner

中图分类号:

TQ320.66⁺2

徐新华. 操控旋钮双色注射成型热流道模具设计[J]. 中国塑料, 2020, 34(9): 84-89.

XU Xinhua. Design of Hot Runner Mould for Control-Knob Bi-color Injection Molding[J]. China Plastics, 2020, 34(9): 84-89.

图/表 10

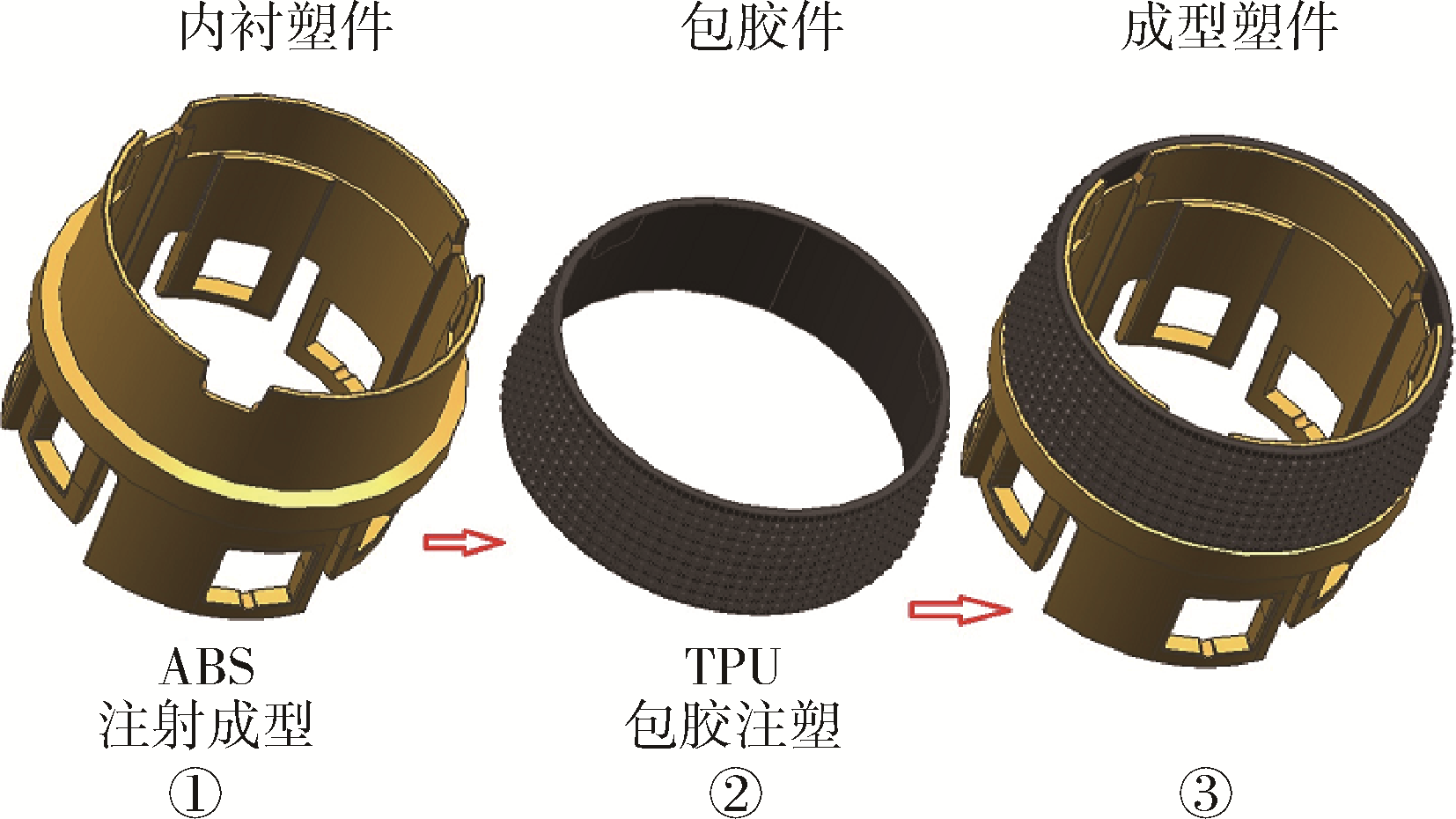

图1 双色塑件形状

Fig.1 Shape of bi?color plastic parts

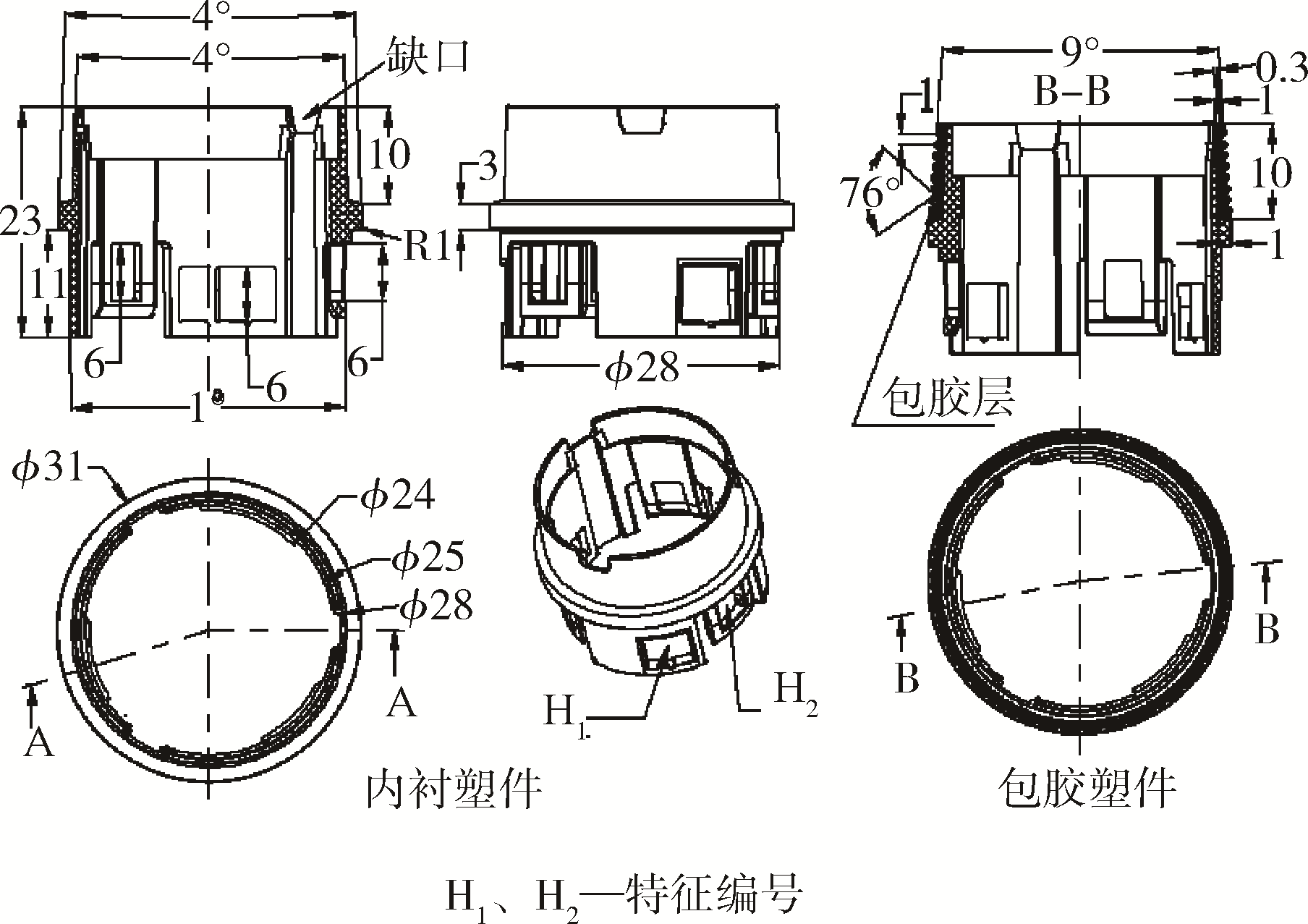

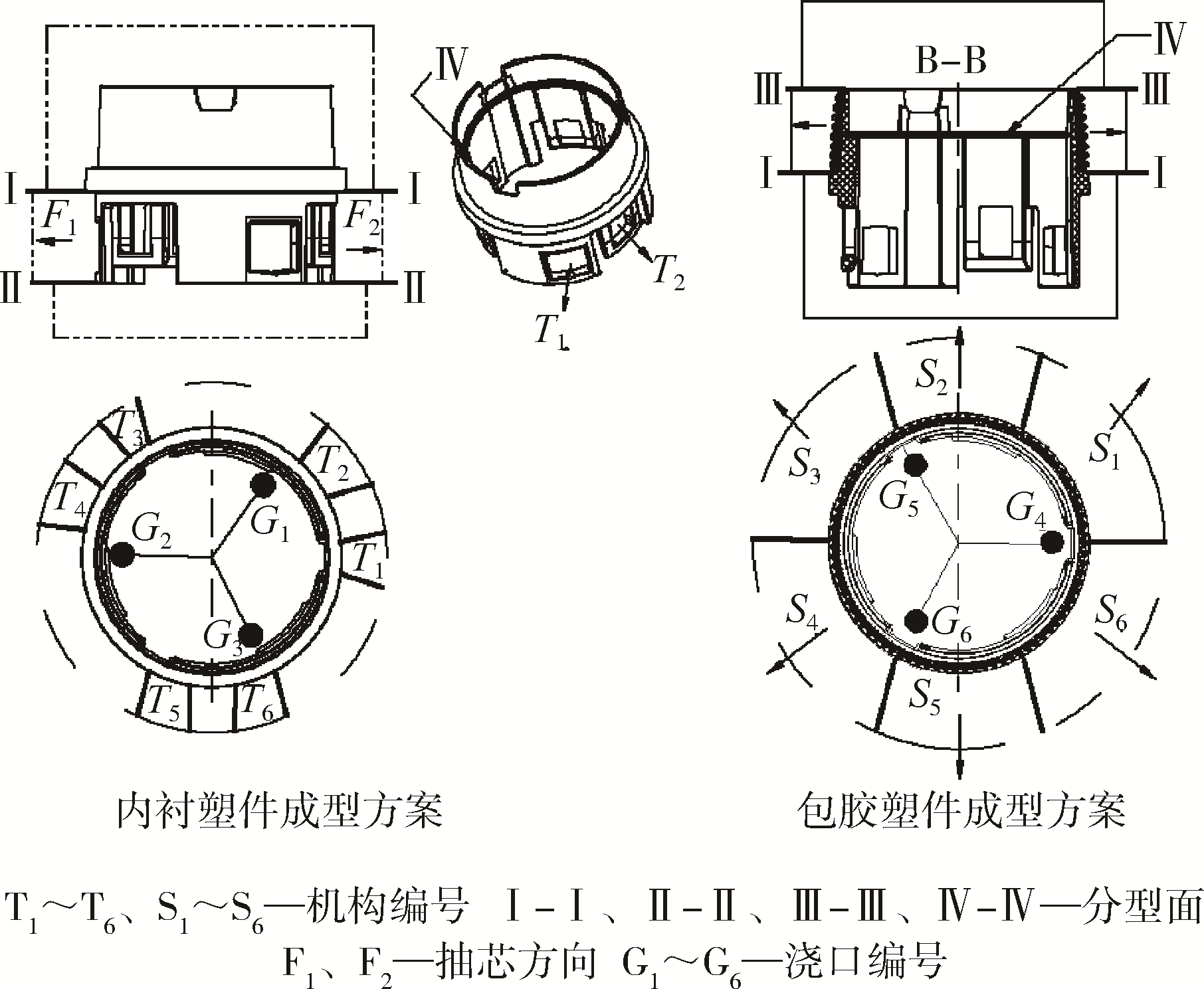

图2 结构成型分析

Fig.2 Structure forming analysis

图3 分型设置

Fig.3 Parting setting

图 4 双色模定模布局

Fig.4 Fixed mold layout of bi?color mould

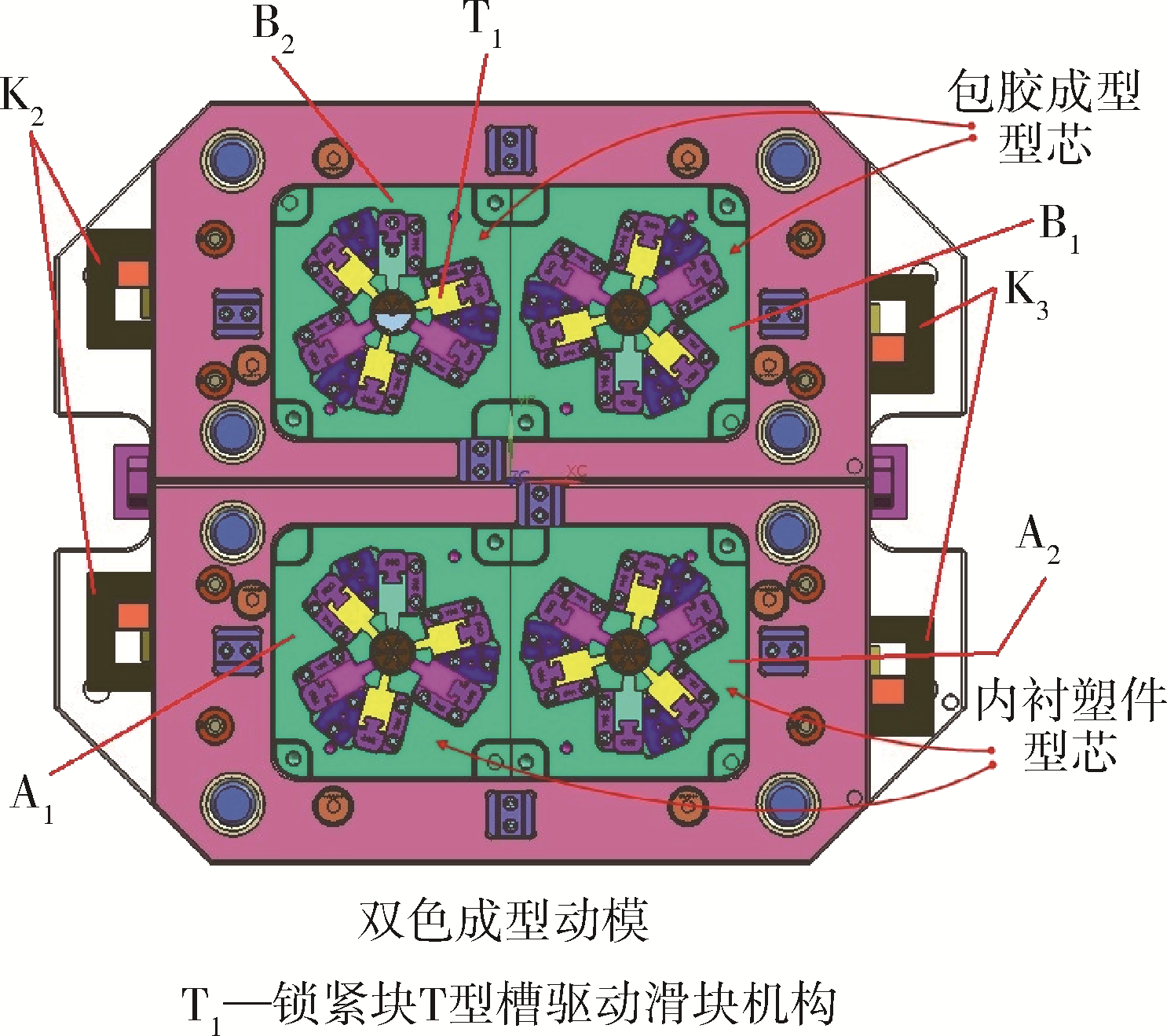

图 5 双色模动模布局

Fig.5 Moving mold layout of bi?color mould

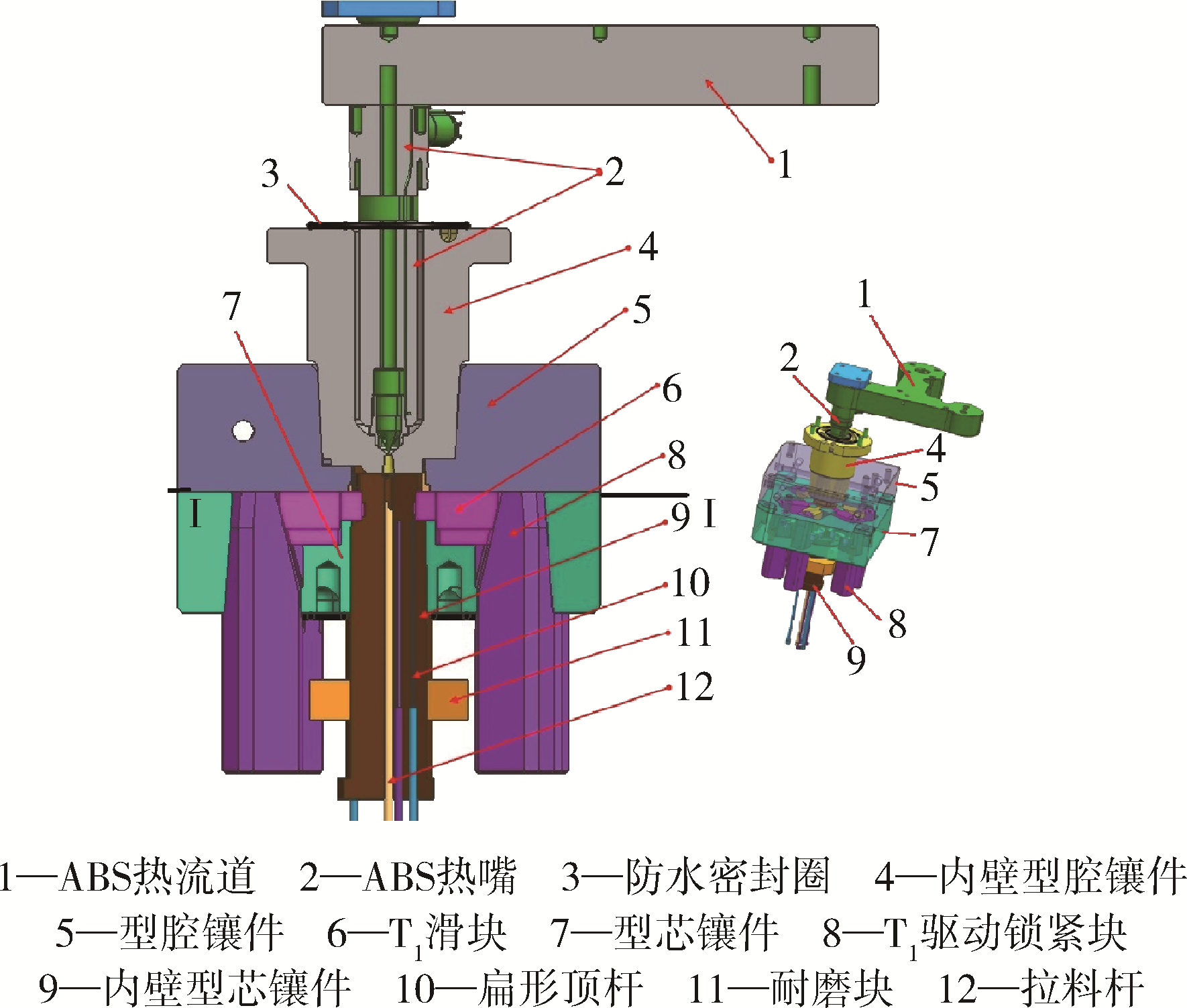

图6 A1模腔

Fig.6 Cavity of A1

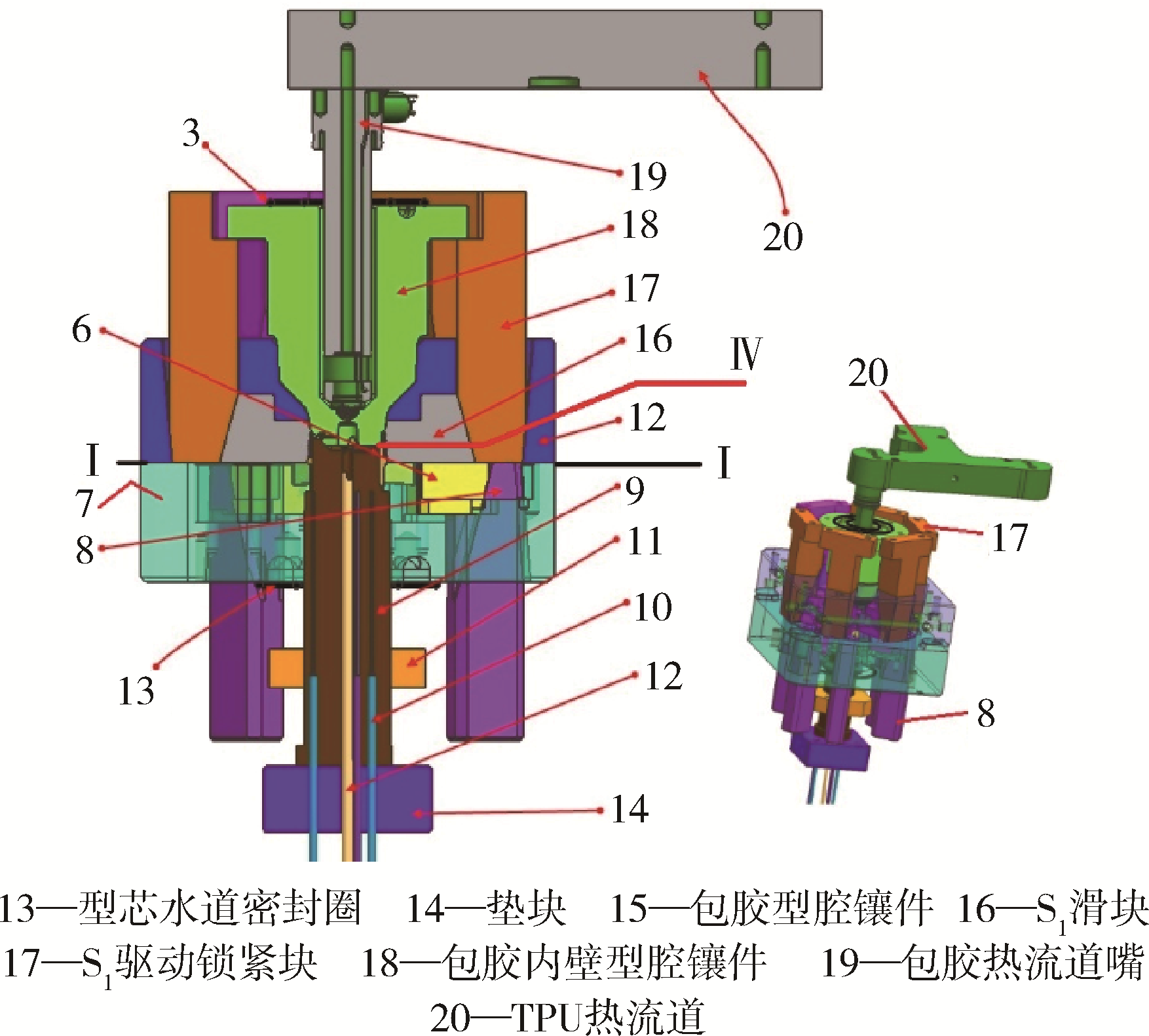

图7 B1模腔

Fig.7 Cavity of B1

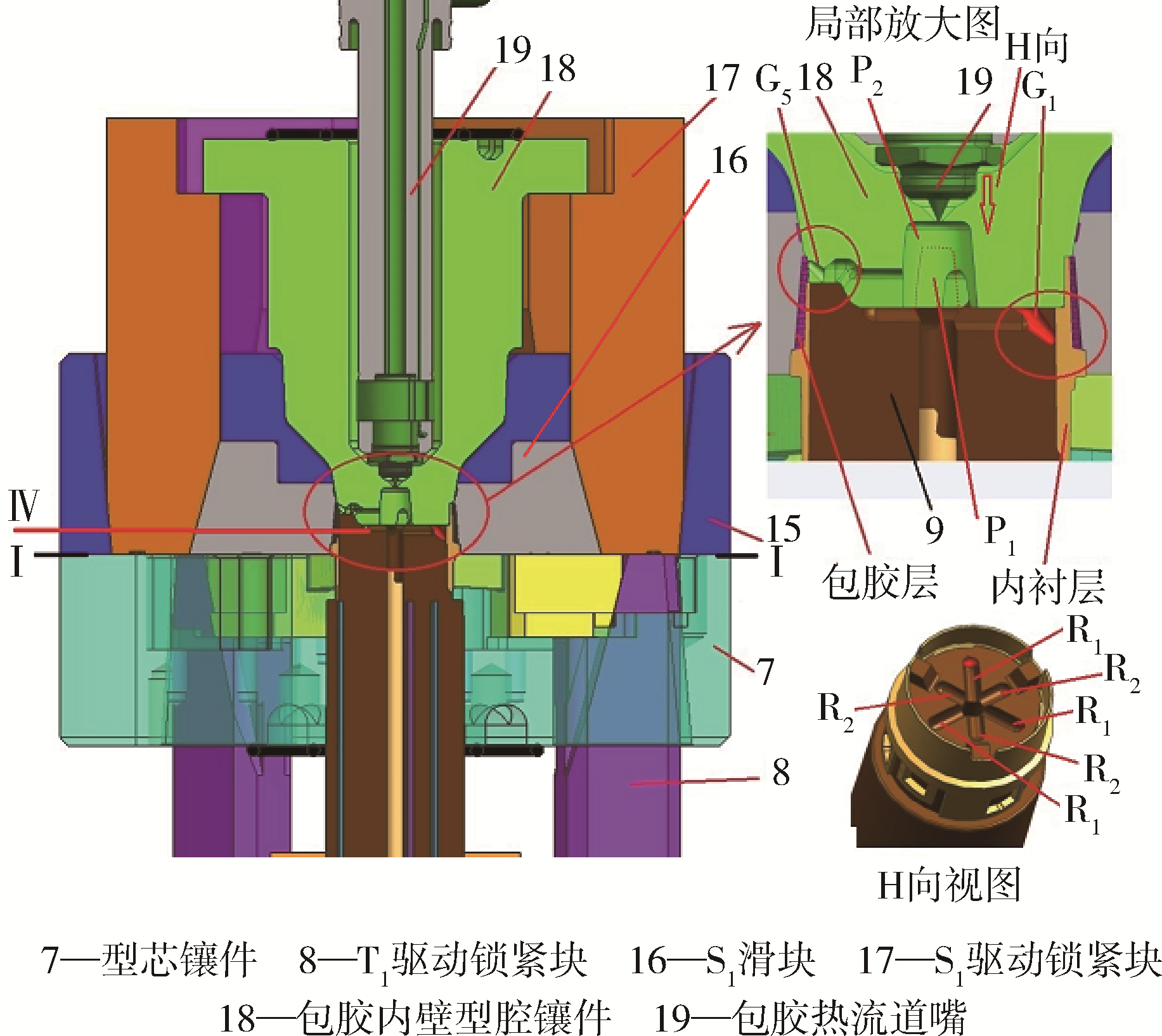

图8 浇注系统设置

Fig.8 Gating system settings

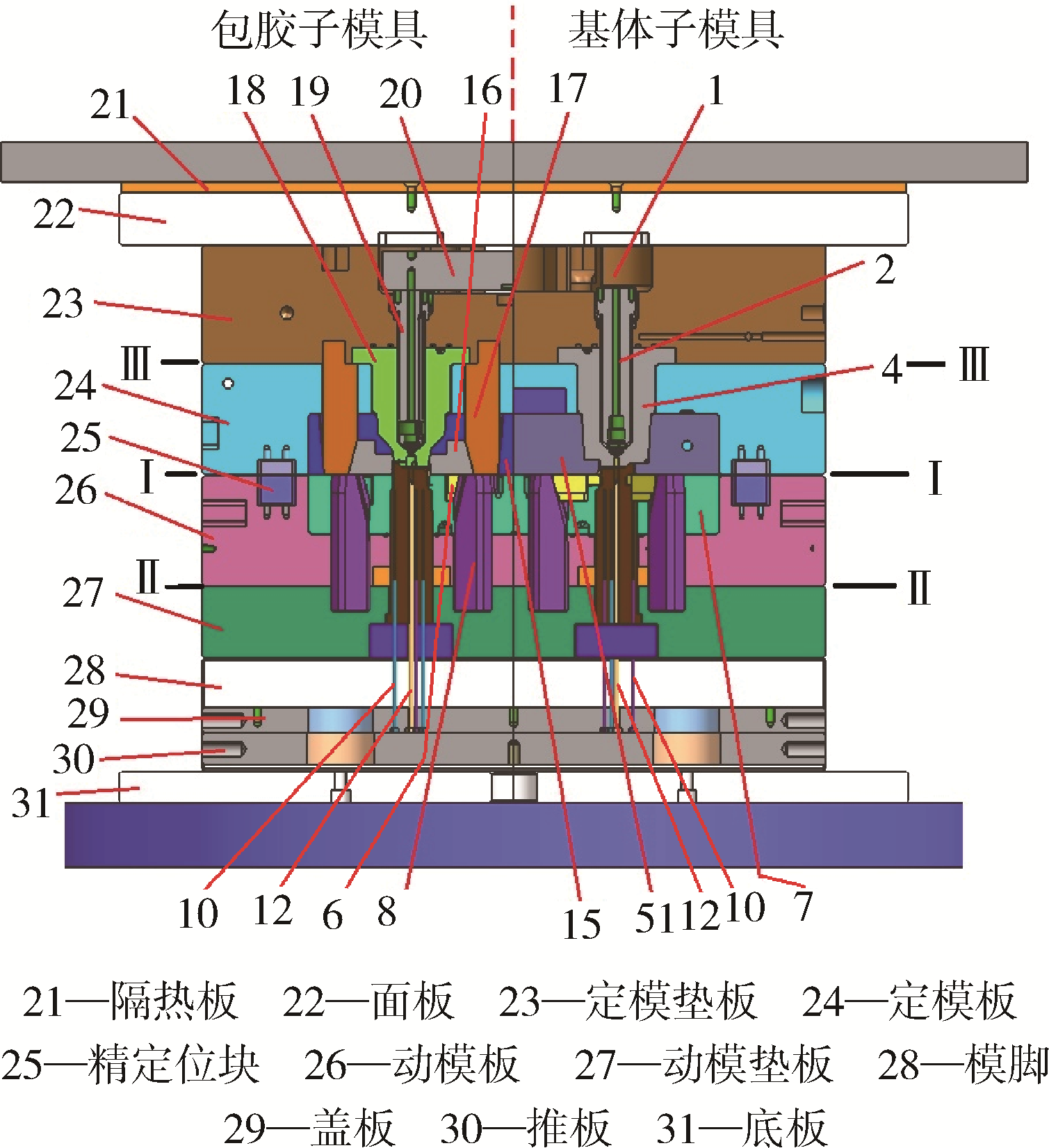

图9 模架及机构安装

Fig.9 Mold?base and mechanism installation

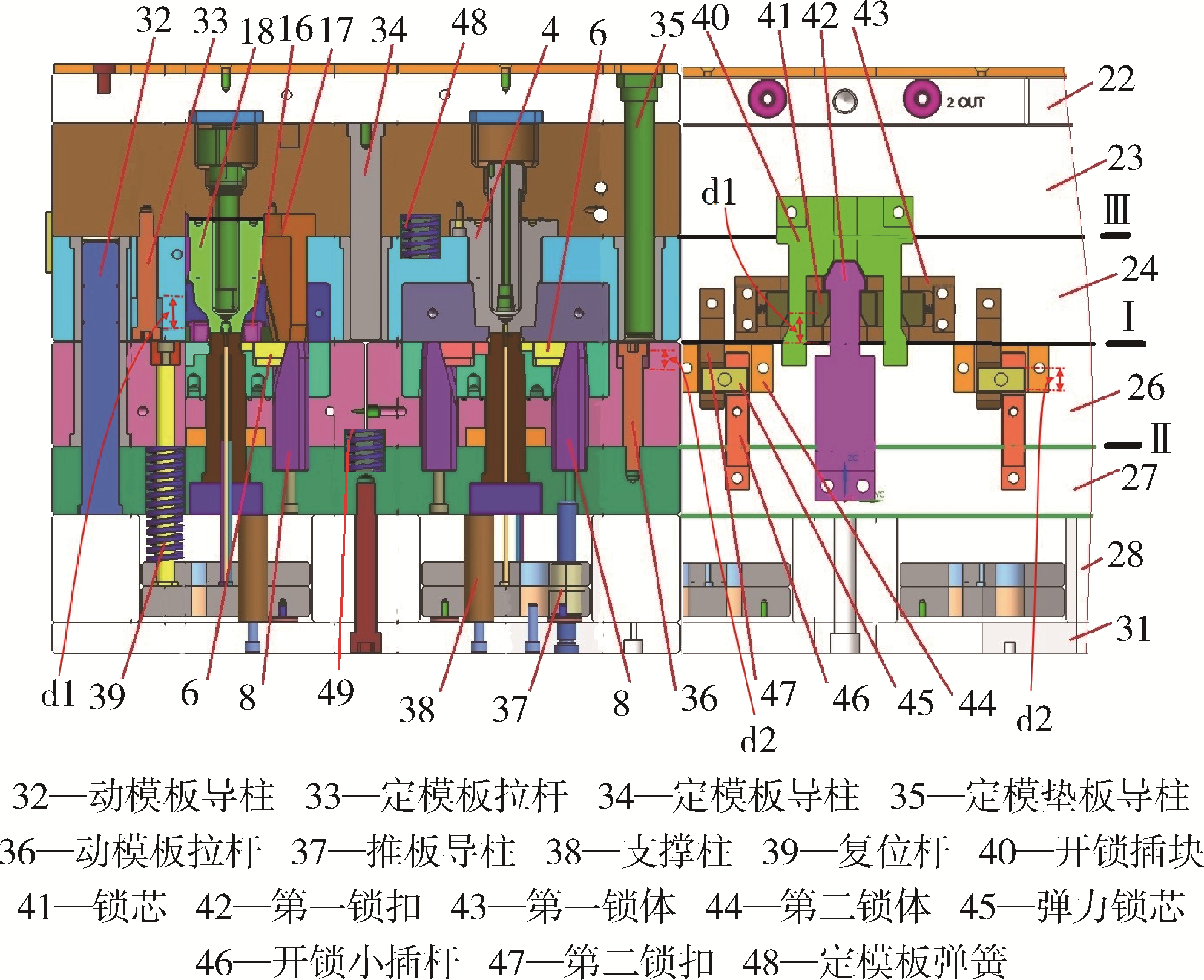

图10 模板控制机构

Fig.10 Mold?base control mechanism

参考文献 15

1	范正妍,刘云国,彭洁.塑料与产品造型元素的适应性研究[J].机械设计,2015,32(5):126⁃128.
	FAN Z Y, LIU Y G, PENG J. Adaptability Research Between Plastic Material and Product Modeling Dements[J]. Journal of Machine Design, 2015,32 (5): 126⁃128.
2	陈龙.基于塑料产品的多样性工业设计及其模具研究[J].塑料工业,2018,46(3):151⁃154.
	CHEN L. Industrial Design Based on Diversified Plastic Products and Model Research [J]. China Plastic Industry, 2018,46(3):151⁃154.
3	陈茂顺,孙玲,辛勇,等.双色高光成型塑件的结构设计技术[J].塑料工业,2012(2):34⁃37.
	CHEN M S, SUN L, XIN Y,et al. Structure Design Technique of Double⁃injection High⁃gloss Surface Plastic Parts[J]. China Plastic Industry,2012(2):34⁃37.
4	石则满.双色注塑成型技术及其发展[J].工业设计,2016(9):159.
	SHI Z M, Bi⁃color Injection Molding Technology and Its Development[J],Industrial Design, 2016(9): 159.
5	冯刚,田雅萍,张朝阁,等.双色注射成型技术研究进展[J].工程塑料应用,2014,42(8):111⁃115.
	FENG G, TIAN Y P, ZHANG C G, et al. Research Overview and Prospects of Bi⁃Color Injection Molding Technology[J]. Engineering Plastics Application, 2014,42(8):111⁃115.
6	张维合.鼠标面盖双色注塑模具设计[J].中国塑料,2013,(8):95⁃99.
	ZHANG W H.Design of Double⁃shot Mold for Mouse Cover[J]. China Plastics,2013,(8):95⁃99.
7	陆建军,徐伟.玩具手柄双色注塑模具设计[J].现代塑料加工应用,2016,28(4):49⁃52.
	LU J J, XU W.Bicolor Injection Mold Design for Toy Handle[J].Modern Plastics Processing and Applications, 2016,28(4):49⁃52.
8	董磊磊,张惠敏.汽车通风盖板双色注射模设计[J].模具工业,2014,40(3):45⁃47.
	DONG L L, ZHANG H M. Two⁃component Injection Mould for Automobile Ventilation Cover plate[J].Die ＆ Mould Industry, 2014,40(3):45⁃47.
9	张小清.检测仪手柄平移式双色注塑模具设计[J].工程塑料应用,2018,46(3):76⁃81.
	ZHANG X Q.Design of Translational Double Color Injection Mould for Detector Handle[J], Engineering Plastics Application,2018,46(3):76⁃81.
10	刘伟.一种简易的双色注塑模具结构[J].现代制造技术与装备,2019(10):185⁃186.
	LIU W.A Simple Two⁃color Injection Mold Structure[J].Modern Manufacturing Technology and Equipment, 2019 (10):185⁃186.
11	刘庆东.热流道复杂抽芯斜顶出双色注塑模具设计[J].中国塑料,2018,32(10):138⁃142.
	LIU Q D.Design of Bi⁃color Injection Mould with Hot Runner,Complex Slides and Inclined Ejector[J], China Plastics,2018,32(10):138⁃142.
12	董磊磊,韩雷雷,张惠敏.封刀片式双色注塑模设计[J].工程塑料应用,2014,42(2):67⁃69.
	DONG L L, HAN L L, ZHANG H M,Design of Sea⁃ling Blade Type Double⁃Color Injection Mold[J].Engineering Plastics Application,2014,42(2):67⁃69.
13	刘庆东.宾利轿车某内饰件双色注塑模具设计[J].中国塑料,2017,31(8):122⁃126.
	LIU Q D. Design of Bicolor Injection Moulds for an Interior Trim Part in Bentley Automobiles[J]. China Plastics, 2017,31 (8): 122⁃126.
14	刘易凡,陈权中.带哈夫分型与内抽芯机构的双色模设计[J].工程塑料应用,2010,38(6):64⁃67.
	LIU Y F, CHEN Q Z.Design of Bi⁃color Injection Mould with Mechanisms of Half Cavity Parting and Internal Core⁃pulling[J]. Engineering Plastics Application,2010,38(6):64⁃67.
15	范有发,肖雪清.控制开关面板双色注射模设计[J].工程塑料应用,2012,40(1):51⁃54.
	FAN Y F, XIAO X Q.Design of Bi⁃color Injection Mold for Control Switch Facepanel Plastic[J]. Engineering Plastics Application,2012,40(1):51⁃54.
