Properties and Microstructure of PS⁃g⁃PBA Emulsion⁃modified Cement Mortars

doi:10.19491/j.issn.1001-9278.2021.02.005

Abstract

Abstract:

In this paper， a type of polystyrene?grafted poly（butyl acrylate）（PS-g-PBA） emulsion was synthesized and then used to modify cement mortars. The effects of mass ratios of PS to PBA and polymer to cement on the fluidity， water reduction effect， mechanical properties and capillary water absorption rate of PS-g-PBA emulsion-modified cement mortars were investigated. The results show that the water reduction effect of the three cement modifiers is excellent， and the maximum value of water reduction rate is 56.7 %. The water absorption rate of the pores of the modified cement mortar decreases obviously， and its minimum value is 0.288 kg/m².PS-g-PBA emulsion also has an important effect on the mechanical properties of modified cement mortar.The compressive strength is generally reduced， and the flexural strength of partially modified mortar is increased， and its maximum value is 8.1 MPa.The PS-g-PBA cement modifiers developed by this work are suitable for use in the modification of cement mortars.

Key words: polystyrene-grafted poly（butyl acrylate） emulsion, modification, cement mortar, property, microstructure

CLC Number:

TQ325.2

XIONG Huixia, ZHAO Wenjie. Properties and Microstructure of PS⁃g⁃PBA Emulsion⁃modified Cement Mortars[J]. China Plastics, 2021, 35(2): 29-33.

Figures/Tables 9

样品名称	水对水泥的质量比	流动度/mm
普通水泥砂浆	0.560	174
1^#?5.0	0.418	177
1^#?10.0	0.301	173
1^#?15.0	0.270	176
1^#?20.0	0.263	174
2^#?5.0	0.400	177
2^#?10.0	0.320	175
2^#?15.0	0.270	170
2^#?20.0	0.255	179
3^#?5.0	0.390	180
3^#?10.0	0.320	179
3^#?15.0	0.275	174
3^#?20.0	0.250	178

Tab.1. Flow properties of PS?g?PBA cement modifier modified cement mortars

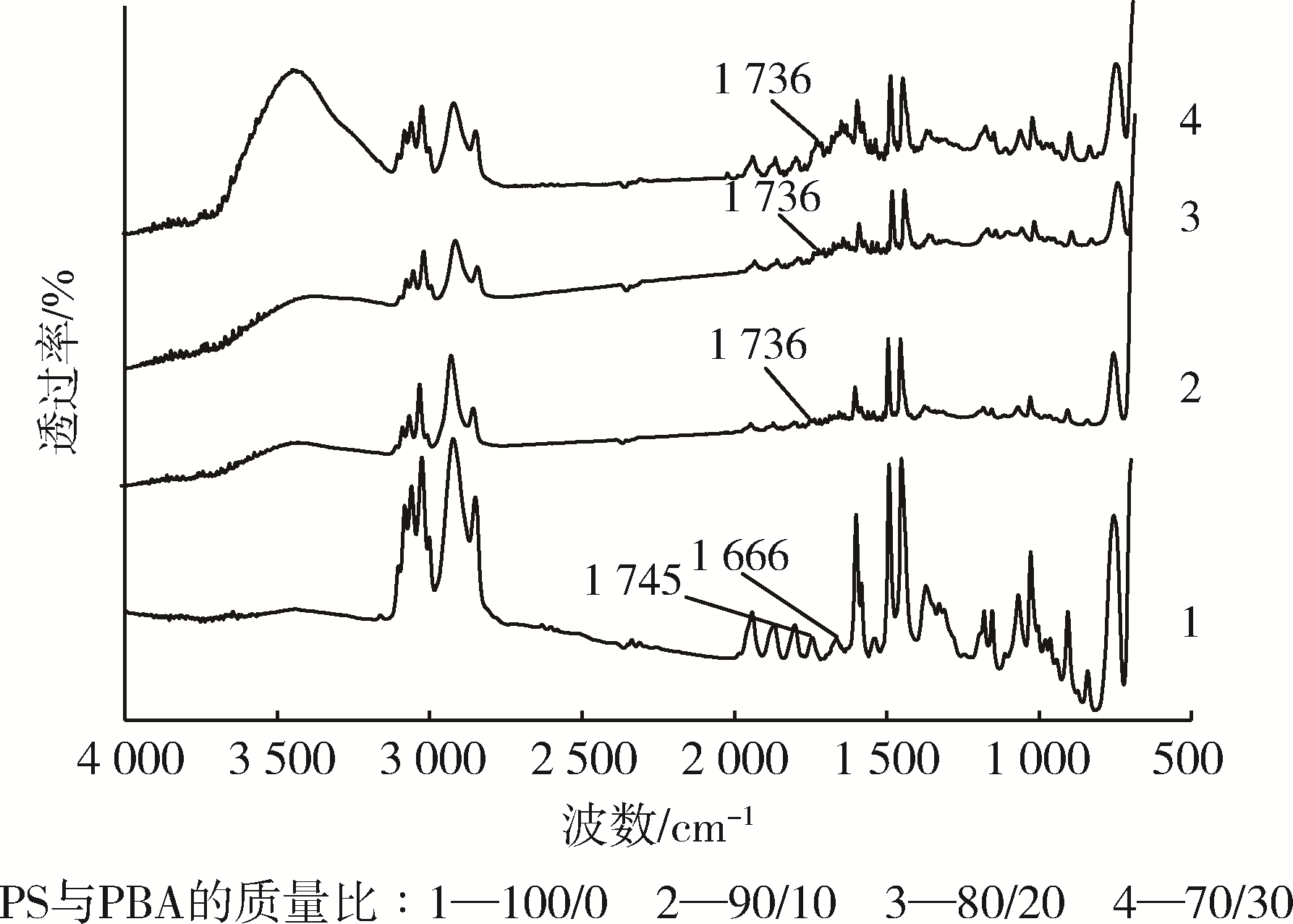

Fig.1. FTIR of PS and PS?g?PBA

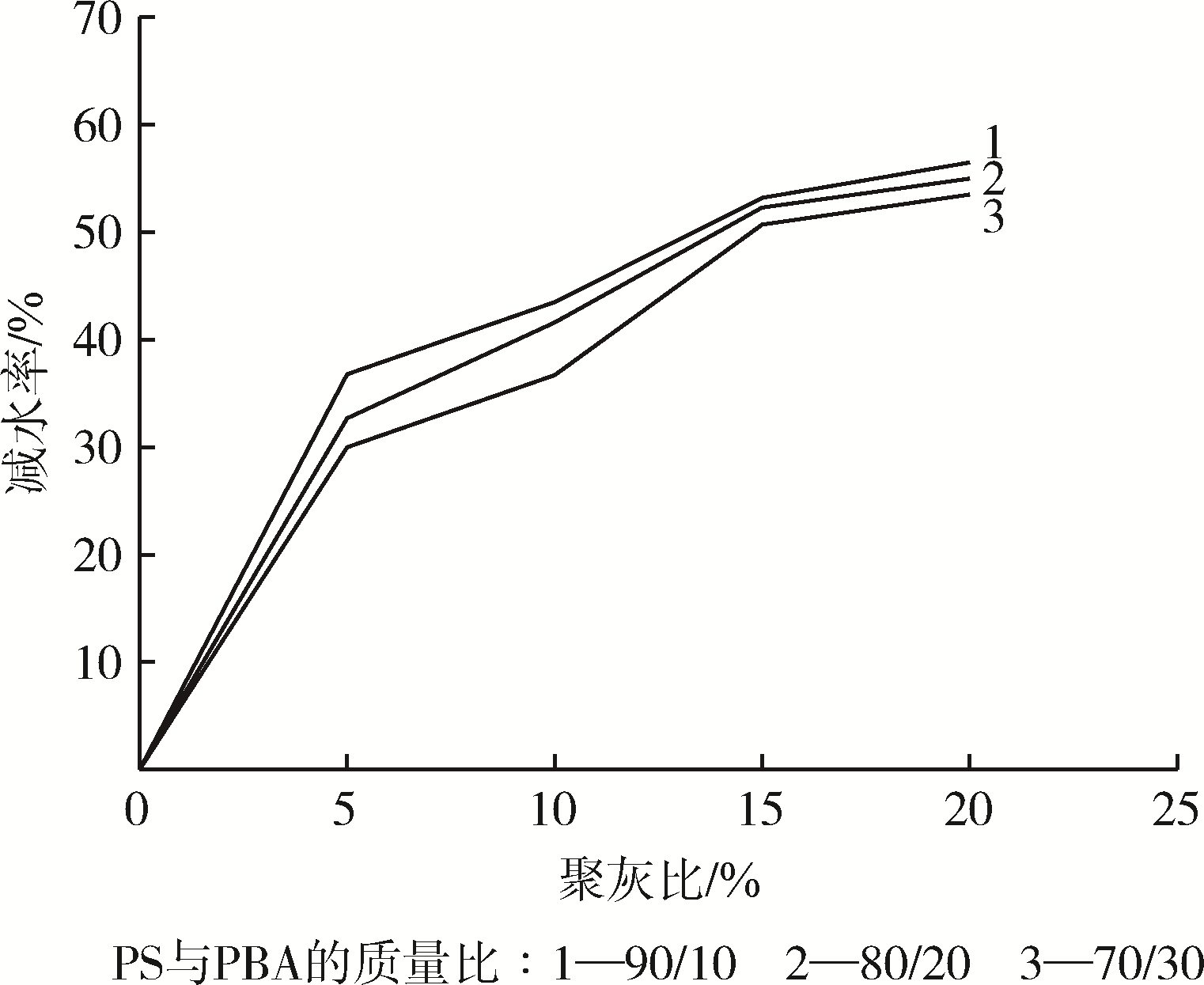

Fig.2. Water reduction rate against content of modifier

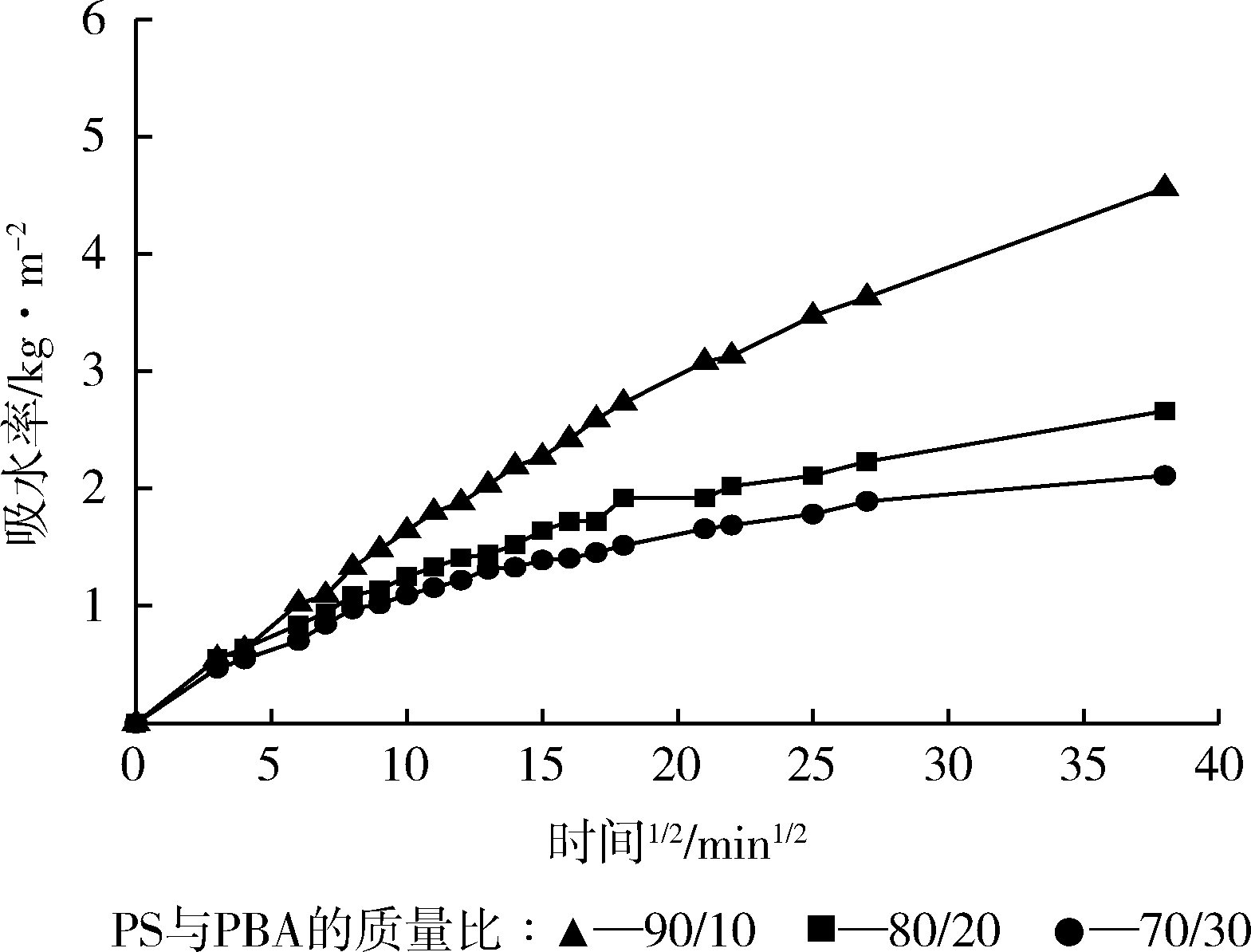

Fig.3. Absorbed water of modifier mortars against time1/2

Fig.4. Absorbed water of modifier mortars against time1/2

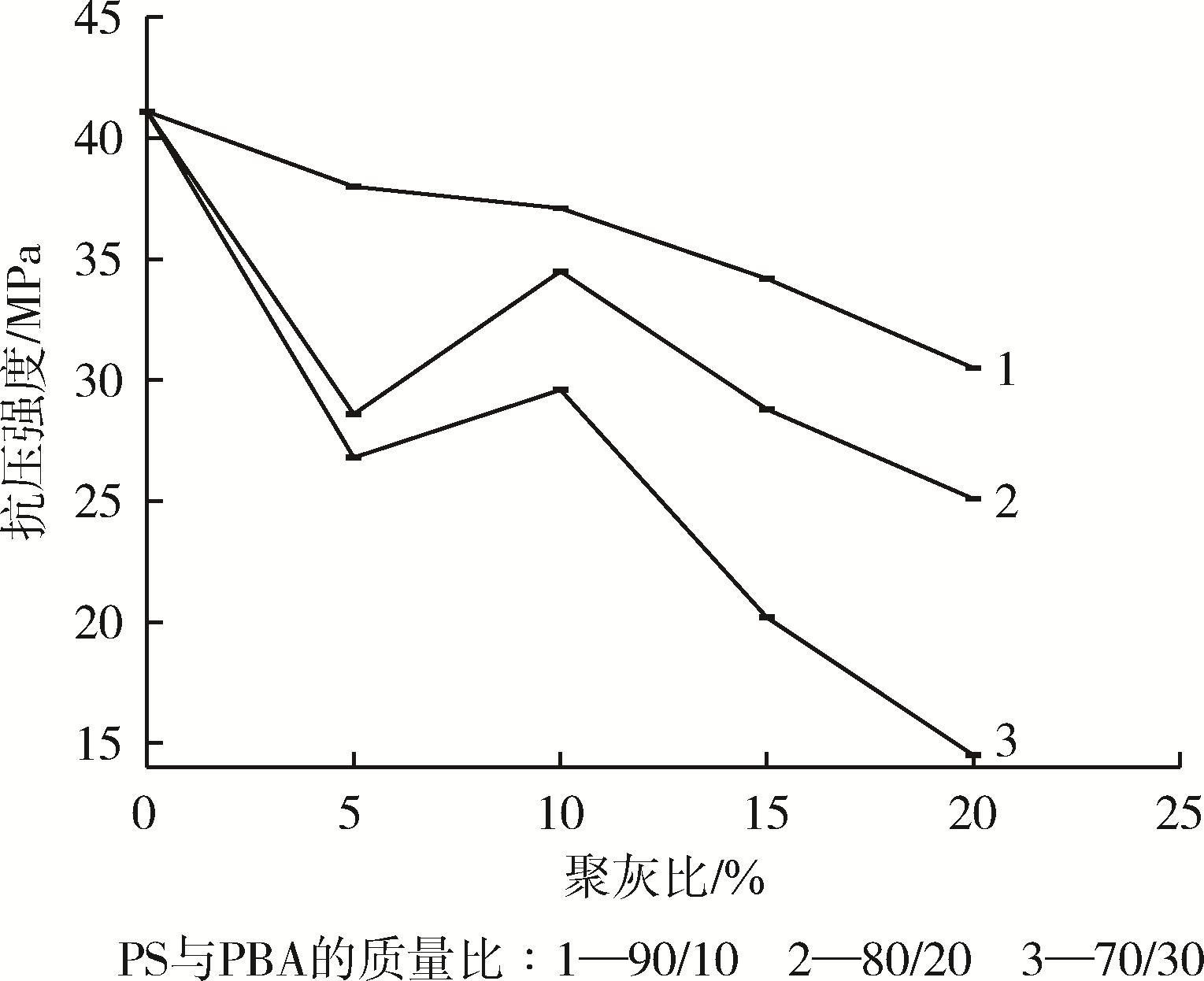

Fig.5. Compressive strength of modified mortars against modifier content

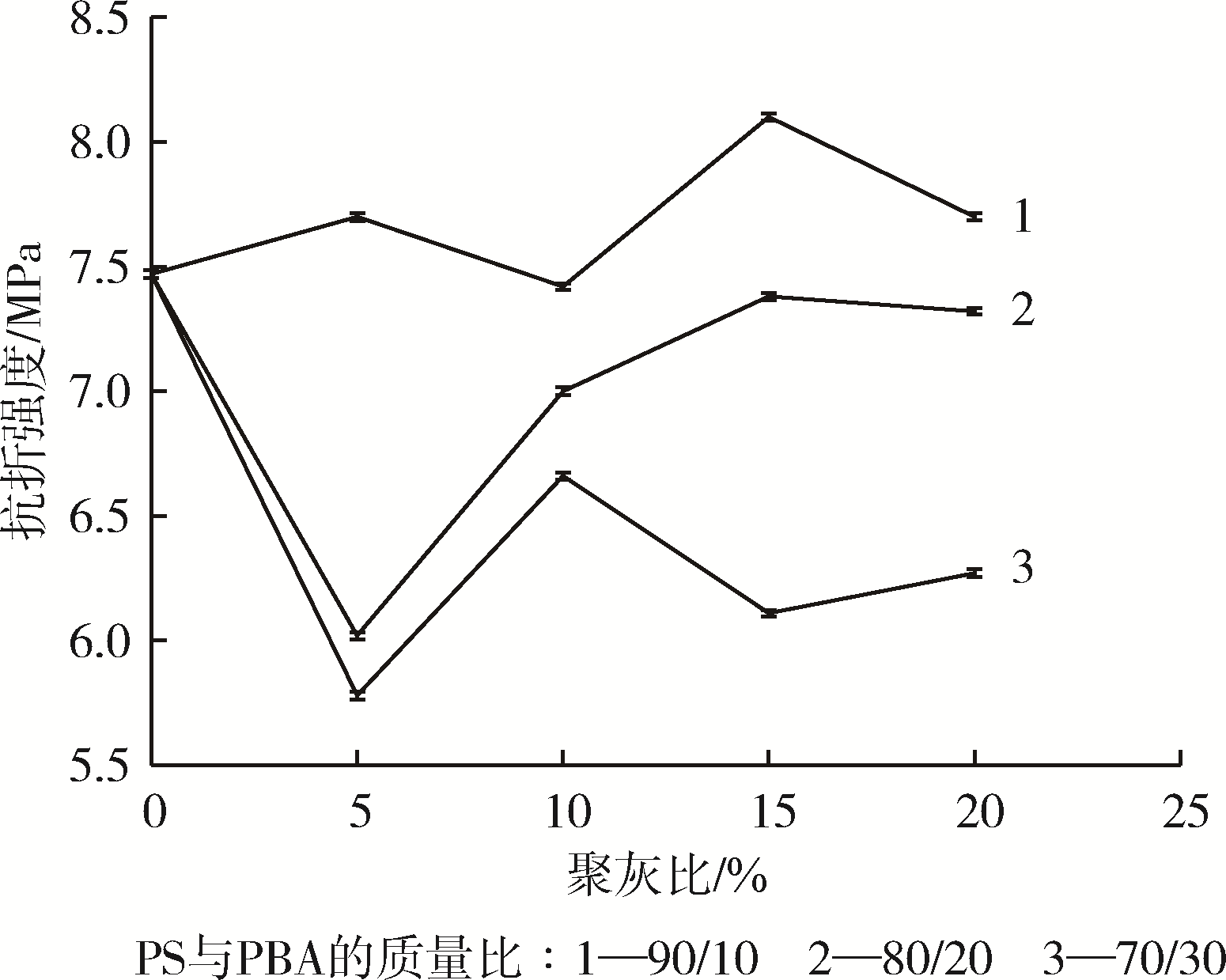

Fig.6. Flexural strength of modified mortars against modifier content

Fig.7. SEM of holes in modified cement mortar

Fig.8. SEM of latex film of modified cement mortar

References 10

1	衡艳阳，赵文杰. 苯丙乳液改性水泥基材料性能及机理研究进展［J］. 硅酸盐通报， 2014， 33（6）：1 431⁃1 438.
	HENG Y Y， ZHAO W J. Research Progress on the Pro⁃perties and Mechanism of SAEE Modified Cement Based Materials［J］. Bulletin of the Chinese Ceramic Society， 2014， 33（6）：1 431⁃1 438.
2	王茹，王培铭. 苯丙乳液水泥砂浆横向变形与压折比及其关系［J］. 建筑材料学报， 2008， 11（4）：464⁃468.
	WANG R， WANG P M. Transverse Deformation and Ratio of Compressive Strength to Flexural Strength of SAE Latex⁃Modified Mortar and Their Relationship ［J］. Journal of Building Materials，2008，11（4）： 464⁃468.
3	王茹. 聚合物乳液改性水泥砂浆性能及机理研究［D］. 上海：同济大学， 2005.
4	王硕，赵彦芝，赵文杰. 吐温⁃20对PB⁃g⁃PS胶乳改性水泥砂浆的性能影响［J］. 硅酸盐通报， 2015， 34（3）：829⁃834.
	WANG S， ZHAO Y Z， ZHAO W J. Effect of Twain⁃20 on Performance of PB⁃g⁃PS Latex Modified Cement Mortar［J］. Bulletin of the Chinese Ceramic Society， 2015， 34（3）：829⁃834.
5	OHAMA Y， DEMURA K， HAMATSU M， et al. Pro⁃perties of Polymer⁃Modified Mortars Using Styrene⁃Butyl Acrylate Latexes with Various Monomer Ratios［J］. ACI Materials Journal， 1991， 88（1）：55⁃61.
6	MERKEL M P， DIMONIE V L， AASSER M SEL， et al. Process Parameters and Their Effect on Grafting Reactions in Core/Shell Latexes［J］. Journal of Polymer Science Part A： Polymer Chemistry， 1987， 25（7）：1 755⁃1 767.
7	孙振平，叶丹玫，傅乐峰，等. 聚合物改性水泥砂浆含气量对力学性能的影响［J］. 建筑材料学报， 2013， 16（4）：561⁃566.
	SUN Z P， YE D M， FU L F， et al. Influence of Air Void Content of Polymer Modified Cement Mortar on Mechanical Properties［J］. Journal of Building Materials， 2013， 16（4）：561⁃566.
8	许绮，王培铭. 桥面用丁苯乳液改性水泥砂浆物理性能的研究［J］. 建筑材料学报， 2001， 4（2）：143⁃147.
	XU Q， WANG P M. Physical Properties of Styrene Butadiene Emulsion Modified Cement Mortar Used for Repair of Bridge Surface［J］. Journal of Building Materials， 2001， 4（2）：143⁃147.
9	张水，于洋，宁超，等. 苯丙乳液改性水泥砂浆的性能研究［J］. 混凝土与水泥制品， 2010（2）：9⁃12.
	ZHANG S， YU Y， NING C， et al. Study on the Properties of Styrene⁃Acrylic Emulsion Modified Cement Mortar［J］. China Concerete and Cement Products， 2010（2）：9⁃12.
10	梅迎军，王培铭，李志勇. 聚丙烯纤维和丁苯乳液对水泥砂浆性能的影响［J］. 建筑材料学报， 2006， 9（5）：613⁃618.
	MEI Y J， WANG P M， LI Z Y. Effect of Polypropylene Fiber and Styrene⁃Butadiene Latex on the Property of Cement Mortar［J］. Journal of Building Materials， 2006， 9（5）：613⁃618.
