Green Preparation and Properties of New Hydrophobic Rigid Polyurethane Foams

doi:10.19491/j.issn.1001-9278.2021.04.005

Abstract

Abstract:

In this study， a novel type of hydrophobic polyurethane rigid foams was prepared through a semi-prepolymerization foaming process using perfluoropolyether as a foam stabilizer and water as a green chemical foaming agent. The results indicated that the contact angle of the rigid foams increased up to 139.7 ° with an increase in the content of perfluoropolyether. The foams exhibited a higher closed cell ratio with the addition perfluoropolyether. As the content of perfluoropolyether increased， the cell became more uniform， the cell size gradually decreased， the cell density increased， and the thermal conductivity decreased significantly. The compressive strength reached up to 0.822 MPa.

Key words: rigid polyurethane, foam, foam stabilizer, water-blown method, hydrophobic property

CLC Number:

TQ 328.3

WANG Wei, WANG Dong, DONG Weifu. Green Preparation and Properties of New Hydrophobic Rigid Polyurethane Foams[J]. China Plastics, 2021, 35(4): 23-29.

Figures/Tables 9

样品编号	聚醚多元醇4110/g	全氟聚醚/g	水/g	DBTDL/g	TEOA/g	PAPI/g
RPUF?0%	100	0	1.5	0.36	0.12	140
RPUF?1%	100	2.4	1.5	0.36	0.12	140
RPUF?1.5%	100	3.6	1.5	0.36	0.12	140
RPUF?2%	100	4.8	1.5	0.36	0.12	140
RPUF?2.5%	100	6	1.5	0.36	0.12	140

Tab. 1. Formulas of different rigid polyurethane foams

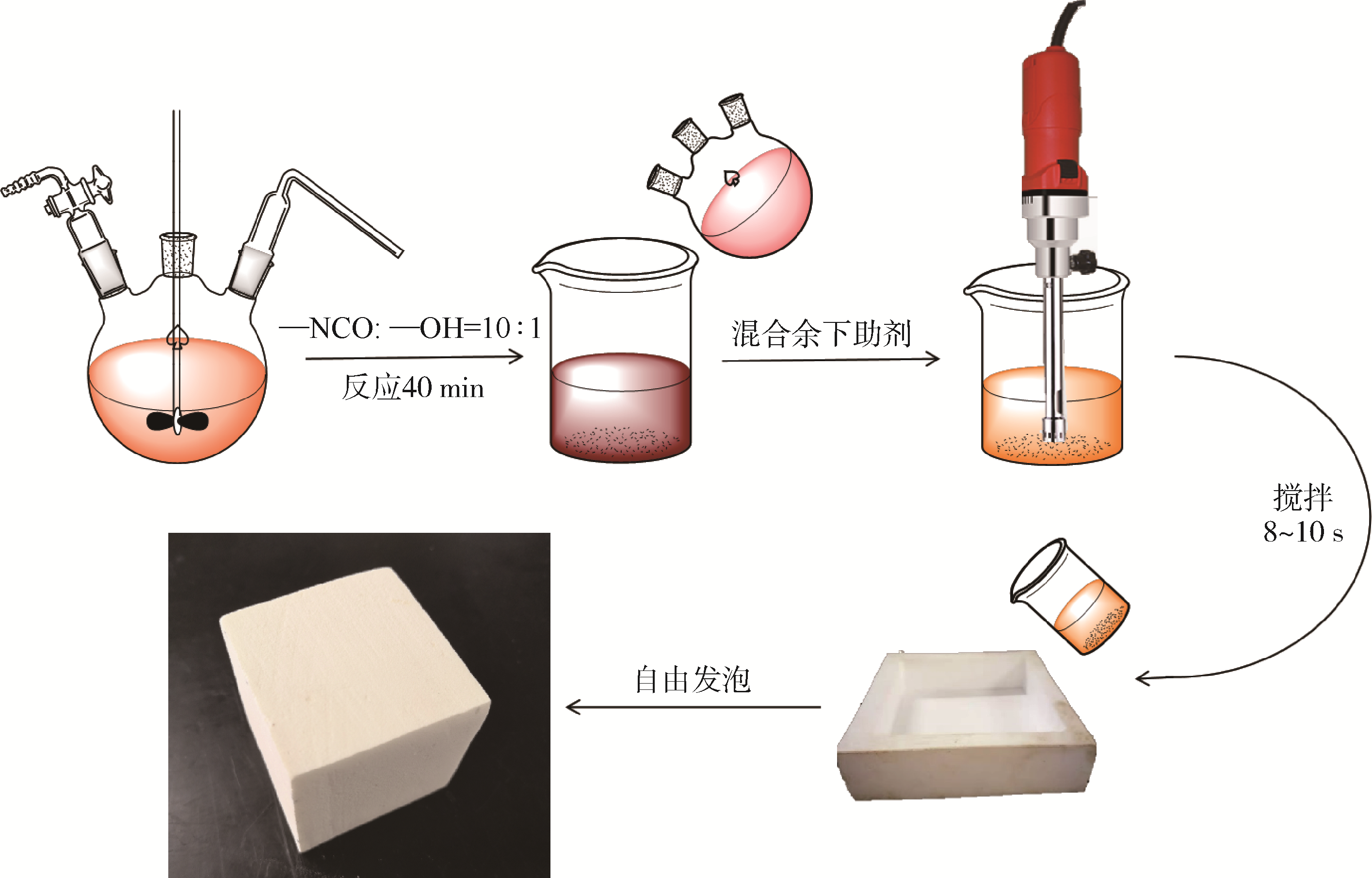

Fig.1. Scheme of the foaming process

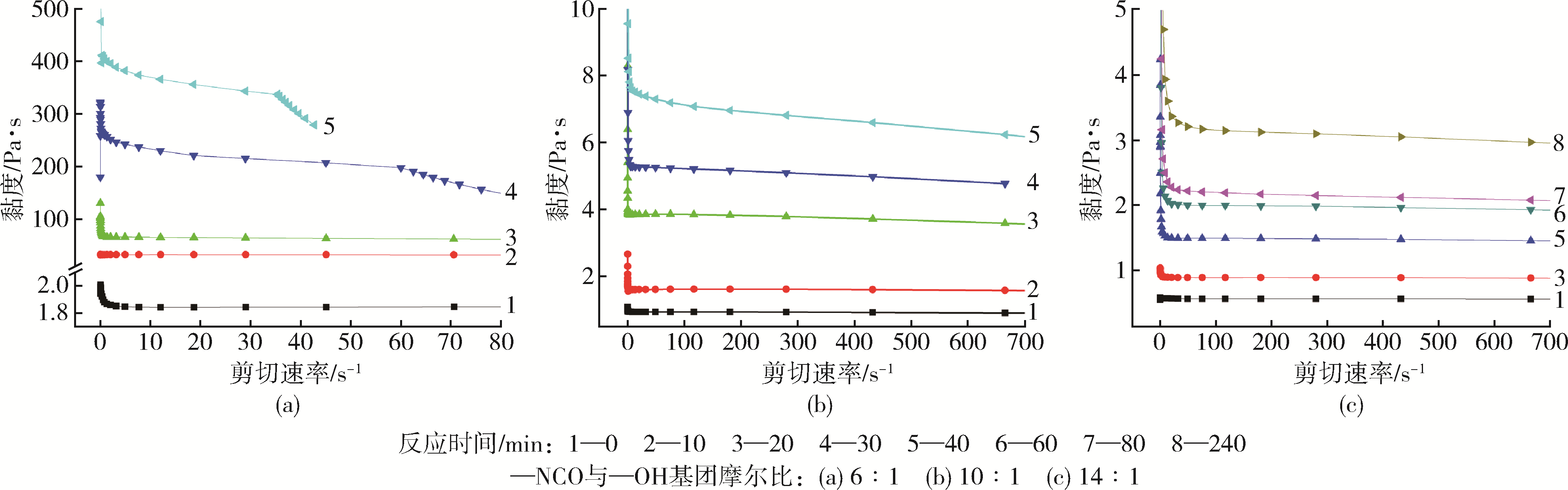

Fig.2. Relationship between viscosity and shear rate with different molar ratios of —NCO and —OH groups

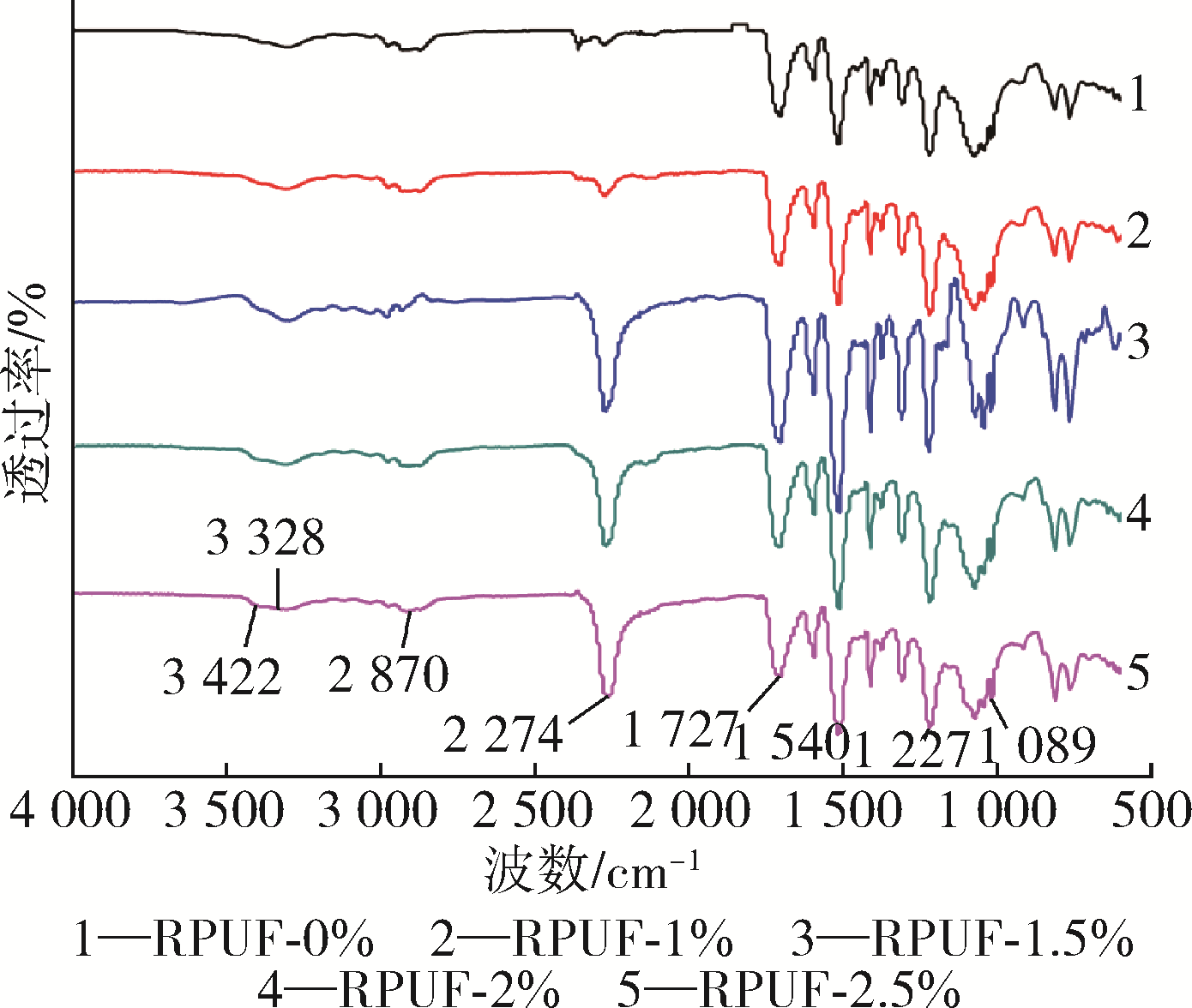

Fig.3. FTIR spectra of RPUF?0%,RPUF?1%,RPUF?1.5%,RPUF?2% and RPUF?2.5% samples

Fig.4. SEM of RPUF?0%， RPUF?1%， RPUF?1.5%， RPUF?2% and RPUF?2.5%

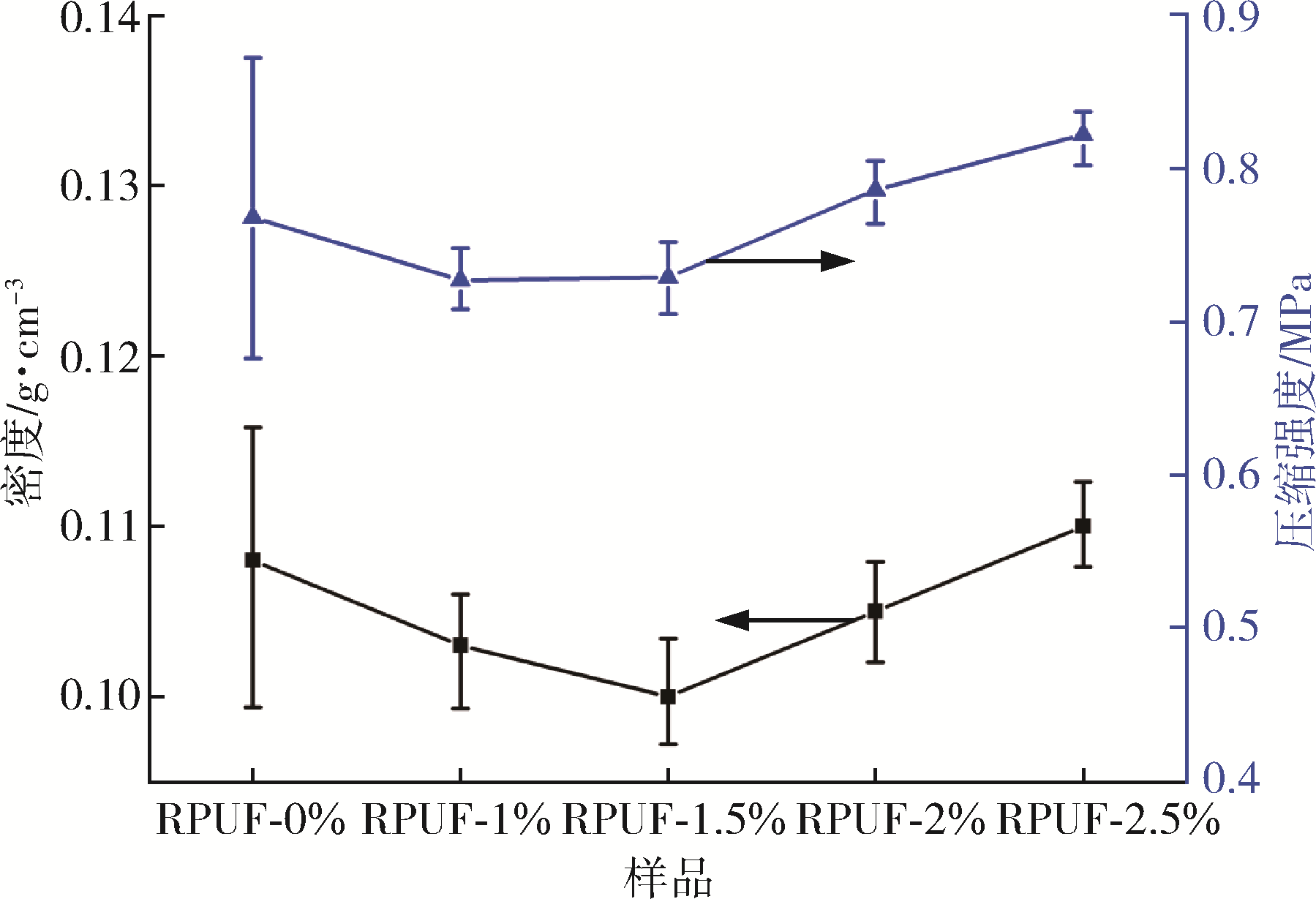

Fig.5. Density and compressive strength of different PU foams

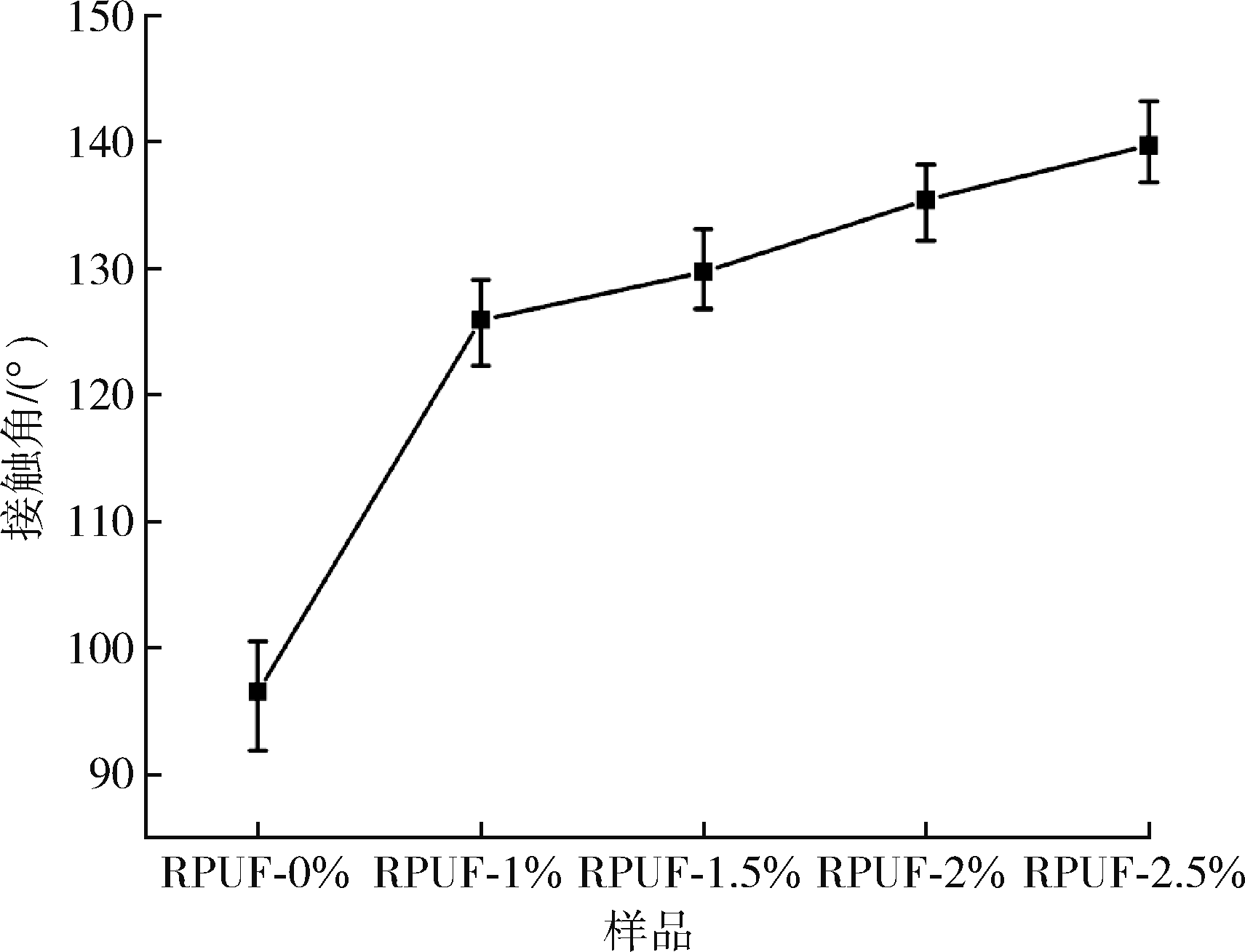

Fig.6. Water static contact angle of RPUF?0%, RPUF?1%, RPUF?1.5%, RPUF?2% and RPUF?2.5%

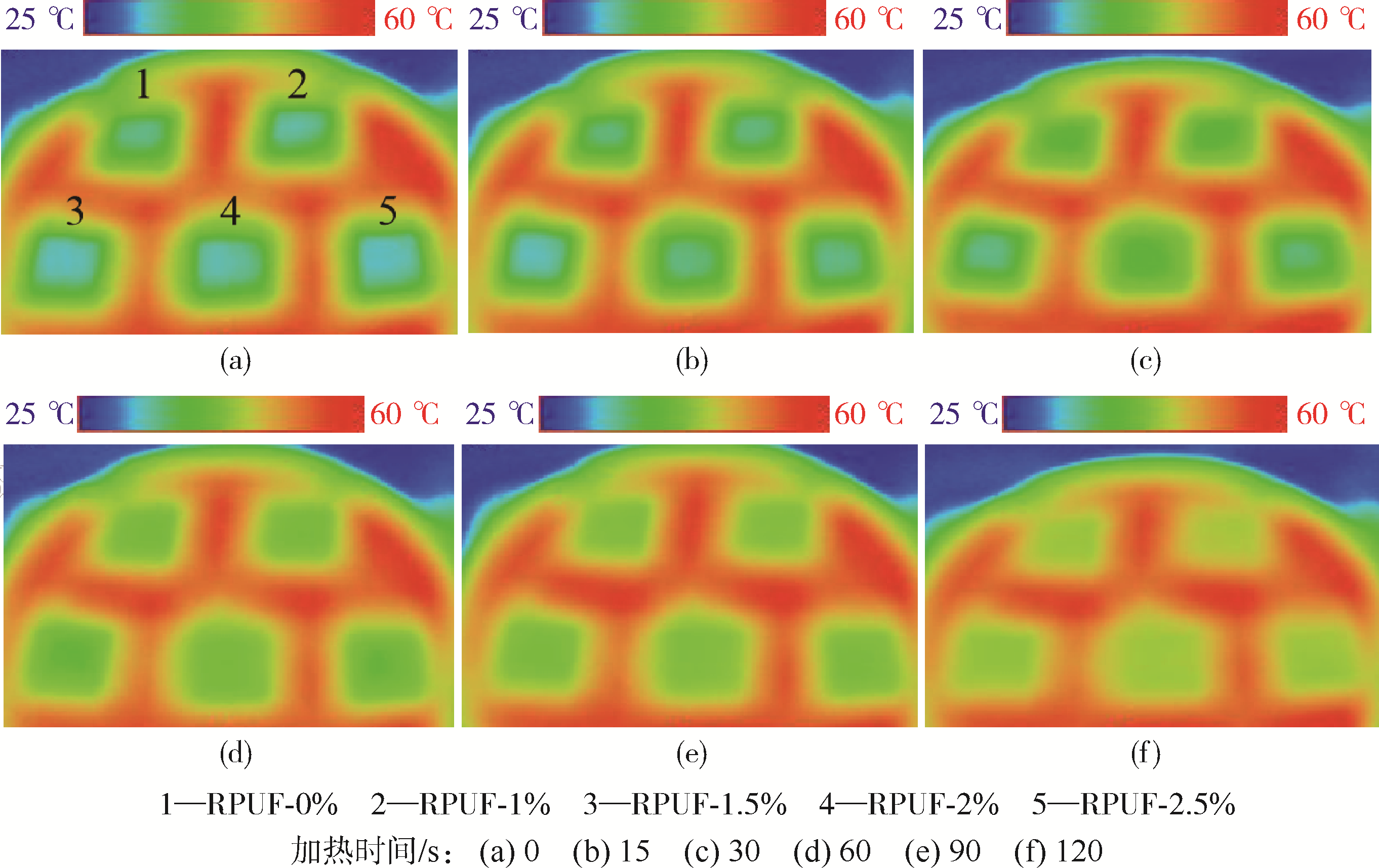

Fig.7. Infrared thermography of different samples on a 60 ℃ hot stage at different time

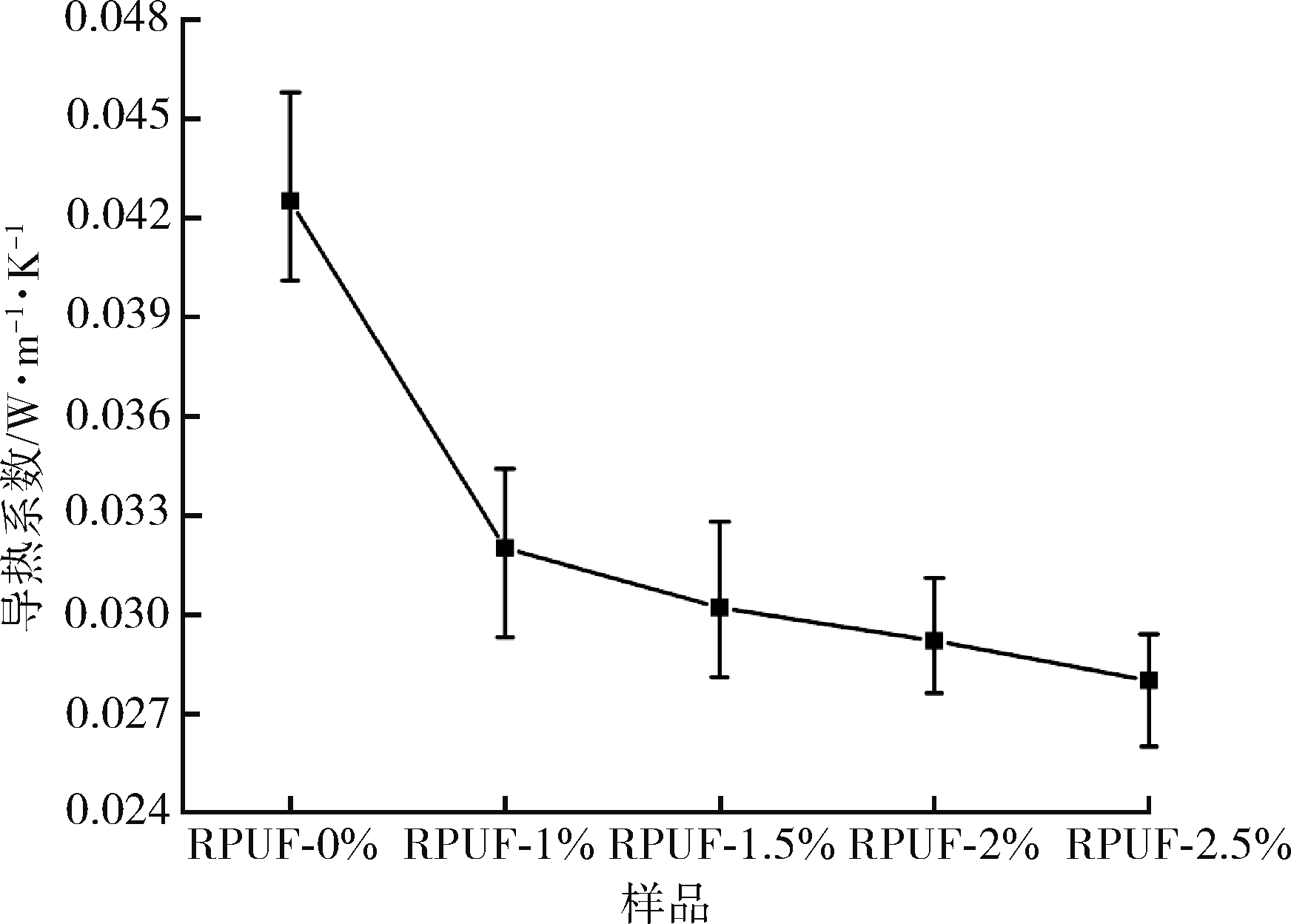

Fig.8. Thermal conductivity of the samples at 30 ℃

References 26

1	XUE B L， WEN J L， SUN R C. Lignin⁃Based Rigid Polyurethane Foam Reinforced with Pulp Fiber： Synthesis and Characterization ［J］. ACS Sustain Chem Eng， 2014，（2）： 1 474⁃1 480.
2	马天信，姜波. 聚氨酯材料在航天工业方舱中的应用［J］. 聚氨酯工业， 2003（01）： 32⁃34.
	MA T X， JIANG B. Application of Polyurethane Materials in Shelter Equipment of Aerospace Industry ［J］. Polyurethane Industry， 2003（01）： 32⁃34.
3	LORENA U， SANDRA G F， CRISTINA P R， et al. Tailoring Mechanical Properties of Rigid Polyurethane Foams by Sorbitol and Corn Derived Biopolyol Mixtures ［J］. ACS Sustain Chem Eng， 2015（3）： 3 382⁃3 387.
4	PIERRE F， REMI P， ANDREAS R， et al. Synthesis and Characterization of Polyurethane Foams Derived of Fully Renewable Polyester Polyols from Sorbitol ［J］. Eur Polym J， 2017， 97： 319⁃327.
5	WANG S Y， LIU W F， YANG D J， et al. Highly Resilient Lignin⁃Containing Polyurethane Foam ［J］. Ind Eng Chem Res， 2019， 58： 496⁃504.
6	YU Z L， YANG N， VARVARA A K， et al. Fire⁃Retardant and Thermally Insulating Phenolic⁃Silica Aerogels ［J］. Angew Chem Int Ed， 2018， 57： 4 538⁃4 542.
7	ZHANG X F， YUNSANG K， THOMAS L E， et al. Lab⁃scale Structural Insulated Panels with Lignin⁃incorporated Rigid Polyurethane Foams as Core ［J］. Ind Crop Prod， 2019， 132： 292⁃300.
8	WANG Y G， ZHU Y M， YANG C， et al. Facile Two⁃Step Strategy for the Construction of a Mechanically Stable Three⁃Dimensional Superhydrophobic Structure for Continuous Oil-Water Separation ［J］. ACS Appl Mater Interfaces， 2018， 10：24 149⁃24 156.
9	杨春光，徐鹤，杜长明. 纳米SiO₂对以HFC⁃365mfc为发泡剂的硬质聚氨酯泡沫的性能影响研究［J］. 中国塑料， 2014， 28（09）： 30⁃35.
	YANG C G， XU H， DU C M. Study on Influence of Nano⁃SiO₂ on Properties of Rigid Polyurethane Foam with Blowing Agent of HFC⁃365mfc ［J］. China Plastics， 2014， 28（9）： 30⁃35.
10	张欢欢，王杰，黄刚，等. 汽车用聚氨酯减振材料的结构与性能［J］. 高分子学报， 2016， 10： 1 447 – 1 454.
	ZHANG H H， WANG J， HUANG G， et al. Structure and Properties of the Polyurethane Damping Materials Used in Automobiles ［J］. Acta Polymerica Sinica， 2016， 10： 1 447⁃1 454.
11	朱吕民，刘益军. 聚氨酯泡沫塑料［M］. 第三版. 北京：化学工业出版社， 2005： 10⁃50.
12	武元鹏，周昌亮，薛诗山，等. 羧甲基纤维素钠修饰的聚氨酯泡沫制备磁性吸油材料［J］. 高分子学报， 2017，（03）： 516⁃523.
	WU Y P， ZHOU C L， XUE S S， et al. Preparation and Oil Absorption of Magnetic and Porous Materials Based on Carboxymethyl Cellulose Sodium Modified Polyurethane Foams ［J］. Acta Polymerica Sinica， 2017，（03）： 516⁃523.
13	MARTIAL P， MARC D， KARINE C， et al. Fluorination/Torrefaction Combination to Further Improve the Hydrophobicity of Wood ［J］. Macromol Chem Phys， 2019， 220（14）.
14	杨维，王海波，成煦，等. 侧链型水性含氟聚氨酯的制备及性能研究［J］. 工程科学与技术， 2019， 51（03）： 212⁃220.
	YANG W， WANG H B， CHENG X， et al. Synthesis and Properties of Side Chained Waterborne Fluorinated Polyurethanes ［J］. Advanced Engineering Sciences， 2019，51（03）： 212⁃220.
15	WU F， KYLENE P， ABHISHEK P， et al. Superhydrophobic Polyurethane Foam Coated with Polysiloxane⁃Mod⁃ified Clay Nanotubes for Efficient and Recyclable Oil Absorption ［J］. ACS Appl Mate Interfaces， 2019， 11： 25 445⁃25 456.
16	HOEFLING T A ， BEITLE R R， ENICK R M， et al. Design and Synthesis of Highly CO₂⁃soluble Surfactants and Chelating Agents ［J］. Fluid Phase Equilib， 1993， 83： 203⁃212.
17	O’NEILL M L， CAO Q， FANG M， et al. Solubility of Homopolymers and Copolymers in Carbon Dioxide ［J］. Ind Eng Chem Res， 1998， 37： 3 067⁃3 079.
18	WANG S J， LIU W Q， TAN J Q. Synthesis and Properties of Fluorine⁃containing Polyurethane based on Long Chain Fluorinated Polyacrylate ［J］. J Macromol Sci A.， 2016， 53（1）： 41⁃48.
19	李慧，韩兵，常宏宏，等. 亲二氧化碳化合物的研究进展［J］. 化学试剂， 2016， 38（01）： 27⁃33.
	LI H， HAN B， CHANG H H， et al. Progress of CO₂⁃philes ［J］. Chemical Reagents， 2016， 38（01）： 27⁃33.
20	HOEFLING T A， ENICK R M， BECKMAN E J. Microemulsions in Near⁃critical and Supercritical Carbon Dioxide ［J］. Phys. Chem， 1991， 95：7 127⁃7 129.
21	梁康宁，聂崇实. 常温加压下氮、氧和二氧化碳在全氟三丙胺和全氟萘烷中的溶解度［J］.化学学报， 1989（1）： 60⁃63.
	LIANG K N， NIE C S. The Solubilities of Nitrogen， Oxygen and Carbon Dioxide in Tri（perfluoro⁃propyl）amine （FTPA） and Perfluorodecalin （FDC） at Elevated Pressures and Ambient Temperature ［J］. Acta Chimica Sinica， 1989（01）： 60⁃63.
22	冯卉，郭晓林，李丽，等. 我国氢氯氟烃加速淘汰第二阶段面临的挑战及建议［J］. 聚氨酯工业， 2016， 31（6）： 1⁃4.
	FENG H， GUO X L， LI L， et al. Challenges and Suggestions on HCFC Phase⁃Out of China at the Second Stage ［J］. Polyurethane Industry， 2016， 31（6）： 1⁃4.
23	孔维维. 有机蒙脱土改性硬质聚氨酯泡沫复合材料的研究［D］. 杭州：浙江大学，2010.
24	梁书恩. 聚氨酯泡沫塑料泡孔结构与力学性能关系的研究［D］. 绵阳：中国工程物理研究院， 2005.
25	ATHANASIA A S， DAVID A C E， PRATHEEP K A， et al. A Systematic Study Substituting Polyether Polyol with Palm Kernel Oil Based Polyester Polyol in Rigid Polyurethane Foam ［J］. Ind Crop Prod， 2017， 107： 114⁃121.
26	AN S Y， GALEN J S， TUSHAR K G. Simulation of the Optimized Thermal Conductivity of a Rigid Polyurethane Foam during Its Foaming Process ［J］. Fiber Polym， 2019， 20（2）： 358⁃374.
