Study on Interface Modification Methods and Properties of PLA/Rice Husk Powder Composites

doi:10.19491/j.issn.1001-9278.2021.06.013

Abstract

Abstract:

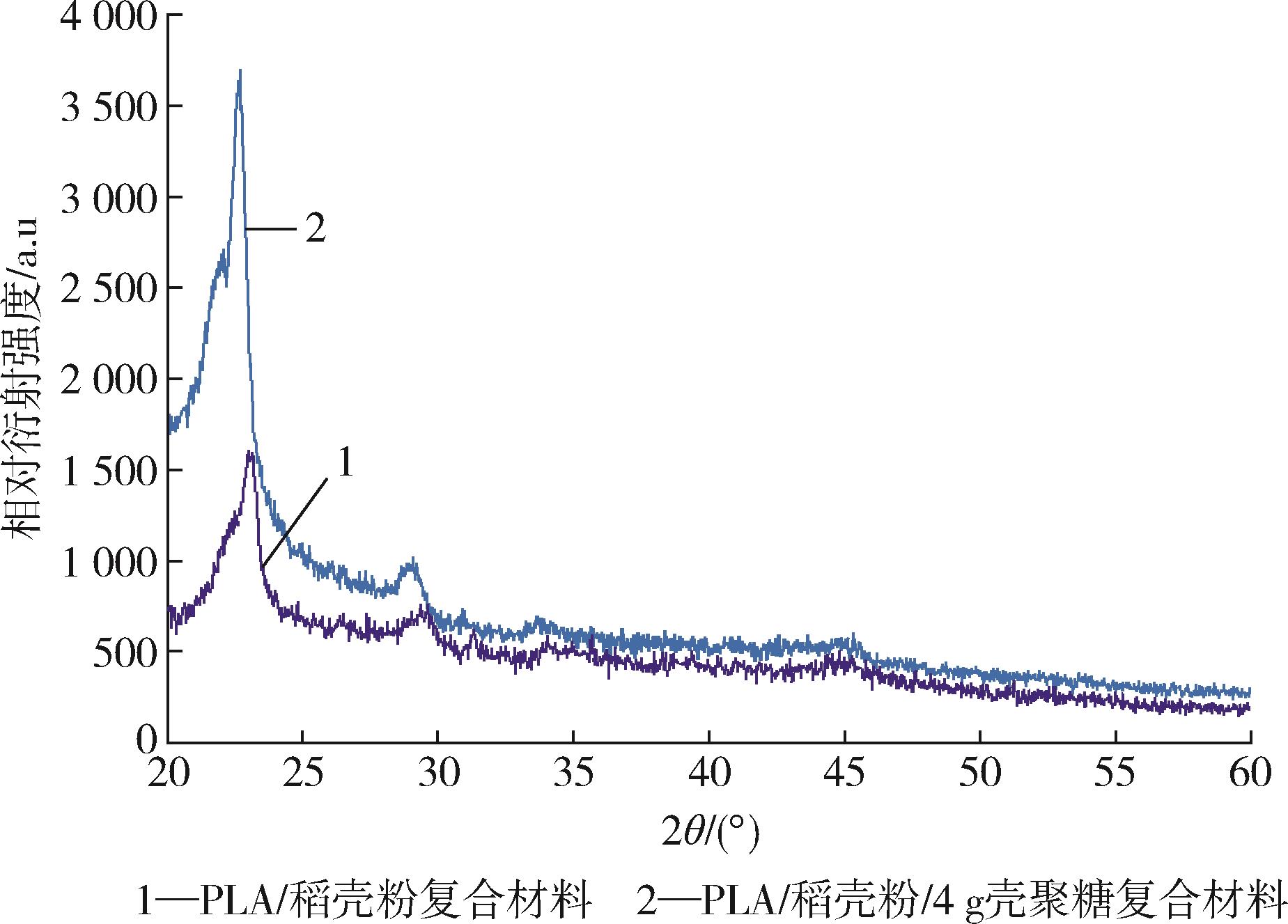

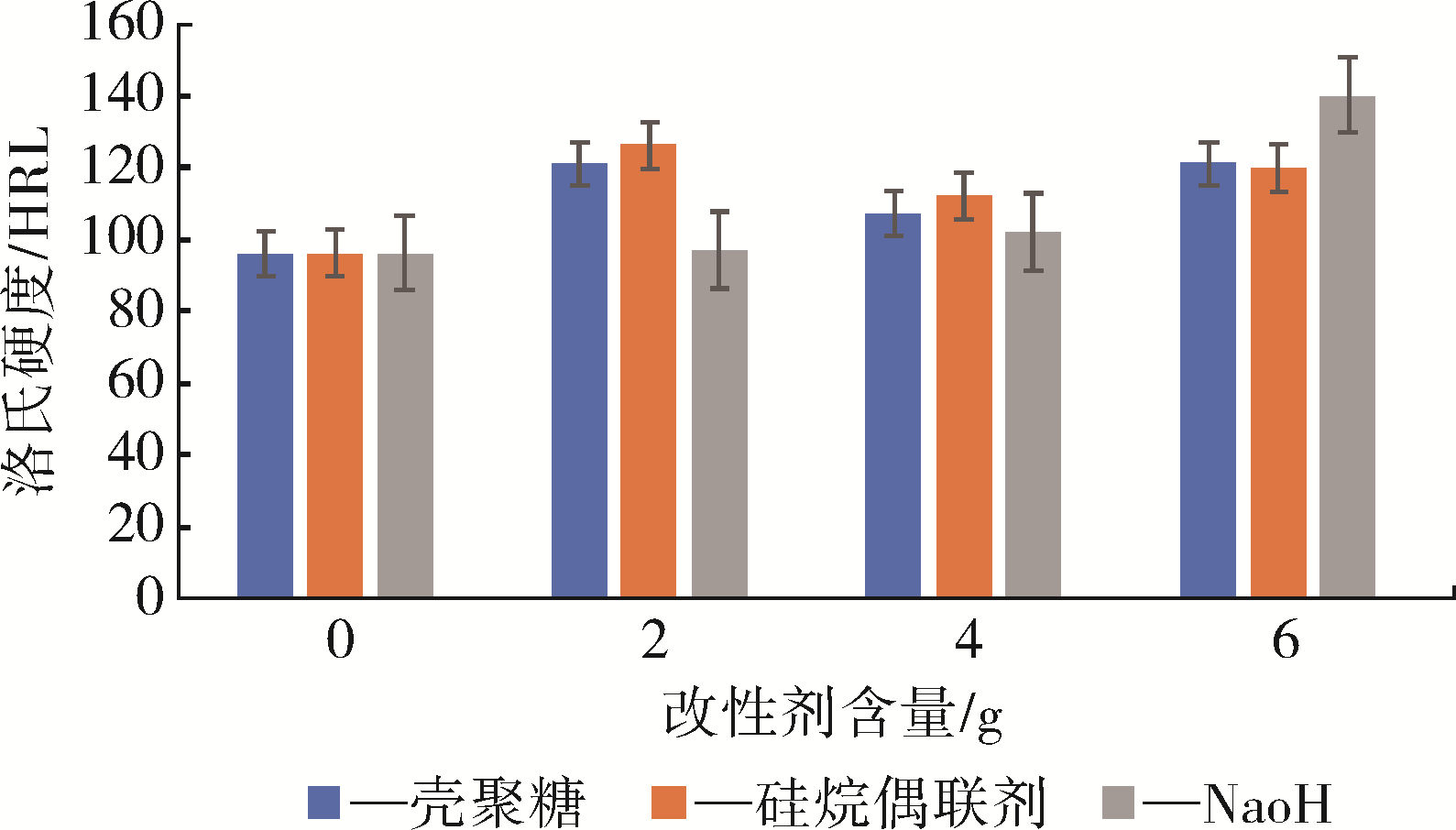

PLA/rice husk powder wood plastic composites were prepared by a compression molding method with chitosan， silane?coupling agent and sodium hydroxide as modifiers. Their mechanical properties and water absorption of the composites were characterized， and their crystalline structures were analyzed with XRD. The results indicated that the composites exhibited a higher Rockwell hardness at a chitosan mass of 4 g， and their impact strength， bending strength， tensile strength， and water absorption increased by 22 %， 77 %， 48 %， and 40 % respectively. When the content of silane coupling agent was 2 g， their impact strength， bending strength and tensile strength increased by 32 %， 78 % and 61 %， respectively， but their water absorption decreased by 7 %. When the rice husk powders were treated with 6 g sodium hydroxide， the composites did not show a significant enhancement in mechanical properties， and their water absorption increased by 15 %. In summary， silane coupling agent has a good comprehensive modification effect on the composites， chitosan can better improve the mechanical properties of the composites， and NaOH is an excellent hydrophilic modifier.

Key words: rice husk powder, poly（lactic acid）, composite, mechanical property, coupling agent

CLC Number:

TQ321

SUN Dongbao, LU Qin, LU Xinyu, JIA Wangyi, CAO Shang. Study on Interface Modification Methods and Properties of PLA/Rice Husk Powder Composites[J]. China Plastics, 2021, 35(6): 80-84.

Figures/Tables 5

References 11

1	陈娟，苗青青，王建荣，等.天然植物纤维木塑复合材料的研究进展［J］.济南大学学报（自然科学版），2020，34（1）：47⁃51.
	CHEN J， MIAO Q Q， WANG J R， et al. Research Pro⁃gress of Natural Plant Fiber Wood⁃Plastic Composites ［J］. Journal of University of Jinan（Science and Technology），2020，34（1）：47⁃51.
2	鲁礼娟.我国木塑复合材料的生产现状及发展趋势［J］.木材加工机械，2008，19（6）：40⁃42.
	LU L J. The Current Production Status and Development Trend of Wood Polymer Composites in China［J］. Wood Processing Machiner，2008，19（6）：40⁃42.
3	RAY S S，Okamoto M.New Polylactide/Layered Silicate Nanoxomposites，6 Melt Rheology and Foam Processing［J］.Macromolecular Materials and Engineering，2003，288（12）：936⁃944.
4	戚豹.稻壳—木塑复合材料建筑模板发展及前景［J］.塑料工业，2016，44（9）：141⁃144.
	QI B. Development and Prospect of Rice Husk⁃Wood Plastic Composite Building Formwork ［J］. China Plastics Industry，2016，44（9）：141⁃144.
5	赵泊祺，路琴，张薇，等.不同增韧剂对PLA/稻壳木塑复合材料力学性能影响［J］.工程塑料应用，2020，48（1）：24⁃29.
	ZHAO B Q， LU Q， ZHANG W， et al. Effect of Different Toughening Agents on Mechanical Properties of PLA /Rice Husk Wood⁃Plastic Composites ［J］.Engineering Plastics Application，2020，48（1）：24⁃29.
6	李文军，蒋寅魁，黄海啸，等.稻壳/聚丙烯绿色复合材料的制备及性能研究［J］.塑料工业，2020，48（5）：99⁃102，160.
	LI W J， JIANG Y K， HUANG H X， et al. Preparation and Properties of Rice Husk / Polypropylene Green Composites ［J］. China Plastics Industry，2020，48（5）：99⁃102，160.
7	易疆川，黄超，严琰，等.聚乳酸（PLA）/皮粉复合材料的性能研究［J］.宁波工程学院学报，2014，26（1）：54⁃62.
	YI J C， HUANG C， YAN Y， et al.Properties of Compo⁃sites Based on Poly （lactic acid）（PLA） and Scrap Leather Fibers （SLFs）［J］.Journal of Ningbo University of Technology，2014，26（1）：54⁃62.
8	周长奉，彭培辉，吴彩茵茵，等.硅烷偶联剂对PLA/木粉复合材料性能的影响［J］.塑料科技，2014，42（12）：85⁃89.
	ZHOU C F， PENG P H， WU C Y Y， et al. Effect of Silane Coupling Agent on Properties of PLA / Wood Flour Composites ［J］. Plastics Science and Technology，2014，42（12）：85⁃89.
9	林文，马超，龚晓钟，.聚乳酸改性研究［J］.广州化工，2010，38（9）：62⁃63.
	LIN W， MA C， GONG X Z. Study on Modification Polylactic Acid ［J］ Guangzhou Chemical Industry，2010，38（9）：62⁃63.
10	冯刚，赵加伟.聚乳酸改性及成型加工研究进展［J］.工程塑料应用，2012，40（10）：105⁃108.
	FENG G， ZHAO J W. Based on Modified Polylactic Acid Processing Methods ［J］. Engineering Plastics Application，2012，40（10）：105⁃108.
11	常萧楠，何春霞，付菁菁，等.竹炭和壳聚糖对聚氯乙烯基木塑复合材料界面性能的影响［J］.复合材料学报，2016，33（9）：2 022⁃2 029.
	CHANG X N， HE C X， FU J J， et al. Effects of Bamboo Charcoal and Chitosan on Interfacial Property of Polyvinyl Chloride Based Wood⁃Plastic Composites［J］. Acta Materiae Compositae Sinica，2016，33（9）：2 022⁃2 029.

改性剂种类	改性剂含量/g	拉伸强度/MPa	弯曲强度/MPa	冲击强度/MJ·m^-2
无	0	7.96±0.98	9.53±0.72	5.13±0.93
壳聚糖	2	8.17±0.85	10.56±0.83	5.84±0.81
	4	11.67±0.73	16.21±0.94	6.22±0.75
	6	10.56±0.83	10.56±0.87	5.98±0.68
硅烷偶联剂	2	13.11±0.95	14.57±0.64	7.71±0.73
	4	12.06±0.78	16.93±0.92	6.19±0.85
	6	11.96±0.75	16.34±0.73	9.66±0.96
NaOH	2	5.52±0.82	5.67±0.86	4.54±0.87
	4	4.51±0.91	5.88±0.79	4.26±0.65
	6	8.07±0.84	5.72±0.84	5.43±0.87

改性剂种类	改性剂含量/g	拉伸强度/MPa	弯曲强度/MPa	冲击强度/MJ·m^-2
无	0	7.96±0.98	9.53±0.72	5.13±0.93
壳聚糖	2	8.17±0.85	10.56±0.83	5.84±0.81
	4	11.67±0.73	16.21±0.94	6.22±0.75
	6	10.56±0.83	10.56±0.87	5.98±0.68
硅烷偶联剂	2	13.11±0.95	14.57±0.64	7.71±0.73
	4	12.06±0.78	16.93±0.92	6.19±0.85
	6	11.96±0.75	16.34±0.73	9.66±0.96
NaOH	2	5.52±0.82	5.67±0.86	4.54±0.87
	4	4.51±0.91	5.88±0.79	4.26±0.65
	6	8.07±0.84	5.72±0.84	5.43±0.87

改性剂种类	改性剂含量/ g
改性剂种类	改性剂含量/ g	12	24	48
—	0	15±2.1	23±2.2	22±2.2
壳聚糖	2	21±1.9	22±1.1	26±2.5
	4	15±2.2	20±2.3	21±2.3
	6	10±2.3	13±1.5	17±1.6
硅烷偶联剂	2	11±1.5	13±1.8	14±2.3
	4	13±2.5	8±2.3	12±1.8
	6	16±2.2	14±2.2	17±1.9
NaOH	2	37±1.7	39±1.9	43±1.5
	4	43±2.2	41±2.4	46±1.6
	6	37±2.1	36±1.6	39±2.2

改性剂种类	改性剂含量/ g
改性剂种类	改性剂含量/ g	12	24	48
—	0	15±2.1	23±2.2	22±2.2
壳聚糖	2	21±1.9	22±1.1	26±2.5
	4	15±2.2	20±2.3	21±2.3
	6	10±2.3	13±1.5	17±1.6
硅烷偶联剂	2	11±1.5	13±1.8	14±2.3
	4	13±2.5	8±2.3	12±1.8
	6	16±2.2	14±2.2	17±1.9
NaOH	2	37±1.7	39±1.9	43±1.5
	4	43±2.2	41±2.4	46±1.6
	6	37±2.1	36±1.6	39±2.2
