Effect of Heat Treatment on Mechanical Properties of EP/CF and EP/CF/GF

doi:10.19491/j.issn.1001-9278.2021.09.004

Abstract

Abstract:

The development of high?performance fiber?reinforced composite materials to replace traditional metal materials is considered as one of the most effective ways to realize the lightweight of automobiles. However， the application safety of automobile has risen an emerging for the high?temperature resistance of composite materials. This work focuses on the influence of high temperature treatment on the mechanical properties of composite materials. Epoxy resin （EP）/carbon fiber （CF） and EP/CF/glass mat （GF） composites were prepared through vacuum assisted resin transfer molding （VARTM）.The relationship between the square of resin flow distance and the flow time in the two fiber layup modes was explored， and the permeability of the two fiber layup systems was investigated comparatively. Two types of composites were treated at high temperatures and their mechanical properties before and after the high temperature treatment were analyzed. The tensile fracture morphology of the composites was observed by scanning electron microscopy. The results indicated that the loose structure of GF felt in the EP/CF/GF composites made the resin flow more easily. The Young's modulus and tensile strain of EP/CF composites decreased by 9.97 % and 11.36 %， respectively. However， the effect of heat treatment on the EP/CF/GF composites was insignificant. The addition of GF felt resulted in a decrease in the flexure properties of the two composites. The fracture surface of the composites without heat treatment was smooth. However， after heat treatment， the fracture surface became rough with significant deformation of the matrix.

Key words: vacuum assisted resin transfer molding, carbon fiber, glass fiber mat, composite, mechanical property

CLC Number:

TQ323.5

FANG Mei, TAN Kunlun, TAN Yuan, XU Jingwei, HUANG Ming, ZHANG Na. Effect of Heat Treatment on Mechanical Properties of EP/CF and EP/CF/GF[J]. China Plastics, 2021, 35(9): 21-26.

Figures/Tables 7

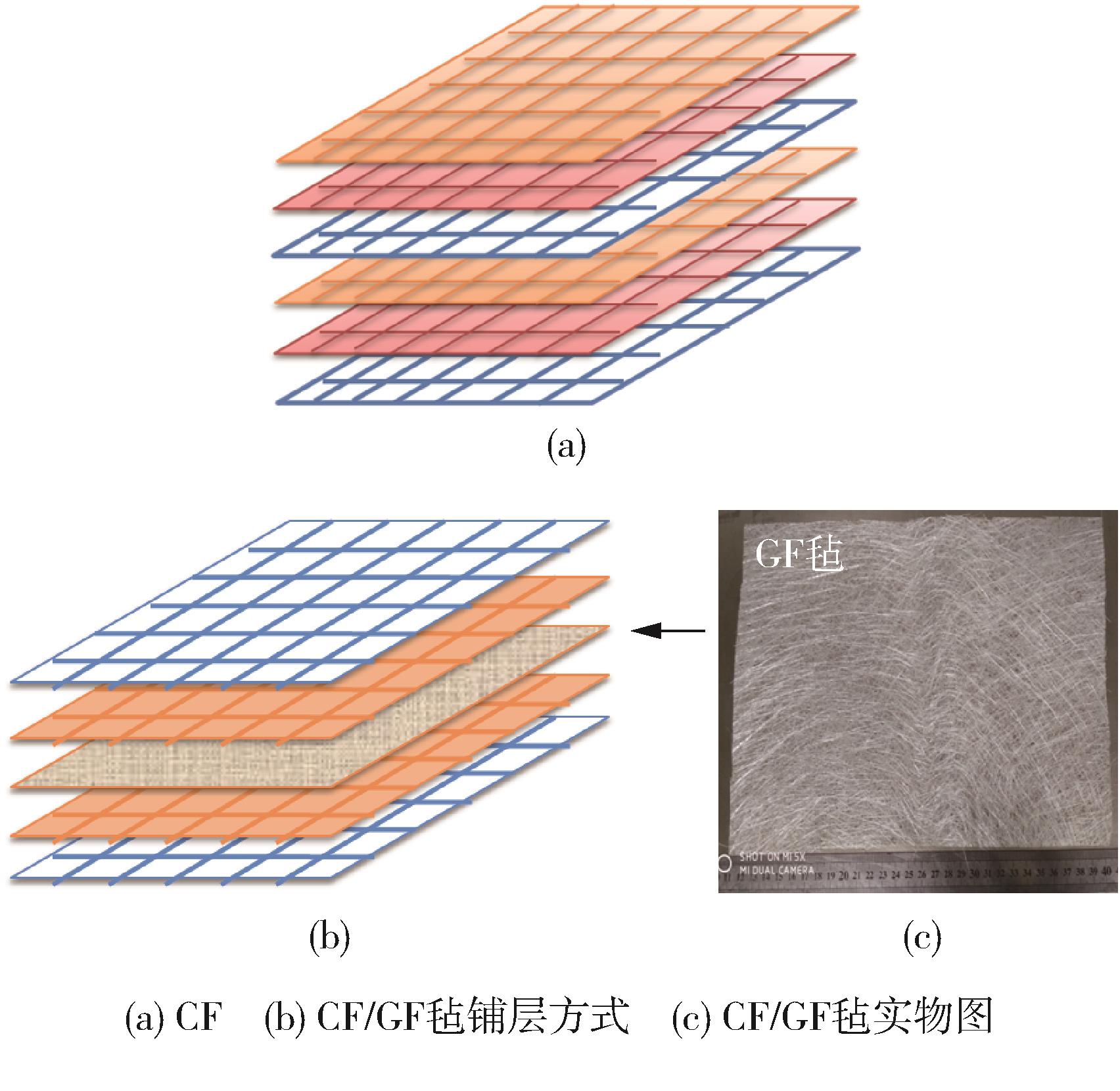

Fig.1. Schematic diagram of fiber layering

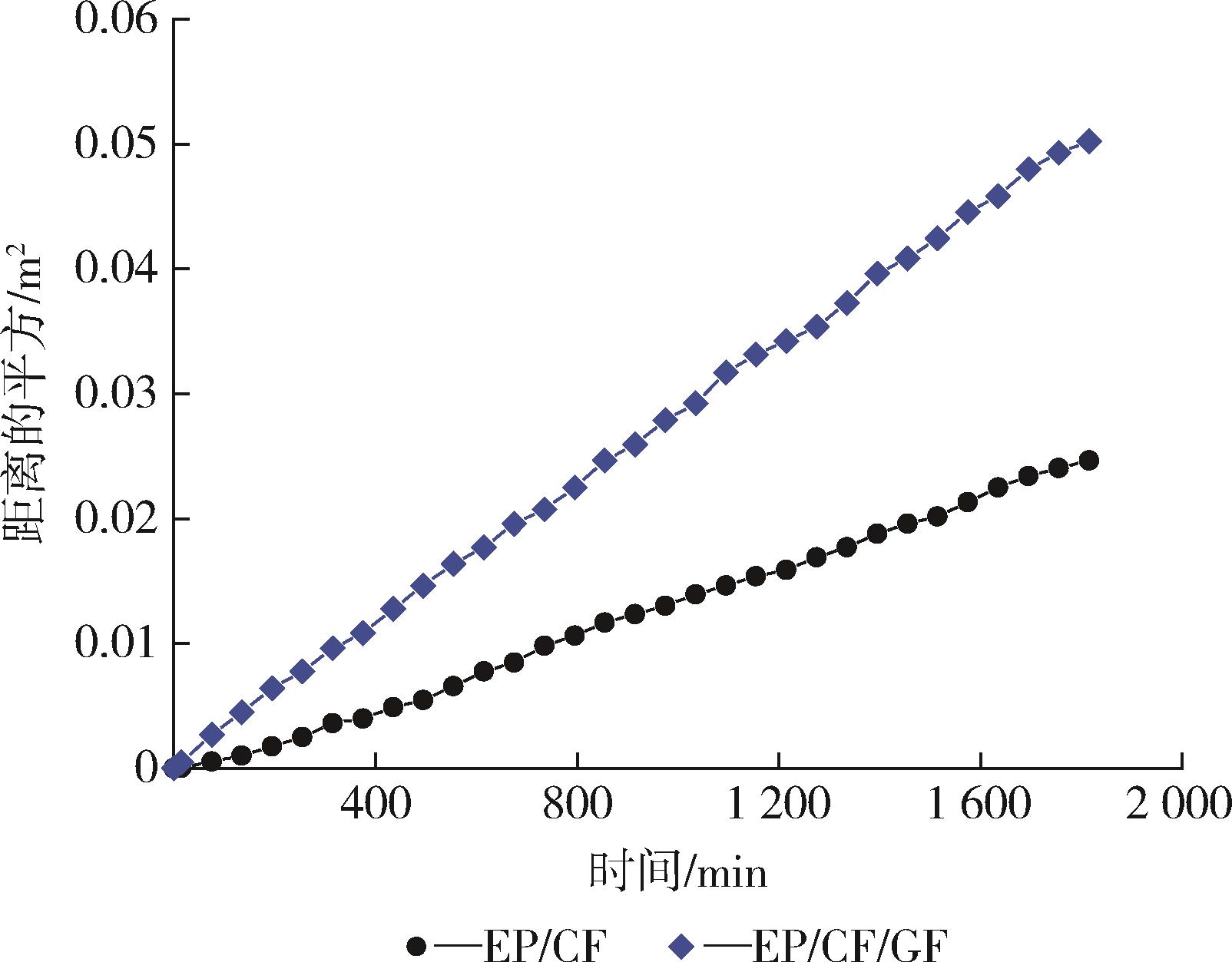

Fig.2. The square of flow distance of the resin as a function of time

样品	斜率
EP/CF	3.94×10^-6
EP/CF/GF	5.81×10^-6

Tab.1. Fitting results of flow distance of the resin as a function of time

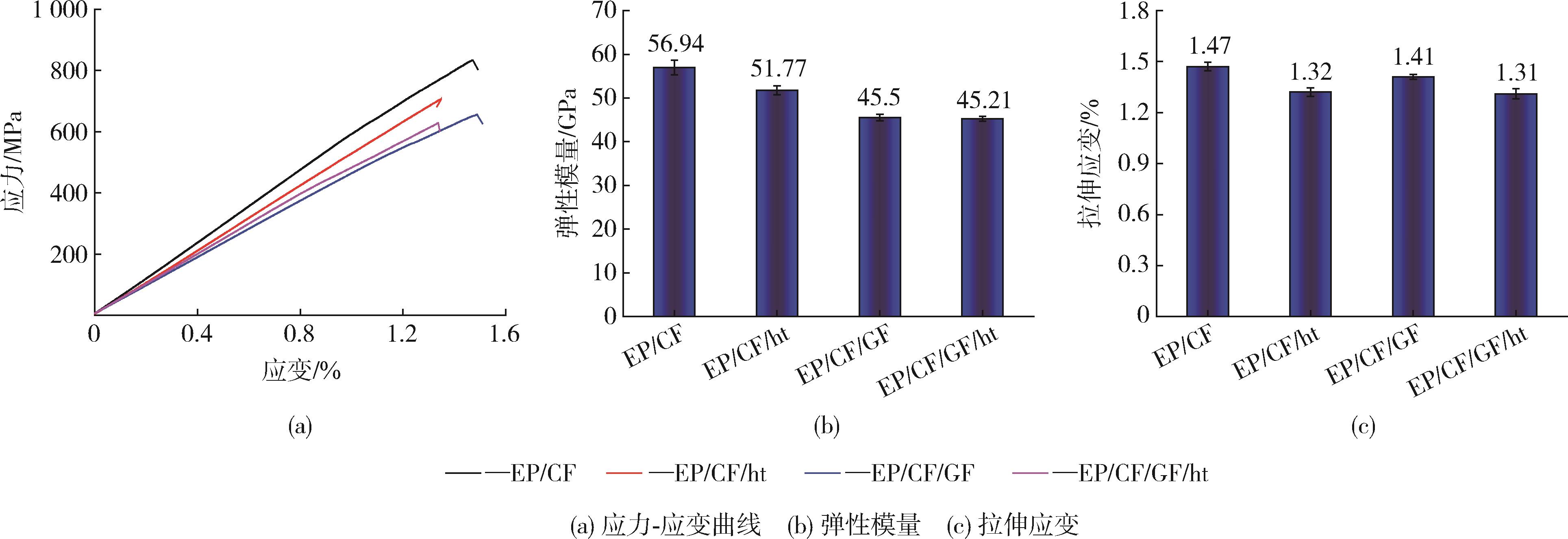

Fig.3. Tensile properties of 0/90 ° EP/CF and EP/CF/GF before and after heat treatment

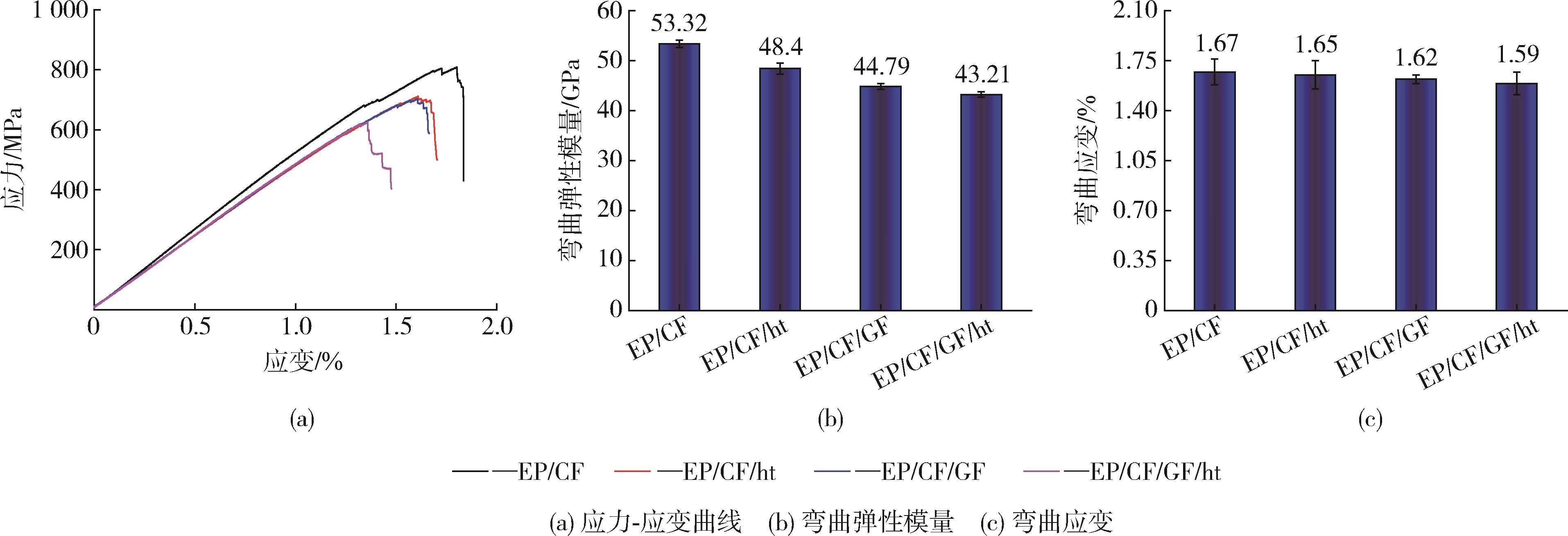

Fig.4. Flexural properties of 0/90 ° EP/CF and EP/CF/GF before and after heat treatment

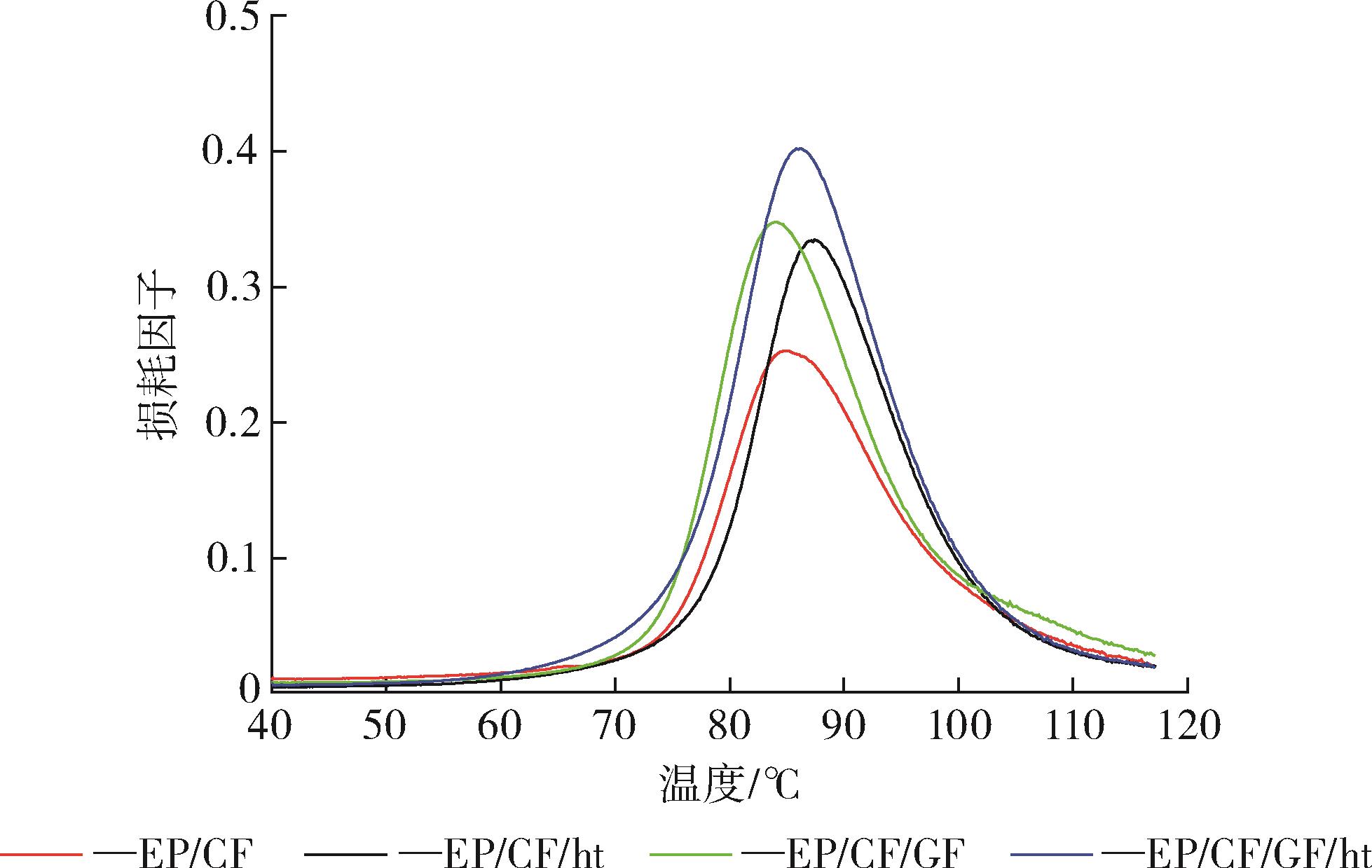

Fig.5. Loss modulus of 0/90 ° EP/CF and EP/CF/GF before and after heat treatment

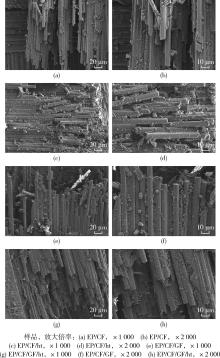

Fig.6. Morphology of 0/90 ° EP/CF and EP/CF/GF after fracture
