Preparation and Properties of Polyethylene/Hydrotalcite Thermal Insulation Composite Films

doi:10.19491/j.issn.1001-9278.2021.09.008

Abstract

Abstract:

Polyethylene （PE）/hydrotalcites （LDH） composite films were prepared through extrusion blow molding using three types of LDH， including the domestic products A and B， and imported product C. The effects of three types of LDH on the structure， heat preservation， mechanical properties， light transmittance， hydrophobicity， moisture retention and thermal properties of the composite films were investigated comparatively. When 8 % LDH were incorporated， the infrared absorbance integral area of the composite films increases by 183 % for the product A， 177 % for the product B and 77.1 % for the product C compared to pristine PE film. Mechanical analysis indicated that the composite films containing the domestic LDH achieved much better tensile strength and elongation at break and tended to be isotropic. All of the composite films presented the light transmittance higher than 89 %， and the haze of the composite films containing the imported LDH was smallest. Furthermore， there are no significant difference between the hydrophobicity and thermal properties of three types of composite films. Performance investigation indicated that the advantages of the imported LDH did not have outstanding comprehensive performance compared to the domestic ones. However， the domestic LDH are more cost?effective.

Key words: layered double hydroxide, polyethylene film, heat preservation, moisture retention, mechanical property

CLC Number:

TQ325.1⁺2

JIA Xianfei, ZHANG Kun, MI Qinghua, ZHU Xingkui, XU Jing. Preparation and Properties of Polyethylene/Hydrotalcite Thermal Insulation Composite Films[J]. China Plastics, 2021, 35(9): 46-54.

Figures/Tables 14

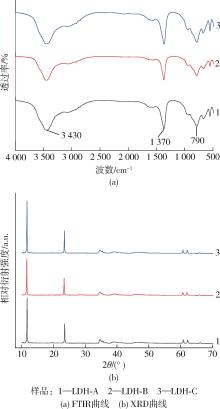

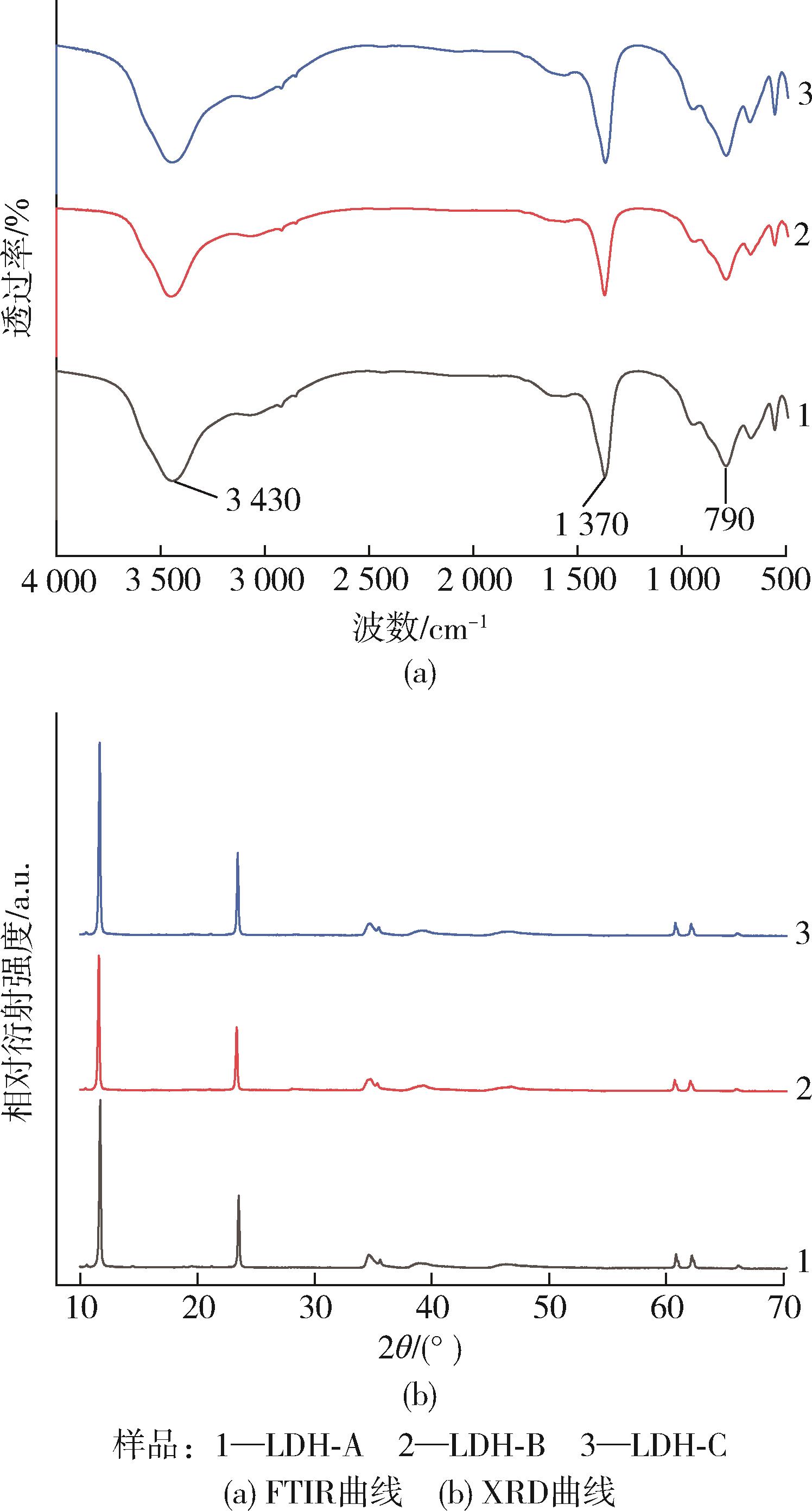

Fig.1. FTIR and XRD curves of LDH

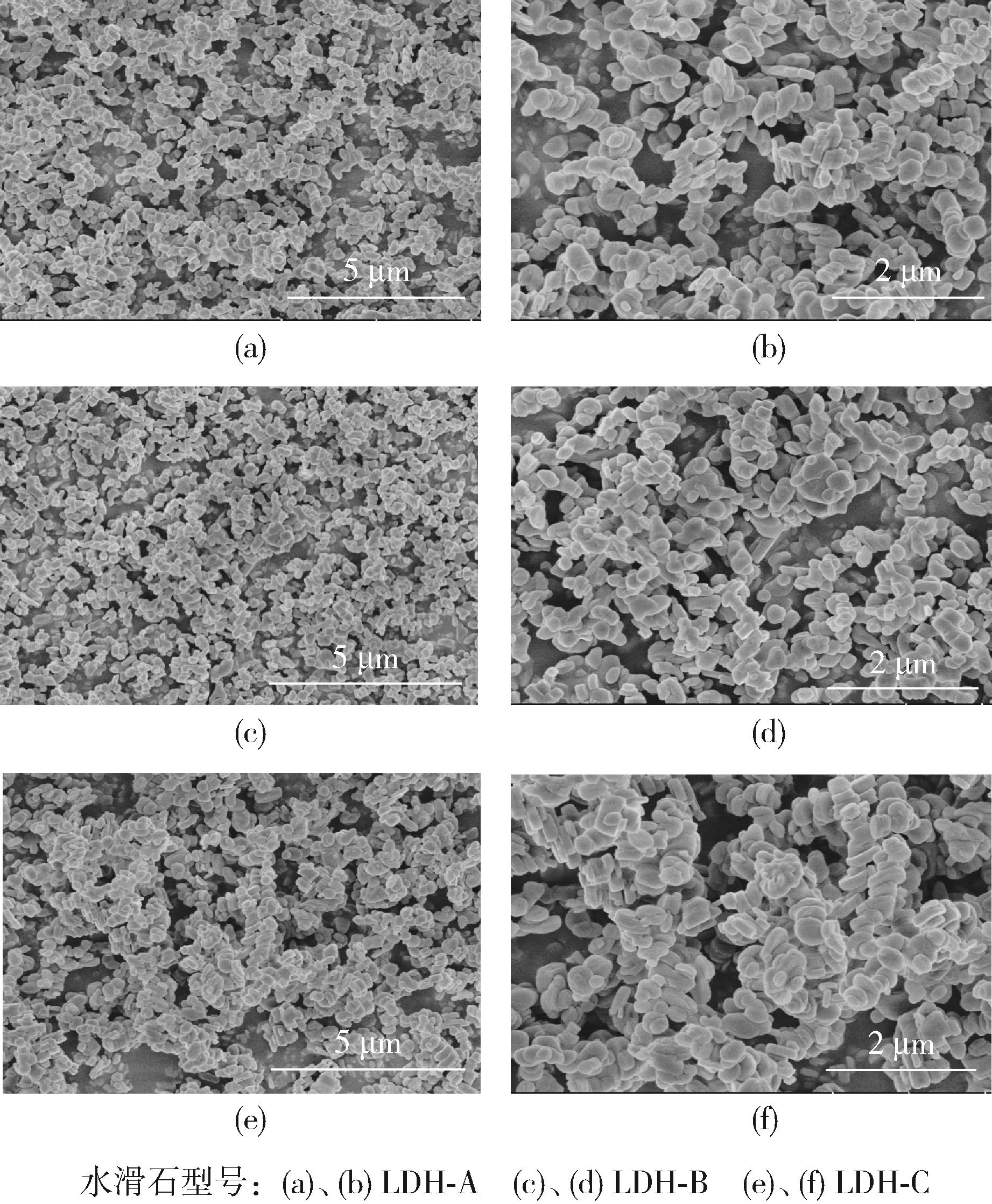

Fig.2. SEM of LDH

Fig.3. SEM of pristine PE film and PE/LDH?B composite films

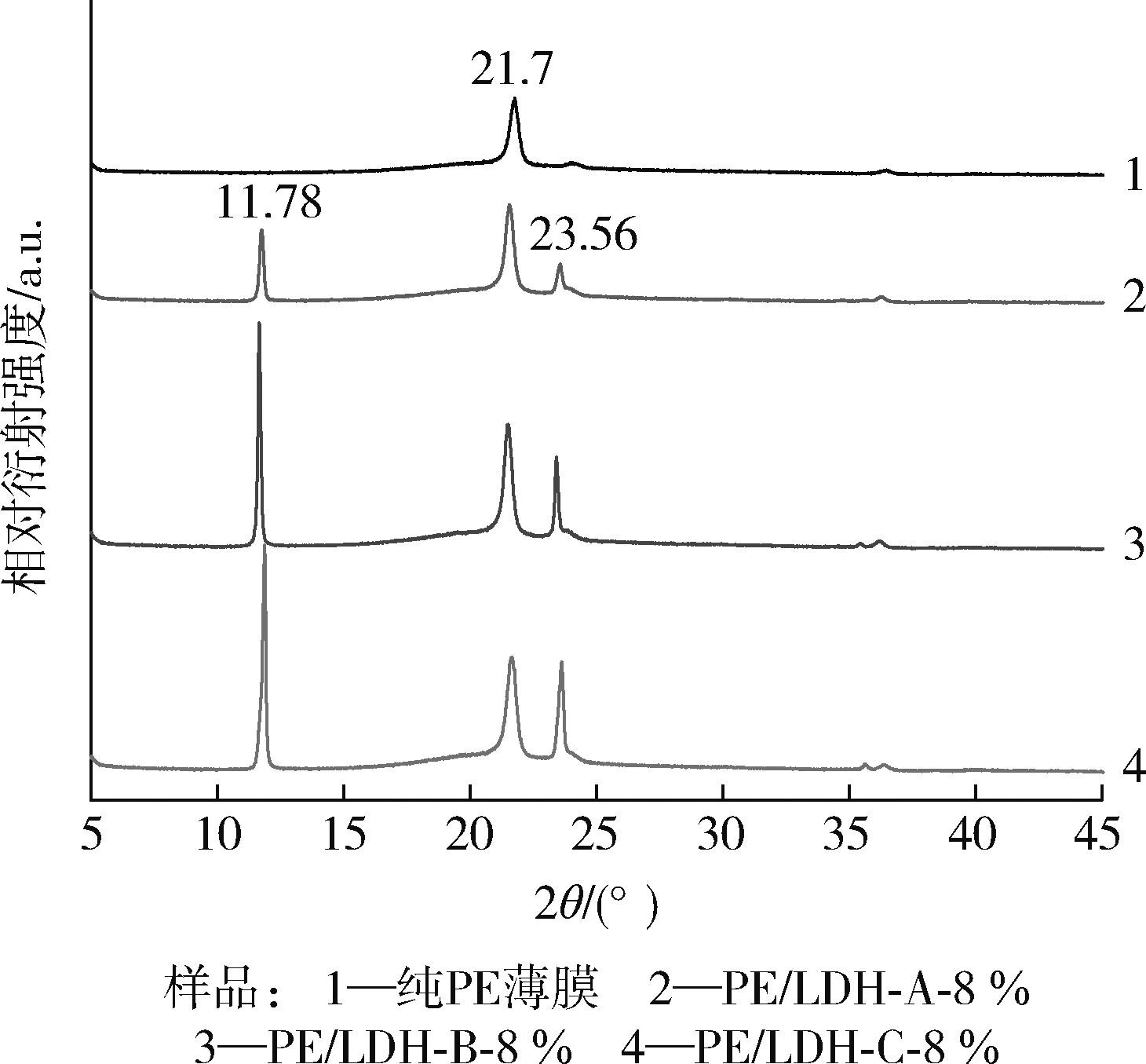

Fig.4. XRD curves of PE/LDH films

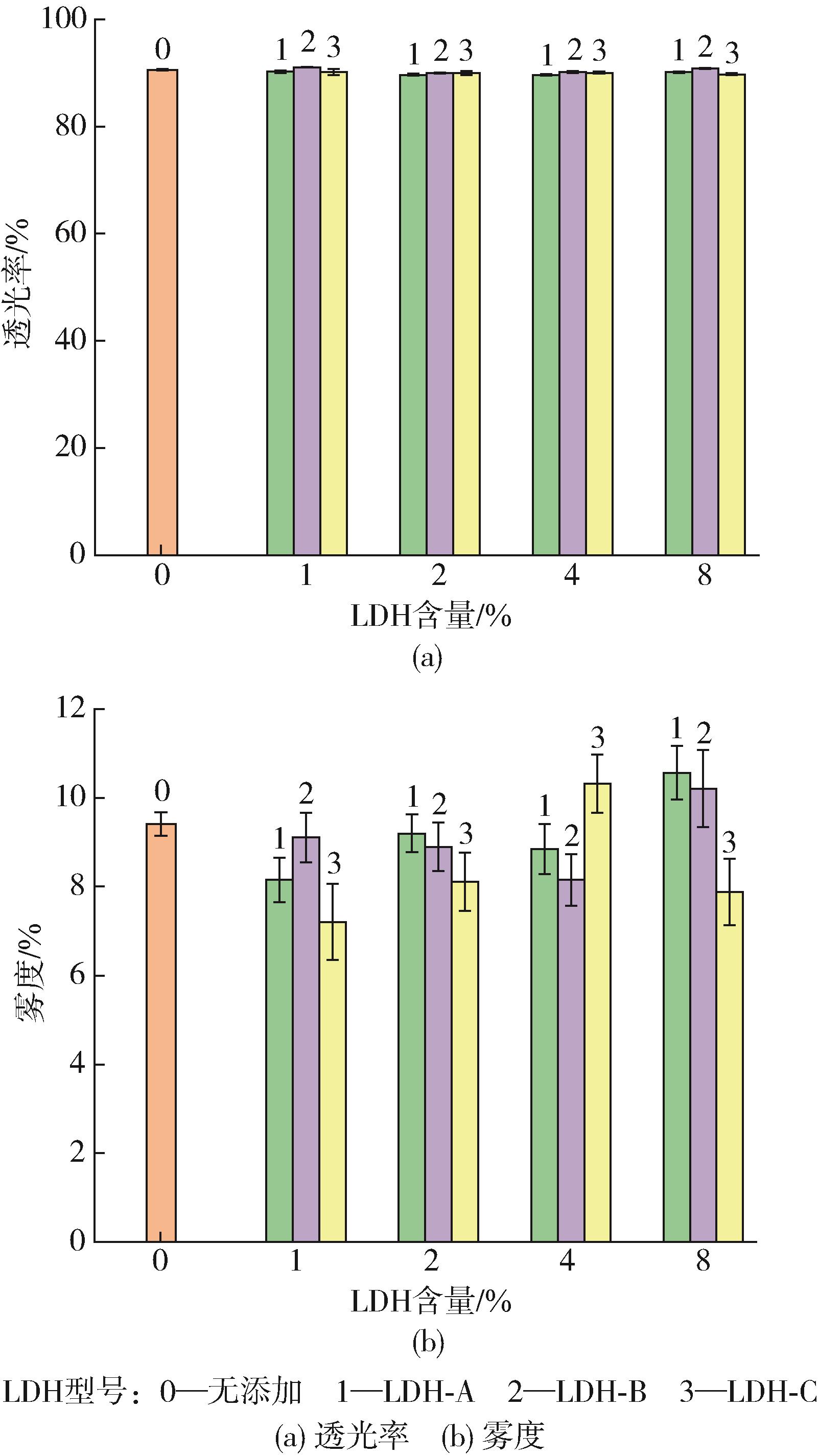

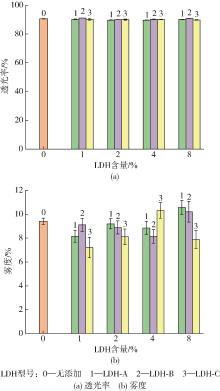

Fig.5. Transmittance and haze of pristine PE film and PE/LDH composite films

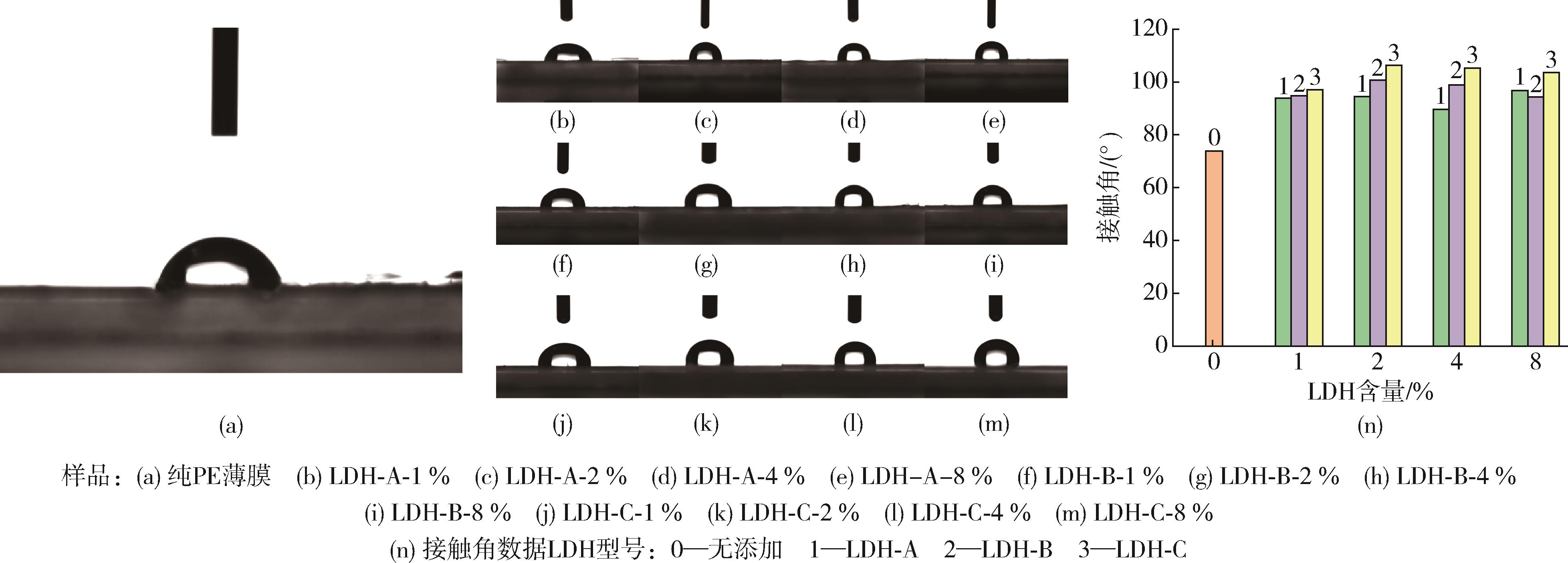

Fig.6. Contact angle of pristine PE film and PE/LDH composite film

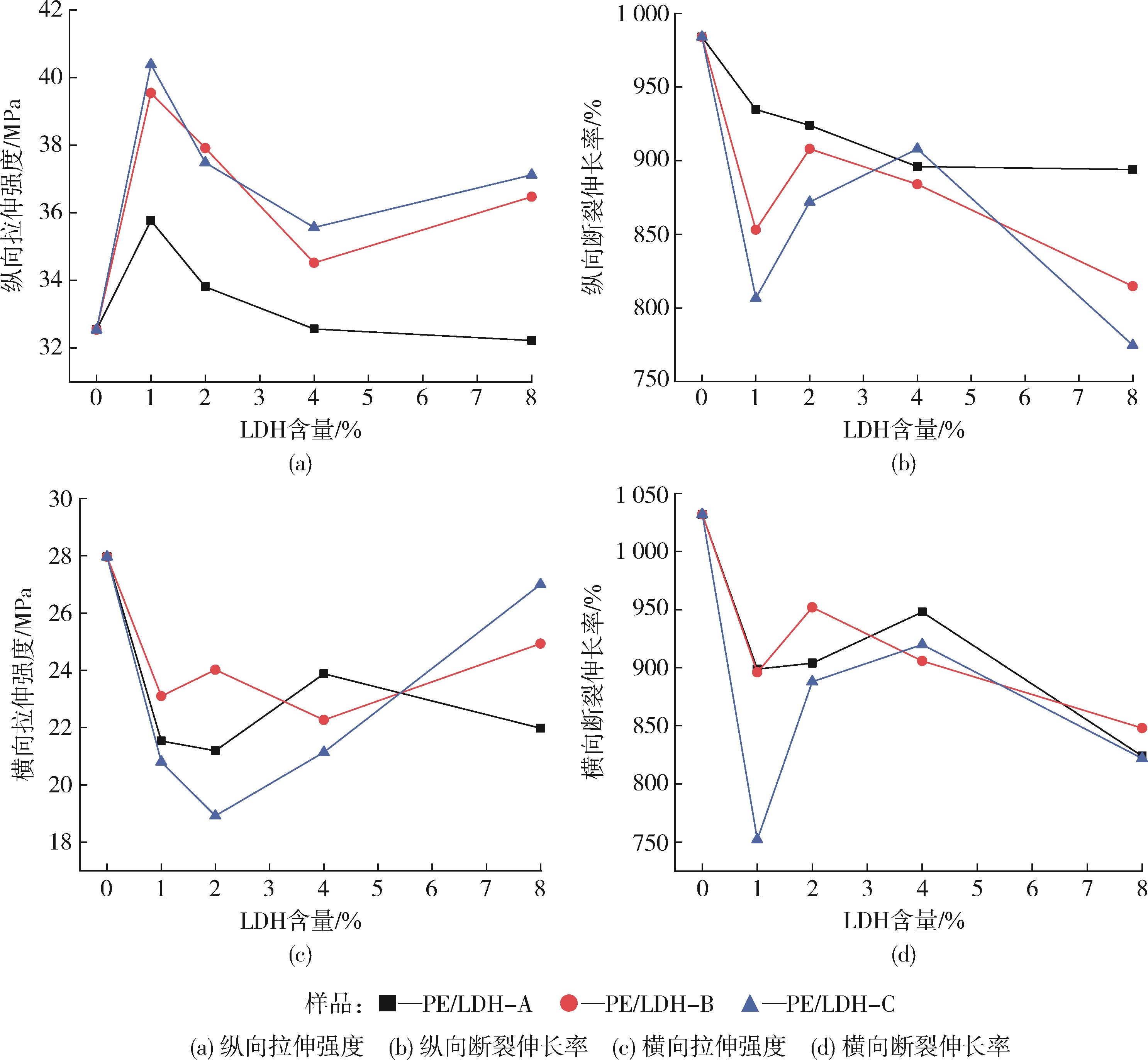

Fig.7. Tensile strength and elongation at break of pristine PE film and PE/LDH composite films

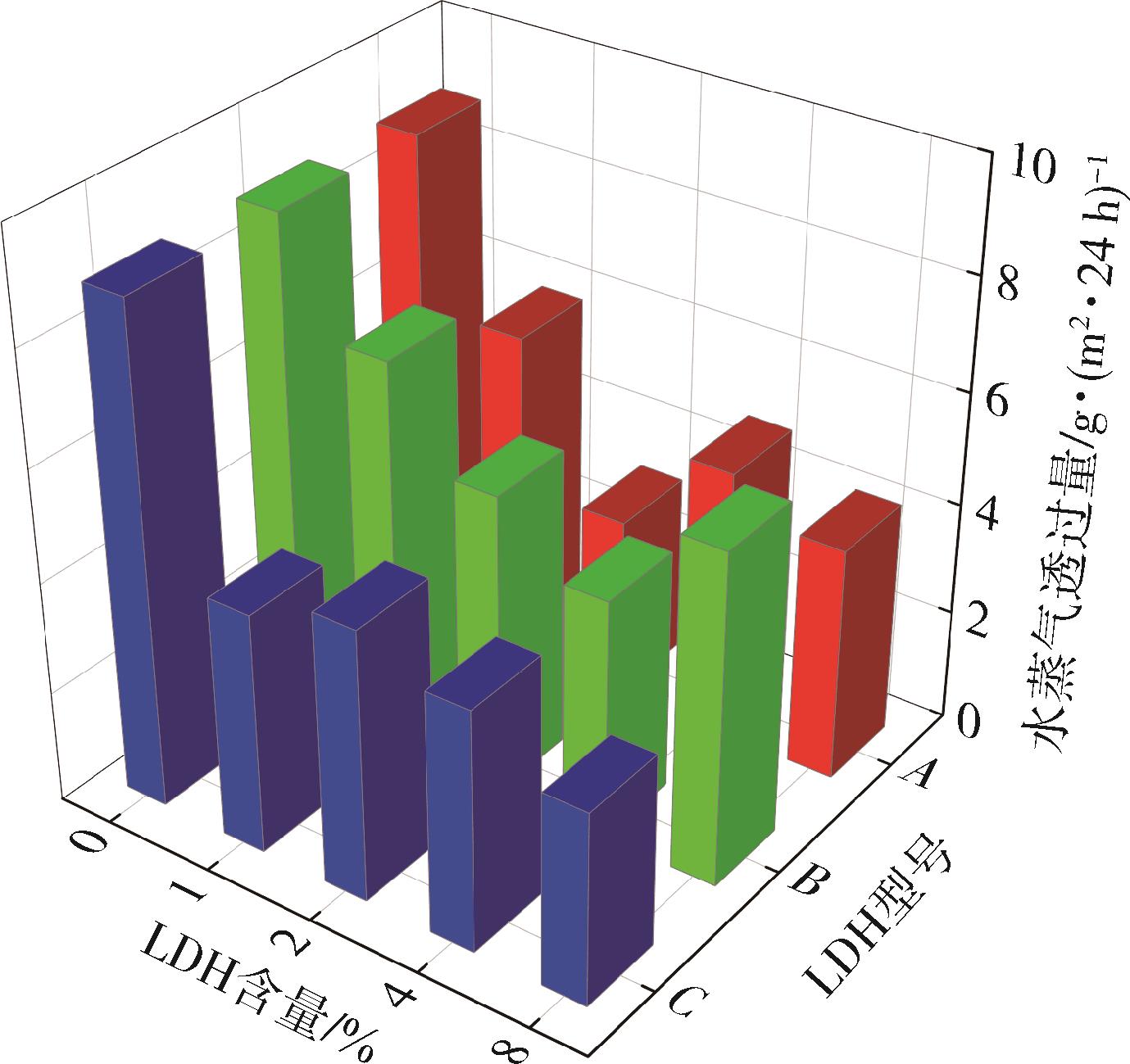

Fig.8. WVT of pristine PE film and PE/LDH composite films

Fig.9. FTIR of pristine PE film and PE/LDH composite films

Fig.10. Absorbance area of pristine PE film and PE/LDH composite films in the range of 1 428.6~714.3 cm-1

型号	含量/%	吸光度面积
LDH?A	1	77
	2	78
	4	101
	8	198
LDH?B	1	71
	2	75
	4	94
	8	194
LDH?C	1	71
	2	90
	4	119
	8	124

Tab.1. Absorbance area of PE/LDH composite films in the range of 1 428.6~714.3 cm-1

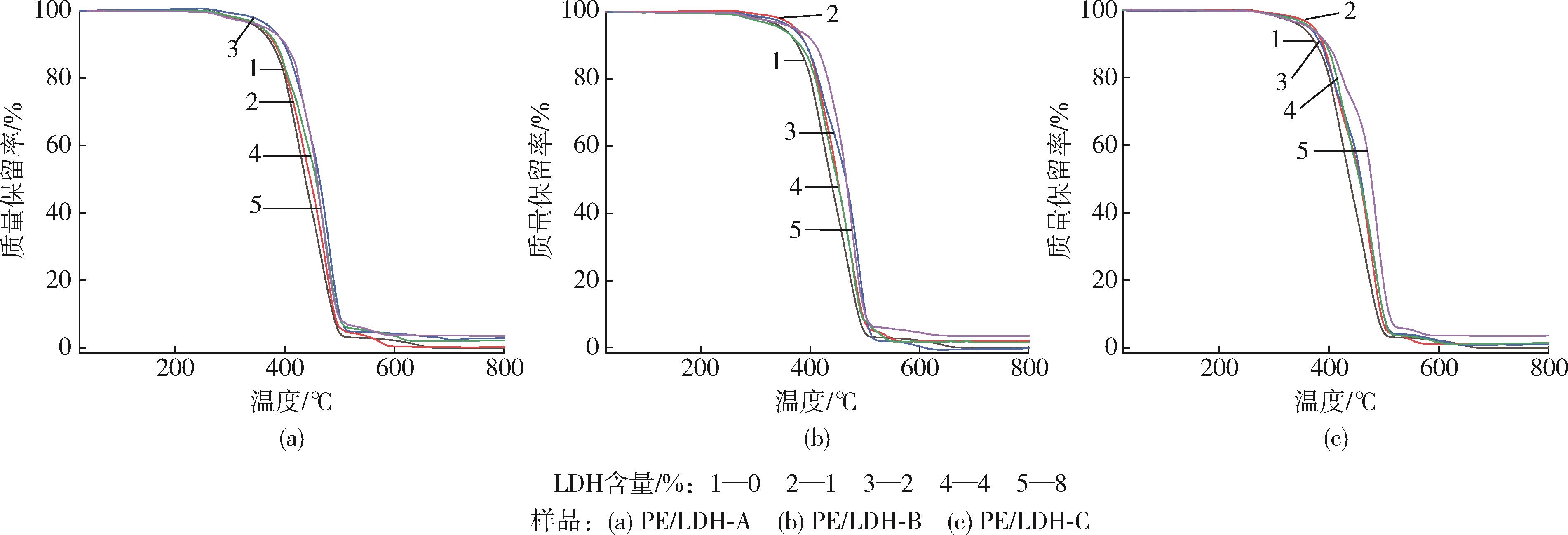

Fig.11. TG curves of pristine PE film and PE/LDH composite films

样品	含量/ %	T_{10 %}/ ℃	T_{50 %}/ ℃	T_max/℃	800 ℃ 残炭率/%
纯PE		376.4	437.3	466.8	0
LDH?A	1	380.9	446.4	477.0	0.2
	2	395.0	462.9	483.1	2.1
	4	397.4	456.3	479.0	2.9
	8	400.8	459.1	482.3	3.5
LDH?B	1	392.6	450.1	477.3	0.3
	2	392.2	461.1	479.1	0.4
	4	381.1	462.8	482.3	1.5
	8	410.2	465.8	487.8	3.4
LDH?C	1	388.9	455.8	480.1	1.0
	2	385.7	458.6	485.3	1.3
	4	393.7	455.4	487.1	1.4
	8	396.0	477.1	490.4	3.5

Tab.2. TG data of pristine PE film and PE/LDH composite films

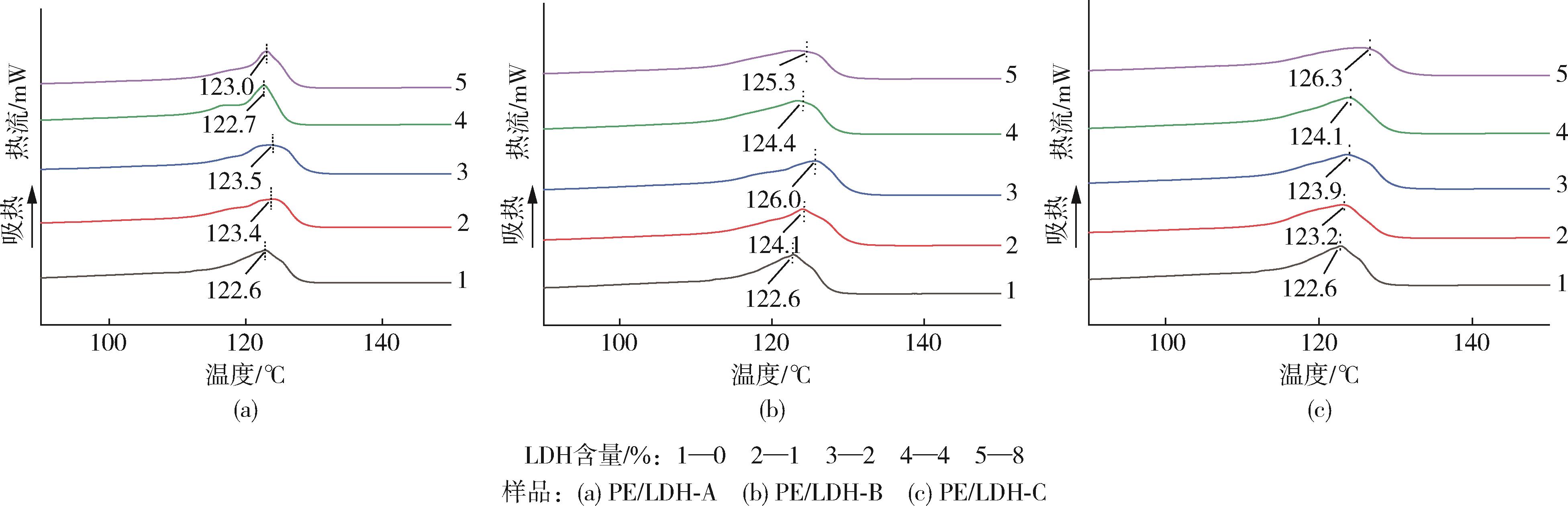

Fig.12. DSC curves of pristine film and PE/LDH composite films

References 20

1	王欣，王克俭. 农用大棚塑料薄膜材料发展综述［J］. 塑料包装， 2019， 29（3）： 11⁃15.
	WANG X， WANG K J. Development of Plastic Film Materials for Agricultural Greenhouses［J］. Plastics Packaging， 2019， 29（3）： 11⁃15.
2	赵闫华，沈冠华，郝向英，等. 不同水滑石的制备及隔热保温性能的研究［J］. 广东化工， 2020， 47（12）： 9⁃10， 22.
	ZHAO Y H， SHEN G H， HAO X Y， et al. Preparation of Different Hydrotalcite and Its Applications for Insulation Coating［J］. Guangdong Chemical Industry， 2020， 47（12）： 9⁃10， 22.
3	秦立洁. 无机粉体材料在农膜中的应用技术［C］// 中国建筑材料联合会，国际粉体检测与控制联合会，江西吉安， 2016： 1⁃9.
4	PHUONG N T K， HA H N N， DIEU N T P， et al. Herbicide/Zn⁃Al⁃Layered Double Hydroxide Hybrid Compo⁃site： Synthesis and Slow/Controlled Release Properties［J］. Environmental Science and Pollution Research， 2017， 24（23）：1⁃7.
5	LEE J H， ZHANG W， RYU H J， et al. Enhanced Thermal Stability and Mechanical Property of EVA Nanocomposites Upon Addition of Organo⁃Intercalated LDH Nanoparticles［J］. Polymer， 2019， 177： 274⁃281.
6	GORRASI G， BUGATTI V. Mechanical Dispersion of Layered Double Hydroxides Hosting Active Molecules in Polyethylene： Analysis of Structure and Physical Properties［J］. Applied Clay Science， 2016， 132/133： 2⁃6.
7	XIE J Z， WANG H J， WANG Z， et al. Innovative Linear Low Density Polyethylene Nanocomposite Films Reinforced with Organophilic Layered Double Hydroxides： Fabrication， Morphology and Enhanced Multifunctional Properties［J］. Scientific Reports， 2018， 8（1）： 52.
8	PUROHIT P J， WANG D Y， EMMERLING F， et al. Arrangement of Layered Double Hydroxide in A Polyethy⁃lene Matrix Studied by A Combination of Complementary Methods［J］. Polymer， 2012， 53（11）： 2 245⁃2 254.
9	KUTLU B， MEINL J， LEUTERITZ A， et al. Melt⁃spinning of LDH/HDPE Nanocomposites［J］. Polymer， 2013， 54（21）： 5 712⁃5 718.
10	许国志，郭灿雄，段雪，等. PE膜中层状双羟基复合氢氧化物的红外吸收性能［J］. 应用化学， 1999， 16（3）： 47⁃50.
	XU G Z， GUO C X， DUAN X， et al. IR Adsorption of Layered Double Hydroxides in Polyethylene Film［J］. Chinese Journal of Applied Chemistry， 1999， 16（3）： 47⁃50.
11	秦立洁，田岩，崔海龙. 国内外水滑石产品在农膜中的应用探索［J］. 塑料， 2006， 35（5）： 47⁃52.
	QIN L J， TIAN Y， CUI H L. Application of Home Made and Imported Layered Double Hydroxides in Agricultural Film［J］. Plastics， 2006， 35（5）： 47⁃52.
12	王良玉，崔海龙，焦红文. 水滑石对农膜性能影响的红外光谱研究［J］. 光谱学与光谱分析， 2007， 27（2）： 259⁃261.
	WANG L Y， CUI H L， JIAO H W. Infrared Spectroscopic Studies of the Effect of Hydrotalcite on the Capability of Agricultural Film［J］. Spectroscopy and Spectral Analysis， 2007， 27（2）： 259⁃261.
13	OJIJO V， SINHA RAY S. Processing Strategies in Bionanocomposites［J］. Progress in Polymer Science， 2013， 38： 1 543⁃1 589.
14	陈祖欣. 水滑石在农用薄膜中的应用［C］. 中国塑料加工工业协会专家委员会成立大会暨2005年塑料新材料，新技术国际研讨会论文集. 2005： 348⁃353.
15	全国塑料制品标准化技术委员会. 农业用聚乙烯吹塑棚膜：［S］. 北京：中国标准出版社， 2019.
16	XIE J Z， ZHANG K， ZHAO Q， et al. Large⁃Scale Fabrication of Linear Low Density Polyethylene/Layered Double Hydroxides Composite Films with Enhanced Heat Retention， Thermal， Mechanical， Optical and Water Vapor Barrier Properties［J］. Journal of Solid State Chemistry， 2016， 243： 62⁃69.
17	山东农业大学. 一种类水滑石基高分子聚合物保温母粒及其制备方法：中国， 201710880552. X［P］. 2017⁃12⁃26.
18	赵淑梅，马承伟. 温室多层覆盖传热系数与热节省率的工程算法［J］. 农业工程学报， 2011， 27（7）： 264⁃269.
	ZHAO S M， MA C W. Computing Method for Thermal Transmittance and Saving Ratio of Heat Loss in Multi⁃Layer Covering of Greenhouse［J］. Transactions of the Chinese Society of Agricultural Engineering， 2011， 27（7）： 264⁃269.
19	中华人民共和国农业行业标准. 温室覆盖材料保温性能测定方法：［S］. 北京：中华人民共和国农业部， 2009.
20	MATUSINOVIC Z， WILKIE C A. Fire Retardancy and Morphology of Layered Double Hydroxide Nanocomposites： A Review［J］. Journal of Materials Chemistry， 2012， 22（36）：18 701⁃18 704.
