Study on determination of migratable nonvolatile substances from PET⁃containing food contact materials by using ultra⁃high performance liquid chromatography tandem quadrupole time⁃of⁃flight high⁃resolution mass spectrometry screening test

doi:10.19491/j.issn.1001-9278.2022.10.019

Abstract

Abstract:

Aiming to evaluate the potential migration risk substances in PET⁃contained food contact materials， an ultra⁃high performance liquid chromatography tandem quadrupole time⁃of⁃flight high⁃resolution mass spectrometry （UPLC⁃Q⁃TOF） was used to implement screening tests and analyze the unknown non⁃volatile substances migrated from four different types of PET⁃contained food contact materials in 4 % acetic acid and 50 % ethanol simulants. The main migration substances are oligomers formed by polymerized monomers and processing aids such as antioxidants and smooth agents， as well as the NIAS substances formed in the processing and migration processes. Pure materials such as pure PET have less migration substances， while multilayer composite materials have much more migration substances. In the food contact composite materials， the PET materials can be modified by adding adipic acid， sebacic acid， neopentyl glycol or other substances during production. In addition， some of the migrated substances may undergo alcoholysis or addition reaction with ethanol in the simulant， leading to the generation of new risk NIAS.

Key words: ultra?high performance liquid chromatography tandem quadrupole time?of?flight high?resolution mass spectrometry, food contact material, polyethylene gltcol terephthalate, migration, screening test

CLC Number:

TQ323.4

DENG Yuming, TANG Lei, LUO Shipeng. Study on determination of migratable nonvolatile substances from PET⁃containing food contact materials by using ultra⁃high performance liquid chromatography tandem quadrupole time⁃of⁃flight high⁃resolution mass spectrometry screening test[J]. China Plastics, 2022, 36(10): 131-137.

Figures/Tables 5

References 21

1	田心平，王澜. PET回收再生技术及应用［J］. 塑料制造， 2007， 4（6）： 65⁃71.
	TIAN X P， WANG L. Recycle technology and application of PET［J］. Plast Manuf， 2007， 4（6）： 65⁃71.
2	Nisticò R. Polyethylene terephthalate （PET） in the packaging industry［J］. Polym Test， 2020， 90： 106707.
3	隋海霞，张磊，毛伟峰，等. 毒理学关注阈值方法的建立及其在食品接触材料评估中的应用［J］. 中国食品卫生杂志， 2012， 24（2）： 109⁃113.
	SUI H X， ZHANG L， MAO W F， et al. Establishment of the threshold of toxicological concern with decision tree approach and its application in food contact materials［J］. Food Hyg， 2012， 24（2）： 109⁃113.
4	钟怀宁，陈俊骐，冯捷莉，等. 食品接触材料中非有意添加物的安全评估［J］. 中国食品卫生杂志， 2017， 29（2）： 238⁃243.
	ZHONG H N， CHEN J Q， FENG J L， et al. Safety assessment of non⁃intentionally added substance migrated from food contact material［J］. Chin J Food Hyg， 2017， 29（2）： 238⁃243.
5	中华人民共和国卫生部. 食品安全国家标准食品接触材料及制品用添加剂使用标准. 中华人民共和国国家标准：［S］. 北京：中国标准出版社，2016.
6	Rusko J， Perkons I， Rasinger J D， et al. Non⁃target and suspected⁃target screening for potentially hazardous chemicals in food contact materials： investigation of paper straws［J］. Food Addit Contam A， 2020， 37（4）： 649⁃664.
7	Shao B， Li H， Shen J， et al. Nontargeted detection methods for food safety and integrity［J］. Annual Review of Food Science and Technology， 2019， 10： 429⁃455.
8	Wrona M， Nerín C. Analytical approaches for analysis of safety of modern food packaging： a review［J］. Molecules， 2020， 25（3）： 752.
9	Vera P， Canellas E， Barknowitz G， et al. Ion⁃Mobility quadrupole time⁃of⁃flight mass spectrometry： a novel technique applied to migration of nonintentionally added substances from polyethylene films intended for use as food packaging［J］. Anal Chem， 2019， 91： 12 741⁃12 751.
10	Nerín C， Aznar M， Carrizo D. Food contamination during food process［J］.Trends Food Sci Technol， 2016， 48： 63⁃68.
11	胡雅静，宋晶丹，杜振霞. 液质联用法对PET寡聚体的非靶向筛查［J］. 塑料. 2021， 50（1）：100⁃104， 122.
	HU Y J， SONG J D， DU Z X. Non⁃targeted screening of PET oligomers by LC⁃MS［J］. 2021， 50（1）： 100⁃104， 122.
12	杨颉，马鑫，杨道远，等. 基于全链条的回收PET材料中非挥发性可迁移物的非靶向筛查及特征风险标志物的确定［J］. 分析测试学报. 2021， 40（11）： 1 553⁃1 560.
	YANG J， MA X， YANG D Y， et al. Non-targeted screening of nonvolatile migration compounds in recycled PET based on whole chain and their identification of characteristic risk markers［J］. J Instrum Anal， 2021， 40（11）： 1 553⁃1 560.
13	刘宏，王亮，陈胜，等. 食品接触塑料材料及制品中高关注化合物的高分辨质谱分析技术研究进展［J］. 食品安全质量检测学报， 2020， 11（13）： 4 139⁃4 149.
	LIU H， WANG L， CHEN S， et al. Research progress on high-resolution mass spectrometry analysis of high concern compounds in food contact plastic materials and products［J］. J Food Saf Qual， 2020， 11（13）： 4 139⁃4 149.
14	董犇，黎梓城，郑建国，等. 食品接触用再生PET制品中非有意/有意添加物迁移量的筛查及安全评估［J］. 食品工业科技， 2021， 42（18）： 244⁃252.
	DONG B， LI Z C， ZHENG J G， et al. Identification and safety assessment of the migration of intentionally and non⁃intentionally added substances in food contact recycled PET product［J］. Sci. Technol. Food Ind.， 2021， 42（18）： 244⁃252.
15	董犇，吴学峰，郝天英，等. 基于UPLC⁃QTOF MS的食品接触用回收PET中非挥发性有机物的非靶向筛查［J］. 分析测试学报， 2021， 40（11）： 1 545⁃1 552.
	DONG B， LI Z C， ZHENG J G， et al. Untargeted screening of nonvolatile organic compounds in recycled PET flakes for food contact applications by ultra⁃performance liquid chromatography⁃quadrupole time⁃of⁃flight mass spectrometry［J］. J Instrum Anal， 2021， 40（11）： 1 545⁃1 552.
16	Wang Y N， Wu J J， Liu B J， et al. Migration of polymer additives and radiolysis products from irradiated PET/PE films into a food simulant［J］. Food Control， 2021， 124： 107886.
17	吴景杰，叶蕾，支朝晖，等. 基于UHPLC⁃QTOF MS的PLA吸管中未知物的筛查识别［J］. 分析测试学报， 2021， 40（11）： 1 627⁃1 632.
	WU J J， YE L， ZHI Z H， et al. Identification of migrants from polylactic acid straws by ultrahigh performance liquid chromatography⁃quadrupole time⁃of⁃flight mass spectrometry［J］. J Instrum. Anal.， 2021， 40（11）： 1 627⁃1 632.
18	WANG Y N， GAO X， LIU B J， et al. Identification of chemicals in a polyvinyl chloride/polyethylene multilayer film by ultra⁃high⁃performance liquid chromatography quadrupole time⁃of⁃flight mass spectrometry and their migration into solution［J］ J Chromatogr A， 2020， 1625： 461274.
19	隋海霞，钟怀宁，刘兆平，等. 食品接触材料及制品中非有意添加物风险评估指南［M］. 北京：人民卫生出版社， 2019.
20	中华人民共和国卫生部. 食品安全国家标准食品接触材料及制品迁移试验通则. 中华人民共和国国家标准：［S］. 北京：中国标准出版社， 2015.
21	中华人民共和国卫生部. 食品安全国家标准食品接触材料及制品迁移试验预处理方法通则. 中华人民共和国国家标准：5009.156—2016 ［S］. 北京：中国标准出版社， 2016.

时间/min	5 mmol/L甲酸铵含量/%	甲醇含量/%	流速/mL∙min^-1
0	98	2	0.3
8	0	100	0.3
17	0	100	0.3
17.1	98	2	0.3
20	98	2	0.3

时间/min	5 mmol/L甲酸铵含量/%	甲醇含量/%	流速/mL∙min^-1
0	98	2	0.3
8	0	100	0.3
17	0	100	0.3
17.1	98	2	0.3
20	98	2	0.3

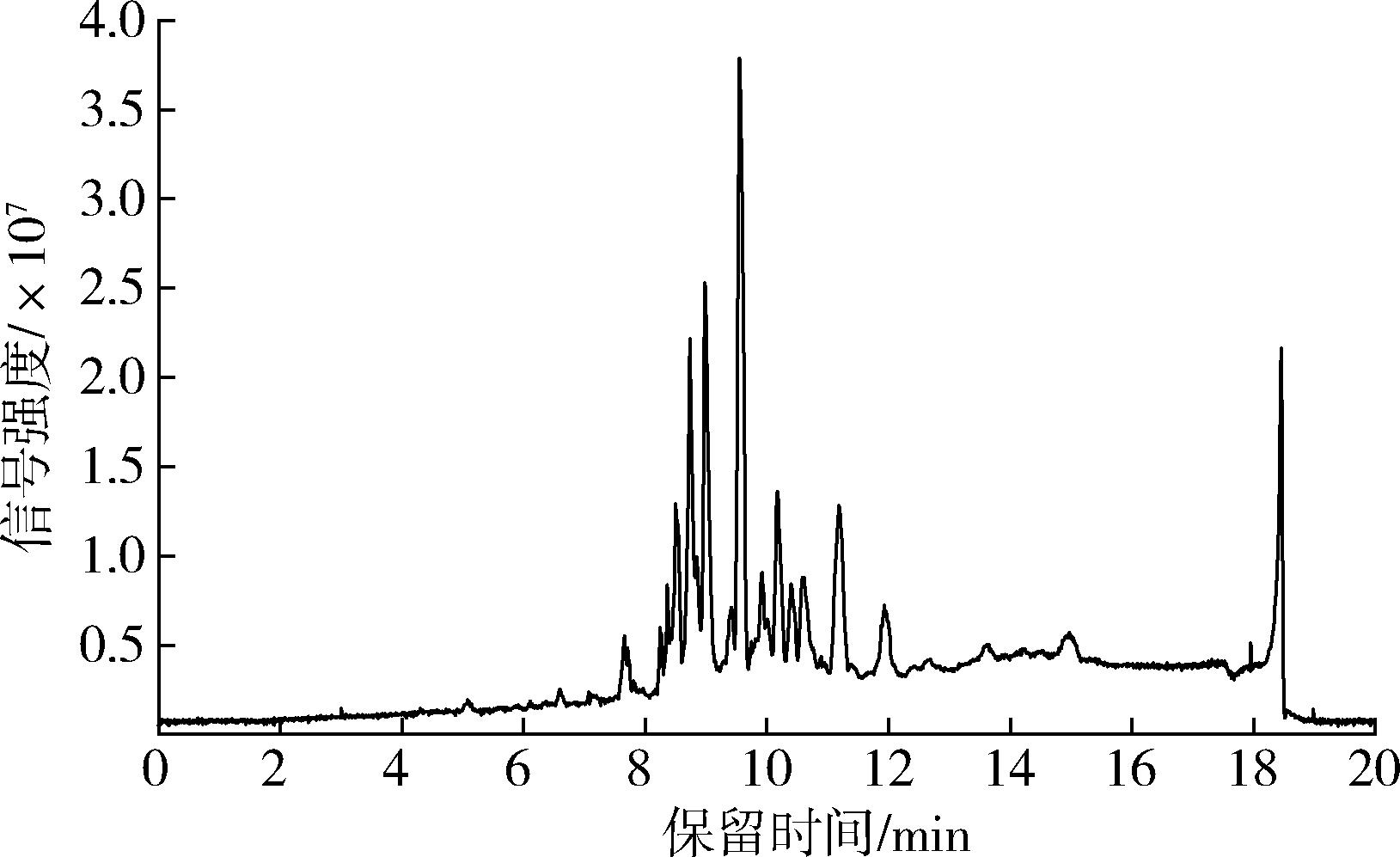

样品编号	检出物质	分子式	CAS号	PET共混	塑⁃塑复合			铝⁃塑复合1		铝⁃塑复合2		毒性等级
样品编号	检出物质	分子式	CAS号	4 % HOAc	50 % EtOH	4 % HOAc	50 % EtOH	4 % HOAc	50 % EtOH	4 % HOAc	50 % EtOH	毒性等级
1^#	链［TPA+EG］	C₁₀H₁₀O₅	-	ND	Y	ND	ND	ND	Y	ND	Y	II
2^#	链［TPA+EG+TPA］	C₁₈H₁₄O₈	-	ND	Y	ND	ND	ND	Y	ND	Y	II
3^#	链［TPA+EG+TPA+EG］	C₂₀H₁₈O₉	-	ND	Y	ND	ND	ND	Y	ND	Y	II
4^#	链［TPA+EG+TPA+EG+TPA+EG］	C₃₀H₂₆O₁₃	-	ND	Y	ND	ND	ND	Y	ND	Y	II
5^#	链［TPA+Et］	C₁₀H₁₀O₄	-	ND	Y	ND	ND	ND	ND	ND	ND	II
6^#	链［TPA+EG+TPA+Et］	C₂₀H₁₈O₈	-	ND	Y	ND	ND	ND	ND	ND	ND	II
7^#	油酸	C₁₈H₃₄O₂	112⁃80⁃1	ND	ND	ND	Y	ND	ND	ND	ND	60 mg/kg
8^#	抗氧剂1076	C₃₅H₆₂O₃	2082⁃79⁃3	ND	ND	ND	Y	ND	ND	ND	ND	6 mg/kg
9^#	168氧化产物	C₄₂H₆₃O₄P	95906⁃11⁃9	ND	ND	ND	Y	ND	Y	ND	ND	III
10^#	十二酸二乙醇胺	C₁₄H₂₉NO₃	120⁃40⁃1	ND	ND	ND	Y	ND	ND	ND	ND	5 mg/kg
11^#	十四酸二乙醇胺	C₁₈H₃₇NO₃	7545⁃23⁃5	ND	ND	ND	Y	ND	ND	ND	ND	I
12^#	棕榈酸二乙醇胺	C₂₀H₄₁NO₃	7545⁃24⁃6	ND	ND	ND	Y	ND	ND	ND	ND	I
13^#	硬脂酸二乙醇胺	C₂₂H₄₅NO₃	93⁃82⁃3	ND	ND	ND	Y	ND	ND	ND	ND	I
14^#	亚油酸二乙醇胺	C₂₂H₄₁NO₃	56863⁃02⁃6	ND	ND	ND	Y	ND	ND	ND	ND	I
15^#	油酸二乙醇胺	C₂₂H₄₃NO₃	93⁃83⁃4	ND	ND	ND	Y	ND	ND	ND	ND	I
16^#	链［EG+HDA+EG］	C₁₀H₁₈O₆	-	ND	ND	ND	ND	ND	Y	ND	ND	II
17^#	环［EG+HDA+EG］	C₁₀H₁₆O₅	-	ND	ND	ND	ND	Y	Y	ND	ND	II
18^#	环［HDA+NPG］	C₁₁H₁₈O₄	-	ND	ND	ND	ND	Y	Y	ND	ND	II
19^#	环［HDA+EG+HDA+NPG］	C₁₉H₃₀O₈	-	ND	ND	ND	ND	Y	Y	ND	ND	II
20^#	环［HDA+EG+EG+HDA+NPG］	C₂₁H₃₄O₉	-	ND	ND	ND	ND	Y	Y	ND	ND	II
21^#	环［HDA+EG+EG+TPA+NPG］	C₂₃H₃₀O₉	-	ND	ND	ND	ND	ND	Y	ND	ND	II
22^#	环［HDA+EG+TPA+NPG］	C₂₁H₂₆O₈	-	ND	ND	ND	ND	ND	Y	ND	ND	II
23^#	环［HDA+NPG+ HDA+NPG］	C₂₂H₃₆O₈	-	ND	ND	ND	ND	Y	Y	ND	ND	II
24^#	环［TPA+NPG+ TPA+NPG］	C₂₆H₂₈O₈	-	ND	ND	ND	ND	ND	Y	ND	ND	II
25^#	环［HDA+NPG+ TPA+NPG］	C₂₄H₃₂O₈	-	ND	ND	ND	ND	ND	Y	ND	ND	II
26^#	环［TPA+EG+EG+ TPA+NPG］	C₂₅H₂₆O₉	-	ND	ND	ND	ND	ND	Y	ND	ND	II
27^#	二十碳酰胺	C₂₀H₄₁NO	51360⁃63⁃5	ND	ND	ND	ND	ND	Y	ND	ND	I
28^#	二十烯酰胺	C₂₀H₃₉NO	10436⁃08⁃5	ND	ND	ND	ND	ND	Y	ND	ND	I
29^#	二十二碳酰胺	C₂₂H₄₅NO	3061⁃75⁃4	ND	ND	ND	ND	ND	Y	ND	ND	I
30^#	芥酸酰胺	C₂₂H₄₃NO	112⁃84⁃5	ND	ND	ND	ND	ND	Y	ND	ND	60 mg/kg
31^#	芥酸	C₂₂H₄₂O₂	112⁃86⁃7	ND	ND	ND	ND	ND	Y	ND	ND	60 mg/kg
32^#	环［DDA+EG+DDA+NPG］	C₂₇H₄₆O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
33^#	环［DDA+NPG］	C₁₅H₂₆O₄	-	ND	ND	ND	ND	ND	ND	ND	Y	II
34^#	环［DDA+NPG+DDA+NPG］	C₃₀H₅₂O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
35^#	环［TPA+EG+DDA+NPG］	C₂₅H₃₄O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II

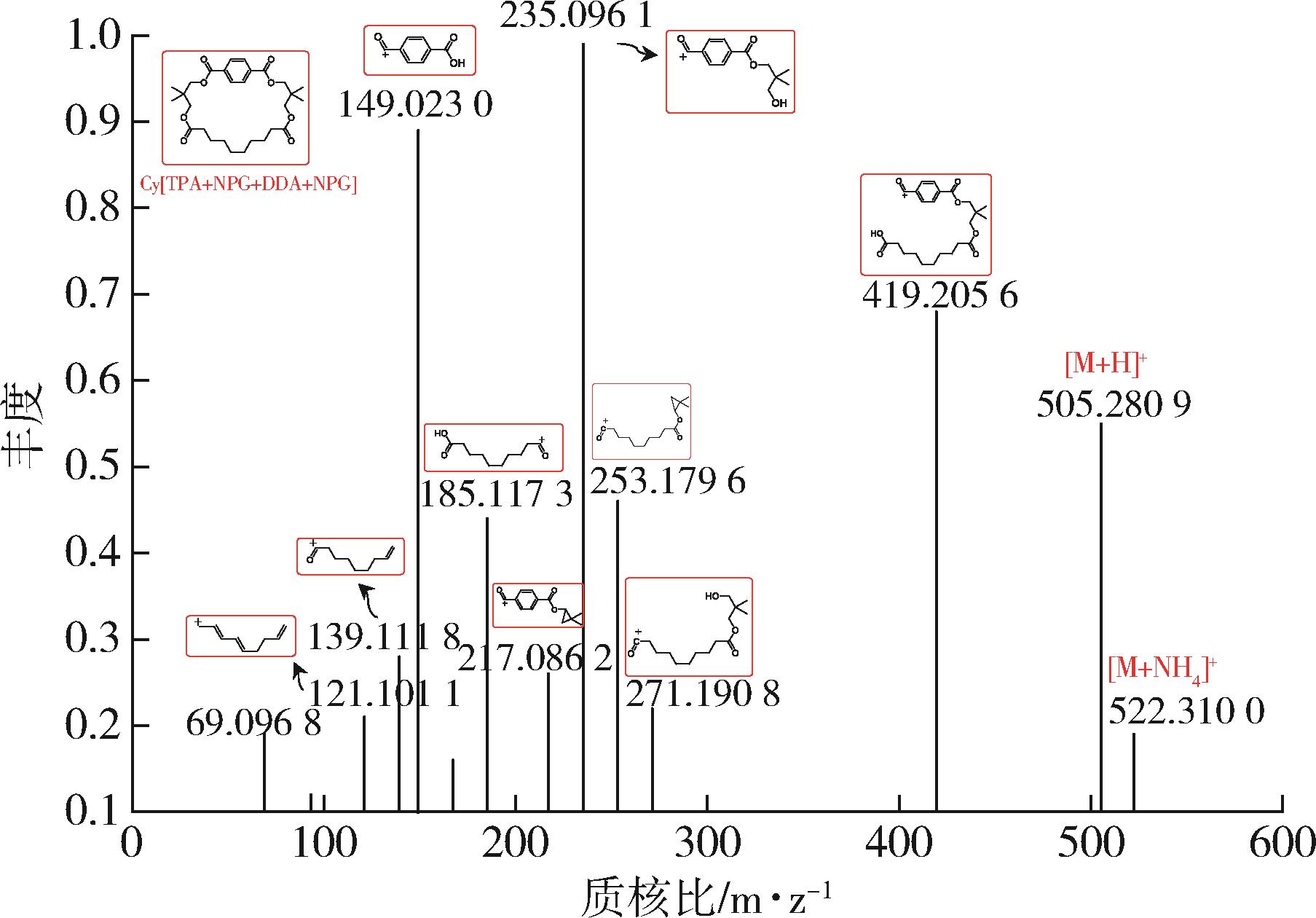

36^#	环［TPA+NPG+DDA+NPG］	C₂₈H₄₀O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
37^#	环［TPA+NPG+TPA+NPG］	C₂₆H₂₈O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II

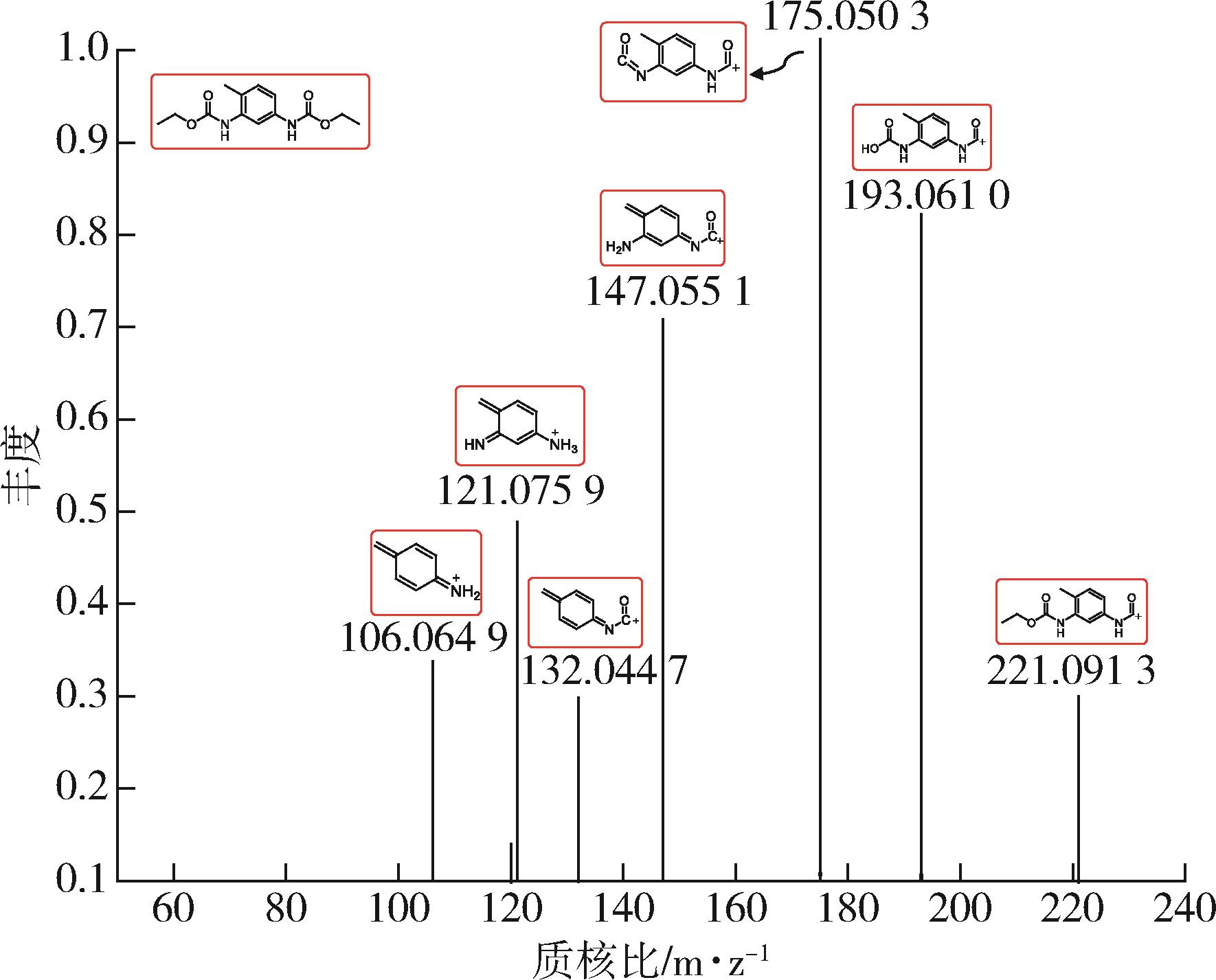

38^#	甲苯⁃2，4⁃二氨基甲酸二乙酯	C₁₃H₁₈N₂O₄	-	ND	ND	ND	ND	ND	ND	ND	Y	III

样品编号	检出物质	分子式	CAS号	PET共混	塑⁃塑复合			铝⁃塑复合1		铝⁃塑复合2		毒性等级
样品编号	检出物质	分子式	CAS号	4 % HOAc	50 % EtOH	4 % HOAc	50 % EtOH	4 % HOAc	50 % EtOH	4 % HOAc	50 % EtOH	毒性等级
1^#	链［TPA+EG］	C₁₀H₁₀O₅	-	ND	Y	ND	ND	ND	Y	ND	Y	II
2^#	链［TPA+EG+TPA］	C₁₈H₁₄O₈	-	ND	Y	ND	ND	ND	Y	ND	Y	II
3^#	链［TPA+EG+TPA+EG］	C₂₀H₁₈O₉	-	ND	Y	ND	ND	ND	Y	ND	Y	II
4^#	链［TPA+EG+TPA+EG+TPA+EG］	C₃₀H₂₆O₁₃	-	ND	Y	ND	ND	ND	Y	ND	Y	II
5^#	链［TPA+Et］	C₁₀H₁₀O₄	-	ND	Y	ND	ND	ND	ND	ND	ND	II
6^#	链［TPA+EG+TPA+Et］	C₂₀H₁₈O₈	-	ND	Y	ND	ND	ND	ND	ND	ND	II
7^#	油酸	C₁₈H₃₄O₂	112⁃80⁃1	ND	ND	ND	Y	ND	ND	ND	ND	60 mg/kg
8^#	抗氧剂1076	C₃₅H₆₂O₃	2082⁃79⁃3	ND	ND	ND	Y	ND	ND	ND	ND	6 mg/kg
9^#	168氧化产物	C₄₂H₆₃O₄P	95906⁃11⁃9	ND	ND	ND	Y	ND	Y	ND	ND	III
10^#	十二酸二乙醇胺	C₁₄H₂₉NO₃	120⁃40⁃1	ND	ND	ND	Y	ND	ND	ND	ND	5 mg/kg
11^#	十四酸二乙醇胺	C₁₈H₃₇NO₃	7545⁃23⁃5	ND	ND	ND	Y	ND	ND	ND	ND	I
12^#	棕榈酸二乙醇胺	C₂₀H₄₁NO₃	7545⁃24⁃6	ND	ND	ND	Y	ND	ND	ND	ND	I
13^#	硬脂酸二乙醇胺	C₂₂H₄₅NO₃	93⁃82⁃3	ND	ND	ND	Y	ND	ND	ND	ND	I
14^#	亚油酸二乙醇胺	C₂₂H₄₁NO₃	56863⁃02⁃6	ND	ND	ND	Y	ND	ND	ND	ND	I
15^#	油酸二乙醇胺	C₂₂H₄₃NO₃	93⁃83⁃4	ND	ND	ND	Y	ND	ND	ND	ND	I
16^#	链［EG+HDA+EG］	C₁₀H₁₈O₆	-	ND	ND	ND	ND	ND	Y	ND	ND	II
17^#	环［EG+HDA+EG］	C₁₀H₁₆O₅	-	ND	ND	ND	ND	Y	Y	ND	ND	II
18^#	环［HDA+NPG］	C₁₁H₁₈O₄	-	ND	ND	ND	ND	Y	Y	ND	ND	II
19^#	环［HDA+EG+HDA+NPG］	C₁₉H₃₀O₈	-	ND	ND	ND	ND	Y	Y	ND	ND	II
20^#	环［HDA+EG+EG+HDA+NPG］	C₂₁H₃₄O₉	-	ND	ND	ND	ND	Y	Y	ND	ND	II
21^#	环［HDA+EG+EG+TPA+NPG］	C₂₃H₃₀O₉	-	ND	ND	ND	ND	ND	Y	ND	ND	II
22^#	环［HDA+EG+TPA+NPG］	C₂₁H₂₆O₈	-	ND	ND	ND	ND	ND	Y	ND	ND	II
23^#	环［HDA+NPG+ HDA+NPG］	C₂₂H₃₆O₈	-	ND	ND	ND	ND	Y	Y	ND	ND	II
24^#	环［TPA+NPG+ TPA+NPG］	C₂₆H₂₈O₈	-	ND	ND	ND	ND	ND	Y	ND	ND	II
25^#	环［HDA+NPG+ TPA+NPG］	C₂₄H₃₂O₈	-	ND	ND	ND	ND	ND	Y	ND	ND	II
26^#	环［TPA+EG+EG+ TPA+NPG］	C₂₅H₂₆O₉	-	ND	ND	ND	ND	ND	Y	ND	ND	II
27^#	二十碳酰胺	C₂₀H₄₁NO	51360⁃63⁃5	ND	ND	ND	ND	ND	Y	ND	ND	I
28^#	二十烯酰胺	C₂₀H₃₉NO	10436⁃08⁃5	ND	ND	ND	ND	ND	Y	ND	ND	I
29^#	二十二碳酰胺	C₂₂H₄₅NO	3061⁃75⁃4	ND	ND	ND	ND	ND	Y	ND	ND	I
30^#	芥酸酰胺	C₂₂H₄₃NO	112⁃84⁃5	ND	ND	ND	ND	ND	Y	ND	ND	60 mg/kg
31^#	芥酸	C₂₂H₄₂O₂	112⁃86⁃7	ND	ND	ND	ND	ND	Y	ND	ND	60 mg/kg
32^#	环［DDA+EG+DDA+NPG］	C₂₇H₄₆O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
33^#	环［DDA+NPG］	C₁₅H₂₆O₄	-	ND	ND	ND	ND	ND	ND	ND	Y	II
34^#	环［DDA+NPG+DDA+NPG］	C₃₀H₅₂O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
35^#	环［TPA+EG+DDA+NPG］	C₂₅H₃₄O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
36^#	环［TPA+NPG+DDA+NPG］	C₂₈H₄₀O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
37^#	环［TPA+NPG+TPA+NPG］	C₂₆H₂₈O₈	-	ND	ND	ND	ND	ND	ND	ND	Y	II
38^#	甲苯⁃2，4⁃二氨基甲酸二乙酯	C₁₃H₁₈N₂O₄	-	ND	ND	ND	ND	ND	ND	ND	Y	III
