Effects of structure of ABS powder and antioxidant dosage on properties of ABS resin

doi:10.19491/j.issn.1001-9278.2024.05.016

Abstract

Abstract:

In this study， acrylonitrile⁃butadiene⁃styrene copolymer （ABS） grafting copolymer latexes with core/shell mass ratios of 60/40 and 70/30 and different initiator dosages in the grafting process were prepared through emulsion grafting polymerization. The effects of the shell thickness of ABS and the dosage of waterborne antioxidant on the thermo⁃oxidative aging properties of the ABS grafting copolymers were systematically investigated. The effect of the dosage of water⁃based antioxidant on the mechanical performance and apparent properties of the ABS obtained from melt blending was also investigated. Meanwhile， the effects of waterborne antioxidant and shell thickness on their mechanical and apparent properties were studied. The results indicated that a thinner shell resulted in poorer thermo⁃oxidative aging performance of the ABS grafting copolymers. Both the impact strength and apparent properties of the ABS grafting copolymers were influenced by their shell thickness. When the addition amount of waterborne antioxidant was below 1 wt%， a higher dosage of waterborne antioxidant led to a higher the oxidation induction period and oxidation induction temperature for the ABS grafting copolymers. When 0.75 wt% waterborne antioxidant was incorporated， the heat resistance and oxygen aging of the ABS grafting copolymers reached a high level. The addition amount of waterborne antioxidant did not affect the mechanical properties of the ABS grafting copolymers， but influenced their apparent properties such as whiteness and yellow index significantly.

Key words: acrylonitrile?butadiene?styrene resin, nuclear crust structure, antioxidant, oxidation induction time

CLC Number:

TQ327

SONG Zirui, LIU Baijun, ZHANG Mingyao. Effects of structure of ABS powder and antioxidant dosage on properties of ABS resin[J]. China Plastics, 2024, 38(5): 88-93.

Figures/Tables 11

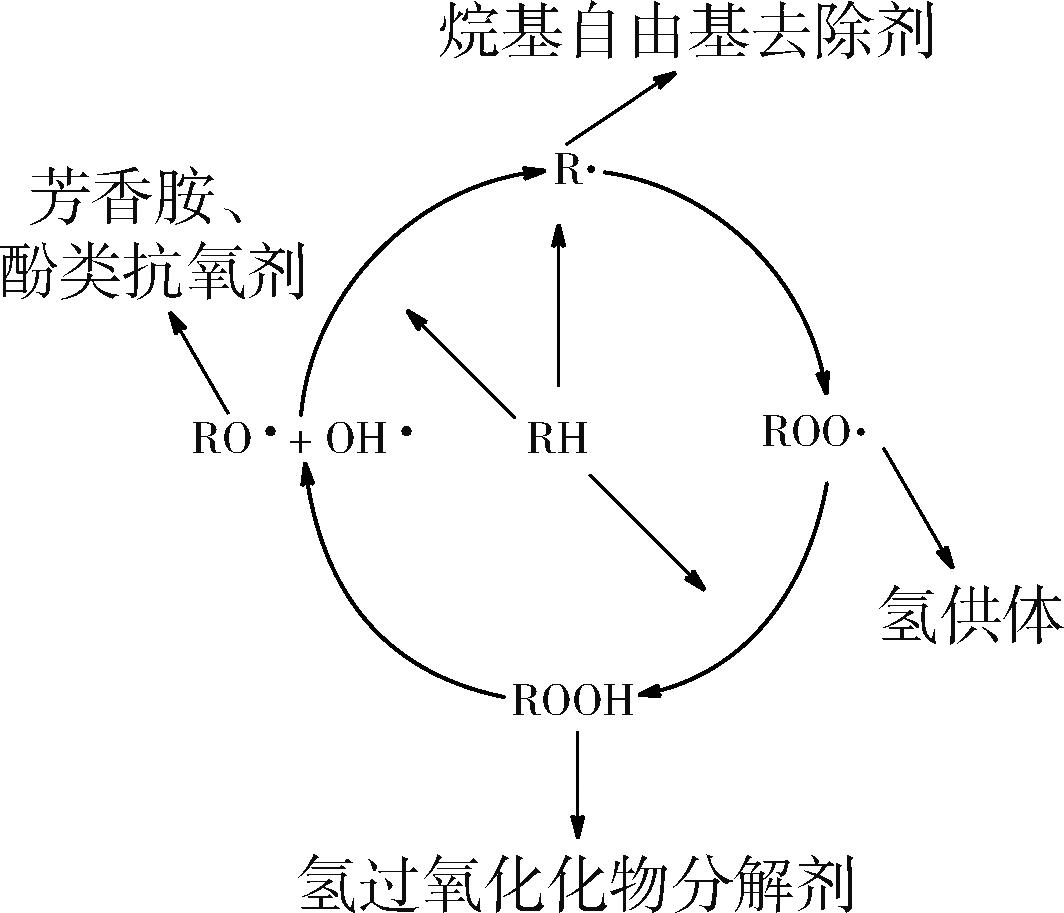

Fig.1. Action mechanism of aqueous antioxidants on ABS resin

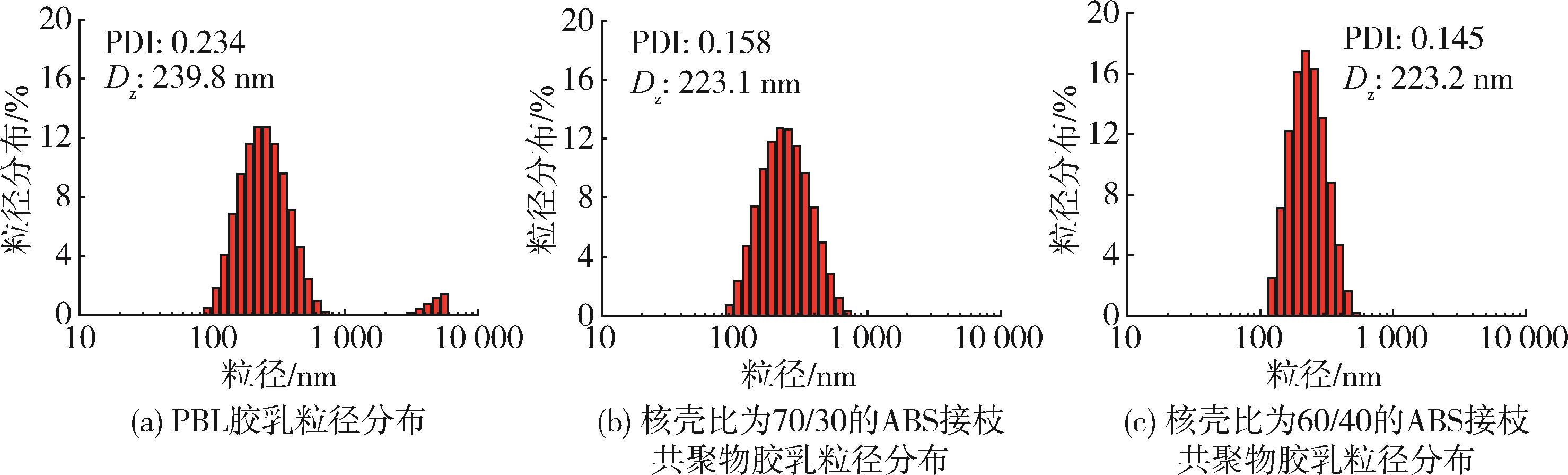

Fig.2. Particle size distribution of the samples

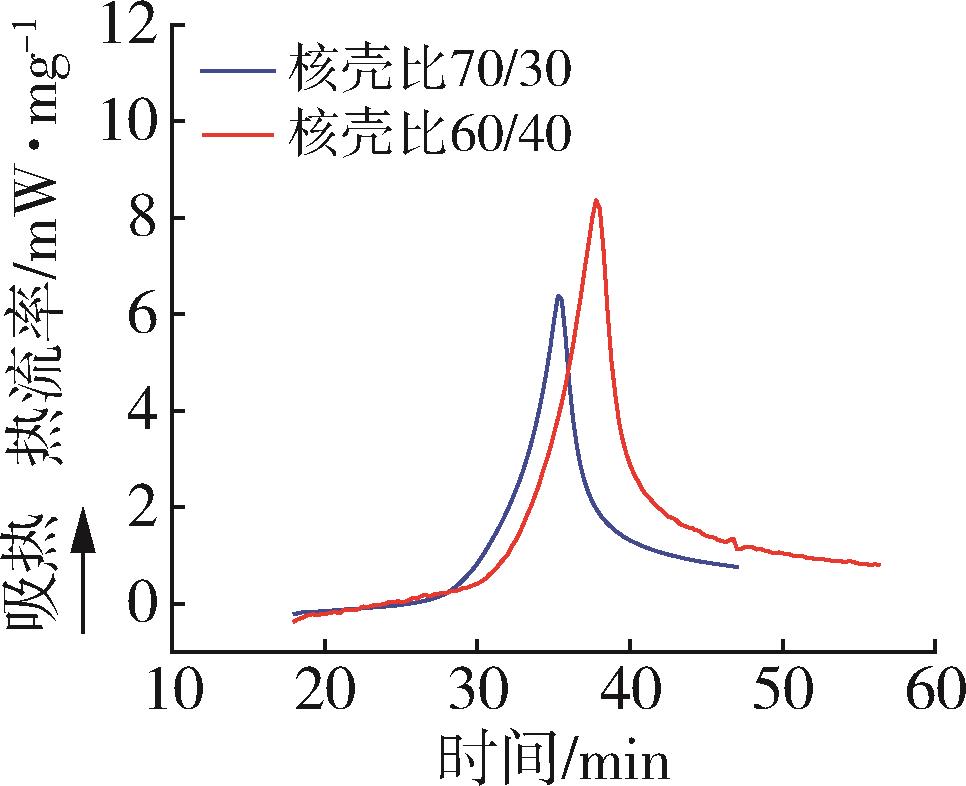

Fig.3. Effect of core⁃shell ratio of ABS graft copolymer on oxidation induction time of ABS graft copolymer

Fig.4. Effect of ABS graft copolymer core⁃shell ratio on oxidation induction temperature of ABS graft copolymers

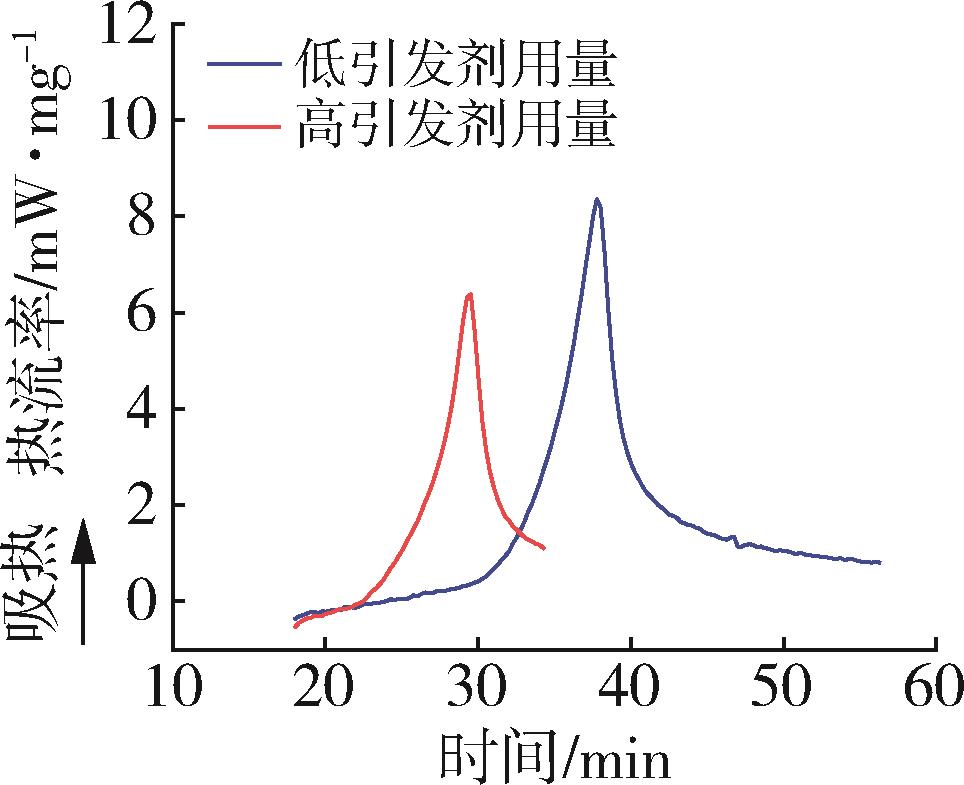

Fig.5. Effect of initiator dosage on oxidation induction time of ABS graft copolymers

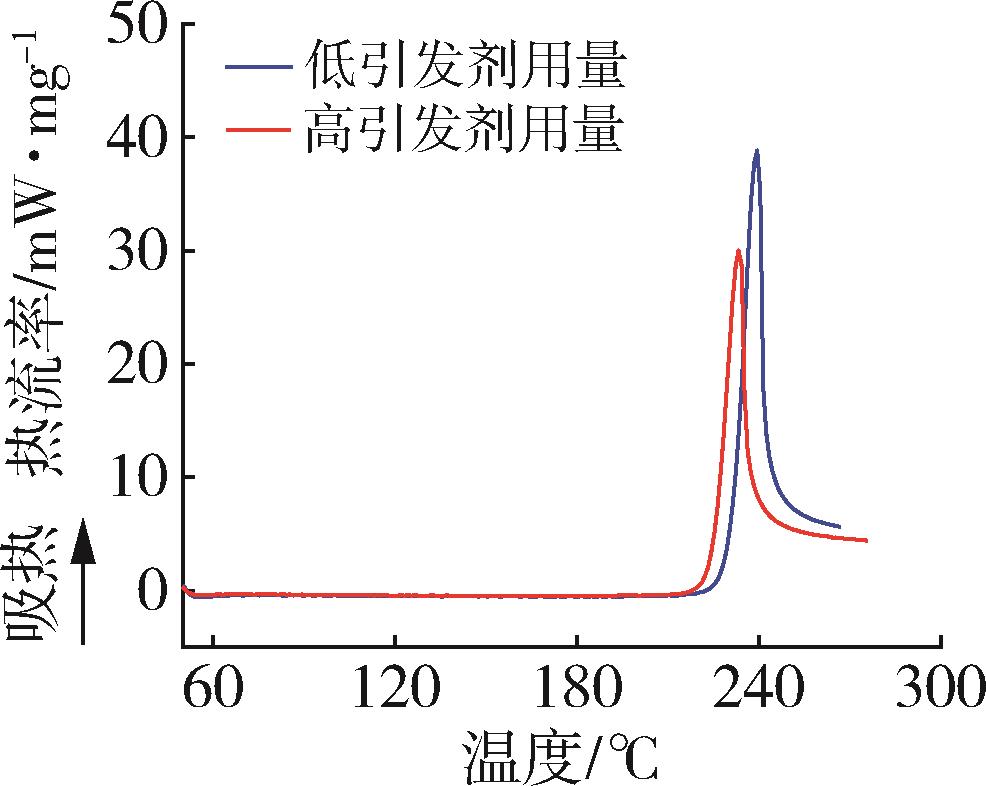

Fig.6. Effect of initiator dosage on oxidation induction temperature of ABS graft copolymers

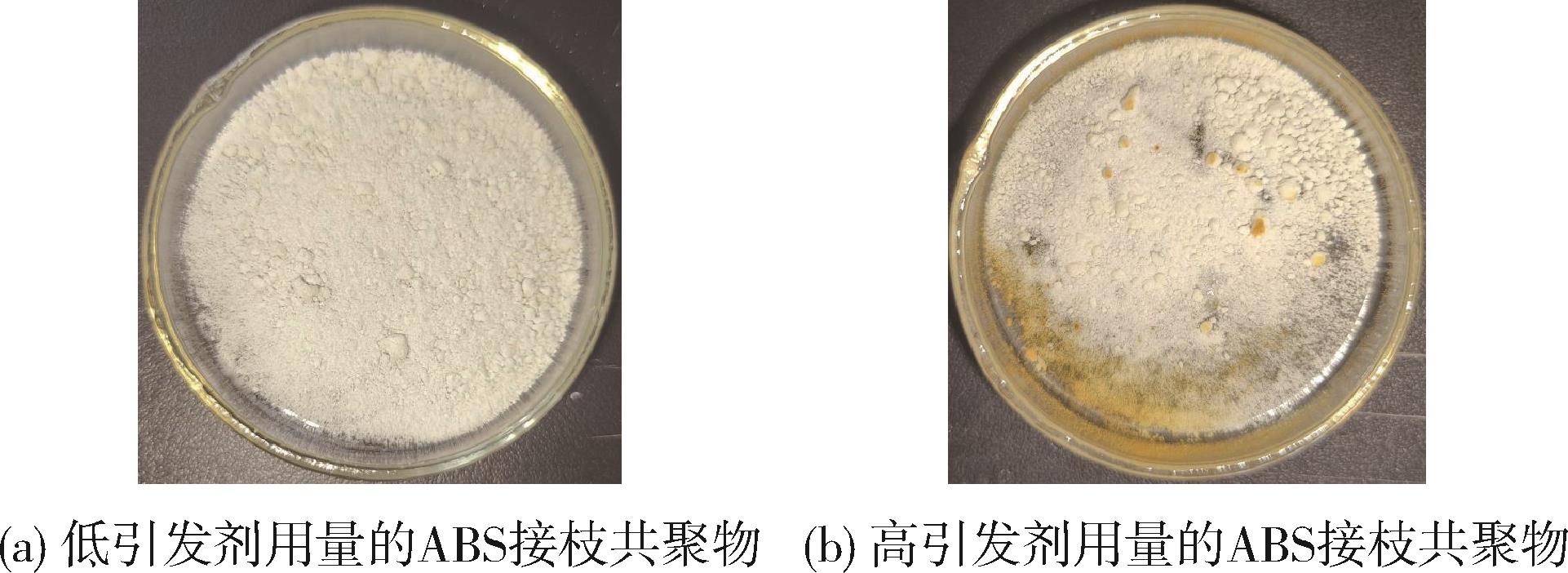

Fig.7. Photo of the samples

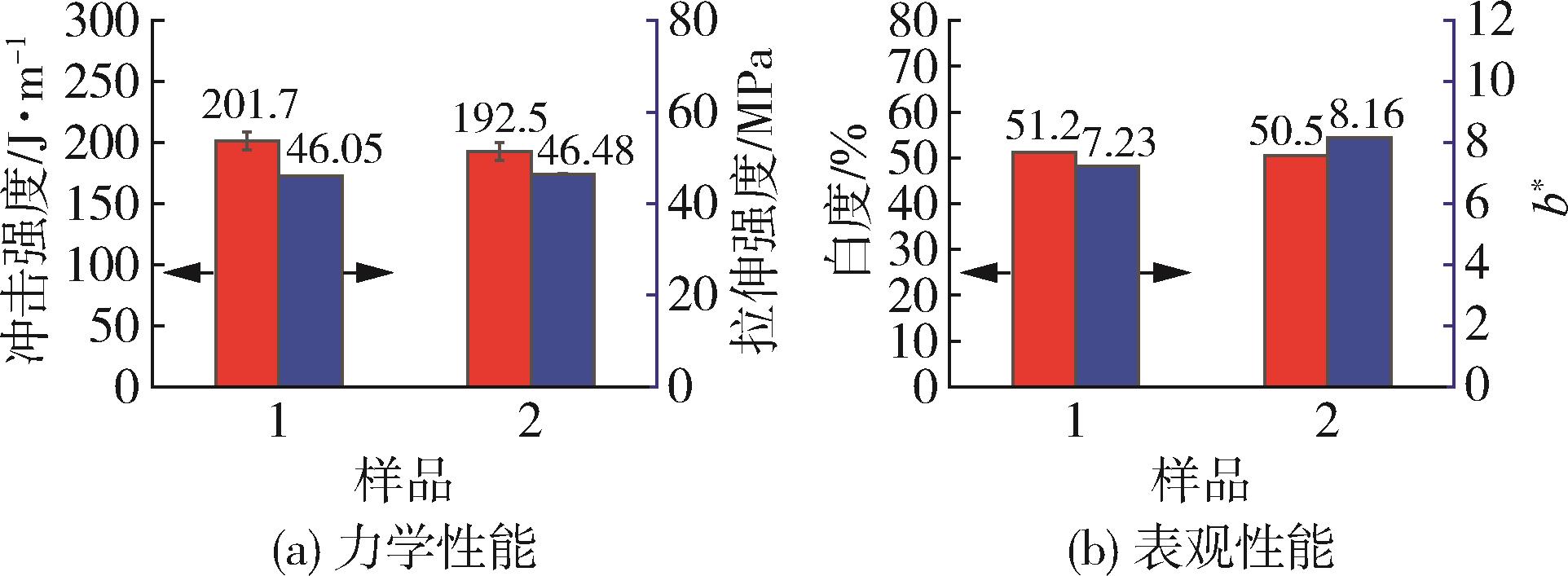

Fig.8. Properties of ABS resins prepared with different initiator additions

Fig.9. Oxidation induction time curves of ABS graft copolymers with different antioxidant dosages

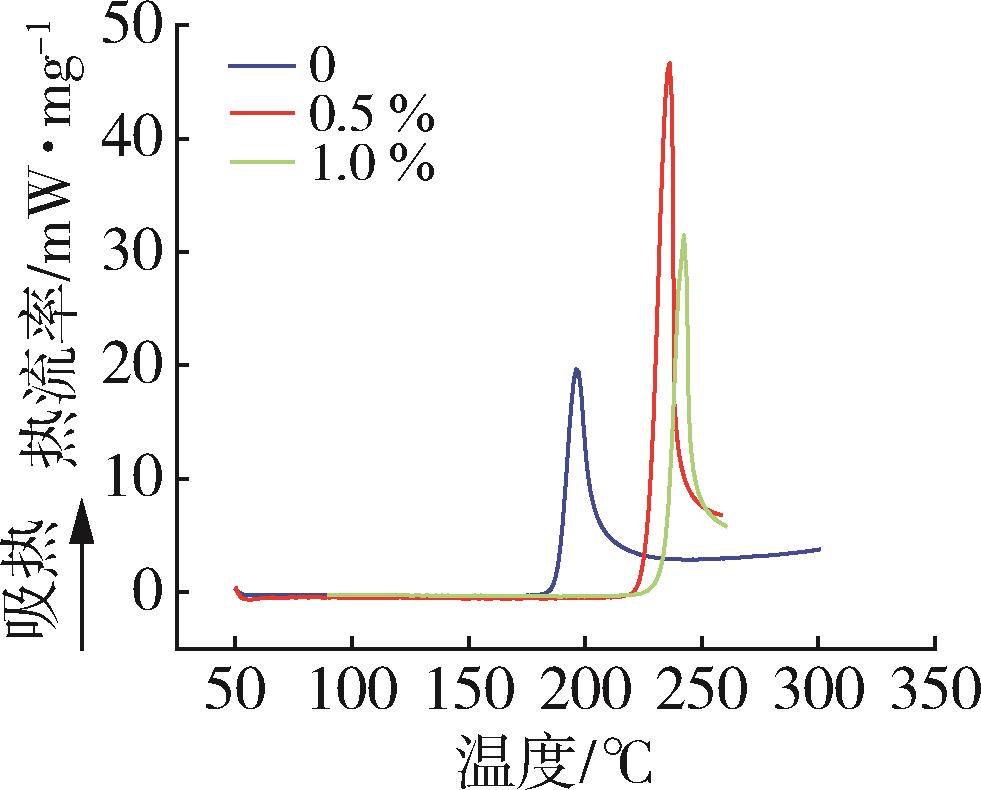

Fig.10. Oxidation induction temperature curves of ABS graft copolymers with different antioxidant dosages

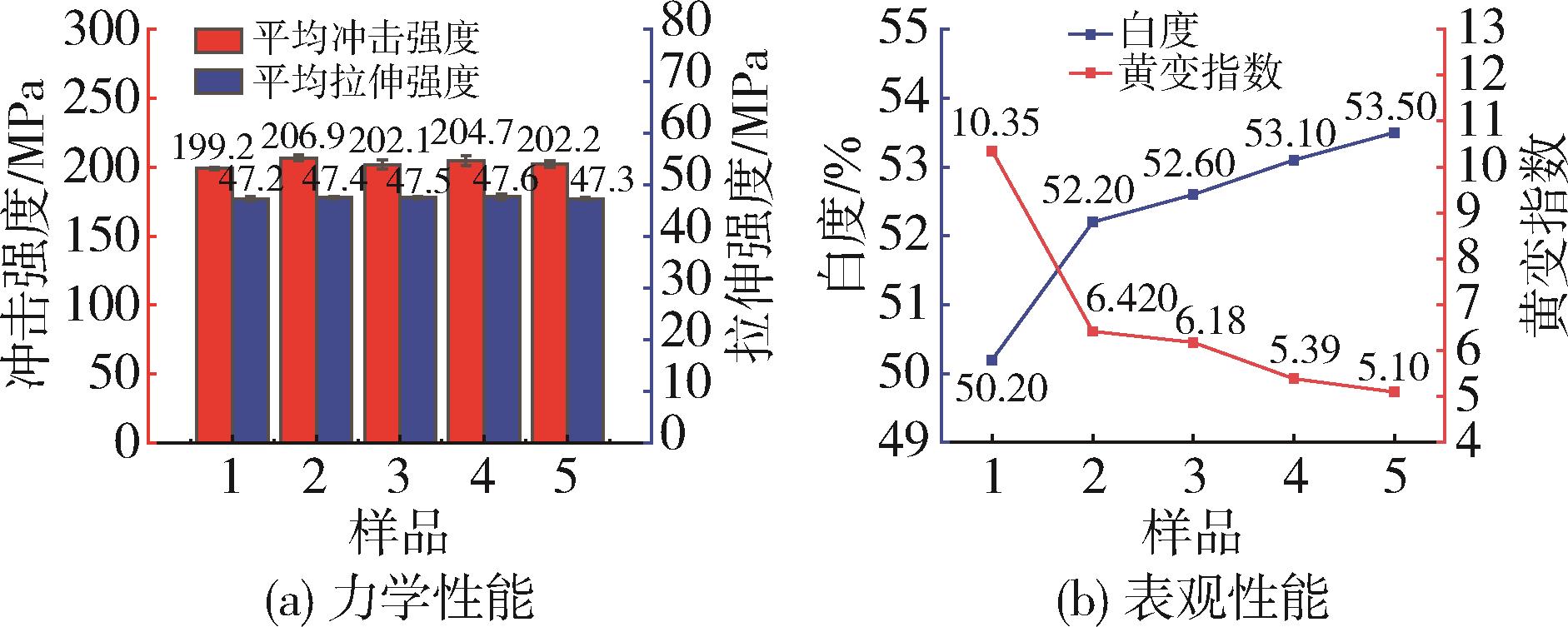

Fig.11. Mechanical properties and apparent properties of ABS resins with different antioxidant dosages

References 17

1	孙春福，陆书来，宋振彪，等.ABS树脂现状与发展趋势［J］.塑料工业，2018，46（02）：1⁃5+18.
	SUN C F， LU S L， SONG Z B，et al. Current situation and development trend of ABS resin in China［J］. China Plastics Industry，2018，46（02）：1⁃5+18.
2	黄立本，张立基，赵旭涛.ABS树脂及其应用［M］.北京：化学工学出版社，2001.
3	王毅，宋振彪，杨毓，等.影响ABS树脂热变形温度测试的因素［J］.塑料工业，2020，48（02）：118⁃122.
	WANG Y， SONG Z B， YANG Y，et al. The factors affecting the thermal deformation temperature test of ABS resin［J］. China Plastics Industry，2020，48（02）：118⁃122.
4	陈涛，马玉录，谢林生，等.双转子连续挤出机掺混工艺对ABS树脂性能的影响［J］.中国塑料，2018，32（03）：79⁃84.
	CHEN T， MA Y L， XIE L S， et al. Effect of blending condition on performance of ABS resin through twin⁃rotor continuous extruder［J］. China Plastics，2018，32（03）：79⁃84.
5	戴剑，黄牧，郑一泉，等.PA/ABS合金力学性能的提升［J］.塑料，2019，48（01）：62⁃66.
	DAI J， HUANG M， ZHENG Y Q， et al. Improvement of mechanical properties of PA/ABS alloy［J］. Plastics 2019，48（01）：62⁃66.
6	翟云芳，燕鹏华，魏绪玲.接枝聚合对ABS树脂性能影响的技术研究［J］.塑料工业，2022，50（S1）：49⁃52.
	ZHAI Y F， YAN P H， WEI X L. Study on the effect of graft polymerization on the properties of ABS resin［J］. China Plastics Industry，2022，50（S1）：49⁃52.
7	胡艺伟，关岚升，李丹琪，等.大粒径聚丁二烯胶乳制备工艺对ABS树脂性能影响［J］.塑料工业，2023，51（01）：36⁃41.
	HU Y W， GUAN L S， LI D Q， et al. Effect of preparation process of large particle size PBL latex on the properties of ABS resin［J］. China Plastics Industry，2023，51（01）：36⁃41.
8	Zhang N， Bao X X， Tan Z Y， et al. Morphology and mechanical properties of ABS blends prepared from emulsion‐polymerized PB‐g‐SAN impact modifier with AIBN as initiator［J］. Journal of Applied Polymer Science， 2007， 105（3）： 1 237⁃1 243.
9	Hou S， Li Z， Zhang Y J， et al. Phosphorous⁃phosphorous synergistic effect on flame retardancy， mechanically reinforce and hydrolytic resistance for PC/ABS blends［J］. Polymer Degradation and Stability， 2021， 183： 109442.
10	王宇超，陆书来，曹志臣，等.ABS树脂热稳定性能评价方法研究Ⅰ.热烘箱法模拟使用环境评价树脂性能［J］.塑料工业，2018，46（12）：104⁃109.
	WANG Y C， LU S L， CAO Z C， et al. Study on the evaluation methods of thermal stability for ABS resin Ⅰ. The environmental evaluation of resin performance by the simulation of thermal oven ageing methods［J］. China Plastics Industry， 2018，46（12）：104⁃109.
11	黄丹，刘振国，任亮，等.PB⁃g⁃SAN接枝共聚物的接枝率对ABS树脂结构与性能的影响［J］.高分子材料科学与工程，2010，26（05）：50⁃53.
	HUANG D， LIU Z G， REN L， et al. Effect of the grafting degree of PB⁃g⁃SAN grafting copolymer on the property and structure of ABS resin［J］. Polymer Materials Science & Engineering， 2010，26（05）：50⁃53.
12	孔新越，牛志峰，赵雪悠，等.ABS树脂DSC表征技术研究［J］.合成树脂及塑料，2021，38（06）：39⁃43.
	KONG X Y， NIU Z F， ZHAO X Y， et al. Application of DSC technologyin ABS resin characterization［J］. China Synthetic Resin and Plastics， 2021，38（06）：39⁃43.
13	Avci B B， Erkan G. The effect of glucose oxidase enzyme on wool fibres［J］. Coloration Technology， 2023， 139（2）： 147⁃164.
14	舒静，李丽丽，赵昱博.微波辐射合成聚乳酸及其聚乙二醇共聚物的研究［J］.塑料工业，2022，50（04）：42⁃46.
	SHU J， LI L L， ZHAO Y B. Microwave⁃irradiated preparation of poly （D， L⁃lactide acid） and poly （D， L⁃lactide acid）⁃co⁃poly （ethylene glycol） copolymer［J］. China Plastics Industry，2022，50（04）：42⁃46.
15	吴高澄，陈兴郁，段福江，等.ABS树脂用水性抗氧剂制备工艺及机理研究［J］.塑料工业，2022，50（03）：141⁃145+159.
	WU G C， CHEN X Y， DUAN F J， et al. Stady on the preparation technology aud mechanism of waterborne aulioxidunt in ABS resin［J］. China Plastics Industry， 2022，50（03）：141⁃145+159.
16	王孝鹏，张学茹，陈杰.聚合型抗氧剂的合成及其在ABS树脂中的应用［J］.塑料科技，2021，49（10）：10⁃12.
	WANG X P， ZHANG X R， CHEN J. Synthesis of polymeric antioxidant and its application in ABS resin［J］. Plastics Science and Technology， 2021，49（10）：10⁃12.
17	李晨洋，公维光，孟鑫，等.抗氧剂耐迁移化技术的研究应用进展［J］.中国塑料，2020，34（12）：92⁃102.
	LI C Y， GONG W G， MENG X， et al. Research and application progress of antioxidant anti⁃migration technology［J］. China Plastics， 2020，34（12）：92⁃102.
