Preparation and properties of polystyrene/magnesium hydroxide thermal conductive light diffusion material

doi:10.19491/j.issn.1001-9278.2024.11.002

Abstract

Abstract:

In this study， a thermal conductive light diffusion material with good optical and thermal conduction was prepared by blending polystyrene （PS） and magnesium hydroxide （MH） as an inorganic filler to match the refractive index. The comprehensive performance of the PS/MH thermal conductive light diffusion materials were regulated through adjusting the content of MH and employing the MH with a multi⁃particle size for compounding based on the experimental results obtained from the measurements on their micro⁃morphology， optical properties， thermal conductivity and mechanical properties. The results indicated that there was an MH thermal conductivity network formed in the matrix with an increase in the MH content. The transmittance of the thermal conductive light diffusion materials decreased gradually， their haze increased and tended to be stable， and their thermal conductivity was significantly improved. When 30 wt% MH with a multi⁃particle size content was incorporated， the resultant PS⁃30⁃3 thermal conductive light diffusion material obtained optimal comprehensive performance， its transmittance and haze reached 75.9 % and 92.70 %， respectively， and its thermal conductivity reached 0.52 W/（m·K）， which is 10 times as much as that of pure PS ［0.05 W/（m·K）］.

Key words: thermal conductive light diffusion material, polystyrene, magnesium hydroxide, property regulation

CLC Number:

TQ325.2

LIN Zhenbin, ZHU Huihao, WANG Yu, XIE Linsheng, LI Guo, MA Yulu. Preparation and properties of polystyrene/magnesium hydroxide thermal conductive light diffusion material[J]. China Plastics, 2024, 38(11): 8-13.

Figures/Tables 12

样品	PS	MH⁃1	MH⁃2	MH⁃3
PS	100	—	0	—
PS⁃10	90	—	10	—
PS⁃20	80	—	20	—
PS⁃30	70	—	30	—
PS⁃40	60	—	40	—
PS⁃30⁃1	70	20	10	—
PS⁃30⁃2	70	—	20	10
PS⁃30⁃3	70	10	10	10

Tab.1. Preparation scheme of the PS/MH thermally conductive light diffusion materials with different proportion

Fig.1. SEM images of the PS/MH thermally conductive light diffusion materials with different MH contents

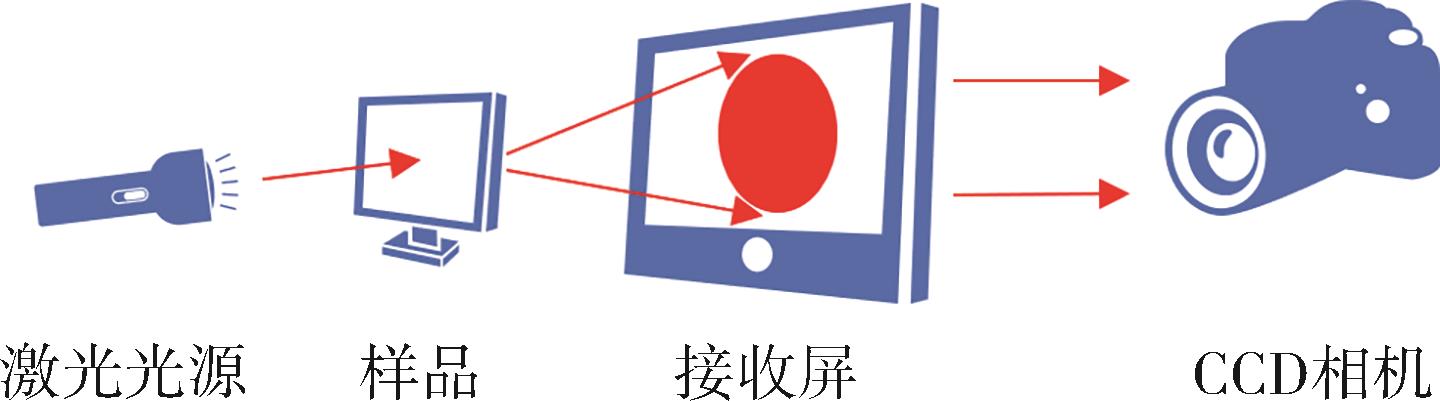

Fig.2. Schematic diagram of the optical diffusion performance test platform

Fig.3. Photos of scattering spot of the PS/MH thermally conductive light diffusion materials with different MH contents

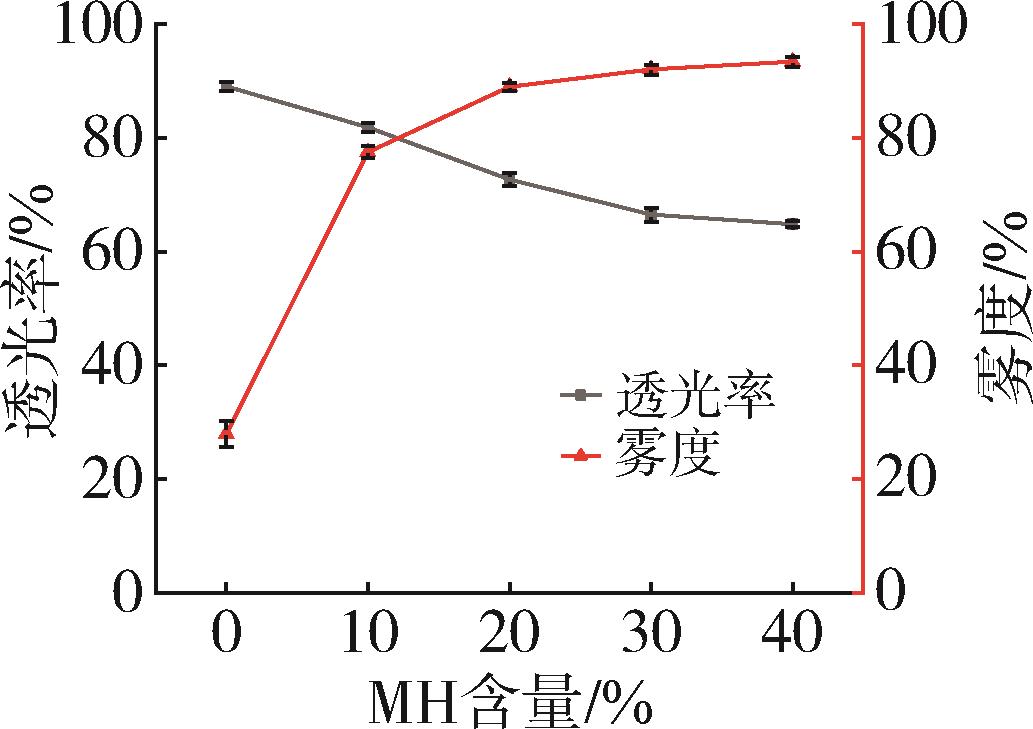

Fig.4. Changes of optical properties of the PS/MH thermally conductive light diffusion materials with MH contents

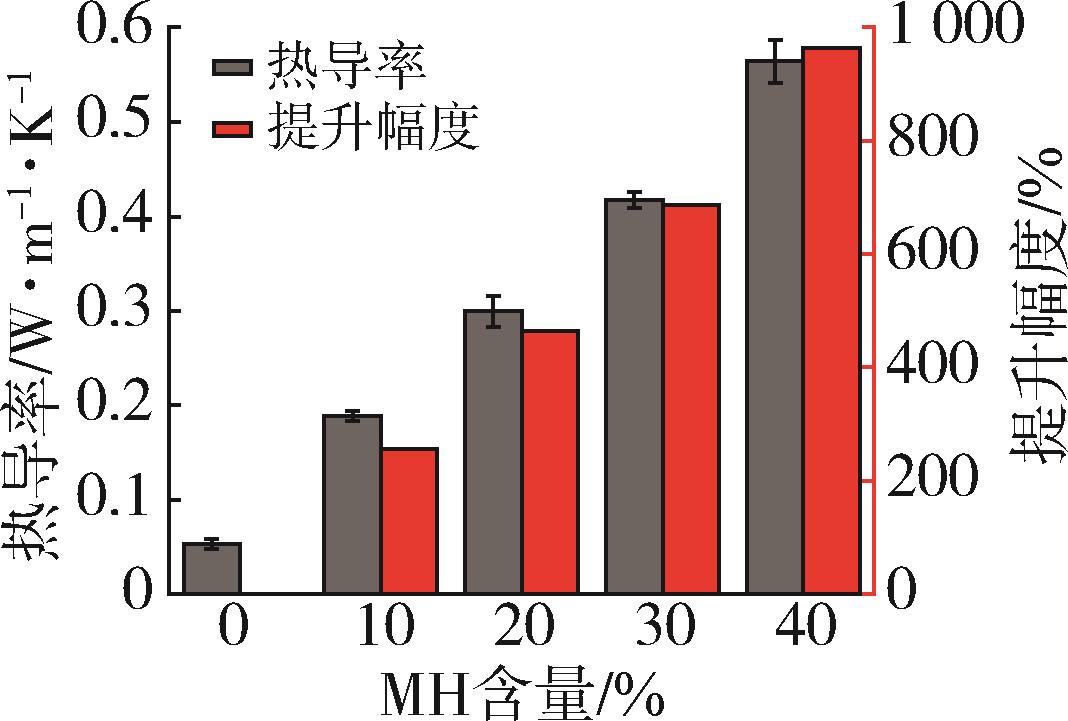

Fig.5. Changes of thermal conductivity of the PS/MH thermally conductive light diffusion materials with MH contents

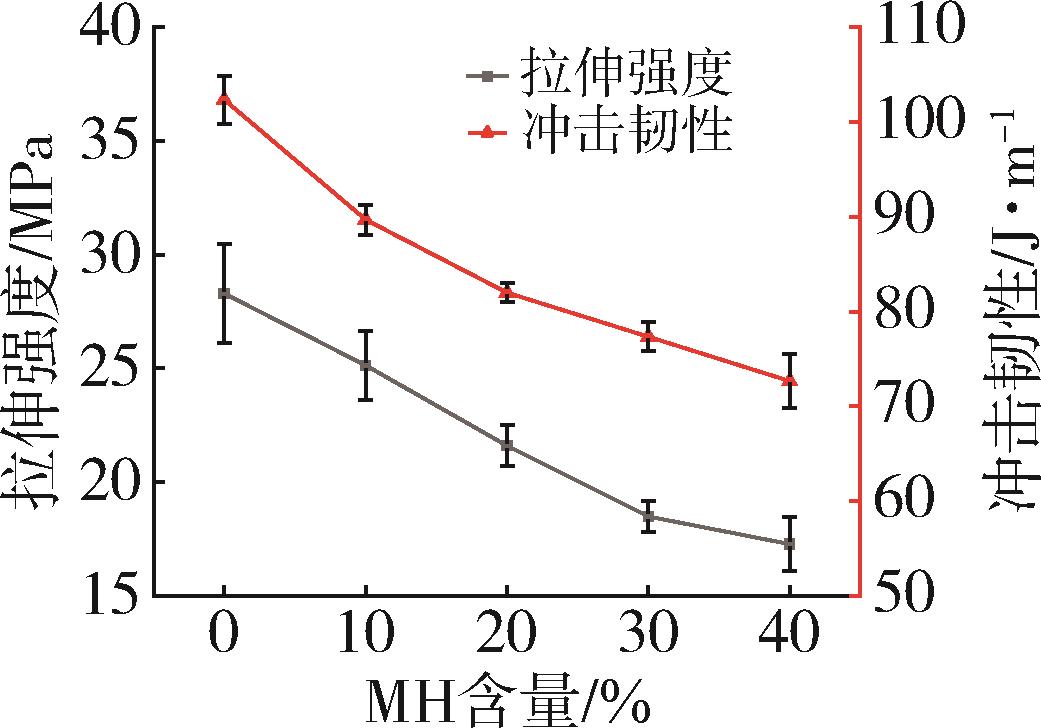

Fig.6. Changes of mechanical property of the PS/MH thermally conductive light diffusion materials with MH contents

Fig.7. SEM images of the PS/MH thermally conductive light diffusion materials with multi⁃particle size MH compound

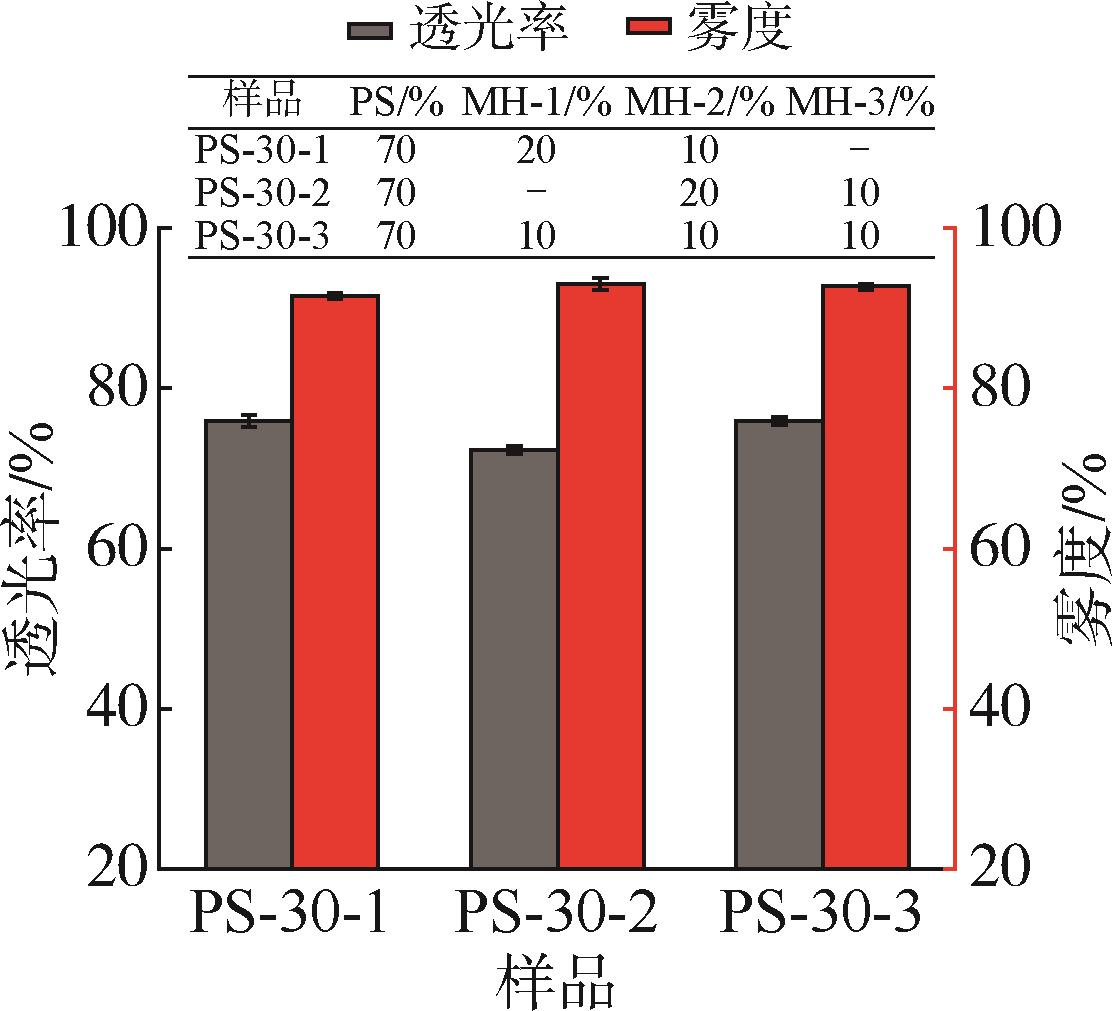

Fig.8. Optical properties of the PS/MH thermally conductive light diffusion materials with multi⁃particle size MH compound

样品	MH浓度/μm^-3
PS⁃30	1.11×10^-3
PS⁃30⁃1	3.73×10^-4
PS⁃30⁃2	7.26×10^-3
PS⁃30⁃3	6.89×10^-3

Tab.2. MH concentration in the PS/MH thermally conductive light diffusion material with multi⁃particle MH compound

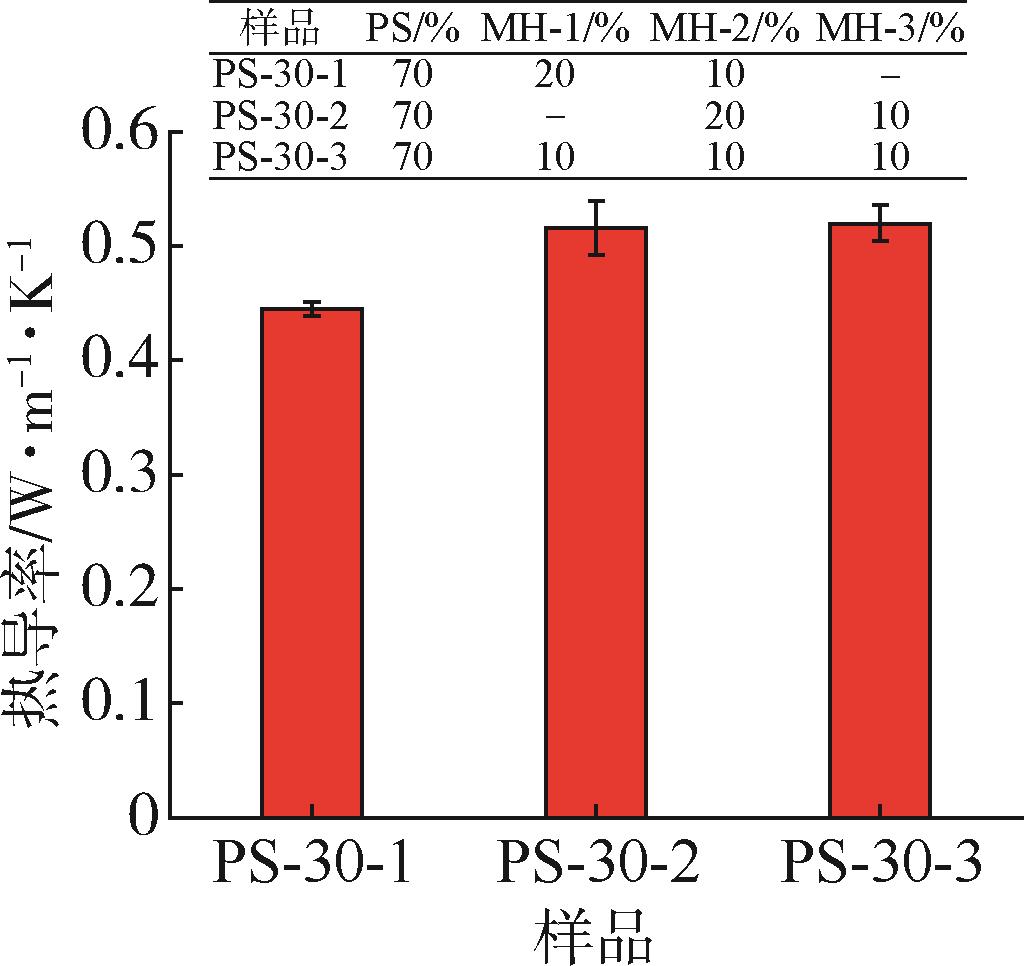

Fig.9. Thermal conductivity of the PS/MH thermally conductive light diffusion materials with multi⁃particle size MH compound

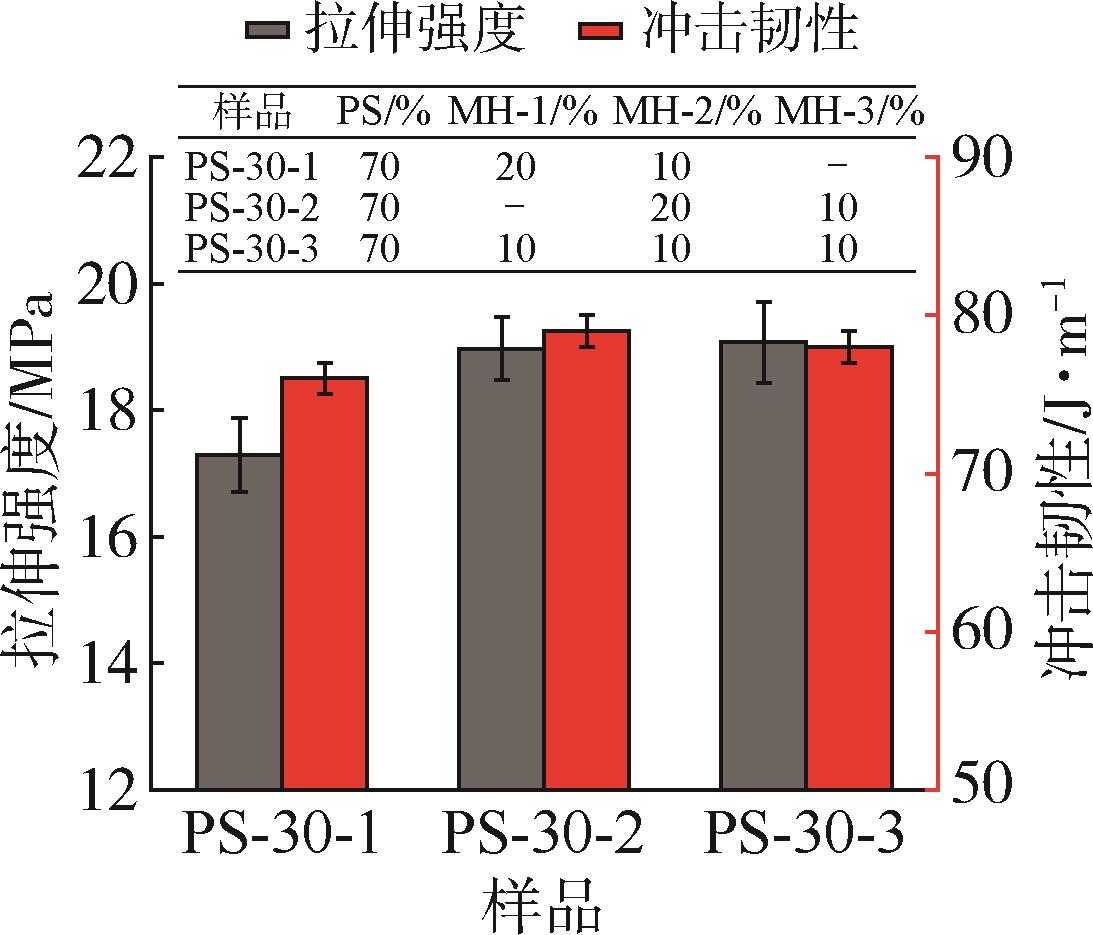

Fig.10. Mechanical properties of the PS/MH thermally conductive light diffusion materials with multi⁃particle size MH compound

References 20

1	左志刚，周帅，田同金，等. 高性能光扩散材料的研究进展［J］. 中国塑料， 2022， 36（03）： 157⁃166.
	ZUO Z G， ZHOU S， TIAN T J， et al. Research progress in high⁃performance light diffusion materials［J］. China Plastics， 2022， 36（03）： 157⁃166.
2	易平，熊英，刘晓，等. PC/SAN共混体系微观结构与光学性能的关系及性能优化［J］. 高分子材料科学与工程， 2015， 31（08）： 50⁃55.
	YI P， XIONG Y， LIU X，et al. Relationship between microstructure and optical properties of PC/SAN blend and property optimization［J］. Polymer Materials Science & Engineering， 2015， 31（08）： 50⁃55.
3	陈晓松，余秋平，李珊珊，等. 光扩散剂的选用对光扩散PC材料性能的影响［J］. 塑料， 2022， 51（01）： 30⁃35，83.
	CHEN X S， YU Q P， Li S S， et al. Effect of choice and application of light diffusion agent on properties of light diffusion PC materials［J］. Plastics， 2022， 51（01）： 30⁃35， 83.
4	王文惠，朱惠豪，李果，等. PP/PC光扩散材料的制备及其抗紫外性能优化［J］. 中国塑料， 2023， 37（08）：8⁃12.
	WANG W H， ZHU H H， LI G， et al. Preparation and optimization of PP/PC light diffusing materials for ultraviolet shielding effect［J］. China Plastics， 2023， 37（08）： 8⁃12.
5	Madrid⁃Wolff J， Boniface A， Loterie D， et al. Controlling light in scattering materials for volumetric additive manufacturing［J］. Advanced Science， 2022， 9（22）： 2105144.
6	Duan Y， Yi P， Ding Y， et al. Fast fabrication of a light‐scattering polycarbonate with high transmittance， high haze， and excellent flame‐retardant performance［J］. Journal of Applied Polymer Science， 2022， 139（43）： e53055.
7	Wu X， Gao Y， Yao H， et al. Flexible and transparent polymer/cellulose nanocrystal nanocomposites with high thermal conductivity for thermal management application［J］. Journal of Applied Polymer Science， 2020， 137（28）： 48864.
8	Bouchard Felix， Soldera Marcos， Andrés Fabián Lasagni. PMMA optical diffusers with hierarchical surface structures imprinted by hot embossing of laser⁃textured stainless steel［J］. Advanced Optical Materials， 2022， 11（3）： 2202091.
9	Luo S， Xue J， Xiong Y， et al. Light⁃scattering properties of linear low density polyethylene/polystyrene films fabricated through layer⁃multiplying technology［J］. Journal of Applied Polymer Science， 2016， 133（33）： 43826.
10	Zhou L， Ma H， Han C， et al. A novel light diffuser based on the combined morphology of polymer networks and polymer balls in a polymer dispersed liquid crystals film［J］. RSC Advances， 2018， 8（39）：21 690⁃21 698.
11	Ding Y， Zhou Q， Li X， et al. PC light⁃scattering material containing “pomegranate⁃like” SAN⁃SiO2 microspheres with excellent effective scattering range based the large⁃screen display［J］. Composites Science and Technology， 2021， 201： 108532.
12	Zhu H， Wang W， Wang Y， et al. Preparation of PP/PC light‐diffusing materials with UV ‐shielding property［J］. Polymer Composites， 2023， 44（9）： 5 553⁃5 566.
13	Loste J， Lopez⁃Cuesta J M， Billon L， et al. Transparent polymer nanocomposites： An overview on their synthesis and advanced properties［J］. Progress in Polymer Science， 2019， 89： 133⁃158.
14	Imai Y， Terahara A， Hakuta Y， et al. Transparent poly（bisphenol A carbonate）⁃based nanocomposites with high refractive index nanoparticles［J］. European Polymer Journal， 2009， 45（3）： 630⁃638.
15	Wei B， Chen X， Yang S. Construction of a 3D aluminum flake framework with a sponge template to prepare thermally conductive polymer composites［J］. Journal of Materials Chemistry A， 2021， 9（17）： 10 979⁃10 991.
16	Yu H， Guo P， Qin M， et al. Highly thermally conductive polymer composite enhanced by two⁃level adjustable boron nitride network with leaf venation structure［J］. Composites Science and Technology， 2022， 222： 109406.
17	Sato Kimiyasu， Tominaga Yuichi， Imai Yusuke. Optically transparent and thermally conductive composite films of α⁃alumina and highly refractive polyimide［J］. Polymer Bulletin， 2022， 80（9）： 1⁃10.
18	Shilpa K N， Nithin K S， Sachhidananda S， et al. Visibly transparent PVA/sodium doped dysprosia （Na₂Dy₂O₄） nano composite films， with high refractive index： An optical study［J］. Journal of Alloys and Compounds， 2017， 694： 884⁃891.
19	Chen X， Yu J， Guo S， et al. Surface modification of magnesium hydroxide and its application in flame retardant polypropylene composites［J］. Journal of Materials Science， 2009， 44（5）： 1 324⁃1 332.
20	臧充光，张计传，曹先鹏. 高抗冲聚苯乙烯增韧阻燃改性研究［C］//第17届全国复合材料学术会议（智能与功能复合材料分论坛）论文集，中国航空学会，2012：4.
